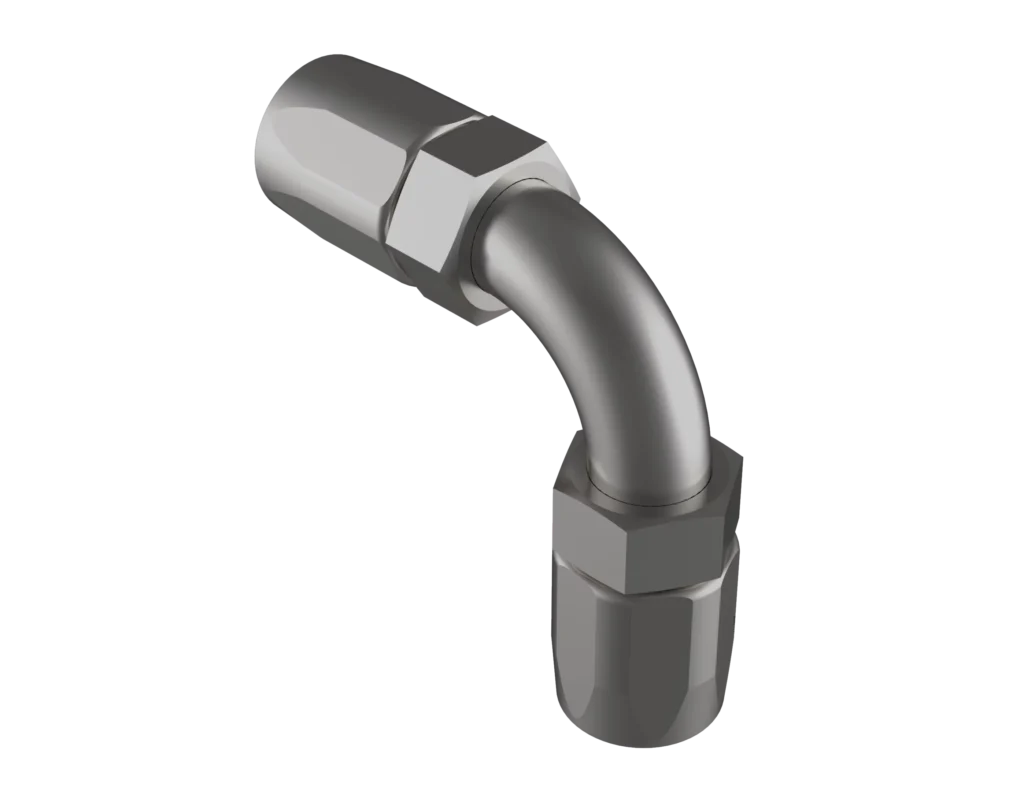

Equals to P/N 93-191302

Defense

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
93-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
93-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
93-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	1210-	6B	8B	10B	12B	Monel

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31

Description	Req’d per Ass’y	Base No.	1616	Material
Elbow	1	15-419037-	16	Monel
Socket	2	1212-	16B	Monel

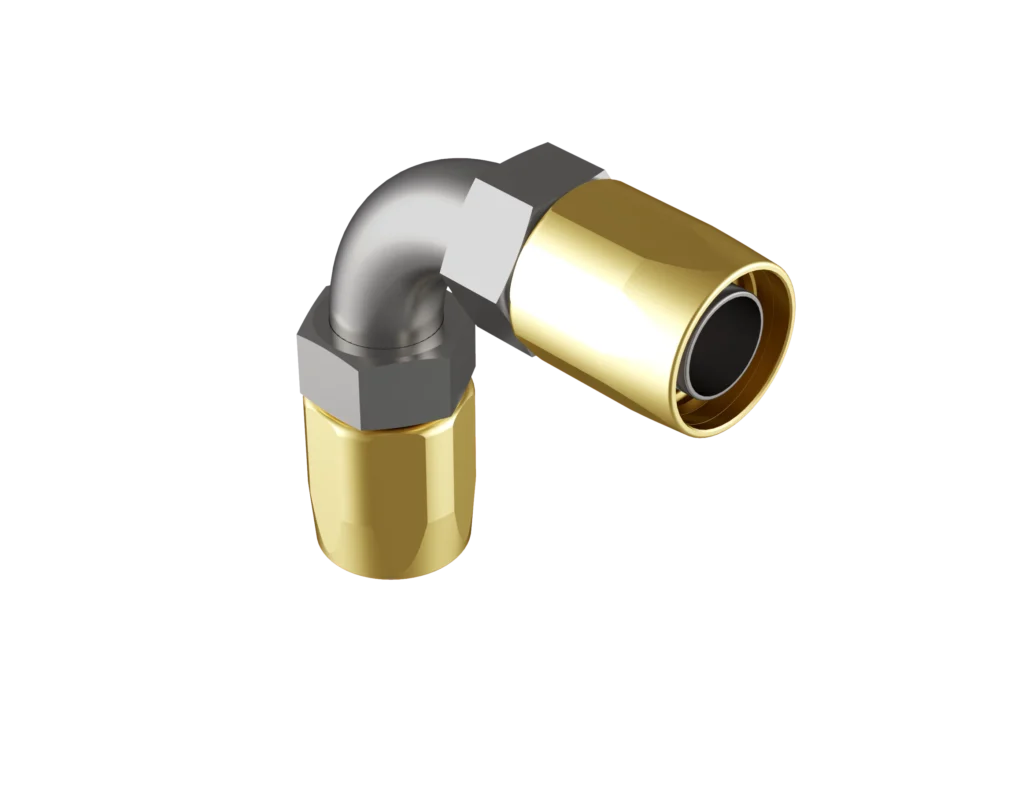

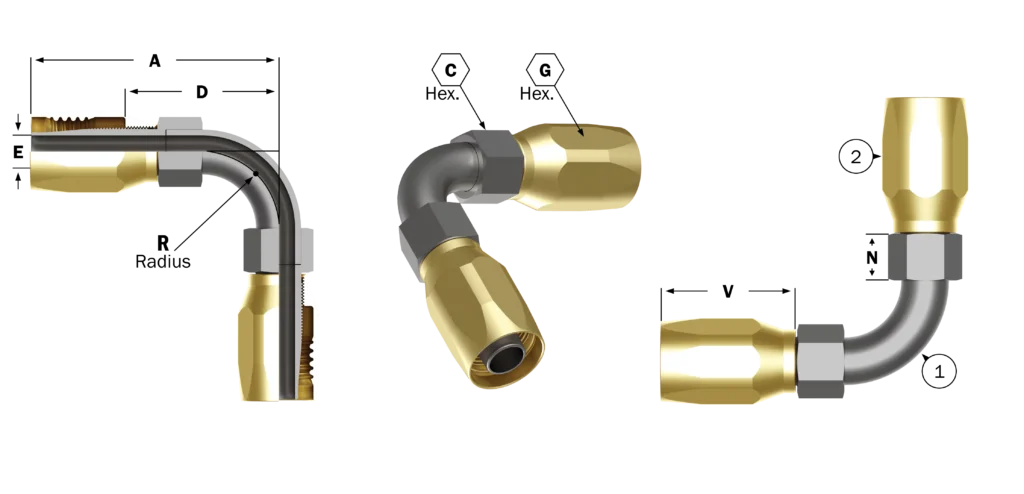

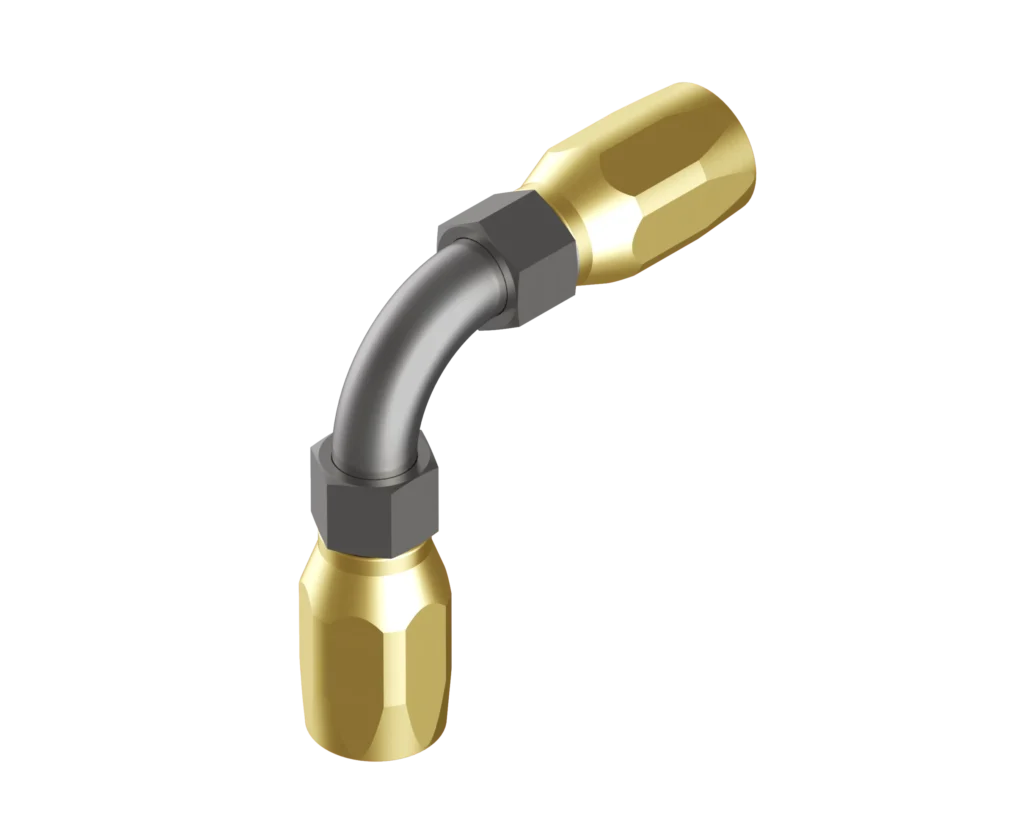

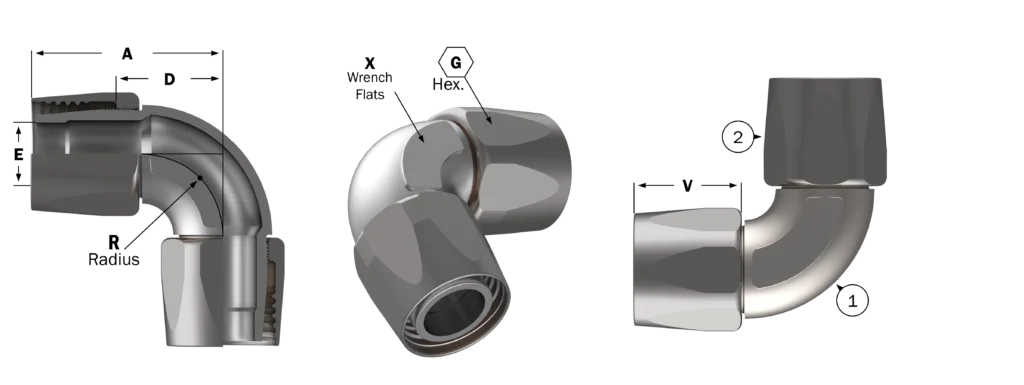

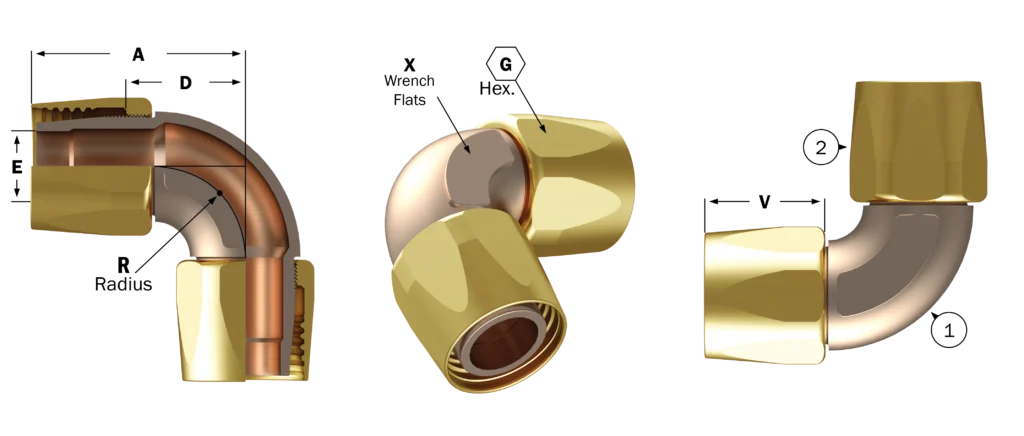

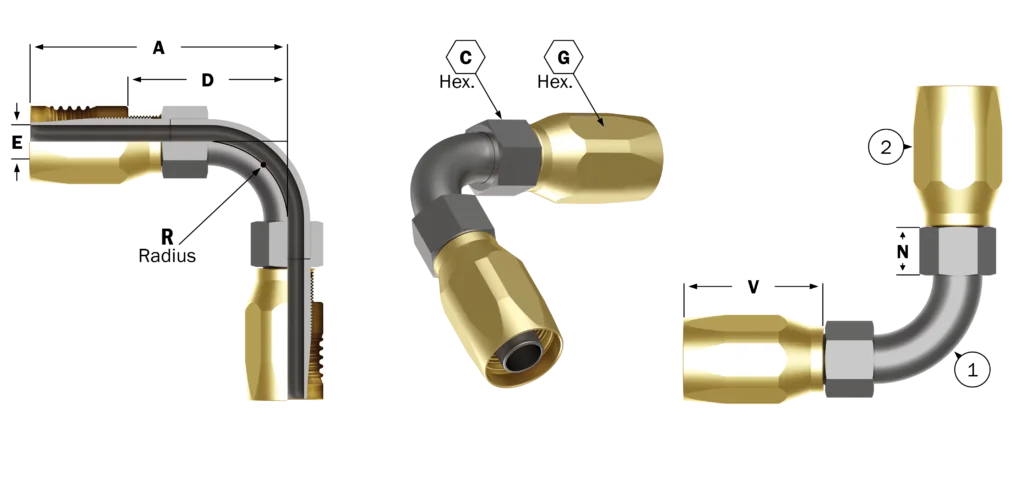

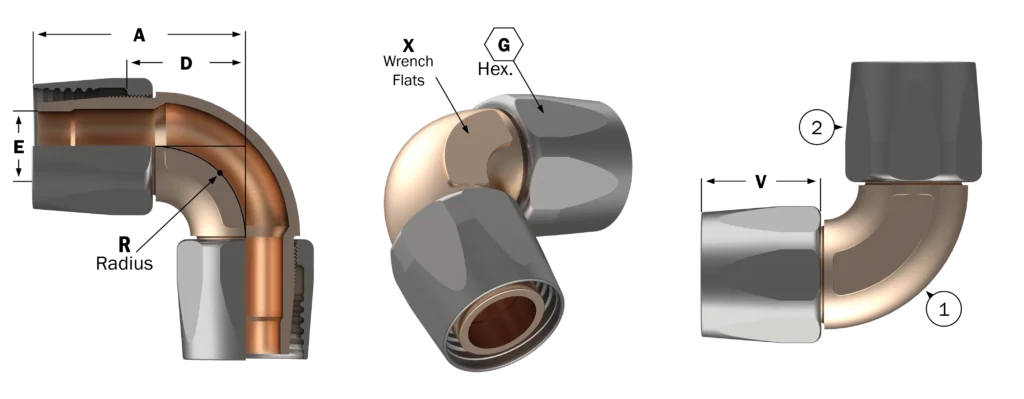

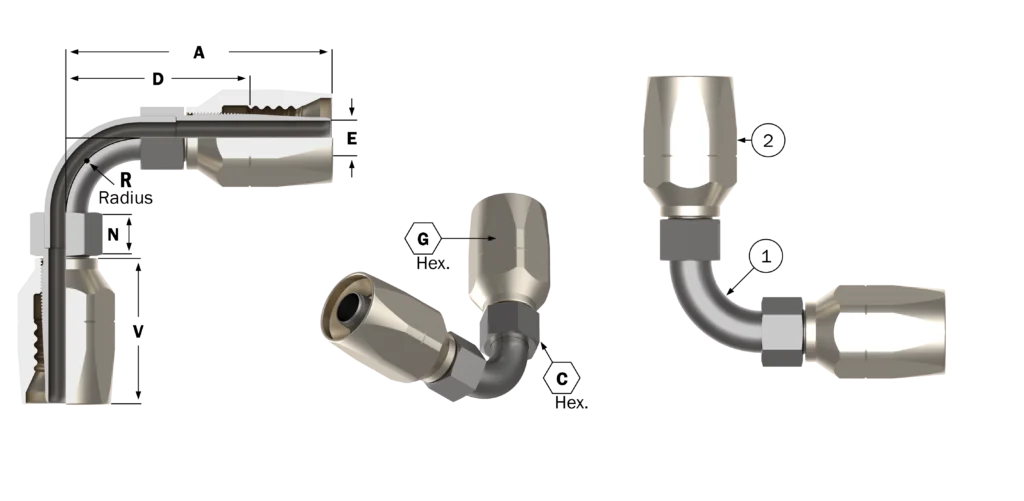

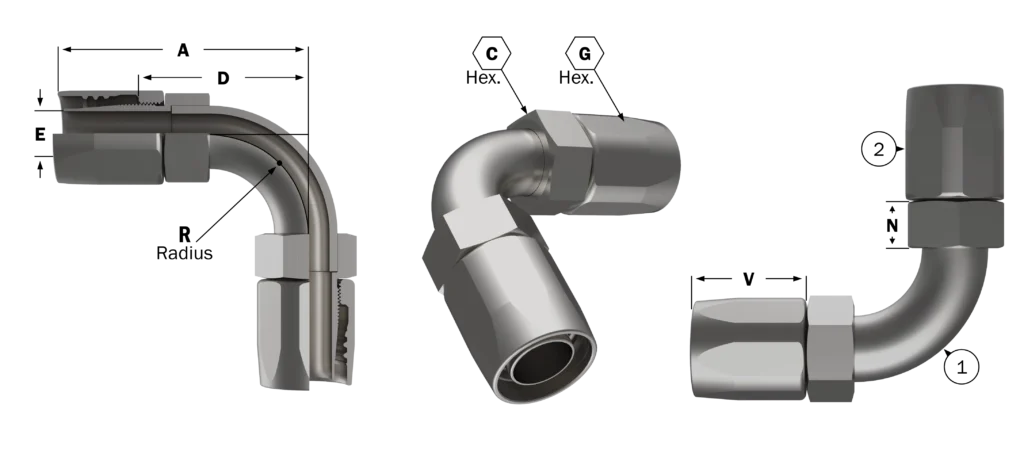

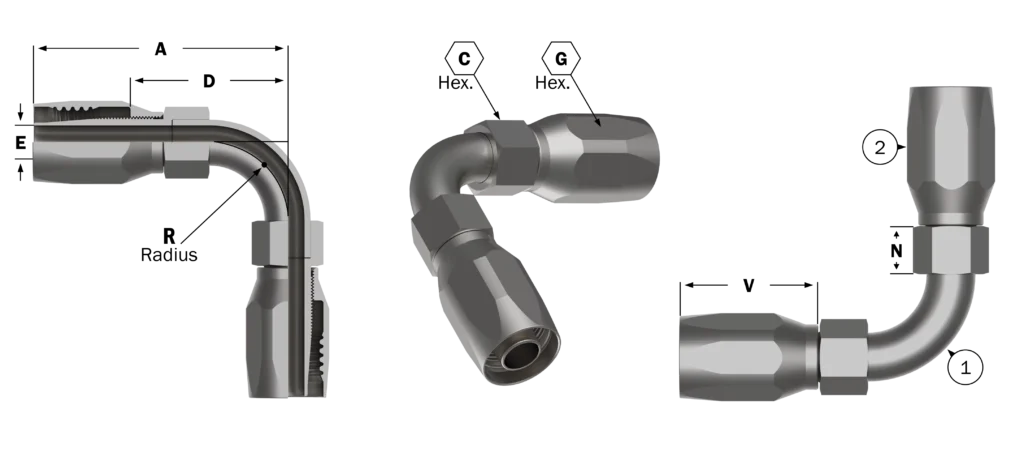

HS1488

Equal to Aeroquip P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
93-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
93-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
93-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	1210-	6B	8B	10B	12B	Monel

HS1488 Equivalent

P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31

Description	Req’d per Ass’y	Base No.	1616	Material
Elbow	1	15-419037-	16	Monel
Socket	2	1212-	16B	Monel

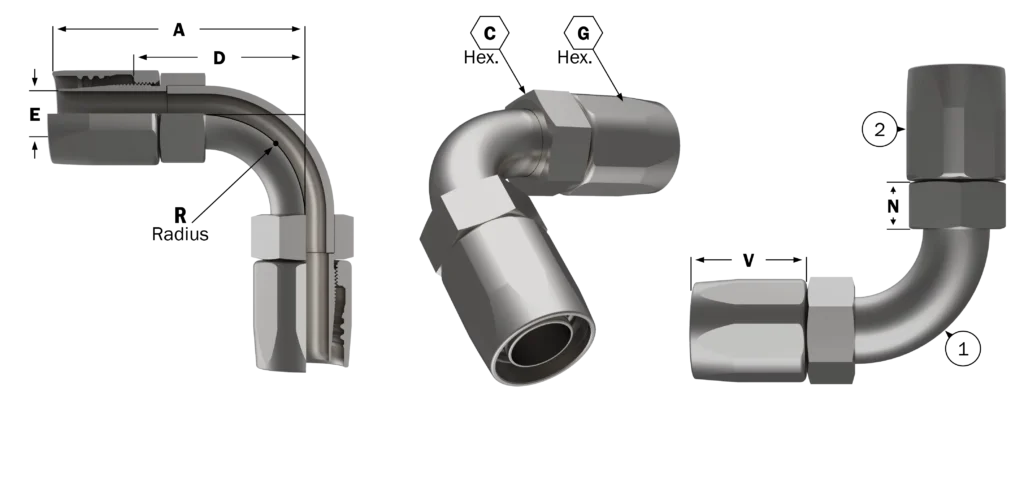

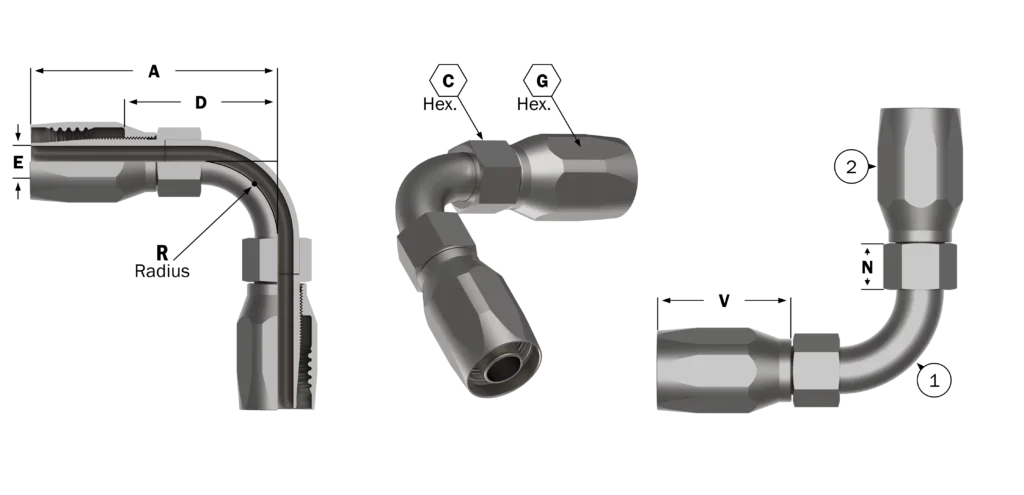

Equals to P/N 4-191302

Defense

MIL-DTL-24787/5

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
4-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
4-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
4-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	4-1210-	6	8	10	12	Monel

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31
4-191302-32	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	Base No.	1616	3232	Material
Elbow	1	15-4419037-	16	32	Monel
Socket	2	4-1212-	16	32	Monel

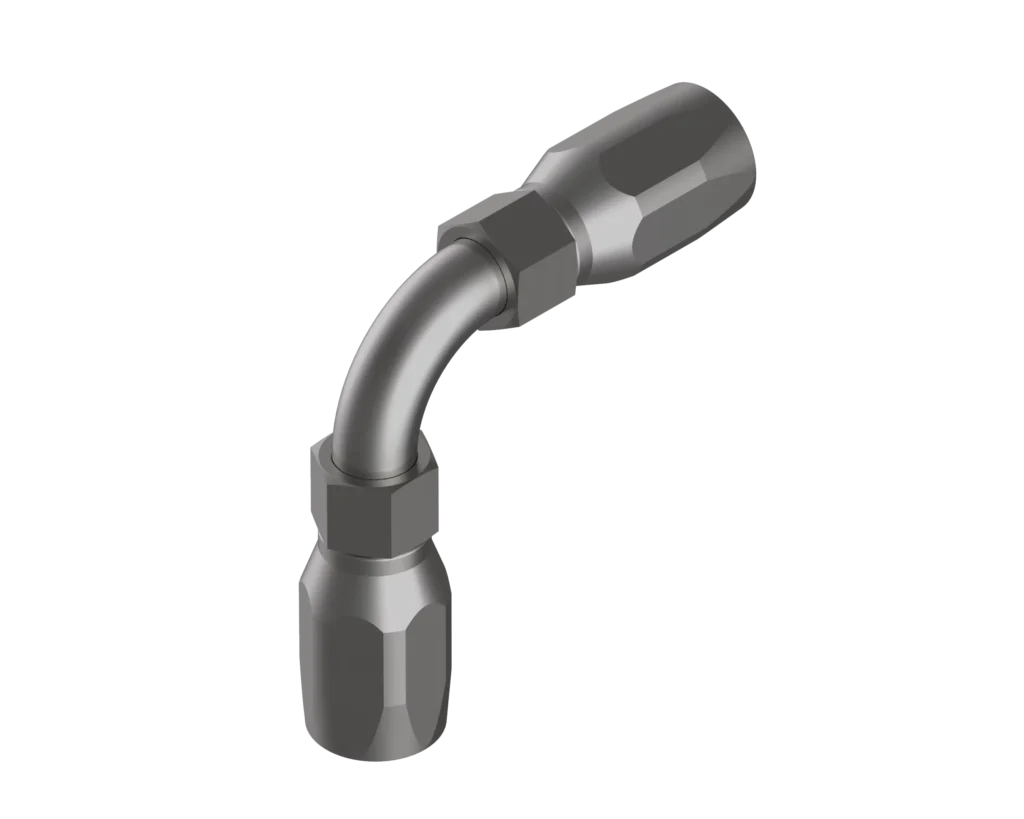

HS1488

Equal to Aeroquip P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
4-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
4-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
4-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31
4-191302-32	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	Base No.	1616	3232	Material
Elbow	1	15-4419037-	16	32	Monel
Socket	2	4-1212-	16	32	Monel

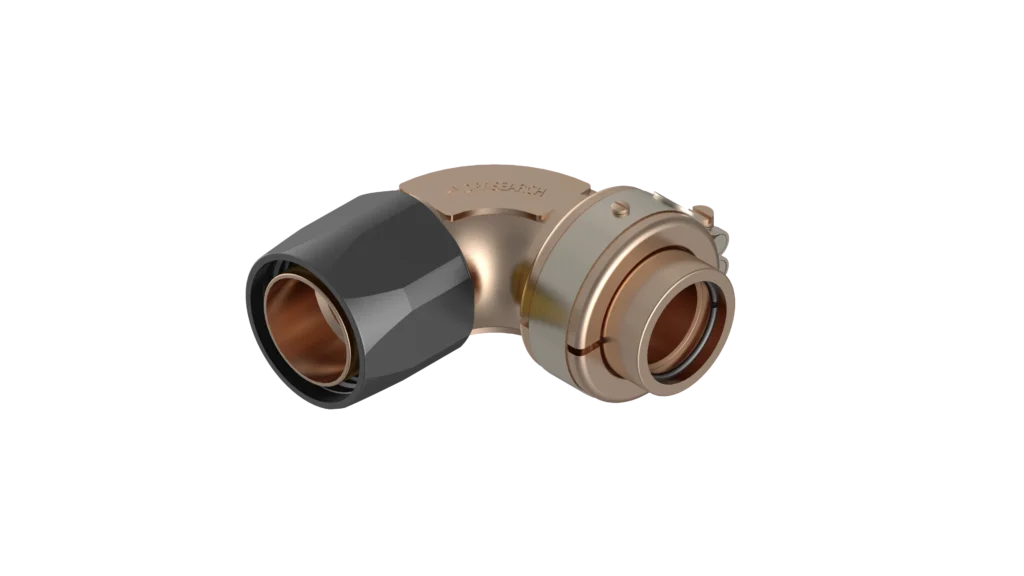

Equals to P/N FC9426-375

Defense

MIL-DTL-24787/4

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type EL, Group VIII

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Desceiption	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-375	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-375	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-375	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-375	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

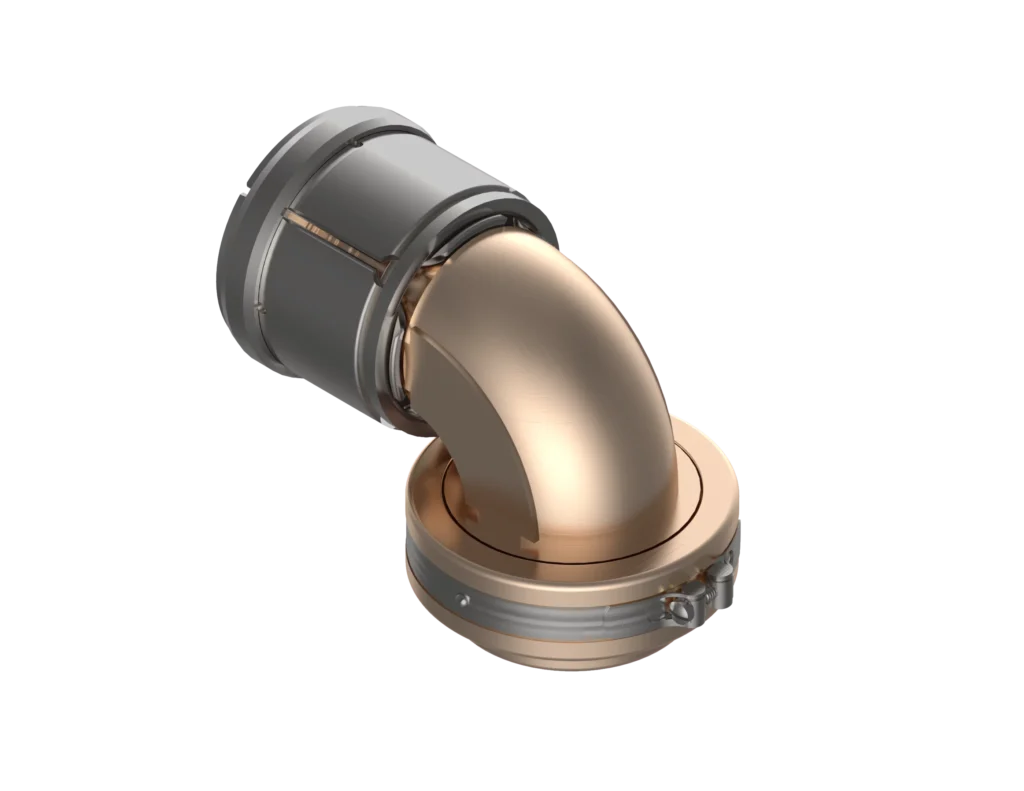

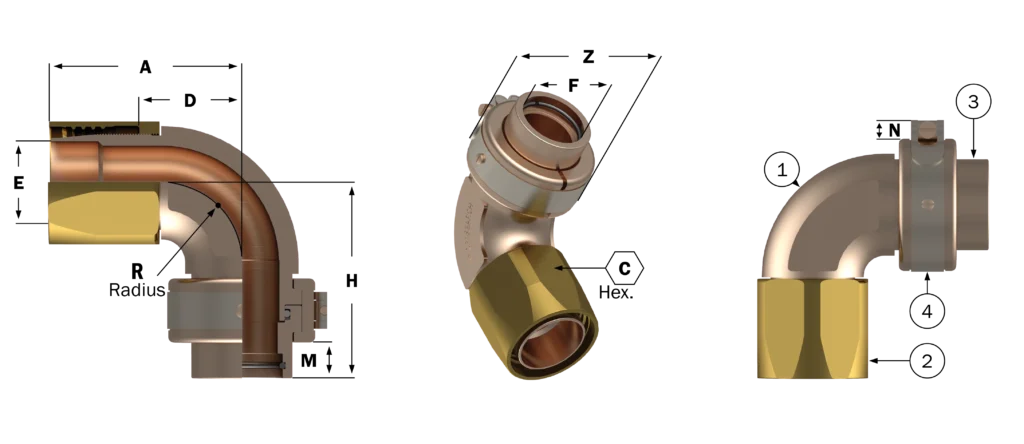

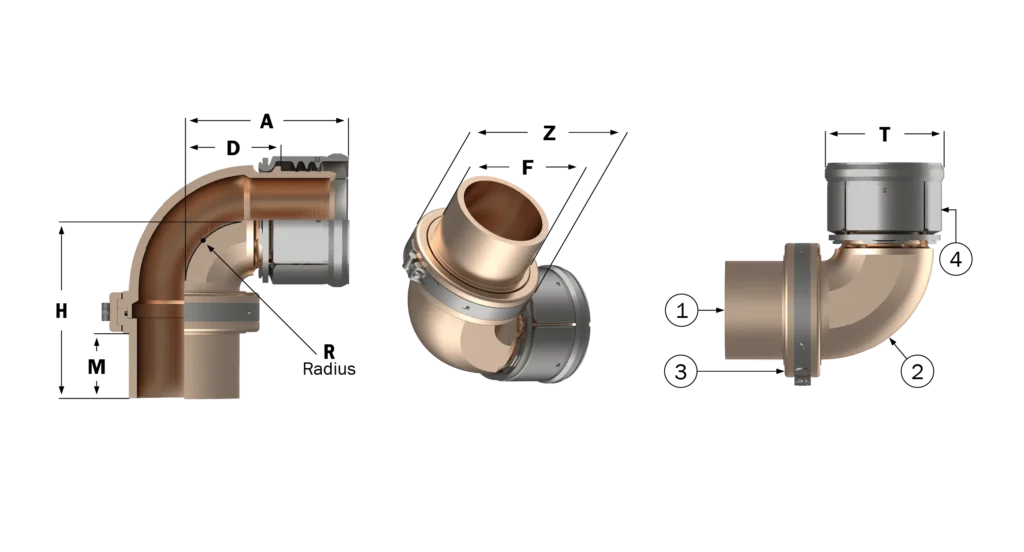

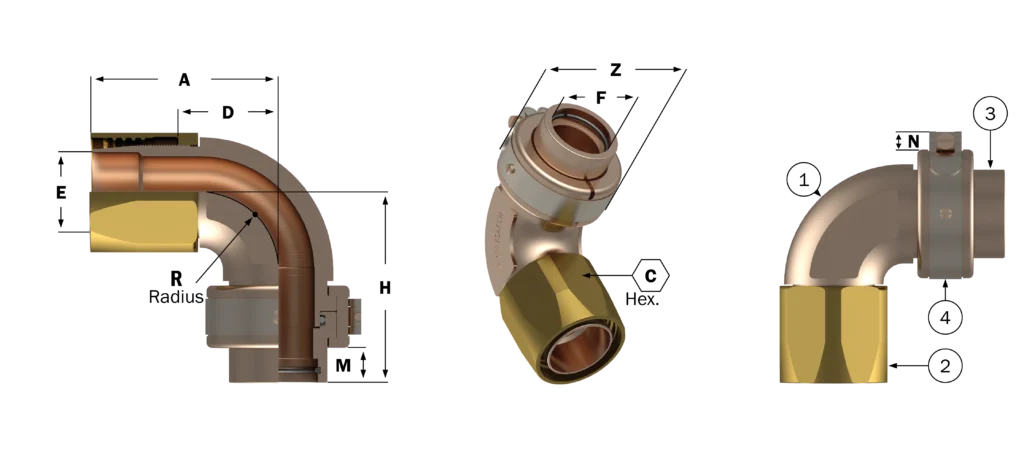

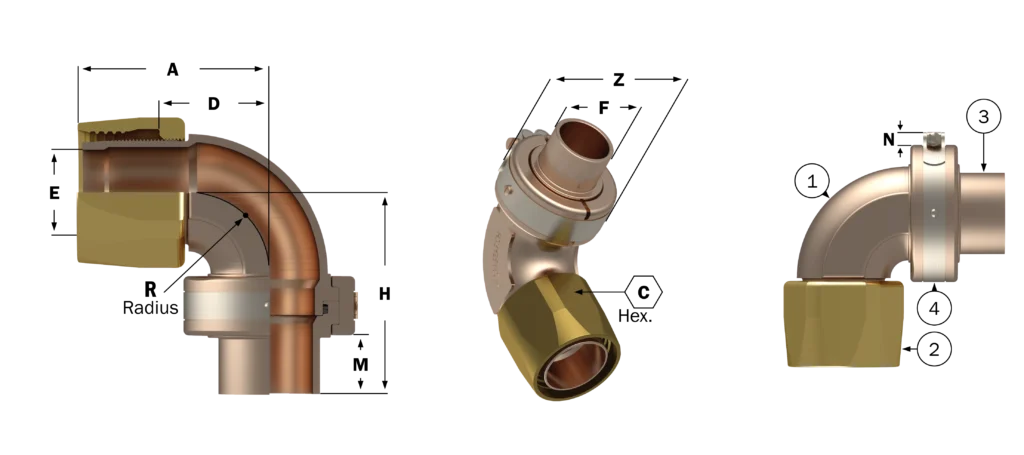

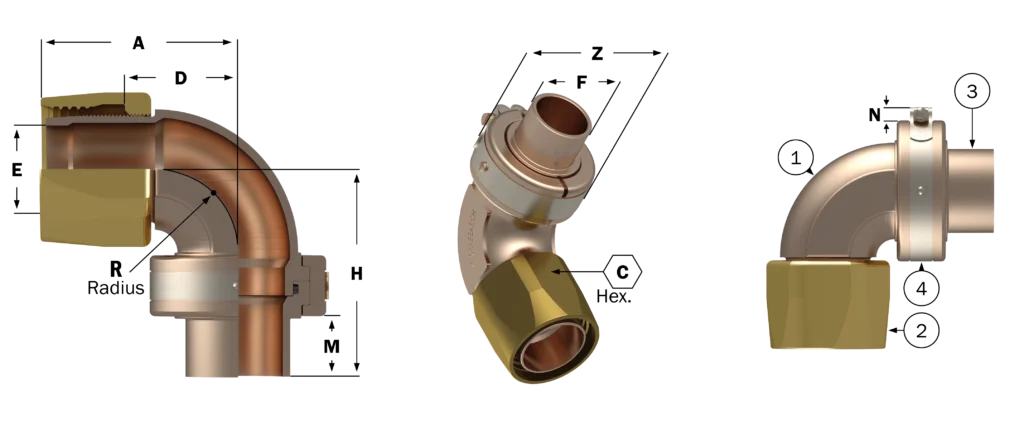

Equal to Aeroquip P/N FC9426-375

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

MIL-DTL-24787/4,

Type EL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Desceiption	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

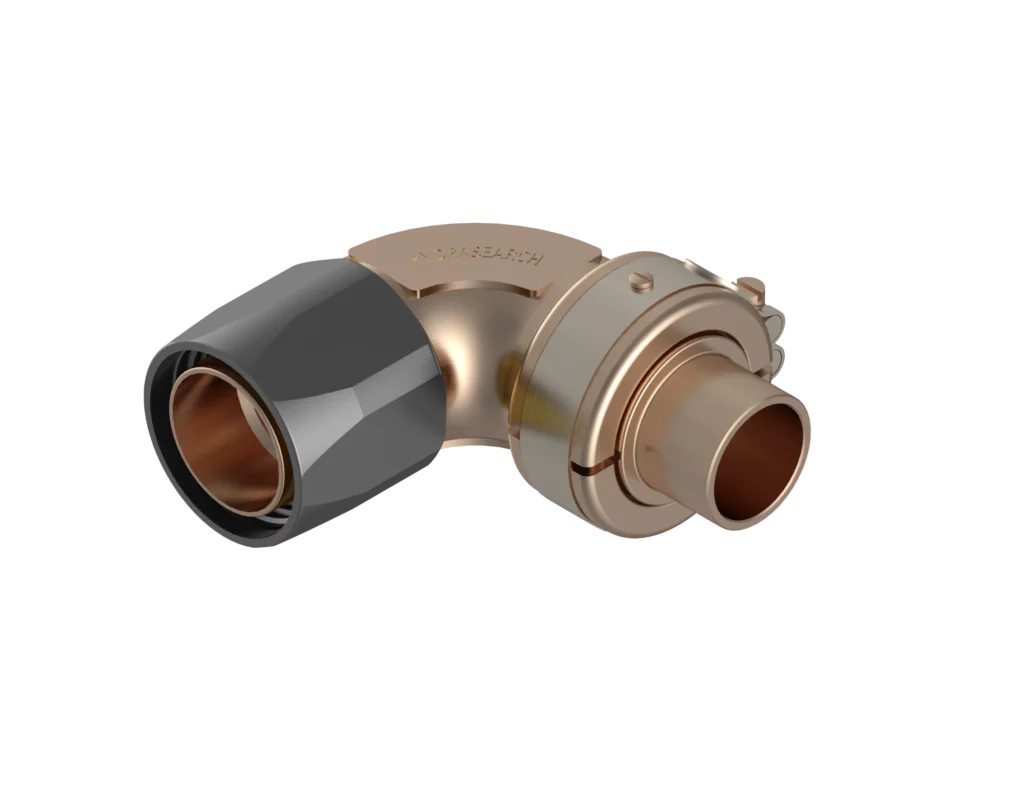

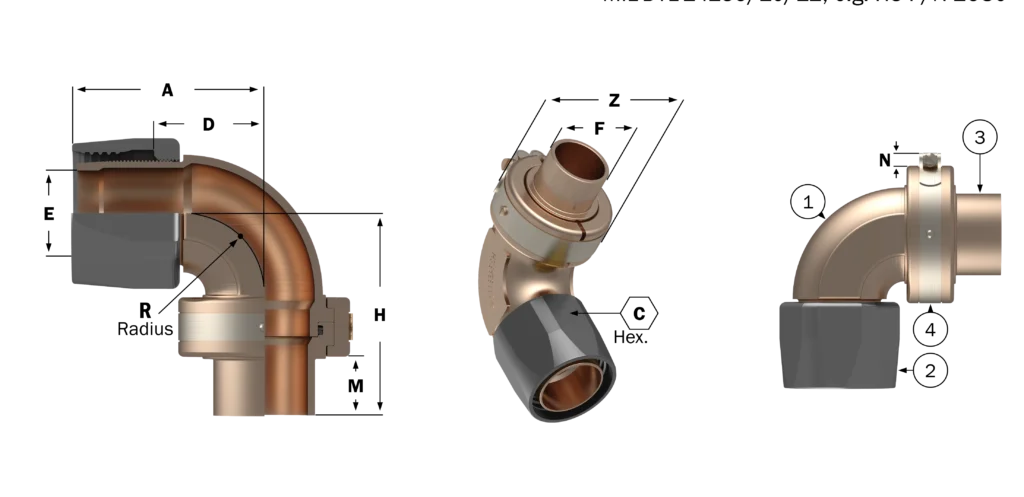

P/N FC9425-375

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

MIL-DTL-24787/4,

Type EL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-375	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-375	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-375	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-375	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

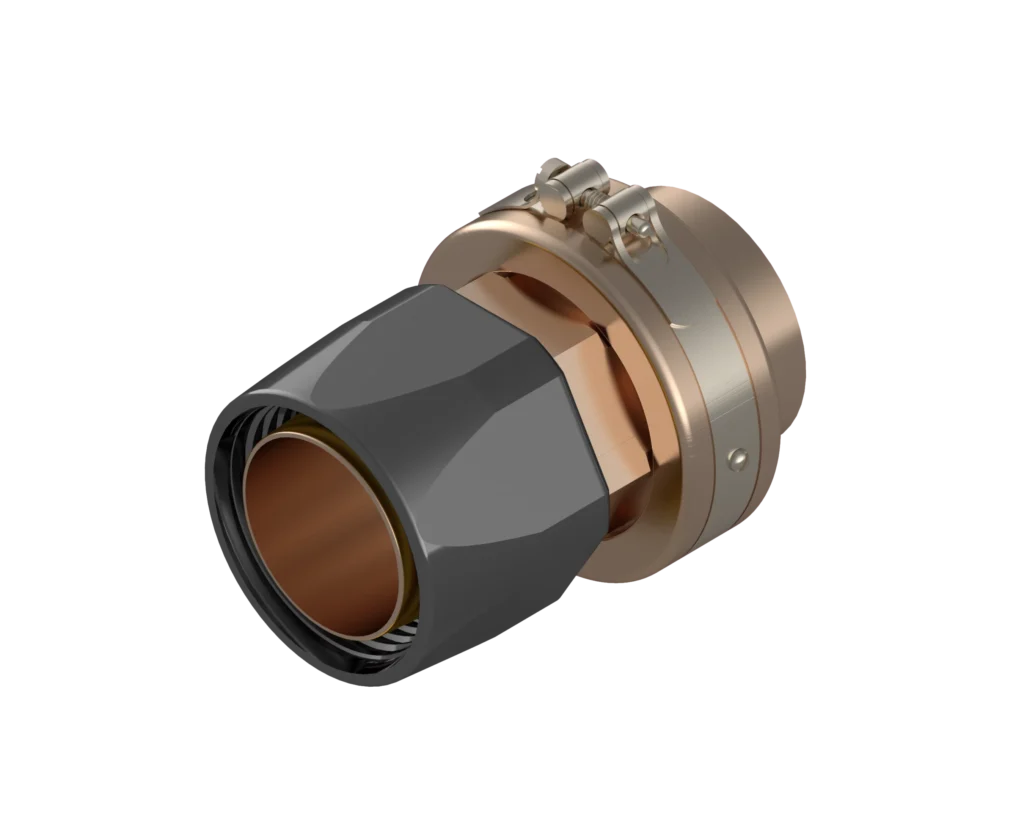

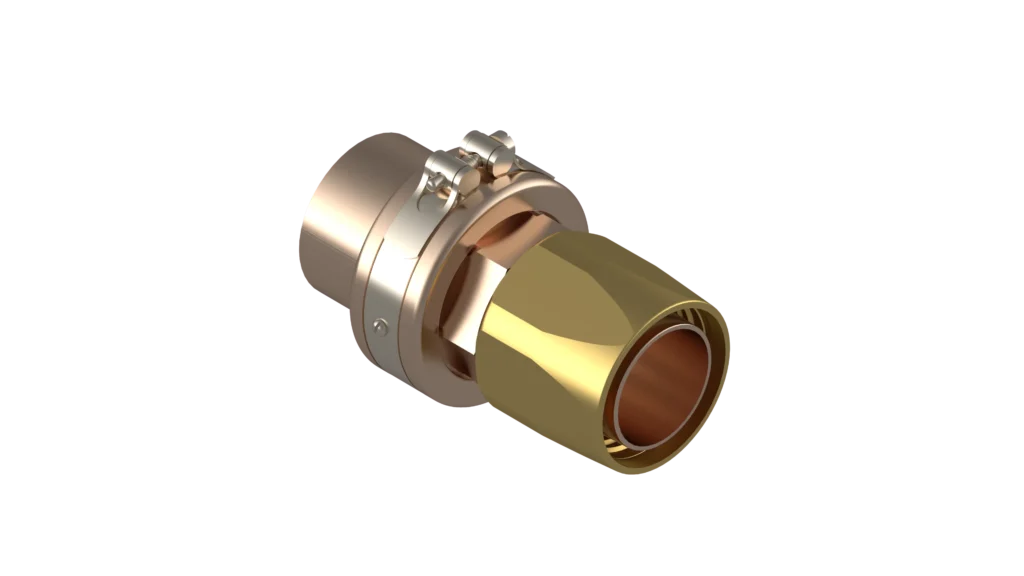

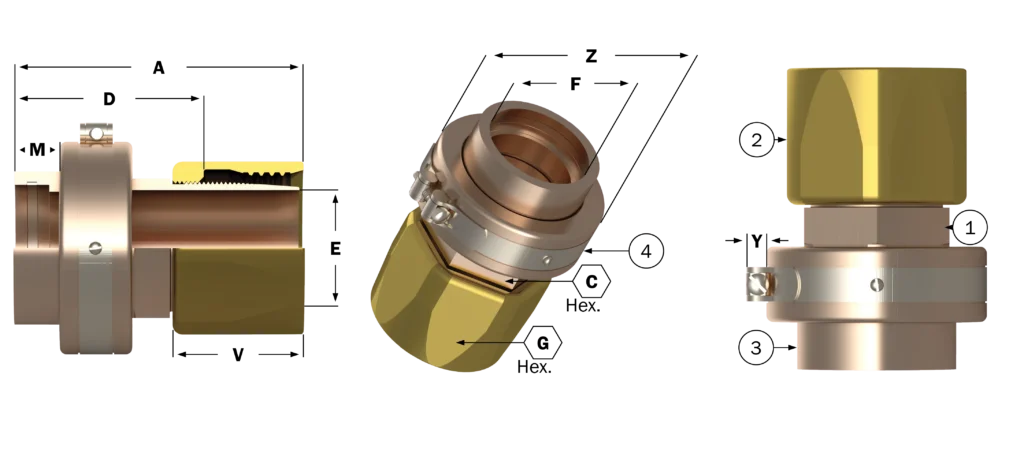

Equals to P/N FC9424-375

Defense

MIL-DTL-24787/4

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type E, Group VIII

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-375	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
FC9424-2432-375	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
FC9424-3240-375	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
FC9424-4048-375	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-375	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
FC9423-2432-375	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
FC9423-3240-375	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
FC9423-4048-375	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

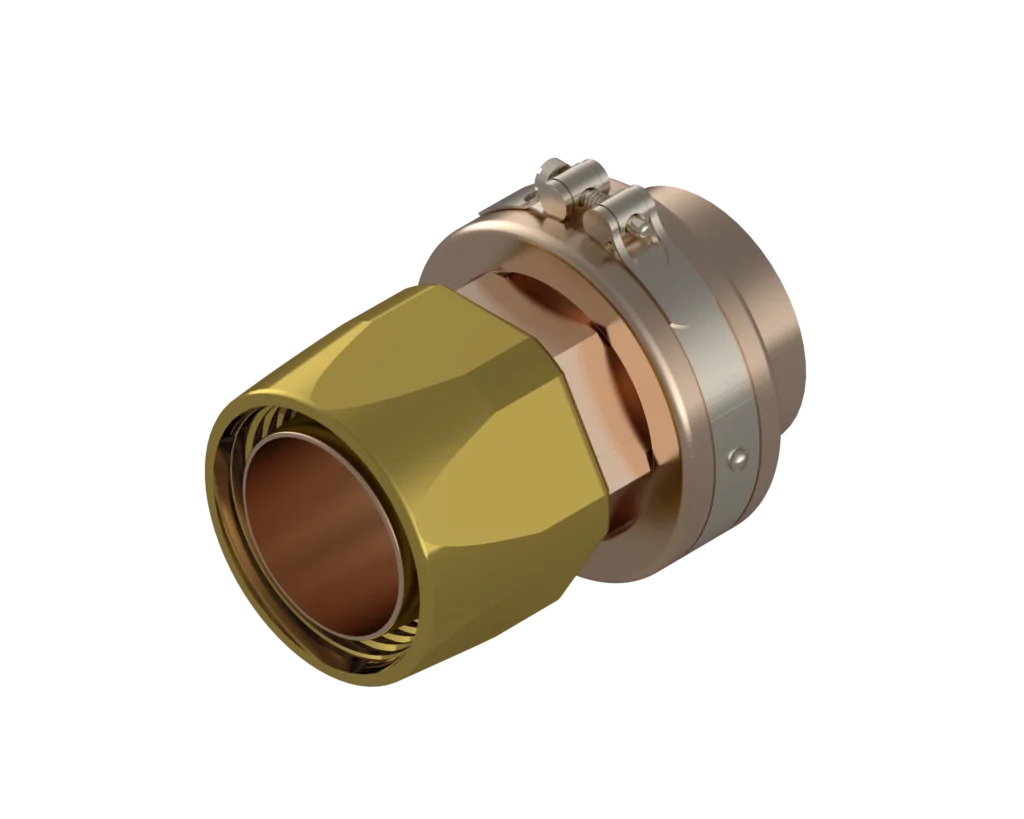

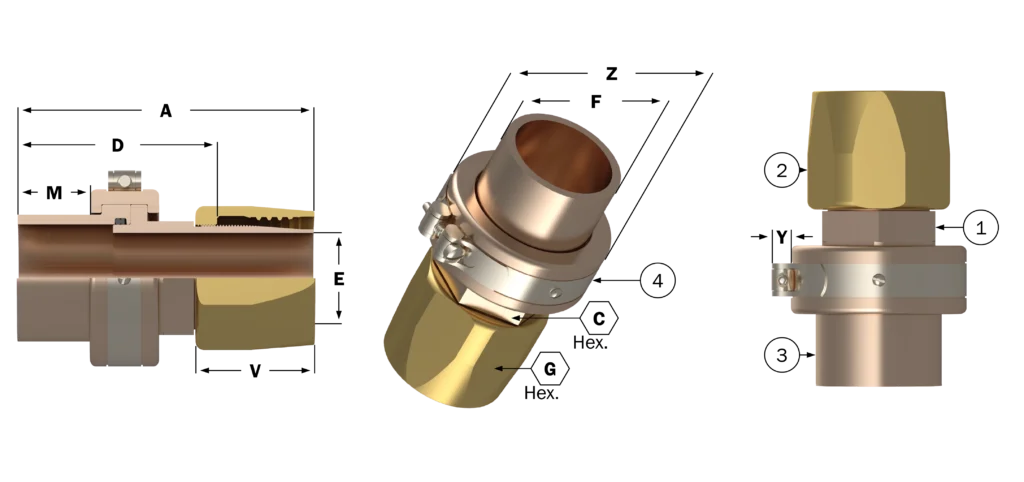

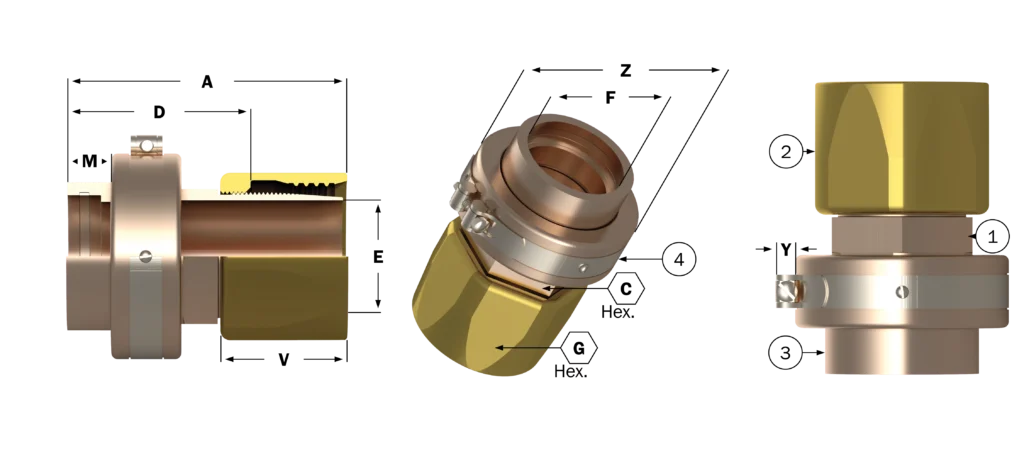

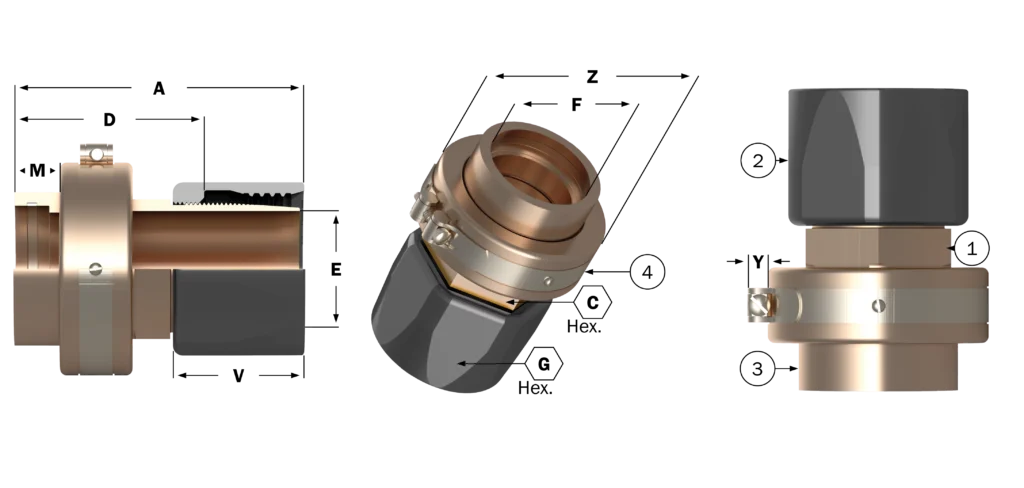

Equal to Aeroquip P/N FC9424-375

Hose to Female Sil-Braze Tailpiece

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-375	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
FC9424-2432-375	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
FC9424-3240-375	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
FC9424-4048-375	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

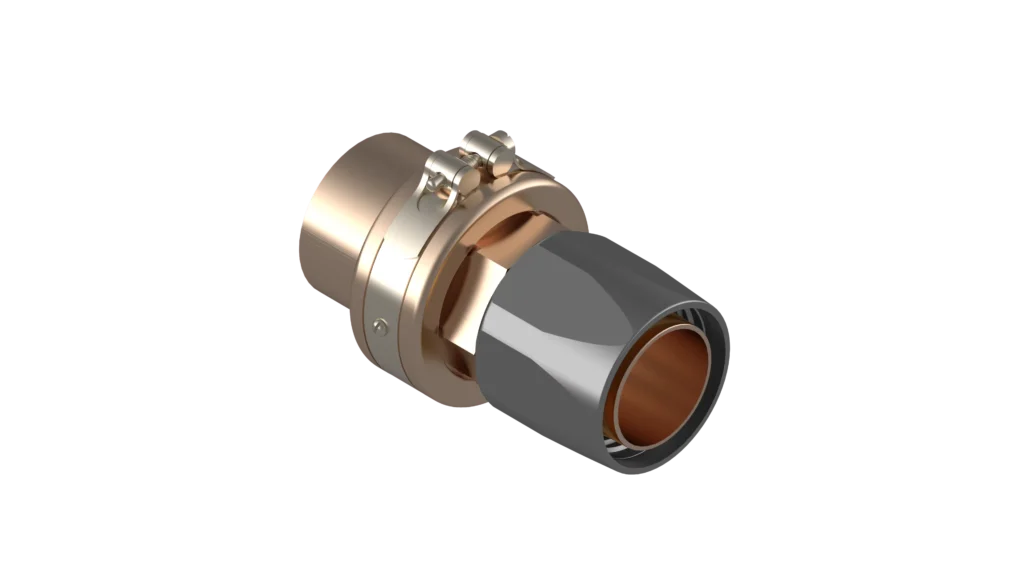

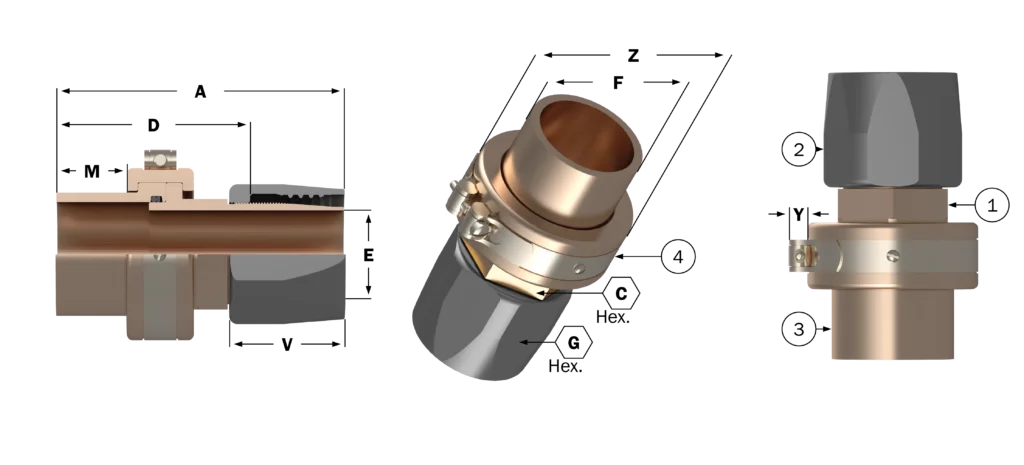

P/N FC9423-375

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-375	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
FC9423-2432-375	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
FC9423-3240-375	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
FC9423-4048-375	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

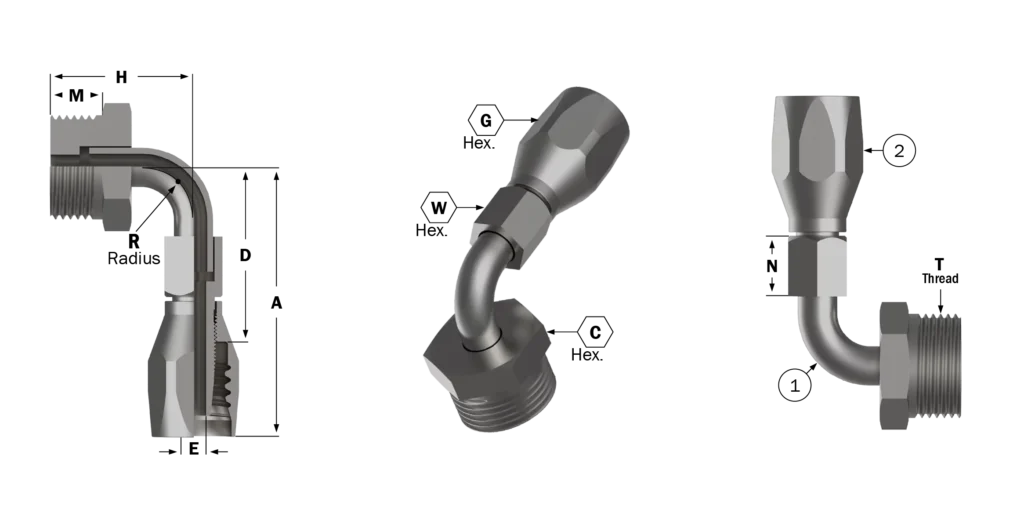

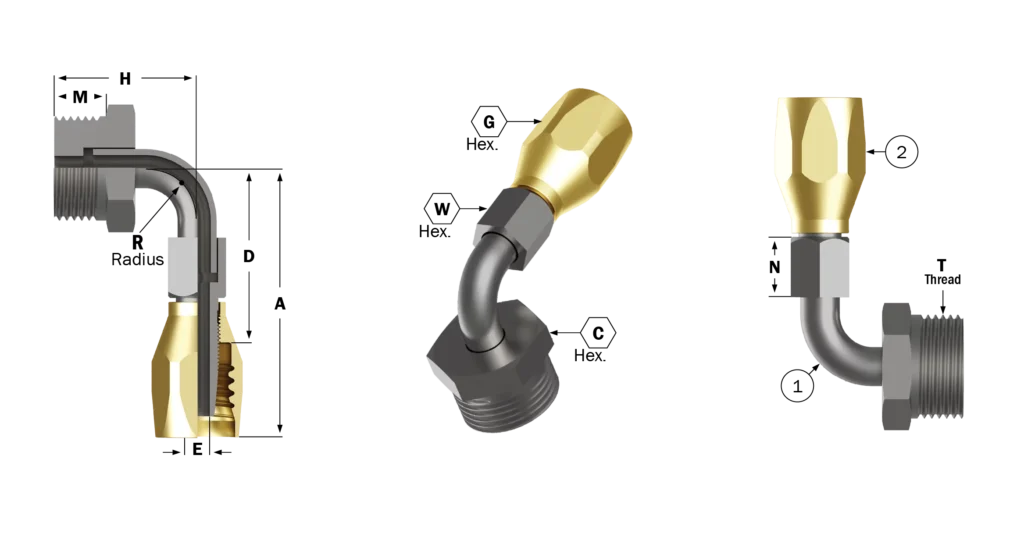

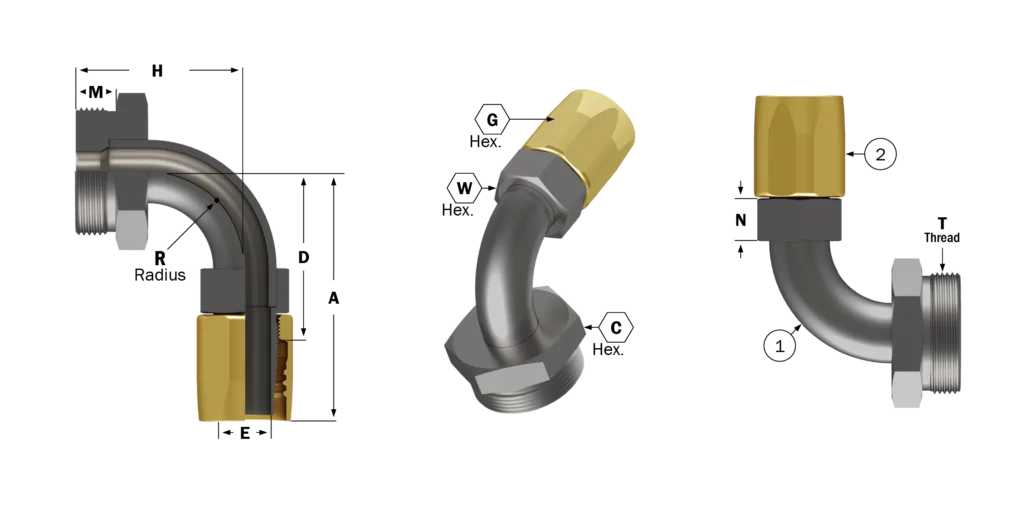

Equals to P/N 93-191301

Defense

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
93-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
93-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
93-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	1210-	6B	8B	10B	12B	Brass

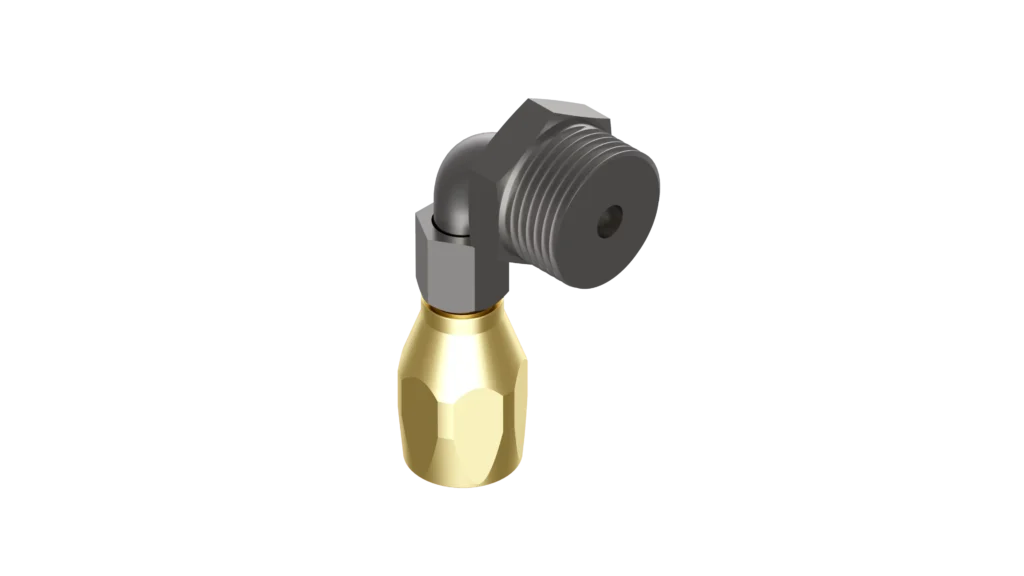

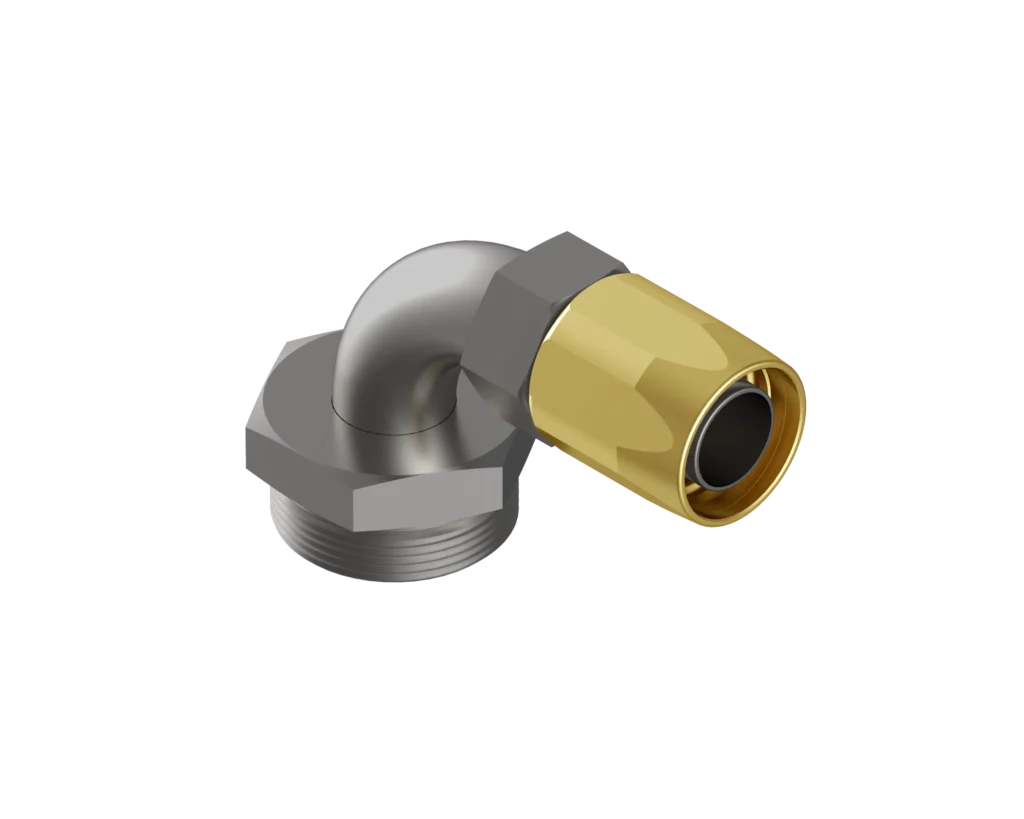

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)

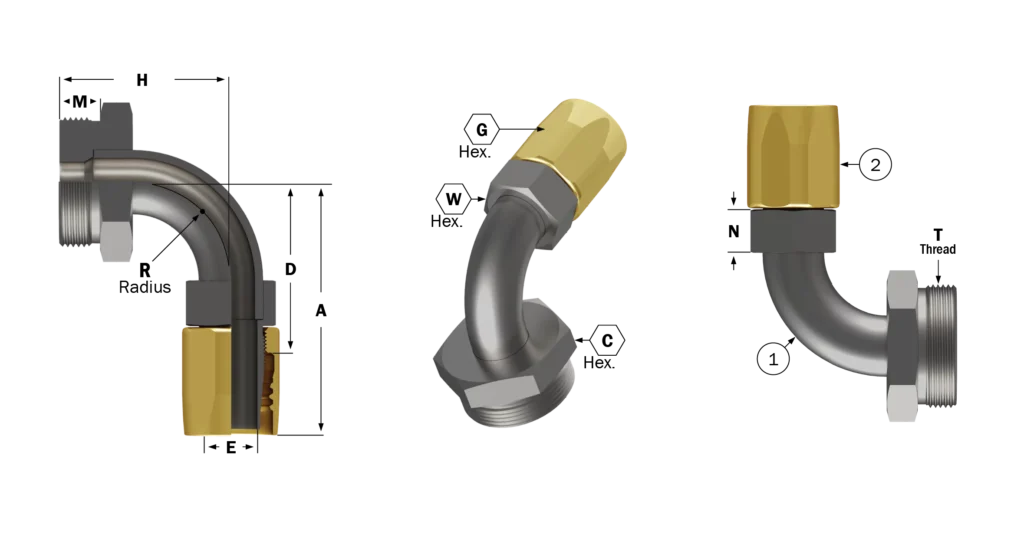

90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

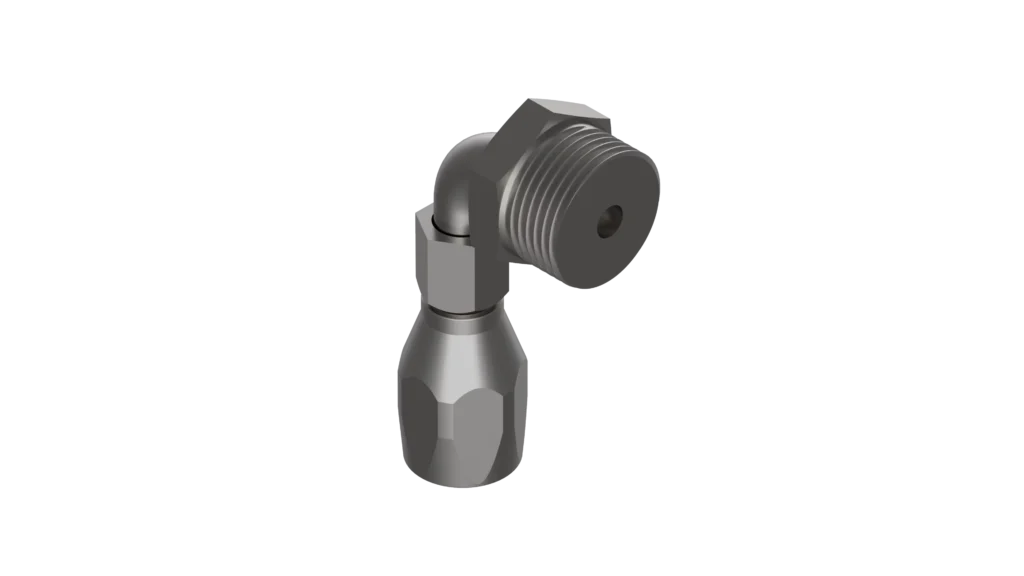

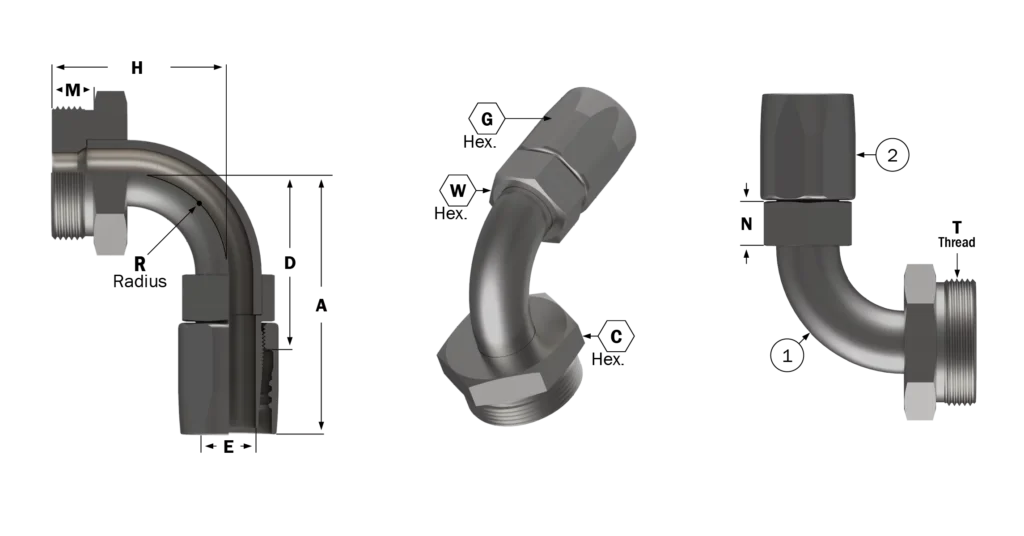

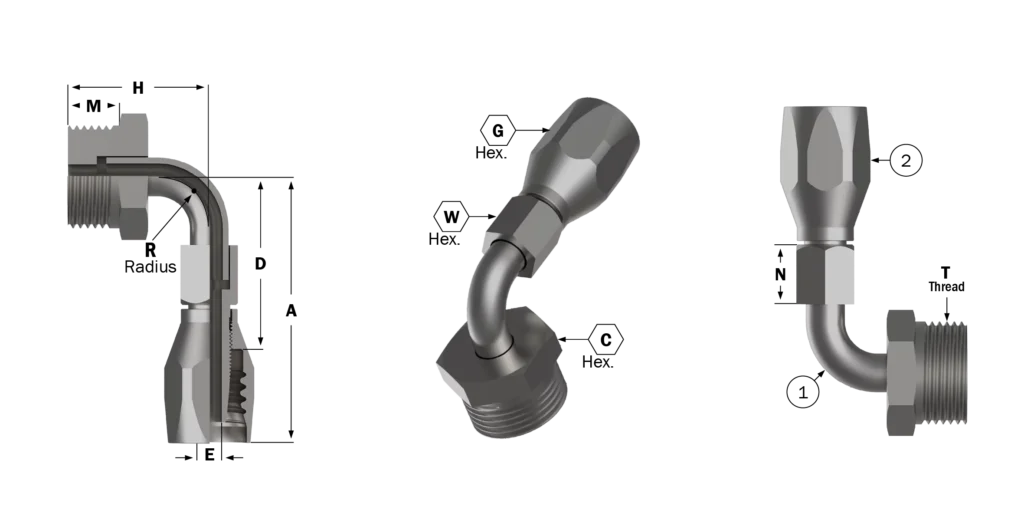

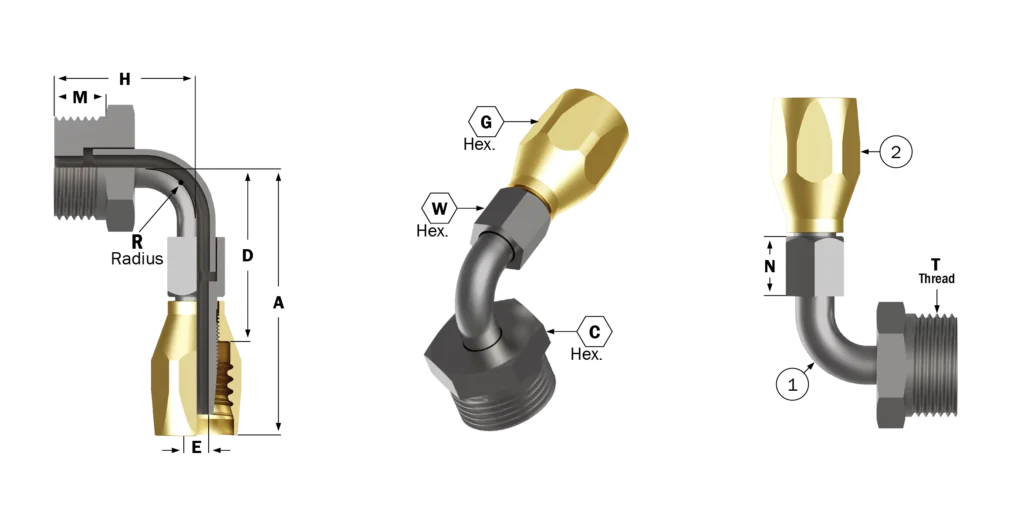

HS1488

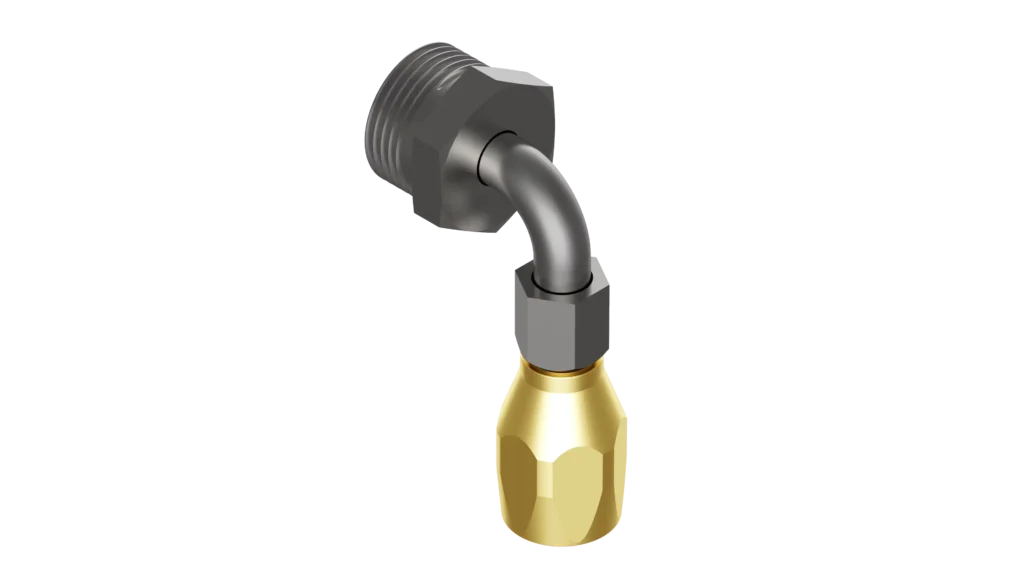

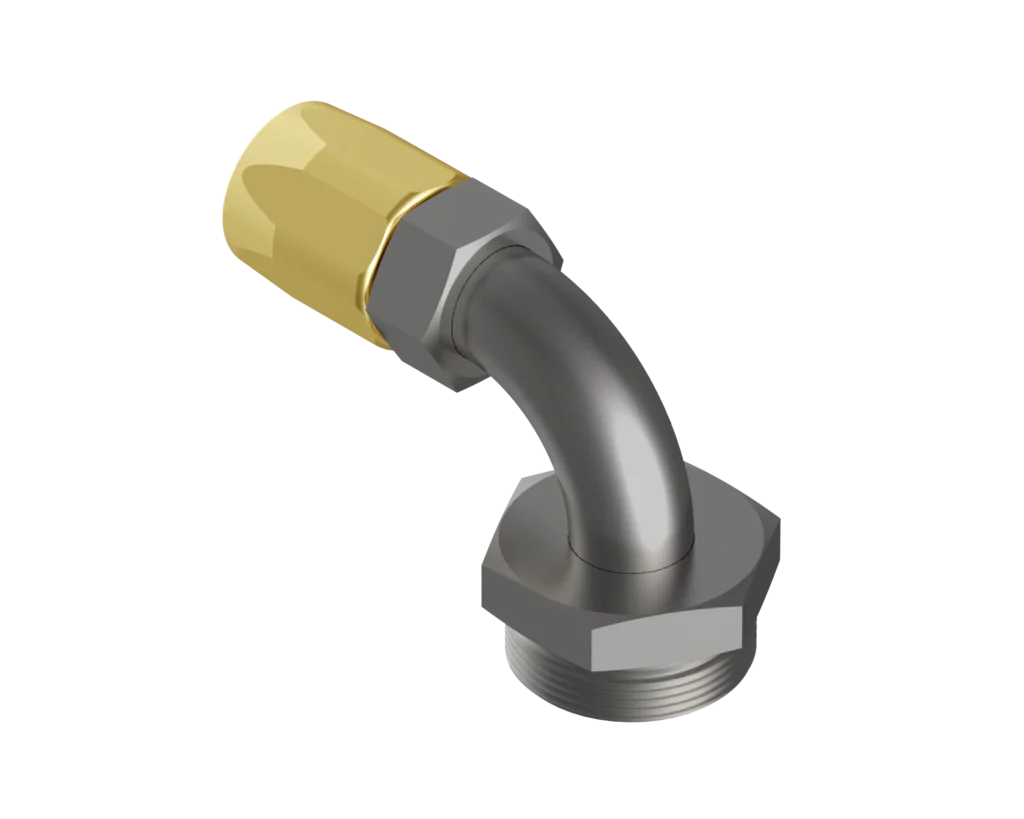

Equal to Aeroquip P/N 93-191301

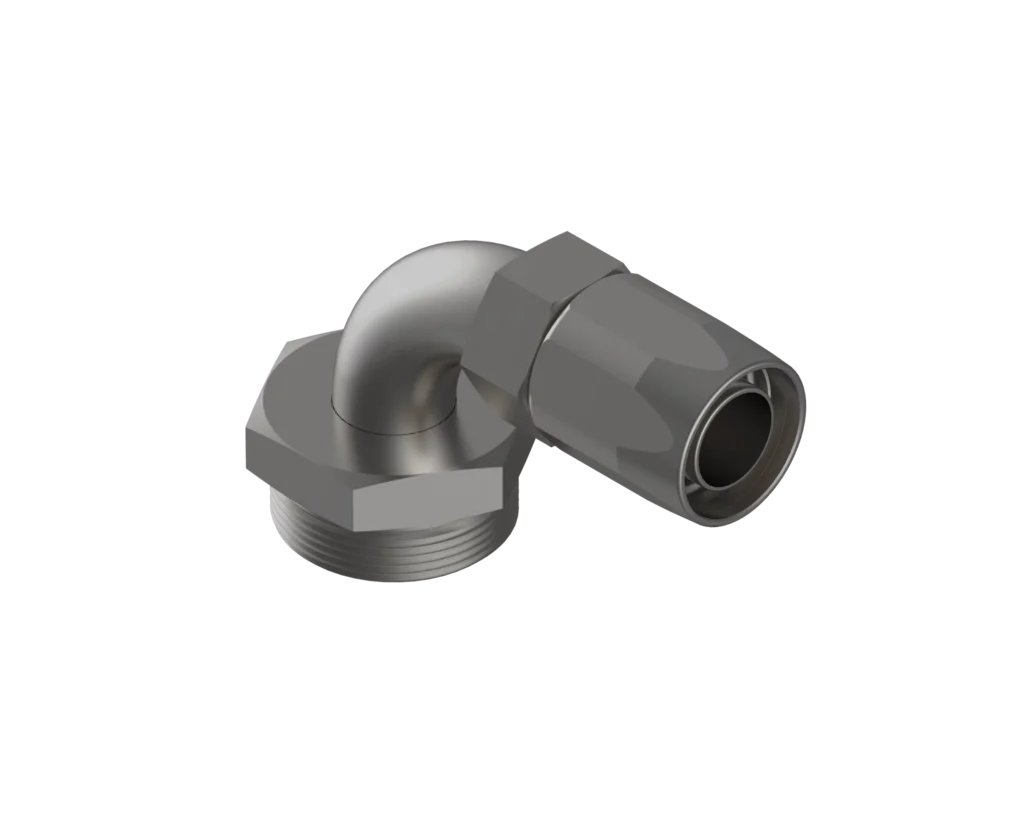

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
93-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
93-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
93-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	1210-	6B	8B	10B	12B	Brass

HS1488 Equivalent

P/N 93-191301

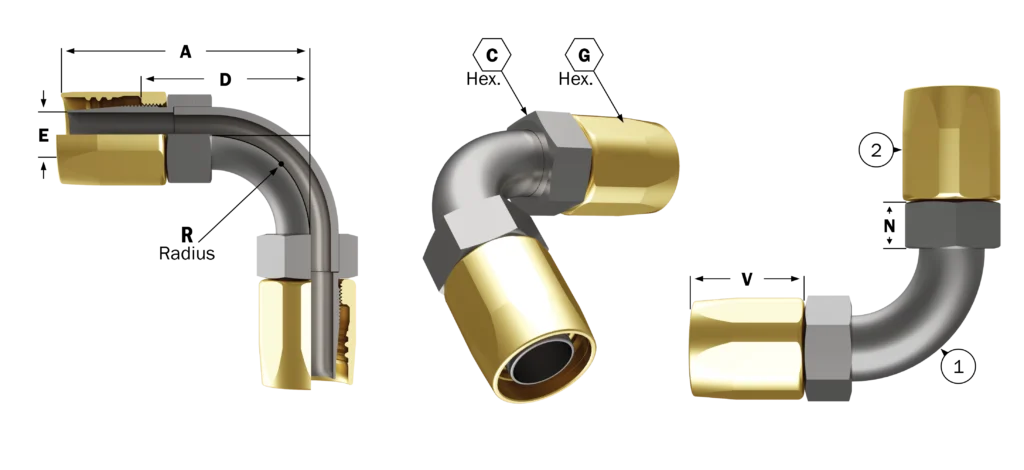

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

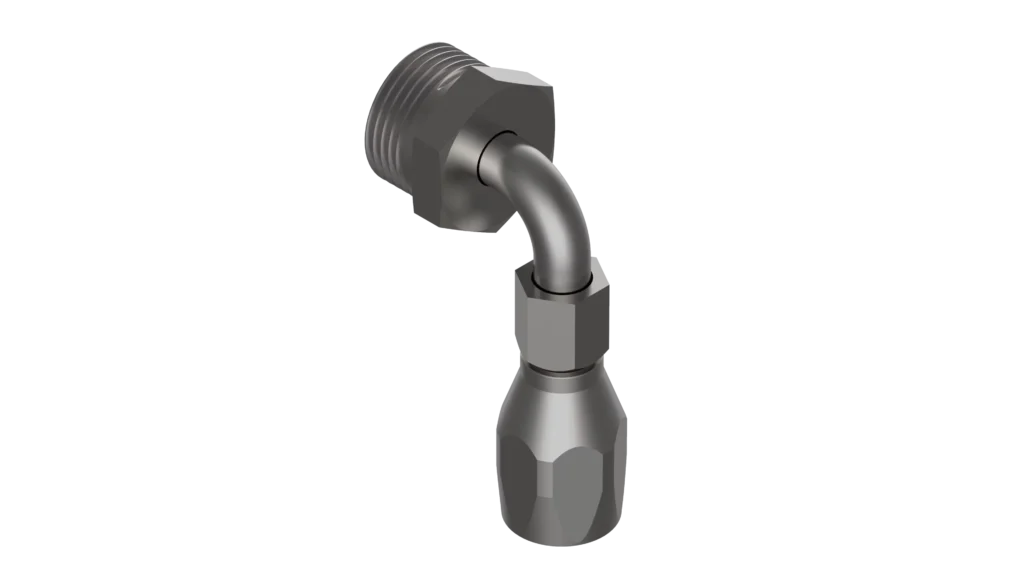

Equals to P/N 4-191301

Defense

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type CL, Group VIII

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
4-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
4-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
4-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
4-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-3/4-16	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.01
93-191301-1-20	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.03
93-191301-1.25-24	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	3.95
93-191301-1.5-32	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.42

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Elbow	1	4-186301-	3/4-16	1-20	1.25-24	1.5-32	Copper Nickel & Monel
Socket	1	1212-	16B	20B	24B	32B	Brass

HS1488

Equal to Aeroquip P/N 4-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
4-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
4-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
4-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
4-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-3/4-16	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.01
93-191301-1-20	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.03
93-191301-1.25-24	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	3.95
93-191301-1.5-32	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.42

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Elbow	1	4-186301-	3/4-16	1-20	1.25-24	1.5-32	Copper Nickel & Monel
Socket	1	1212-	16B	20B	24B	32B	Brass

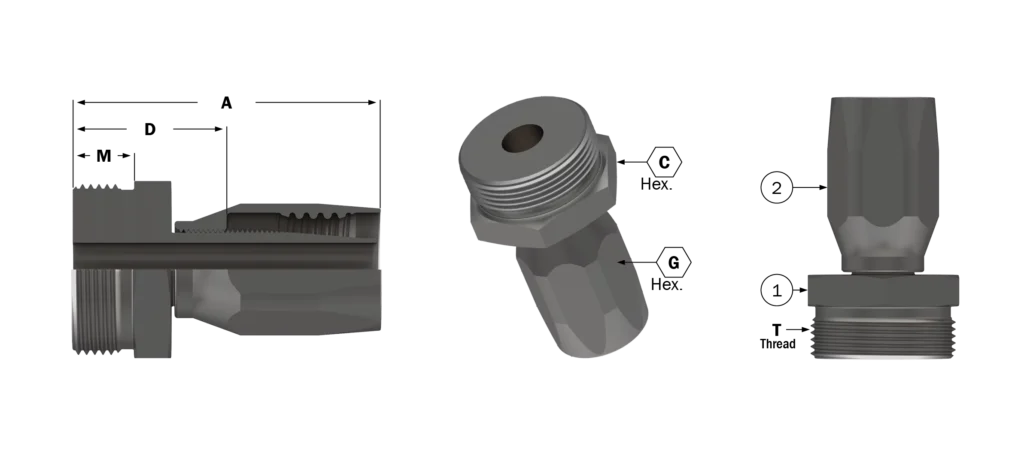

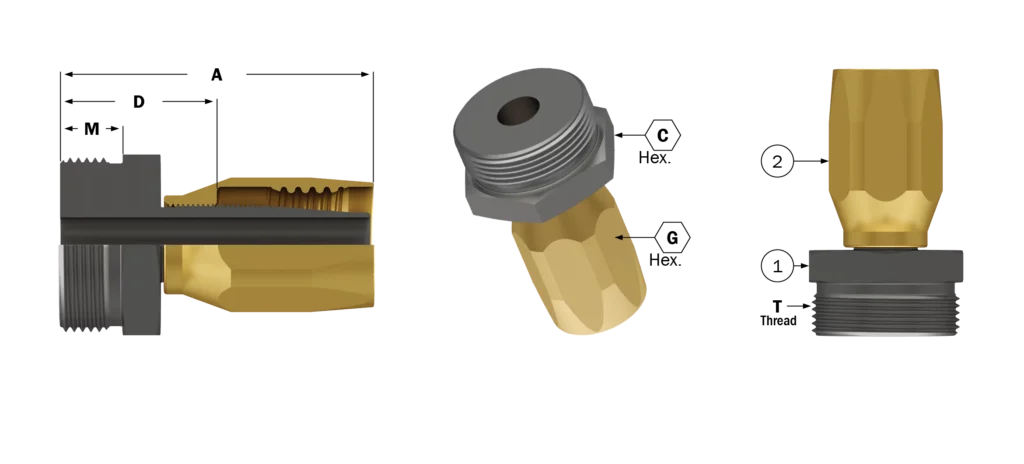

Equals to P/N 93-190911

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
93-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
93-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.92	.46
93-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
93-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6B	8B	10B	12B	Brass

Part Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

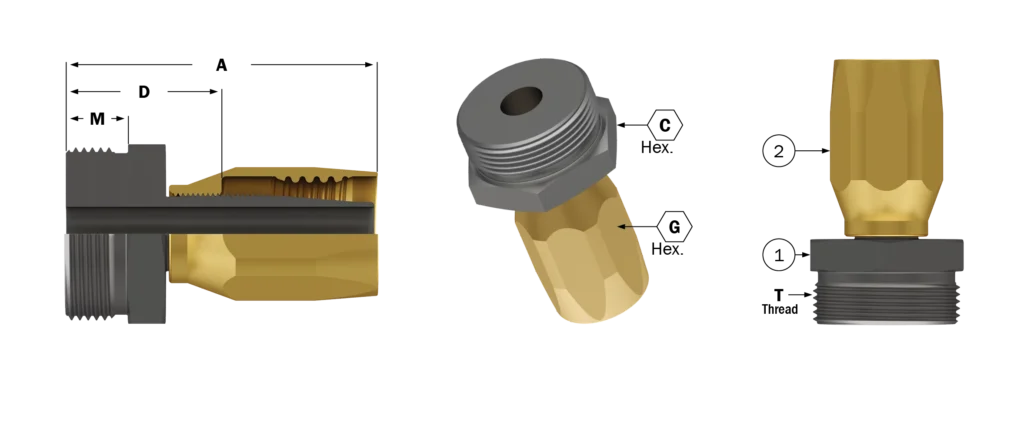

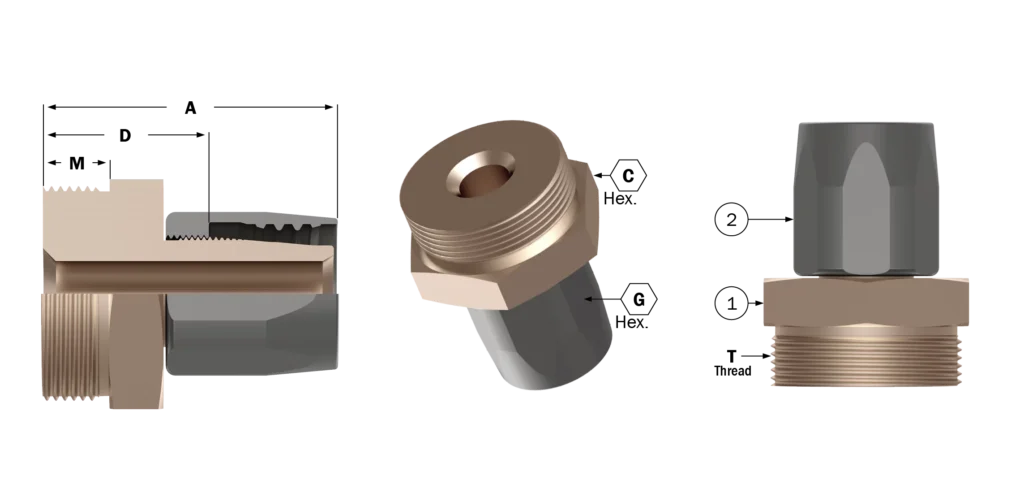

HS1488

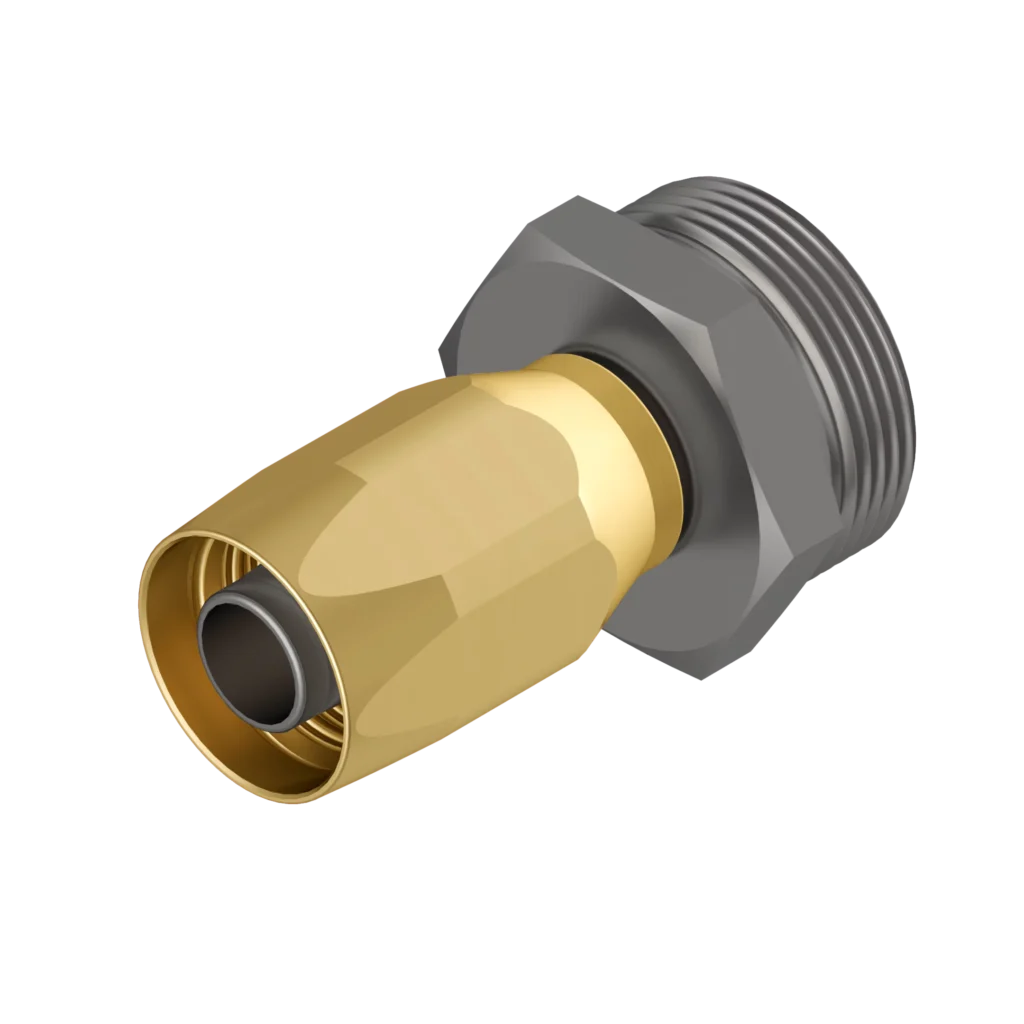

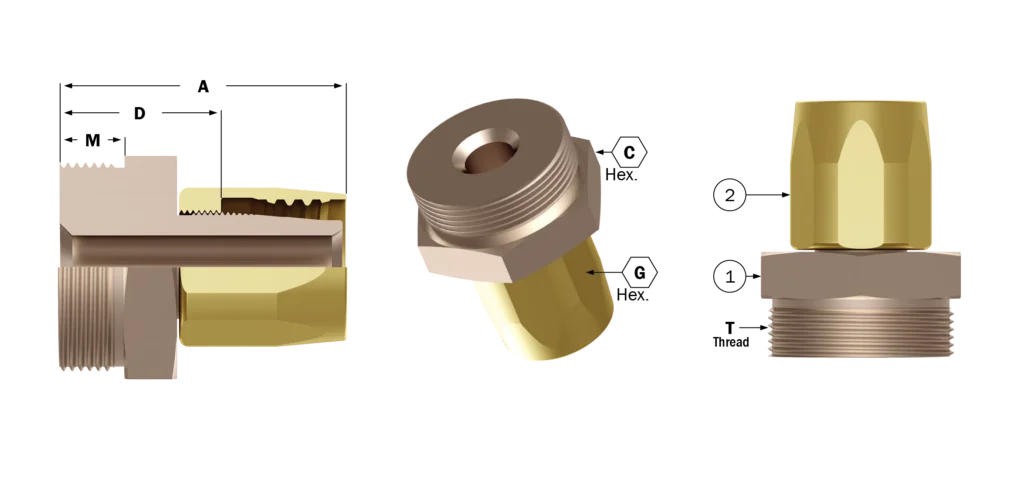

Equal to Aeroquip P/N 93-190911

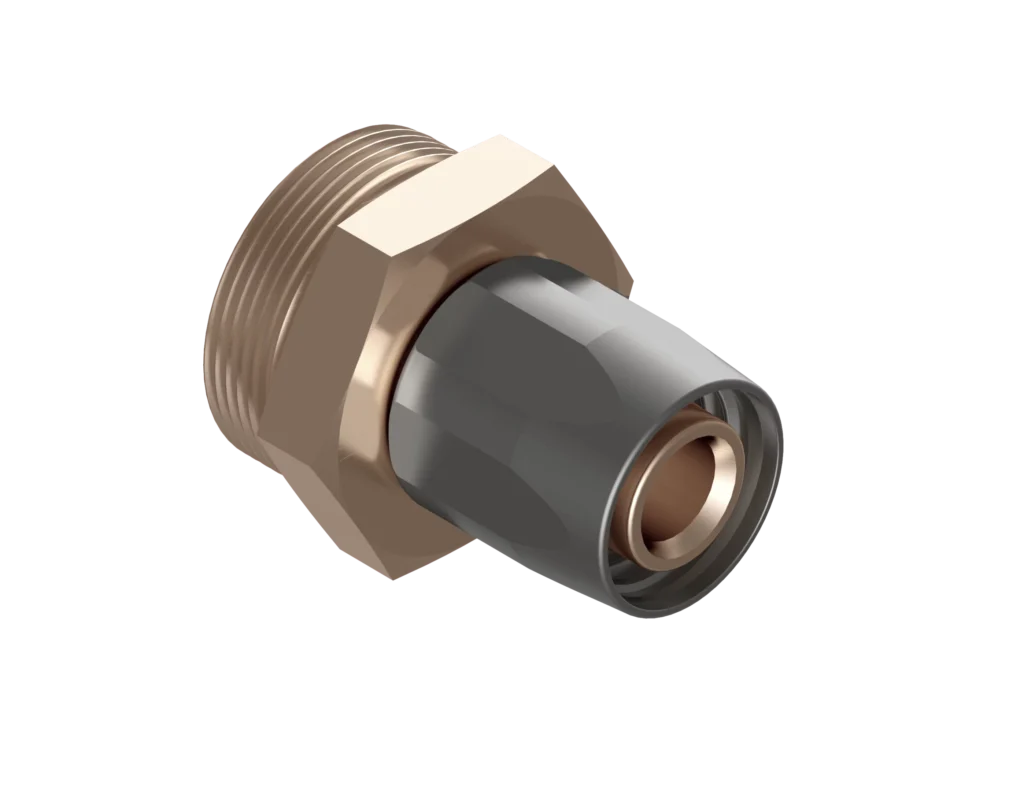

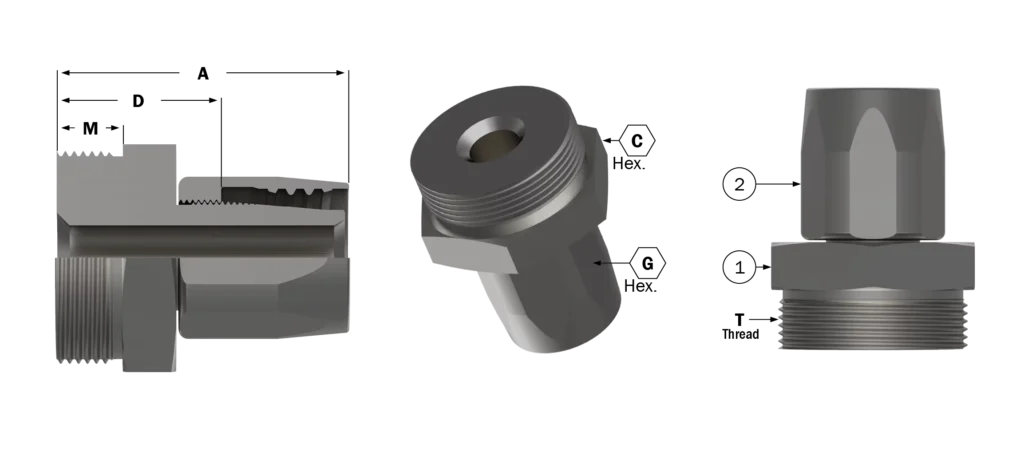

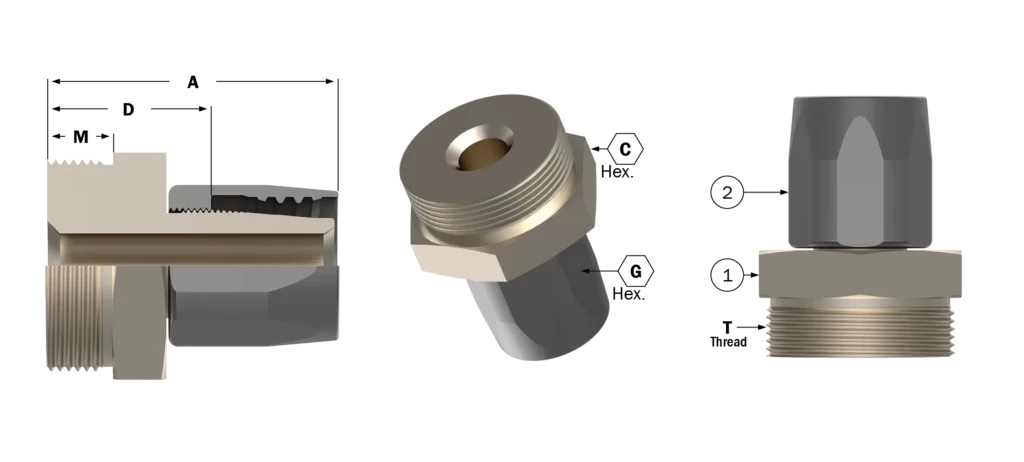

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
93-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
93-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.92	.46
93-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
93-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6B	8B	10B	12B	Brass

HS1488 Equivalent

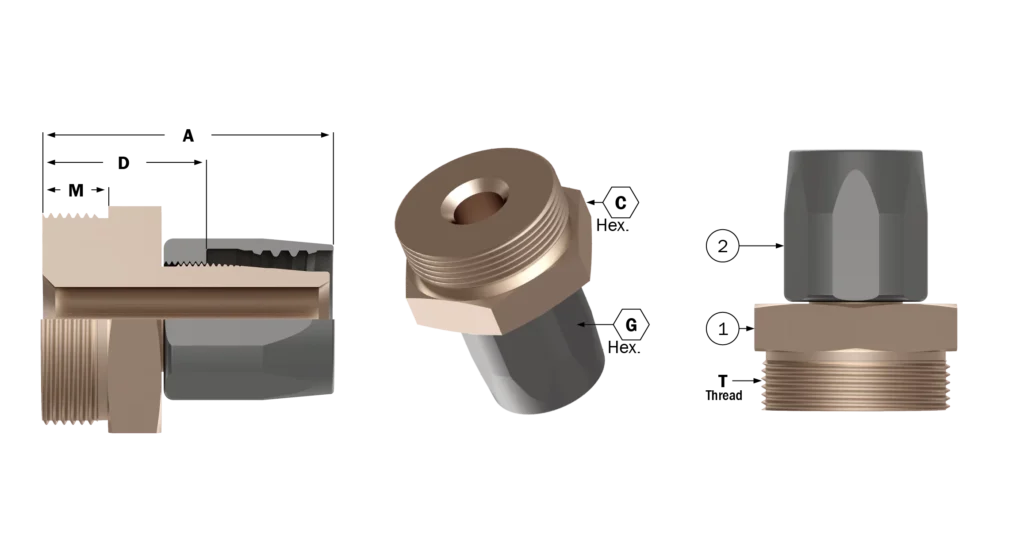

P/N 375-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

Equals to P/N 4-190911

Defense

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type C, Group VIII

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
4-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
4-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.62	.46
4-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
4-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

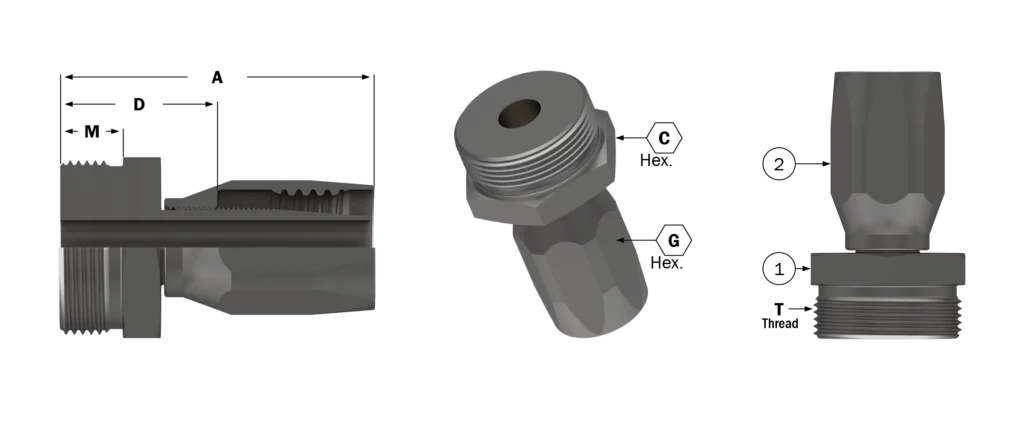

HS1488

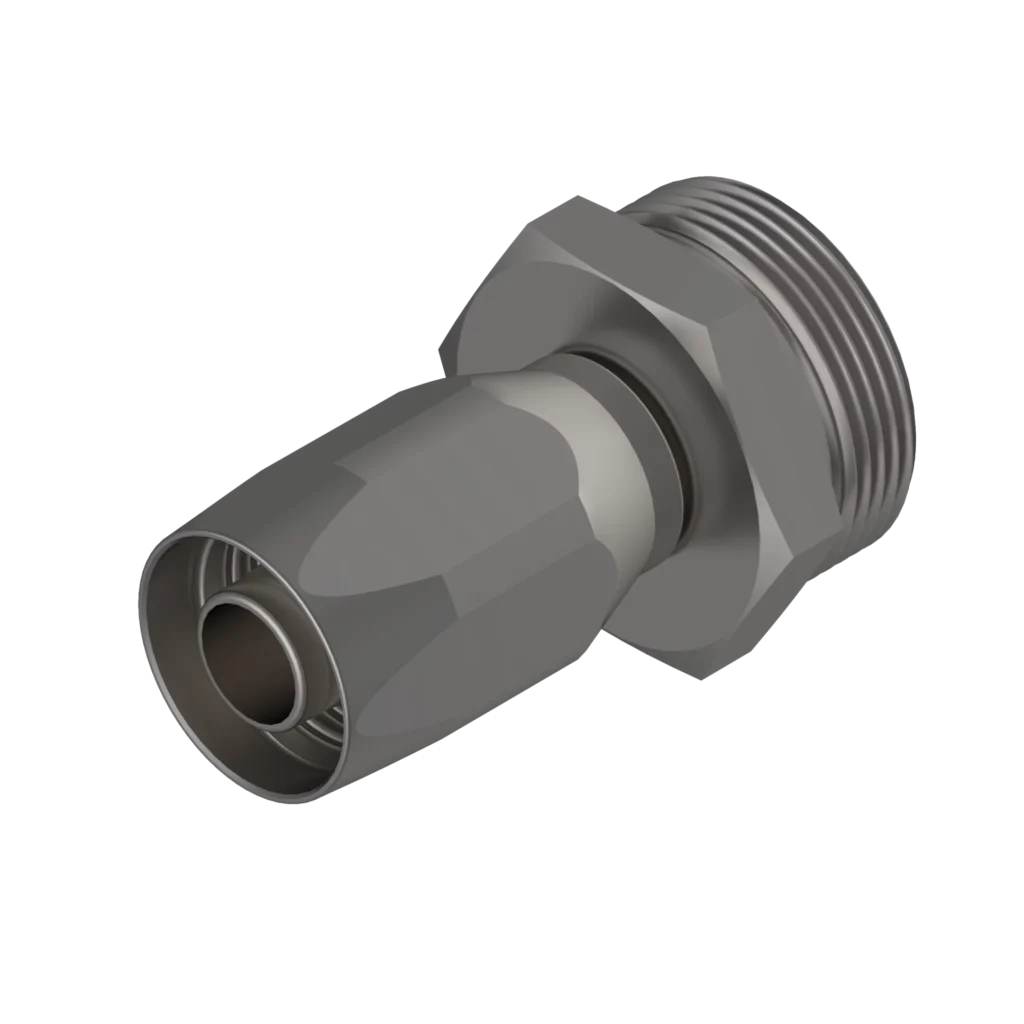

Equal to Aeroquip P/N 4-190911

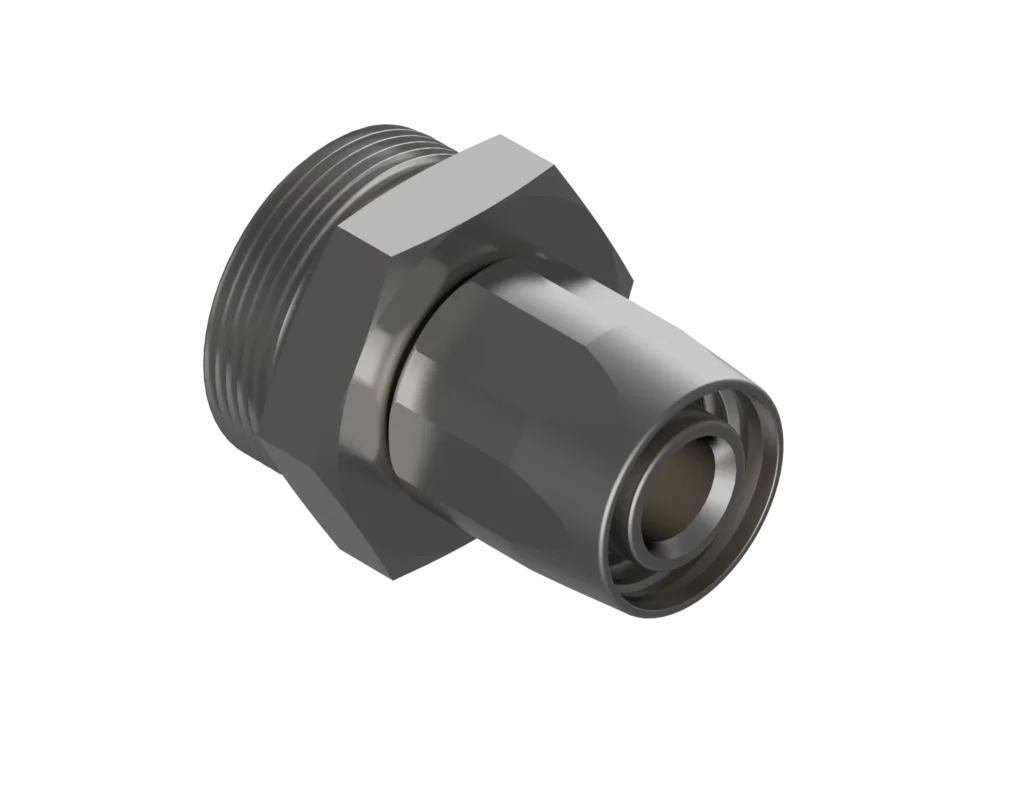

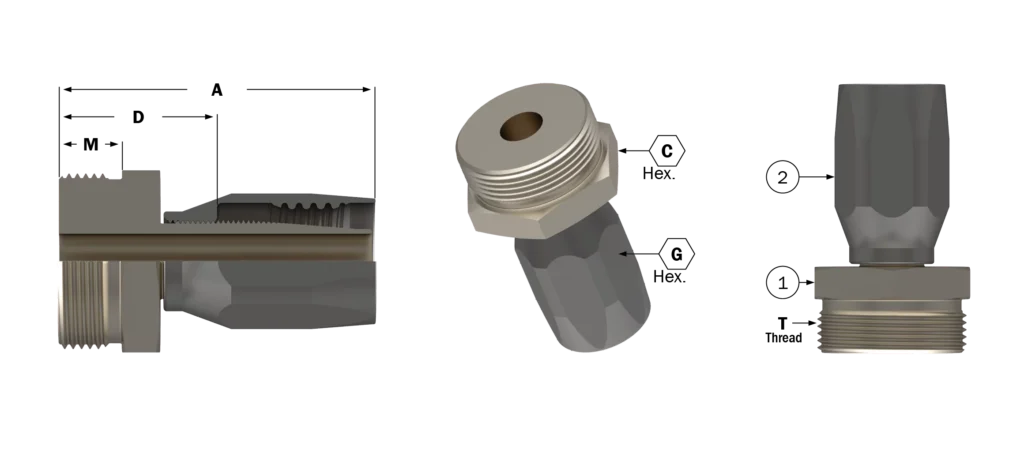

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
4-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
4-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.62	.46
4-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
4-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

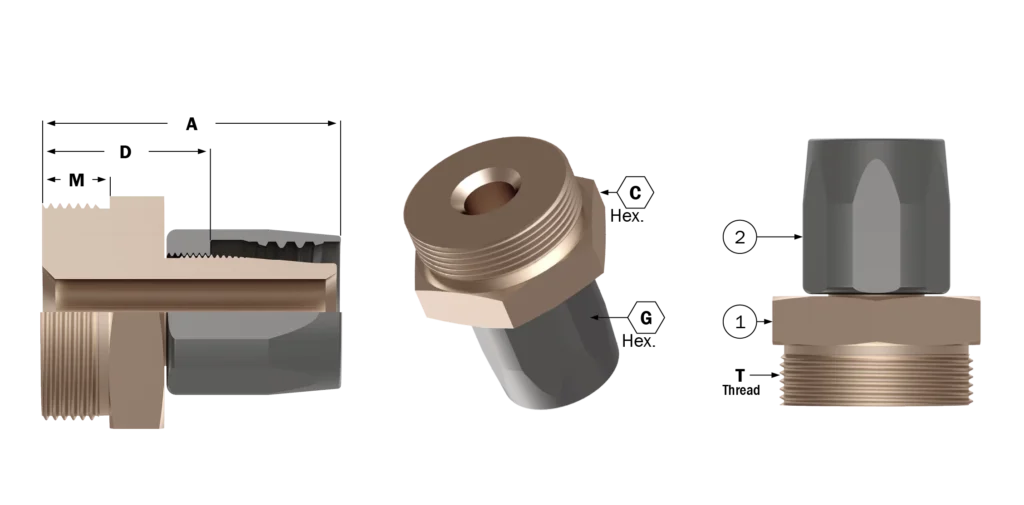

P/N 375-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

Equals to P/N 4-411

Defense

MIL-DTL-24787/2

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type A, Group VIII

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-4	1/4	7/16”-20	1.75	.65	.56	1.00	.17	.62	.35	1.10	.10
4-411-5	5/16	1/2”-20	1.90	.74	.62	1.12	.23	.69	.38	1.20	.10
4-411-6	3/8	9/16”-18	2.05	.77	.69	1.15	.30	.81	.38	1.30	.20
4-411-8	1/2	3/4”-16	2.52	.95	.88	1.38	.39	.94	.43	1.65	.30
4-411-10	5/8	7/8”-14	2.80	1.00	1.00	1.51	.48	1.12	.51	1.80	.40
4-411-12	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60

Description	Req’d per Ass’y	Base No.	-4	-5	-6	-8	-10	-12	Material
Nipple	1	4-1251-	4	5	6	8	10	12	Monel
Socket	1	4-1210-	4	5	6	8	10	12	Monel
Nut	1	4-1290-	4	5	6	8	10	12	Monel

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-16	1	1-5/16”-12	2.82	.95	1.50	1.55	.82	1.44	.60	1.66	.70
4-411-20	1.25	1-5/8”-12	3.00	1.00	2.00	1.64	1.05	1.75	.64	1.75	1.30
4-411-24	1.50	1-7/8”-12	3.28	1.09	2.25	1.83	1.28	1.94	.74	1.84	1.60
4-411-32	2	2-1/2”-12	4.02	1.24	2.88	2.18	1.75	2.24	.94	2.25	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	4-1212-	16	20	24	32	Monel
Nut	1	4-1290-	16	20	24	32	Monel

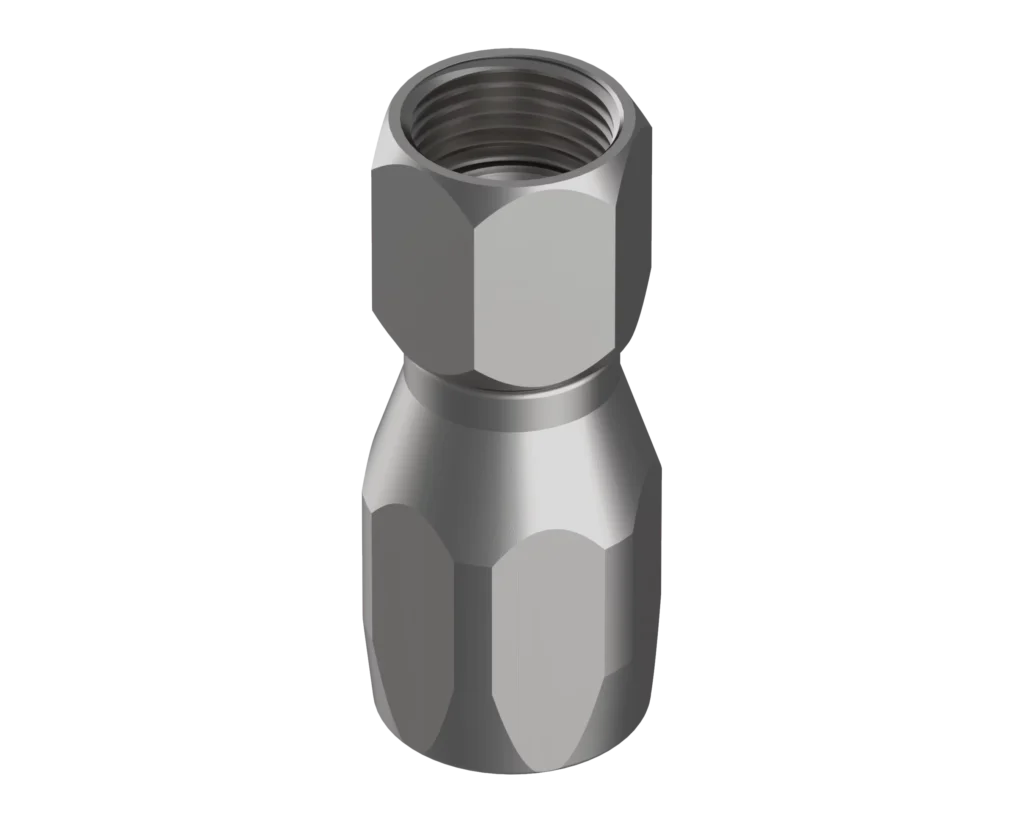

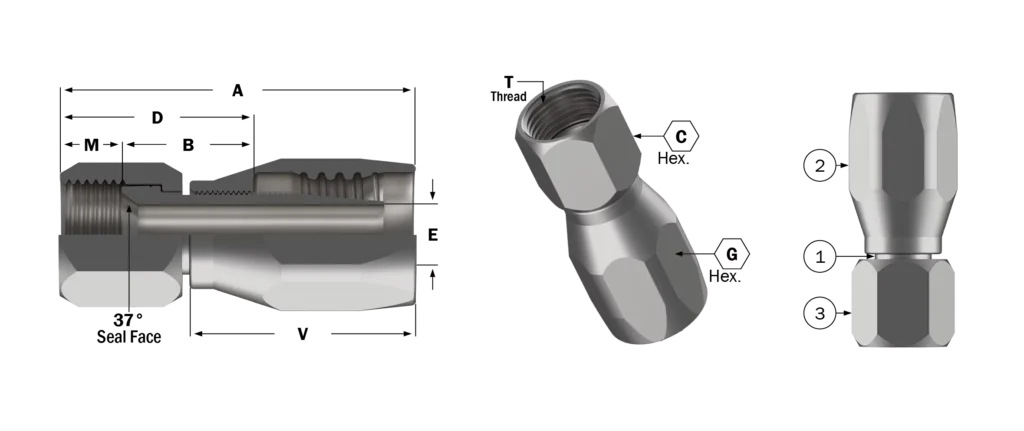

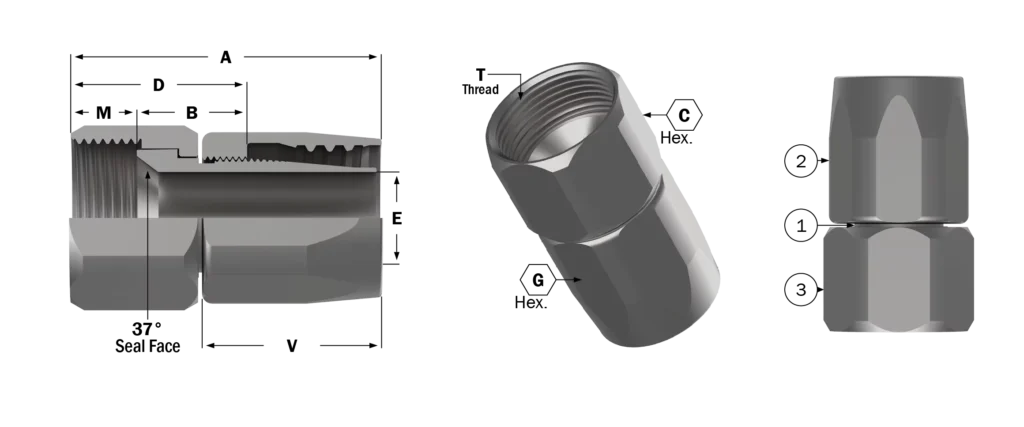

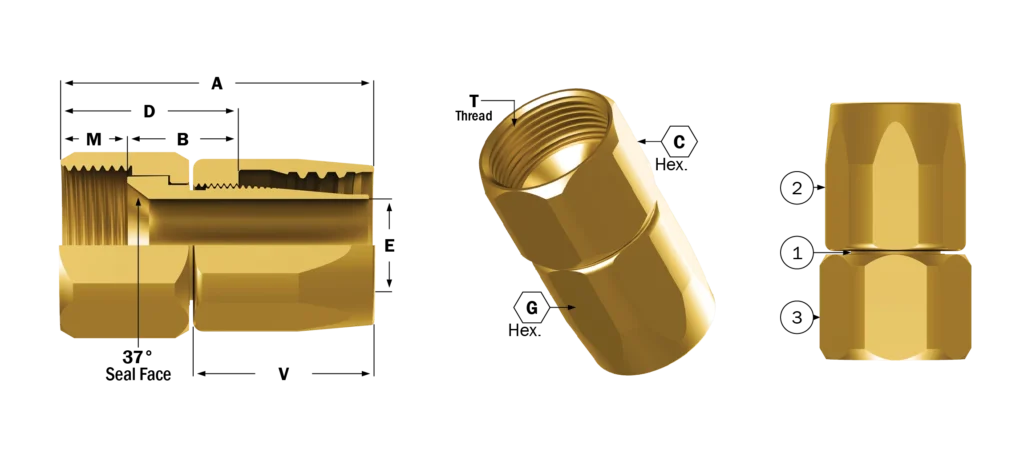

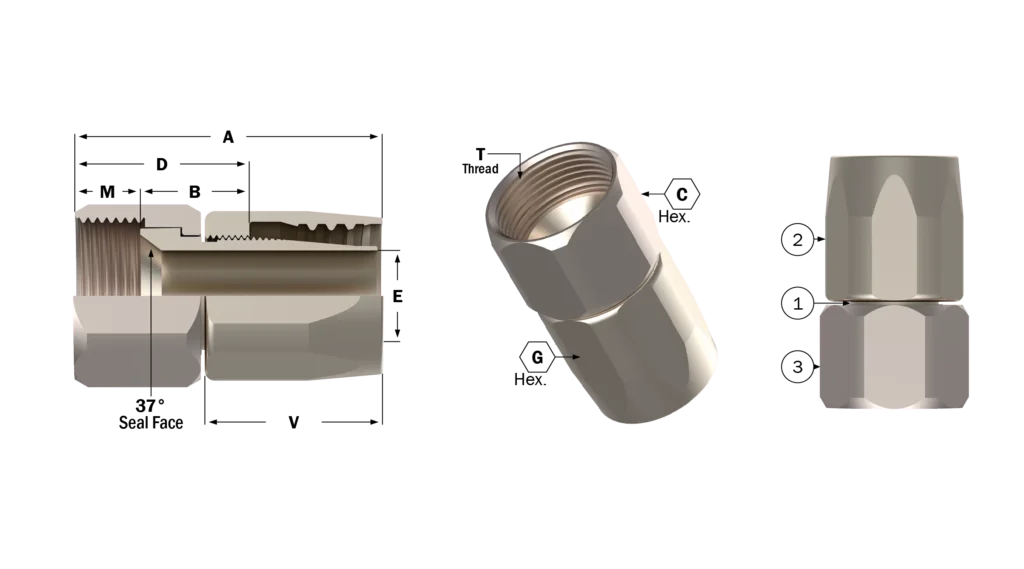

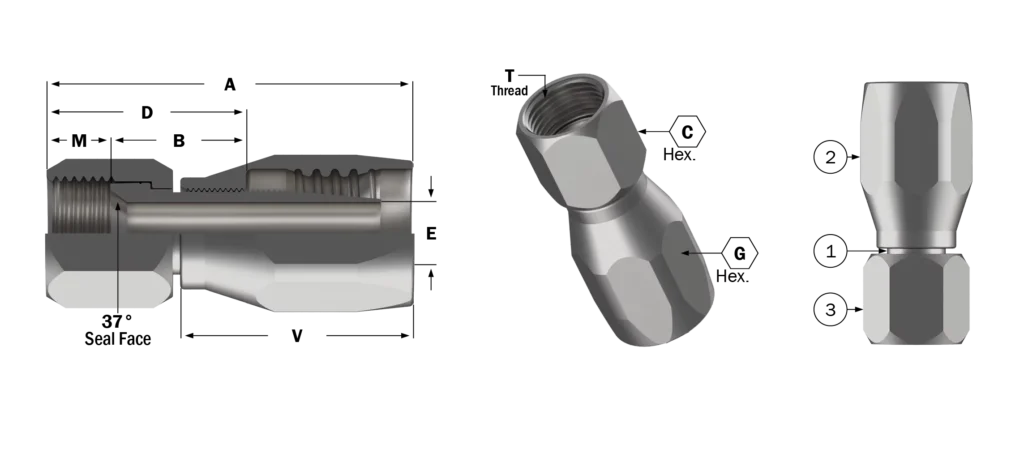

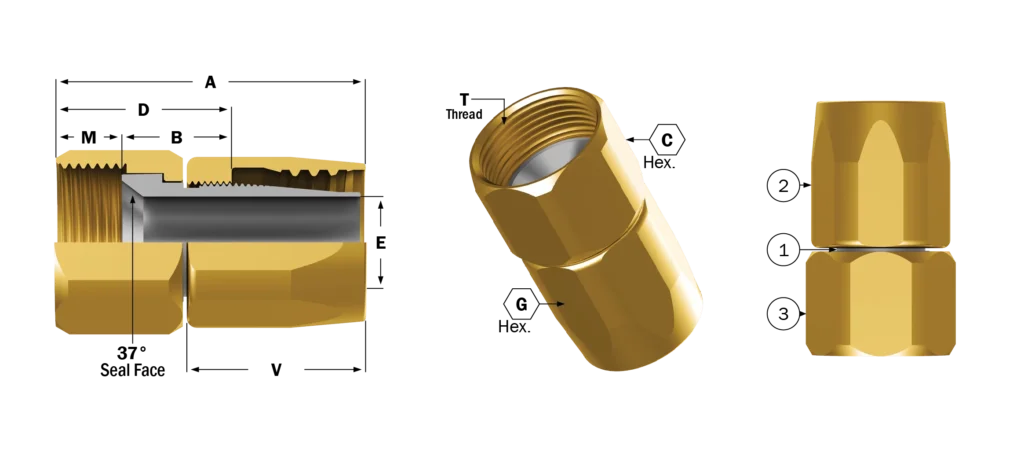

HS1488

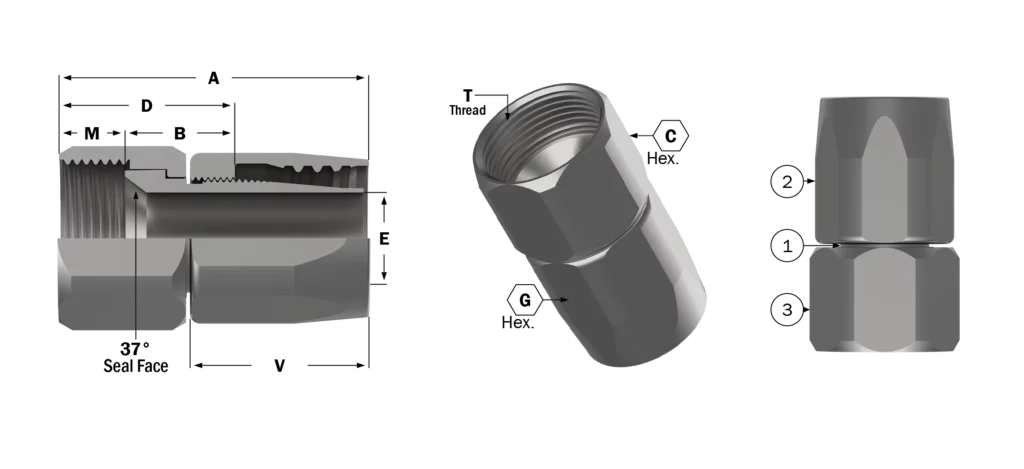

Equal to Aeroquip P/N 4-411

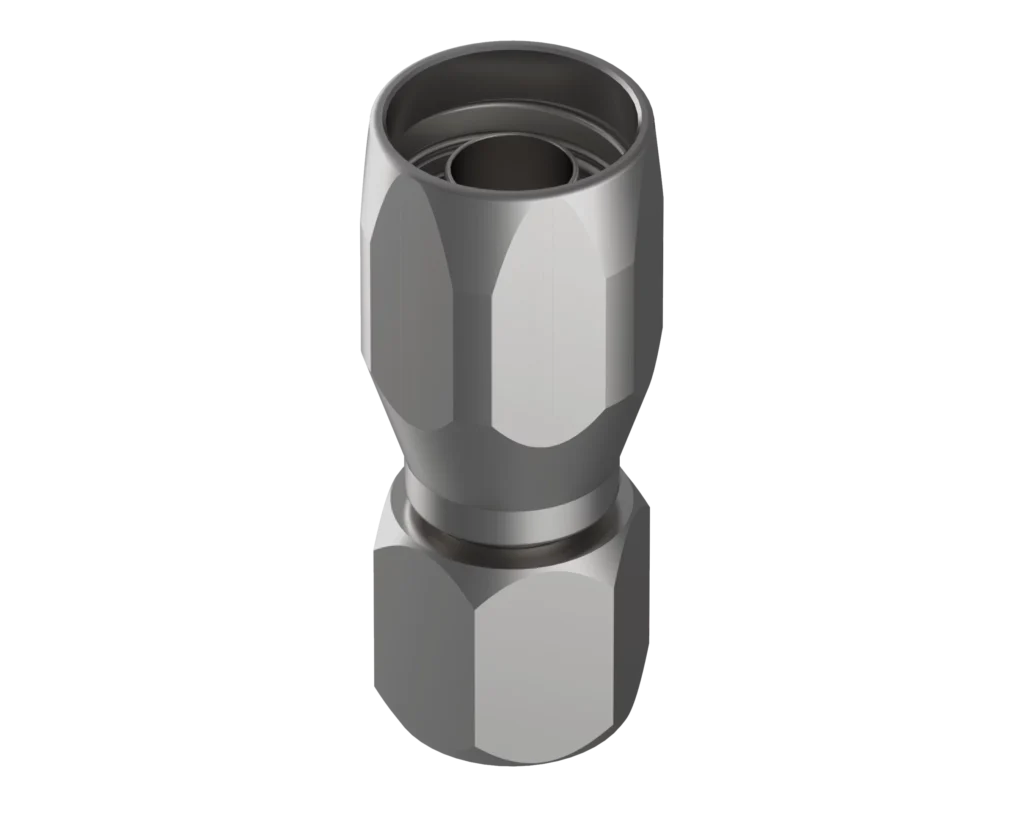

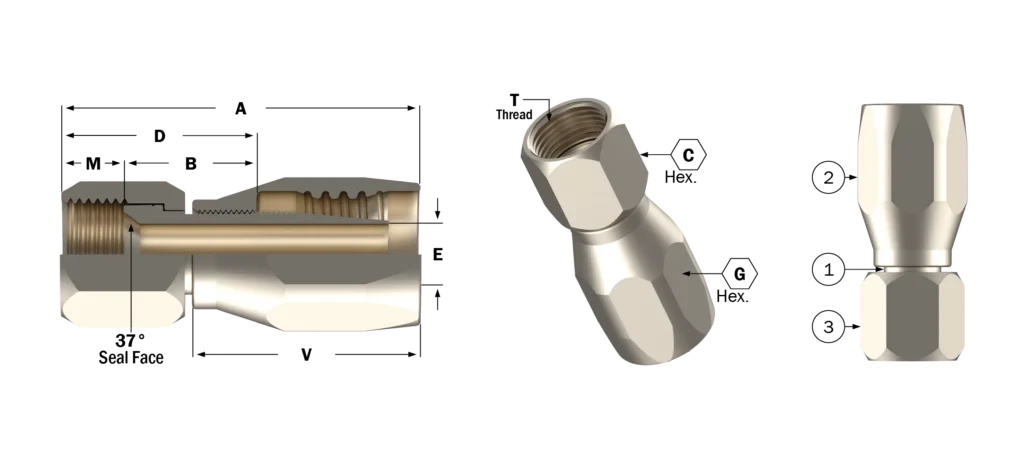

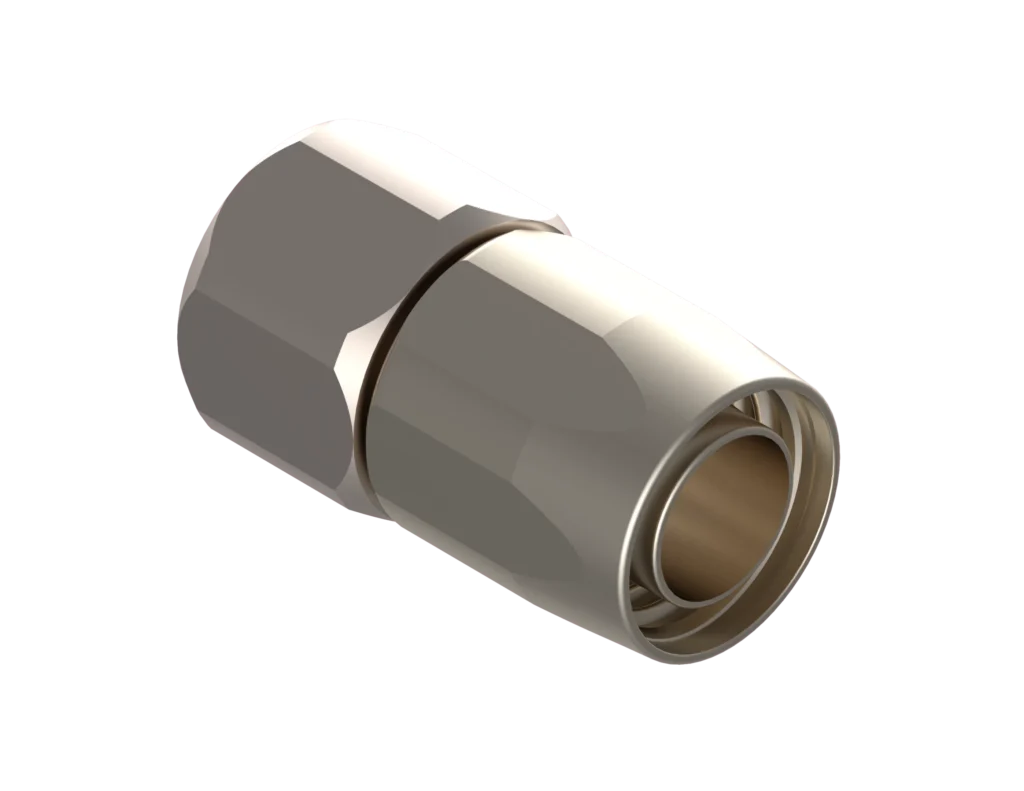

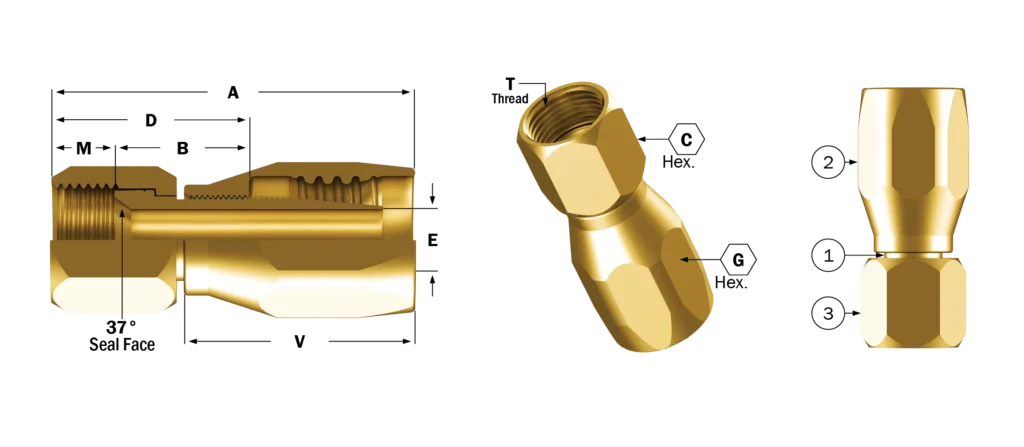

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-4	1/4	7/16”-20	1.75	.65	.56	1.00	.17	.62	.35	1.10	.10
4-411-5	5/16	1/2”-20	1.90	.74	.62	1.12	.23	.69	.38	1.20	.10
4-411-6	3/8	9/16”-18	2.05	.77	.69	1.15	.30	.81	.38	1.30	.20
4-411-8	1/2	3/4”-16	2.52	.95	.88	1.38	.39	.94	.43	1.65	.30
4-411-10	5/8	7/8”-14	2.80	1.00	1.00	1.51	.48	1.12	.51	1.80	.40
4-411-12	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60

Description	Req’d per Ass’y	Base No.	-4	-5	-6	-8	-10	-12	Material
Nipple	1	4-1251-	4	5	6	8	10	12	Monel
Socket	1	4-1210-	4	5	6	8	10	12	Monel
Nut	1	4-1290-	4	5	6	8	10	12	Monel

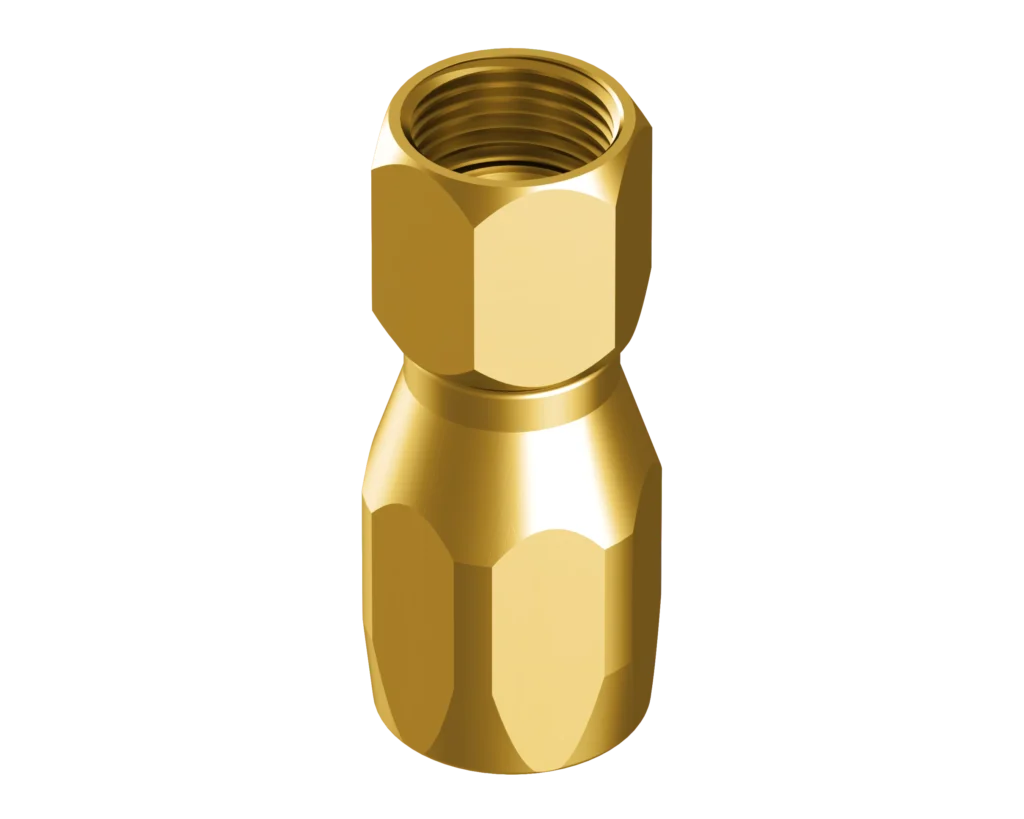

HS1488 Equivalent

P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-16	1	1-5/16”-12	2.82	.95	1.50	1.55	.82	1.44	.60	1.66	.70
4-411-20	1.25	1-5/8”-12	3.00	1.00	2.00	1.64	1.05	1.75	.64	1.75	1.30
4-411-24	1.50	1-7/8”-12	3.28	1.09	2.25	1.83	1.28	1.94	.74	1.84	1.60
4-411-32	2	2-1/2”-12	4.02	1.24	2.88	2.18	1.75	2.24	.94	2.25	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	4-1212-	16	20	24	32	Monel
Nut	1	4-1290-	16	20	24	32	Monel

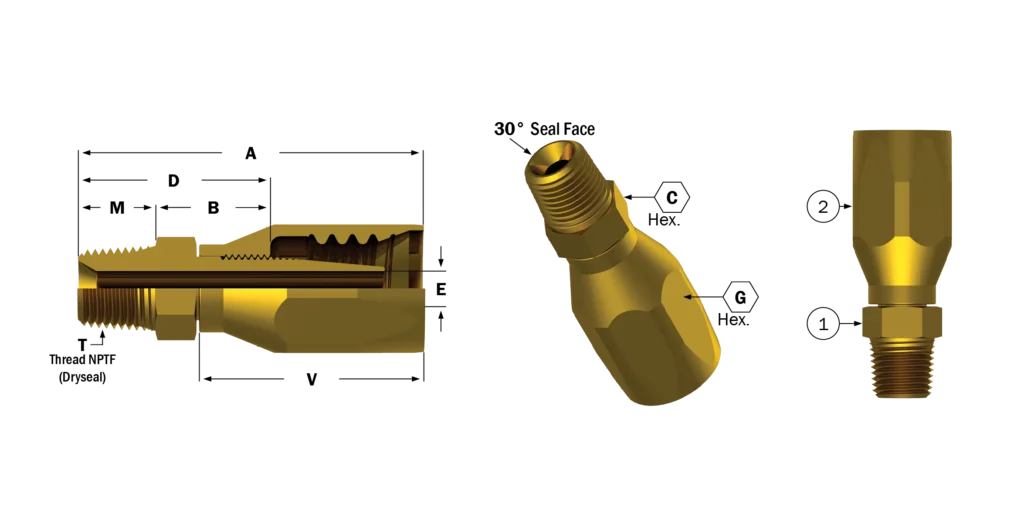

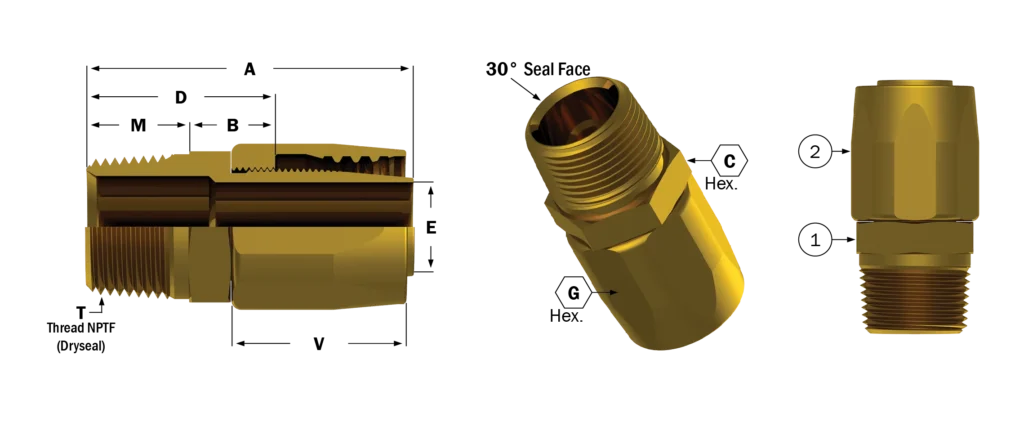

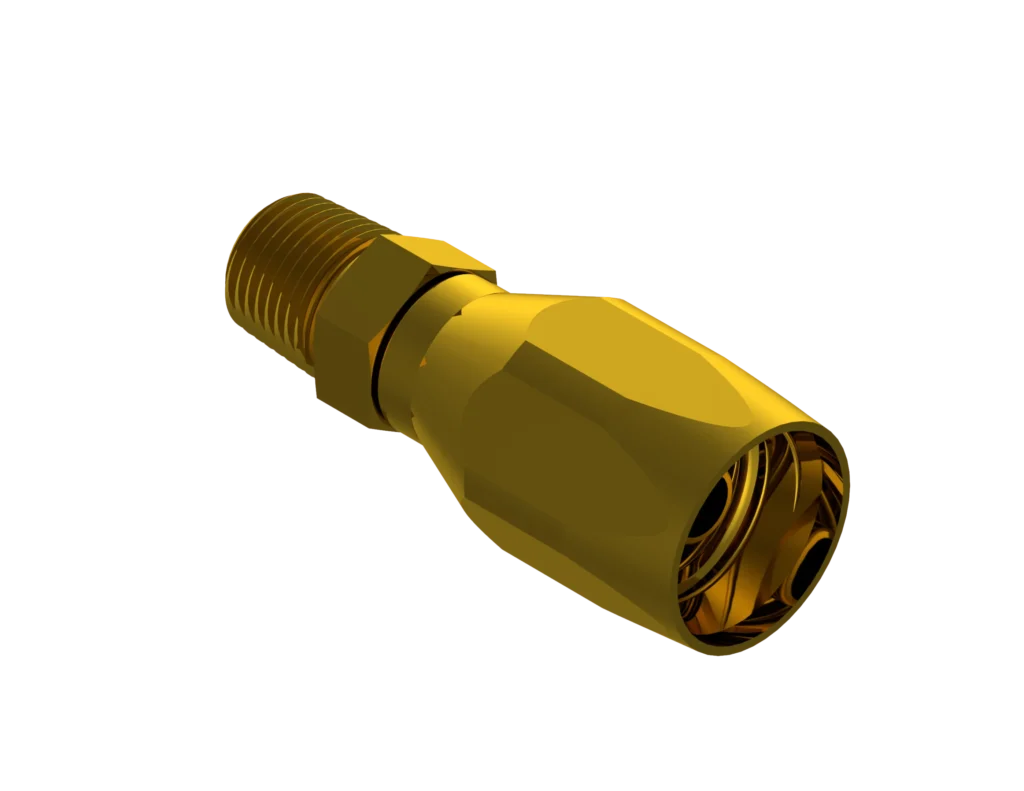

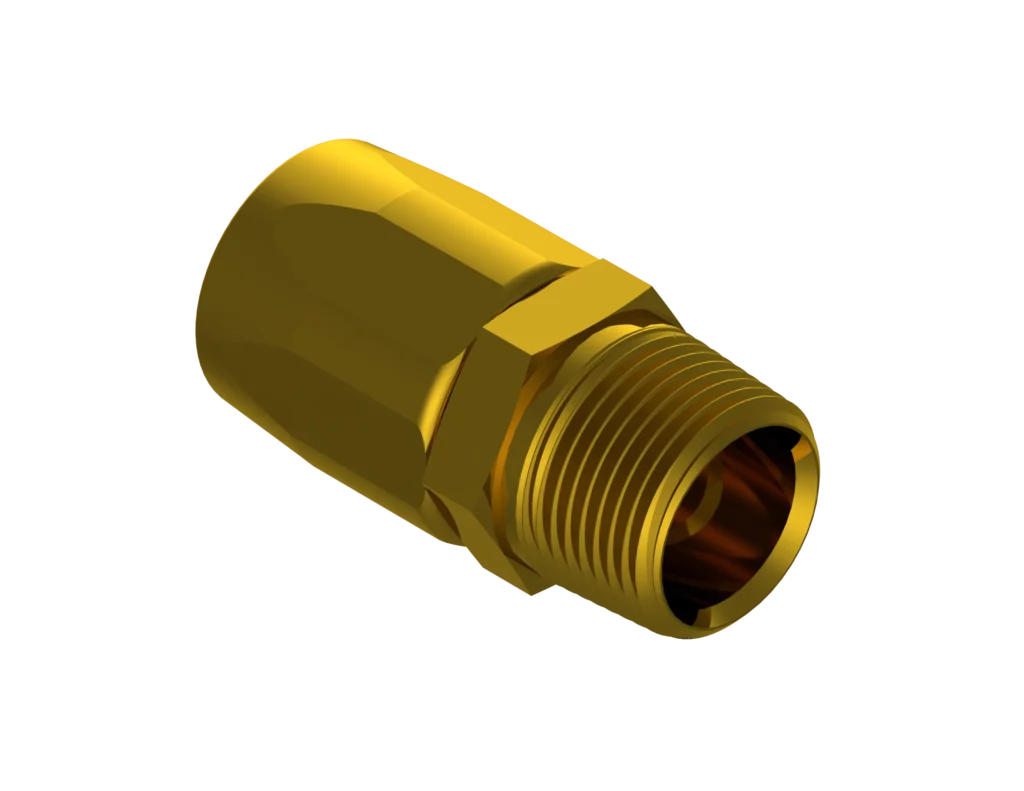

Equals to P/N 412-B & 44-412

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-2-4B	1/4	1/8”-27	1.68	.55	.44	.92	.17	.62	.38	1.10	-
4-412-4-4B	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.62	.56	1.10	-
4-412-2-5B	5/16	1/8”-27	1.78	-	-	1.00	.23	-	-	-	-
4-412-4-5B	3/8	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	-
4-412-4-6B	3/8	1/4”-18	2.13	.67	.56	1.23	.30	.81	.56	1.30	-
4-412-6-6B	3/8	3/8”-18	2.13	-	-	1.23	.24	-	-	-	-
4-412-6-8B	1/2	3/8”-18	2.48	.77	.75	1.33	.39	.94	.56	1.65	-
4-412-8-10B	5/8	1/2”-14	2.88	.84	.88	1.59	.48	1.12	.75	1.80	-
4-412-12-12B	3/4	3/4-14	3.24	.92	1.06	1.67	.61	1.25	.75	2.10	-

Description	Req’d per Ass’y	Base No.	-2-4	-4-4	-2-5	-4-5	-4-6	-6-6	-6-8	-8-10	-12-12	Material
Nipple	1	4-1252-	2-4	4-4	2-5	4-5	4-6	6-6	6-8	8-10	12-12	Brass
Socket	1	4-1210-	4	4	5	5	6	6	8	10	12	Brass

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-12-16B	1	1”-11-1/2	2.80	-	-	1.53	.82	-	-	-	-
4-412-16-16B	1	1-1/4”-11-1/2	2.99	.78	1.38	1.72	.82	1.44	.94	1.66	-
4-412-20-20B	1.25	1-1/2”-11-1/2	3.23	.90	1.75	1.87	1.05	1.75	.97	1.75	-
4-412-24-24B	1.50	2”-11-1/2	3.48	1.03	2.00	2.03	1.28	1.84	1.00	1.84	-
4-412-32-32B	2	2-1/2”-8	4.05	1.17	2.44	2.20	1.75	2.25	1.03	2.25	-
44-412-40-40	2.5	2-1/2”-8	5.03	1.61	3.00	3.13	2.12	3.25	1.52	2.50	-
44-412-48-48	3	3”-8	5.09	1.61	3.88	3.19	2.69	3.88	1.58	2.50	-

Description	Req’d per Ass’y	Base No.	-12-16	-16-16	-20-20	-24-24	-32-32	Material
Nipple	1	4-1252-	12-16	16-16	20-20	24-24	32-32	Brass
Socket	1	4-1212-	16	16	20	24	32	Brass

Description	Req’d per Ass’y	Base No.	-40-40	-48-48	Material
Nipple	1	3-1252-	-40-40	-48-48	Brass
Socket	1	1212-	-40B	-48B	Brass

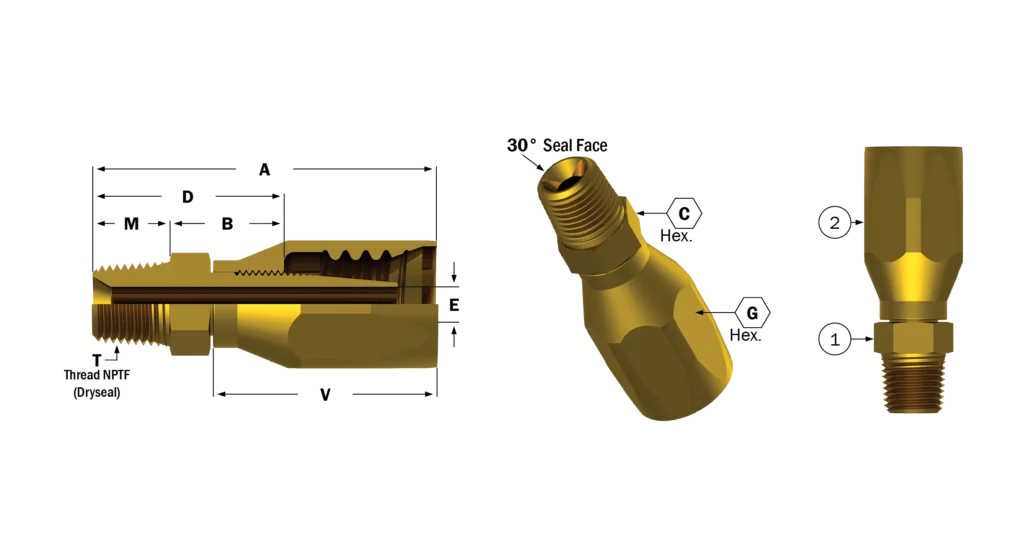

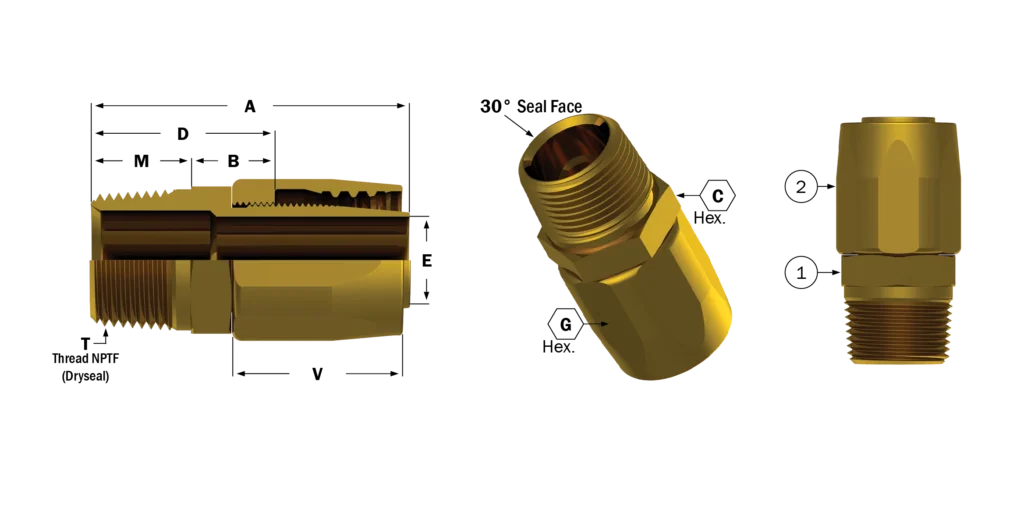

HS1488

Equal to Aeroquip P/N 412-B & 44-412

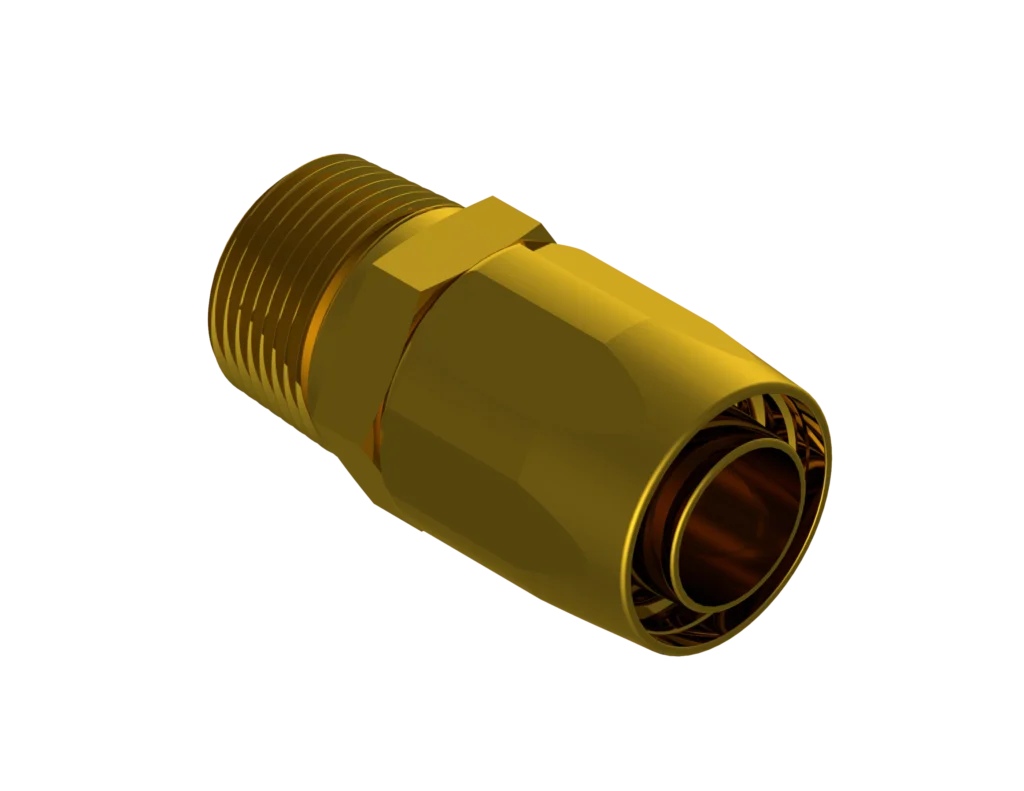

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-2-4B	1/4	1/8”-27	1.68	.55	.44	.92	.17	.62	.38	1.10	-
4-412-4-4B	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.62	.56	1.10	-
4-412-2-5B	5/16	1/8”-27	1.78	-	-	1.00	.23	-	-	-	-
4-412-4-5B	3/8	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	-
4-412-4-6B	3/8	1/4”-18	2.13	.67	.56	1.23	.30	.81	.56	1.30	-
4-412-6-6B	3/8	3/8”-18	2.13	-	-	1.23	.24	-	-	-	-
4-412-6-8B	1/2	3/8”-18	2.48	.77	.75	1.33	.39	.94	.56	1.65	-
4-412-8-10B	5/8	1/2”-14	2.88	.84	.88	1.59	.48	1.12	.75	1.80	-
4-412-12-12B	3/4	3/4-14	3.24	.92	1.06	1.67	.61	1.25	.75	2.10	-

Description	Req’d per Ass’y	Base No.	-2-4	-4-4	-2-5	-4-5	-4-6	-6-6	-6-8	-8-10	-12-12	Material
Nipple	1	4-1252-	2-4	4-4	2-5	4-5	4-6	6-6	6-8	8-10	12-12	Brass
Socket	1	4-1210-	4	4	5	5	6	6	8	10	12	Brass

HS1488 Equivalent

P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-12-16B	1	1”-11-1/2	2.80	-	-	1.53	.82	-	-	-	-
4-412-16-16B	1	1-1/4”-11-1/2	2.99	.78	1.38	1.72	.82	1.44	.94	1.66	-
4-412-20-20B	1.25	1-1/2”-11-1/2	3.23	.90	1.75	1.87	1.05	1.75	.97	1.75	-
4-412-24-24B	1.50	2”-11-1/2	3.48	1.03	2.00	2.03	1.28	1.84	1.00	1.84	-
4-412-32-32B	2	2-1/2”-8	4.05	1.17	2.44	2.20	1.75	2.25	1.03	2.25	-
44-412-40-40	2.5	2-1/2”-8	5.03	1.61	3.00	3.13	2.12	3.25	1.52	2.50	-
44-412-48-48	3	3”-8	5.09	1.61	3.88	3.19	2.69	3.88	1.58	2.50	-

Description	Req’d per Ass’y	Base No.	-12-16	-16-16	-20-20	-24-24	-32-32	Material
Nipple	1	4-1252-	12-16	16-16	20-20	24-24	32-32	Brass
Socket	1	4-1212-	16	16	20	24	32	Brass

Description	Req’d per Ass’y	Base No.	-40-40	-48-48	Material
Nipple	1	3-1252-	-40-40	-48-48	Brass
Socket	1	1212-	-40B	-48B	Brass

Equals to P/N 41-191305

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	V	Est. Wt. (lbs.)
90ELB-SM1600D-0606	C20529	3/8	3.11	.69	1.63	.31	1.00	.62	.50	1.92	.76
90ELB-SM1600D-0808	C20530	1/2	3.44	.81	1.93	.39	1.12	.62	.75	2.01	1.12
90ELB-SM1600D-1212	C20531	3/4	4.52	1.06	2.65	.61	1.50	.74	1.25	2.47	2.03
90ELB-SM1600D-1616	C20532	1	5.25	1.38	3.20	.82	1.81	.74	1.50	2.95	3.77
90ELB-SM1600D-2020	C20533	1.25	6.09	1.62	3.78	1.05	2.25	.86	1.75	3.42	6.31
90ELB-SM1600D-2424	C20534	1.5	6.32	1.88	4.09	1.28	2.50	.86	2.00	3.34	7.85
90ELB-SM1600D-3232	C20535	2	7.38	2.50	4.94	1.75	3.00	1.12	2.50	3.70	11.43

Description	Req’d per Ass’y	0606	0808	1212	1616	2020	2424	3232	Material
Elbow	1	C19851	C19852	C19853	C20244	C19854	C19855	C19856	Monel
Socket	2	C19795-2	C19680-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	Steel

HS1600

Equal to Aeroquip P/N 41-191305

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	V	Est. Wt. (lbs.)
90ELB-SM1600D-0606	C20529	3/8	3.11	.69	1.63	.31	1.00	.62	.50	1.92	.76
90ELB-SM1600D-0808	C20530	1/2	3.44	.81	1.93	.39	1.12	.62	.75	2.01	1.12
90ELB-SM1600D-1212	C20531	3/4	4.52	1.06	2.65	.61	1.50	.74	1.25	2.47	2.03
90ELB-SM1600D-1616	C20532	1	5.25	1.38	3.20	.82	1.81	.74	1.50	2.95	3.77
90ELB-SM1600D-2020	C20533	1.25	6.09	1.62	3.78	1.05	2.25	.86	1.75	3.42	6.31
90ELB-SM1600D-2424	C20534	1.5	6.32	1.88	4.09	1.28	2.50	.86	2.00	3.34	7.85
90ELB-SM1600D-3232	C20535	2	7.38	2.50	4.94	1.75	3.00	1.12	2.50	3.70	11.43

Description	Req’d per Ass’y	0606	0808	1212	1616	2020	2424	3232	Material
Elbow	1	C19851	C19852	C19853	C20244	C19854	C19855	C19856	Monel
Socket	2	C19795-2	C19680-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	Steel

Equals to P/N 41-191304

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-SM1600CL-0406	C20519	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-SM1600CL-0608	C20520	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-SM1600CL-0812	C20521	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-SM1600CL-1216	C20522	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-SM1600CL-1616	C20523	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-SM1600CL-1620	C20524	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-SM1600CL-2020	C20525	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-SM1600CL-2024	c20526	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-SM1600CL-2432	C20527	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-SM1600CL-3232	C20528	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-2	C19680-2	C19797-2	C19700-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-2	C19798-2	C19799-2	C19694-2	C19694-2	Steel

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
41-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
41-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
41-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
41-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
41-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
41-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
41-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
41-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2.32	Material
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

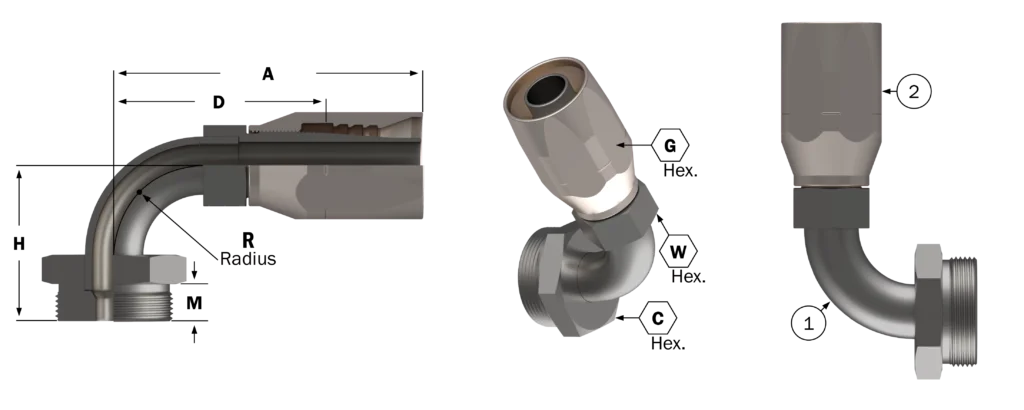

HS1600

Equal to Aeroquip P/N 41-191304

Male O-Ring Seal to Hose

End Fitting - 90°

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-SM1600CL-0406	C20519	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-SM1600CL-0608	C20520	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-SM1600CL-0812	C20521	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-SM1600CL-1216	C20522	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-SM1600CL-1616	C20523	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-SM1600CL-1620	C20524	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-SM1600CL-2020	C20525	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-SM1600CL-2024	c20526	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-SM1600CL-2432	C20527	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-SM1600CL-3232	C20528	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-2	C19680-2	C19797-2	C19700-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-2	C19798-2	C19799-2	C19694-2	C19694-2	Steel

HS1600 Equivalent

P/N 41-191304

Male O-Ring Seal to Hose

End Fitting - 90°

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
41-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
41-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
41-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
41-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
41-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
41-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
41-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
41-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2.32	Material
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

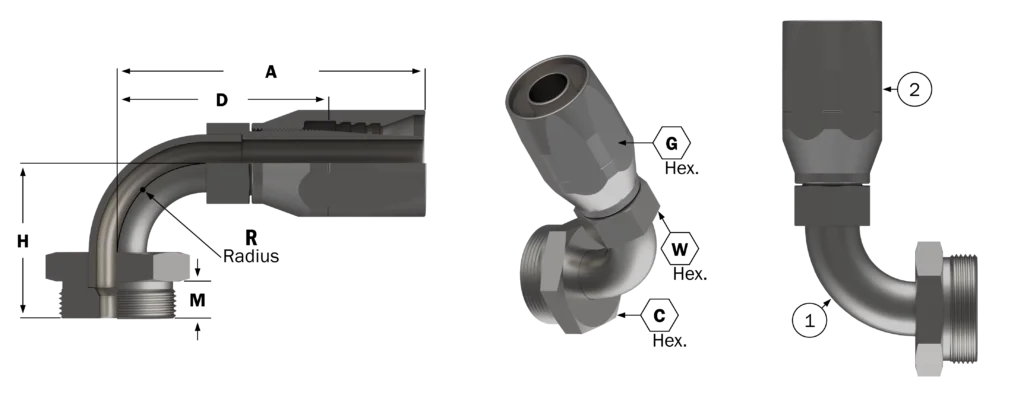

Equals to P/N 4-191304

Defense

MIL-DTL-24787/3

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type CL, Group I

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-1600CL-0406	C20051	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-1600CL-0608	C20052	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-1600CL-0812	C20053	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-1600CL-1216	C20054	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-1600CL-1616	C20055	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-1600CL-1620	C20056	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-1600CL-2020	C20057	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-1600CL-2024	C20058	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-1600CL-2432	C20059	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-1600CL-3232	C20060	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-1	C19680-1	C19797-1	C19700-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
4-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
4-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
4-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
4-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
4-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
4-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
4-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
4-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2-32	Mat’l
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	4-4010-4-4013-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel Monel

HS1600

Equal to Aeroquip P/N 4-191304

Male O-Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-1600CL-0406	C20051	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-1600CL-0608	C20052	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-1600CL-0812	C20053	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-1600CL-1216	C20054	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-1600CL-1616	C20055	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-1600CL-1620	C20056	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-1600CL-2020	C20057	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-1600CL-2024	C20058	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-1600CL-2432	C20059	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-1600CL-3232	C20060	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-1	C19680-1	C19797-1	C19700-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-191304

Male O-Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
4-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
4-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
4-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
4-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
4-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
4-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
4-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
4-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2-32	Mat’l
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	4-4010-4-4013-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel Monel

Equals to P/N 4-190909

Defense

MIL-DTL-24787/3

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type C, Group I

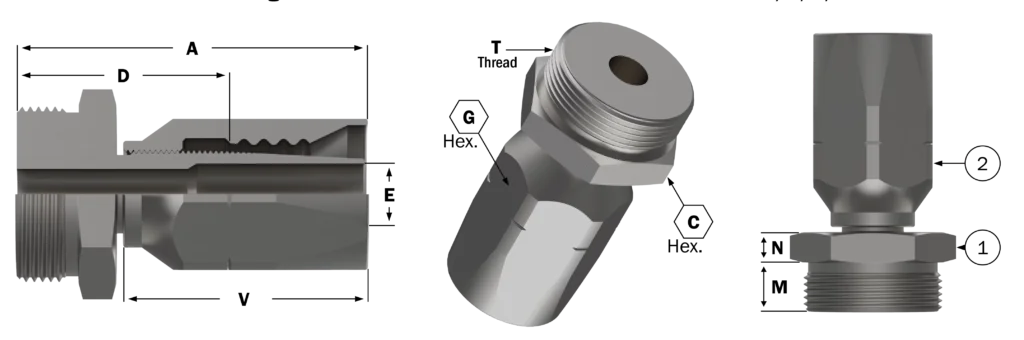

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600C-0204	C20061	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-1600C-0406	C20062	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-1600C-0606	C20063	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-1600C-0608	C20064	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-1600C-0812	C20065	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-1600C-1216	C20066	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-1600C-1616	C20067	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-1600C-2016	C20068	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-1600C-1620	C20069	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-1600C-2020	C20070	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-1600C-2024	C20071	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-1600C-2432	C20072	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-1600C-3232	C20073	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-1	C19795-1	C19795-1	C19680-1	C19797-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-1	C19700-1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
4-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
4-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
4-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
4-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
4-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
4-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
4-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
4-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
4-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	12-	-16	-16	20-	24-	32-	32-	Monel

HS1600

Equal to Aeroquip P/N 4-190909

Male O-Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600C-0204	C20061	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-1600C-0406	C20062	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-1600C-0606	C20063	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-1600C-0608	C20064	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-1600C-0812	C20065	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-1600C-1216	C20066	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-1600C-1616	C20067	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-1600C-2016	C20068	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-1600C-1620	C20069	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-1600C-2020	C20070	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-1600C-2024	C20071	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-1600C-2432	C20072	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-1600C-3232	C20073	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-1	C19795-1	C19795-1	C19680-1	C19797-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-1	C19700-1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-190909

Male O-Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
4-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
4-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
4-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
4-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
4-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
4-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
4-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
4-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
4-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	12-	-16	-16	20-	24-	32-	32-	Monel

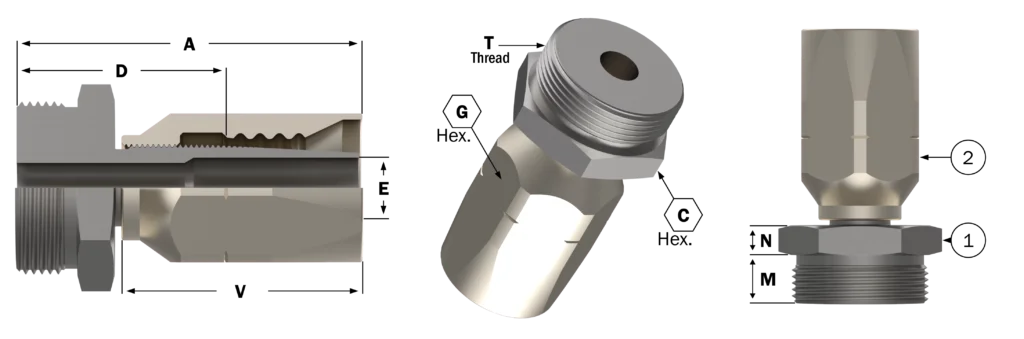

Equals to P/N 41-190909

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600C-0204	C20506	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-SM1600C-0406	C20507	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-SM1600C-0606	C20508	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-SM1600C-0608	C20509	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-SM1600C-0812	C20510	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-SM1600C-1216	C20511	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-SM1600C-1616	C20512	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-SM1600C-2016	C20513	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-SM1600C-1620	C20514	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-SM1600C-2020	C20515	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-SM1600C-2024	C20516	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-SM1600C-2432	C20517	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-SM1600C-3232	C20518	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-2	C19795-2	C19795-2	C19680-2	C19797-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-2	C19700-2	C19798-2	C19798-2	C19799-2	C19694-2	C19694-1	Steel

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
41-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
41-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
41-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
41-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
41-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
41-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
41-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
41-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
41-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

HS1600

Equal to Aeroquip P/N 41-190909

Male O-Ring Seal to Hose

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600C-0204	C20506	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-SM1600C-0406	C20507	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-SM1600C-0606	C20508	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-SM1600C-0608	C20509	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-SM1600C-0812	C20510	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-SM1600C-1216	C20511	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-SM1600C-1616	C20512	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-SM1600C-2016	C20513	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-SM1600C-1620	C20514	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-SM1600C-2020	C20515	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-SM1600C-2024	C20516	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-SM1600C-2432	C20517	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-SM1600C-3232	C20518	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-2	C19795-2	C19795-2	C19680-2	C19797-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-2	C19700-2	C19798-2	C19798-2	C19799-2	C19694-2	C19694-1	Steel

HS1600 Equivalent

P/N 41-190909

Male O-Ring Seal to Hose

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
41-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
41-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
41-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
41-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
41-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
41-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
41-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
41-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
41-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

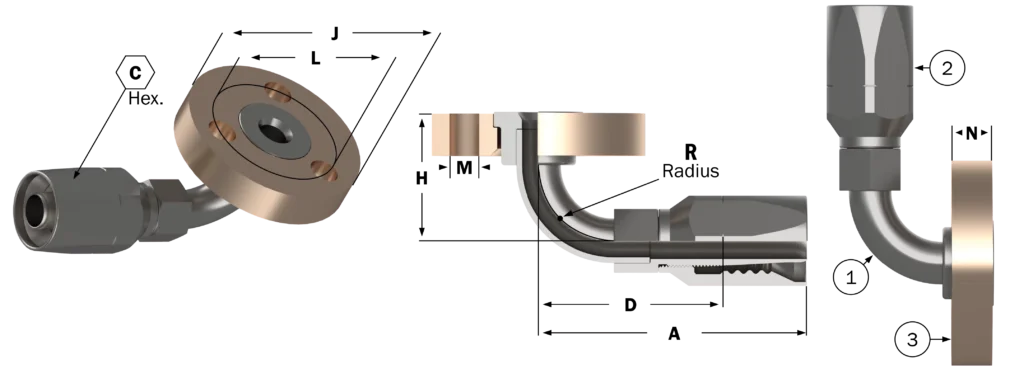

Equals to P/N FC9224-463

Defense

MIL-DTL-24787/1

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type FL, Group I, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1600B5-0812	C20183	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.69	1.25	2.47
90EF-1600B5-0816	C20184	1/2	3	5.25	1.81	3.20	2.19	3.56	2.44	.56	.69	1.25	2.78
90EF-1600B5-1216	C20185	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.69	1.50	2.95
90EF-1600B5-1220	C20186	3/4	4	6.10	2.25	3.78	2.49	3.81	2.69	.56	.69	1.50	3.61
90EF-1600B5-1616	C20187	1	4	2.25	1.81	3.20	2.69	4.25	3.13	.56	.75	1.75	5.00
90EF-1600B5-1620	C20188	1	4	6.10	2.25	3.78	2.69	4.25	3.13	.56	.75	1.75	5.75
90EF-1600B5-1624	C20189	1	4	6.31	2.50	4.09	2.69	4.25	3.13	.56	.75	1.75	6.00
90EF-1600B5-2024	C20190	1.25	4	6.31	2.50	4.09	3.13	4.50	3.38	.56	.81	2.00	7.00
90EF-1600B5-2032	C20191	1.25	4	7.38	3.00	4.94	3.13	4.50	3.38	.56	.81	2.00	8.25
90EF-1600B5-2432	C20192	1.5	6	7.38	3.00	4.94	3.00	5.06	3.94	.56	.81	2.50	8.75
90EF-1600B5-3232	C20193	2	6	7.38	3.00	4.94	3.35	5.06	4.44	.56	.81	2.50	10.75

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Elbow	1	C19857	C20026	C19858	C20027	C20028	C19859	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Elbow	1	C20029	C19860	C19861	C19561	C19562	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
FC9224-0812-463	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.70	1.25	2.47
FC9224-1216-463	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.70	1.50	2.95
FC9224-1620-463	1	4	6.10	2.25	3.78	2.69	4.25	3.12	.56	.77	1.75	5.75
FC9224-2024-463	1.25	4	6.32	2.50	4.09	3.13	4.50	3.38	.56	.83	2.00	7.00
FC9224-2432-463	1.5	6	7.38	3.0	4.94	3.35	5.06	3.94	.56	.83	2.50	8.75
FC9224-3232-463	2	6	7.38	6.00	4.94	3.35	5.56	4.44	.56	.83	2.50	10.75

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Elbow	1	-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

HS1600

Equal to Aeroquip P/N FC9224-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type FL, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1600B5-0812	C20183	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.69	1.25	2.47
90EF-1600B5-0816	C20184	1/2	3	5.25	1.81	3.20	2.19	3.56	2.44	.56	.69	1.25	2.78
90EF-1600B5-1216	C20185	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.69	1.50	2.95
90EF-1600B5-1220	C20186	3/4	4	6.10	2.25	3.78	2.49	3.81	2.69	.56	.69	1.50	3.61
90EF-1600B5-1616	C20187	1	4	2.25	1.81	3.20	2.69	4.25	3.13	.56	.75	1.75	5.00
90EF-1600B5-1620	C20188	1	4	6.10	2.25	3.78	2.69	4.25	3.13	.56	.75	1.75	5.75
90EF-1600B5-1624	C20189	1	4	6.31	2.50	4.09	2.69	4.25	3.13	.56	.75	1.75	6.00
90EF-1600B5-2024	C20190	1.25	4	6.31	2.50	4.09	3.13	4.50	3.38	.56	.81	2.00	7.00
90EF-1600B5-2032	C20191	1.25	4	7.38	3.00	4.94	3.13	4.50	3.38	.56	.81	2.00	8.25
90EF-1600B5-2432	C20192	1.5	6	7.38	3.00	4.94	3.00	5.06	3.94	.56	.81	2.50	8.75
90EF-1600B5-3232	C20193	2	6	7.38	3.00	4.94	3.35	5.06	4.44	.56	.81	2.50	10.75

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Elbow	1	C19857	C20026	C19858	C20027	C20028	C19859	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Elbow	1	C20029	C19860	C19861	C19561	C19562	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

HS1600 Equivalent

P/N FC9224-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type FL, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
FC9224-0812-463	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.70	1.25	2.47
FC9224-1216-463	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.70	1.50	2.95
FC9224-1620-463	1	4	6.10	2.25	3.78	2.69	4.25	3.12	.56	.77	1.75	5.75
FC9224-2024-463	1.25	4	6.32	2.50	4.09	3.13	4.50	3.38	.56	.83	2.00	7.00
FC9224-2432-463	1.5	6	7.38	3.0	4.94	3.35	5.06	3.94	.56	.83	2.50	8.75
FC9224-3232-463	2	6	7.38	6.00	4.94	3.35	5.56	4.44	.56	.83	2.50	10.75

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Elbow	1	-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

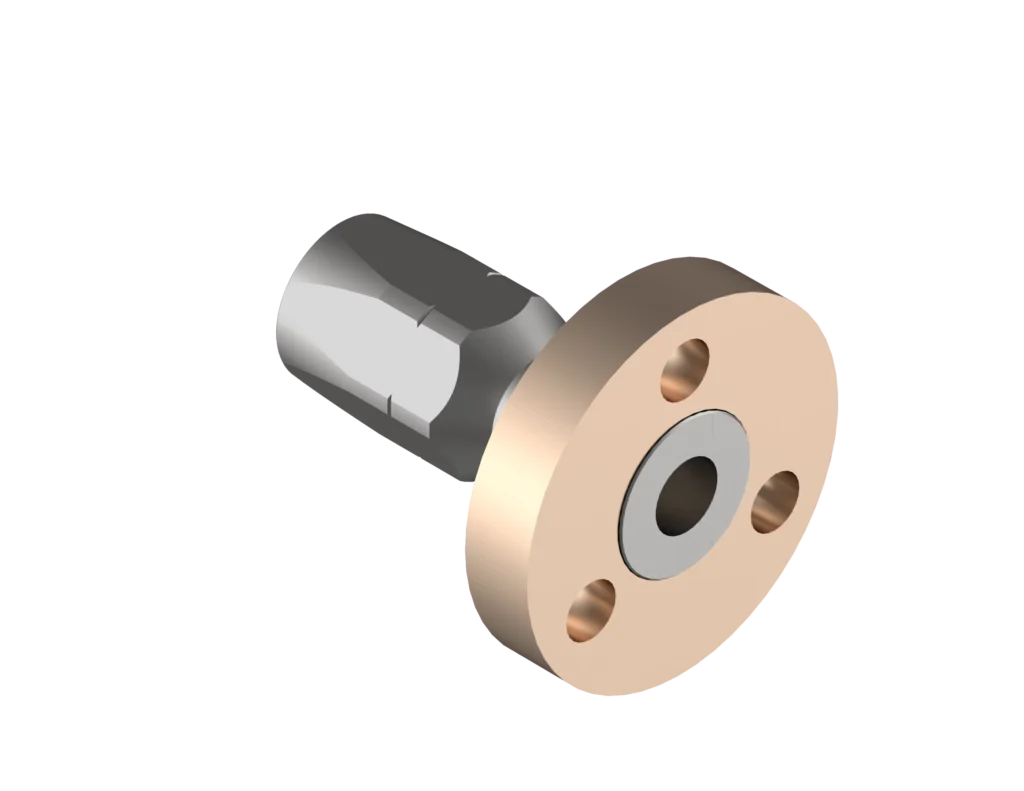

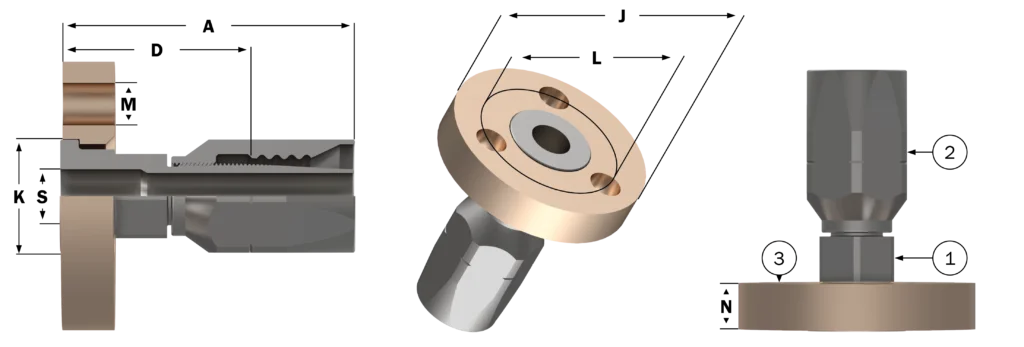

Equals to P/N FC9056-463

Defense

MIL-DTL-24787/1

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type F, Group I, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1600A5-0812	C20128	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.69	.71	3.25
EF-1600A5-0816	C20129	1/2	3	4.34	2.29	3.56	1.50	2.44	.56	.69	.71	3.50
EF-1600A5-1216	C20130	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.69	.92	4.11
EF-1600A5-1220	C20131	3/4	4	4.81	2.49	3.81	1.84	2.69	.56	.69	.92	4.25
EF-1600A5-1616	C20132	1	4	4.34	2.29	4.25	1.50	3.13	.56	.75	1.18	4.62
EF-1600A5-1620	C20133	1	4	4.81	2.49	4.25	2.12	3.13	.56	.75	1.18	6.05
EF-1600A5-1624	C20134	1	4	4.97	2.73	4.25	2.12	3.13	.56	.75	1.18	6.50
EF-1600A5-2024	C20135	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.81	1.53	7.25
EF-1600A5-2032	C20136	1.25	4	5.33	2.89	4.50	2.74	3.38	.56	.81	1.53	8.00
EF-1600A5-2432	C20137	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.81	1.77	9.14
EF-1600A5-3232	C20138	2	6	5.33	2.89	5.06	3.28	4.44	.56	.81	1.77	11.06

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Nipple	1	C19839-1	C20022	C19840-1	C20023	C20024	C19841-1	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Nipple	1	C20025	C19842-1	C19843-1	C19843-1	C19844-1	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
FC9056-0812-463	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.70	.71	2.78
FC9056-1216-463	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.70	.92	3.61
FC9056-1620-463	1	4	4.81	2.49	4.25	2.12	3.12	.56	.77	1.18	5.55
FC9056-2024-463	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.83	1.53	6.75
FC9056-2432-463	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.83	1.77	8.64
FC9056-3232-463	2	6	5.33	2.89	5.56	3.28	4.44	.56	.83	2.24	10.56

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Nipple	1	FC3056-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

HS1600

Equal to Aeroquip P/N FC9056-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1600A5-0812	C20128	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.69	.71	3.25
EF-1600A5-0816	C20129	1/2	3	4.34	2.29	3.56	1.50	2.44	.56	.69	.71	3.50
EF-1600A5-1216	C20130	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.69	.92	4.11
EF-1600A5-1220	C20131	3/4	4	4.81	2.49	3.81	1.84	2.69	.56	.69	.92	4.25
EF-1600A5-1616	C20132	1	4	4.34	2.29	4.25	1.50	3.13	.56	.75	1.18	4.62
EF-1600A5-1620	C20133	1	4	4.81	2.49	4.25	2.12	3.13	.56	.75	1.18	6.05
EF-1600A5-1624	C20134	1	4	4.97	2.73	4.25	2.12	3.13	.56	.75	1.18	6.50
EF-1600A5-2024	C20135	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.81	1.53	7.25
EF-1600A5-2032	C20136	1.25	4	5.33	2.89	4.50	2.74	3.38	.56	.81	1.53	8.00
EF-1600A5-2432	C20137	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.81	1.77	9.14
EF-1600A5-3232	C20138	2	6	5.33	2.89	5.06	3.28	4.44	.56	.81	1.77	11.06

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Nipple	1	C19839-1	C20022	C19840-1	C20023	C20024	C19841-1	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Nipple	1	C20025	C19842-1	C19843-1	C19843-1	C19844-1	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

HS1600 Equivalent

P/N FC9056-463HS1600

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
FC9056-0812-463	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.70	.71	2.78
FC9056-1216-463	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.70	.92	3.61
FC9056-1620-463	1	4	4.81	2.49	4.25	2.12	3.12	.56	.77	1.18	5.55
FC9056-2024-463	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.83	1.53	6.75
FC9056-2432-463	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.83	1.77	8.64
FC9056-3232-463	2	6	5.33	2.89	5.56	3.28	4.44	.56	.83	2.24	10.56

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Nipple	1	FC3056-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

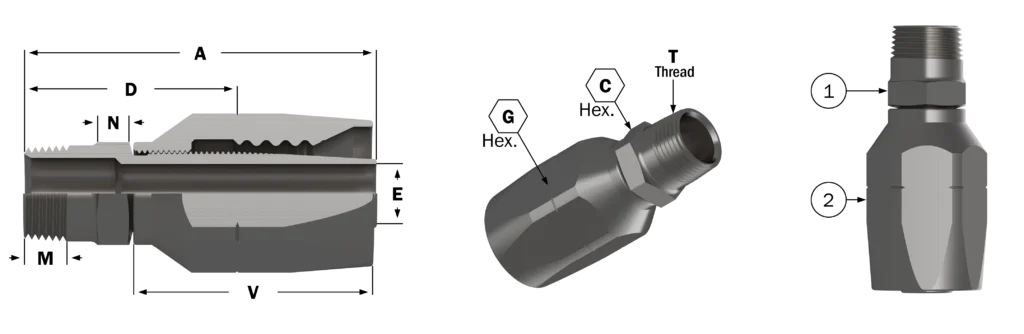

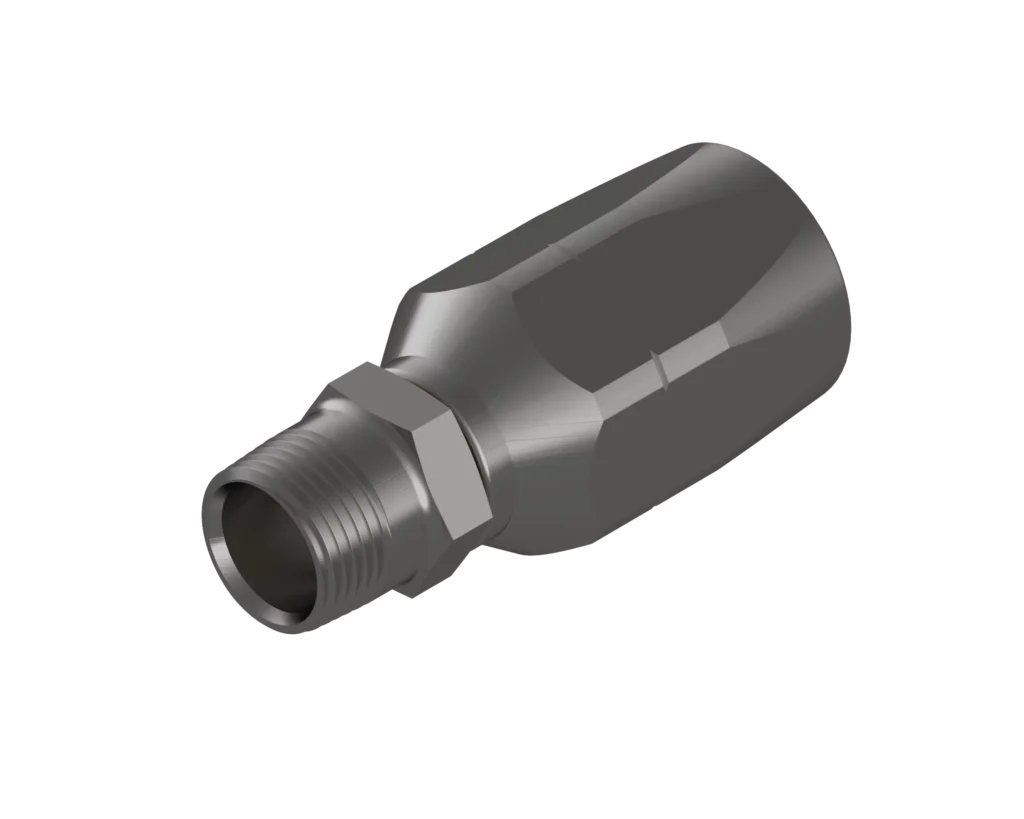

Equals to P/N 4-4722

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600MP-0404	C20556	1/4	1/4”-18	2.5	.56	1.26	.17	.81	.56	.19	1.73	.26
EF-1600MP-0604	C20557	1/4	3/8”-18	2.56	.56	1.32	.17	.81	.56	.19	1.73	.31
EF-1600MP-0606	C20558	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
EF-1600MP-0608	C20559	1/2	3/8”-18	2.84	.88	1.32	.39	1.12	.56	.25	2.01	.42
EF-1600MP-0808	C20560	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
EF-1600MP-0810	C20561	5/8	1/2”-14	3.18	.94	1.63	.50	1.25	.75	.31	2.10	.62
EF-1600MP-1212	c20562	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	.75
EF-1600MP-1612	C20563	3/4	1”-11-1/2	3.92	1.06	2.06	.61	1.50	.75	.38	2.47	1.08
EF-1600MP-1616	C20564	1	1”-11-1/2	4.40	1.38	2.36	.82	1.75	.94	.50	2.95	1.79
EF-1600MP-2020	C20565	1.215	1-1/4”-11-1/2	4.90	1.75	2.59	1.05	2.25	.97	.50	3.42	2.74
EF-1600MP-2424	C20566	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
EF-1600MP-3232	C20567	2	2”-11-1/2	5.50	2.50	3.05	1.75	3.00	1.03	.75	3.70	5.21

Desc.	Req’d per Ass’y	0404	0604	0606	0608	0808	0810	Mat’l
Nipple	1	C19957-1	C20385-1	C19958-1	C20247-1	C19959-1	C19960-1	Monel
Socket	1	C19794-1	C19794-1	C19795-1	C19680-1	C19680-1	C19796-1	Monel

Desc.	Req’d per Ass’y	1212	1612	1616	2020	2424	3232	Mat’l
Nipple	1	C19961-1	C20386-1	C19962-1	C19963-1	C19964-1	C19965-1	Moel
Socket	1	C19797-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4722-4-4	1/4	1/4”-14	2.50	.56	1.27	.17	.81	.56	.19	1.73	.26
4-4722-6-6	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
4-4722-8-8	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
4-4722-8-10	5/8	1/2”-14	3.18	.94	1.62	.48	1.25	.75	.31	2.10	.57
4-4722-12-12	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	1.08
4-4722-16-16	1	1”-11-1/2	4.90	1.38	2.35	.82	1.75	.94	.50	2.95	1.79
4-4722-20-20	1.25	1-1/4”-11-1/2	4.90	1.75	2.58	1.05	2.25	.97	.50	3.42	2.74
4-4722-24-24	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
4-4722-32-32	2	2”-11-1/2	5.50	2.50	3.06	1.75	3.00	1.03	.75	3.70	5.21

Description	Req’d per Ass’y	Base No.	4-4	6-6	8-8	8-10	12	16	20	24	32	Mat’l
Nipple	1	4-4202-	4-4	6-6	8-8	8-10	12-12	16-16	20-20	24-24	32-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	10-	12-	-16	20-	24-	32-	Monel

HS1600

Equal to Aeroquip P/N 4-4722

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600MP-0404	C20556	1/4	1/4”-18	2.5	.56	1.26	.17	.81	.56	.19	1.73	.26
EF-1600MP-0604	C20557	1/4	3/8”-18	2.56	.56	1.32	.17	.81	.56	.19	1.73	.31
EF-1600MP-0606	C20558	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
EF-1600MP-0608	C20559	1/2	3/8”-18	2.84	.88	1.32	.39	1.12	.56	.25	2.01	.42
EF-1600MP-0808	C20560	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
EF-1600MP-0810	C20561	5/8	1/2”-14	3.18	.94	1.63	.50	1.25	.75	.31	2.10	.62
EF-1600MP-1212	c20562	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	.75
EF-1600MP-1612	C20563	3/4	1”-11-1/2	3.92	1.06	2.06	.61	1.50	.75	.38	2.47	1.08
EF-1600MP-1616	C20564	1	1”-11-1/2	4.40	1.38	2.36	.82	1.75	.94	.50	2.95	1.79
EF-1600MP-2020	C20565	1.215	1-1/4”-11-1/2	4.90	1.75	2.59	1.05	2.25	.97	.50	3.42	2.74
EF-1600MP-2424	C20566	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
EF-1600MP-3232	C20567	2	2”-11-1/2	5.50	2.50	3.05	1.75	3.00	1.03	.75	3.70	5.21

Desc.	Req’d per Ass’y	0404	0604	0606	0608	0808	0810	Mat’l
Nipple	1	C19957-1	C20385-1	C19958-1	C20247-1	C19959-1	C19960-1	Monel
Socket	1	C19794-1	C19794-1	C19795-1	C19680-1	C19680-1	C19796-1	Monel

Desc.	Req’d per Ass’y	1212	1612	1616	2020	2424	3232	Mat’l
Nipple	1	C19961-1	C20386-1	C19962-1	C19963-1	C19964-1	C19965-1	Moel
Socket	1	C19797-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-4722

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4722-4-4	1/4	1/4”-14	2.50	.56	1.27	.17	.81	.56	.19	1.73	.26
4-4722-6-6	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
4-4722-8-8	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
4-4722-8-10	5/8	1/2”-14	3.18	.94	1.62	.48	1.25	.75	.31	2.10	.57
4-4722-12-12	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	1.08
4-4722-16-16	1	1”-11-1/2	4.90	1.38	2.35	.82	1.75	.94	.50	2.95	1.79
4-4722-20-20	1.25	1-1/4”-11-1/2	4.90	1.75	2.58	1.05	2.25	.97	.50	3.42	2.74
4-4722-24-24	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
4-4722-32-32	2	2”-11-1/2	5.50	2.50	3.06	1.75	3.00	1.03	.75	3.70	5.21

Description	Req’d per Ass’y	Base No.	4-4	6-6	8-8	8-10	12	16	20	24	32	Mat’l
Nipple	1	4-4202-	4-4	6-6	8-8	8-10	12-12	16-16	20-20	24-24	32-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	10-	12-	-16	20-	24-	32-	Monel

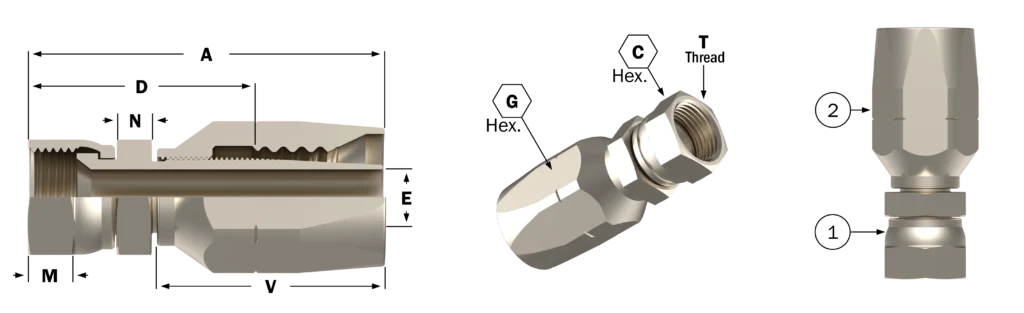

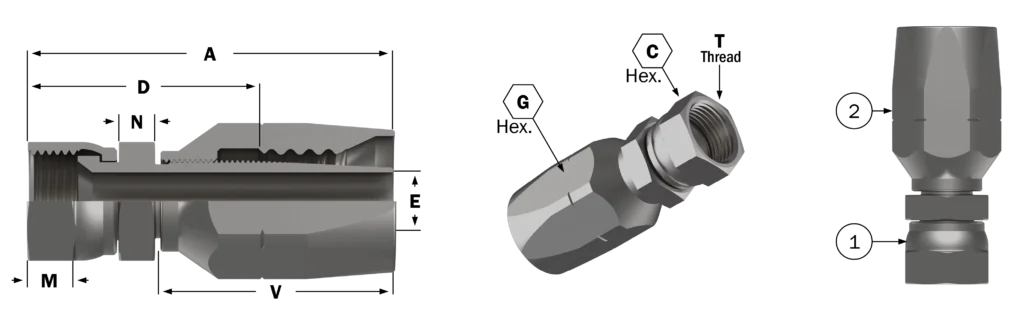

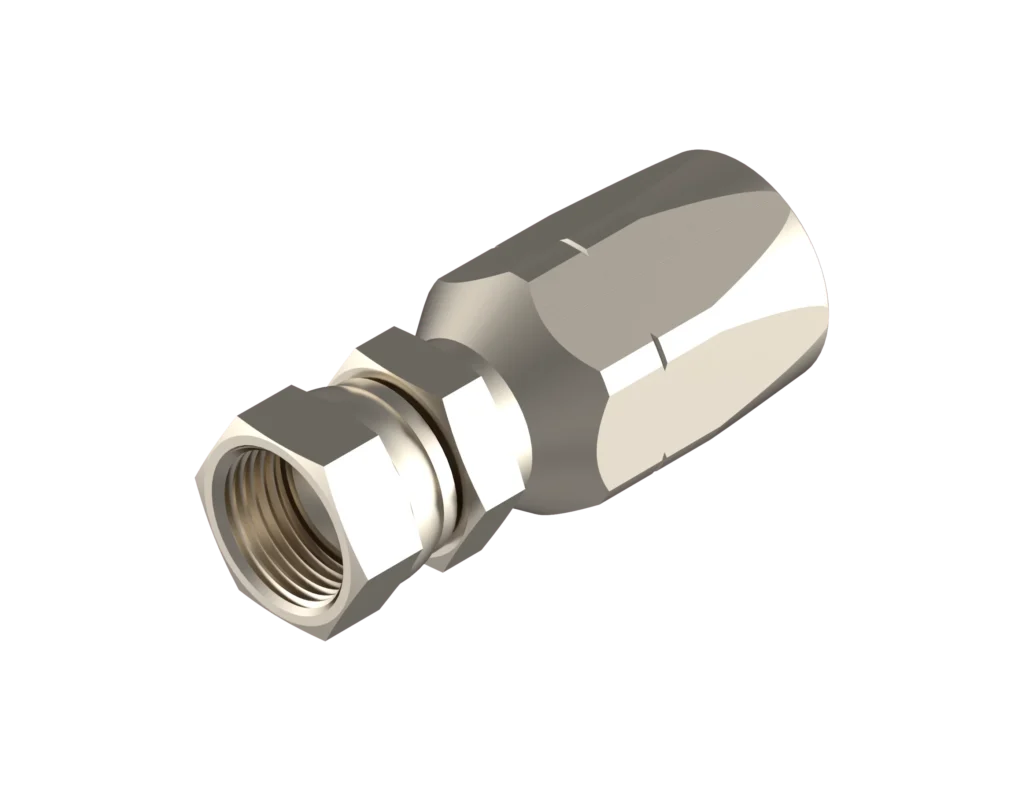

Equals to P/N 259-4721

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SS1600A-0404	-	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SS1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SS1600A-0604	-	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SS1600A-0606	-	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SS1600A-0806	-	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SS1600A-0808	-	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SS1600A-1008	-	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SS1600A-1208	-	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SS1600A-1010	-	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SS1600A-1212	-	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SS1600A-1616	-	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SS1600A-2020	-	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SS1600A-2424	-	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SS1600A-3232	-	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	004	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

HS1600

Equal to Aeroquip P/N 259-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SS1600A-0404	-	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SS1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SS1600A-0604	-	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SS1600A-0606	-	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SS1600A-0806	-	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SS1600A-0808	-	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SS1600A-1008	-	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SS1600A-1208	-	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SS1600A-1010	-	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SS1600A-1212	-	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SS1600A-1616	-	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SS1600A-2020	-	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SS1600A-2424	-	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SS1600A-3232	-	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	004	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

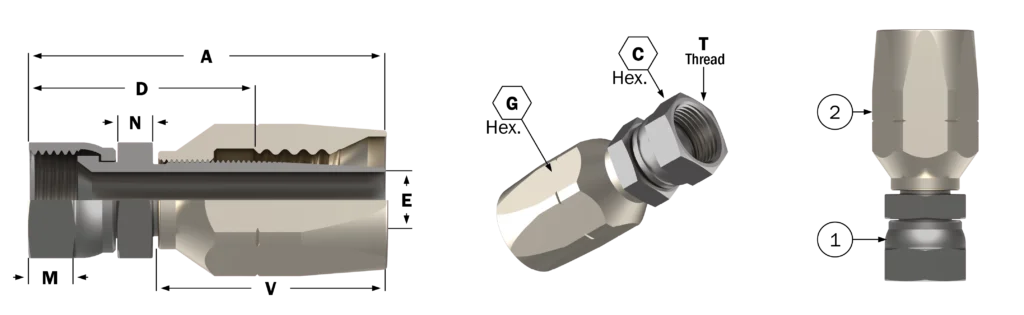

Equals to P/N 41-4721

Defense

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600A-0404	C20489	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SM1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SM1600A-0604	C20491	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SM1600A-0606	C20492	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SM1600A-0806	C20493	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SM1600A-0808	c20494	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SM1600A-1008	C20495	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SM1600A-1208	C20496	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SM1600A-1010	C20440	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SM1600A-1212	C20497	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SM1600A-1616	C20500	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SM1600A-2020	C20502	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SM1600A-2424	C20504	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SM1600A-3232	C20505	2	V	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
NIpple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monel
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
41-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
41-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
41-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
41-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
41-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
41-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
41-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
41-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
41-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
41-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
41-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
41-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Steel

HS1600

Equal to Aeroquip P/N 41-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600A-0404	C20489	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SM1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SM1600A-0604	C20491	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SM1600A-0606	C20492	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SM1600A-0806	C20493	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SM1600A-0808	c20494	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SM1600A-1008	C20495	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SM1600A-1208	C20496	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SM1600A-1010	C20440	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SM1600A-1212	C20497	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SM1600A-1616	C20500	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SM1600A-2020	C20502	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SM1600A-2424	C20504	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SM1600A-3232	C20505	2	V	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
NIpple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monel
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

HS1600 Equivalent

P/N 41-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
41-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
41-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
41-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
41-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
41-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
41-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
41-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
41-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
41-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
41-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
41-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
41-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Steel

Equals to P/N 4-4721

Defense

MIL-DTL-24787/2

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type A, Group I

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600A-0404	C20031	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-1600A-0504	C20032	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-1600A-0604	C20033	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-1600A-0606	C20034	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-1600A-0806	C20035	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-1600A-0808	C20036	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-1600A-1008	C20037	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-1600A-1208	C20038	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-1600A-1010	C20039	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-1600A-1212	C20040	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-1600A-1616	C20043	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-1600A-2020	C20045	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-1600A-2424	C20047	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-1600A-3232	C19818	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monle
Socket	1	C19794-1	C19794-1	C19794-1	C19795-1	C19795-1	C19680-1	C19680-1	Monel

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-1	C19769-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
4-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
4-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
4-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
4-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
4-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
4-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
4-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
4-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
4-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
4-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
4-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
4-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Monel

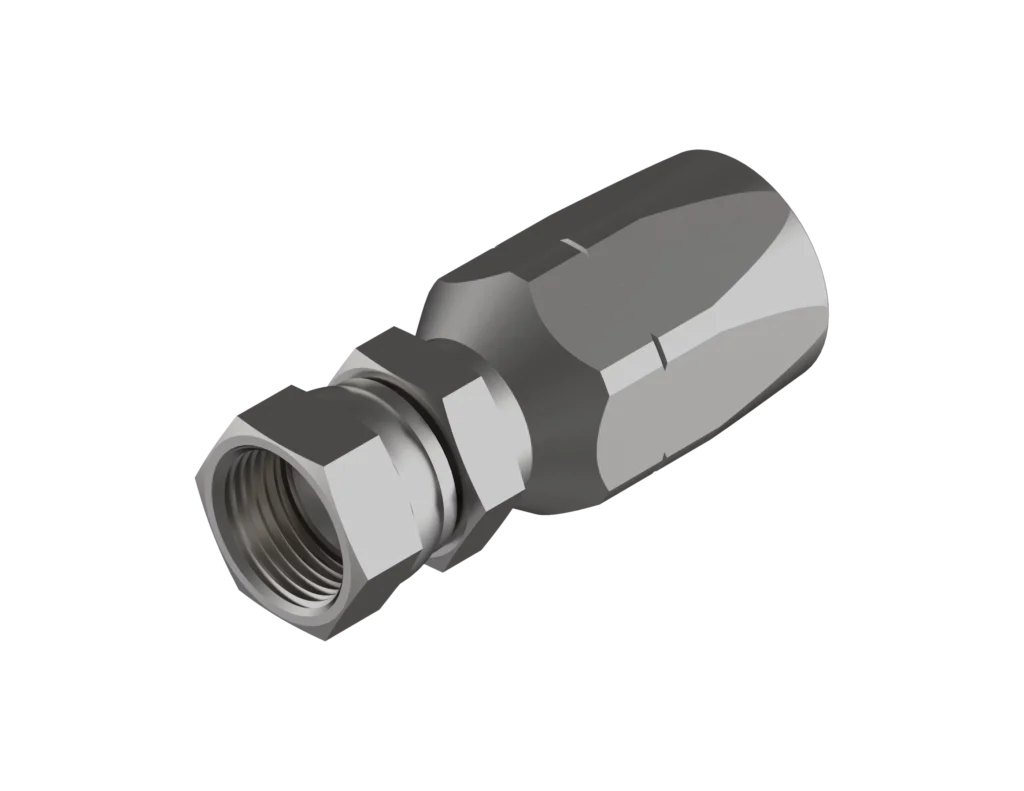

HS1600

Equal to Aeroquip P/N 4-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600A-0404	C20031	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-1600A-0504	C20032	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-1600A-0604	C20033	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-1600A-0606	C20034	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-1600A-0806	C20035	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-1600A-0808	C20036	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-1600A-1008	C20037	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-1600A-1208	C20038	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-1600A-1010	C20039	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-1600A-1212	C20040	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-1600A-1616	C20043	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-1600A-2020	C20045	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-1600A-2424	C20047	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-1600A-3232	C19818	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monle
Socket	1	C19794-1	C19794-1	C19794-1	C19795-1	C19795-1	C19680-1	C19680-1	Monel

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-1	C19769-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
4-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
4-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
4-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
4-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
4-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
4-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
4-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
4-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
4-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
4-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
4-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
4-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Monel

Equals to P/N FC7183-4

Defense

MIL-DTL-24787/5

Use with the following hose:HS133

Type D, Group XI

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-1616	C18920	1	4.67	2.62	.81	1.50	2.44	1.62	3.75	6.00
90ELB-1489D-2020	C18921	1.25	5.45	3.15	1.05	1.75	2.81	2.00	4.00	9.30
90ELB-1489D-2424	C18922	1.50	5.94	3.41	1.30	2.00	3.00	2.25	4.42	13.00
90ELB-1489D-3232	C18923	2	7.38	4.66	1.75	2.50	3.81	2.75	5.04	20.00

Description	Req’d per Ass’y	1616	2020	2424	3232	Mat’l
Elbow	1	C18863	C18865	C18867	C18869	Monel
Segment	4	D18747-1	D18748-1	D18750-1	D8704-1	Monel
Bolt	8	B18746	B18746	B18755	B18718	Monel

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-1616-4	1	4.76	2.85	.75	1.50	2.42	1.62	4.02	6.00
FC7183-2424-4	1.50	5.96	3.66	1.28	2.00	3.01	2.25	4.69	13.00
FC7183-3232-4	2	7.60	4.52	1.75	2.50	3.88	2.75	5.65	20.00

Description	Req’d per Ass’y	Base No.	1616	2424	3232	Mat’l
Elbow	1	FC6183-	1616-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-24-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	08-28-4	09-36-4	Monel

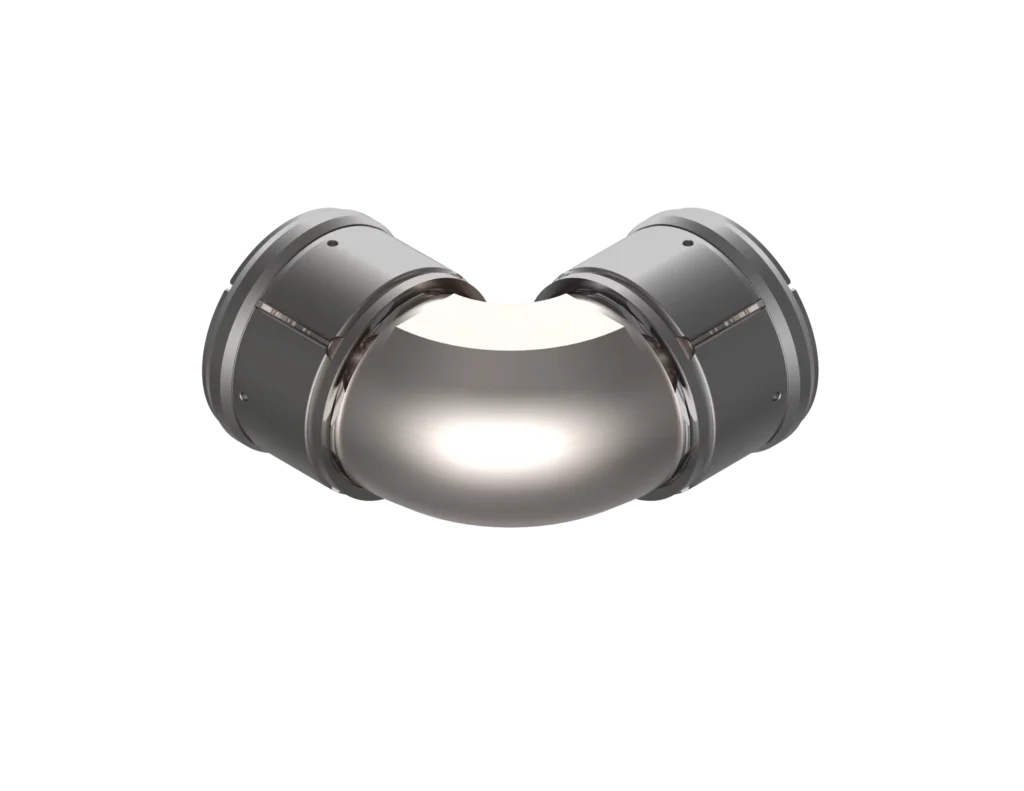

HS1489

Equal to Aeroquip P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-1616	C18920	1	4.67	2.62	.81	1.50	2.44	1.62	3.75	6.00
90ELB-1489D-2020	C18921	1.25	5.45	3.15	1.05	1.75	2.81	2.00	4.00	9.30
90ELB-1489D-2424	C18922	1.50	5.94	3.41	1.30	2.00	3.00	2.25	4.42	13.00
90ELB-1489D-3232	C18923	2	7.38	4.66	1.75	2.50	3.81	2.75	5.04	20.00

Description	Req’d per Ass’y	1616	2020	2424	3232	Mat’l
Elbow	1	C18863	C18865	C18867	C18869	Monel
Segment	4	D18747-1	D18748-1	D18750-1	D8704-1	Monel
Bolt	8	B18746	B18746	B18755	B18718	Monel

HS1489 Equivalent

P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose: HS133

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-1616-4	1	4.76	2.85	.75	1.50	2.42	1.62	4.02	6.00
FC7183-2424-4	1.50	5.96	3.66	1.28	2.00	3.01	2.25	4.69	13.00
FC7183-3232-4	2	7.60	4.52	1.75	2.50	3.88	2.75	5.65	20.00

Description	Req’d per Ass’y	Base No.	1616	2424	3232	Mat’l
Elbow	1	FC6183-	1616-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-24-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	08-28-4	09-36-4	Monel

Equals to P/N FC7183-4

Defense

MIL-DTL-24787/5

Use with the following hose:HS133

Type D, Group XI

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-0606	C18917	3/8	3.20	1.48	.26	.50	2.02	.94	2.00	1.20
90ELB-1489D-0808	C18918	1/2	3.47	1.65	.39	.75	2.08	1.00	2.40	2.40
90ELB-1489D-1212	C18919	3/4	4.50	2.45	.61	1.25	2.43	1.38	2.93	3.70

Description	Req’d per Ass’y	0606	0808	1212	Mat’l
Elbow	1	C18857	C18859	C18861	Monel
Segment	4	D18758-1	C18640-1	D18743-1	Monel
Bolt	4	B18759	B18640	B18745	Monel

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-0606-4	3/8	3.20	1.58	.24	.50	2.00	.94	2.34	1.20
FC7183-1212-4	3/4	4.51	2.61	.56	1.25	2.42	1.38	3.27	3.70

Description	Req’d per Ass’y	Base No.	0606	1212	Mat’l
Elbow	1	FC6183-	0606-4	1212-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

HS1489

Equal to Aeroquip P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-0606	C18917	3/8	3.20	1.48	.26	.50	2.02	.94	2.00	1.20
90ELB-1489D-0808	C18918	1/2	3.47	1.65	.39	.75	2.08	1.00	2.40	2.40
90ELB-1489D-1212	C18919	3/4	4.50	2.45	.61	1.25	2.43	1.38	2.93	3.70

Description	Req’d per Ass’y	0606	0808	1212	Mat’l
Elbow	1	C18857	C18859	C18861	Monel
Segment	4	D18758-1	C18640-1	D18743-1	Monel
Bolt	4	B18759	B18640	B18745	Monel

HS1489 Equivalent

P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-0606-4	3/8	3.20	1.58	.24	.50	2.00	.94	2.34	1.20
FC7183-1212-4	3/4	4.51	2.61	.56	1.25	2.42	1.38	3.27	3.70

Description	Req’d per Ass’y	Base No.	0606	1212	Mat’l
Elbow	1	FC6183-	0606-4	1212-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

Equals to P/N FC7182-4

Defense

MIL-DTL-24787/3

Use with the following hose:HS133

Type CL, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-1216	C18900	3/4	2”-12	4.67	2.12	2.62	.81	2.68	.62	1.50	2.44	1.63	3.75	4.50
90EF-1489CL-1616	C18901	1	2-5/16”-12	4.67	2.38	2.62	.81	2.87	.75	1.50	2.44	1.63	3.75	5.00
90EF-1489CL-1620	C18902	1	2-5/16”-12	5.45	2.38	3.15	1.05	3.17	.75	1.75	2.81	2.00	4.00	6.50
90EF-1489CL-2020	C18903	1.25	2-3/4”-12	5.45	3.00	3.15	1.05	3.30	.75	1.75	2.81	2.00	4.00	10.00
90EF-1489CL-2024	C18904	1.25	2-3/4”-12	5.94	3.00	3.41	1.30	3.42	.75	2.00	3.00	2.25	4.42	11.00
90EF-1489CL-2424	C18905	1.50	3-1/16”-12	5.94	3.13	3.41	1.30	3.66	.88	2.00	3.00	2.25	4.42	12.00
90EF-1489CL-2432	C18906	1.50	3-1/16”-12	7.38	3.12	4.08	1.75	4.05	.88	2.50	3.81	2.75	5.04	13.30
90EF-1489CL-3232	C18907	2	3-3/4”-12	7.38	3.88	4.08	1.75	4.15	.88	2.50	3.81	2.75	5.04	15.00

Description	Req’d per Ass’y	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Elbow	1	C19447	C19448	C19449	C19450	C19458	C19451	C19452	C19453	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D8750-1	D18750-1	D18704-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18755	B18718	B18718	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-1616-4	1	2-5/16”-12	4.67	2.38	2.85	.75	2.92	.75	1.50	2.42	1.62	4.02	5.00
FC7182-1620-4	1	2-5/16”-12	5.50	2.38	3.40	.81	3.17	.75	1.75	2.80	2.00	4.31	6.50
FC7182-2020-4	1.25	2-3/4”-12	5.50	2.88	3.40	1.03	3.17	.75	1.75	2.80	2.00	4.31	10.00
FC7182-2424-4	1.50	3-1/16”-12	5.96	3.12	3.66	1.28	3.55	.88	2.00	3.01	2.25	4.69	12.00
FC7182-2432-4	1.50	3-1/16”-12	7.60	3.12	4.52	1.39	4.05	.88	2.50	3.88	2.75	5.65	13.30
FC7182-3232-4	2	3-3/4”-12	7.60	3.88	4.52	1.75	4.05	.88	2.50	3.88	2.75	5.65	15.00

Description	Req’d per Ass’y	Base No.	1616	1620	2020	2424	2432	3232	Mat’l
Elbow	1	FC6182-	1616-4	1620-4	2020-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	09-36-4	Monel

HS1489

Equal to Aeroquip P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-1216	C18900	3/4	2”-12	4.67	2.12	2.62	.81	2.68	.62	1.50	2.44	1.63	3.75	4.50
90EF-1489CL-1616	C18901	1	2-5/16”-12	4.67	2.38	2.62	.81	2.87	.75	1.50	2.44	1.63	3.75	5.00
90EF-1489CL-1620	C18902	1	2-5/16”-12	5.45	2.38	3.15	1.05	3.17	.75	1.75	2.81	2.00	4.00	6.50
90EF-1489CL-2020	C18903	1.25	2-3/4”-12	5.45	3.00	3.15	1.05	3.30	.75	1.75	2.81	2.00	4.00	10.00
90EF-1489CL-2024	C18904	1.25	2-3/4”-12	5.94	3.00	3.41	1.30	3.42	.75	2.00	3.00	2.25	4.42	11.00
90EF-1489CL-2424	C18905	1.50	3-1/16”-12	5.94	3.13	3.41	1.30	3.66	.88	2.00	3.00	2.25	4.42	12.00
90EF-1489CL-2432	C18906	1.50	3-1/16”-12	7.38	3.12	4.08	1.75	4.05	.88	2.50	3.81	2.75	5.04	13.30
90EF-1489CL-3232	C18907	2	3-3/4”-12	7.38	3.88	4.08	1.75	4.15	.88	2.50	3.81	2.75	5.04	15.00

Description	Req’d per Ass’y	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Elbow	1	C19447	C19448	C19449	C19450	C19458	C19451	C19452	C19453	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D8750-1	D18750-1	D18704-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18755	B18718	B18718	Monel

HS1489 Equivalent

P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-1616-4	1	2-5/16”-12	4.67	2.38	2.85	.75	2.92	.75	1.50	2.42	1.62	4.02	5.00
FC7182-1620-4	1	2-5/16”-12	5.50	2.38	3.40	.81	3.17	.75	1.75	2.80	2.00	4.31	6.50
FC7182-2020-4	1.25	2-3/4”-12	5.50	2.88	3.40	1.03	3.17	.75	1.75	2.80	2.00	4.31	10.00
FC7182-2424-4	1.50	3-1/16”-12	5.96	3.12	3.66	1.28	3.55	.88	2.00	3.01	2.25	4.69	12.00
FC7182-2432-4	1.50	3-1/16”-12	7.60	3.12	4.52	1.39	4.05	.88	2.50	3.88	2.75	5.65	13.30
FC7182-3232-4	2	3-3/4”-12	7.60	3.88	4.52	1.75	4.05	.88	2.50	3.88	2.75	5.65	15.00

Description	Req’d per Ass’y	Base No.	1616	1620	2020	2424	2432	3232	Mat’l
Elbow	1	FC6182-	1616-4	1620-4	2020-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	09-36-4	Monel

Equals to P/N FC7182-4

Defense

MIL-DTL-24787/3

Use with the following hose: HS133

Type CL, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-0406	C18896	1/4	1-3/16”-12	3.20	1.25	1.48	.26	1.69	.62	.50	2.02	.94	2.00	1.50
90EF-1489CL-0408	C18897	1/4	1-3/16”-12	3.47	1.25	1.65	.39	1.68	.62	.75	2.08	1.00	2.40	2.00
90EF-1489CL-0608	c18898	3/8	1-3/8”-12	3.47	1.44	1.65	.39	1.91	.62	.75	2.08	1.00	2.40	2.30
90EF-1489CL-0812	C18899	1/2	1-3/4”-12	4.48	1.81	1.82	.61	2.31	.62	1.25	2.43	1.38	2.93	2.60

Description	Req’d per Ass’y	0406	0408	0608	0812	Mat’l
Elbow	1	C19443	C19444	C19445	C19446	Monel
Segment	2	D18758-1	C18640-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18645	B8745	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-0406-4	1/4	1-3/16”-12	3.20	.94	1.58	.24	1.43	.62	.50	2.00	1.25	2.34	1.50
FC7182-0812-4	1/2	1-3/4”-12	4.51	1.31	2.61	.56	2.31	.62	1.25	2.42	1.81	3.27	2.60

Description	Req’d per Ass’y	Base No.	0406	0812	Mat’l
Elbow	1	FC6182-	0406-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

HS1489

Equal to Aeroquip P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose: HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-0406	C18896	1/4	1-3/16”-12	3.20	1.25	1.48	.26	1.69	.62	.50	2.02	.94	2.00	1.50
90EF-1489CL-0408	C18897	1/4	1-3/16”-12	3.47	1.25	1.65	.39	1.68	.62	.75	2.08	1.00	2.40	2.00
90EF-1489CL-0608	c18898	3/8	1-3/8”-12	3.47	1.44	1.65	.39	1.91	.62	.75	2.08	1.00	2.40	2.30
90EF-1489CL-0812	C18899	1/2	1-3/4”-12	4.48	1.81	1.82	.61	2.31	.62	1.25	2.43	1.38	2.93	2.60

Description	Req’d per Ass’y	0406	0408	0608	0812	Mat’l
Elbow	1	C19443	C19444	C19445	C19446	Monel
Segment	2	D18758-1	C18640-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18645	B8745	Monel

HS1489 Equivalent

P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-0406-4	1/4	1-3/16”-12	3.20	.94	1.58	.24	1.43	.62	.50	2.00	1.25	2.34	1.50
FC7182-0812-4	1/2	1-3/4”-12	4.51	1.31	2.61	.56	2.31	.62	1.25	2.42	1.81	3.27	2.60

Description	Req’d per Ass’y	Base No.	0406	0812	Mat’l
Elbow	1	FC6182-	0406-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

Equals to P/N FC7180-4

Defense

MIL-DTL-24787/3

Use with the following hose:HS133

Type C, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0816	C18957	1/2	1-3/4”-12	3.49	1.81	1.44	.620	.62	2.44	3.75	3.80
EF-1489C-1216	C18847	3/4	2”-12	3.74	2.12	1.69	.620	.62	2.44	3.75	3.80
EF-1489C-1616	C18959	1	2-5/16”-12	3.85	2.38	1.80	.81	.75	2.44	3.75	4.30
EF-1489C-1620	C18960	1	2-5/16”-12	4.21	2.38	1.91	1.05	.75	2.81	4.00	5.40
EF-1489C-2016	C18961	1.25	2-3/4”-12	3.89	3.00	1.93	.81	.75	2.44	3.75	5.60
EF-1489C-2020	C18962	1.25	2-3/4”-12	4.34	3.00	2.04	1.06	.75	2.81	4.00	6.00
EF-1489C-2024	C18963	1.25	2-3/4”-12	4.41	3.00	1.88	1.31	.75	3.00	4.42	7.50
EF-1489C-2424	C18964	1.50	3-1/16”-12	4.67	3.12	2.14	1.31	.88	3.00	4.42	8.00
EF-1489C-2432	C18965	1.50	3-1/16”-12	5.36	3.12	2.06	1.39	.88	3.81	5.04	11.40
EF-1489C-3232	C18966	2	3-3/4”-12	5.36	3.88	2.06	1.75	.88	3.81	5.04	12.80

Description

Req’d per Ass’y

0816

1216

1616

1620

2016

2020

2024

2424

2432

3232

Mat’l

Nipple

C18877

C18847

C18848

C18849

C18878

C18850

C18851

C18852

C18853

C18854

Monel

Segment

D18747-1

D18748-1

D18747-1

D18748-1

D18750-1

D18704-1

Monel

Bolt

B18746

B18755

B18718

Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-1216-4	3/4	2”-12	3.60	2.12	1.69	.62	.62	2.42	4.02	3.80
FC7180-1616-4	1	2-5/16”-12	3.84	2.38	1.93	.81	.75	2.42	4.02	4.30
FC7180-1620-4	1	2-5/16”-12	4.20	2.38	2.11	.81	.75	2.80	4.31	5.40
FC7180-2020-4	1.25	2-3/4”-12	4.34	2.88	2.24	1.05	.75	2.80	4.31	6.00
FC7180-2024-4	1.25	2-3/4”-12	4.42	2.88	2.12	1.30	.75	3.01	4.69	7.50
FC7180-2424-4	1.50	3-1/16”-12	4.68	1.30	2.38	1.30	.88	3.01	4.69	8.00
FC7180-2432-4	1.50	3-1/16”-12	5.56	3.12	2.48	1.39	.88	3.88	5.65	11.40
FC7180-3232-4	2	3-3/4”-12	5.56	3.88	2.48	1.75	.88	3.88	5.65	12.80

Description	Req’d per Ass’y	Base No.	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Nipple	1	FC2074-	1216-4	1616-4	1620-4	2020-4	2024-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-16-4	1-20-4	1-20-4	1-24-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	4	FF9032-	07-28-4	07-28-4	07-28-4	07-28-4	08-28-4	08-24-4	09-36-4	09-36-4	Monel

HS1489

Equal to Aeroquip P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0816	C18957	1/2	1-3/4”-12	3.49	1.81	1.44	.620	.62	2.44	3.75	3.80
EF-1489C-1216	C18847	3/4	2”-12	3.74	2.12	1.69	.620	.62	2.44	3.75	3.80
EF-1489C-1616	C18959	1	2-5/16”-12	3.85	2.38	1.80	.81	.75	2.44	3.75	4.30
EF-1489C-1620	C18960	1	2-5/16”-12	4.21	2.38	1.91	1.05	.75	2.81	4.00	5.40
EF-1489C-2016	C18961	1.25	2-3/4”-12	3.89	3.00	1.93	.81	.75	2.44	3.75	5.60
EF-1489C-2020	C18962	1.25	2-3/4”-12	4.34	3.00	2.04	1.06	.75	2.81	4.00	6.00
EF-1489C-2024	C18963	1.25	2-3/4”-12	4.41	3.00	1.88	1.31	.75	3.00	4.42	7.50
EF-1489C-2424	C18964	1.50	3-1/16”-12	4.67	3.12	2.14	1.31	.88	3.00	4.42	8.00
EF-1489C-2432	C18965	1.50	3-1/16”-12	5.36	3.12	2.06	1.39	.88	3.81	5.04	11.40
EF-1489C-3232	C18966	2	3-3/4”-12	5.36	3.88	2.06	1.75	.88	3.81	5.04	12.80

Description

Req’d per Ass’y

0816

1216

1616

1620

2016

2020

2024

2424

2432

3232

Mat’l

Nipple

C18877

C18847

C18848

C18849

C18878

C18850

C18851

C18852

C18853

C18854

Monel

Segment

D18747-1

D18748-1

D18747-1

D18748-1

D18750-1

D18704-1

Monel

Bolt

B18746

B18755

B18718

Monel

HS1489 Equivalent

P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-1216-4	3/4	2”-12	3.60	2.12	1.69	.62	.62	2.42	4.02	3.80
FC7180-1616-4	1	2-5/16”-12	3.84	2.38	1.93	.81	.75	2.42	4.02	4.30
FC7180-1620-4	1	2-5/16”-12	4.20	2.38	2.11	.81	.75	2.80	4.31	5.40
FC7180-2020-4	1.25	2-3/4”-12	4.34	2.88	2.24	1.05	.75	2.80	4.31	6.00
FC7180-2024-4	1.25	2-3/4”-12	4.42	2.88	2.12	1.30	.75	3.01	4.69	7.50
FC7180-2424-4	1.50	3-1/16”-12	4.68	1.30	2.38	1.30	.88	3.01	4.69	8.00
FC7180-2432-4	1.50	3-1/16”-12	5.56	3.12	2.48	1.39	.88	3.88	5.65	11.40
FC7180-3232-4	2	3-3/4”-12	5.56	3.88	2.48	1.75	.88	3.88	5.65	12.80

Description	Req’d per Ass’y	Base No.	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Nipple	1	FC2074-	1216-4	1616-4	1620-4	2020-4	2024-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-16-4	1-20-4	1-20-4	1-24-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	4	FF9032-	07-28-4	07-28-4	07-28-4	07-28-4	08-28-4	08-24-4	09-36-4	09-36-4	Monel

Equals to P/N FC7180-4

Defense

MIL-DTL-24787/3

Use with the following hose:HS133

Type C, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0406	C18950	1/4	1-3/16”-12	2.99	1.25	1.26	.25	.62	2.02	2.00	1.00
EF-1489C-0408	C18951	1/4	1-3/16”-12	3.10	1.25	1.28	.31	.62	2.08	2.40	1.30
EF-1489C-0606	C18952	3/8	1-3/8”-12	2.90	1.44	1.28	.26	.62	2.00	2.34	1.30
EF-1489C-0608	C18953	3/8	1-3/8”-12	3.10	1.44	1.28	.380	.62	2.08	2.40	1.40
EF-1489C-0612	C18954	3/8	1-3/8”-12	3.48	1.44	1.58	.50	.62	2.42	3.27	1.60
EF-1489C-0808	C18955	1/2	1-3/4”-12	3.15	1.81	1.44	3.80	.62	2.08	2.40	1.70
EF-1489C-0812	C18956	1/2	1-3/4”-12	3.62	1.81	1.58	.50	.62	2.43	2.93	2.20

Description	Req’d per Ass’y	0406	0408	0606	0608	0612	0808	0812	Mat’l
Nipple	1	C18842	C18843	C18875	C18844	C18876	C18845	C18846	Monel
Segment	2	C18758-1	C18640-1	D18758-1	C18640-1	D18743-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18749	B18645	D18745	B18645	B18745	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-0406-4	1/4	1-3/16”-12	2.90	1.25	1.28	.26	.62	2.00	2.34	1.00
FC7180-0408-4	1/4	1-3/16”-12	3.02	1.25	1.30	.31	.62	2.10	2.66	1.30
FC7180-0608-4	3/8	1-3/8”-12	3.08	1.44	1.36	.39	.62	2.10	2.66	1.40
FC7180-0808-4	1/2	1-3/4”-12	3.14	1.81	1.32	.39	.62	2.10	2.66	1.70
FC7180-0812-4	1/2	1-3/4”-12	3.48	1.81	1.58	.50	.62	2.42	3.27	2.20

Description	Req’d per Ass’y	Base No.	0406	0408	0608	0808	0812	Mat’l
Nipple	1	FC2074-	0406-4	0408-4	0608-4	0808-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	Monel

HS1489

Equal to Aeroquip P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0406	C18950	1/4	1-3/16”-12	2.99	1.25	1.26	.25	.62	2.02	2.00	1.00
EF-1489C-0408	C18951	1/4	1-3/16”-12	3.10	1.25	1.28	.31	.62	2.08	2.40	1.30
EF-1489C-0606	C18952	3/8	1-3/8”-12	2.90	1.44	1.28	.26	.62	2.00	2.34	1.30
EF-1489C-0608	C18953	3/8	1-3/8”-12	3.10	1.44	1.28	.380	.62	2.08	2.40	1.40
EF-1489C-0612	C18954	3/8	1-3/8”-12	3.48	1.44	1.58	.50	.62	2.42	3.27	1.60
EF-1489C-0808	C18955	1/2	1-3/4”-12	3.15	1.81	1.44	3.80	.62	2.08	2.40	1.70
EF-1489C-0812	C18956	1/2	1-3/4”-12	3.62	1.81	1.58	.50	.62	2.43	2.93	2.20

Description	Req’d per Ass’y	0406	0408	0606	0608	0612	0808	0812	Mat’l
Nipple	1	C18842	C18843	C18875	C18844	C18876	C18845	C18846	Monel
Segment	2	C18758-1	C18640-1	D18758-1	C18640-1	D18743-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18749	B18645	D18745	B18645	B18745	Monel

HS1489 Equivalent

P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose: HS133

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-0406-4	1/4	1-3/16”-12	2.90	1.25	1.28	.26	.62	2.00	2.34	1.00
FC7180-0408-4	1/4	1-3/16”-12	3.02	1.25	1.30	.31	.62	2.10	2.66	1.30
FC7180-0608-4	3/8	1-3/8”-12	3.08	1.44	1.36	.39	.62	2.10	2.66	1.40
FC7180-0808-4	1/2	1-3/4”-12	3.14	1.81	1.32	.39	.62	2.10	2.66	1.70
FC7180-0812-4	1/2	1-3/4”-12	3.48	1.81	1.58	.50	.62	2.42	3.27	2.20

Description	Req’d per Ass’y	Base No.	0406	0408	0608	0808	0812	Mat’l
Nipple	1	FC2074-	0406-4	0408-4	0608-4	0808-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	Monel

Equals to P/N FC7100-4

Defense

MIL-DTL-24787/2

Use with the following hose:HS133

Type A, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-1616	C18938	1	1-5/16”-12	3.97	1.50	1.92	.82	.55	2.44	1.63	3.75	2.00
EF-1489A-2016	C18939	1	1-5/8”-12	4.02	2.00	1.97	.82	.54	2.44	1.62	3.75	2.50
EF-1489A-2020	C18940	1.25	1-5/8”-12	4.62	2.00	2.29	1.05	.54	2.81	2.00	4.00	2.80
EF-1489A-2420	C18941	1.25	1-7/8”-12	5.00	2.25	2.67	1.05	.67	2.81	2.25	4.00	3.30
EF-1489A-2424	C18942	1.50	1-7/8”-12	5.19	2.25	2.69	1.30	.67	3.00	2.25	4.42	4.50
EF-1489A-3232	C18943	2	2-1/2”-12	6.19	3.00	2.89	1.75	.86	3.81	3.00	5.04	6.30

Description	Req’d per Ass’y	1616	2016	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	C18890	C18891	C18892	C18893	C18894	C18895	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D18750-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18718	Monel

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-1616-4	1	1-5/16”-12	4.05	1.50	2.14	.82	.60	2.42	1.62	4.02	2.00
FC7100-2020-4	1.25	1-5/8”-12	4.62	2.00	2.53	1.05	.64	2.80	2.00	4.31	2.80
FC7100-2420-4	1.25	1-7/8”-12	4.89	2.25	2.80	1.05	.74	2.80	2.25	4.31	3.30
FC7100-2424-4	1.50	1-7/8”-12	5.10	2.25	2.60	1.30	.74	3.01	2.25	4.69	4.50
FC7100-3232-4	2	2-1/2”-12	6.37	2.88	3.29	1.75	.93	3.88	2.88	5.65	6.30

Description	Req’d per Ass’y	Base No.	1616	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	FC6100-	1616-4	2020-4	2420-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	Monel
Bolt	4	FC9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	Monel

HS1489

Equal to Aeroquip P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-1616	C18938	1	1-5/16”-12	3.97	1.50	1.92	.82	.55	2.44	1.63	3.75	2.00
EF-1489A-2016	C18939	1	1-5/8”-12	4.02	2.00	1.97	.82	.54	2.44	1.62	3.75	2.50
EF-1489A-2020	C18940	1.25	1-5/8”-12	4.62	2.00	2.29	1.05	.54	2.81	2.00	4.00	2.80
EF-1489A-2420	C18941	1.25	1-7/8”-12	5.00	2.25	2.67	1.05	.67	2.81	2.25	4.00	3.30
EF-1489A-2424	C18942	1.50	1-7/8”-12	5.19	2.25	2.69	1.30	.67	3.00	2.25	4.42	4.50
EF-1489A-3232	C18943	2	2-1/2”-12	6.19	3.00	2.89	1.75	.86	3.81	3.00	5.04	6.30

Description	Req’d per Ass’y	1616	2016	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	C18890	C18891	C18892	C18893	C18894	C18895	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D18750-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18718	Monel

HS1489 Equivalent

P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-1616-4	1	1-5/16”-12	4.05	1.50	2.14	.82	.60	2.42	1.62	4.02	2.00
FC7100-2020-4	1.25	1-5/8”-12	4.62	2.00	2.53	1.05	.64	2.80	2.00	4.31	2.80
FC7100-2420-4	1.25	1-7/8”-12	4.89	2.25	2.80	1.05	.74	2.80	2.25	4.31	3.30
FC7100-2424-4	1.50	1-7/8”-12	5.10	2.25	2.60	1.30	.74	3.01	2.25	4.69	4.50
FC7100-3232-4	2	2-1/2”-12	6.37	2.88	3.29	1.75	.93	3.88	2.88	5.65	6.30

Description	Req’d per Ass’y	Base No.	1616	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	FC6100-	1616-4	2020-4	2420-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	Monel
Bolt	4	FC9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	Monel

Equals to P/N FC7100-4

Defense

MIL-DTL-24787/2

Use with the following hose:HS133

Type A, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-0606	C18930	3/8	9/16”-18	3.06	.69	1.33	.26	.33	2.02	.94	2.00	.80
EF-1489A-0808	C18932	1/2	3/4”-16	3.34	.88	1.52	.39	.40	2.08	1.00	2.40	1.10
EF-1489A-1008	C18933	1/2	7/8”-14	3.41	1.00	1.58	.39	.50	2.08	1.00	2.40	1.20
EF-1489A-1208	C18934	1/2	1-1/16”-12	3.56	1.25	1.74	.39	.47	2.08	1.25	2.40	1.50
EF-1489A-1212	C18935	3/4	1-1/16”-12	3.86	1.25	1.81	.61	.47	2.43	1.25	2.93	1.70
EF-1489A-1412	C18936	3/4	1-3/16”-12	3.85	1.50	1.95	.61	.57	2.42	1.25	3.27	1.80
EF-1489A-1612	C18937	3/4	1-5/16”-12	3.97	1.50	1.93	.61	.55	2.43	1.63	2.93	1.90

Description	Req’d per Ass’y	0606	0806	0808	1008	1208	1212	1412	1612	Mat’l
Nipple Ass'y	1	C18882	C18883	C18884	C18885	C18886	C18887	C18888	C18889	Monel
Segment	2	D18758-1	D18758-1	D18640-1	D18640-1	D18640-1	D18743-1	D18743-1	D18743-1	Monel
Bolt	2	B18759	B18759	B18645	B18645	B18645	B18745	B18745	B18745	Monel

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-0606-4	3/8	9/16”-18	3.10	.69	1.48	.26	.40	2.00	.94	2.34	.80
FC7100-0808-4	1/2	3/4”-16	3.31	.88	1.59	.39	.44	2.10	1.00	2.66	1.10
FC7100-1008-4	1/2	7/8”-14	3.42	1.00	1.70	.39	.52	2.10	1.00	2.66	1.20
FC7100-1208-4	1/2	1-1/16”-12	3.52	1.25	1.80	.39	.57	2.10	1.25	2.66	1.50
FC7100-1212-4	3/4	1-1/16”-12	3.85	1.25	1.95	.61	.57	2.42	1.31	3.27	1.70
FC7100-1612-4	3/4	1-1/16”-12	4.05	1.50	2.15	.61	.60	2.42	1.62	3.27	1.90

Description	Req’d per Ass’y	Base No.	0606	0808	1008	1208	1212	1612	Mat’l
Nipple Ass'y	1	FC6100-	0606-4	0808-4	1008-4	1208-4	1212-4	1612-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	07-24-4	Monel

HS1489

Equal to Aeroquip P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-0606	C18930	3/8	9/16”-18	3.06	.69	1.33	.26	.33	2.02	.94	2.00	.80
EF-1489A-0808	C18932	1/2	3/4”-16	3.34	.88	1.52	.39	.40	2.08	1.00	2.40	1.10
EF-1489A-1008	C18933	1/2	7/8”-14	3.41	1.00	1.58	.39	.50	2.08	1.00	2.40	1.20
EF-1489A-1208	C18934	1/2	1-1/16”-12	3.56	1.25	1.74	.39	.47	2.08	1.25	2.40	1.50
EF-1489A-1212	C18935	3/4	1-1/16”-12	3.86	1.25	1.81	.61	.47	2.43	1.25	2.93	1.70
EF-1489A-1412	C18936	3/4	1-3/16”-12	3.85	1.50	1.95	.61	.57	2.42	1.25	3.27	1.80
EF-1489A-1612	C18937	3/4	1-5/16”-12	3.97	1.50	1.93	.61	.55	2.43	1.63	2.93	1.90

Description	Req’d per Ass’y	0606	0806	0808	1008	1208	1212	1412	1612	Mat’l
Nipple Ass'y	1	C18882	C18883	C18884	C18885	C18886	C18887	C18888	C18889	Monel
Segment	2	D18758-1	D18758-1	D18640-1	D18640-1	D18640-1	D18743-1	D18743-1	D18743-1	Monel
Bolt	2	B18759	B18759	B18645	B18645	B18645	B18745	B18745	B18745	Monel

HS1489 Equivalent

P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-0606-4	3/8	9/16”-18	3.10	.69	1.48	.26	.40	2.00	.94	2.34	.80
FC7100-0808-4	1/2	3/4”-16	3.31	.88	1.59	.39	.44	2.10	1.00	2.66	1.10
FC7100-1008-4	1/2	7/8”-14	3.42	1.00	1.70	.39	.52	2.10	1.00	2.66	1.20
FC7100-1208-4	1/2	1-1/16”-12	3.52	1.25	1.80	.39	.57	2.10	1.25	2.66	1.50
FC7100-1212-4	3/4	1-1/16”-12	3.85	1.25	1.95	.61	.57	2.42	1.31	3.27	1.70
FC7100-1612-4	3/4	1-1/16”-12	4.05	1.50	2.15	.61	.60	2.42	1.62	3.27	1.90

Description	Req’d per Ass’y	Base No.	0606	0808	1008	1208	1212	1612	Mat’l
Nipple Ass'y	1	FC6100-	0606-4	0808-4	1008-4	1208-4	1212-4	1612-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	07-24-4	Monel

Equals to P/N FC7754-410

Defense

MIL-DTL-24787/5

Use with the following hose:ER512 & 2580

Type D, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512-SS	D18757	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512-SS	D17681	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512-SS	D17738	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512-SS	D18440	10	12.10	7.75	9.31	6.38	14.50	171.00

Description	Req’d per Ass’y	5"	6"	8'	10"	Material
Elbow	1	D18362	D18111	D17759	D18317	Stainless Steel
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	Monel

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-9696-410	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-410	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-410	10	11.89	7.77	9.40	6.38	16.48	171.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Elbow	1	FC2467-	9696-407	0808-407	1010-407	Stainless Steel
Grip Segment	4	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	12-88	12-100	Monel
Nut	8	FF9033-	10-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1201-4	1201-4	Monel

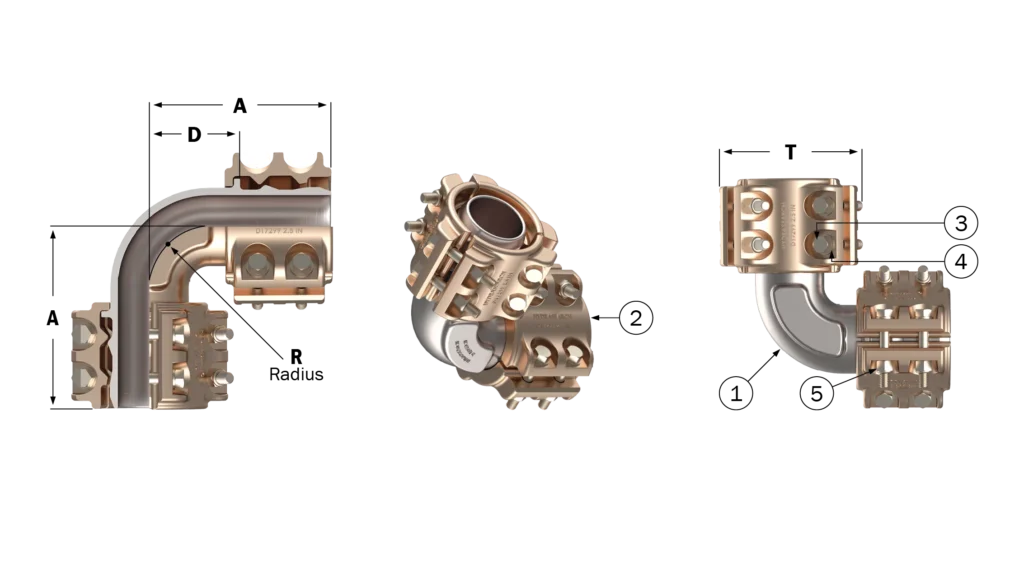

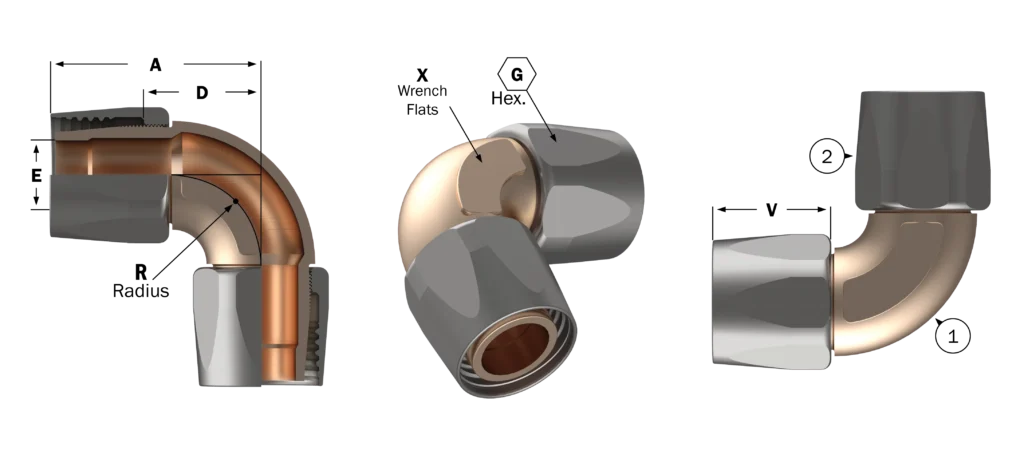

ER512

Equal to Aeroquip P/N FC7754-410

Hose to Hose

Elbow - 90 ° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512-SS	D18757	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512-SS	D17681	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512-SS	D17738	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512-SS	D18440	10	12.10	7.75	9.31	6.38	14.50	171.00

Description	Req’d per Ass’y	5"	6"	8'	10"	Material
Elbow	1	D18362	D18111	D17759	D18317	Stainless Steel
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	Monel

ER512 Equivalent

P/N FC7754-410

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-9696-410	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-410	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-410	10	11.89	7.77	9.40	6.38	16.48	171.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Elbow	1	FC2467-	9696-407	0808-407	1010-407	Stainless Steel
Grip Segment	4	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	12-88	12-100	Monel
Nut	8	FF9033-	10-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1201-4	1201-4	Monel

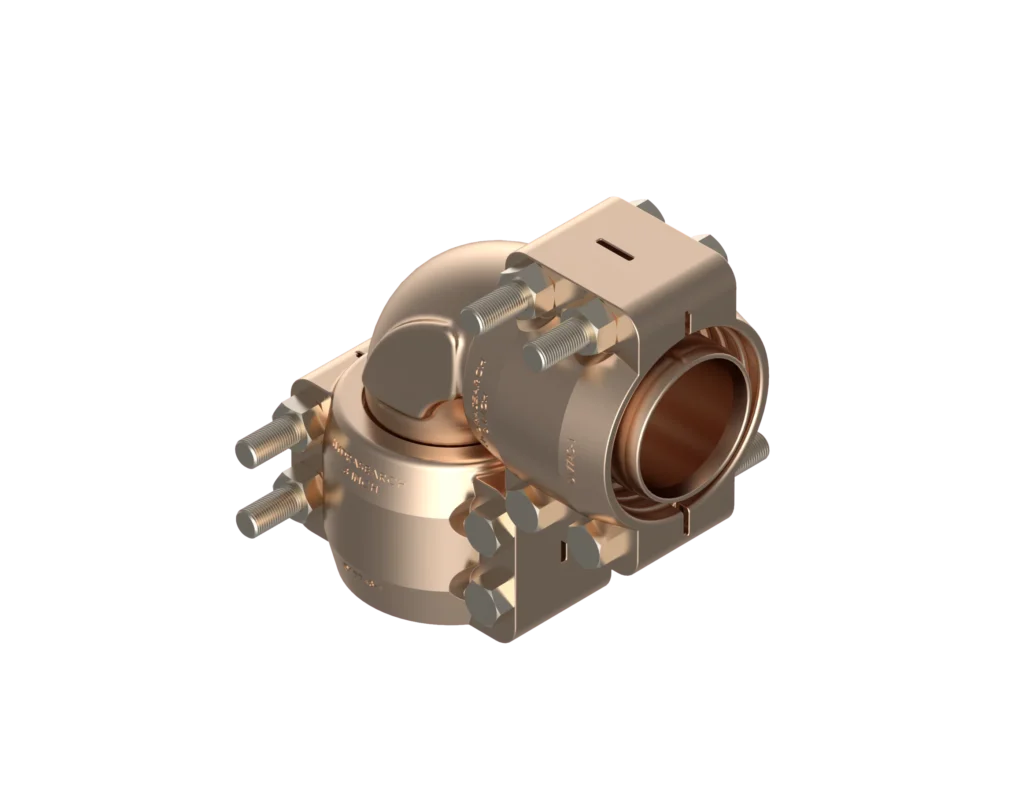

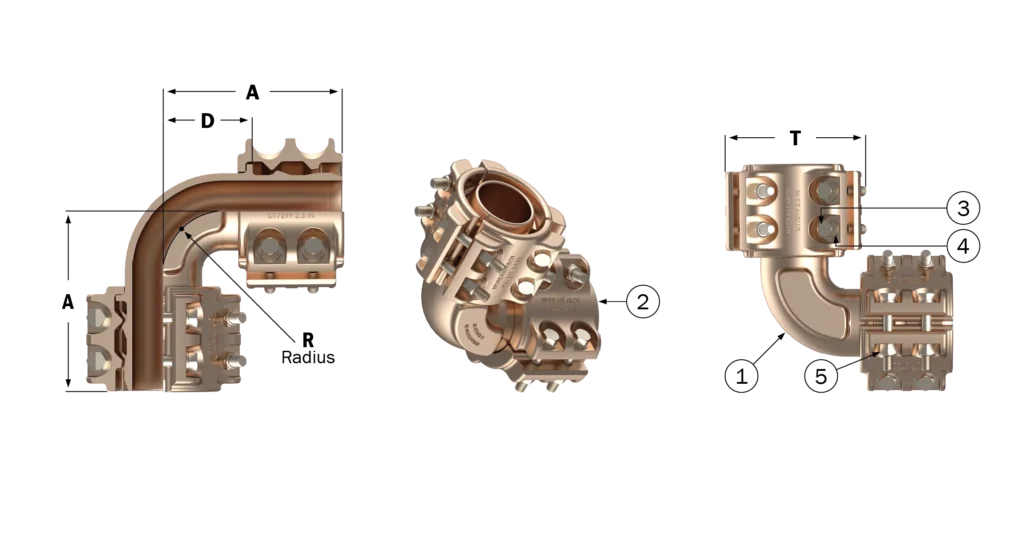

Equals to P/N FC7754-188

Defense

MIL-DTL-24787/5

Use with the following hose: ER512 & 2580

Type D, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512	D17120	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512	D17087	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512	D17121	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512	D19748	10	12.10	7.75	9.31	6.38	14.50	171.00
90ELB-12-ER512	D19749	12	14.32	9.09	11.40	7.38	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16924	D16925	D16926	D18836	D18837	Aluminum. Bronze
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-8080-188	5	8.64	4.52	4.40	3.50	11.44	69.90
FC7754-9696-188	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-188	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-188	10	11.89	7.77	9.40	6.38	16.48	171.00
FC7754-1212-188	12	14.24	9.00	11.40	7.38	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2467-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	4	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	8	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

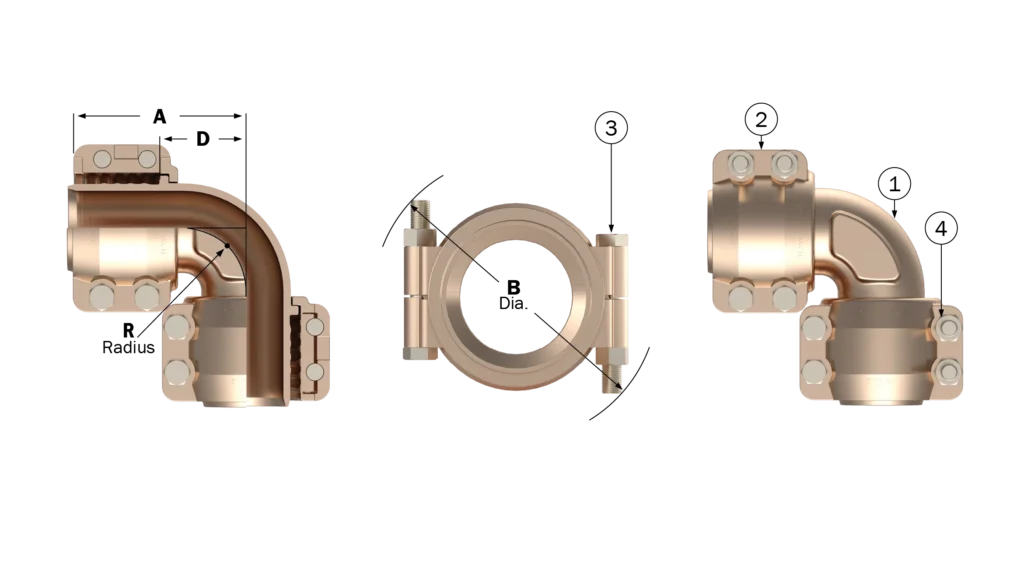

ER512

Equal to Aeroquip P/N FC7754-188

Hose to Hose

Elbow - 90 ° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose: ER512 & 2580

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512	D17120	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512	D17087	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512	D17121	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512	D19748	10	12.10	7.75	9.31	6.38	14.50	171.00
90ELB-12-ER512	D19749	12	14.32	9.09	11.40	7.38	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16924	D16925	D16926	D18836	D18837	Aluminum. Bronze
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7754-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-8080-188	5	8.64	4.52	4.40	3.50	11.44	69.90
FC7754-9696-188	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-188	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-188	10	11.89	7.77	9.40	6.38	16.48	171.00
FC7754-1212-188	12	14.24	9.00	11.40	7.38	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2467-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	4	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	8	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

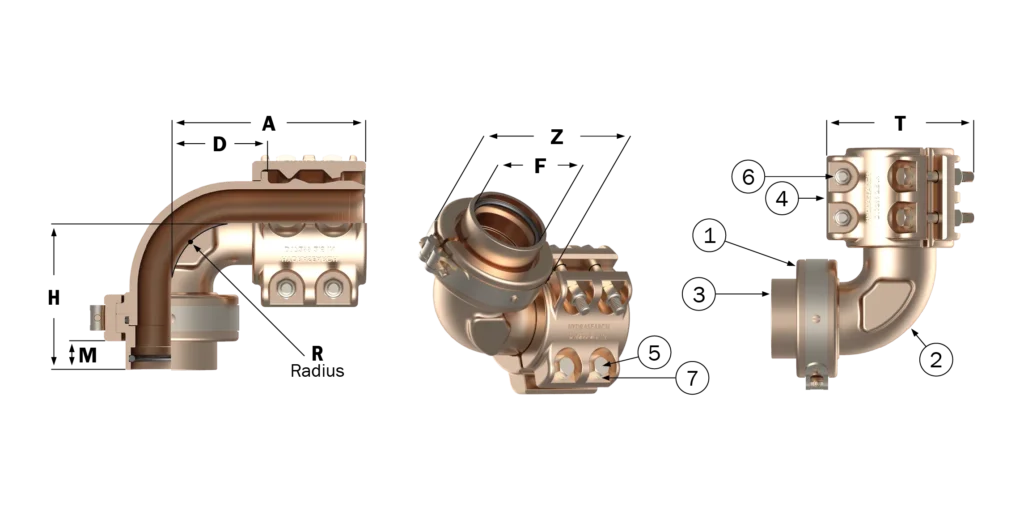

Equals to P/N FC7753-188

Defense

MIL-DTL-24787/4

Use with the following hose:ER512 & 2580

Type EL, Group IX

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5FS-ER512	D17117	5	11.95	7.82	5.36	6.81	.68	6.50	9.25	6.63	45.00
90EF-6FS-ER512	D17118	6	12.95	8.79	6.75	7.31	.87	4.00	10.38	7.57	56.00
90EF-8FS-ER512	D17119	8	15.31	10.93	9.00	8.81	1.15	5.00	13.00	9.97	83.00
90EF-10FS-ER512	D17946	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	120.00
90EF-12FS-ER512	D19747	12	14.24	9.00	12.01	10.70	.90	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16933	D16934	D16935	D18840	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminu. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7753-8080-188	5	8.64	4.52	5.64	6.81	.42	3.50	11.44	6.63	45.10
FC7753-9696-188	6	9.14	5.02	6.76	7.31	.47	4.00	11.98	7.57	57.80
FC7753-0808-188	8	10.34	9.22	9.01	8.81	.84	5.00	13.89	9.97	85.90
FC7753-1010-188	10	11.89	7.77	11.01	9.70	.88	6.38	16.48	12.06	120.00
FC7753-1212-188	12	14.24	9.00	12.01	10.70	.90	7.38	17.04	13.38	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2466	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

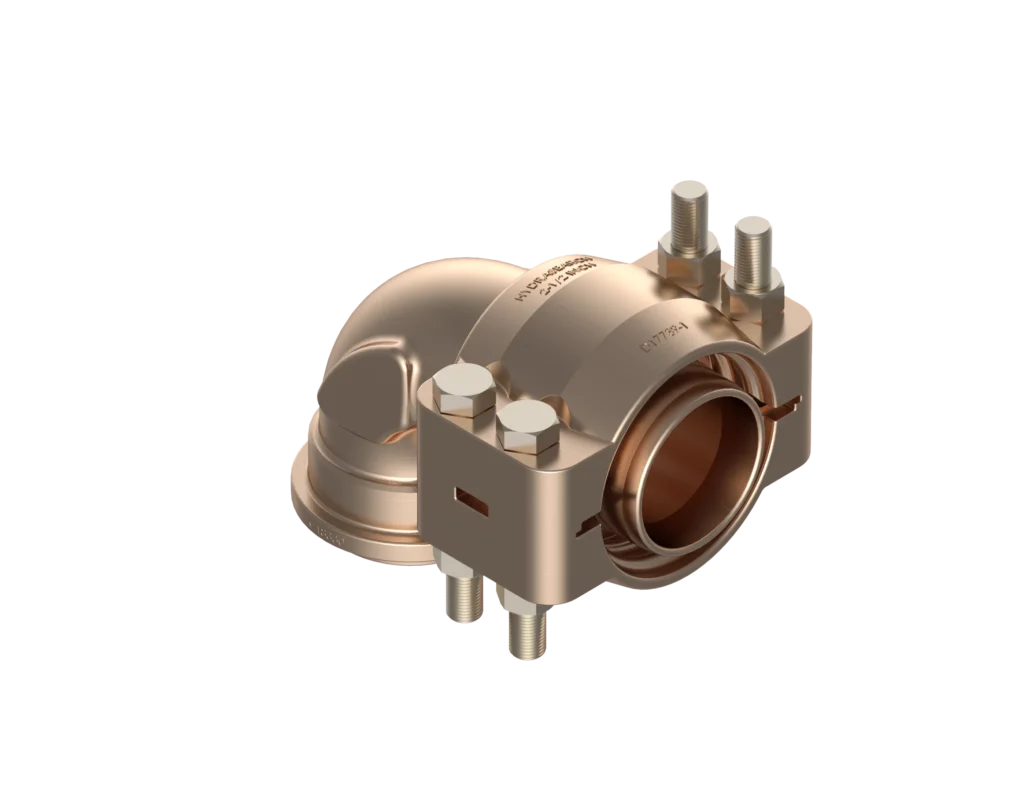

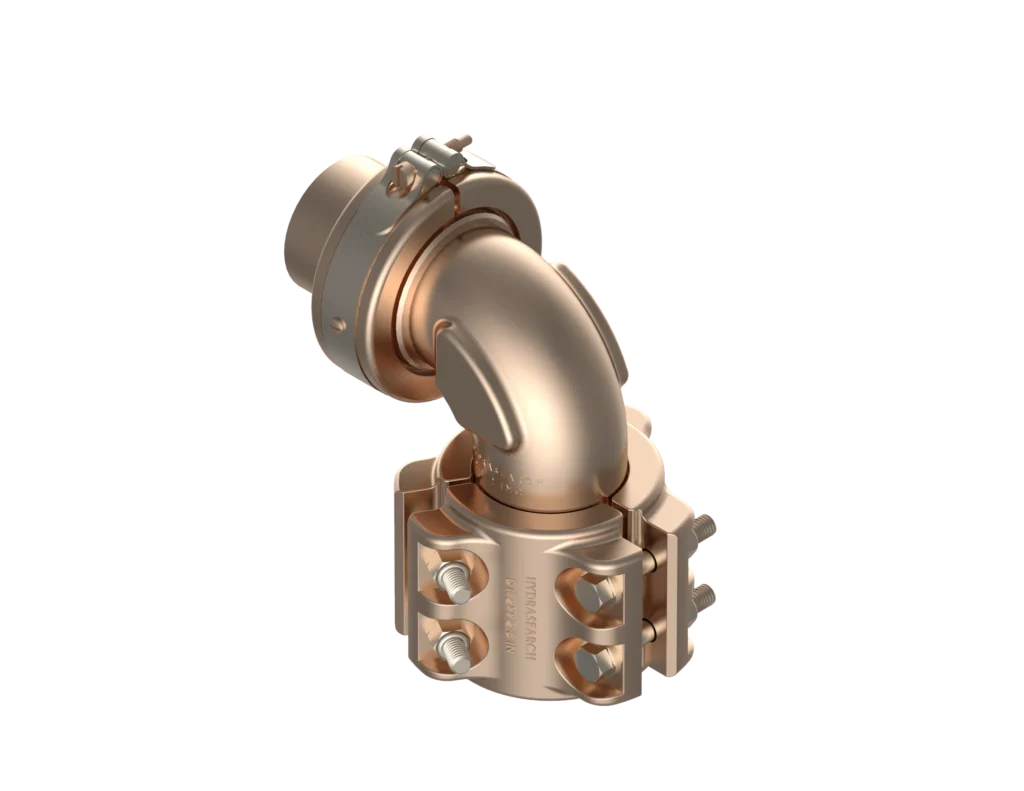

ER512

Equal to Aeroquip P/N FC7753-188

Hose to Split Clamp - Female

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5FS-ER512	D17117	5	11.95	7.82	5.36	6.81	.68	6.50	9.25	6.63	45.00
90EF-6FS-ER512	D17118	6	12.95	8.79	6.75	7.31	.87	4.00	10.38	7.57	56.00
90EF-8FS-ER512	D17119	8	15.31	10.93	9.00	8.81	1.15	5.00	13.00	9.97	83.00
90EF-10FS-ER512	D17946	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	120.00
90EF-12FS-ER512	D19747	12	14.24	9.00	12.01	10.70	.90	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16933	D16934	D16935	D18840	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminu. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7753-188

Hose to Split Clamp - Female

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose: ER512 & 2580

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7753-8080-188	5	8.64	4.52	5.64	6.81	.42	3.50	11.44	6.63	45.10
FC7753-9696-188	6	9.14	5.02	6.76	7.31	.47	4.00	11.98	7.57	57.80
FC7753-0808-188	8	10.34	9.22	9.01	8.81	.84	5.00	13.89	9.97	85.90
FC7753-1010-188	10	11.89	7.77	11.01	9.70	.88	6.38	16.48	12.06	120.00
FC7753-1212-188	12	14.24	9.00	12.01	10.70	.90	7.38	17.04	13.38	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2466	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

Equals to P/N FC7752-188

Defense

MIL-DTL-24787/4

Use with the following hose: ER512 & 2580

Type EL, Group IX

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5MS-ER512	D17122	5	10.78	6.65	5.62	6.82	.40	3.50	9.25	6.63	46.00
90EF-6MS-ER512	D17123	6	9.25	5.12	6.75	7.31	.45	4.00	10.38	7.57	56.00
90EF-8MS-ER512	D17124	8	15.34	10.96	9.00	8.81	.82	5.00	13.00	9.97	83.00
90EF-10MS-ER512	D19744	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	115.00
90EF-12MS-ER512	D19745	12	14.24	9.00	12.00	10.70	.88	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16930	D16931	D16932	D18838	D18839	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Alumimum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7752-8080-188	5	8.64	4.52	5.62	6.81	.40	3.50	11.44	6.63	46.00
FC7752-9696-188	6	9.14	5.02	6.75	7.31	.45	4.00	11.98	7.57	57.80
FC7752-1010-188	10	11.89	7.77	11.00	9.70	.86	6.38	16.48	12.06	115.00

Description	Req’d per Ass’y	Base No.	8080	9696	1010	Material
Elbow	1	FC2465-	8080-188	9696-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	Monel

ER512

Equal to Aeroquip P/N FC7752-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose: ER512 & 2580

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5MS-ER512	D17122	5	10.78	6.65	5.62	6.82	.40	3.50	9.25	6.63	46.00
90EF-6MS-ER512	D17123	6	9.25	5.12	6.75	7.31	.45	4.00	10.38	7.57	56.00
90EF-8MS-ER512	D17124	8	15.34	10.96	9.00	8.81	.82	5.00	13.00	9.97	83.00
90EF-10MS-ER512	D19744	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	115.00
90EF-12MS-ER512	D19745	12	14.24	9.00	12.00	10.70	.88	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16930	D16931	D16932	D18838	D18839	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Alumimum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7752-188

Hose to Split Clamp -Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose:ER512 & 2580

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7752-8080-188	5	8.64	4.52	5.62	6.81	.40	3.50	11.44	6.63	46.00
FC7752-9696-188	6	9.14	5.02	6.75	7.31	.45	4.00	11.98	7.57	57.80
FC7752-1010-188	10	11.89	7.77	11.00	9.70	.86	6.38	16.48	12.06	115.00

Description	Req’d per Ass’y	Base No.	8080	9696	1010	Material
Elbow	1	FC2465-	8080-188	9696-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	Monel

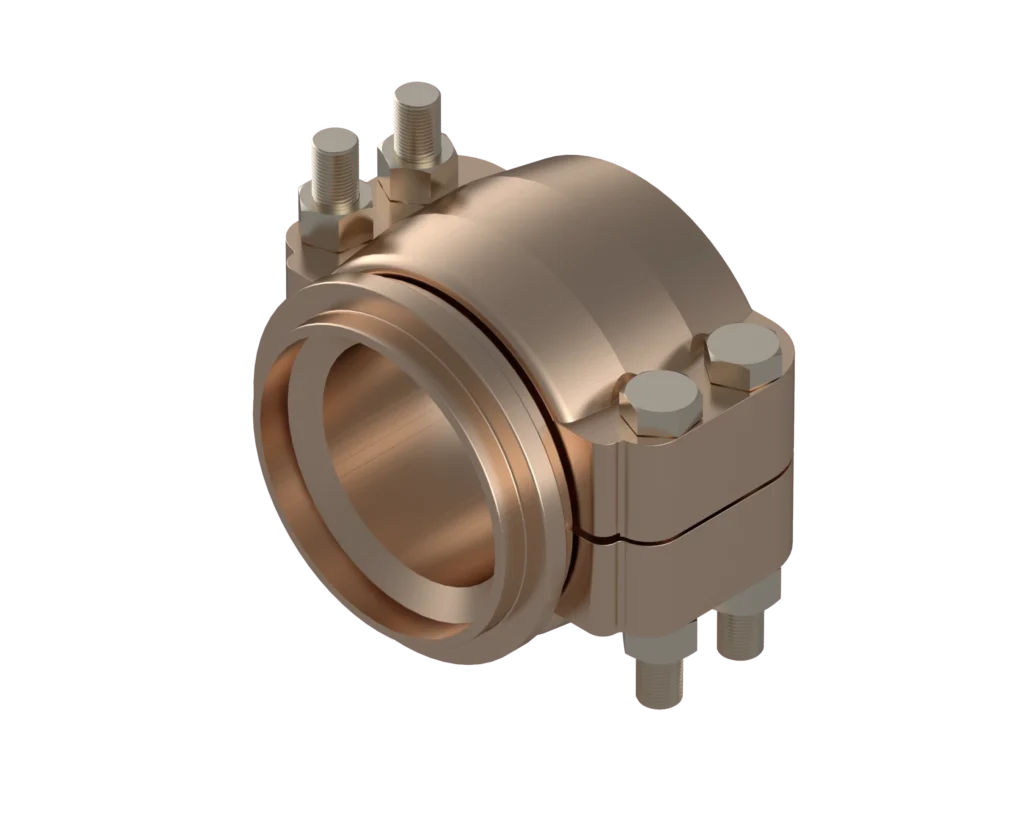

Equals to P/N FC7755-188

Defense

MIL-DTL-24787/4

Use with the following hose:ER512 & 2580

Type E, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
EF-5MS-ER512	D17134	5	6.22	2.09	5.12	5.62	.40	9.25	4.75	6.63	36.00
EF-6MS-ER512	D17135	6	6.58	2.45	6.64	6.75	.45	10.38	4.75	7.57	44.00
EF-8MS-ER512	D17136	8	7.25	2.86	8.67	9.00	.82	13.00	5.00	9.97	60.00
EF-10MS-ER512	D19742	7.09	7.09	2.74	10.67	11.00	.86	14.50	4.97	12.06	77.00
EF-12MS-ER512	D19743	12	8.24	2.96	12.89	12.00	.88	17.10	6.00	13.38	120.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Nipple	1	D16936	D16937	D16938	D18834	D18835	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
FC7755-8080-188	5	6.22	2.10	4.40	5.62	.40	11.44	4.75	6.63	36.70
FC7755-9696-188	6	6.58	2.46	5.40	6.75	.45	11.98	4.75	7.57	45.40
FC7755-0808-188	8	6.80	2.68	7.40	9.00	.82	13.89	4.75	9.97	63.40
FC7755-1010-188	10	6.84	2.72	9.40	11.00	.86	16.48	4.75	12.06	77.00
FC7755-1212-188	12	8.16	2.91	11.40	12.00	.88	17.04	6.00	13.38	119.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Nipple	1	FC2468-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

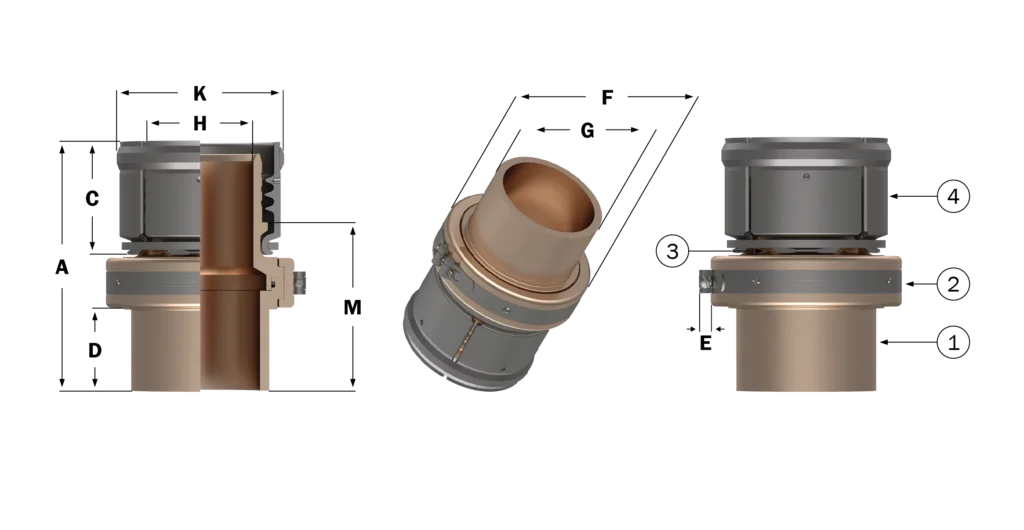

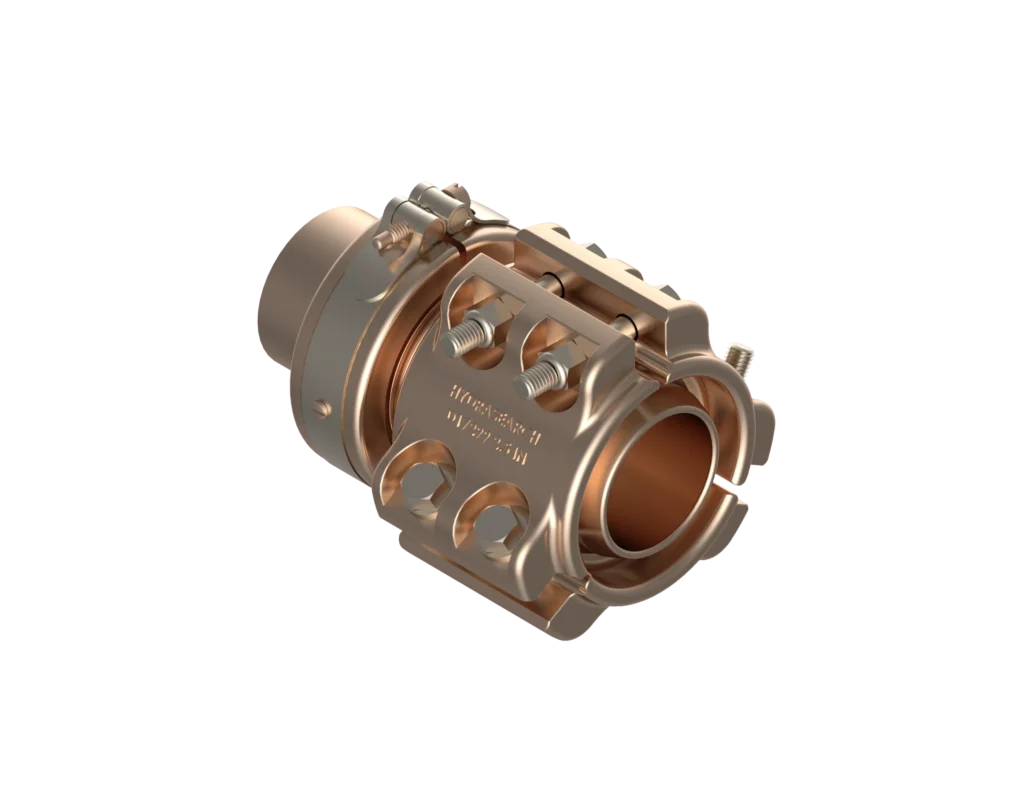

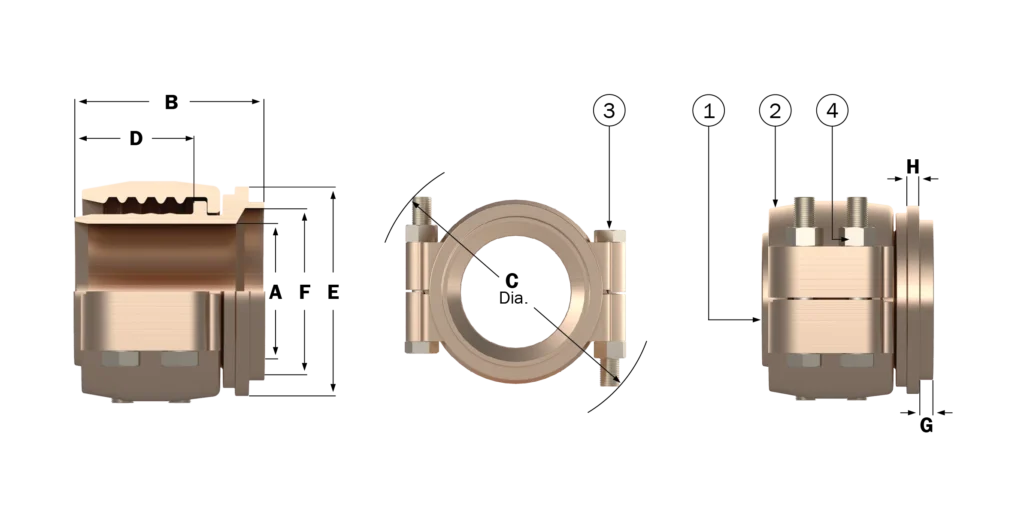

ER512

Equal to Aeroquip P/N FC7755-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IX

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
EF-5MS-ER512	D17134	5	6.22	2.09	5.12	5.62	.40	9.25	4.75	6.63	36.00
EF-6MS-ER512	D17135	6	6.58	2.45	6.64	6.75	.45	10.38	4.75	7.57	44.00
EF-8MS-ER512	D17136	8	7.25	2.86	8.67	9.00	.82	13.00	5.00	9.97	60.00
EF-10MS-ER512	D19742	7.09	7.09	2.74	10.67	11.00	.86	14.50	4.97	12.06	77.00
EF-12MS-ER512	D19743	12	8.24	2.96	12.89	12.00	.88	17.10	6.00	13.38	120.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Nipple	1	D16936	D16937	D16938	D18834	D18835	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7755-188

Hose to Split Clamp -Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IX

For use with the following hose: ER512 & 2580

Part Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
FC7755-8080-188	5	6.22	2.10	4.40	5.62	.40	11.44	4.75	6.63	36.70
FC7755-9696-188	6	6.58	2.46	5.40	6.75	.45	11.98	4.75	7.57	45.40
FC7755-0808-188	8	6.80	2.68	7.40	9.00	.82	13.89	4.75	9.97	63.40
FC7755-1010-188	10	6.84	2.72	9.40	11.00	.86	16.48	4.75	12.06	77.00
FC7755-1212-188	12	8.16	2.91	11.40	12.00	.88	17.04	6.00	13.38	119.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Nipple	1	FC2468-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

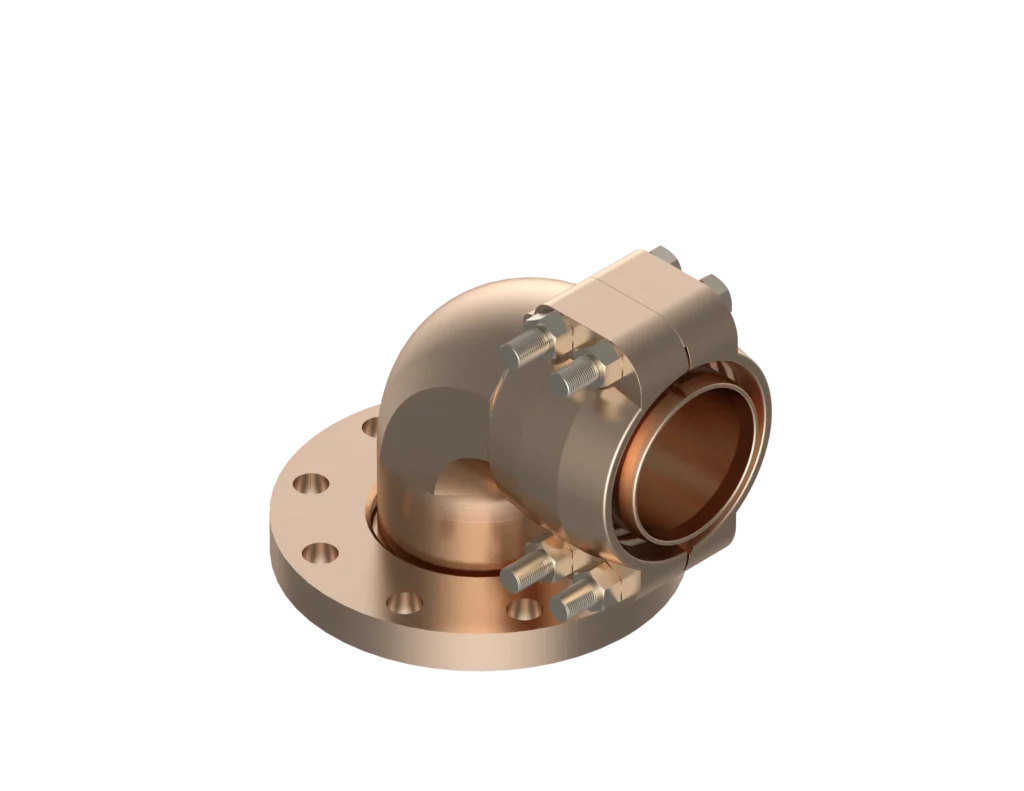

Equals to P/N FC7780-188

Defense

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150F-B16.5	D17104	5	8	.88	8.63	4.50	6.76	10.00	6.38	8.50	1.05	3.50	5.31	9.25	59.00
90EF-6-150F-B16.5	D17105	6	8	.88	9.20	5.07	7.34	11.00	7.38	9.00	1.17	4.00	6.31	10.38	73.00
90EF-8-150F-B16.5	D17106	8	8	.88	10.56	6.18	8.67	13.50	9.83	11.75	1.30	5.00	8.31	13.00	110.00
90EF-10-150F-B16.5	D19089	10	12	1.00	12.10	7.75	9.80	16.00	12.04	14.25	1.42	6.38	10.31	14.50	143.00
90EF-12-150F-B16.5	D19736	12	12	1.00	14.32	9.04	10.70	19.00	14.48	17.00	1.48	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16914-2	C16914-3	C18831	C18832	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7780-8080-188	5	8	.88	8.64	4.52	6.81	10.00	6.37	8.50	1.06	3.50	5.32	11.44	50.40
FC7780-9696-188	6	8	.88	9.14	5.02	7.31	11.00	7.37	9.50	1.19	4.00	6.36	11.98	65.80
FC7780-0808-188	8	8	.88	10.34	6.22	8.81	13.50	9.82	11.75	1.31	5.00	8.32	13.89	93.10
FC7780-1010-188	10	12	1.00	11.89	7.77	9.70	16.00	12.00	14.25	1.44	6.38	10.38	16.48	134.00
FC7780-1212-188	12	12	1.00	14.24	9.00	10.70	17.62	14.50	17.00	1.48	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74021-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

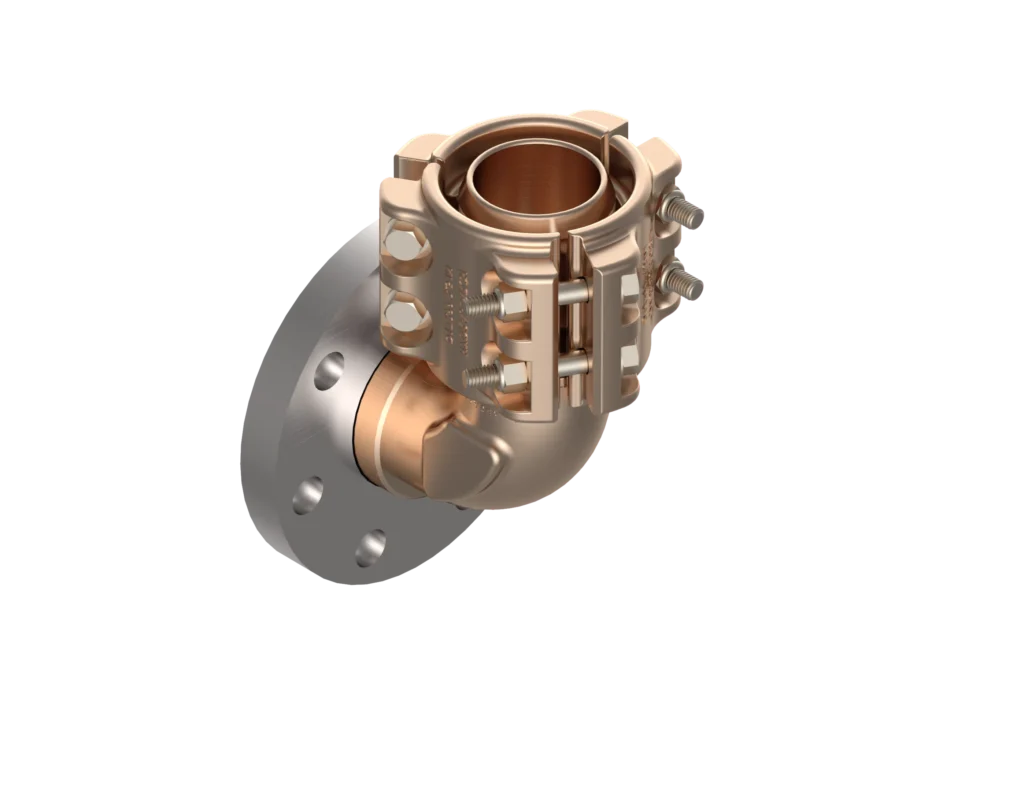

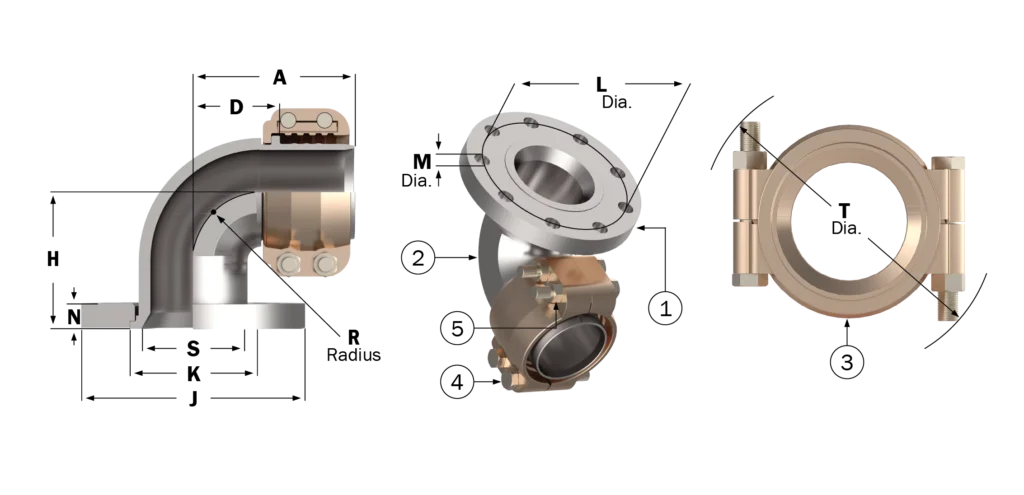

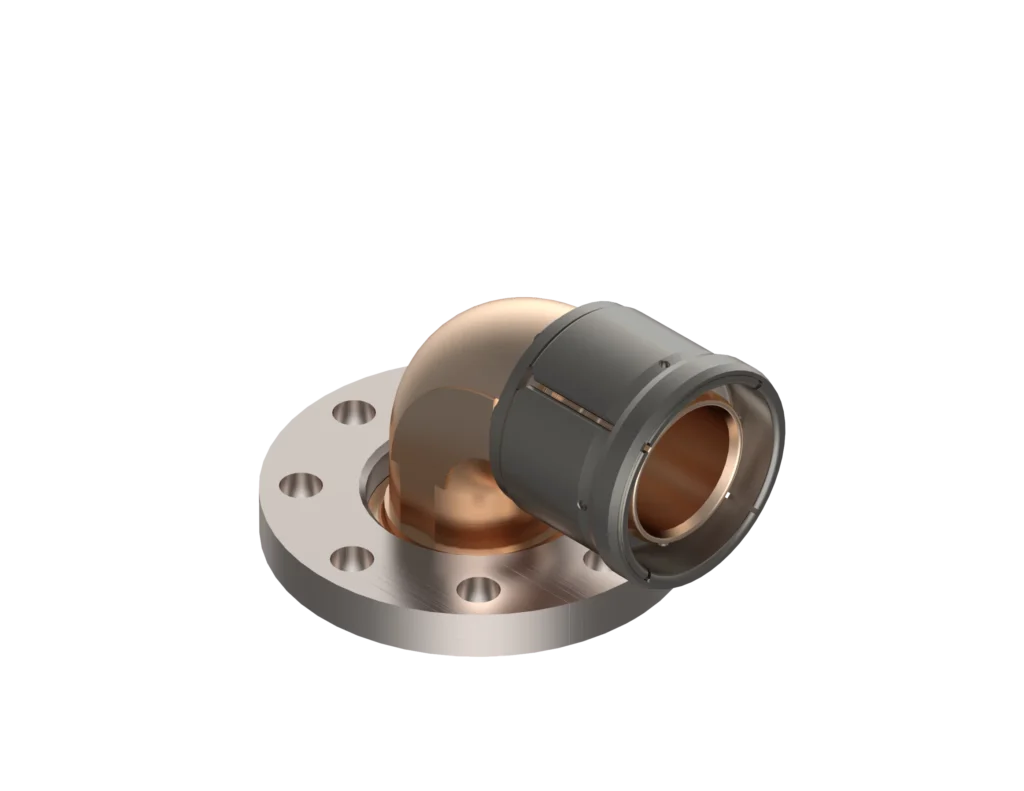

ER512

Equal to Aeroquip P/N FC7780-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150F-B16.5	D17104	5	8	.88	8.63	4.50	6.76	10.00	6.38	8.50	1.05	3.50	5.31	9.25	59.00
90EF-6-150F-B16.5	D17105	6	8	.88	9.20	5.07	7.34	11.00	7.38	9.00	1.17	4.00	6.31	10.38	73.00
90EF-8-150F-B16.5	D17106	8	8	.88	10.56	6.18	8.67	13.50	9.83	11.75	1.30	5.00	8.31	13.00	110.00
90EF-10-150F-B16.5	D19089	10	12	1.00	12.10	7.75	9.80	16.00	12.04	14.25	1.42	6.38	10.31	14.50	143.00
90EF-12-150F-B16.5	D19736	12	12	1.00	14.32	9.04	10.70	19.00	14.48	17.00	1.48	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16914-2	C16914-3	C18831	C18832	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7780-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7780-8080-188	5	8	.88	8.64	4.52	6.81	10.00	6.37	8.50	1.06	3.50	5.32	11.44	50.40
FC7780-9696-188	6	8	.88	9.14	5.02	7.31	11.00	7.37	9.50	1.19	4.00	6.36	11.98	65.80
FC7780-0808-188	8	8	.88	10.34	6.22	8.81	13.50	9.82	11.75	1.31	5.00	8.32	13.89	93.10
FC7780-1010-188	10	12	1.00	11.89	7.77	9.70	16.00	12.00	14.25	1.44	6.38	10.38	16.48	134.00
FC7780-1212-188	12	12	1.00	14.24	9.00	10.70	17.62	14.50	17.00	1.48	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74021-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

Defense

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-250F	D17111	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-250F	D17112	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	9.31	10.38	68.00
90EF-8-250F	D17113	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-250F	D19091	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00
90EF-12-250F	D19739	12	18	.81	14.32	9.04	10.70	17.63	14.48	16.06	1.50	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-250F	D17111	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-250F	D17112	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	9.31	10.38	68.00
90EF-8-250F	D17113	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-250F	D19091	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00
90EF-12-250F	D19739	12	18	.81	14.32	9.04	10.70	17.63	14.48	16.06	1.50	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Equals to P/N FC7751-188

Defense

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150/400F	D17085	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-150/400F	D17086	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	6.31	10.38	68.00
90EF-8-150/400F	D17110	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-150/400F	D19638	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	Bronze
Elbow	1	D16920	D16921	D16922	D18826	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7751-8080-188	5	10	.69	8.64	4.52	6.81	9.06	6.37	7.81	1.08	3.50	5.32	11.44	55.00
FC7751-9696-188	6	12	.69	9.14	5.02	7.31	10.12	7.37	8.88	1.20	4.00	6.36	11.98	71.10
FC7751-0808-188	8	14	.69	10.34	6.22	8.81	12.38	9.82	11.06	1.33	5.00	8.32	13.89	102.60
FC7751-1010-188	10	15	.81	11.89	7.77	9.70	15.00	12.00	13.44	1.45	6.38	10.38	16.48	147.48
FC7751-1212-188	12	18	.81	14.24	9.00	10.70	17.50	14.50	16.06	1.52	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74045-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

ER512

Equal to Aeroquip P/N FC7751-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150/400F	D17085	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-150/400F	D17086	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	6.31	10.38	68.00
90EF-8-150/400F	D17110	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-150/400F	D19638	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	Bronze
Elbow	1	D16920	D16921	D16922	D18826	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	Monel

ER512 Equivalent

P/N FC7751-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose: ER512 & 2580

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7751-8080-188	5	10	.69	8.64	4.52	6.81	9.06	6.37	7.81	1.08	3.50	5.32	11.44	55.00
FC7751-9696-188	6	12	.69	9.14	5.02	7.31	10.12	7.37	8.88	1.20	4.00	6.36	11.98	71.10
FC7751-0808-188	8	14	.69	10.34	6.22	8.81	12.38	9.82	11.06	1.33	5.00	8.32	13.89	102.60
FC7751-1010-188	10	15	.81	11.89	7.77	9.70	15.00	12.00	13.44	1.45	6.38	10.38	16.48	147.48
FC7751-1212-188	12	18	.81	14.24	9.00	10.70	17.50	14.50	16.06	1.52	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74045-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

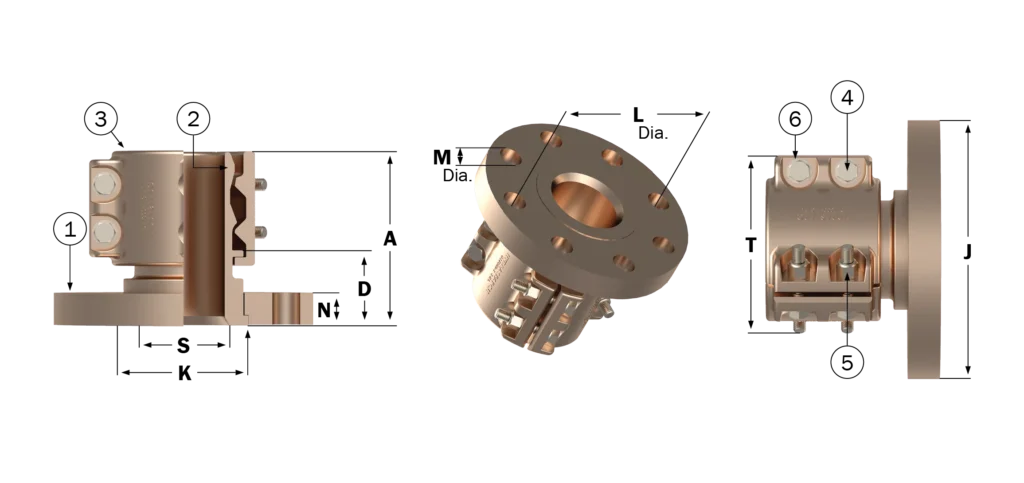

Equals to P/N FC7781-410

Defense

Use with the following hose:ER512 & 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5-SS	D18756	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5-SS	D17638	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5-SS	D17742	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5-SS	D18439	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5-SS	-	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	47.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C18361	C17629-1	C17639-2	C18459	-	Stainless Steel
Nipple	1	D18363	D17640	D17744	D18458	-	Stainless Steel
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-9696-410	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-410	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-410	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Swivel Flange	1	407-74021-	6-96	8-8	10-10	Stainless Steel
Nipple	1	FC2463-	9696-188	0808-188	1010-188	Stainless Steel
Grip Segment	2	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1201-4	1201-4	Monel

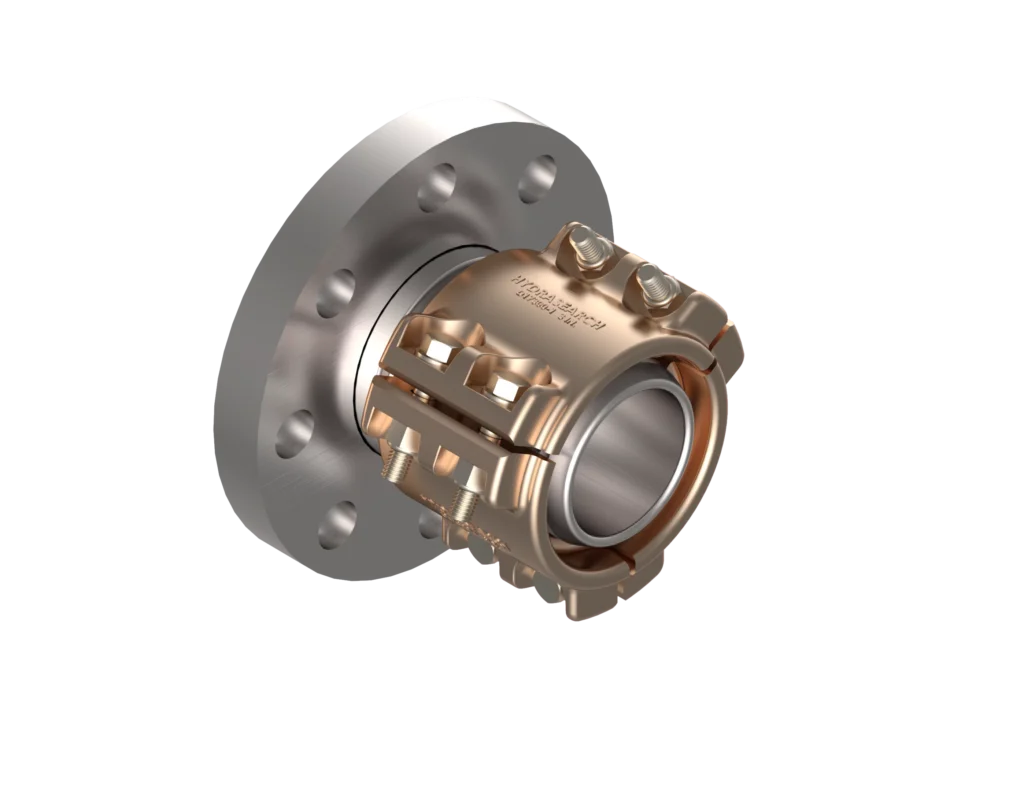

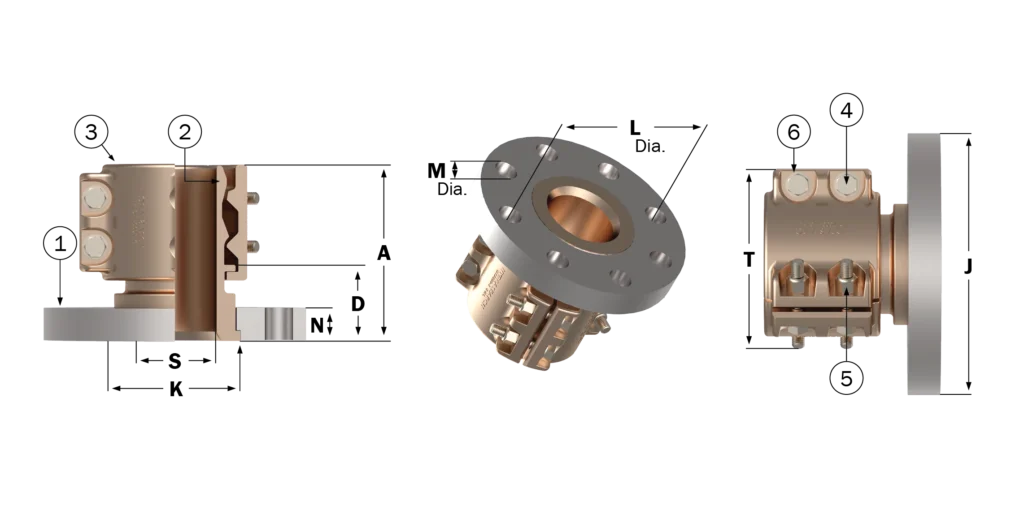

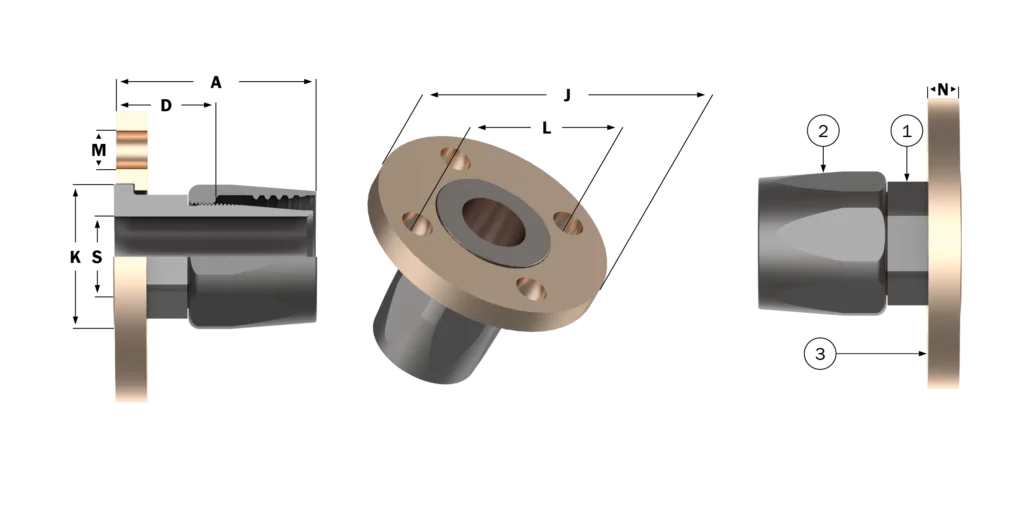

ER512

Equal to Aeroquip P/N FC7781-410

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5-SS	D18756	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5-SS	D17638	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5-SS	D17742	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5-SS	D18439	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5-SS	-	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	47.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C18361	C17629-1	C17639-2	C18459	-	Stainless Steel
Nipple	1	D18363	D17640	D17744	D18458	-	Stainless Steel
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7781-410

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-9696-410	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-410	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-410	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Swivel Flange	1	407-74021-	6-96	8-8	10-10	Stainless Steel
Nipple	1	FC2463-	9696-188	0808-188	1010-188	Stainless Steel
Grip Segment	2	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1201-4	1201-4	Monel

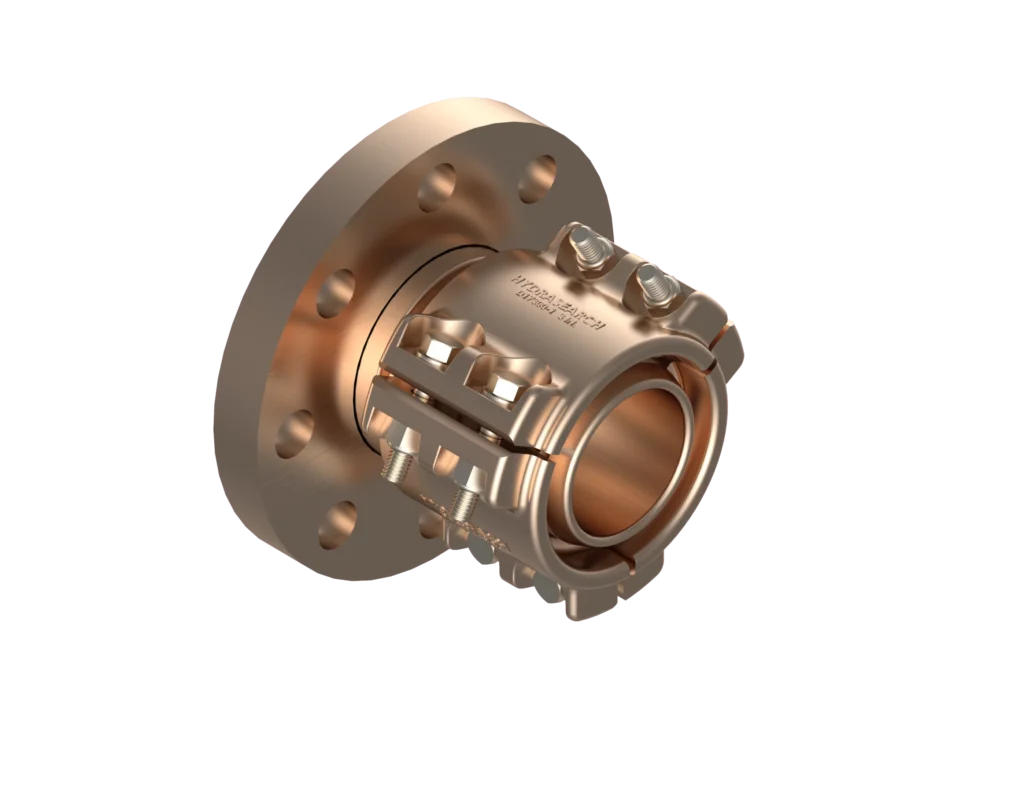

Equals to Hose to Flange

Defense

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type F, Group IX, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5	D17125	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5	D17126	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5	C22207	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5	D19090	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5	D19730	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16114-2	C16914-3	C18831	C18832	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-8080-188	5	8	.88	6.75	2.64	10.00	6.37	8.50	1.06	5.32	11.44	40.40
FC7781-9696-188	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-188	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-188	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874020-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC2463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

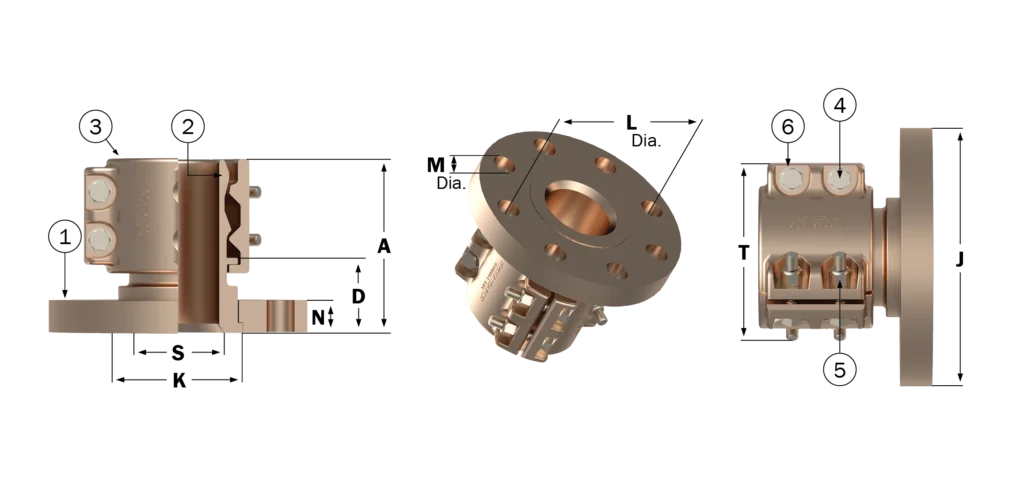

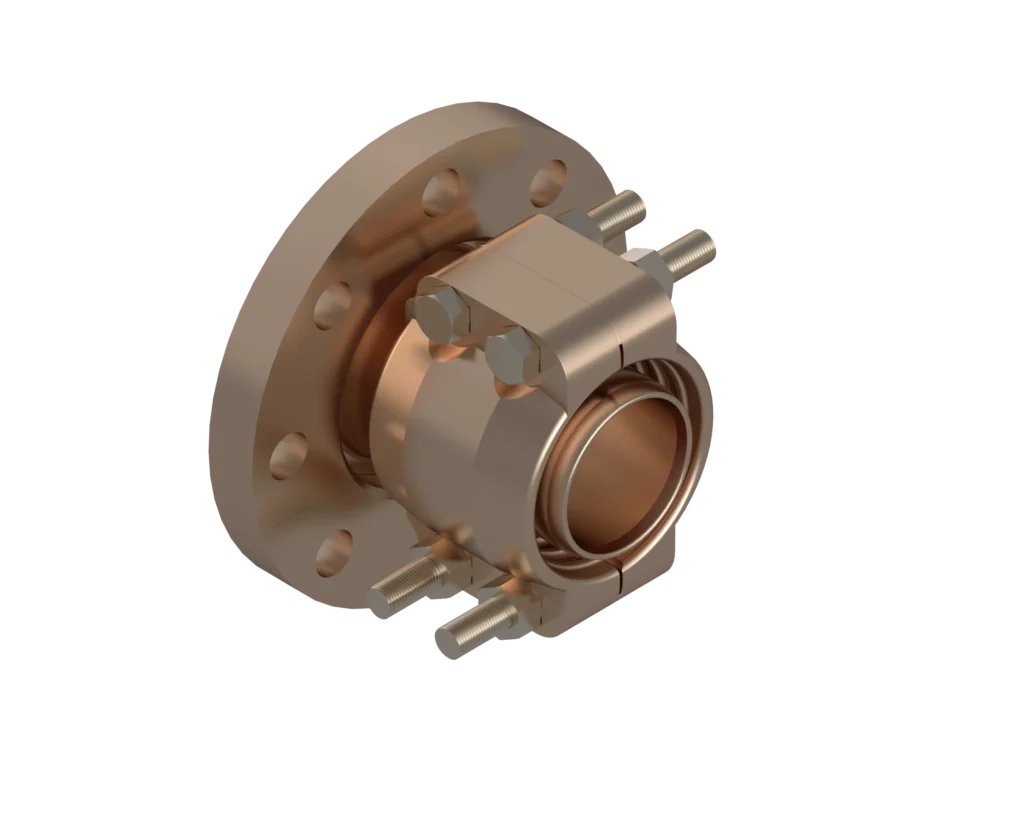

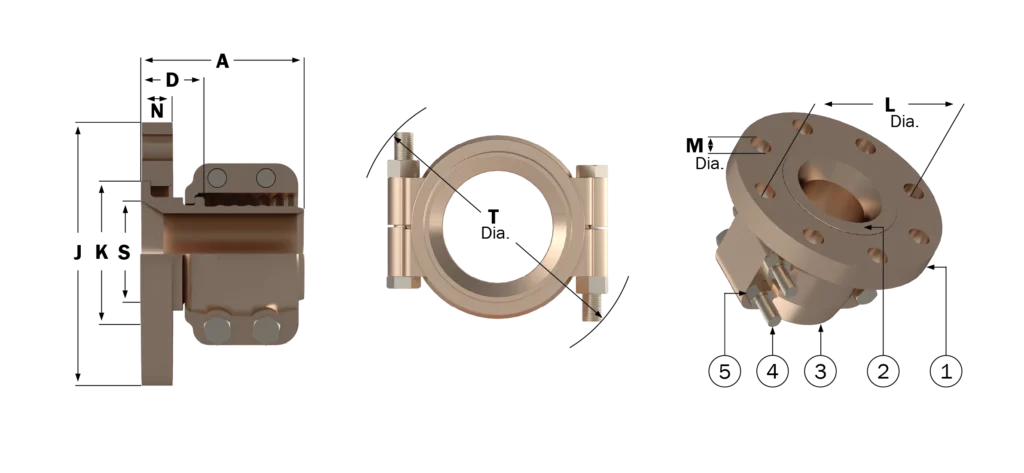

ER512

Equal to Aeroquip Hose to Flange

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5	D17125	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5	D17126	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5	C22207	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5	D19090	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5	D19730	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16114-2	C16914-3	C18831	C18832	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7781-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-8080-188	5	8	.88	6.75	2.64	10.00	6.37	8.50	1.06	5.32	11.44	40.40
FC7781-9696-188	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-188	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-188	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874020-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC2463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

Equals to P/N FC7750-188

Defense

MIL-DTL-24787/1

Use with the following hose: ER512 & 2580

Type F, Group IX, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150/400F	D17095	5	11	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-150/400F	D17088	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-150/400F	D17096	8	13	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-150/400F	D18457	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-150/400F	D18379	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	C18257	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7750-8080-188	5	10	.69	6.75	2.64	9.06	6.37	7.81	1.08	5.32	11.44	45.00
FC7750-9696-188	6	12	.69	6.75	2.64	10.12	7.37	8.88	1.20	6.36	11.98	58.70
FC7750-0808-188	8	14	.69	6.75	2.64	12.38	9.82	11.06	1.33	8.32	13.89	80.10
FC7750-1010-188	10	15	.81	7.01	2.89	15.00	12.00	13.44	1.45	10.38	16.48	108.50
FC7750-1212-188	12	18	.81	8.49	3.24	17.04	14.50	16.06	1.52	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874021-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC27463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

ER512

Equal to Aeroquip P/N FC7750-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose: ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150/400F	D17095	5	11	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-150/400F	D17088	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-150/400F	D17096	8	13	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-150/400F	D18457	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-150/400F	D18379	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	C18257	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512 Equivalent

P/N FC7750-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7750-8080-188	5	10	.69	6.75	2.64	9.06	6.37	7.81	1.08	5.32	11.44	45.00
FC7750-9696-188	6	12	.69	6.75	2.64	10.12	7.37	8.88	1.20	6.36	11.98	58.70
FC7750-0808-188	8	14	.69	6.75	2.64	12.38	9.82	11.06	1.33	8.32	13.89	80.10
FC7750-1010-188	10	15	.81	7.01	2.89	15.00	12.00	13.44	1.45	10.38	16.48	108.50
FC7750-1212-188	12	18	.81	8.49	3.24	17.04	14.50	16.06	1.52	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874021-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC27463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

Defense

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type F, Group IX, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-400F	D17131	5	11	.81	7.03	2.90	10.38	6.38	8.81	1.06	5.31	9.25	50.00
EF-6-400F	D17132	6	12	.94	7.03	2.90	11.94	7.38	10.19	1.19	6.31	10.38	63.00
EF-8-400F	D17133	8	13	1.06	7.28	2.90	14.75	9.83	12.75	1.31	8.31	13.00	93.00
EF-10-400F	D19735	10	15	1.06	7.00	2.65	17.00	12.04	15.00	1.06	10.31	14.50	105.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16912-1	C16912-2	C16912-3	-	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	-	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	-	Monel
Nut	6	D16197-6	D16197-6	B16551-3	-	Monel
Washer	6	D16197-5	D16197-5	B16551-2	-	Monel

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-250F	D16193	5	10	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-250F	D16197	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-250F	D16188	8	14	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-250F	D19733	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-250F	D19734	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.12	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-6	B16551-3	B16551-3	B18347	Monel

ER512

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-400F	D17131	5	11	.81	7.03	2.90	10.38	6.38	8.81	1.06	5.31	9.25	50.00
EF-6-400F	D17132	6	12	.94	7.03	2.90	11.94	7.38	10.19	1.19	6.31	10.38	63.00
EF-8-400F	D17133	8	13	1.06	7.28	2.90	14.75	9.83	12.75	1.31	8.31	13.00	93.00
EF-10-400F	D19735	10	15	1.06	7.00	2.65	17.00	12.04	15.00	1.06	10.31	14.50	105.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16912-1	C16912-2	C16912-3	-	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	-	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	-	Monel
Nut	6	D16197-6	D16197-6	B16551-3	-	Monel
Washer	6	D16197-5	D16197-5	B16551-2	-	Monel

ER512 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-250F	D16193	5	10	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-250F	D16197	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-250F	D16188	8	14	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-250F	D19733	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-250F	D19734	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.12	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-6	B16551-3	B16551-3	B18347	Monel

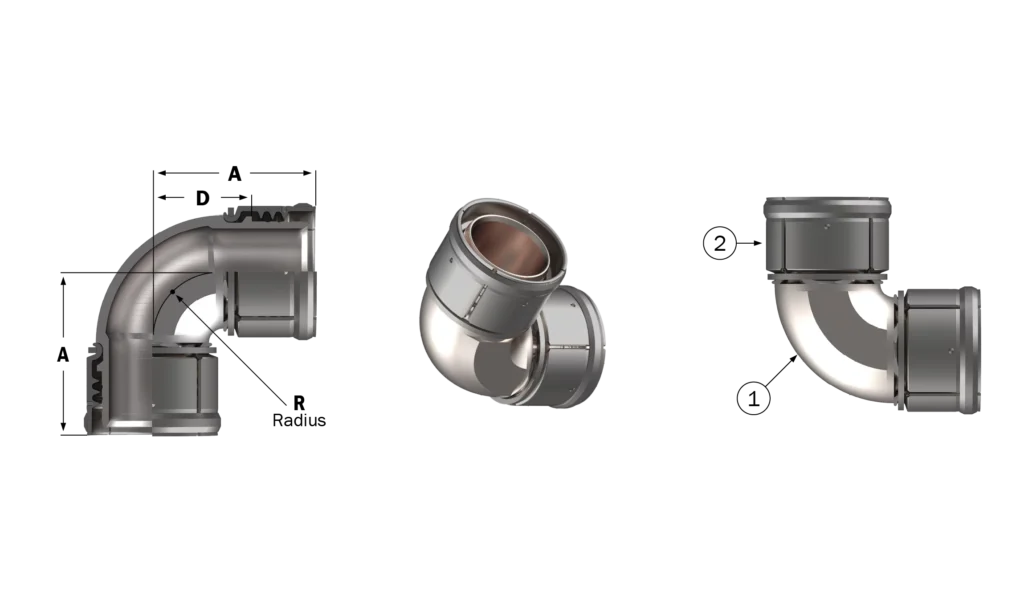

Equals to P/N 412-190093

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MSS1488D-1616	C19347	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MSS1488D-2020	C19348	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MSS1488D-2424	C21627	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MSS1488D-3232	C19349	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MSS1488D-4040	C19350	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	Material
Elbow	1	C19249	C19250	C21628	C19251	19252	Stainless Steel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	Monel

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
412-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
412-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
412-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
412-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
412-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	Material
Elbow	1	407-185093	16	20	24	32	40	Stainless Steel
Socket	2	4-1212-	16	20	24	32	40	Monel

HS1488

Equal to Aeroquip P/N 412-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MSS1488D-1616	C19347	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MSS1488D-2020	C19348	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MSS1488D-2424	C21627	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MSS1488D-3232	C19349	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MSS1488D-4040	C19350	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	Material
Elbow	1	C19249	C19250	C21628	C19251	19252	Stainless Steel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	Monel

HS1488 Equivalent

P/N 412-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
412-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
412-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
412-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
412-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
412-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	Material
Elbow	1	407-185093	16	20	24	32	40	Stainless Steel
Socket	2	4-1212-	16	20	24	32	40	Monel

Equals to P/N 66-190093

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-B1488D-1616	C19327	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-B1488D-2020	C19328	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-B1488D-2424	C19329	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-B1488D-3232	C19330	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-B1488D-4040	C19331	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-B1488D-4848	C19332	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
66-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
66-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
66-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
66-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
66-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
66-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20`	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	1212-	16B	20B	24B	32B	40B	48B	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-B1488D-1616	C19327	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-B1488D-2020	C19328	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-B1488D-2424	C19329	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-B1488D-3232	C19330	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-B1488D-4040	C19331	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-B1488D-4848	C19332	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

HS1488 Equivalent

P/N 66-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
66-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
66-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
66-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
66-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
66-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
66-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20`	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	1212-	16B	20B	24B	32B	40B	48B	Aluminum. Bronze

Equals to P/N 375-190093

Defense

MIL-DTL-24787/5

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MB1488D-1616	C19341	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MB1488D-2020	C19342	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MB1488D-2424	C19343	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MB1488D-3232	C19344	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MB1488D-4040	C19345	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-MB1488D-4848	C19346	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel`

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
375-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
375-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
375-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
375-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
375-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
375-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	4-1212-	16	20	24	32	40	48	Monel

HS1488

Equal to Aeroquip P/N 375-190093

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MB1488D-1616	C19341	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MB1488D-2020	C19342	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MB1488D-2424	C19343	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MB1488D-3232	C19344	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MB1488D-4040	C19345	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-MB1488D-4848	C19346	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel`

HS1488 Equivalent

P/N 375-190093

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
375-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
375-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
375-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
375-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
375-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
375-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	4-1212-	16	20	24	32	40	48	Monel

Equals to P/N 93-191302

Defense

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-0606	C19351	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-BMC1488D-0808	C19352	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-BMC1488D-1010	C19353	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-BMC1488D-1212	C19354	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-1616	C19355	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30

Description	Req’d per Ass’y	1616	Material
Elbow	1	C19108	Monel
Socket	2	C18667-1	Brass

HS1488

Equal to Aeroquip P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-0606	C19351	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-BMC1488D-0808	C19352	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-BMC1488D-1010	C19353	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-BMC1488D-1212	C19354	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-1616	C19355	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30

Description	Req’d per Ass’y	1616	Material
Elbow	1	C19108	Monel
Socket	2	C18667-1	Brass

Equals to P/N 4-191302

Defense

MIL-DTL-24787/5

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-0606	C19356	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-1488D-0808	C19357	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-1488D-1010	C19358	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-1488D-1212	C19359	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-1616	C19360	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30
90ELB-1488D-2020	C19692	1.25	4.27	1.62	2.91	1.05	1.75	.70	1.75	1.25	1.75	1.80
90ELB-1488D-2424	C19693	1.50	4.65	1.81	3.19	1.28	1.94	.74	2.00	1.50	1.84	2.30
90ELB-1488D-3232	C19691	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Elbow	1	C19108	C19109	C19110	C19111	Monel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-0606	C19356	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-1488D-0808	C19357	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-1488D-1010	C19358	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-1488D-1212	C19359	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-1616	C19360	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30
90ELB-1488D-2020	C19692	1.25	4.27	1.62	2.91	1.05	1.75	.70	1.75	1.25	1.75	1.80
90ELB-1488D-2424	C19693	1.50	4.65	1.81	3.19	1.28	1.94	.74	2.00	1.50	1.84	2.30
90ELB-1488D-3232	C19691	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Elbow	1	C19108	C19109	C19110	C19111	Monel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N FC9425-66

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELM-2032	C19425	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
90ELB-B1488ELM-2432	C19426	1.5	3.59	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
90ELB-B1488ELM-3240	C19427	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
90ELB-B1488ELM-4048	C19428	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9425-66

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELM-2032	C19425	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
90ELB-B1488ELM-2432	C19426	1.5	3.59	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
90ELB-B1488ELM-3240	C19427	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
90ELB-B1488ELM-4048	C19428	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

P/N FC9425-66

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Equals to P/N FC9426-66

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELF-2032	C19429	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
90ELB-B1488ELF-2432	C19430	1.5	3.59	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
90ELB-B1488ELF-3240	C19431	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
90ELB-B1488ELF-4048	C19432	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1221-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9426-66

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELF-2032	C19429	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
90ELB-B1488ELF-2432	C19430	1.5	3.59	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
90ELB-B1488ELF-3240	C19431	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
90ELB-B1488ELF-4048	C19432	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

HS1488 Equivalent

P/N FC9426-66

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1221-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Equals to P/N FC9423-66

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EM-2032	C19421	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
EF-B1488EM-2432	C19422	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
EF-B1488EM-3232	-	2	5.91	2.62	4.07	1.69	2.38	3.25	1.31	2.25	.39	3.25	-
EF-B1488EM-3240	C19423	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
EF-B1488EM-4048	C19424	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3232	3240	4048	Material
Nipple	1	C19188	C19189	-	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	-	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	-	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	-	C18078	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-66	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5002-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9423-66

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EM-2032	C19421	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
EF-B1488EM-2432	C19422	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
EF-B1488EM-3232	-	2	5.91	2.62	4.07	1.69	2.38	3.25	1.31	2.25	.39	3.25	-
EF-B1488EM-3240	C19423	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
EF-B1488EM-4048	C19424	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3232	3240	4048	Material
Nipple	1	C19188	C19189	-	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	-	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	-	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	-	C18078	C18079	Aluminum. Bronze

HS1488 Equivalent

P/N FC9423-66

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-66	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5002-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

Equals to P/N FC9424-44

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EF-2032	C19417	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
EF-B1488EF-2432	C19418	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
EF-B1488EF-3240	C19419	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
EF-B1488EF-4048	C19420	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Nipple	1	C19188	C19189	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18078	C18097	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-44	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5001-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9424-44

Hose to Female Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EF-2032	C19417	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
EF-B1488EF-2432	C19418	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
EF-B1488EF-3240	C19419	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
EF-B1488EF-4048	C19420	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Nipple	1	C19188	C19189	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18078	C18097	Aluminum. Bronze

HS1488 Equivalent

P/N FC9424-44

Hose to Female Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-44	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5001-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

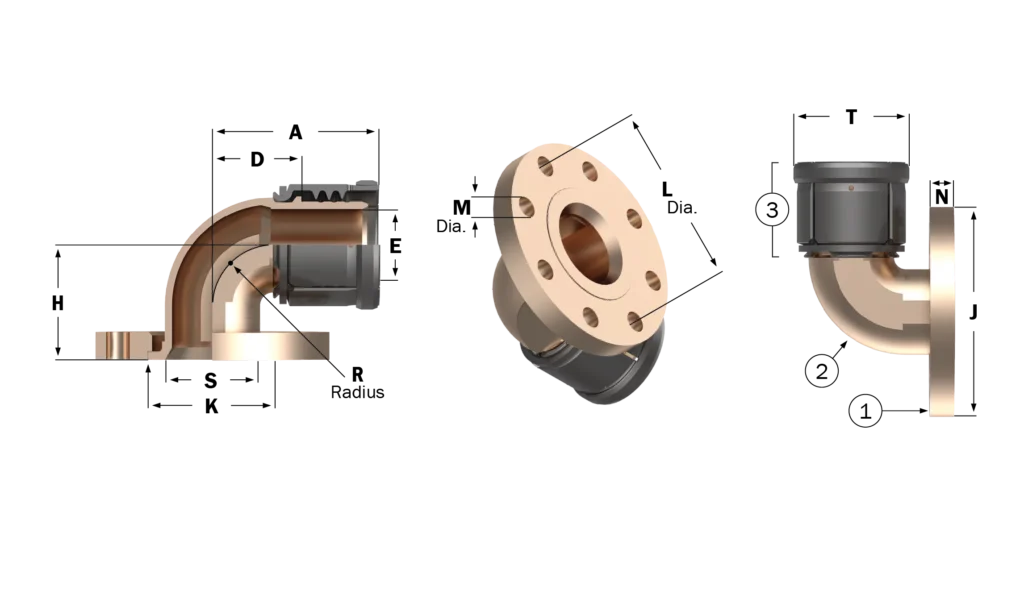

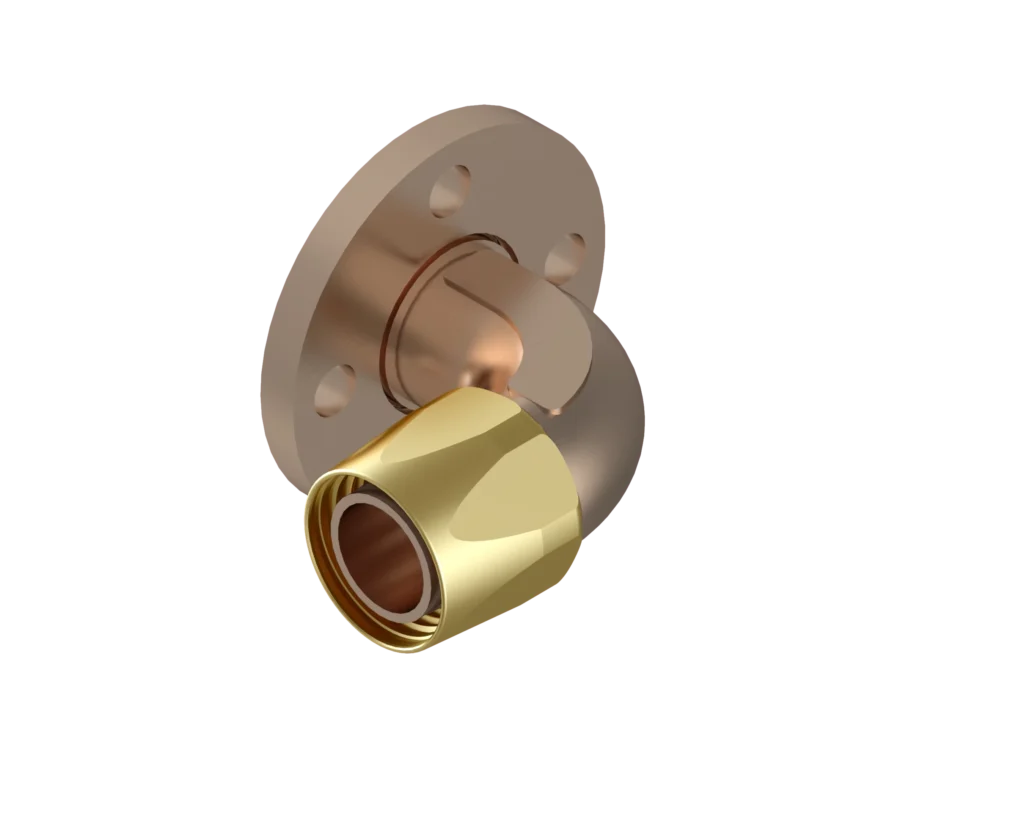

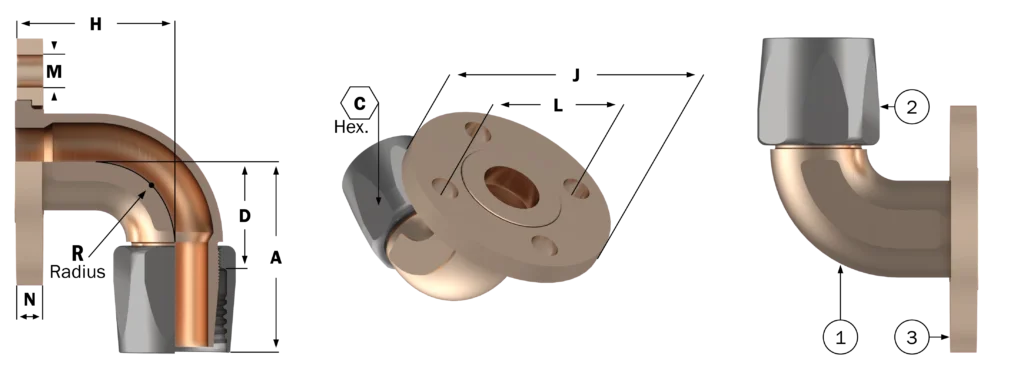

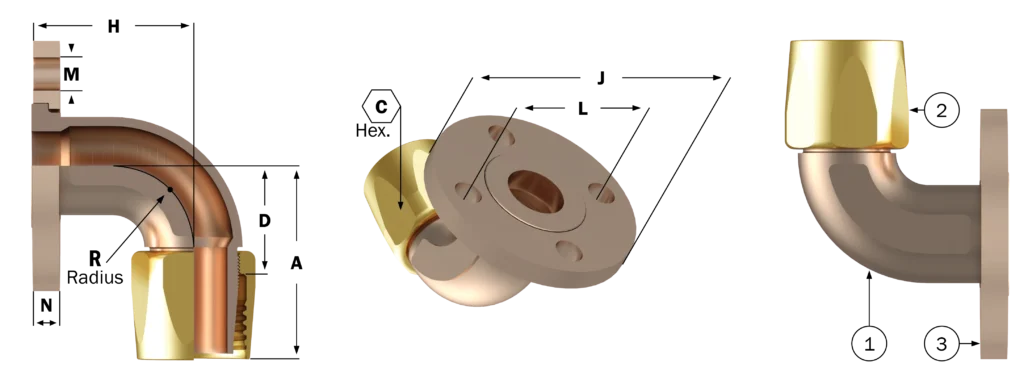

Equals to P/N 66-190124

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL5-0816	C19389	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	-	1.80
90EF-B1488FL5-1220	C19390	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	-	3.60
90EF-B1488FL5-1624	C19391	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.42	-	3.20
90EF-B1488FL5-2032	C19392	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	-	4.50
90EF-B1488FL5-2432	C19393	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	-	5.20
90EF-B1488FL5-3232	C19394	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
90EF-B1488FL5-3240	C19395	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
90EF-B1488FL5-4040	C19396	2.5	4	4.39	3.25	2.48	3.50	7.00	5.50	.75	.48	-	9.70
90EF-B1488FL5-4048	C19397	2.5	4	4.61	3.88	2.70	4.00	7.00	5.50	.75	.48	-	12.50
90EF-B1488FL5-4848	C19398	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18867

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190124-8-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
66-190124-12-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.62
66-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
66-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.38
66-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.02
66-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
66-190124-32-40	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
66-190124-48-48	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description	Req’d per Ass’y	Base No. 8-16	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Material
Elbow	1	188-185029-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	32B	32B	40B	48B	Brass
Flange	1	188-74021-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL5-0816	C19389	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	-	1.80
90EF-B1488FL5-1220	C19390	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	-	3.60
90EF-B1488FL5-1624	C19391	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.42	-	3.20
90EF-B1488FL5-2032	C19392	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	-	4.50
90EF-B1488FL5-2432	C19393	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	-	5.20
90EF-B1488FL5-3232	C19394	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
90EF-B1488FL5-3240	C19395	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
90EF-B1488FL5-4040	C19396	2.5	4	4.39	3.25	2.48	3.50	7.00	5.50	.75	.48	-	9.70
90EF-B1488FL5-4048	C19397	2.5	4	4.61	3.88	2.70	4.00	7.00	5.50	.75	.48	-	12.50
90EF-B1488FL5-4848	C19398	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18867

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190124-8-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
66-190124-12-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.62
66-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
66-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.38
66-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.02
66-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
66-190124-32-40	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
66-190124-48-48	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description	Req’d per Ass’y	Base No. 8-16	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Material
Elbow	1	188-185029-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	32B	32B	40B	48B	Brass
Flange	1	188-74021-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze

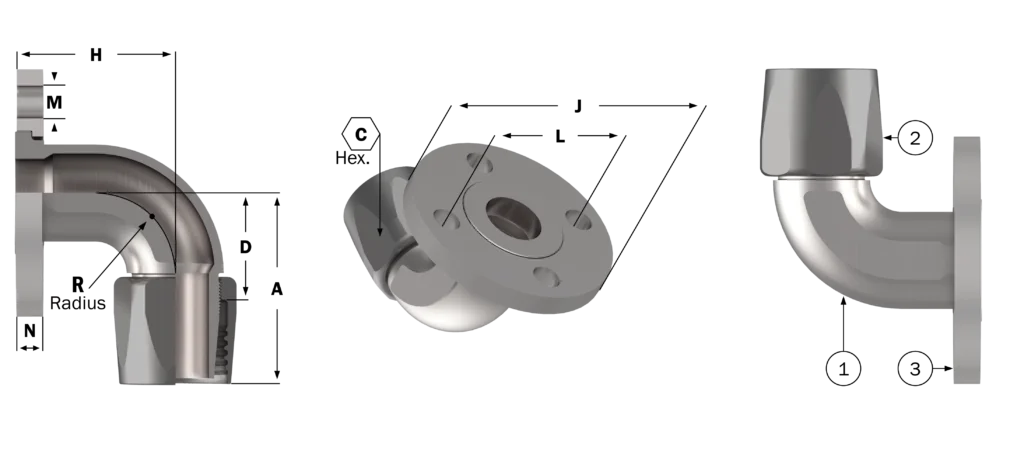

Equals to P/N 412-190124

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MSS1488FL5-1220	-	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.22	3.60
90EF-MSS1488FL5-2032	-	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MSS1488FL5-2432	-	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MSS1488FL5-3232	-	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	1220	2032	2432	3232	Material
Elbow	1	C21511	C19246	C19247	C19248	Stainless Steel
Socket	1	C18703-2	C18662	C18662	C18662	Monel
Flange	1	C19241	C19242	C19243	C19244	Stainless Steel

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
412-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
412-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
412-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
412-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base No.	16-24	20-32	24-32	32-32	Material
Elbow	1	407-185029-	16-24	20-32	24-32	32-32	Stainless Steel
Socket	1	4-1212-	24	32	32	32	Monel
Flange	1	407-74021-	16-24	20-32	24-32	32-32	Stainless Steel

HS1488

Equal to Aeroquip P/N 412-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MSS1488FL5-1220	-	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.22	3.60
90EF-MSS1488FL5-2032	-	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MSS1488FL5-2432	-	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MSS1488FL5-3232	-	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	1220	2032	2432	3232	Material
Elbow	1	C21511	C19246	C19247	C19248	Stainless Steel
Socket	1	C18703-2	C18662	C18662	C18662	Monel
Flange	1	C19241	C19242	C19243	C19244	Stainless Steel

HS1488 Equivalent

P/N 412-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
412-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
412-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
412-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
412-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base No.	16-24	20-32	24-32	32-32	Material
Elbow	1	407-185029-	16-24	20-32	24-32	32-32	Stainless Steel
Socket	1	4-1212-	24	32	32	32	Monel
Flange	1	407-74021-	16-24	20-32	24-32	32-32	Stainless Steel

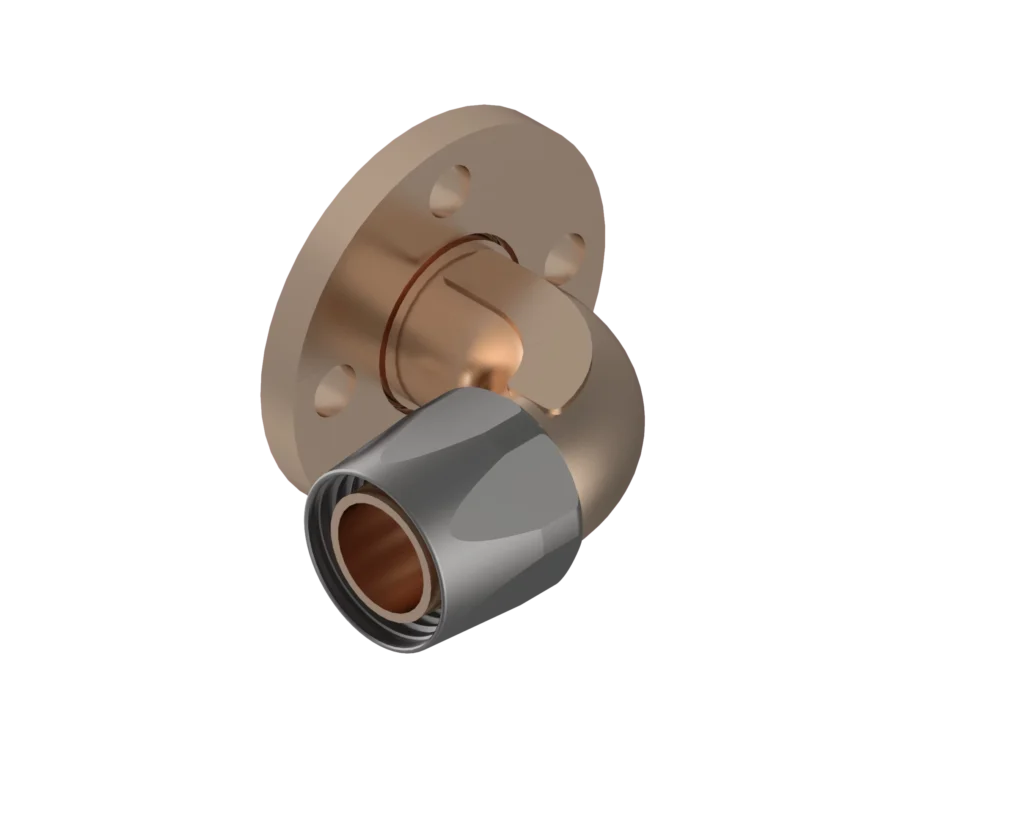

Equals to P/N 375-190124

Defense

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL5-0816	C19399	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	1.12	1.80
90EF-MB1488FL5-1220	C19400	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.12	3.60
90EF-MB1488FL5-1624	C19401	1	4	3.30	2.00	1.85	2.75	4.25	3.12	.62	.42	1.38	3.20
90EF-MB1488FL5-2032	C19402	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MB1488FL5-2432	C19403	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MB1488FL5-3232	C19404	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	Material
Elbow	1	C19035	C19037	C19087	C19102	C19092	C19092	Aluminum. Bronze
Socket	1	C18867-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
375-190124-1/2-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
375-190124-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.36
375-190124-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.22
375-190124-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
375-190124-1.5-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
375-190124-2-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	32	32	Monel
Flange	1	188-74021-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 375-190124

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL5-0816	C19399	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	1.12	1.80
90EF-MB1488FL5-1220	C19400	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.12	3.60
90EF-MB1488FL5-1624	C19401	1	4	3.30	2.00	1.85	2.75	4.25	3.12	.62	.42	1.38	3.20
90EF-MB1488FL5-2032	C19402	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MB1488FL5-2432	C19403	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MB1488FL5-3232	C19404	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	Material
Elbow	1	C19035	C19037	C19087	C19102	C19092	C19092	Aluminum. Bronze
Socket	1	C18867-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488 Equivalent

P/N 375-190124

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
375-190124-1/2-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
375-190124-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.36
375-190124-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.22
375-190124-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
375-190124-1.5-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
375-190124-2-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	32	32	Monel
Flange	1	188-74021-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

Equals to P/N 66-190103

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL4-0816	-	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.12	1.80
90EF-MB1488FL4-1216	-	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	-	3.00
90EF-MB1488FL4-1616	-	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	-	3.10
90EF-MB1488FL4-1220	C21146	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.12	3.60
90EF-MB1488FL4-1624	C21540	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.38	3.20
90EF-MB1488FL4-2032	C22698	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
90EF-MB1488FL4-2432	C20900	1.5	6	3.89	2.50	2.05	3.06	506	3.94	.56	.44	1.62	5.20
90EF-MB1488FL4-3232	C21555	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	1.62	5.90
90EF-MB1488FL4-3240	-	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20
90EF-MB1488FL4-4040	-	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	-	9.70
90EF-MB1488FL4-4048	-	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	-	12.50
90EF-MB1488FL4-4848	-	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	-	13.50

Description

Req’d per Ass’y

0816

1216

1616

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-2

C18703-2

C18990-2

C18662

Monel

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-12-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.22	3.60
66-190103-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.38	3.20
66-190103-20-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
66-190103-24-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	1.62	5.20
66-190103-32-40	2	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20	-

Description	Req’d per Ass’y	Base No.	12-20	16-24	20-32	24-32	32-40	Material
Elbow	1	188-185029-	12-20	16-24	20-32	24-32	32-40	Brass
Socket	1	1212-	20B	24B	32B	32B	40B	Brass
Flange	1	188-180005-	12-20	16-24	20-32	24-32	32-40	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL4-0816	-	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.12	1.80
90EF-MB1488FL4-1216	-	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	-	3.00
90EF-MB1488FL4-1616	-	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	-	3.10
90EF-MB1488FL4-1220	C21146	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.12	3.60
90EF-MB1488FL4-1624	C21540	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.38	3.20
90EF-MB1488FL4-2032	C22698	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
90EF-MB1488FL4-2432	C20900	1.5	6	3.89	2.50	2.05	3.06	506	3.94	.56	.44	1.62	5.20
90EF-MB1488FL4-3232	C21555	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	1.62	5.90
90EF-MB1488FL4-3240	-	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20
90EF-MB1488FL4-4040	-	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	-	9.70
90EF-MB1488FL4-4048	-	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	-	12.50
90EF-MB1488FL4-4848	-	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	-	13.50

Description

Req’d per Ass’y

0816

1216

1616

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-2

C18703-2

C18990-2

C18662

Monel

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-12-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.22	3.60
66-190103-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.38	3.20
66-190103-20-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
66-190103-24-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	1.62	5.20
66-190103-32-40	2	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20	-

Description	Req’d per Ass’y	Base No.	12-20	16-24	20-32	24-32	32-40	Material
Elbow	1	188-185029-	12-20	16-24	20-32	24-32	32-40	Brass
Socket	1	1212-	20B	24B	32B	32B	40B	Brass
Flange	1	188-180005-	12-20	16-24	20-32	24-32	32-40	Aluminum. Bronze

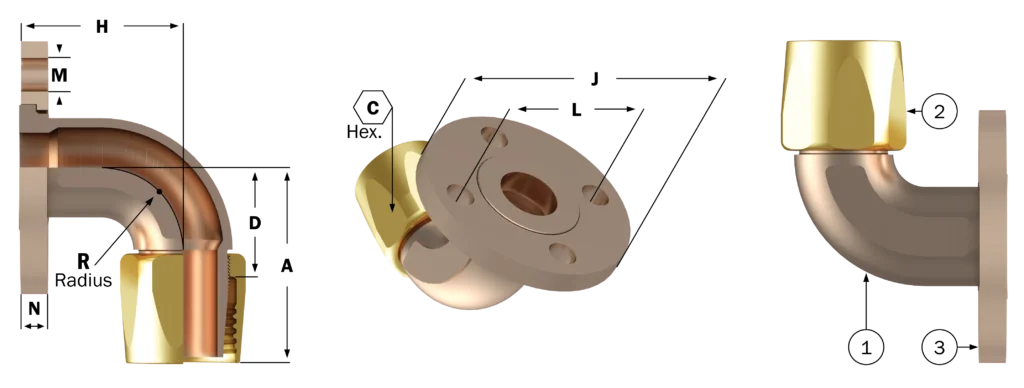

Equals to P/N 66-190103

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL4-0816	C19405	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
90EF-B1488FL4-1216	C19406	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
90EF-B1488FL4-1616	C19408	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	1.25	3.10
90EF-B1488FL4-1220	C19407	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
90EF-B1488FL4-1624	C19409	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.81	3.20
90EF-B1488FL4-2032	C19410	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
90EF-B1488FL4-2432	C19411	1.5	6	3.89	2.50	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
90EF-B1488FL4-3232	C19412	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	2.44	5.90
90EF-B1488FL4-3240	C19413	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	3.00	8.20
90EF-B1488FL4-4040	C19414	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	3.00	9.70
90EF-B1488FL4-4048	C19415	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	3.50	12.50
90EF-B1488FL4-4848	C19416	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	3.50	13.50

Description

Req’d per Ass’y

0816

1216

1220

1616

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-1/2-16	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
66-190103-3/4-16	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
66-190103-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
66-190103-1-16	1	4	2.80	1.44	1.53	2.38	4.25	3.12	.56	.44	1.25	3.10
66-190103-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.81	3.20
66-190103-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
66-190103-1.5-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
66-190103-2-32	2	6	3.89	2.44	2.05	3.06	5.06	4.44	.56	.44	2.44	5.90

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	1212-	16B	16B	20B	16B	24B	32B	32B	32B	Brass
Flange	1	188-180005-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL4-0816	C19405	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
90EF-B1488FL4-1216	C19406	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
90EF-B1488FL4-1616	C19408	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	1.25	3.10
90EF-B1488FL4-1220	C19407	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
90EF-B1488FL4-1624	C19409	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.81	3.20
90EF-B1488FL4-2032	C19410	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
90EF-B1488FL4-2432	C19411	1.5	6	3.89	2.50	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
90EF-B1488FL4-3232	C19412	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	2.44	5.90
90EF-B1488FL4-3240	C19413	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	3.00	8.20
90EF-B1488FL4-4040	C19414	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	3.00	9.70
90EF-B1488FL4-4048	C19415	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	3.50	12.50
90EF-B1488FL4-4848	C19416	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	3.50	13.50

Description

Req’d per Ass’y

0816

1216

1220

1616

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-1/2-16	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
66-190103-3/4-16	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
66-190103-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
66-190103-1-16	1	4	2.80	1.44	1.53	2.38	4.25	3.12	.56	.44	1.25	3.10
66-190103-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.81	3.20
66-190103-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
66-190103-1.5-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
66-190103-2-32	2	6	3.89	2.44	2.05	3.06	5.06	4.44	.56	.44	2.44	5.90

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	1212-	16B	16B	20B	16B	24B	32B	32B	32B	Brass
Flange	1	188-180005-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

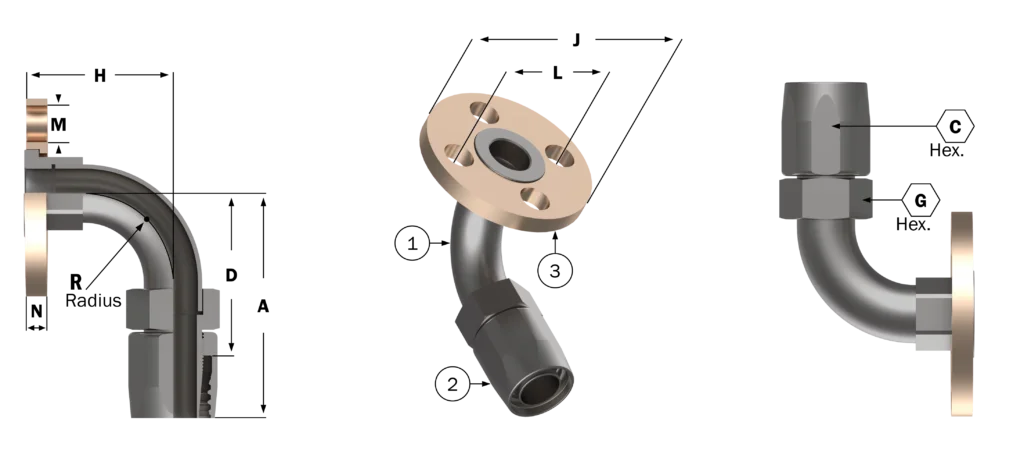

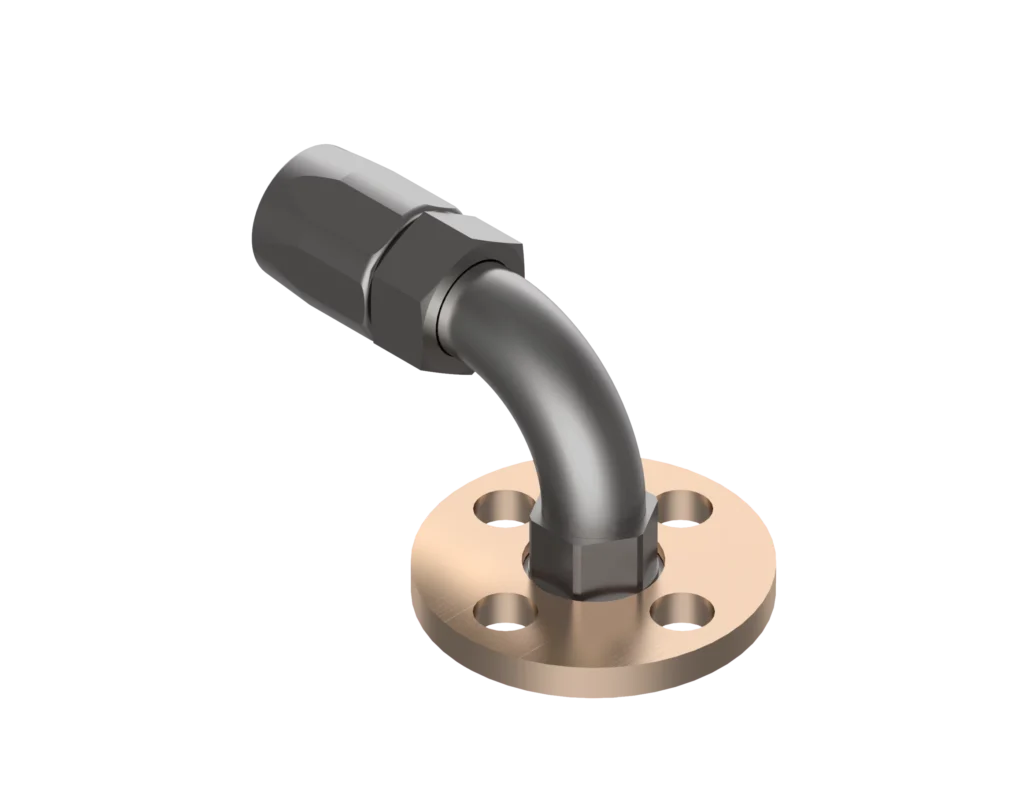

Defense

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class V, 150lb Flange per A.N.S.I B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19570	1/2	4	3.93	1.44	2.66	1.38	2.62	3.50	2.38	.62	.36	1.50	2.40
90EF-1488B2-1216	C19571	3/4	4	3.93	1.44	2.66	1.38	2.62	3.88	2.75	.62	.42	1.50	3.00
90EF-1488B2-1616	C19572	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.12	.62	.42	1.50	3.20
90EF-1488B2-1220	C19573	3/4	4	4.27	1.75	2.91	1.62	2.87	3.88	2.75	.62	.42	1.75	3.00
90EF-1488B2-1624	C19574	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.12	.62	.42	2.00	3.50
90EF-1488B2-2032	C19575	1.25	4	5.68	2.44	3.84	2.25	3.74	4.62	3.50	.62	.42	2.50	4.20
90EF-1488B2-2432	C19576	1.5	4	5.68	2.44	3.84	2.25	3.74	5.00	3.88	.62	.42	2.50	4.70
90EF-1488B2-3232	C19577	2	4	5.68	2.44	3.84	2.69	3.74	5.00	4.75	.75	.42	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18801	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19570	1/2	4	3.93	1.44	2.66	1.38	2.62	3.50	2.38	.62	.36	1.50	2.40
90EF-1488B2-1216	C19571	3/4	4	3.93	1.44	2.66	1.38	2.62	3.88	2.75	.62	.42	1.50	3.00
90EF-1488B2-1616	C19572	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.12	.62	.42	1.50	3.20
90EF-1488B2-1220	C19573	3/4	4	4.27	1.75	2.91	1.62	2.87	3.88	2.75	.62	.42	1.75	3.00
90EF-1488B2-1624	C19574	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.12	.62	.42	2.00	3.50
90EF-1488B2-2032	C19575	1.25	4	5.68	2.44	3.84	2.25	3.74	4.62	3.50	.62	.42	2.50	4.20
90EF-1488B2-2432	C19576	1.5	4	5.68	2.44	3.84	2.25	3.74	5.00	3.88	.62	.42	2.50	4.70
90EF-1488B2-3232	C19577	2	4	5.68	2.44	3.84	2.69	3.74	5.00	4.75	.75	.42	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18801	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

Defense

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19586	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B2-1216	C19587	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B2-1616	C19588	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B2-1220	C19589	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B2-2032	C19591	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B2-2432	C19592	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.94	.56	.81	2.50	4.70
90EF-1488B2-1624	C19590	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19179	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B3-0816	C19578	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.38	1.50	2.40
90EF-1488B3-1216	C19579	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.44	1.50	3.00
90EF-1488B3-1616	C19580	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.44	1.50	3.20
90EF-1488B3-1220	C19581	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.44	1.75	3.00
90EF-1488B3-1624	C19582	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.44	2.00	3.50
90EF-1488B3-2032	C19583	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.44	2.50	4.20
90EF-1488B3-2432	C19584	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.44	2.50	4.70
90EF-1488B3-3232	C19585	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.44	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18815	C18814	C18813	C18812	C18810	C18809	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19586	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B2-1216	C19587	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B2-1616	C19588	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B2-1220	C19589	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B2-2032	C19591	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B2-2432	C19592	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.94	.56	.81	2.50	4.70
90EF-1488B2-1624	C19590	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19179	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B3-0816	C19578	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.38	1.50	2.40
90EF-1488B3-1216	C19579	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.44	1.50	3.00
90EF-1488B3-1616	C19580	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.44	1.50	3.20
90EF-1488B3-1220	C19581	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.44	1.75	3.00
90EF-1488B3-1624	C19582	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.44	2.00	3.50
90EF-1488B3-2032	C19583	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.44	2.50	4.20
90EF-1488B3-2432	C19584	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.44	2.50	4.70
90EF-1488B3-3232	C19585	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.44	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18815	C18814	C18813	C18812	C18810	C18809	Aluminum. Bronze

Defense

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B1-0816	C19602	1/2	4	3.93	1.44	1.66	1.38	2.62	4.00	2.88	.56	.69	1.50	2.40
90EF-1488B1-1216	C19603	3/4	4	3.93	1.44	2.66	1.38	2.62	4.31	3.19	.56	.69	1.50	3.00
90EF-1488B1-1616	C19604	1	5	3.93	1.44	2.66	1.38	2.62	5.06	3.75	.69	.75	1.50	3.20
90EF-1488B1-1220	C19605	3/4	4	4.27	1.75	2.91	1.62	2.87	4.31	3.19	.56	.69	1.75	3.00
90EF-1488B1-1624	C19606	1	5	4.65	1.94	3.19	2.12	3.06	5.06	3.75	.69	.75	2.00	3.50
90EF-1488B1-2032	C19607	1.25	5	5.68	2.44	3.84	2.25	3.74	5.38	4.06	.69	.81	2.50	4.20
90EF-1488B1-2432	C19608	1.5	6	5.68	2.44	3.84	2.25	3.74	5.94	4.63	.69	.81	2.50	4.70
90EF-1488B1-3232	C19609	2	7	5.68	2.44	3.84	2.69	3.74	6.50	5.19	.69	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Socket	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19516	C19517	C19518	C19519	C19520	C19521	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B5-0816	C19494	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B5-1216	C19595	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B5-1616	C19596	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B5-1220	C19597	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B5-1624	C19598	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50
90EF-1488B5-2032	C19599	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B5-2432	C19600	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.81	2.50	4.70
90EF-1488B5-3232	C19601	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C1862	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19529	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B1-0816	C19602	1/2	4	3.93	1.44	1.66	1.38	2.62	4.00	2.88	.56	.69	1.50	2.40
90EF-1488B1-1216	C19603	3/4	4	3.93	1.44	2.66	1.38	2.62	4.31	3.19	.56	.69	1.50	3.00
90EF-1488B1-1616	C19604	1	5	3.93	1.44	2.66	1.38	2.62	5.06	3.75	.69	.75	1.50	3.20
90EF-1488B1-1220	C19605	3/4	4	4.27	1.75	2.91	1.62	2.87	4.31	3.19	.56	.69	1.75	3.00
90EF-1488B1-1624	C19606	1	5	4.65	1.94	3.19	2.12	3.06	5.06	3.75	.69	.75	2.00	3.50
90EF-1488B1-2032	C19607	1.25	5	5.68	2.44	3.84	2.25	3.74	5.38	4.06	.69	.81	2.50	4.20
90EF-1488B1-2432	C19608	1.5	6	5.68	2.44	3.84	2.25	3.74	5.94	4.63	.69	.81	2.50	4.70
90EF-1488B1-3232	C19609	2	7	5.68	2.44	3.84	2.69	3.74	6.50	5.19	.69	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Socket	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19516	C19517	C19518	C19519	C19520	C19521	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B5-0816	C19494	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B5-1216	C19595	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B5-1616	C19596	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B5-1220	C19597	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B5-1624	C19598	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50
90EF-1488B5-2032	C19599	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B5-2432	C19600	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.81	2.50	4.70
90EF-1488B5-3232	C19601	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C1862	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19529	Aluminum. Bronze

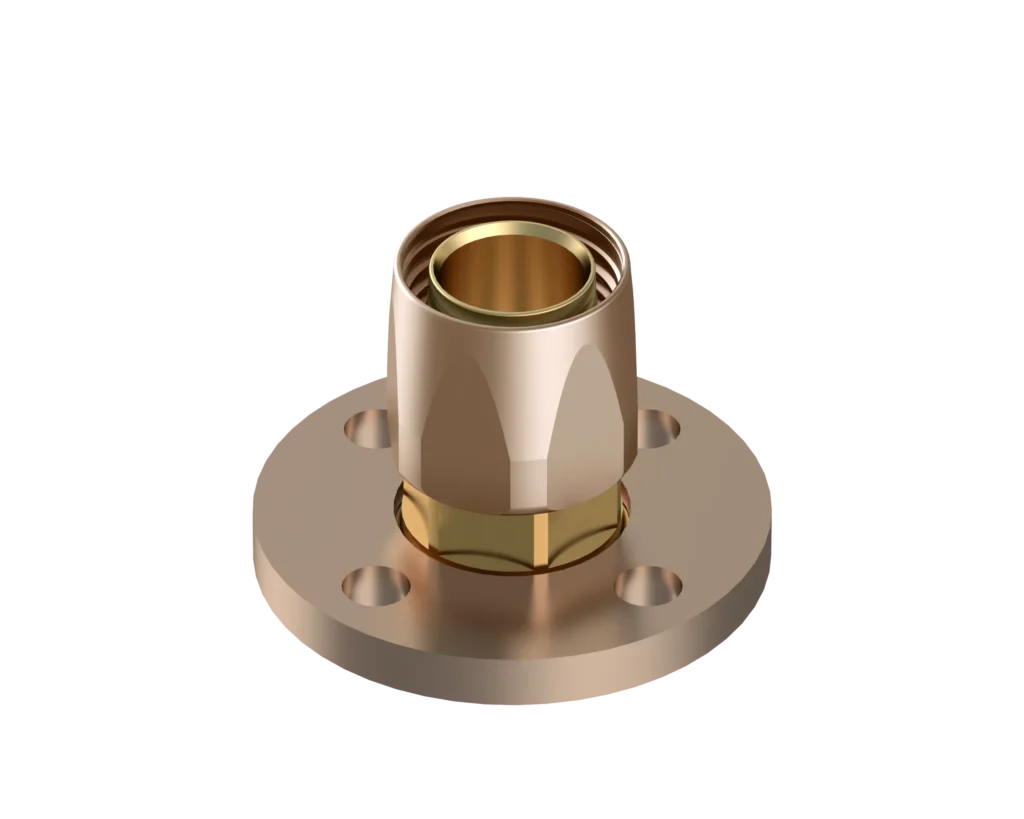

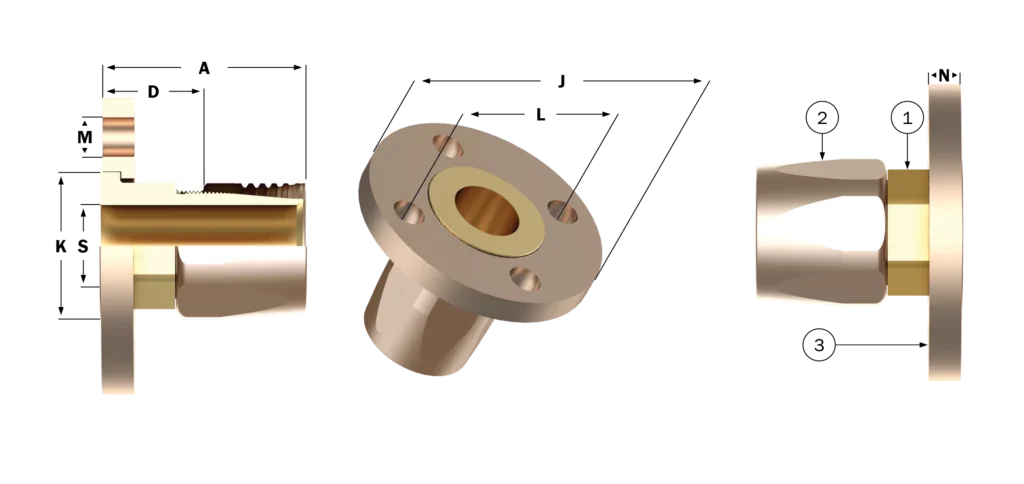

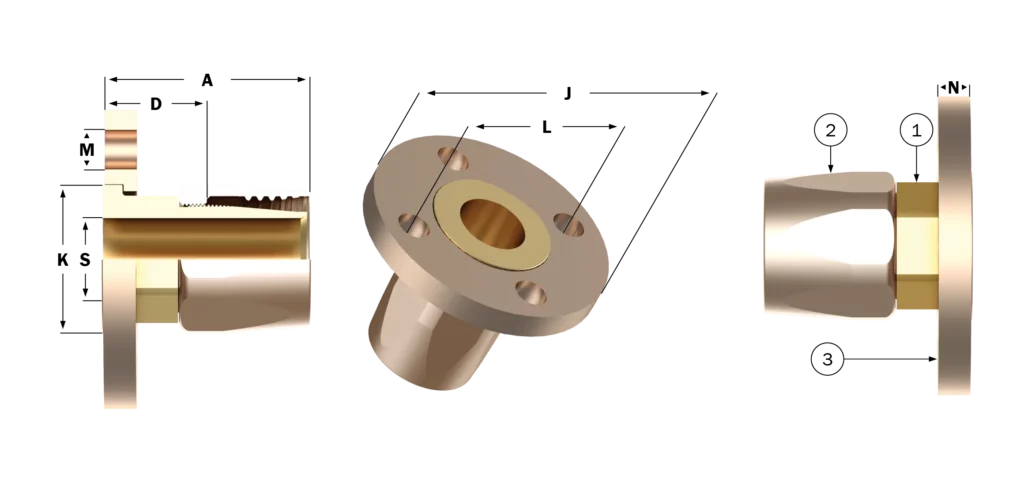

Equals to P/N 66-190109

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F5-0816	C19367	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-B1488F5-1220	C19368	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-B1488F5-1624	C19369	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-B1488F5-2032	C19370	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-B1488F5-2432	C19371	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-B1488F5-3232	C19372	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-B1488F5-3240	C19373	2	4	3.88	1.97	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-B1488F5-4040	C19374	2.50	4	3.89	1.98	7.00	3.28	5.50	.75	.48	2.24	8.50
EF-B1488F5-4048	C19375	2.50	4	3.89	1.98	7.00	3.78	5.50	.75	.48	2.71	8.80
EF-B1488F5-4848	C20899	3	4	3.89	1.98	7.50	3.78	6.00	.75	.48	2.71	8.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	4	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	4	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	4	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	4	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	4	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	4	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Material

Nipple

66-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

66-74021-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F5-0816	C19367	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-B1488F5-1220	C19368	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-B1488F5-1624	C19369	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-B1488F5-2032	C19370	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-B1488F5-2432	C19371	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-B1488F5-3232	C19372	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-B1488F5-3240	C19373	2	4	3.88	1.97	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-B1488F5-4040	C19374	2.50	4	3.89	1.98	7.00	3.28	5.50	.75	.48	2.24	8.50
EF-B1488F5-4048	C19375	2.50	4	3.89	1.98	7.00	3.78	5.50	.75	.48	2.71	8.80
EF-B1488F5-4848	C20899	3	4	3.89	1.98	7.50	3.78	6.00	.75	.48	2.71	8.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	4	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	4	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	4	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	4	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	4	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	4	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Material

Nipple

66-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

66-74021-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Aluminum. Bronze

Equals to P/N 412-190109

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MSS1488F5-0816	C19361	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MSS1488F5-1220	C19362	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MSS1488F5-1624	C19669	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MSS1488F5-2032	C19363	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MSS1488F5-2432	C19364	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MSS1488F5-3232	C19365	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MSS1488F5-3240	C19366	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	Material
Nipple	1	C19235-1	C19236-1	C18020-1	C19237-1	C19238	C19238	C19239-1	Stainless Steel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	Monel
Flange	1	C19240	C19241	C18799-1	C19242	C19243	C19244	C19245	Stainless Steel

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
412-190109-1/2-16	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.38	.71	1.68
412-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	1.75
412-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	2.25
412-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	2.25
412-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	2.25
412-190109-2-40	2	4	3.89	1.98	6.00	3.28	4.75	.75	.44	2.24	2.50

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Material
Nipple	1	407-185109-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel
Socket	1	4-1212-	16	20	32	32	32	40	Monel
Flange	1	407-74021-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel

HS1488

Equal to Aeroquip P/N 412-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MSS1488F5-0816	C19361	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MSS1488F5-1220	C19362	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MSS1488F5-1624	C19669	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MSS1488F5-2032	C19363	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MSS1488F5-2432	C19364	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MSS1488F5-3232	C19365	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MSS1488F5-3240	C19366	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	Material
Nipple	1	C19235-1	C19236-1	C18020-1	C19237-1	C19238	C19238	C19239-1	Stainless Steel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	Monel
Flange	1	C19240	C19241	C18799-1	C19242	C19243	C19244	C19245	Stainless Steel

HS1488 Equivalent

P/N 412-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
412-190109-1/2-16	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.38	.71	1.68
412-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	1.75
412-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	2.25
412-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	2.25
412-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	2.25
412-190109-2-40	2	4	3.89	1.98	6.00	3.28	4.75	.75	.44	2.24	2.50

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Material
Nipple	1	407-185109-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel
Socket	1	4-1212-	16	20	32	32	32	40	Monel
Flange	1	407-74021-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel

Equals to P/N 375-190109

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MB1488F5-0816	C21535	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MB1488F5-1220	C19433	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MB1488F5-1624	C19434	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MB1488F5-2032	C19435	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MB1488F5-2432	C19436	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MB1488F5-3232	C19437	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MB1488F5-3240	C21254	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-MB1488F5-4040	C21569	2.5	4	3.89	1.98	7.00	3.28	5.50	.75	.50	2.24	7.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	4040	Material
Nipple	1	C18018	C18019	C18020	C19155	C18808	C18808	C19170	C21572	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	C18991	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	C17966	C17968	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
375-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	3.22
375-190109-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.62	.44	1.18	2.41
375-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	3.28
375-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	3.92
375-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	5.38

Description	Req’d per Ass’y	Base No.	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Nipple	1	188-185109-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	20	24	32	32	32	Monel
Flange	1	188-74021-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 375-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MB1488F5-0816	C21535	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MB1488F5-1220	C19433	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MB1488F5-1624	C19434	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MB1488F5-2032	C19435	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MB1488F5-2432	C19436	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MB1488F5-3232	C19437	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MB1488F5-3240	C21254	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-MB1488F5-4040	C21569	2.5	4	3.89	1.98	7.00	3.28	5.50	.75	.50	2.24	7.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	4040	Material
Nipple	1	C18018	C18019	C18020	C19155	C18808	C18808	C19170	C21572	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	C18991	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	C17966	C17968	Aluminum. Bronze

HS1488 Equivalent

P/N 375-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
375-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	3.22
375-190109-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.62	.44	1.18	2.41
375-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	3.28
375-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	3.92
375-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	5.38

Description	Req’d per Ass’y	Base No.	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Nipple	1	188-185109-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	20	24	32	32	32	Monel
Flange	1	188-74021-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

Equals to P/N 66-190016

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F4-0816	C19376	1/2	3	2.72	1.52	3.56	1.50	2.44	.56	.38	.71	1.50
EF-B1488F4-1220	C19377	3/4	4	2.87	1.52	3.81	1.84	2.69	.56	.44	.92	2.10
EF-B1488F4-1624	C19378	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	2.50
EF-B1488F4-2032	C19379	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.10
EF-B1488F4-2432	C19380	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.60
EF-B1488F4-3232	C19381	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.70
EF-B1488F4-3240	C19382	2	6	3.88	1.97	5.56	3.28	4.44	.56	.44	2.24	5.80
EF-B1488F4-4040	C19383	2.50	6	3.89	1.98	6.13	3.28	5.00	.56	.50	2.24	6.90
EF-B1488F4-4048	C19384	2.50	6	3.89	1.98	6.13	3.78	5.00	.56	.50	2.71	7.40
EF-B1488F4-4848	C19385	3	8	3.89	1.98	6.63	4.50	5.50	.56	.50	3.31	7.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18817

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	6	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	6	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	6	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42
66-190016-3-48	3	8	3.89	1.98	6.62	4.50	5.00	.56	.50	3.31	7.87

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Material

Nipple

188-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

188-180005-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190016

Hose to Flange

End Fitting - Straight

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F4-0816	C19376	1/2	3	2.72	1.52	3.56	1.50	2.44	.56	.38	.71	1.50
EF-B1488F4-1220	C19377	3/4	4	2.87	1.52	3.81	1.84	2.69	.56	.44	.92	2.10
EF-B1488F4-1624	C19378	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	2.50
EF-B1488F4-2032	C19379	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.10
EF-B1488F4-2432	C19380	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.60
EF-B1488F4-3232	C19381	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.70
EF-B1488F4-3240	C19382	2	6	3.88	1.97	5.56	3.28	4.44	.56	.44	2.24	5.80
EF-B1488F4-4040	C19383	2.50	6	3.89	1.98	6.13	3.28	5.00	.56	.50	2.24	6.90
EF-B1488F4-4048	C19384	2.50	6	3.89	1.98	6.13	3.78	5.00	.56	.50	2.71	7.40
EF-B1488F4-4848	C19385	3	8	3.89	1.98	6.63	4.50	5.50	.56	.50	3.31	7.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18817

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190016

Hose to Flange

End Fitting - Straight

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	6	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	6	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	6	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42
66-190016-3-48	3	8	3.89	1.98	6.62	4.50	5.00	.56	.50	3.31	7.87

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Material

Nipple

188-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

188-180005-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Aluminum. Bronze

Defense

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A4-0816	C19530	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.50
EF-1488A4-1216	C19531	3/4	4	2.80	1.53	3.88	1.50	2.75	.62	.42	.71	2.10
EF-1488A4-1220	C19533	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.30
EF-1488A4-1616	C19532	1	4	2.72	1.52	4.25	1.50	3.13	.63	.42	.71	2.50
EF-1488A4-1624	C19534	1	4	2.91	1.46	4.25	2.12	3.13	.63	.42	1.18	2.70
EF-1488A4-2032	C19536	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.10
EF-1488A4-2432	C19536	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.77	3.60
EF-1488A4-3232	C19537	2	4	3.49	1.65	6.00	2.75	4.75	.75	.42	1.69	4.70

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19043	19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18800	C18801	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A4-0816	C19530	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.50
EF-1488A4-1216	C19531	3/4	4	2.80	1.53	3.88	1.50	2.75	.62	.42	.71	2.10
EF-1488A4-1220	C19533	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.30
EF-1488A4-1616	C19532	1	4	2.72	1.52	4.25	1.50	3.13	.63	.42	.71	2.50
EF-1488A4-1624	C19534	1	4	2.91	1.46	4.25	2.12	3.13	.63	.42	1.18	2.70
EF-1488A4-2032	C19536	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.10
EF-1488A4-2432	C19536	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.77	3.60
EF-1488A4-3232	C19537	2	4	3.49	1.65	6.00	2.75	4.75	.75	.42	1.69	4.70

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19043	19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18800	C18801	C18799	C18798	C18797	C18796	Aluminum. Bronze

Defense

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A2-0816	C19538	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.69	.71	1.70
EF-1488A2-1216	C19539	3/4	4	2.80	1.53	3.81	1.50	2.69	.56	.69	.71	2.30
EF-1488A2-1220	C19541	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.69	.92	2.30
EF-1488A2-1616	C19540	1	5	2.80	1.53	4.25	1.50	3.13	.56	.75	.71	2.50
EF-1488A2-1624	C19542	1	5	2.92	1.47	4.25	2.12	3.13	.56	.75	1.18	2.80
EF-1488A2-2032	C19543	1.25	5	3.51	1.66	4.50	2.74	3.38	.56	.81	1.53	3.40
EF-1488A2-2432	C19544	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.81	1.77	3.90
EF-1488A2-3232	C19545	2	7	3.49	1.65	5.56	2.75	4.44	.69	.81	2.30	5.00

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19179	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A3-0816	C19546	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.38	.71	1.90
EF-1488A3-1216	C19547	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.44	.71	2.50
EF-1488A3-1220	C19549	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.44	.92	2.50
EF-1488A3-1616	C19548	1	4	2.80	1.53	5.06	1.50	3.75	.56	.44	.71	2.70
EF-1488A3-1624	C19550	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	3.00
EF-1488A3-2032	C19551	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.44	1.53	3.70
EF-1488A3-2432	C19552	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.44	1.77	4.20
EF-1488A3-3232	C19553	2	6	3.50	1.65	6.50	2.75	5.19	.69	.44	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18814	C18815	C18813	C18812	C18810	C18810	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A2-0816	C19538	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.69	.71	1.70
EF-1488A2-1216	C19539	3/4	4	2.80	1.53	3.81	1.50	2.69	.56	.69	.71	2.30
EF-1488A2-1220	C19541	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.69	.92	2.30
EF-1488A2-1616	C19540	1	5	2.80	1.53	4.25	1.50	3.13	.56	.75	.71	2.50
EF-1488A2-1624	C19542	1	5	2.92	1.47	4.25	2.12	3.13	.56	.75	1.18	2.80
EF-1488A2-2032	C19543	1.25	5	3.51	1.66	4.50	2.74	3.38	.56	.81	1.53	3.40
EF-1488A2-2432	C19544	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.81	1.77	3.90
EF-1488A2-3232	C19545	2	7	3.49	1.65	5.56	2.75	4.44	.69	.81	2.30	5.00

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19179	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A3-0816	C19546	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.38	.71	1.90
EF-1488A3-1216	C19547	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.44	.71	2.50
EF-1488A3-1220	C19549	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.44	.92	2.50
EF-1488A3-1616	C19548	1	4	2.80	1.53	5.06	1.50	3.75	.56	.44	.71	2.70
EF-1488A3-1624	C19550	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	3.00
EF-1488A3-2032	C19551	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.44	1.53	3.70
EF-1488A3-2432	C19552	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.44	1.77	4.20
EF-1488A3-3232	C19553	2	6	3.50	1.65	6.50	2.75	5.19	.69	.44	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18814	C18815	C18813	C18812	C18810	C18810	Aluminum. Bronze

Defense

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A1-0816	C19562	1/2	4	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A1-1216	C19563	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A1-1220	C19565	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A1-1616	C19564	1	5	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A1-1624	C19566	1	5	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A1-2032	C19567	1.25	5	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A1-2432	C19568	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A1-3232	C19569	2	7	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19517	C19516	C19518	C19519	C19520	C19521	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A5-0816	C19554	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A5-1216	C19555	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A5-1220	C19557	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A5-1616	C19556	1	4	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A5-1624	C19558	1	4	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A5-2032	C19559	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A5-2432	C19560	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A5-3232	C19561	2	6	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19529	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A1-0816	C19562	1/2	4	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A1-1216	C19563	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A1-1220	C19565	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A1-1616	C19564	1	5	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A1-1624	C19566	1	5	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A1-2032	C19567	1.25	5	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A1-2432	C19568	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A1-3232	C19569	2	7	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19517	C19516	C19518	C19519	C19520	C19521	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A5-0816	C19554	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A5-1216	C19555	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A5-1220	C19557	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A5-1616	C19556	1	4	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A5-1624	C19558	1	4	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A5-2032	C19559	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A5-2432	C19560	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A5-3232	C19561	2	6	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19529	Aluminum. Bronze

Equals to P/N 93-191301

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BM1488CL-0206	C19333	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-BM1488CL-0408	C19334	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-BM1488CL-0610	C19335	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-BM1488CL-0812	C19336	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

HS1488

Equal to Aeroquip P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BM1488CL-0206	C19333	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-BM1488CL-0408	C19334	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-BM1488CL-0610	C19335	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-BM1488CL-0812	C19336	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

Equals to P/N 4-191301

Defense

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type CL, Group VIII

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-0206	C19311	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-1488CL-0408	C19312	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-1488CL-0610	C19313	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-1488CL-0812	C19314	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-1216	C19315	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-1488CL-1620	C19316	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-1488CL-2024	C19317	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-1488CL-2432	C19318	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-0206	C19311	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-1488CL-0408	C19312	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-1488CL-0610	C19313	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-1488CL-0812	C19314	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 4-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-1216	C19315	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-1488CL-1620	C19316	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-1488CL-2024	C19317	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-1488CL-2432	C19318	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N 411-190911

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-0610	C19304	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MSS1488C-0812	C19305	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0610	0812	Material
Nipple	1	C19016-2	C19017-2	Stainless Steel
Socket	1	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-1216	C19306	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MSS1488C-1620	-	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40

Description	Req’d per Ass’y	1216	1620	Material
Nipple	1	C19256-2	C19019-2	Stainless Steel
Socket	1	C18667-2	C18703-2	Monel

HS1488

Equal to Aeroquip P/N 411-190911

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-0610	C19304	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MSS1488C-0812	C19305	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0610	0812	Material
Nipple	1	C19016-2	C19017-2	Stainless Steel
Socket	1	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 411-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-1216	C19306	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MSS1488C-1620	-	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40

Description	Req’d per Ass’y	1216	1620	Material
Nipple	1	C19256-2	C19019-2	Stainless Steel
Socket	1	C18667-2	C18703-2	Monel

Equals to P/N 93-190911

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-0206	C19231	1/8	1“-14	2.05	1.06	1.14	.81	.50	.30
EF-MB1488C-0408	C19232	1/4	1-3/16”-12	2.41	1.25	1.36	.94	.62	.50
EF-MB1488C-0610	C19233	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MB1488C-0812	C19234	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	C19017-1	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-1216	C19323	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MB1488C-1620	C19324	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-MB1488C-2024	C19325	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-MB1488C-2432	C19326	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 93-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-0206	C19231	1/8	1“-14	2.05	1.06	1.14	.81	.50	.30
EF-MB1488C-0408	C19232	1/4	1-3/16”-12	2.41	1.25	1.36	.94	.62	.50
EF-MB1488C-0610	C19233	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MB1488C-0812	C19234	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	C19017-1	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 375-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:ynthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-1216	C19323	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MB1488C-1620	C19324	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-MB1488C-2024	C19325	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-MB1488C-2432	C19326	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N 66-190911

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-B1488C-1216	C19307	3/4	2”-12	2.72	2.13	1.52	1.44	.62	1.60
EF-B1488C-1620	C19308	1	2-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-B1488C-2024	C19309	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-B1488C-2432	C19310	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description Req’d per	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
66-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.52
66-190911-1-20	1	2-5/16”-12	3.14	2.38	1.17	1.75	.75	2.35
66-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	2.91
66-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.10

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	Brass

HS1488

Equal to Aeroquip P/N 66-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-B1488C-1216	C19307	3/4	2”-12	2.72	2.13	1.52	1.44	.62	1.60
EF-B1488C-1620	C19308	1	2-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-B1488C-2024	C19309	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-B1488C-2432	C19310	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description Req’d per	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

HS1488 Equivalent

P/N 66-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
66-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.52
66-190911-1-20	1	2-5/16”-12	3.14	2.38	1.17	1.75	.75	2.35
66-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	2.91
66-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.10

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	Brass

Equals to P/N 4-190911

Defense

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type C, Group VIII

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-0206	C19319	1/8	1“-14	2.05	1.06	1.00	.81	.50	.30
EF-1488C-0408	C19320	1/4	1-3/16”-12	2.39	1.25	1.12	.94	.62	.50
EF-1488C-0610	C19321	3/8	1-3/8”-12	2.73	1.44	1.15	1.12	.62	.60
EF-1488C-0812	C19322	1/2	1-3/4”-12	3.02	1.80	1.38	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	-	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-1216	C19719	3/4	2”-12	2.72	2.13	-	1.44	.62	1.50
EF-1488C-1620	-	1	1-5/16”-12	3.12	2.38	-	1.75	.75	-
EF-1488C-2024	C19721	1.25	2-3/4”-12	3.22	3.00	-	2.00	.75	2.90
EF-1488C-2432	-	1.50	3-1/16”-12	3.88	3.12	-	2.50	.88	-

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19018	C19019	C19020	C19021	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-0206	C19319	1/8	1“-14	2.05	1.06	1.00	.81	.50	.30
EF-1488C-0408	C19320	1/4	1-3/16”-12	2.39	1.25	1.12	.94	.62	.50
EF-1488C-0610	C19321	3/8	1-3/8”-12	2.73	1.44	1.15	1.12	.62	.60
EF-1488C-0812	C19322	1/2	1-3/4”-12	3.02	1.80	1.38	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	-	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 4-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-1216	C19719	3/4	2”-12	2.72	2.13	-	1.44	.62	1.50
EF-1488C-1620	-	1	1-5/16”-12	3.12	2.38	-	1.75	.75	-
EF-1488C-2024	C19721	1.25	2-3/4”-12	3.22	3.00	-	2.00	.75	2.90
EF-1488C-2432	-	1.50	3-1/16”-12	3.88	3.12	-	2.50	.88	-

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19018	C19019	C19020	C19021	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N 10-411 & 259-411

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-0404	C19261	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-SS1488A-0604	C20674	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-SS1488A-0505	C19262	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-SS1488A-0606	C19263	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-SS1488A-0808	C19264	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-SS1488A-1008	C20675	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-SS1488A-1010	C19269	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-SS1488A-1210	C20676	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-SS1488A-1212	C19270	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.50
EF-SS1488A-1612	C20677	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-3

B18979-3

B18980-3

C18647-3

B18981-3

B18982-3

Stainless Steel

Socket

C18984-3

C18985-3

C18986-3

C18648-3

C18987-3

C18988-3

Stainless Steel

Nut

B18972-3

B18973-3

B18974-3

B18778-3

B18975-3

B18976-3

Stainless Steel

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-1616	C19271	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-SS1488A-2020	C19272	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-SS1488A-2424	C19282	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-SS1488A-3232	C19283	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Nipple	1	B18668-3	B18675-3	C18983-3	C18654-3	Stainless Steel
Socket	1	C18667-3	C18703-3	C18990-3	C19132	Stainless Steel
Nut	1	B18673-3	C18677-3	C18977-3	C18650-3	Stainless Steel

HS1488

Equal to Aeroquip P/N 10-411 & 259-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-0404	C19261	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-SS1488A-0604	C20674	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-SS1488A-0505	C19262	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-SS1488A-0606	C19263	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-SS1488A-0808	C19264	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-SS1488A-1008	C20675	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-SS1488A-1010	C19269	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-SS1488A-1210	C20676	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-SS1488A-1212	C19270	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.50
EF-SS1488A-1612	C20677	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-3

B18979-3

B18980-3

C18647-3

B18981-3

B18982-3

Stainless Steel

Socket

C18984-3

C18985-3

C18986-3

C18648-3

C18987-3

C18988-3

Stainless Steel

Nut

B18972-3

B18973-3

B18974-3

B18778-3

B18975-3

B18976-3

Stainless Steel

HS1488 Equivalent

P/N 10-411 & 259-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-1616	C19271	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-SS1488A-2020	C19272	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-SS1488A-2424	C19282	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-SS1488A-3232	C19283	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Nipple	1	B18668-3	B18675-3	C18983-3	C18654-3	Stainless Steel
Socket	1	C18667-3	C18703-3	C18990-3	C19132	Stainless Steel
Nut	1	B18673-3	C18677-3	C18977-3	C18650-3	Stainless Steel

Equals to P/N 23-411

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-MB1488A-1212	C19289	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60
EF-MB1488A-1616	C19290	1	1-5/16”-12	2.73	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-MB1488A-2020	C19291	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-MB1488A-2424	C19292	1.50	1-7/8”-12	3.42	1.23	1.25	1.97	1.28	2.00	.74	1.85	1.50
EF-MB1488A-3232	C19293	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.70

Description	Req’d per Ass’y	1212	1616	2020	2424	3232	Material
Nipple	1	B18982-2	B18668-2	B18675-2	C18983-2	C18654-2	Monel
Socket	1	C18988-1	C18667-1	C18703-1	C18990-1	C18811	Brass
Nut	1	B18976-1	B18673-1	C18677-1	C18977-1	C18650-1	Brass

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
23-411-16	1	1-5/16”-12	-	-	-	-	-	-	-	-	.70
23-411-20	1.25	1-5/8”-12	-	-	-	-	-	-	-	-	1.30
23-411-24	1.50	1-7/8”-12	-	-	-	-	-	-	-	-	1.60
23-411-32	2	2-1/2”-12	-	-	-	-	-	-	-	-	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	-	16	20	24	32	Brass
Nut	1	-	16	20	24	32	Brass

HS1488

Equal to Aeroquip P/N 23-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-MB1488A-1212	C19289	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60
EF-MB1488A-1616	C19290	1	1-5/16”-12	2.73	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-MB1488A-2020	C19291	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-MB1488A-2424	C19292	1.50	1-7/8”-12	3.42	1.23	1.25	1.97	1.28	2.00	.74	1.85	1.50
EF-MB1488A-3232	C19293	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.70

Description	Req’d per Ass’y	1212	1616	2020	2424	3232	Material
Nipple	1	B18982-2	B18668-2	B18675-2	C18983-2	C18654-2	Monel
Socket	1	C18988-1	C18667-1	C18703-1	C18990-1	C18811	Brass
Nut	1	B18976-1	B18673-1	C18677-1	C18977-1	C18650-1	Brass

HS1488 Equivalent

P/N 23-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
23-411-16	1	1-5/16”-12	-	-	-	-	-	-	-	-	.70
23-411-20	1.25	1-5/8”-12	-	-	-	-	-	-	-	-	1.30
23-411-24	1.50	1-7/8”-12	-	-	-	-	-	-	-	-	1.60
23-411-32	2	2-1/2”-12	-	-	-	-	-	-	-	-	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	-	16	20	24	32	Brass
Nut	1	-	16	20	24	32	Brass

Equals to P/N 411-B & 44-411

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-0404	C19207	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-B1488A-0604	C20670	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-B1488A-0505	C19208	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-B1488A-0606	C19209	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-B1488A-0808	C19210	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-B1488A-1008	C20671	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-B1488A-1010	C19211	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-B1488A-1210	C20672	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-B1488A-1212	C19212	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.10	.50
EF-B1488A-1612	C20673	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-1

B18979-1

B18980-1

C18647-1

B18981-1

B18982-1

Brass

Socket

C18984-1

C18985-1

C18986-1

C18648-1

C18987-1

C18988-1

Brass

Nut

B18972-1

B18973-1

B18974-1

B18778-1

B18975-1

B18976-1

Brass

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-1616	C19213	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-B1488A-2020	C19214	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-B1488A-2424	C19215	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-B1488A-3232	C19216	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-B1488A-4040	C19217	2.50	3”-12	4.37	1.71	3.38	2.15	2.21	3.25	.79	2.50	4.50
EF-B1488A-4848	C19218	3	3-1/2”-12	4.28	1.51	4.00	2.38	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-1	B18675-1	C18983-1	C18654-1	C18995-1	C18996	Brass
Socket	1	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass
Nut	1	B18673-1	C18677-1	C18977-1	C18650-1	C18997-1	-	Brass

HS1488

Equal to Aeroquip P/N 411-B & 44-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-0404	C19207	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-B1488A-0604	C20670	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-B1488A-0505	C19208	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-B1488A-0606	C19209	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-B1488A-0808	C19210	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-B1488A-1008	C20671	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-B1488A-1010	C19211	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-B1488A-1210	C20672	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-B1488A-1212	C19212	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.10	.50
EF-B1488A-1612	C20673	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-1

B18979-1

B18980-1

C18647-1

B18981-1

B18982-1

Brass

Socket

C18984-1

C18985-1

C18986-1

C18648-1

C18987-1

C18988-1

Brass

Nut

B18972-1

B18973-1

B18974-1

B18778-1

B18975-1

B18976-1

Brass

HS1488 Equivalent

P/N 411-B & 44-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-1616	C19213	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-B1488A-2020	C19214	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-B1488A-2424	C19215	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-B1488A-3232	C19216	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-B1488A-4040	C19217	2.50	3”-12	4.37	1.71	3.38	2.15	2.21	3.25	.79	2.50	4.50
EF-B1488A-4848	C19218	3	3-1/2”-12	4.28	1.51	4.00	2.38	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-1	B18675-1	C18983-1	C18654-1	C18995-1	C18996	Brass
Socket	1	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass
Nut	1	B18673-1	C18677-1	C18977-1	C18650-1	C18997-1	-	Brass

Equals to P/N 4-411

Defense

MIL-DTL-24787/2

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type A, Group VIII

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-0404	C19219	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-1488A-0505	C19220	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-1488A-0606	C19221	3/8	9/16”-48	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-1488A-0808	C19222	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-1488A-1010	C19223	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-1488A-1212	C19224	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.60

Description	Req’d per Ass’y	0404	0505	0606	0808	1010	1212	Material
Nipple	1	B18978-2	B18979-2	B18980-2	C18647-2	B18981-2	B18982-2	Monel
Socket	1	C18984-2	C18985-2	C18986-2	C18648-2	C18987-2	C18988-2	Monel
Nut	1	B18972-2	B18973-2	B18974-2	B18778-2	B18975-2	B18976-2	Monel

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-1616	C19225	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.63	1.60	.70
EF-1488A-2020	C19226	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-1488A-2424	C19227	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-1488A-3232	C19228	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-1488A-4040	C19229	2.50	3”-12	4.37	1.71	3.38	2.50	2.21	3.13	.79	2.50	4.50
EF-1488A-4848	C19230	3	3-1/2”-12	4.50	1.73	4.00	2.60	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-2	B18675-2	C18983-2	C18654-2	C18995-2	C18996	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel
Nut	1	B18673-2	C18677-2	C18977-2	C18650	C18997-2	C18998-2	Monel

HS1488

Equal to Aeroquip P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-0404	C19219	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-1488A-0505	C19220	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-1488A-0606	C19221	3/8	9/16”-48	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-1488A-0808	C19222	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-1488A-1010	C19223	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-1488A-1212	C19224	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.60

Description	Req’d per Ass’y	0404	0505	0606	0808	1010	1212	Material
Nipple	1	B18978-2	B18979-2	B18980-2	C18647-2	B18981-2	B18982-2	Monel
Socket	1	C18984-2	C18985-2	C18986-2	C18648-2	C18987-2	C18988-2	Monel
Nut	1	B18972-2	B18973-2	B18974-2	B18778-2	B18975-2	B18976-2	Monel

HS1488 Equivalent

P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-1616	C19225	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.63	1.60	.70
EF-1488A-2020	C19226	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-1488A-2424	C19227	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-1488A-3232	C19228	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-1488A-4040	C19229	2.50	3”-12	4.37	1.71	3.38	2.50	2.21	3.13	.79	2.50	4.50
EF-1488A-4848	C19230	3	3-1/2”-12	4.50	1.73	4.00	2.60	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-2	B18675-2	C18983-2	C18654-2	C18995-2	C18996	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel
Nut	1	B18673-2	C18677-2	C18977-2	C18650	C18997-2	C18998-2	Monel

Equals to P/N 412B & 44-412

Defense

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-0204	C19142	1/4	1/8”-27	1.68	.55	.44	.93	.17	.63	.38	1.10	.08
EF-B1488MP-0404	C20761	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.63	.56	1.10	.09
EF-B1488MP-0405	C19143	5/16	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	.11
EF-B1488MP-0406	C19144	3/8	1/4”-18	2.14	.67	.56	1.23	.30	.30	.56	1.30	.16
EF-B1488MP-0608	C19145	1/2	3/8”-18	1.51	.77	.75	1.33	.36	.94	.56	1.51	.23
EF-B1488MP-0810	C19146	5/8	1/2”-14	2.89	.84	.88	1.59	.48	1.12	.75	1.80	.39
EF-B1488MP-1212	C19147	3/4	3/4”-14	3.15	.91	1.06	1.66	.61	1.25	.75	2.02	.50

Description	Req’d per Ass’y	0204	0404	0405	0406	0608	0810	1212	Material
Nipple	1	B19064	B20759	B19065	B19066	C19067	C19068	C19069	Brass
Socket	1	C18984-1	C18984-1	C18985-1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-1616	C19148	1	1”-11-1/2	2.92	.78	1.38	1.72	.93	1.44	.94	1.60	.62
EF-B1488MP-2020	C19149	1.25	1-1/4”-11-1/2	3.22	.83	1.75	1.86	1.05	1.75	1.03	1.75	1.10
EF-B1488MP-2424	C19150	1.50	1-1/2”-11-1/2	3.49	1.04	2.00	2.04	1.28	2.00	1.00	1.85	1.30
EF-B1488MP-3232	C19151	2	2”-11-1/2	4.03	1.16	2.50	2.19	1.75	2.50	1.03	2.25	2.30
EF-B1488MP-4040	C19152	2.50	2-1/2”-8	5.04	1.61	3.00	3.13	2.12	3.25	1.52	2.50	4.60
EF-B1488MP-4848	C19153	3	3”-8	5.10	1.58	3.88	3.16	2.69	3.88	1.58	2.47	7.30

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	C19070	C18028	C18027	C18026	-	-	Brass
Nipple	1	-	-	-	-	C19156	C19171	Aluminum. Bronze
Socket	1	C18867-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

HS1488

Equal to Aeroquip P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-0204	C19142	1/4	1/8”-27	1.68	.55	.44	.93	.17	.63	.38	1.10	.08
EF-B1488MP-0404	C20761	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.63	.56	1.10	.09
EF-B1488MP-0405	C19143	5/16	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	.11
EF-B1488MP-0406	C19144	3/8	1/4”-18	2.14	.67	.56	1.23	.30	.30	.56	1.30	.16
EF-B1488MP-0608	C19145	1/2	3/8”-18	1.51	.77	.75	1.33	.36	.94	.56	1.51	.23
EF-B1488MP-0810	C19146	5/8	1/2”-14	2.89	.84	.88	1.59	.48	1.12	.75	1.80	.39
EF-B1488MP-1212	C19147	3/4	3/4”-14	3.15	.91	1.06	1.66	.61	1.25	.75	2.02	.50

Description	Req’d per Ass’y	0204	0404	0405	0406	0608	0810	1212	Material
Nipple	1	B19064	B20759	B19065	B19066	C19067	C19068	C19069	Brass
Socket	1	C18984-1	C18984-1	C18985-1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-1616	C19148	1	1”-11-1/2	2.92	.78	1.38	1.72	.93	1.44	.94	1.60	.62
EF-B1488MP-2020	C19149	1.25	1-1/4”-11-1/2	3.22	.83	1.75	1.86	1.05	1.75	1.03	1.75	1.10
EF-B1488MP-2424	C19150	1.50	1-1/2”-11-1/2	3.49	1.04	2.00	2.04	1.28	2.00	1.00	1.85	1.30
EF-B1488MP-3232	C19151	2	2”-11-1/2	4.03	1.16	2.50	2.19	1.75	2.50	1.03	2.25	2.30
EF-B1488MP-4040	C19152	2.50	2-1/2”-8	5.04	1.61	3.00	3.13	2.12	3.25	1.52	2.50	4.60
EF-B1488MP-4848	C19153	3	3”-8	5.10	1.58	3.88	3.16	2.69	3.88	1.58	2.47	7.30

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	C19070	C18028	C18027	C18026	-	-	Brass
Nipple	1	-	-	-	-	C19156	C19171	Aluminum. Bronze
Socket	1	C18867-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

Equals to P/N FC9528-188

Defense

MIL-DTL-24787/5

Use with the following hose:HS4182 & FC132

Type D, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
90ELB-1546E-40	D18354	2.5	3.25	6.75	2.83	2.12	15.00
90ELB-1546E-48	D18353	3	3.87	7.75	3.09	2.50	23.00
90ELB-1546E-64	D18434	4	7.00	9.00	3.88	3.00	36.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	C18051	C18309	D18310	Aluminum. Bronze
Grip Segment	4	D17739-1	D17743-1	D17726-1	Aluminum. Bronze
Bolt	8	B17747-1	B17748-1	B17749-1	Monel
Nut	8	B17747-2	B17748-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
FC9528-4040-188	2.5	4.92	6.70	2.50	1.88	15.80
FC9528-4848-188	3	5.65	7.65	2.75	2.09	23.30
FC9528-6464-188	4	6.48	8.91	3.57	2.81	36.50

Description	Req’d per Ass’y	Base No.	4040	4848	6464	Material
Elbow	1	FC3479-	4040-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	4	FC3477-	40-188	48-188	64-188	Aluminum. Bronze
Bolt	8	FF9142-	0856-4	0964-4	1072-4	Monel
Nut	8	4-222048-	8	9	10	Monel

HS1546

Equal to Aeroquip P/N FC9528-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
90ELB-1546E-40	D18354	2.5	3.25	6.75	2.83	2.12	15.00
90ELB-1546E-48	D18353	3	3.87	7.75	3.09	2.50	23.00
90ELB-1546E-64	D18434	4	7.00	9.00	3.88	3.00	36.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	C18051	C18309	D18310	Aluminum. Bronze
Grip Segment	4	D17739-1	D17743-1	D17726-1	Aluminum. Bronze
Bolt	8	B17747-1	B17748-1	B17749-1	Monel
Nut	8	B17747-2	B17748-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9528-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group X

For use with the following hose: HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
FC9528-4040-188	2.5	4.92	6.70	2.50	1.88	15.80
FC9528-4848-188	3	5.65	7.65	2.75	2.09	23.30
FC9528-6464-188	4	6.48	8.91	3.57	2.81	36.50

Description	Req’d per Ass’y	Base No.	4040	4848	6464	Material
Elbow	1	FC3479-	4040-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	4	FC3477-	40-188	48-188	64-188	Aluminum. Bronze
Bolt	8	FF9142-	0856-4	0964-4	1072-4	Monel
Nut	8	4-222048-	8	9	10	Monel

Equals to P/N FC9636-188

Defense

MIL-DTL-24787/4

Use with the following hose:HS4182 & FC132

Type EL, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
90EF-1546D-2-40	C18430	2	2.00	5.22	5.25	2.84	3.245	2.500	.332	.317	3.41	1.88	10.00
90EF-1546D-2.5-48	C18431	2.5	2.35	5.60	5.72	2.83	3.745	3.000	.332	.317	3.75	2.09	13.00
90EF-1546D-3-48	D18357	3	2.35	5.60	5.72	2.83	4.370	3.625	.332	.317	3.75	2.09	16.00
90EF-1546D-3.5-64	C18432	3.5	3.40	7.00	6.78	3.91	4.928	4.125	.332	.317	3.90	2.81	25.00
90EF-1546D-4-64	C18433	4	3.40	7.00	6.78	3.91	5.428	4.625	.404	.360	3.96	2.81	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Elbow	1	C18330	C18331	C18332	D18333	D18334	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
FC9636-3240-188	2	2.06	6.70	4.92	2.50	3.24	2.50	.33	.317	3.09	1.88	9.50
FC9636-4048-188	2.5	2.51	7.65	5.75	2.85	3.74	3.00	.33	.317	3.17	2.09	12.60
FC9636-4848-188	3	2.51	7.65	6.15	3.25	4.37	3.62	.33	.317	3.20	2.09	15.70
FC9636-5664-188	3.5	3.50	8.91	6.48	3.57	4.93	4.04	.33	.317	4.04	2.81	25.10
FC9636-6464-188	4	3.50	8.91	6.48	3.57	5.43	4.62	.40	.360	4.06	2.81	26.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Elbow	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9636-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
90EF-1546D-2-40	C18430	2	2.00	5.22	5.25	2.84	3.245	2.500	.332	.317	3.41	1.88	10.00
90EF-1546D-2.5-48	C18431	2.5	2.35	5.60	5.72	2.83	3.745	3.000	.332	.317	3.75	2.09	13.00
90EF-1546D-3-48	D18357	3	2.35	5.60	5.72	2.83	4.370	3.625	.332	.317	3.75	2.09	16.00
90EF-1546D-3.5-64	C18432	3.5	3.40	7.00	6.78	3.91	4.928	4.125	.332	.317	3.90	2.81	25.00
90EF-1546D-4-64	C18433	4	3.40	7.00	6.78	3.91	5.428	4.625	.404	.360	3.96	2.81	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Elbow	1	C18330	C18331	C18332	D18333	D18334	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9636-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group X

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
FC9636-3240-188	2	2.06	6.70	4.92	2.50	3.24	2.50	.33	.317	3.09	1.88	9.50
FC9636-4048-188	2.5	2.51	7.65	5.75	2.85	3.74	3.00	.33	.317	3.17	2.09	12.60
FC9636-4848-188	3	2.51	7.65	6.15	3.25	4.37	3.62	.33	.317	3.20	2.09	15.70
FC9636-5664-188	3.5	3.50	8.91	6.48	3.57	4.93	4.04	.33	.317	4.04	2.81	25.10
FC9636-6464-188	4	3.50	8.91	6.48	3.57	5.43	4.62	.40	.360	4.06	2.81	26.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Elbow	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Equals to P/N FC9635-188

Defense

MIL-DTL-24787/4

Use with the following hose:HS4182 & FC132

Type E, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
EF-1546C-2-40	C18356	2	2.00	4.08	6.75	1.67	3.245	2.500	.332	.317	9.00
EF-1546C-2.5-48	C18427	2.5	2.50	4.64	7.75	1.75	3.745	3.000	.332	.317	13.00
EF-1546C-3-48	C18355	3	2.50	4.59	7.75	1.70	4.370	3.625	.332	.317	13.00
EF-1546C-3.5-64	C18428	3.5	3.40	4.74	9.00	1.87	4.928	4.125	.332	.317	20.00
EF-1546C-4-64	C18429	4	3.40	4.74	9.00	1.87	5.428	4.625	.404	.360	21.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Nipple	1	C18325	C18326	C18327	C18328	C18329	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
FC9635-3240-188	2	2.06	4.02	6.70	3.00	3.24	2.50	.33	.317	8.80
FC9635-4048-188	2.5	2.51	4.59	7.65	3.50	3.74	3.00	.33	.317	12.50
FC9635-4848-188	3	2.51	4.59	7.65	3.50	4.37	3.62	.33	.317	13.00
FC9635-5664-188	3.5	3.50	4.64	8.91	3.59	4.93	4.12	.33	.317	19.50
FC9365-6464-188	4	3.50	4.75	8.91	3.59	5.43	4.62	.40	.360	20.50

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Nipple	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9635-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
EF-1546C-2-40	C18356	2	2.00	4.08	6.75	1.67	3.245	2.500	.332	.317	9.00
EF-1546C-2.5-48	C18427	2.5	2.50	4.64	7.75	1.75	3.745	3.000	.332	.317	13.00
EF-1546C-3-48	C18355	3	2.50	4.59	7.75	1.70	4.370	3.625	.332	.317	13.00
EF-1546C-3.5-64	C18428	3.5	3.40	4.74	9.00	1.87	4.928	4.125	.332	.317	20.00
EF-1546C-4-64	C18429	4	3.40	4.74	9.00	1.87	5.428	4.625	.404	.360	21.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Nipple	1	C18325	C18326	C18327	C18328	C18329	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9635-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group X

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
FC9635-3240-188	2	2.06	4.02	6.70	3.00	3.24	2.50	.33	.317	8.80
FC9635-4048-188	2.5	2.51	4.59	7.65	3.50	3.74	3.00	.33	.317	12.50
FC9635-4848-188	3	2.51	4.59	7.65	3.50	4.37	3.62	.33	.317	13.00
FC9635-5664-188	3.5	3.50	4.64	8.91	3.59	4.93	4.12	.33	.317	19.50
FC9365-6464-188	4	3.50	4.75	8.91	3.59	5.43	4.62	.40	.360	20.50

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Nipple	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B5-2-40	C18708	2	4	.75	5.25	2.84	3.50	6.00	3.22	4.75	.42	1.88	2.24	3.70	15.00
90EF-1546B5-2.5-40	C18711	2.5	4	.75	2.25	2.84	3.50	7.00	3.22	5.50	.48	1.88	2.24	6.70	16.00
90EF-1546B5-2.5-48	C18496	2.5	4	.75	5.78	2.89	3.87	7.00	3.78	5.50	.48	2.09	2.71	7.65	19.00
90EF-1546B5-3-48	C18712	3	4	.75	5.78	2.89	4.00	7.50	4.50	6.00	.48	2.09	3.31	7.65	20.00
90EF-1546B5-3.5-64	D18713	3.5	8	.75	6.78	3.91	4.62	8.50	5.22	7.00	.48	2.81	3.81	8.91	29.00
90EF-1546B5-4-64	D18722	4	8	.75	6.78	3.91	4.62	9.00	5.28	7.50	.48	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	C17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC7554-4848-410	3	4	5.78	2.89	4.00	7.50	4.50	6.00	.75	.48	2.09	3.31	7.65	20.00
FC7554-6464-410	4	8	6.48	3.57	5.62	9.00	5.22	7.50	.75	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	Base No.	4848	6464	Material
Swivel Flange	1	407-74021-	48-48	64-64	Stainless Steel
Elbow	1	FC3558-	4848-407	6464-407	Stainless Steel
Grip Segment	2	FC3476-	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0964-4	1072-4	Monel
Nut	4	4-222048-	9	10	Monel

HS1546

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B5-2-40	C18708	2	4	.75	5.25	2.84	3.50	6.00	3.22	4.75	.42	1.88	2.24	3.70	15.00
90EF-1546B5-2.5-40	C18711	2.5	4	.75	2.25	2.84	3.50	7.00	3.22	5.50	.48	1.88	2.24	6.70	16.00
90EF-1546B5-2.5-48	C18496	2.5	4	.75	5.78	2.89	3.87	7.00	3.78	5.50	.48	2.09	2.71	7.65	19.00
90EF-1546B5-3-48	C18712	3	4	.75	5.78	2.89	4.00	7.50	4.50	6.00	.48	2.09	3.31	7.65	20.00
90EF-1546B5-3.5-64	D18713	3.5	8	.75	6.78	3.91	4.62	8.50	5.22	7.00	.48	2.81	3.81	8.91	29.00
90EF-1546B5-4-64	D18722	4	8	.75	6.78	3.91	4.62	9.00	5.28	7.50	.48	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	C17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC7554-410

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC7554-4848-410	3	4	5.78	2.89	4.00	7.50	4.50	6.00	.75	.48	2.09	3.31	7.65	20.00
FC7554-6464-410	4	8	6.48	3.57	5.62	9.00	5.22	7.50	.75	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	Base No.	4848	6464	Material
Swivel Flange	1	407-74021-	48-48	64-64	Stainless Steel
Elbow	1	FC3558-	4848-407	6464-407	Stainless Steel
Grip Segment	2	FC3476-	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0964-4	1072-4	Monel
Nut	4	4-222048-	9	10	Monel

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B4-2-40	C18709	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.44	1.88	2.24	6.70	15.00
90EF-1546B4-2.5-40	C18714	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.50	1.88	2.24	6.70	16.00
90EF-1546B4-2.5-48	C18495	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.50	2.09	2.71	7.65	19.00
90EF-1546B4-3-48	C18715	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.50	2.09	3.31	7.65	20.00
90EF-1546B4-3.5-64	D18720	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	.50	2.81	3.81	8.91	29.00
90EF-1546B4-4-64	D18723	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B4-2-40	C18709	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.44	1.88	2.24	6.70	15.00
90EF-1546B4-2.5-40	C18714	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.50	1.88	2.24	6.70	16.00
90EF-1546B4-2.5-48	C18495	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.50	2.09	2.71	7.65	19.00
90EF-1546B4-3-48	C18715	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.50	2.09	3.31	7.65	20.00
90EF-1546B4-3.5-64	D18720	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	.50	2.81	3.81	8.91	29.00
90EF-1546B4-4-64	D18723	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Equals to P/N FJ9838-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B3-2-40	C18710	2	6	.69	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	17.00
90EF-1546B3-2.5-40	C18535	2.5	6	.69	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	18.00
90EF-1546B3-2.5-48	C18494	2.5	6	.69	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	21.00
90EF-1546B3-3-48	C18716	3	8	.69	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	22.00
90EF-1546B3-3.5-64	D18721	3.5	8	.69	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	31.00
90EF-1546B3-4-64	D18724	4	8	.69	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	C18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FJ9838-3240-188	2	6	5.25	2.84	3.50	5.56	3.22	4.44	.69	.81	1.88	2.24	6.70	17.00
FJ9838-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.69	.95	1.88	2.24	6.70	17.00
FJ9838-4048-188	2.5	6	5.78	2.89	3.87	6.13	3.78	5.00	.69	.94	2.09	2.71	7.65	21.00
FJ9838-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.69	.95	2.09	3.31	7.65	22.00
FJ9838-5664-188	3.5	8	6.78	3.91	4.62	7.19	5.22	6.06	.69	1.00	2.81	3.81	8.91	31.00
FJ9838-6464-188	4	8	6.78	3.91	4.62	7.69	5.28	6.56	.69	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	Base No.	4040	4848	Material
Swivel Flange	1	188-74414-	2.5-40	3-48	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4848-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	Aluminum. Bronze
Bolt	4	FF9142-	40-188	0964-4	Monel
Nut	4	4-222048-	8	9	Monel

HS1546

Equal to Aeroquip P/N FJ9838-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B3-2-40	C18710	2	6	.69	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	17.00
90EF-1546B3-2.5-40	C18535	2.5	6	.69	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	18.00
90EF-1546B3-2.5-48	C18494	2.5	6	.69	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	21.00
90EF-1546B3-3-48	C18716	3	8	.69	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	22.00
90EF-1546B3-3.5-64	D18721	3.5	8	.69	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	31.00
90EF-1546B3-4-64	D18724	4	8	.69	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	C18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FJ9838-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FJ9838-3240-188	2	6	5.25	2.84	3.50	5.56	3.22	4.44	.69	.81	1.88	2.24	6.70	17.00
FJ9838-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.69	.95	1.88	2.24	6.70	17.00
FJ9838-4048-188	2.5	6	5.78	2.89	3.87	6.13	3.78	5.00	.69	.94	2.09	2.71	7.65	21.00
FJ9838-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.69	.95	2.09	3.31	7.65	22.00
FJ9838-5664-188	3.5	8	6.78	3.91	4.62	7.19	5.22	6.06	.69	1.00	2.81	3.81	8.91	31.00
FJ9838-6464-188	4	8	6.78	3.91	4.62	7.69	5.28	6.56	.69	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	Base No.	4040	4848	Material
Swivel Flange	1	188-74414-	2.5-40	3-48	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4848-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	Aluminum. Bronze
Bolt	4	FF9142-	40-188	0964-4	Monel
Nut	4	4-222048-	8	9	Monel

Equals to P/N FC9637-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B2-2-40	C18422	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	16.00
90EF-1546B2-2.5-40	C18423	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	20.00
90EF-1546B2-2.5-48	C18424	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	20.00
90EF-1546B2-3-48	D18358	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	20.00
90EF-1546B2-3.5-64	C18425	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	32.00
90EF-1546B2-4-64	C18426	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	33.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9637-3240-188	2	6	4.92	2.50	4.00	5.56	3.28	4.44	.56	.83	1.88	2.24	6.70	15.50
FC9637-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.56	.95	2.09	2.24	6.70	19.80
FC9637-4048-188	2.5	6	5.65	2.75	4.50	6.12	3.78	5.00	.56	.95	2.09	2.71	7.65	19.80
FC9637-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.56	.95	2.09	3.31	7.65	20.30
FC9637-5664-188	3.5	8	6.48	3.57	5.62	7.19	5.22	6.06	.56	1.02	2.81	3.81	8.91	31.50
FC9637-6464-188	4	8	6.48	3.57	5.62	7.69	5.22	6.56	.56	1.02	2.81	4.28	8.91	33.40

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4040-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9637-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B2-2-40	C18422	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	16.00
90EF-1546B2-2.5-40	C18423	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	20.00
90EF-1546B2-2.5-48	C18424	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	20.00
90EF-1546B2-3-48	D18358	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	20.00
90EF-1546B2-3.5-64	C18425	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	32.00
90EF-1546B2-4-64	C18426	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	33.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9637-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9637-3240-188	2	6	4.92	2.50	4.00	5.56	3.28	4.44	.56	.83	1.88	2.24	6.70	15.50
FC9637-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.56	.95	2.09	2.24	6.70	19.80
FC9637-4048-188	2.5	6	5.65	2.75	4.50	6.12	3.78	5.00	.56	.95	2.09	2.71	7.65	19.80
FC9637-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.56	.95	2.09	3.31	7.65	20.30
FC9637-5664-188	3.5	8	6.48	3.57	5.62	7.19	5.22	6.06	.56	1.02	2.81	3.81	8.91	31.50
FC9637-6464-188	4	8	6.48	3.57	5.62	7.69	5.22	6.56	.56	1.02	2.81	4.28	8.91	33.40

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4040-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	10	Monel

Equals to P/N FC9638-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B1-2-40	C18417	2	7	.69	5.25	2.84	3.50	6.50	3.22	5.18	.81	1.88	2.24	6.70	17.00
90EF-1546B1-2.5-40	C18717	2.5	8	.81	5.25	2.84	3.50	7.56	3.22	6.00	.94	1.88	2.24	6.70	18.00
90EF-1546B1-2.5-48	C18418	2.5	8	.81	5.78	2.89	3.87	7.56	3.78	6.00	.94	2.09	2.71	7.65	24.00
90EF-1546B1-3-48	C18419	3	8	.81	5.78	2.89	4.00	8.13	4.50	6.56	.94	2.09	3.31	7.65	25.00
90EF-1546B1-3.5-64	C18420	3.5	9	.81	6.78	3.91	4.62	8.69	5.22	7.13	1.00	2.81	3.81	8.91	37.00
90EF-1546B1-4-64	C18421	4	9	.81	6.78	3.91	4.62	9.25	5.28	7.69	1.00	2.81	4.28	8.91	39.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9638-3240-188	2	7	4.92	2.50	4.00	6.50	3.28	5.19	.69	.83	1.88	2.24	6.70	17.10
FC9638-4048-488	2.5	8	5.65	2.75	4.50	7.56	7.78	6.00	.81	.95	2.09	2.71	7.65	23.70
FC9638-4848-188	3	8	5.65	2.75	4.50	8.12	4.50	6.56	.81	.95	2.09	3.31	7.65	24.80
FC9638-6464-188	4	9	6.48	3.57	5.62	9.25	5.22	7.69	.81	1.02	2.81	4.28	8.91	39.30

Description	Req’d per Ass’y	Base No.	3240	4048	4848	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	Monel

HS1546

Equal to Aeroquip P/N FC9638-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B1-2-40	C18417	2	7	.69	5.25	2.84	3.50	6.50	3.22	5.18	.81	1.88	2.24	6.70	17.00
90EF-1546B1-2.5-40	C18717	2.5	8	.81	5.25	2.84	3.50	7.56	3.22	6.00	.94	1.88	2.24	6.70	18.00
90EF-1546B1-2.5-48	C18418	2.5	8	.81	5.78	2.89	3.87	7.56	3.78	6.00	.94	2.09	2.71	7.65	24.00
90EF-1546B1-3-48	C18419	3	8	.81	5.78	2.89	4.00	8.13	4.50	6.56	.94	2.09	3.31	7.65	25.00
90EF-1546B1-3.5-64	C18420	3.5	9	.81	6.78	3.91	4.62	8.69	5.22	7.13	1.00	2.81	3.81	8.91	37.00
90EF-1546B1-4-64	C18421	4	9	.81	6.78	3.91	4.62	9.25	5.28	7.69	1.00	2.81	4.28	8.91	39.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9638-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9638-3240-188	2	7	4.92	2.50	4.00	6.50	3.28	5.19	.69	.83	1.88	2.24	6.70	17.10
FC9638-4048-488	2.5	8	5.65	2.75	4.50	7.56	7.78	6.00	.81	.95	2.09	2.71	7.65	23.70
FC9638-4848-188	3	8	5.65	2.75	4.50	8.12	4.50	6.56	.81	.95	2.09	3.31	7.65	24.80
FC9638-6464-188	4	9	6.48	3.57	5.62	9.25	5.22	7.69	.81	1.02	2.81	4.28	8.91	39.30

Description	Req’d per Ass’y	Base No.	3240	4048	4848	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	Monel

Equals to P/N FC5048-188

Defense

MIL-DTL-24787/1

Use with the following hose: HS4182 & FC132

Type F, Group X, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A5-2-40	C18681	2	4	.75	4.37	1.96	6.00	3.28	4.75	.42	2.25	6.70	12.00
EF-1546A5-2.5-40	C18682	2.5	4	.75	4.87	2.46	7.00	3.28	5.50	.48	2.25	6.70	13.00
EF-1546A5-2.5-48	C18683	2.5	4	.75	5.44	2.55	7.00	3.78	5.50	.48	2.71	7.65	15.00
EF-1546A5-3-48	C18684	3	4	.75	4.85	1.96	7.50	4.50	6.00	.48	3.31	7.65	16.00
EF-1546A5-3.5-64	C18685	3.5	8	.75	5.24	2.37	8.50	5.22	7.00	.48	3.81	8.91	24.00
EF-1546A5-4-64	C18686	4	8	.75	5.24	2.37	9.00	5.22	7.50	.48	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Alum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Alum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Alum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5048-3240-188	2.5	4	.75	4.40	1.96	6.00	3.28	4.75	.44	2.24	6.70	12.00
FC5048-4040-188	2.5	4	.75	4.40	1.96	7.00	3.28	5.50	.50	2.24	6.70	13.00
FC5048-4048-188	2.5	4	.75	4.86	1.96	7.00	3.78	5.50	.50	2.71	7.65	15.00
FC5048-4848-188	3	4	.75	4.86	1.96	7.50	4.50	6.00	.50	3.31	7.65	16.00
FC5048-6464-188	4	8	.75	5.28	2.37	9.00	5.22	7.50	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	6464	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	Monel

HS1546

Equal to Aeroquip P/N FC5048-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A5-2-40	C18681	2	4	.75	4.37	1.96	6.00	3.28	4.75	.42	2.25	6.70	12.00
EF-1546A5-2.5-40	C18682	2.5	4	.75	4.87	2.46	7.00	3.28	5.50	.48	2.25	6.70	13.00
EF-1546A5-2.5-48	C18683	2.5	4	.75	5.44	2.55	7.00	3.78	5.50	.48	2.71	7.65	15.00
EF-1546A5-3-48	C18684	3	4	.75	4.85	1.96	7.50	4.50	6.00	.48	3.31	7.65	16.00
EF-1546A5-3.5-64	C18685	3.5	8	.75	5.24	2.37	8.50	5.22	7.00	.48	3.81	8.91	24.00
EF-1546A5-4-64	C18686	4	8	.75	5.24	2.37	9.00	5.22	7.50	.48	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Alum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Alum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Alum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC5048-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5048-3240-188	2.5	4	.75	4.40	1.96	6.00	3.28	4.75	.44	2.24	6.70	12.00
FC5048-4040-188	2.5	4	.75	4.40	1.96	7.00	3.28	5.50	.50	2.24	6.70	13.00
FC5048-4048-188	2.5	4	.75	4.86	1.96	7.00	3.78	5.50	.50	2.71	7.65	15.00
FC5048-4848-188	3	4	.75	4.86	1.96	7.50	4.50	6.00	.50	3.31	7.65	16.00
FC5048-6464-188	4	8	.75	5.28	2.37	9.00	5.22	7.50	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	6464	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	Monel

Equals to P/N FC5309-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A4-2-40	C18687	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
EF-1546A4-2.5-40	C18688	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
EF-1546A4-2.5-48	C18689	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
EF-1546A4-3-48	C18690	3	8	.56	4.85	1.96	6.63	4.50	5.50	.50	3.31	7.65	16.00
EF-1546A4-3.5-64	C18691	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
EF-1546A4-4-64	C18692	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5309-3240-188	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
FC5309-4040-188	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
FC5309-4048-188	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
FC5309-4848-188	3	8	.56	4.85	1.96	6.63	4.50	5.50	50	3.31	7.65	16.00
FC5309-5664-188	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
FC5309-6464-188	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	-	-	-	-	-	-	Aluminum. Bronze
Nipple	1	-	-	-	-	-	-	Aluminum. Bronze
Grip Segment	2	FC3476-	-	-	48-188	-	-	Aluminum. Bronze
Bolt	4	FF9142-	-	-	0964-4	-	-	Monel
Nut	4	4-222048-	-	-	9	-	-	Monel

HS1546

Equal to Aeroquip P/N FC5309-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A4-2-40	C18687	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
EF-1546A4-2.5-40	C18688	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
EF-1546A4-2.5-48	C18689	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
EF-1546A4-3-48	C18690	3	8	.56	4.85	1.96	6.63	4.50	5.50	.50	3.31	7.65	16.00
EF-1546A4-3.5-64	C18691	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
EF-1546A4-4-64	C18692	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC5309-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5309-3240-188	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
FC5309-4040-188	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
FC5309-4048-188	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
FC5309-4848-188	3	8	.56	4.85	1.96	6.63	4.50	5.50	50	3.31	7.65	16.00
FC5309-5664-188	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
FC5309-6464-188	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	-	-	-	-	-	-	Aluminum. Bronze
Nipple	1	-	-	-	-	-	-	Aluminum. Bronze
Grip Segment	2	FC3476-	-	-	48-188	-	-	Aluminum. Bronze
Bolt	4	FF9142-	-	-	0964-4	-	-	Monel
Nut	4	4-222048-	-	-	9	-	-	Monel

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A3-2-40	C18694	2	6	.69	4.37	1.96	5.56	3.28	4.44	.81	2.25	6.70	15.00
EF-1546A3-2.5-40	C18534	2.5	6	.69	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A3-2.5-48	C18702	2.5	6	.69	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	17.00
EF-1546A3-3-48	C18533	3	8	.69	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A3-3.5-64	C18707	3.5	8	.69	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	27.00
EF-1546A3-4-64	C18376	4	8	.69	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C232042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A3-2-40	C18694	2	6	.69	4.37	1.96	5.56	3.28	4.44	.81	2.25	6.70	15.00
EF-1546A3-2.5-40	C18534	2.5	6	.69	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A3-2.5-48	C18702	2.5	6	.69	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	17.00
EF-1546A3-3-48	C18533	3	8	.69	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A3-3.5-64	C18707	3.5	8	.69	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	27.00
EF-1546A3-4-64	C18376	4	8	.69	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C232042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Equals to P/N FC9527-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A2-2-40	C18352	2	6	.56	4.37	1.96	5.56	3.28	4.44	.81	2.25	3.70	15.00
EF-1546A2-2.5-40	C18695	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A2-2.5-48	C18351	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	18.00
EF-1546A2-3-48	C18350	3	8	.56	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A2-3.5-64	C18416	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	26.00
EF-1546A2-4-64	C17768	4	8	.56	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9527-3240-188	2	6	.56	4.40	1.96	5.56	3.28	4.44	.83	2.24	6.70	14.60
FC9527-4048-188	2.5	6	.56	4.86	1.96	6.12	3.78	5.00	.95	2.71	7.65	17.60
FC9527-4848-188	3	8	.56	4.86	1.96	6.62	4.50	5.50	.95	3.31	7.65	17.90
FC9527-5664-188	3.5	8	.56	5.28	2.37	7.19	5.22	6.06	1.02	3.81	8.91	25.90
FC9527-6464-188	4	8	.56	5.28	2.37	7.69	5.22	6.56	1.02	4.28	8.91	27.80

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9527-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A2-2-40	C18352	2	6	.56	4.37	1.96	5.56	3.28	4.44	.81	2.25	3.70	15.00
EF-1546A2-2.5-40	C18695	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A2-2.5-48	C18351	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	18.00
EF-1546A2-3-48	C18350	3	8	.56	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A2-3.5-64	C18416	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	26.00
EF-1546A2-4-64	C17768	4	8	.56	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9527-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9527-3240-188	2	6	.56	4.40	1.96	5.56	3.28	4.44	.83	2.24	6.70	14.60
FC9527-4048-188	2.5	6	.56	4.86	1.96	6.12	3.78	5.00	.95	2.71	7.65	17.60
FC9527-4848-188	3	8	.56	4.86	1.96	6.62	4.50	5.50	.95	3.31	7.65	17.90
FC9527-5664-188	3.5	8	.56	5.28	2.37	7.19	5.22	6.06	1.02	3.81	8.91	25.90
FC9527-6464-188	4	8	.56	5.28	2.37	7.69	5.22	6.56	1.02	4.28	8.91	27.80

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Equals to P/N FC9568-188

Defense

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A1-2-40	C18411	2	7	.69	4.37	1.96	6.50	3.28	5.19	.81	2.25	6.70	15.00
EF-1546A1-2.5-40	C18696	2.5	8	.81	4.87	2.46	7.56	3.28	6.00	.94	2.25	6.70	16.00
EF-1546A1-2.5-48	C18412	2.5	8	.81	5.44	2.55	7.56	3.78	6.00	.94	2.71	7.65	22.00
EF-1546A1-3-48	C18413	3	8	.81	4.85	1.96	8.13	4.50	6.56	.94	3.31	7.65	23.00
EF-1546A1-3.5-64	C18414	3.5	9	.81	5.24	2.37	8.69	5.22	7.13	1.00	3.81	8.91	31.00
EF-1546A1-4-64	C18415	4	9	.81	5.24	2.37	9.25	5.22	7.69	1.00	4.28	8.91	34.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9568-3240-188	2	7	.69	4.40	1.96	6.50	3.28	5.19	.81	2.24	6.70	15.20
FC9568-4048-188	2.5	8	.81	4.86	1.96	7.56	3.78	6.00	.94	2.71	7.65	22.40
FC9568-4848-188	3	8	.81	4.86	1.96	8.12	4.50	6.56	.94	3.31	7.65	23.20
FC9568-5664-188	3.5	9	.81	5.28	2.37	8.69	5.22	7.12	1.00	3.81	8.91	30.90
FC9568-6464-188	4	9	.81	5.28	2.37	9.25	5.22	7.69	1.00	4.28	8.91	33.70

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9568-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A1-2-40	C18411	2	7	.69	4.37	1.96	6.50	3.28	5.19	.81	2.25	6.70	15.00
EF-1546A1-2.5-40	C18696	2.5	8	.81	4.87	2.46	7.56	3.28	6.00	.94	2.25	6.70	16.00
EF-1546A1-2.5-48	C18412	2.5	8	.81	5.44	2.55	7.56	3.78	6.00	.94	2.71	7.65	22.00
EF-1546A1-3-48	C18413	3	8	.81	4.85	1.96	8.13	4.50	6.56	.94	3.31	7.65	23.00
EF-1546A1-3.5-64	C18414	3.5	9	.81	5.24	2.37	8.69	5.22	7.13	1.00	3.81	8.91	31.00
EF-1546A1-4-64	C18415	4	9	.81	5.24	2.37	9.25	5.22	7.69	1.00	4.28	8.91	34.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9568-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9568-3240-188	2	7	.69	4.40	1.96	6.50	3.28	5.19	.81	2.24	6.70	15.20
FC9568-4048-188	2.5	8	.81	4.86	1.96	7.56	3.78	6.00	.94	2.71	7.65	22.40
FC9568-4848-188	3	8	.81	4.86	1.96	8.12	4.50	6.56	.94	3.31	7.65	23.20
FC9568-5664-188	3.5	9	.81	5.28	2.37	8.69	5.22	7.12	1.00	3.81	8.91	30.90
FC9568-6464-188	4	9	.81	5.28	2.37	9.25	5.22	7.69	1.00	4.28	8.91	33.70

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Equals to P/N 412-190717

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
90ELB-449E-40-SS	D18506	2.5	5.75	2.84	1.88	5.35	12.00
90ELB-449E-48-SS	D18475	3	5.96	3.04	2.09	5.58	14.00
90ELB-449E-64-SS	D21693	4	6.80	3.89	2.81	6.50	23.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	D19512-1	D19610-1	D20741-1	Stainless Steel
Grip Segment	6	D17299-1	D17300-1	D17301-1	Aluminum. Bonze
Bolt	6	B17673-2	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B17986	Monel

Part Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
412-190717-40	2.5	5.70	2.87	1.88	3.90	11.60
412-190717-48	3	5.96	3.08	2.09	4.50	14.50
412-190717-64	4	6.75	3.94	2.81	5.44	22.50

Description	Req’d per Ass’y	Base No.	40	48	64	Material
Elbow	1	-	40	48	64	Stainless Steel
Socket Assembly	2	4-1205-	40	48	64	Monel
Ring	8	4-21004-	40	48	64	Monel
Grip Segment	2	4-1205-1-	40	48	64	Monel
Band	2	4-21023-	40	48	64	Monel

HS449

Equal to Aeroquip P/N 412-190717

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
90ELB-449E-40-SS	D18506	2.5	5.75	2.84	1.88	5.35	12.00
90ELB-449E-48-SS	D18475	3	5.96	3.04	2.09	5.58	14.00
90ELB-449E-64-SS	D21693	4	6.80	3.89	2.81	6.50	23.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	D19512-1	D19610-1	D20741-1	Stainless Steel
Grip Segment	6	D17299-1	D17300-1	D17301-1	Aluminum. Bonze
Bolt	6	B17673-2	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B17986	Monel

HS449 Equivalent

P/N 412-190717

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
412-190717-40	2.5	5.70	2.87	1.88	3.90	11.60
412-190717-48	3	5.96	3.08	2.09	4.50	14.50
412-190717-64	4	6.75	3.94	2.81	5.44	22.50

Description	Req’d per Ass’y	Base No.	40	48	64	Material
Elbow	1	-	40	48	64	Stainless Steel
Socket Assembly	2	4-1205-	40	48	64	Monel
Ring	8	4-21004-	40	48	64	Monel
Grip Segment	2	4-1205-1-	40	48	64	Monel
Band	2	4-21023-	40	48	64	Monel

Equals to P/N 375-190717

Defense

MIL-DTL-24787/5

Use with the following hose:HS4265, HS4224, 2562, 150901

Type D, Group IV

Part Number	Drawing Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
90ELB-449E-40	D17856	2.5	5.75	2.84	1.88	5.35	12.00
90ELB-449E-48	D17859	3	5.96	3.04	2.09	5.58	14.00
90ELB-449E-64	D17860	4	6.80	3.89	2.81	6.50	23.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	D19512-2	D19610-2	D20741-2	Aluminum. Bonze
Grip Segment	6	D17299-1	D17300-1	D17301-1	Aluminum. Bonze
Bolt	6	B17673-2	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B17986	Monel

Part Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
375-190717-40	2.5	5.70	2.87	1.88	3.90	11.60
375-190717-48	3	5.96	3.08	2.09	4.50	14.50
375-190717-64	4	6.75	3.94	2.81	5.44	22.50

Description	Req’d per Ass’y	Base No.	40	48	64	Material
Elbow	1	188-185215-	40	48	64	Aluminum. Bronze
Socket Assembly	2	4-1205-	40	48	64	Monel
Ring	8	4-21004-	40	48	64	Monel
Grip Segment	2	4-1205-1-	40	48	64	Monel
Band	2	4-21023	40	48	64	Monel

HS449

Equal to Aeroquip P/N 375-190717

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
90ELB-449E-40	D17856	2.5	5.75	2.84	1.88	5.35	12.00
90ELB-449E-48	D17859	3	5.96	3.04	2.09	5.58	14.00
90ELB-449E-64	D17860	4	6.80	3.89	2.81	6.50	23.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	D19512-2	D19610-2	D20741-2	Aluminum. Bonze
Grip Segment	6	D17299-1	D17300-1	D17301-1	Aluminum. Bonze
Bolt	6	B17673-2	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B17986	Monel

HS449 Equivalent

P/N 375-190717

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	D	R	T	Est. Wt. (lbs.)
375-190717-40	2.5	5.70	2.87	1.88	3.90	11.60
375-190717-48	3	5.96	3.08	2.09	4.50	14.50
375-190717-64	4	6.75	3.94	2.81	5.44	22.50

Description	Req’d per Ass’y	Base No.	40	48	64	Material
Elbow	1	188-185215-	40	48	64	Aluminum. Bronze
Socket Assembly	2	4-1205-	40	48	64	Monel
Ring	8	4-21004-	40	48	64	Monel
Grip Segment	2	4-1205-1-	40	48	64	Monel
Band	2	4-21023	40	48	64	Monel

Equals to P/N 375-190784 & FC9589-375

Defense

MIL-DTL-24787/4

Use with the following hose:HS4265, HS4224, 2562, 150901

Type EL, Group IV

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
90EF-449DA-2-40	D18068	2	5.70	2.83	2.38	4.82	1.31	1.88	4.00	5.35	10.00
90EF-449DA-2.5-48	D18069	2.5	6.01	3.09	2.88	5.19	1.12	2.09	4.42	5.58	12.00
90EF-449DA-3-48	D18070	3	6.01	3.09	3.50	6.65	2.55	2.09	5.19	5.58	16.00
90EF-449DA-3.5-64	D18071	3.5	6.76	3.85	4.00	7.02	2.55	2.81	5.56	6.50	21.00
90EF-449DA-4-64	D18072	4	6.80	3.89	4.50	7.23	2.69	2.81	6.12	6.50	24.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Elbow	1	D18124	D18125	D18126	D18127	D18128	Aluminum. Bronze
Tailpiece	1	C18088	C18089	C18090	C18091	C18092	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
FC9589-3240-375	2	5.70	2.87	2.38	4.76	1.31	1.88	4.00	3.90	9.80
FC9589-4048-375	2.5	5.88	3.18	2.88	4.71	1.12	2.09	4.42	4.50	12.01
375-190784-48-48	3	6.46	3.58	3.50	6.15	2.50	2.09	5.19	4.50	16.47
375-190784-56-64	3.5	6.75	3.94	4.00	6.99	2.50	2.81	5.56	5.44	21.67
375-190784-64-64	4	6.75	3.94	4.50	7.24	2.64	2.81	6.12	5.44	23.92

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500189- FF5002-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-185203-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190784 & FC9589-375

Male Sil-Braze to Hose

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
90EF-449DA-2-40	D18068	2	5.70	2.83	2.38	4.82	1.31	1.88	4.00	5.35	10.00
90EF-449DA-2.5-48	D18069	2.5	6.01	3.09	2.88	5.19	1.12	2.09	4.42	5.58	12.00
90EF-449DA-3-48	D18070	3	6.01	3.09	3.50	6.65	2.55	2.09	5.19	5.58	16.00
90EF-449DA-3.5-64	D18071	3.5	6.76	3.85	4.00	7.02	2.55	2.81	5.56	6.50	21.00
90EF-449DA-4-64	D18072	4	6.80	3.89	4.50	7.23	2.69	2.81	6.12	6.50	24.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Elbow	1	D18124	D18125	D18126	D18127	D18128	Aluminum. Bronze
Tailpiece	1	C18088	C18089	C18090	C18091	C18092	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190784 & FC9589-375

Male Sil-Braze to Hose

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
FC9589-3240-375	2	5.70	2.87	2.38	4.76	1.31	1.88	4.00	3.90	9.80
FC9589-4048-375	2.5	5.88	3.18	2.88	4.71	1.12	2.09	4.42	4.50	12.01
375-190784-48-48	3	6.46	3.58	3.50	6.15	2.50	2.09	5.19	4.50	16.47
375-190784-56-64	3.5	6.75	3.94	4.00	6.99	2.50	2.81	5.56	5.44	21.67
375-190784-64-64	4	6.75	3.94	4.50	7.24	2.64	2.81	6.12	5.44	23.92

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500189- FF5002-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-185203-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

Equals to P/N 375-190785 & FC9074-375

Defense

MIL-DTL-24787/4

Use with the following hose:HS4265, HS4224, 2562, 150901

Type EL, Group IV

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
90EF-449D-2-40	D18063	2	5.75	2.84	2.38	4.31	.83	1.88	5.35	4.00	10.00
90EF-449D-2.5-48	D18064	2.5	6.01	3.09	2.88	5..06	.99	2.09	4.42	5.58	12.00
90EF-449D-3-48	D18065	3	6.01	3.09	3.50	4.95	.85	2.09	5.19	5.58	14.00
90EF-449D-3.5-64	D18066	3.5	6.76	3.85	4.00	5.55	1.08	2.81	5.56	6.50	20.00
90EF-449D-4-64	D18067	4	6.80	3.89	4.50	5.66	1.12	2.81	6.12	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Elbow	1	D18124	D18125	D18126	D18127	D18128	Aluminum. Bronze
Tailpiece	1	C18083	C18084	C18085	C18086	C18087	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
FC9074-3240-375	2	5.56	2.87	2.38	4.21	.66	1.88	4.00	3.90	9.81
FC9074-4048-375	2.5	5.88	3.18	2.88	4.51	.78	2.09	4.12	4.50	11.82
375-190785-48-48	3	6.46	3.58	3.50	4.25	.83	2.09	5.19	4.50	14.75
375-190785-56-64	3.5	6.75	3.94	4.00	5.14	.88	2.81	5.56	5.44	19.83
375-190785-64-64	4	6.75	3.94	4.50	5.27	.91	2.81	6.12	5.44	22.23

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500063- FF5001-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-185203-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190785 & FC9074-375

Female Sil-Braze to Hose

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
90EF-449D-2-40	D18063	2	5.75	2.84	2.38	4.31	.83	1.88	5.35	4.00	10.00
90EF-449D-2.5-48	D18064	2.5	6.01	3.09	2.88	5..06	.99	2.09	4.42	5.58	12.00
90EF-449D-3-48	D18065	3	6.01	3.09	3.50	4.95	.85	2.09	5.19	5.58	14.00
90EF-449D-3.5-64	D18066	3.5	6.76	3.85	4.00	5.55	1.08	2.81	5.56	6.50	20.00
90EF-449D-4-64	D18067	4	6.80	3.89	4.50	5.66	1.12	2.81	6.12	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Elbow	1	D18124	D18125	D18126	D18127	D18128	Aluminum. Bronze
Tailpiece	1	C18083	C18084	C18085	C18086	C18087	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190785 & FC9074-375

Female Sil-Braze to Hose

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	D	F	H	M	R	Z	T	Est. Wt. (lbs.)
FC9074-3240-375	2	5.56	2.87	2.38	4.21	.66	1.88	4.00	3.90	9.81
FC9074-4048-375	2.5	5.88	3.18	2.88	4.51	.78	2.09	4.12	4.50	11.82
375-190785-48-48	3	6.46	3.58	3.50	4.25	.83	2.09	5.19	4.50	14.75
375-190785-56-64	3.5	6.75	3.94	4.00	5.14	.88	2.81	5.56	5.44	19.83
375-190785-64-64	4	6.75	3.94	4.50	5.27	.91	2.81	6.12	5.44	22.23

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500063- FF5001-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-185203-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

Equals to P/N 375-190780 & FC9583-375

Defense

MIL-DTL-24787/4

Use with the following hose:HS4265, HS4224, 2562, 150901

Type E, Group IV

Part Number	Drawing Number	IPS Size	A	D	F	M	Z	T	Est. Wt. (lbs.)
EF-449CA-2-40	C18058	2	6.51	3.62	2.38	1.31	4.00	5.00	8.00
EF-449CA-2.5-48	C18059	2.5	6.37	3.52	2.88	1.12	4.42	5.50	10.00
EF-449CA-3-48	C18060	3	7.81	4.90	3.50	2.55	5.19	5.50	13.00
EF-449CA-3.5-64	C18061	3.5	7.94	5.03	4.00	2.55	5.56	6.56	16.00
EF-449CA-4-64	C18062	4	8.22	5.30	4.50	2.69	6.12	6.56	17.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Nipple	1	C18096	C18097	C18100	C18103	C18105	Aluminum. Bronze
Tailpiece	1	C18088	C18089	C18090	C18091	C18092	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	A	C	D	E	F	G	H	K	M	Est. Wt. (lbs.)
FC9583-3240-375	2	6.61	3.69	1.31	.39	4.00	2.38	2.06	3.90	3.78	8.48
FC9583-4048-375	2.5	6.60	3.69	1.12	.39	4.42	2.38	2.51	4.50	3.73	9.92
375-190780-48-48	3	8.01	3.69	2.50	.39	5.19	3.50	2.51	4.50	5.14	13.62
375-190780-56-64	3.5	8.02	3.69	2.50	.39	5.56	4.00	3.45	5.44	5.21	16.30
375-190780-64-64	4	8.38	3.69	2.64	.39	6.12	4.50	3.45	5.44	5.47	17.62

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500189- FF5002-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-1239-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-1205-1-	40	48	48	64	64	Monel
Grip Segment	4	4-21004-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190780 & FC9583-375

Male Sil-Braze to Hose

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	F	M	Z	T	Est. Wt. (lbs.)
EF-449CA-2-40	C18058	2	6.51	3.62	2.38	1.31	4.00	5.00	8.00
EF-449CA-2.5-48	C18059	2.5	6.37	3.52	2.88	1.12	4.42	5.50	10.00
EF-449CA-3-48	C18060	3	7.81	4.90	3.50	2.55	5.19	5.50	13.00
EF-449CA-3.5-64	C18061	3.5	7.94	5.03	4.00	2.55	5.56	6.56	16.00
EF-449CA-4-64	C18062	4	8.22	5.30	4.50	2.69	6.12	6.56	17.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Nipple	1	C18096	C18097	C18100	C18103	C18105	Aluminum. Bronze
Tailpiece	1	C18088	C18089	C18090	C18091	C18092	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190780 & FC9583-375

Male Sil-Braze to Hose

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	C	D	E	F	G	H	K	M	Est. Wt. (lbs.)
FC9583-3240-375	2	6.61	3.69	1.31	.39	4.00	2.38	2.06	3.90	3.78	8.48
FC9583-4048-375	2.5	6.60	3.69	1.12	.39	4.42	2.38	2.51	4.50	3.73	9.92
375-190780-48-48	3	8.01	3.69	2.50	.39	5.19	3.50	2.51	4.50	5.14	13.62
375-190780-56-64	3.5	8.02	3.69	2.50	.39	5.56	4.00	3.45	5.44	5.21	16.30
375-190780-64-64	4	8.38	3.69	2.64	.39	6.12	4.50	3.45	5.44	5.47	17.62

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500189- FF5002-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-1239-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-1205-1-	40	48	48	64	64	Monel
Grip Segment	4	4-21004-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

Equals to P/N 375-190781 & FC9073-375

Defense

MIL-DTL-24787/4

Use with the following hose:HS4265, HS4224, 2562, 150901

Type E, Group IV

Part Number	Drawing Number	IPS Size	A	D	F	M	Z	T	Est. Wt. (lbs.)
EF-449C-2-40	C18053	2	6.00	3.09	2.38	.83	4.00	5.35	8.00
EF-449C-2.5-48	C18054	2.5	6.22	3.31	2.88	.99	4.42	5.58	9.00
EF-449C-3-48	C18055	3	6.11	3.20	3.50	.85	5.19	5.58	12.00
EF-449C-3.5-64	C18056	3.5	6.47	3.56	4.00	1.08	5.56	6.50	14.00
EF-449C-4-64	C18057	4	6.65	3.73	4.50	1.12	6.12	6.50	16.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Nipple	1	C18096	C18097	C18100	C18103	C18105	Aluminum. Bronze
Tailpiece	1	C18083	C18084	C18085	C18086	C18087	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	A	B	C	D	E	F	G	H	K	M	Est. Wt. (lbs.)
FC9073-3240-375	2	6.10	2.61	3.69	.66	.39	4.00	2.38	2.06	3.90	3.27	8.49
FC9073-4048-375	2.5	6.42	2.77	3.69	.78	.39	4.42	2.88	2.51	4.50	3.55	9.73
375-190781-48-48	3	6.11	2.77	3.69	.83	.39	5.19	3.50	2.51	4.50	3.23	11.90
375-190781-56-64	3.5	3.16	2.47	3.69	.88	.39	5.56	4.00	3.45	5.44	3.35	14.48
375-190781-64-64	4	6.31	2.59	3.69	.91	.39	6.12	4.50	3.45	5.44	3.50	15.93

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500063- FF5001-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-1239-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190781 & FC9073-375

Female Sil-Braze to Hose

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	A	D	F	M	Z	T	Est. Wt. (lbs.)
EF-449C-2-40	C18053	2	6.00	3.09	2.38	.83	4.00	5.35	8.00
EF-449C-2.5-48	C18054	2.5	6.22	3.31	2.88	.99	4.42	5.58	9.00
EF-449C-3-48	C18055	3	6.11	3.20	3.50	.85	5.19	5.58	12.00
EF-449C-3.5-64	C18056	3.5	6.47	3.56	4.00	1.08	5.56	6.50	14.00
EF-449C-4-64	C18057	4	6.65	3.73	4.50	1.12	6.12	6.50	16.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Clamp Assy.	1	C18078	C18079	C18080	C18081	C18082	Aluminum. Bronze
Nipple	1	C18096	C18097	C18100	C18103	C18105	Aluminum. Bronze
Tailpiece	1	C18083	C18084	C18085	C18086	C18087	Aluminum. Bronze
Grip Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190781 & FC9073-375

Female Sil-Braze to Hose

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IV

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	A	B	C	D	E	F	G	H	K	M	Est. Wt. (lbs.)
FC9073-3240-375	2	6.10	2.61	3.69	.66	.39	4.00	2.38	2.06	3.90	3.27	8.49
FC9073-4048-375	2.5	6.42	2.77	3.69	.78	.39	4.42	2.88	2.51	4.50	3.55	9.73
375-190781-48-48	3	6.11	2.77	3.69	.83	.39	5.19	3.50	2.51	4.50	3.23	11.90
375-190781-56-64	3.5	3.16	2.47	3.69	.88	.39	5.56	4.00	3.45	5.44	3.35	14.48
375-190781-64-64	4	6.31	2.59	3.69	.91	.39	6.12	4.50	3.45	5.44	3.50	15.93

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Tailpiece	1	188-500063- FF5001-188-	- 32	- 40	48 -	56 -	64 -	Aluminum. Bronze
Nipple	1	188-1239-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Clamp Assy.	1	900758-	2	2.5	3	3.5	4	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

Equals to P/N 413-190769

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B4-2-40-BSS	D19627	2	4	.75	5.75	2.83	3.50	6.00	3.22	4.75	.42	1.88	2.24	5.35	9.00
90EF-449B4-2.5-40-BSS	C19626	2.5	4	.75	5.75	2.83	3.50	7.00	3.22	5.50	.48	1.88	2.24	5.35	12.00
90EF-449B4-2.5-48-BSS	D19628	2.5	4	.75	6.01	3.09	4.00	7.00	3.78	5.50	.48	2.09	2.71	5.58	13.00
90EF-449B4-3-48-BSS	D18582	3	4	.75	6.01	3.09	4.00	7.50	4.44	6.00	.48	2.09	3.31	5.58	14.00
90EF-449B4-3.5-64-BSS	D19629	3.5	8	.75	6.80	3.88	4.62	8.50	5.22	7.00	.48	2.81	3.81	6.50	21.00
90EF-449B4-4-64-BSS	D19630	4	8	.75	6.80	3.88	4.62	9.00	5.28	7.50	.48	2.81	4.28	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	-	C18149	C18150	C18151	-	C19632	Stainless Steel
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
413-190769-32-40	2	4	5.70	2.87	2.05	3.00	3.50	6.00	3.28	4.75	.75	.44	3.90	1.88	2.24	3.69	9.48
413-190769-40-40	2.5	4	5.70	2.87	2.05	3.00	3.50	7.00	3.28	5.50	.75	.50	3.90	1.88	2.24	3.69	11.72
413-190769-40-48	2.5	4	5.96	3.08	2.50	3.50	4.00	7.00	3.78	5.50	.75	.50	4.50	2.09	2.71	3.69	13.43
413-190769-48-48	3	4	5.96	3.08	2.50	3.50	4.00	7.50	4.50	6.00	.75	.50	4.50	2.09	3.31	3.69	14.49
413-190769-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	8.50	5.22	7.00	.75	.50	5.44	2.81	3.81	3.69	21.44
413-190769-64-64	4	8	6.75	3.94	3.45	4.75	4.62	9.00	5.22	7.50	.75	.50	5.44	2.81	4.28	3.69	22.49

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	407-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Stainless Steel
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Alum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 413-190769

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B4-2-40-BSS	D19627	2	4	.75	5.75	2.83	3.50	6.00	3.22	4.75	.42	1.88	2.24	5.35	9.00
90EF-449B4-2.5-40-BSS	C19626	2.5	4	.75	5.75	2.83	3.50	7.00	3.22	5.50	.48	1.88	2.24	5.35	12.00
90EF-449B4-2.5-48-BSS	D19628	2.5	4	.75	6.01	3.09	4.00	7.00	3.78	5.50	.48	2.09	2.71	5.58	13.00
90EF-449B4-3-48-BSS	D18582	3	4	.75	6.01	3.09	4.00	7.50	4.44	6.00	.48	2.09	3.31	5.58	14.00
90EF-449B4-3.5-64-BSS	D19629	3.5	8	.75	6.80	3.88	4.62	8.50	5.22	7.00	.48	2.81	3.81	6.50	21.00
90EF-449B4-4-64-BSS	D19630	4	8	.75	6.80	3.88	4.62	9.00	5.28	7.50	.48	2.81	4.28	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	-	C18149	C18150	C18151	-	C19632	Stainless Steel
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 413-190769

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
413-190769-32-40	2	4	5.70	2.87	2.05	3.00	3.50	6.00	3.28	4.75	.75	.44	3.90	1.88	2.24	3.69	9.48
413-190769-40-40	2.5	4	5.70	2.87	2.05	3.00	3.50	7.00	3.28	5.50	.75	.50	3.90	1.88	2.24	3.69	11.72
413-190769-40-48	2.5	4	5.96	3.08	2.50	3.50	4.00	7.00	3.78	5.50	.75	.50	4.50	2.09	2.71	3.69	13.43
413-190769-48-48	3	4	5.96	3.08	2.50	3.50	4.00	7.50	4.50	6.00	.75	.50	4.50	2.09	3.31	3.69	14.49
413-190769-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	8.50	5.22	7.00	.75	.50	5.44	2.81	3.81	3.69	21.44
413-190769-64-64	4	8	6.75	3.94	3.45	4.75	4.62	9.00	5.22	7.50	.75	.50	5.44	2.81	4.28	3.69	22.49

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	407-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Stainless Steel
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Alum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

Equals to P/N 375-190769

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type FL, Group IV, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B4-2-40	D17956	2	4	.75	5.75	2.83	3.50	6.00	3.22	4.75	.42	1.88	2.24	5.35	9.00
90EF-449B4-2.5-40	D17957	2.5	4	.75	5.75	2.83	3.50	7.00	3.22	5.50	.48	1.88	2.24	5.35	12.00
90EF-449B4-2.5-48	D17959	2.5	4	.75	6.01	3.09	4.00	7.00	3.78	5.50	.48	2.09	2.71	5.58	13.00
90EF-449B4-3-48	D17961	3	4	.75	6.01	3.09	4.00	7.50	4.44	6.00	.48	2.09	3.31	5.58	14.00
90EF-449B4-3.5-64	D17963	3.5	8	.75	6.80	3.88	4.62	8.50	5.22	7.00	.48	2.81	3.81	6.50	21.00
90EF-449B4-4-64	D17964	4	8	.75	6.80	3.88	4.62	9.00	5.28	7.50	.48	2.81	4.28	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190769-32-40	2	4	5.70	2.87	2.05	3.00	3.50	6.00	3.28	4.75	.75	.44	3.90	1.88	2.24	3.69	9.48
375-190769-40-40	2.5	4	5.70	2.87	2.05	3.00	3.50	7.00	3.28	5.50	.75	.50	3.90	1.88	2.24	3.69	11.72
375-190769-40-48	2.5	4	5.96	3.08	2.50	3.50	4.00	7.00	3.78	5.50	.75	.50	4.50	2.09	2.71	3.69	13.43
375-190769-48-48	3	4	5.96	3.08	2.50	3.50	4.00	7.50	4.50	6.00	.75	.50	4.50	2.09	3.31	3.69	14.49
375-190769-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	8.50	5.22	7.00	.75	.50	5.44	2.81	3.81	3.69	21.44
375-190769-64-64	4	8	6.75	3.94	3.45	4.75	4.62	9.00	5.22	7.50	.75	.50	5.44	2.81	4.28	3.69	22.49

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190769

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B4-2-40	D17956	2	4	.75	5.75	2.83	3.50	6.00	3.22	4.75	.42	1.88	2.24	5.35	9.00
90EF-449B4-2.5-40	D17957	2.5	4	.75	5.75	2.83	3.50	7.00	3.22	5.50	.48	1.88	2.24	5.35	12.00
90EF-449B4-2.5-48	D17959	2.5	4	.75	6.01	3.09	4.00	7.00	3.78	5.50	.48	2.09	2.71	5.58	13.00
90EF-449B4-3-48	D17961	3	4	.75	6.01	3.09	4.00	7.50	4.44	6.00	.48	2.09	3.31	5.58	14.00
90EF-449B4-3.5-64	D17963	3.5	8	.75	6.80	3.88	4.62	8.50	5.22	7.00	.48	2.81	3.81	6.50	21.00
90EF-449B4-4-64	D17964	4	8	.75	6.80	3.88	4.62	9.00	5.28	7.50	.48	2.81	4.28	6.50	22.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190769

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190769-32-40	2	4	5.70	2.87	2.05	3.00	3.50	6.00	3.28	4.75	.75	.44	3.90	1.88	2.24	3.69	9.48
375-190769-40-40	2.5	4	5.70	2.87	2.05	3.00	3.50	7.00	3.28	5.50	.75	.50	3.90	1.88	2.24	3.69	11.72
375-190769-40-48	2.5	4	5.96	3.08	2.50	3.50	4.00	7.00	3.78	5.50	.75	.50	4.50	2.09	2.71	3.69	13.43
375-190769-48-48	3	4	5.96	3.08	2.50	3.50	4.00	7.50	4.50	6.00	.75	.50	4.50	2.09	3.31	3.69	14.49
375-190769-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	8.50	5.22	7.00	.75	.50	5.44	2.81	3.81	3.69	21.44
375-190769-64-64	4	8	6.75	3.94	3.45	4.75	4.62	9.00	5.22	7.50	.75	.50	5.44	2.81	4.28	3.69	22.49

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

Equals to P/N 375-190656

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type FL, Group IV, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B3-2-40	D17928	2	6	.56	5.75	2.83	3.50	5.56	3.22	4.44	.44	1.88	2.24	5.35	9.00
90EF-449B3-2.5-40	D17930	2.5	6	.56	5.75	2.83	3.50	6.13	3.22	5.00	.50	1.88	2.24	5.35	10.00
90EF-449B3-2.5-48	D17932	2.5	6	.56	6.01	3.09	4.00	6.13	3.78	5.00	.50	2.09	2.71	5.58	12.00
90EF-449B3-3-48	D17937	3	8	.56	6.01	3.09	4.00	6.63	4.44	5.50	.50	2.09	3.31	5.58	13.00
90EF-449B3-3.5-64	D17939	3.5	8	.56	6.80	3.88	4.62	7.19	5.22	6.06	.50	2.81	3.81	6.50	19.00
90EF-449B3-4-64	D17941	4	8	.56	6.80	3.88	4.62	7.69	5.28	6.56	.50	2.81	4.28	6.50	20.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190656-32-40	2	6	5.70	2.87	2.05	3.00	3.50	5.56	3.28	4.44	-	.44	3.90	1.88	2.24	3.69	9.02
375-190656-40-40	2.5	6	5.70	2.87	2.05	3.00	3.50	6.12	3.28	5.00	-	.50	3.90	1.88	2.24	3.69	10.12
375-190656-40-48	2.5	6	5.96	3.08	2.50	3.50	4.00	6.12	3.78	5.00	-	.50	4.50	2.09	2.71	3.69	12.02
375-190656-48-48	3	8	5.96	3.08	2.50	3.50	4.00	6.62	4.50	5.50	-	.50	4.50	2.09	3.31	3.69	12.93
375-190656-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	7.19	5.22	6.06	-	.50	5.44	2.81	3.81	3.69	19.06
375-190656-64-64	4	8	6.75	3.94	3.45	4.75	4.62	7.69	5.22	6.56	-	.50	5.44	2.81	4.28	3.69	20.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-80005-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190656

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B3-2-40	D17928	2	6	.56	5.75	2.83	3.50	5.56	3.22	4.44	.44	1.88	2.24	5.35	9.00
90EF-449B3-2.5-40	D17930	2.5	6	.56	5.75	2.83	3.50	6.13	3.22	5.00	.50	1.88	2.24	5.35	10.00
90EF-449B3-2.5-48	D17932	2.5	6	.56	6.01	3.09	4.00	6.13	3.78	5.00	.50	2.09	2.71	5.58	12.00
90EF-449B3-3-48	D17937	3	8	.56	6.01	3.09	4.00	6.63	4.44	5.50	.50	2.09	3.31	5.58	13.00
90EF-449B3-3.5-64	D17939	3.5	8	.56	6.80	3.88	4.62	7.19	5.22	6.06	.50	2.81	3.81	6.50	19.00
90EF-449B3-4-64	D17941	4	8	.56	6.80	3.88	4.62	7.69	5.28	6.56	.50	2.81	4.28	6.50	20.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190656

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class IV, 15lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190656-32-40	2	6	5.70	2.87	2.05	3.00	3.50	5.56	3.28	4.44	-	.44	3.90	1.88	2.24	3.69	9.02
375-190656-40-40	2.5	6	5.70	2.87	2.05	3.00	3.50	6.12	3.28	5.00	-	.50	3.90	1.88	2.24	3.69	10.12
375-190656-40-48	2.5	6	5.96	3.08	2.50	3.50	4.00	6.12	3.78	5.00	-	.50	4.50	2.09	2.71	3.69	12.02
375-190656-48-48	3	8	5.96	3.08	2.50	3.50	4.00	6.62	4.50	5.50	-	.50	4.50	2.09	3.31	3.69	12.93
375-190656-56-64	3.5	8	6.75	3.94	3.45	4.75	4.62	7.19	5.22	6.06	-	.50	5.44	2.81	3.81	3.69	19.06
375-190656-64-64	4	8	6.75	3.94	3.45	4.75	4.62	7.69	5.22	6.56	-	.50	5.44	2.81	4.28	3.69	20.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-80005-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

Equals to P/N 375-190757

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type FL, Group IV, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B5-2-40	D18573	2	6	.56	5.75	2.83	3.50	5.56	3.22	4.44	.81	1.88	2.24	5.35	11.00
90EF-449B5-2.5-40	D18574	2.5	6	.56	5.75	2.83	3.50	6.13	3.22	5.00	.94	1.88	2.24	5.35	13.00
90EF-449B5-2.5-48	D18575	2.5	6	.56	6.01	3.09	4.00	6.13	3.78	5.00	.94	2.09	2.71	5.58	15.00
90EF-449B5-3-48	D18576	3	8	.56	6.01	3.09	4.00	6.63	4.44	5.50	.94	2.09	3.31	5.58	16.00
90EF-449B5-3.5-64	D18577	3.5	8	.56	6.80	3.88	4.62	7.19	5.22	6.06	1.00	2.81	3.81	6.50	22.00
90EF-449B5-4-64	D18578	4	8	.56	6.80	3.88	4.62	7.69	5.28	6.56	1.00	2.81	4.28	6.50	24.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	D17862	D17863	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	D17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	D17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	D17986	Monel

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B2-2-40	D17867	2	6	.69	5.75	2.83	3.50	5.56	3.22	4.44	.81	1.88	2.24	5.35	16.00
90EF-449B2-2.5-40	D17885	2.5	6	.69	5.75	2.83	3.50	6.13	3.22	5.00	.94	1.88	2.24	5.35	17.00
90EF-449B2-2.5-48	D17877	2.5	6	.69	6.01	3.09	4.00	6.13	3.78	5.00	.94	2.09	2.71	5.58	18.00
90EF-449B2-3-48	D17888	3	8	.69	6.01	3.09	4.00	6.63	4.44	5.50	.94	2.09	3.31	5.58	19.00
90EF-449B2-3.5-64	D17892	3.5	8	.69	6.80	3.88	4.62	7.19	5.22	6.06	1.00	2.81	3.81	6.50	25.00
90EF-449B2-4-64	D17898	4	8	.69	6.80	3.88	4.62	7.69	5.28	6.56	1.00	2.81	4.28	6.50	26.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	D17310	Aluminum. Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449

Equal to Aeroquip P/N 375-190757

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B5-2-40	D18573	2	6	.56	5.75	2.83	3.50	5.56	3.22	4.44	.81	1.88	2.24	5.35	11.00
90EF-449B5-2.5-40	D18574	2.5	6	.56	5.75	2.83	3.50	6.13	3.22	5.00	.94	1.88	2.24	5.35	13.00
90EF-449B5-2.5-48	D18575	2.5	6	.56	6.01	3.09	4.00	6.13	3.78	5.00	.94	2.09	2.71	5.58	15.00
90EF-449B5-3-48	D18576	3	8	.56	6.01	3.09	4.00	6.63	4.44	5.50	.94	2.09	3.31	5.58	16.00
90EF-449B5-3.5-64	D18577	3.5	8	.56	6.80	3.88	4.62	7.19	5.22	6.06	1.00	2.81	3.81	6.50	22.00
90EF-449B5-4-64	D18578	4	8	.56	6.80	3.88	4.62	7.69	5.28	6.56	1.00	2.81	4.28	6.50	24.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	D17862	D17863	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	D17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	D17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	D17986	Monel

HS449 Equivalent

P/N 265-190757

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B2-2-40	D17867	2	6	.69	5.75	2.83	3.50	5.56	3.22	4.44	.81	1.88	2.24	5.35	16.00
90EF-449B2-2.5-40	D17885	2.5	6	.69	5.75	2.83	3.50	6.13	3.22	5.00	.94	1.88	2.24	5.35	17.00
90EF-449B2-2.5-48	D17877	2.5	6	.69	6.01	3.09	4.00	6.13	3.78	5.00	.94	2.09	2.71	5.58	18.00
90EF-449B2-3-48	D17888	3	8	.69	6.01	3.09	4.00	6.63	4.44	5.50	.94	2.09	3.31	5.58	19.00
90EF-449B2-3.5-64	D17892	3.5	8	.69	6.80	3.88	4.62	7.19	5.22	6.06	1.00	2.81	3.81	6.50	25.00
90EF-449B2-4-64	D17898	4	8	.69	6.80	3.88	4.62	7.69	5.28	6.56	1.00	2.81	4.28	6.50	26.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	D17310	Aluminum. Bronze
Elbow	1	D17862	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Equals to P/N 375-190758

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type FL, Group IV, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B1-2-40	D17911	2	7	.69	5.75	2.83	3.50	6.50	3.22	5.19	.81	1.88	2.24	5.35	13.00
90EF-449B1-2.5-48	D17913	2.5	8	.81	6.01	3.09	4.00	7.56	3.78	6.00	.94	2.09	2.71	5.58	18.00
90EF-449B1-3-48	D17916	3	8	.81	6.01	3.09	4.00	8.13	4.44	6.56	.94	2.09	3.31	5.58	20.00
90EF-449B1-3.5-64	D17917	3.5	9	.81	6.80	3.88	4.62	8.69	5.22	7.13	1.00	2.81	3.81	6.50	27.00
90EF-449B1-4-64	D17924	4	9	.81	6.80	3.88	4.62	9.25	5.28	7.69	1.00	2.81	4.28	6.50	30.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17801	C17802	C17803	C17804	Bronze
Elbow	1	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190758-32-40	2	7	5.70	2.87	2.05	3.00	3.50	6.50	3.28	5.19	-	.81	3.90	1.88	2.24	3.69	12.87
375-190758-40-48	2.5	8	5.96	3.08	2.50	3.50	4.00	7.56	3.78	6.00	-	.94	4.50	2.09	2.71	3.69	18.43
375-190758-48-48	3	8	5.96	3.08	2.50	3.50	4.00	8.12	4.50	6.56	-	.94	4.50	2.09	3.31	3.69	20.01
375-190758-56-64	3.5	9	6.75	3.94	3.45	4.75	4.62	8.69	5.22	7.12	-	1.00	5.44	2.81	3.81	3.69	27.34
375-190758-64-64	4	9	6.75	3.94	3.45	4.75	4.62	9.25	5.22	7.69	-	1.00	5.44	2.81	4.28	3.69	30.07

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190758

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-449B1-2-40	D17911	2	7	.69	5.75	2.83	3.50	6.50	3.22	5.19	.81	1.88	2.24	5.35	13.00
90EF-449B1-2.5-48	D17913	2.5	8	.81	6.01	3.09	4.00	7.56	3.78	6.00	.94	2.09	2.71	5.58	18.00
90EF-449B1-3-48	D17916	3	8	.81	6.01	3.09	4.00	8.13	4.44	6.56	.94	2.09	3.31	5.58	20.00
90EF-449B1-3.5-64	D17917	3.5	9	.81	6.80	3.88	4.62	8.69	5.22	7.13	1.00	2.81	3.81	6.50	27.00
90EF-449B1-4-64	D17924	4	9	.81	6.80	3.88	4.62	9.25	5.28	7.69	1.00	2.81	4.28	6.50	30.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17801	C17802	C17803	C17804	Bronze
Elbow	1	D17862	D17870	D17886	D17890	D17896	Aluminum. Bronze
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190758

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IV, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	F	H	J	K	L	M	N	Q	R	S	V	Est. Wt. (lbs.)
375-190758-32-40	2	7	5.70	2.87	2.05	3.00	3.50	6.50	3.28	5.19	-	.81	3.90	1.88	2.24	3.69	12.87
375-190758-40-48	2.5	8	5.96	3.08	2.50	3.50	4.00	7.56	3.78	6.00	-	.94	4.50	2.09	2.71	3.69	18.43
375-190758-48-48	3	8	5.96	3.08	2.50	3.50	4.00	8.12	4.50	6.56	-	.94	4.50	2.09	3.31	3.69	20.01
375-190758-56-64	3.5	9	6.75	3.94	3.45	4.75	4.62	8.69	5.22	7.12	-	1.00	5.44	2.81	3.81	3.69	27.34
375-190758-64-64	4	9	6.75	3.94	3.45	4.75	4.62	9.25	5.22	7.69	-	1.00	5.44	2.81	4.28	3.69	30.07

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	188-185212-	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	48	48	64	64	Monel
Ring	1	4-21004-	40	48	48	64	64	Monel
Band	1	4-21023-	40	48	48	64	64	Monel

Equals to P/N 412-190814

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

600lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A7-2.5-40-SS	C21183	2.5	8	.88	5.2	2.28	7.5	3.22	5.34	1.12	2.24	5.35	18.90

Description	Req’d per Ass’y	2.5-40	Material
Swivel Flange	1	C21181	Stainless Steel
Nipple	1	C18152	Stainless Steel
Segment	3	D17299-1	Aluminum. Bronze
Bolt	6	B17673-2	Monel
Lock Nut	6	B18176	Monel
Washer	6	B18175	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
412-190814-40-40	2.5	8	5.16	2.34	2.06	7.50	3.28	5.88	.88	.94	3.91	2.24	3.69	-

Description	Req’d per Ass’y	Base No.	40-40	Material
Swivel Flange	1	407-74031-	40-40	Aluminum. Bronze
Nipple	1	407-4112-	40	Aluminum. Bronze
Socket Assembly	3	4-1205-	40	Monel
Socket Segment	6	4-1205-1-	40	Monel
Ring	6	4-21004-	40	Monel
Band	6	4-21023-	40	Monel

HS449

Equal to Aeroquip P/N 412-190814

Hose to Flange

End Fitting - Straight

600lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A7-2.5-40-SS	C21183	2.5	8	.88	5.2	2.28	7.5	3.22	5.34	1.12	2.24	5.35	18.90

Description	Req’d per Ass’y	2.5-40	Material
Swivel Flange	1	C21181	Stainless Steel
Nipple	1	C18152	Stainless Steel
Segment	3	D17299-1	Aluminum. Bronze
Bolt	6	B17673-2	Monel
Lock Nut	6	B18176	Monel
Washer	6	B18175	Monel

HS449 Equivalent

P/N 412-190814

Hose to Flange

End Fitting - Straight

600lb

. Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
412-190814-40-40	2.5	8	5.16	2.34	2.06	7.50	3.28	5.88	.88	.94	3.91	2.24	3.69	-

Description	Req’d per Ass’y	Base No.	40-40	Material
Swivel Flange	1	407-74031-	40-40	Aluminum. Bronze
Nipple	1	407-4112-	40	Aluminum. Bronze
Socket Assembly	3	4-1205-	40	Monel
Socket Segment	6	4-1205-1-	40	Monel
Ring	6	4-21004-	40	Monel
Band	6	4-21023-	40	Monel

Equals to P/N FJ9477-413

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

300lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A6-2-40-BSS	C19756	2	8	.75	5.11	2.20	6.50	3.22	5.00	.81	2.24	5.25	9.00
EF-449A6-2.5-40-BSS	C19757	2.5	8	.88	5.11	2.20	7.48	3.22	5.87	.94	2.24	5.35	11.00
EF-449A6-2.5-48-BSS	C19758	2.5	8	.88	5.11	2.20	7.48	3.78	5.87	.94	2.71	5.58	12.00
EF-449A6-3-48-BSS	C19759	3	8	.88	5.20	2.20	8.25	4.44	6.63	1.13	3.31	5.69	12.00
EF-449A6-3.5-64-BSS	C19760	3.5	8	.88	5.54	2.63	9.06	5.22	7.25	1.13	3.81	6.50	17.00
EF-449A6-4-64-BSS	C19727	4	8	.88	5.54	2.63	10.00	5.22	7.88	1.25	4.28	6.50	18.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C19767	C19769	-	C19770	C19771	C19765	Stainless Steel
Nipple	1	C17306	-	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	-	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	-	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	-	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	-	B18175	B18175	B17986	B17986	Monel

HS449

Equal to Aeroquip P/N FJ9477-413

Hose to Flange

End Fitting - Straight

300lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A6-2-40-BSS	C19756	2	8	.75	5.11	2.20	6.50	3.22	5.00	.81	2.24	5.25	9.00
EF-449A6-2.5-40-BSS	C19757	2.5	8	.88	5.11	2.20	7.48	3.22	5.87	.94	2.24	5.35	11.00
EF-449A6-2.5-48-BSS	C19758	2.5	8	.88	5.11	2.20	7.48	3.78	5.87	.94	2.71	5.58	12.00
EF-449A6-3-48-BSS	C19759	3	8	.88	5.20	2.20	8.25	4.44	6.63	1.13	3.31	5.69	12.00
EF-449A6-3.5-64-BSS	C19760	3.5	8	.88	5.54	2.63	9.06	5.22	7.25	1.13	3.81	6.50	17.00
EF-449A6-4-64-BSS	C19727	4	8	.88	5.54	2.63	10.00	5.22	7.88	1.25	4.28	6.50	18.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C19767	C19769	-	C19770	C19771	C19765	Stainless Steel
Nipple	1	C17306	-	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	-	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	-	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	-	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	-	B18175	B18175	B17986	B17986	Monel

Equals to P/N 412-190767

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A4-2.5-40-SS	C18192	2.5	4	.75	5.16	2.20	7.00	3.28	5.50	.48	2.24	5.35	11
EF-449A4-2.5-48-SS	C18193	2.5	4	.75	5.17	2.20	7.00	3.78	5.50	.48	2.71	5.58	12
EF-449A4-3-48-SS	C18194	3	4	.75	5.17	2.20	7.50	4.50	6.00	.48	3.31	5.58	13
EF-449A4-4-64-SS	C19663	4	8	.75	5.54	2.63	9.00	5.22	7.50	.48	4.28	6.50	18

Description	Req’d per Ass’y	2.5-40	2.5-48	3-48	4-64	Material
Swivel Flange	1	C18149	C18150	C18151	C19632	Stainless Steel
Nipple	1	C18152	C18153	C18154	C19633	Stainless Steel
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
412-190767-32-40	2	4	5.16	2.34	2.06	6.00	3.28	4.75	.75	.44	3.90	2.24	3.69	8.58
412-190767-40-40	2.5	4	5.16	2.34	2.06	7.00	3.28	5.50	.75	.50	3.90	2.24	3.69	10.81
412-190767-40-48	2.5	4	5.17	2.30	2.51	7.00	3.78	5.50	.75	.50	4.50	2.71	3.69	11.68
412-190767-48-48	3	4	5.17	2.30	2.51	7.50	4.50	6.00	.75	.50	4.50	3.31	3.69	11.97
412-190767-56-64	3.5	8	5.54	2.74	3.45	8.50	5.22	7.00	.75	.50	5.44	3.81	3.69	17.00
412-190767-64-64	4	8	5.54	2.74	3.45	9.00	5.22	7.50	.75	.50	5.44	4.28	3.69	18.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	407-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Stainless Steel
Nipple	1	407-4112-	40	40	40-48	48-48	56-64	64-64	Stainless Steel
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 412-190767

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A4-2.5-40-SS	C18192	2.5	4	.75	5.16	2.20	7.00	3.28	5.50	.48	2.24	5.35	11
EF-449A4-2.5-48-SS	C18193	2.5	4	.75	5.17	2.20	7.00	3.78	5.50	.48	2.71	5.58	12
EF-449A4-3-48-SS	C18194	3	4	.75	5.17	2.20	7.50	4.50	6.00	.48	3.31	5.58	13
EF-449A4-4-64-SS	C19663	4	8	.75	5.54	2.63	9.00	5.22	7.50	.48	4.28	6.50	18

Description	Req’d per Ass’y	2.5-40	2.5-48	3-48	4-64	Material
Swivel Flange	1	C18149	C18150	C18151	C19632	Stainless Steel
Nipple	1	C18152	C18153	C18154	C19633	Stainless Steel
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	Monel

HS449 Equivalent

P/N 412-190767

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
412-190767-32-40	2	4	5.16	2.34	2.06	6.00	3.28	4.75	.75	.44	3.90	2.24	3.69	8.58
412-190767-40-40	2.5	4	5.16	2.34	2.06	7.00	3.28	5.50	.75	.50	3.90	2.24	3.69	10.81
412-190767-40-48	2.5	4	5.17	2.30	2.51	7.00	3.78	5.50	.75	.50	4.50	2.71	3.69	11.68
412-190767-48-48	3	4	5.17	2.30	2.51	7.50	4.50	6.00	.75	.50	4.50	3.31	3.69	11.97
412-190767-56-64	3.5	8	5.54	2.74	3.45	8.50	5.22	7.00	.75	.50	5.44	3.81	3.69	17.00
412-190767-64-64	4	8	5.54	2.74	3.45	9.00	5.22	7.50	.75	.50	5.44	4.28	3.69	18.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	407-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Stainless Steel
Nipple	1	407-4112-	40	40	40-48	48-48	56-64	64-64	Stainless Steel
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

Equals to P/N 375-190767

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type F, Group IV, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A4-2-40	C17979	2	4	.75	5.11	2.2	6.00	3.22	4.75	.42	2.24	5.35	9.00
EF-449A4-2.5-40	C17980	2.5	4	.75	5.11	2.20	7.00	3.22	5.50	.48	2.24	5.35	11.00
EF-449A4-2.5-48	C17981	2.5	4	.75	5.11	2.20	7.00	3.78	5.50	.48	2.71	5.58	12.00
EF-449A4-3-48	C17982	3	4	.75	5.11	2.20	7.50	4.44	6.00	.48	3.31	5.58	12.00
EF-449A4-3.5-64	C17985	3.5	8	.75	5.54	2.63	8.50	5.22	7.00	.48	3.81	6.50	17.00
EF-449A4-4-64	C17988	4	8	.75	5.54	2.63	9.00	5.22	7.50	.48	4.28	6.50	18.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B17176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190767-32-40	2	4	5.16	2.34	2.06	6.00	3.28	4.75	.75	.44	3.90	2.24	3.69	8.58
375-190767-40-40	2.5	4	5.16	2.34	2.06	7.00	3.28	5.50	.75	.50	3.90	2.24	3.69	10.81
375-190767-40-48	2.5	4	5.17	2.30	2.51	7.00	3.78	5.50	.75	.50	4.50	2.71	3.69	11.68
375-190767-48-48	3	4	5.17	2.30	2.51	7.50	4.50	6.00	.75	.50	4.50	3.31	3.69	11.97
375-190767-56-64	3.5	8	5.54	2.74	3.45	8.50	5.22	7.00	.75	.50	5.44	3.81	3.69	17.00
375-190767-64-64	4	8	5.54	2.74	3.45	9.00	5.22	7.50	.75	.50	5.44	4.28	3.69	18.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190767

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A4-2-40	C17979	2	4	.75	5.11	2.2	6.00	3.22	4.75	.42	2.24	5.35	9.00
EF-449A4-2.5-40	C17980	2.5	4	.75	5.11	2.20	7.00	3.22	5.50	.48	2.24	5.35	11.00
EF-449A4-2.5-48	C17981	2.5	4	.75	5.11	2.20	7.00	3.78	5.50	.48	2.71	5.58	12.00
EF-449A4-3-48	C17982	3	4	.75	5.11	2.20	7.50	4.44	6.00	.48	3.31	5.58	12.00
EF-449A4-3.5-64	C17985	3.5	8	.75	5.54	2.63	8.50	5.22	7.00	.48	3.81	6.50	17.00
EF-449A4-4-64	C17988	4	8	.75	5.54	2.63	9.00	5.22	7.50	.48	4.28	6.50	18.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B17176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190767

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190767-32-40	2	4	5.16	2.34	2.06	6.00	3.28	4.75	.75	.44	3.90	2.24	3.69	8.58
375-190767-40-40	2.5	4	5.16	2.34	2.06	7.00	3.28	5.50	.75	.50	3.90	2.24	3.69	10.81
375-190767-40-48	2.5	4	5.17	2.30	2.51	7.00	3.78	5.50	.75	.50	4.50	2.71	3.69	11.68
375-190767-48-48	3	4	5.17	2.30	2.51	7.50	4.50	6.00	.75	.50	4.50	3.31	3.69	11.97
375-190767-56-64	3.5	8	5.54	2.74	3.45	8.50	5.22	7.00	.75	.50	5.44	3.81	3.69	17.00
375-190767-64-64	4	8	5.54	2.74	3.45	9.00	5.22	7.50	.75	.50	5.44	4.28	3.69	18.05

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023-	40	40	48	48	64	64	Monel

Equals to P/N 375-190655

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type F, Group IV, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A3-2-40	C17989	2	6	.56	5.11	2.20	5.56	3.22	4.44	.44	2.24	5.35	8.00
EF-449A3-2.5-40	C17990	2.5	6	.56	5.11	2.20	6.13	3.22	5.00	.50	2.24	5.35	9.00
EF-449A3-2.5-48	C17991	2.5	6	.56	5.11	2.20	6.13	3.78	5.00	.50	2.71	5.58	10.00
EF-449A3-3-48	C17992	3	8	.56	5.11	2.20	6.63	4.44	5.50	.50	3.31	5.58	11.00
EF-449A3-3.5-64	C17993	3.5	8	.56	5.54	2.63	7.19	5.22	6.06	.50	3.81	6.50	15.00
EF-449A3-4-64	C17994	4	8	.56	5.54	2.63	7.69	5.22	6.56	.50	4.28	6.50	16.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190655-32-40	2	6	5.16	2.34	2.06	5.56	3.28	4.44	.56	.44	3.90	2.24	3.69	8.12
375-190655-40-40	2.5	6	5.16	2.34	2.06	6.12	3.28	5.00	.56	.50	3.90	2.24	3.69	9.21
375-190655-40-48	2.5	6	5.17	2.30	2.51	6.12	3.78	5.00	.56	.50	4.50	2.71	3.69	10.27
375-190655-48-48	3	8	5.17	2.30	2.51	6.62	4.50	5.50	.56	.50	4.50	3.31	3.69	10.41
375-190655-56-64	3.5	8	5.54	2.74	3.45	7.19	5.22	6.06	.56	.50	5.44	3.81	3.69	14.62
375-190655-64-64	4	8	5.54	2.74	3.45	7.69	5.22	6.56	.56	.50	5.44	4.28	3.69	15.61

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-180005-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190655

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A3-2-40	C17989	2	6	.56	5.11	2.20	5.56	3.22	4.44	.44	2.24	5.35	8.00
EF-449A3-2.5-40	C17990	2.5	6	.56	5.11	2.20	6.13	3.22	5.00	.50	2.24	5.35	9.00
EF-449A3-2.5-48	C17991	2.5	6	.56	5.11	2.20	6.13	3.78	5.00	.50	2.71	5.58	10.00
EF-449A3-3-48	C17992	3	8	.56	5.11	2.20	6.63	4.44	5.50	.50	3.31	5.58	11.00
EF-449A3-3.5-64	C17993	3.5	8	.56	5.54	2.63	7.19	5.22	6.06	.50	3.81	6.50	15.00
EF-449A3-4-64	C17994	4	8	.56	5.54	2.63	7.69	5.22	6.56	.50	4.28	6.50	16.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190655

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190655-32-40	2	6	5.16	2.34	2.06	5.56	3.28	4.44	.56	.44	3.90	2.24	3.69	8.12
375-190655-40-40	2.5	6	5.16	2.34	2.06	6.12	3.28	5.00	.56	.50	3.90	2.24	3.69	9.21
375-190655-40-48	2.5	6	5.17	2.30	2.51	6.12	3.78	5.00	.56	.50	4.50	2.71	3.69	10.27
375-190655-48-48	3	8	5.17	2.30	2.51	6.62	4.50	5.50	.56	.50	4.50	3.31	3.69	10.41
375-190655-56-64	3.5	8	5.54	2.74	3.45	7.19	5.22	6.06	.56	.50	5.44	3.81	3.69	14.62
375-190655-64-64	4	8	5.54	2.74	3.45	7.69	5.22	6.56	.56	.50	5.44	4.28	3.69	15.61

Description	Req’d per Ass’y	Base No.	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-180005-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	64	Monel
Ring	1	4-21004-	40	40	48	48	64	64	Monel
Band	1	4-21023	40	40	48	48	64	64	Monel

Equals to P/N 375-190751

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type F, Group IV, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A5-2-40	C18567	2	6	0.56	5.11	2.20	5.56	3.22	4.44	0.81	2.24	5.35	10.00
EF-449A5-2.5-40	C18568	2.5	6	0.56	5.11	2.20	6.13	3.22	5.00	0.94	2.24	5.35	12.00
EF-449A5-2.5-48	C18569	2.5	6	0.56	5.11	2.20	6.13	3.78	5.00	0.94	2.71	5.58	13.00
EF-449A5-3-48	C18570	3	8	0.56	5.11	2.20	6.63	4.44	5.50	0.94	3.31	5.58	13.00
EF-449A5-3.5-64	C18571	3.5	8	0.56	5.54	2.63	7.19	5.22	6.06	1.00	3.81	6.50	18.00
EF-449A5-4-64	C18572	4	8	0.56	5.54	2.63	7.69	5.22	6.56	1.00	4.28	6.50	20.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190751-32-40	2	6	5.16	2.34	2.06	5.56	3.28	4.44	.56	.81	3.90	2.24	3.69	10.23
375-190751-40-40	2.5	6	5.16	2.34	2.06	6.12	3.28	5.00	.56	.94	3.90	2.24	3.69	11.94
375-190751-40-48	2.5	6	5.17	2.30	2.51	6.12	3.78	5.00	.56	.94	4.50	2.71	3.69	12.81
375-190751-48-48	3	8	5.17	2.30	2.51	6.62	4.50	5.50	.56	.94	4.50	3.31	3.69	13.04
375-190751-56-64	3.5	8	5.54	2.74	3.45	7.19	5.22	6.06	.56	1.00	5.44	3.81	3.69	17.90
375-190751-64-64	4	8	5.54	2.74	3.45	7.69	5.22	6.56	.56	1.00	5.44	4.28	3.69	19.80

Description	Req’d per Ass’y	Base No	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	1884112-	40	40	48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1	40	40	48	48	64	64	Monel
Ring	1	4-21004	40	40	48	48	64	64	Monel
Band	1	4-2103-	40	40	48	48	64	64	Monel

HS449

Equal to Aeroquip P/N 375-190751

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A5-2-40	C18567	2	6	0.56	5.11	2.20	5.56	3.22	4.44	0.81	2.24	5.35	10.00
EF-449A5-2.5-40	C18568	2.5	6	0.56	5.11	2.20	6.13	3.22	5.00	0.94	2.24	5.35	12.00
EF-449A5-2.5-48	C18569	2.5	6	0.56	5.11	2.20	6.13	3.78	5.00	0.94	2.71	5.58	13.00
EF-449A5-3-48	C18570	3	8	0.56	5.11	2.20	6.63	4.44	5.50	0.94	3.31	5.58	13.00
EF-449A5-3.5-64	C18571	3.5	8	0.56	5.54	2.63	7.19	5.22	6.06	1.00	3.81	6.50	18.00
EF-449A5-4-64	C18572	4	8	0.56	5.54	2.63	7.69	5.22	6.56	1.00	4.28	6.50	20.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190751

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class II, 150/400lb

. Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190751-32-40	2	6	5.16	2.34	2.06	5.56	3.28	4.44	.56	.81	3.90	2.24	3.69	10.23
375-190751-40-40	2.5	6	5.16	2.34	2.06	6.12	3.28	5.00	.56	.94	3.90	2.24	3.69	11.94
375-190751-40-48	2.5	6	5.17	2.30	2.51	6.12	3.78	5.00	.56	.94	4.50	2.71	3.69	12.81
375-190751-48-48	3	8	5.17	2.30	2.51	6.62	4.50	5.50	.56	.94	4.50	3.31	3.69	13.04
375-190751-56-64	3.5	8	5.54	2.74	3.45	7.19	5.22	6.06	.56	1.00	5.44	3.81	3.69	17.90
375-190751-64-64	4	8	5.54	2.74	3.45	7.69	5.22	6.56	.56	1.00	5.44	4.28	3.69	19.80

Description	Req’d per Ass’y	Base No	32-40	40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	1884112-	40	40	48	48-48	56-64	64-64	Aluminum. Bronze
Socket Assy.	1	4-1205-	40	40	48	48	64	64	Monel
Grip Segment	4	4-1205-1	40	40	48	48	64	64	Monel
Ring	1	4-21004	40	40	48	48	64	64	Monel
Band	1	4-2103-	40	40	48	48	64	64	Monel

Defense

Use with the following hose:HS4265, HS4224, 2562, 150901

400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A1-2.5-40-SS	C18581	2.5	8	.81	5.11	2.20	7.56	3.22	6.00	.94	2.24	5.35	16.00

Description	Req’d per Ass’y	2.5-40	Material
Swivel Flange	1	C18156	Stainless Steel
Nipple	1	C18152	Stainless Steel
Segment	3	D17299	Aluminum. Bronze
Bolt	6	B17673-2	Monel
Lock Nut	6	B18176	Monel
Washer	6	B18175	Monel

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A2-2-40	C18000	2	6	0.69	5.11	2.2	5.56	3.22	4.44	0.81	2.24	5.35	10
EF-449A2-2.5-40	C17089	2-1/2	6	0.69	5.11	2.2	6.13	3.22	5	0.94	2.24	5.35	12
EF-449A2-2.5-48	C18002	2-1/2	6	0.69	5.11	2.2	6.13	3.78	5	0.94	2.71	5.58	13
EF-449A2-3-48	C17092	3	8	0.69	5.11	2.2	6.63	4.44	5.5	0.94	3.31	5.58	13
EF-449A2-3.5-64	C18004	3-1/2	8	0.69	5.54	2.63	7.19	5.22	6.06	1	3.81	5.5	18
EF-449A2-4-64	C17090	4	8	0.69	5.54	2.63	7.69	5.22	6.56	1	4.28	6.5	20

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

HS449

Hose to Flange

End Fitting - Straight

400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A1-2.5-40-SS	C18581	2.5	8	.81	5.11	2.20	7.56	3.22	6.00	.94	2.24	5.35	16.00

Description	Req’d per Ass’y	2.5-40	Material
Swivel Flange	1	C18156	Stainless Steel
Nipple	1	C18152	Stainless Steel
Segment	3	D17299	Aluminum. Bronze
Bolt	6	B17673-2	Monel
Lock Nut	6	B18176	Monel
Washer	6	B18175	Monel

HS449 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A2-2-40	C18000	2	6	0.69	5.11	2.2	5.56	3.22	4.44	0.81	2.24	5.35	10
EF-449A2-2.5-40	C17089	2-1/2	6	0.69	5.11	2.2	6.13	3.22	5	0.94	2.24	5.35	12
EF-449A2-2.5-48	C18002	2-1/2	6	0.69	5.11	2.2	6.13	3.78	5	0.94	2.71	5.58	13
EF-449A2-3-48	C17092	3	8	0.69	5.11	2.2	6.63	4.44	5.5	0.94	3.31	5.58	13
EF-449A2-3.5-64	C18004	3-1/2	8	0.69	5.54	2.63	7.19	5.22	6.06	1	3.81	5.5	18
EF-449A2-4-64	C17090	4	8	0.69	5.54	2.63	7.69	5.22	6.56	1	4.28	6.5	20

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C17306	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B18175	B17986	B17986	Monel

Equals to P/N 375-190752

Defense

MIL-DTL-24787/1

Use with the following hose:HS4265, HS4224, 2562, 150901

Type F, Group IV, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A1-2-40	C17995	2	7	0.69	5.11	2.20	6.5	3.22	5.19	0.81	2.24	5.35	12.00
EF-449A1-2.5-48	C17996	2.5	8	0.81	5.11	2.20	7.56	3.78	6.00	0.94	2.71	5.58	17.00
EF-449A1-3-48	C17997	3	8	0.81	5.11	2.20	8.13	4.44	6.56	0.94	3.31	5.58	18.00
EF-449A1-3.5-64	C17998	3.5	9	0.81	5.54	2.63	8.69	5.22	7.13	1.00	3.81	6.50	23.00
EF-449A1-4-64	C17999	4	9	0.81	5.54	2.63	9.25	5.22	7.69	1.00	4.28	6.50	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190752-32-40	2	7	5.16	2.34	2.06	6.50	3.28	5.19	.69	.83	3.90	2.24	3.69	11.96
375-190752-40-48	2.5	8	5.17	2.30	2.51	7.56	3.78	6.00	.81	.95	4.50	2.71	3.69	16.68
375-190752-48-48	3	8	5.17	2.30	2.51	8.12	4.50	6.56	.81	.95	4.50	3.31	3.69	17.49
375-190752-56-64	3.5	9	5.54	2.74	3.45	8.69	5.22	7.12	.81	1.02	5.44	3.81	3.69	22.90
375-190752-64-64	4	9	5.54	2.74	3.45	9.25	5.22	7.69	.81	1.02	5.44	4.28	3.69	25.63

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74048-	32-40	40-40	48-48	56-48	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	48-48	56-48	64-64	Aluminum. Bronze
Socket Assy	1	4-1205-	40	40	48	48	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	Monel
Ring	1	4-21004-	40	40	48	48	64	Monel
Band	1	4-2103-	40	40	48	48	64	Monel

HS449

Equal to Aeroquip P/N 375-190752

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-449A1-2-40	C17995	2	7	0.69	5.11	2.20	6.5	3.22	5.19	0.81	2.24	5.35	12.00
EF-449A1-2.5-48	C17996	2.5	8	0.81	5.11	2.20	7.56	3.78	6.00	0.94	2.71	5.58	17.00
EF-449A1-3-48	C17997	3	8	0.81	5.11	2.20	8.13	4.44	6.56	0.94	3.31	5.58	18.00
EF-449A1-3.5-64	C17998	3.5	9	0.81	5.54	2.63	8.69	5.22	7.13	1.00	3.81	6.50	23.00
EF-449A1-4-64	C17999	4	9	0.81	5.54	2.63	9.25	5.22	7.69	1.00	4.28	6.50	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C17306	C18016	C17308	C18015	C17210	Aluminum. Bronze
Segment	3	D17299-1	D17300-1	D17300-1	D17301-1	D17301-1	Aluminum. Bronze
Bolt	6	B17673-2	B17673-1	B17673-1	B17987	B17987	Monel
Lock Nut	6	B18176	B18176	B18176	B17984	B17984	Monel
Washer	6	B18175	B18175	B18175	B17986	B17986	Monel

HS449 Equivalent

P/N 375-190752

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IV, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4265, HS4224, 2562, 150901

Part Number	IPS Size	No. of Bolt Holes	A	D	E	J	K	L	M	N	Q	S	V	Est. Wt. (lbs.)
375-190752-32-40	2	7	5.16	2.34	2.06	6.50	3.28	5.19	.69	.83	3.90	2.24	3.69	11.96
375-190752-40-48	2.5	8	5.17	2.30	2.51	7.56	3.78	6.00	.81	.95	4.50	2.71	3.69	16.68
375-190752-48-48	3	8	5.17	2.30	2.51	8.12	4.50	6.56	.81	.95	4.50	3.31	3.69	17.49
375-190752-56-64	3.5	9	5.54	2.74	3.45	8.69	5.22	7.12	.81	1.02	5.44	3.81	3.69	22.90
375-190752-64-64	4	9	5.54	2.74	3.45	9.25	5.22	7.69	.81	1.02	5.44	4.28	3.69	25.63

Description	Req’d per Ass’y	Base No.	32-40	40-48	48	56-64	64	Material
Swivel Flange	1	188-74048-	32-40	40-40	48-48	56-48	64-64	Aluminum. Bronze
Nipple	1	188-4112-	40	40	48-48	56-48	64-64	Aluminum. Bronze
Socket Assy	1	4-1205-	40	40	48	48	64	Monel
Grip Segment	4	4-1205-1-	40	40	48	48	64	Monel
Ring	1	4-21004-	40	40	48	48	64	Monel
Band	1	4-2103-	40	40	48	48	64	Monel

Fittings

Hose

Hose Assemblies

Hose Protectants

Adapters – Marine Hose & Fittings

Fittings

Marine Hose & Assemblies

Split Clamps Sil-Braze Tailpieces and Accessories

Test Fittings

6000 Series Fittings Couplings & Union Assemblies

8100 Series Fittings "O"-Rings & Sil-Braze Rings

8300 Series Fittings "O"-Rings & Sil-Braze Rings

9000 Series Fittings

Hose End Fittings & Adapters

Valves & Accessories

Valves Instrumentation & Adapters

Adapters

Caps & Plugs

Clamps

Coupling

End Fittings

Highline Products

Hooks

Hoses & Assemblies

Lines

Links

Litters

Messenger

Miscellaneous

Pigs

Probes

Receivers

Riding Lines

Saddles

Slings

Straps

Stress Wires

Strongbacks

Surfs

Swivels

Tools

Trolleys

HS449 Fittings

HS1600 Fittings

HS1489 Fittings

HS1488 Medium Pressure Fittings

ER512 Series Large Bore Hoses

HS1546 Large Bore Hose

Air Pipe Heads

Coupling & Shafting Accessories

Deck Drains

Deck Hardware

Drivetrain

Exhaust Fittings

Hose & Clamps

International Shore Connections

Inverted Vent Check Valves

Miscellaneous Hardware

Pipe Caps

Plumbing & Fittings

Sounding Tubes

Steering Hardware

Strainers

Suction Bell mouths

Thru Hulls

Valves

Literature

Distributor Portal

Supplier Information

News

Defense

HS1488

Equal to Aeroquip P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

HS1488 Equivalent

P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg
