HS1488 - Medium Pressure Fittings
412-190093-20

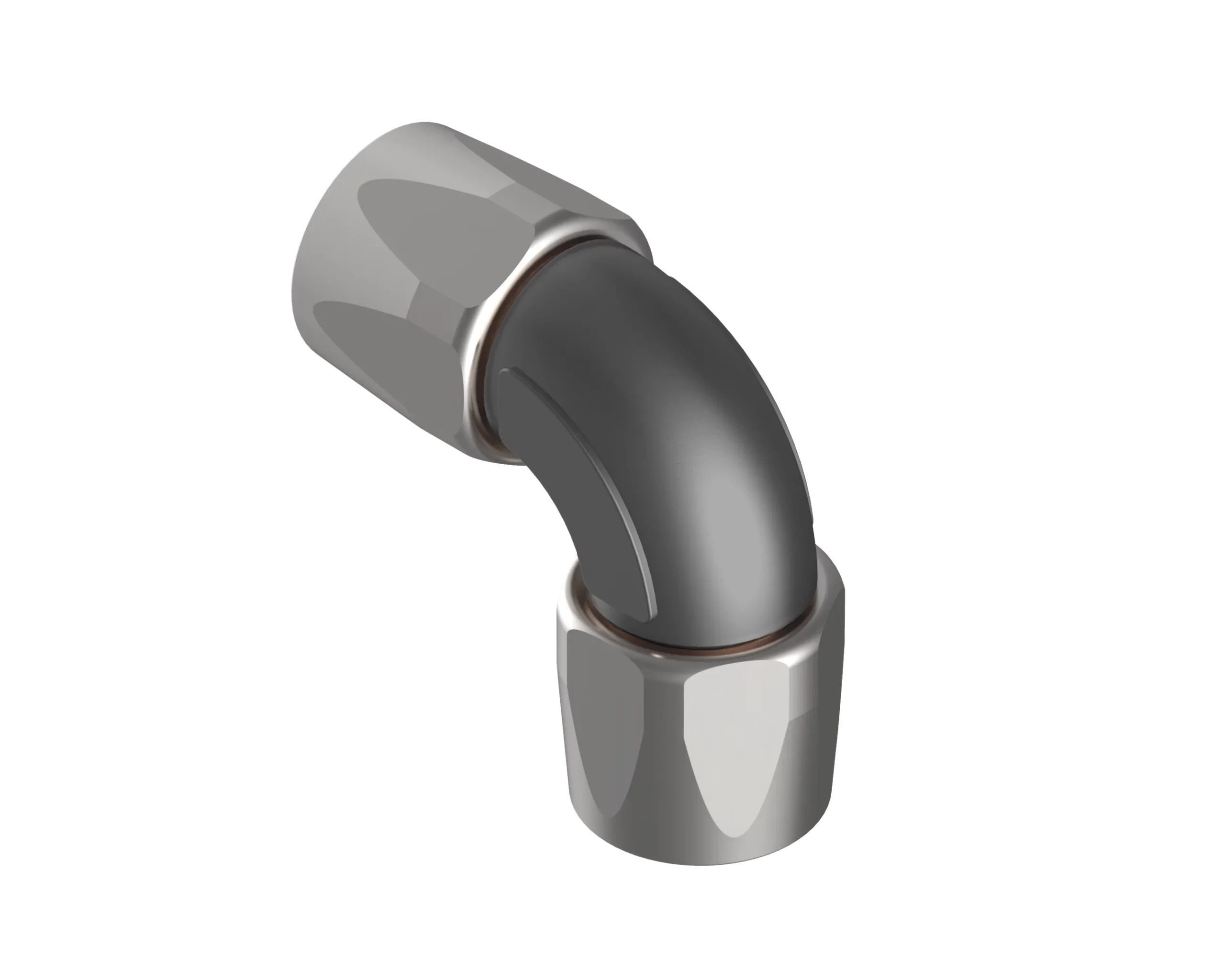

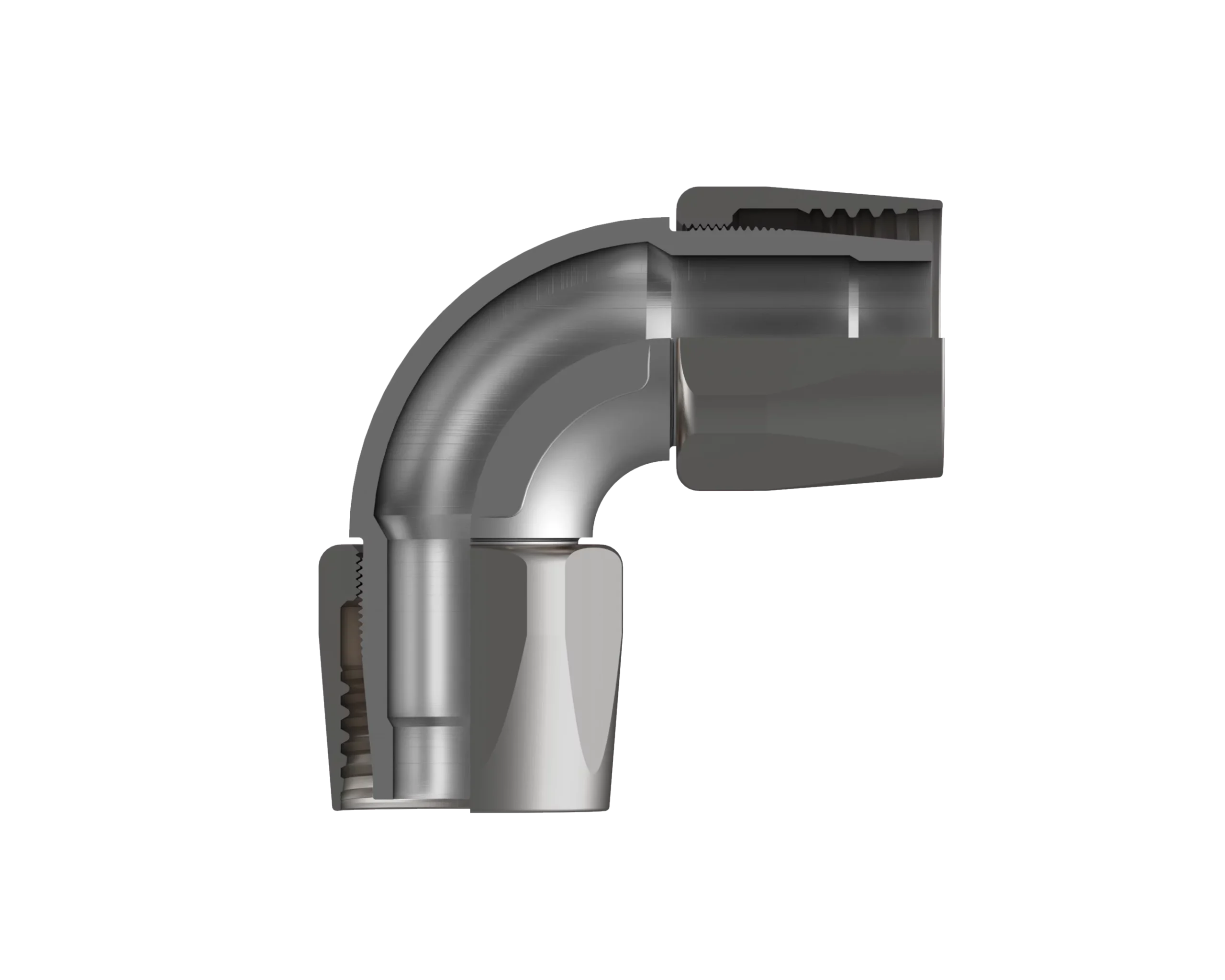

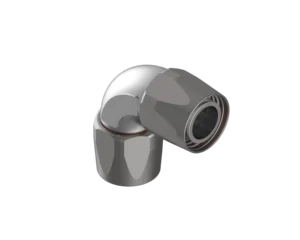

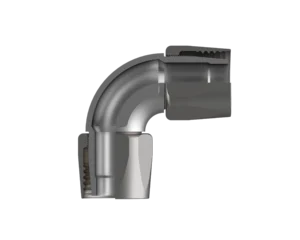

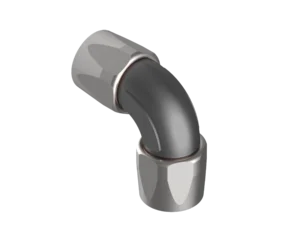

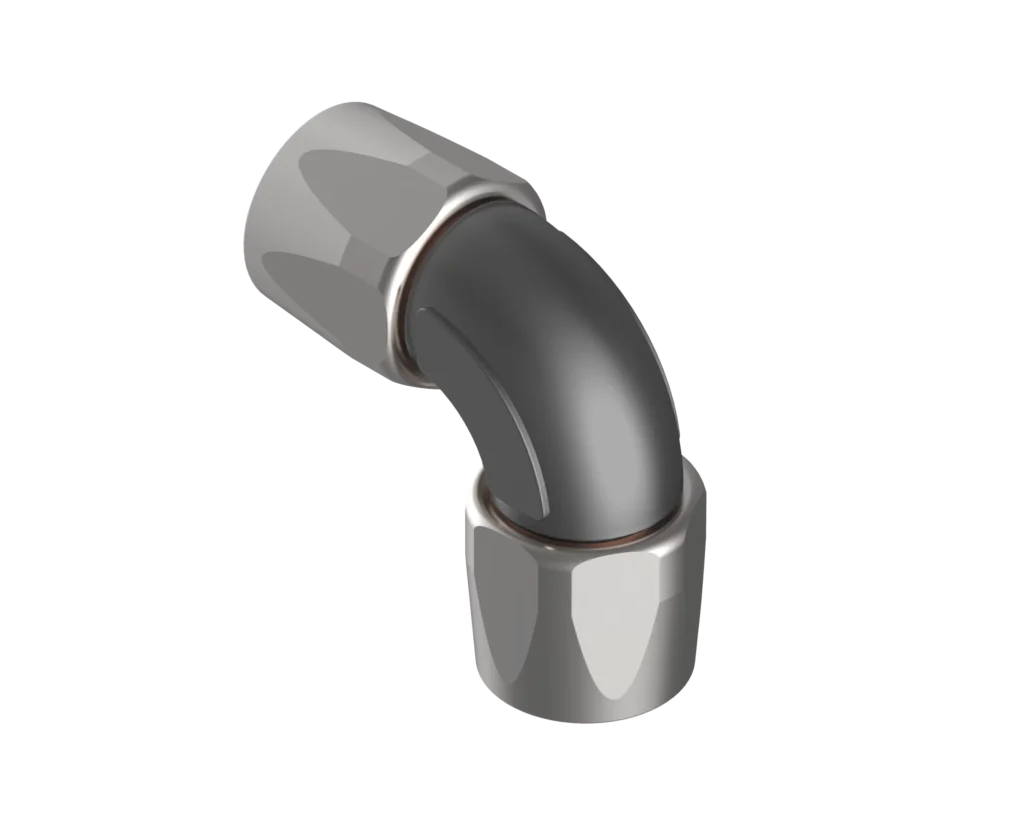

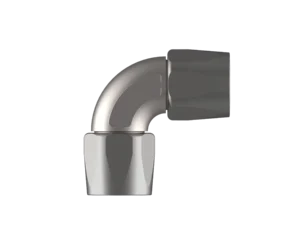

( Elbow - 90° Dogleg )
Description:
Equal to Hydrasearch P/N 90ELB-MSS1488D-2020,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 412-190093-20 |
|---|---|
| IPS Size | 1.25 |
| A | 2.98 |
| D | 1.62 |
| E | 1.00 |
| G | 1.75 |
| R | 1.22 |
| V | 1.75 |
| X | 1.44 |
| Est. Wt. (lbs.) | 1.79 |
Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | -16 | -20 | -24 | -32 | -40 | Material |
| Elbow | 1 | 407-185093 | 16 | 20 | 24 | 32 | 40 | Stainless Steel |
| Socket | 2 | 4-1212- | 16 | 20 | 24 | 32 | 40 | Monel |
