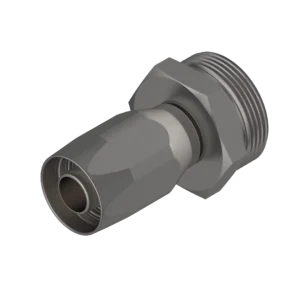

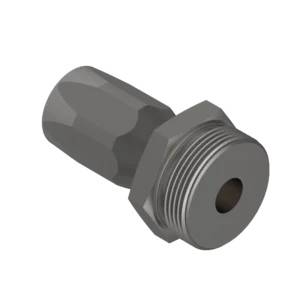

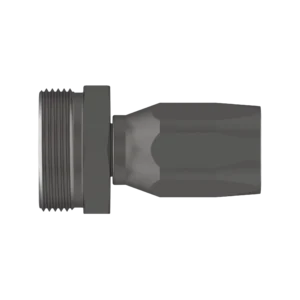

HS1488 - Medium Pressure Fittings
EF-1488C-0206
( MIL-DTL-24787/3, Type C, Group VIII, End Fitting - Straight )
Description:
Equal to Aeroquip P/N 4-190911,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-1488C-0206 |
|---|---|
| Hydrasearch Drawing Number | C19319 |
| IPS Size | 1/8 |
| T Thread CL-2A | 1“-14 |
| A | 2.05 |
| C | 1.06 |
| D | 1.00 |
| G | .81 |
| M | .50 |
| Est. Wt. (lbs.) | .30 |

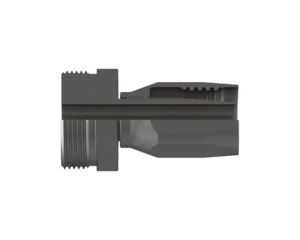

Specification Image
Components Table
| Description | Req’d per Ass’y | 0206 | 0408 | 0610 | 0812 | Material |
| Nipple | 1 | C19014 | C19015 | C19016-1 | - | Monel |
| Socket | 1 | C18986-2 | C18648-2 | C18987-2 | C18988-2 | Monel |
