( Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N 66-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 66-190093-16
  • IPS Size: 1
  • A: 2.80
  • D: 1.53
  • E: .75
  • G: 1.44
  • R: 1.12
  • V: 1.66
  • X: 1.19
  • Est. Wt. (lbs.): 1.17

Specification Table

Part Number66-190093-16
IPS Size1
A2.80
D1.53
E.75
G1.44
R1.12
V1.66
X1.19
Est. Wt. (lbs.)1.17

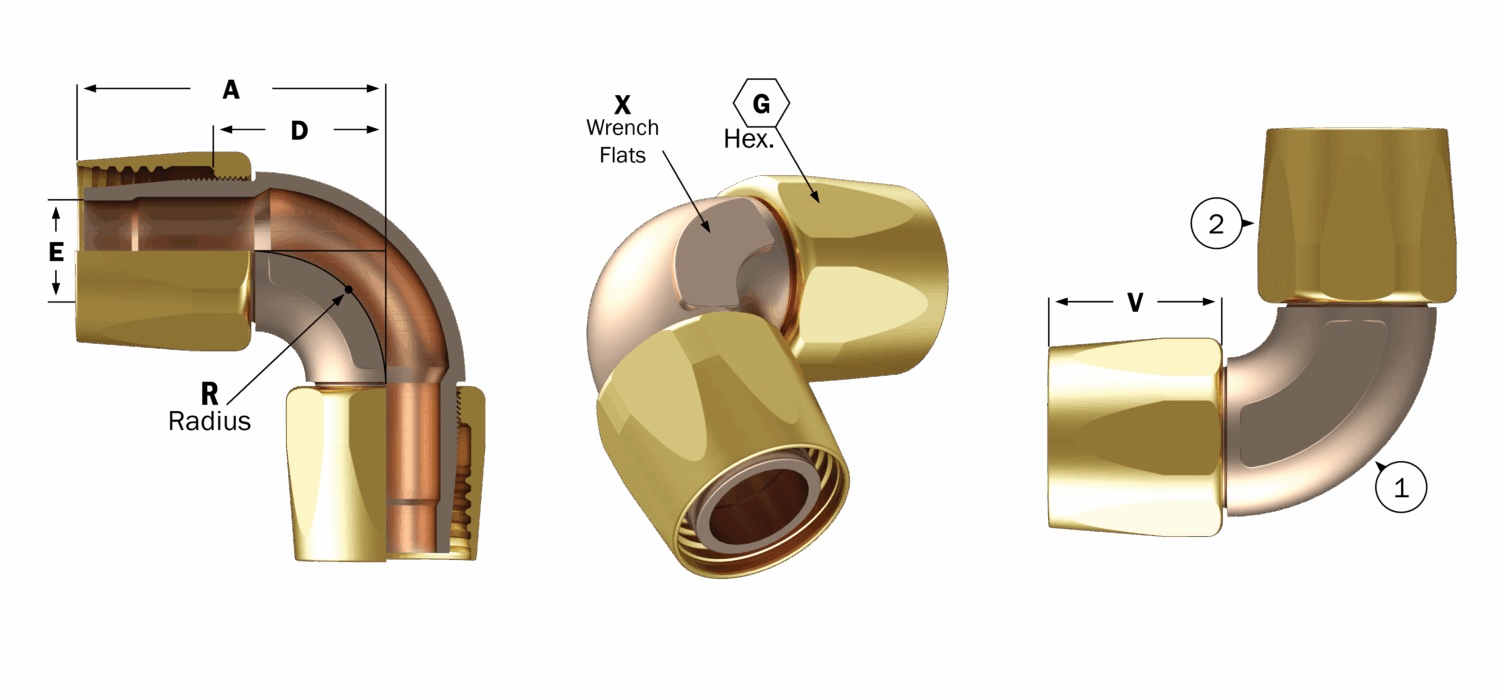

Specification Image

66-190093

Components Table

DescriptionReq’d per Ass’yBase No.-16-20-24-32-40-48Material
Elbow1188-185093-162024324048Aluminum. Bronze
Socket21212-16B20B24B32B40B48BBrass
