90ELB-MB1488D-4040

90ELB-MB1488D-4040 – Elbows – 90º Dogleg – Hose to Hose – Bronze/Monel – (MIL-DTL-24787/5, Type D, Group VIII)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 375-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90ELB-MB1488D-4040
  • Hydrasearch Drawing Number: C19345
  • IPS Size: 2.5
  • A: 4.39
  • D: 2.48
  • E: 2.12
  • G: 3.25
  • R: 1.88
  • V: 2.50
  • X: 2.75
  • Est. Wt. (lbs.): 5.60

Specification Table

Part Number90ELB-MB1488D-4040
Hydrasearch Drawing NumberC19345
IPS Size2.5
A4.39
D2.48
E2.12
G3.25
R1.88
V2.50
X2.75
Est. Wt. (lbs.)5.60

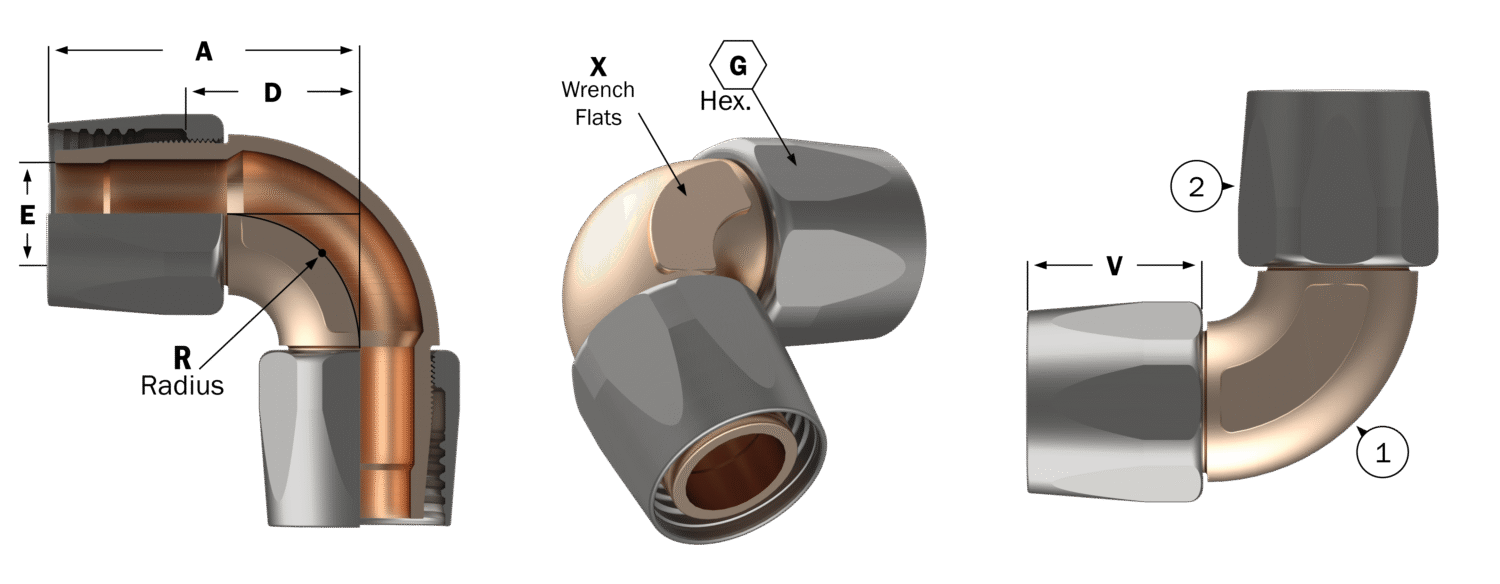

Specification Image

90ELB-MB1488D

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Elbow1C18121C19007C19012C18804C19025C18117Aluminum. Bronze
Socket2C18667-2C18703-2C18990-2C18662C18991C18992Monel
