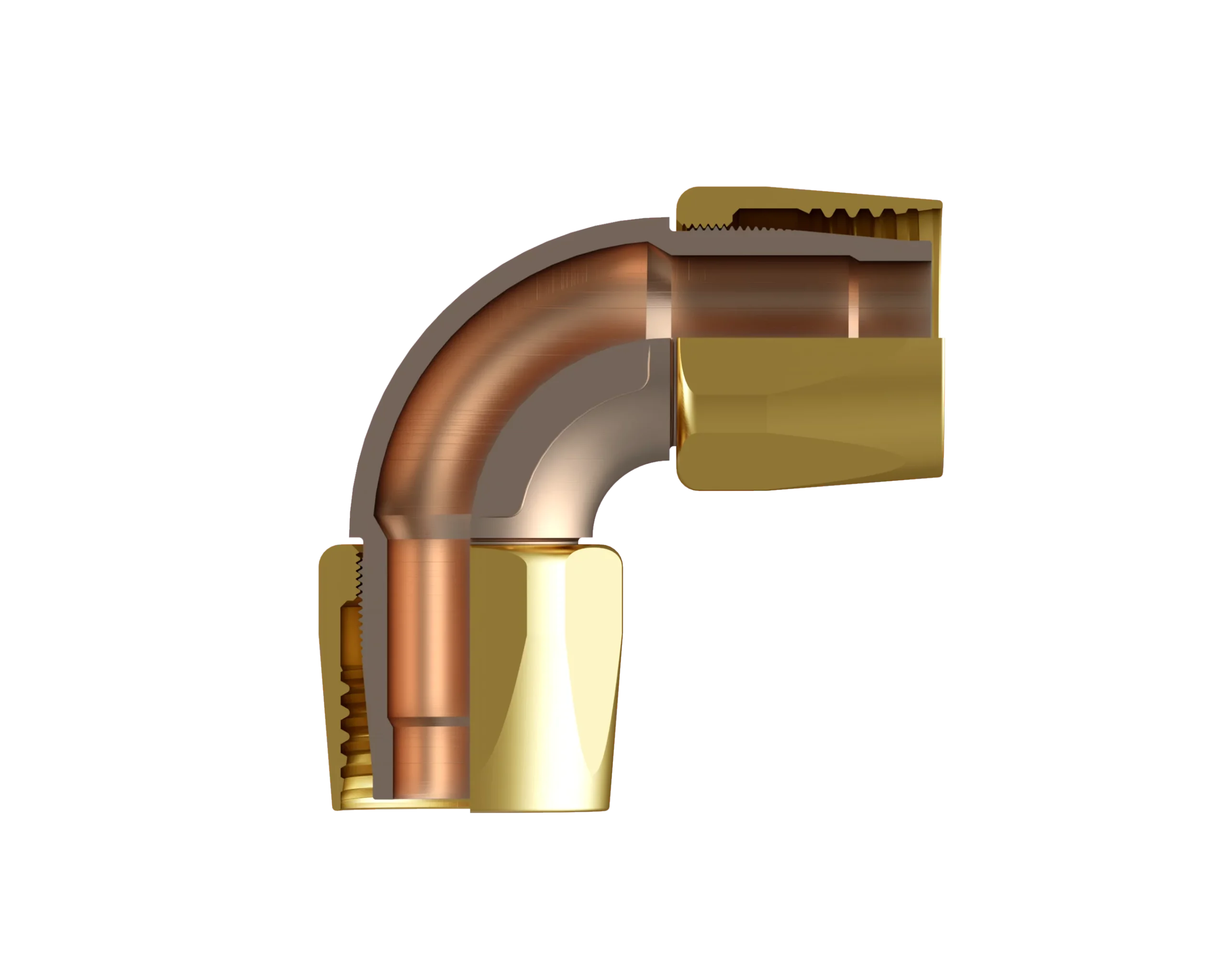

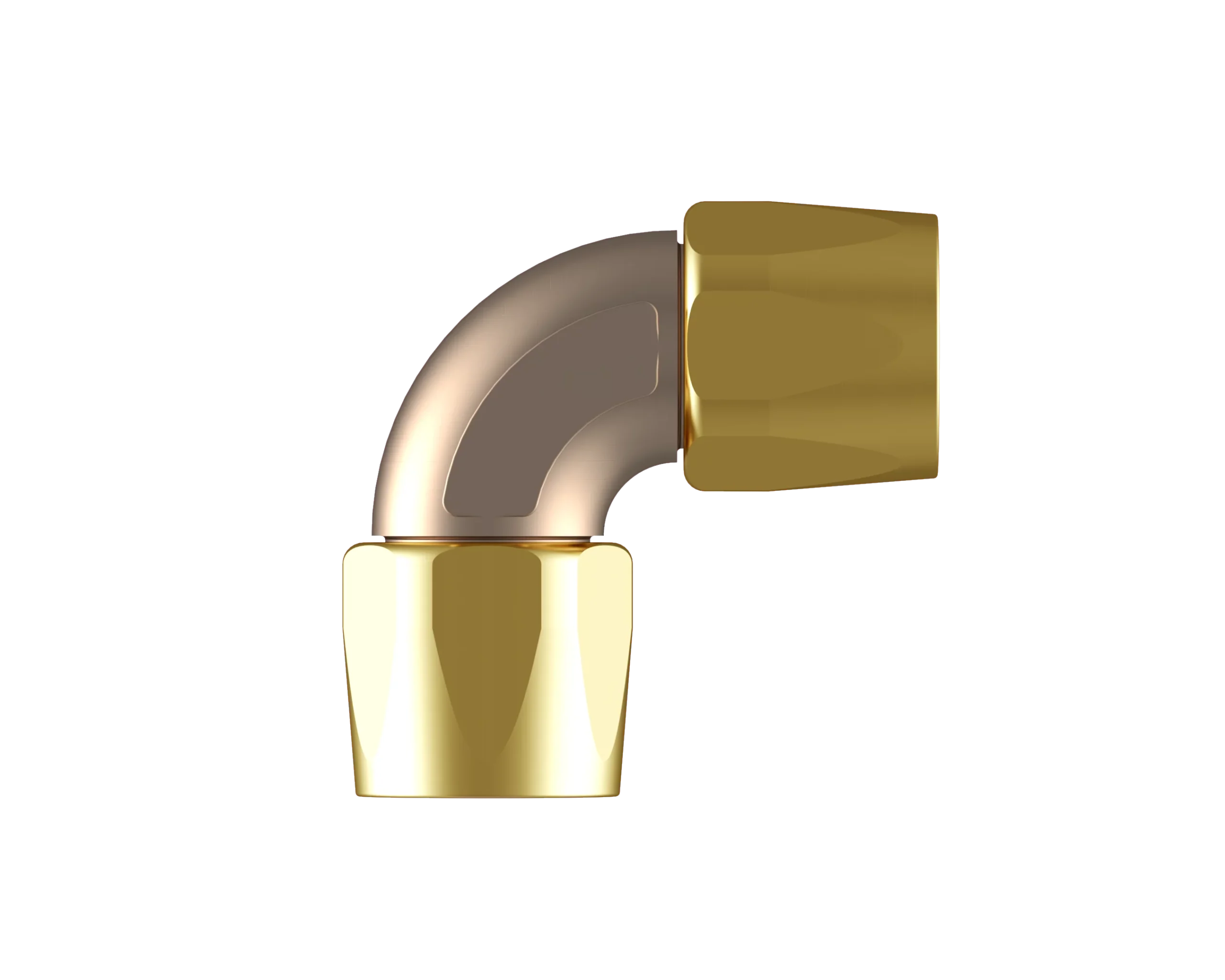

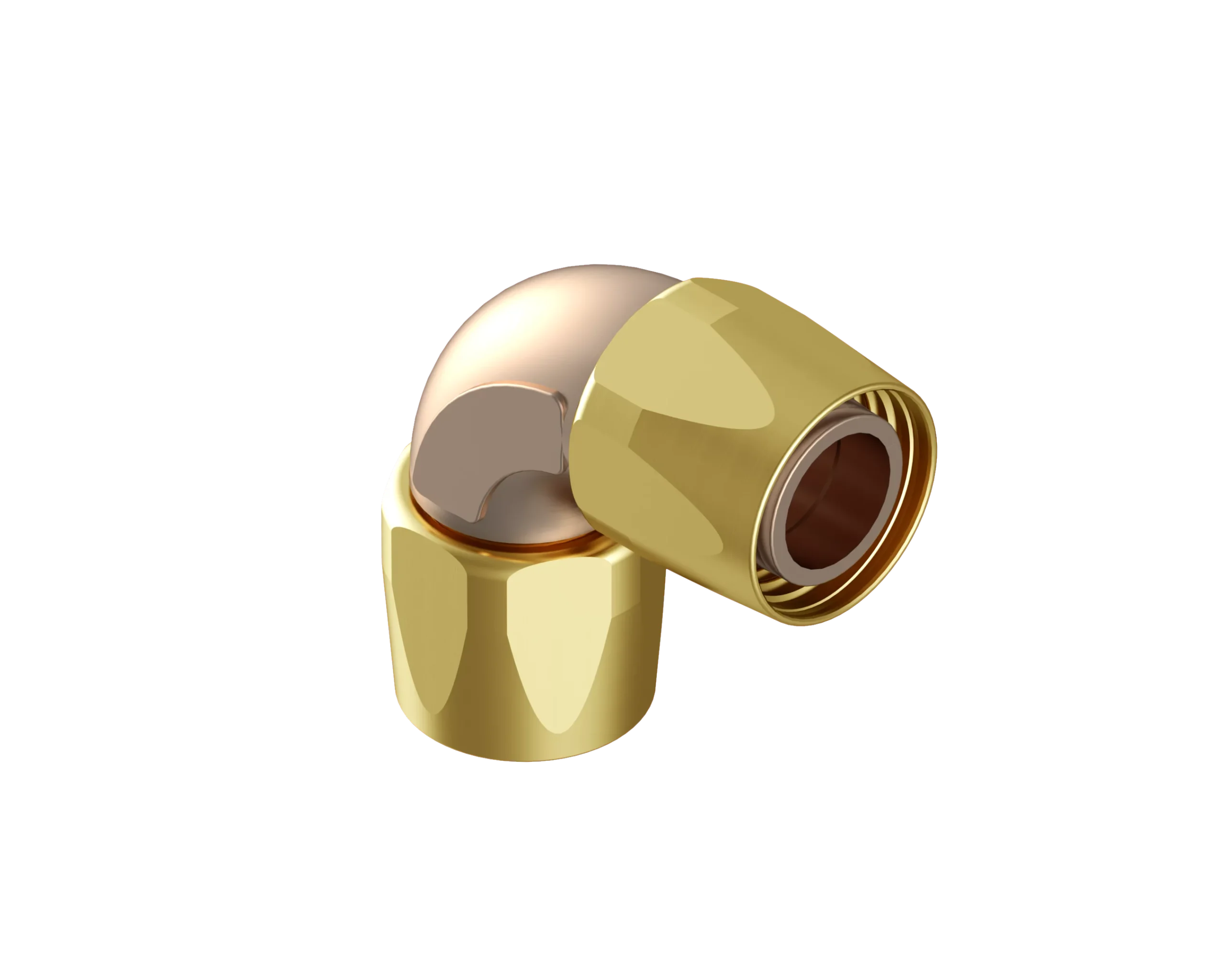

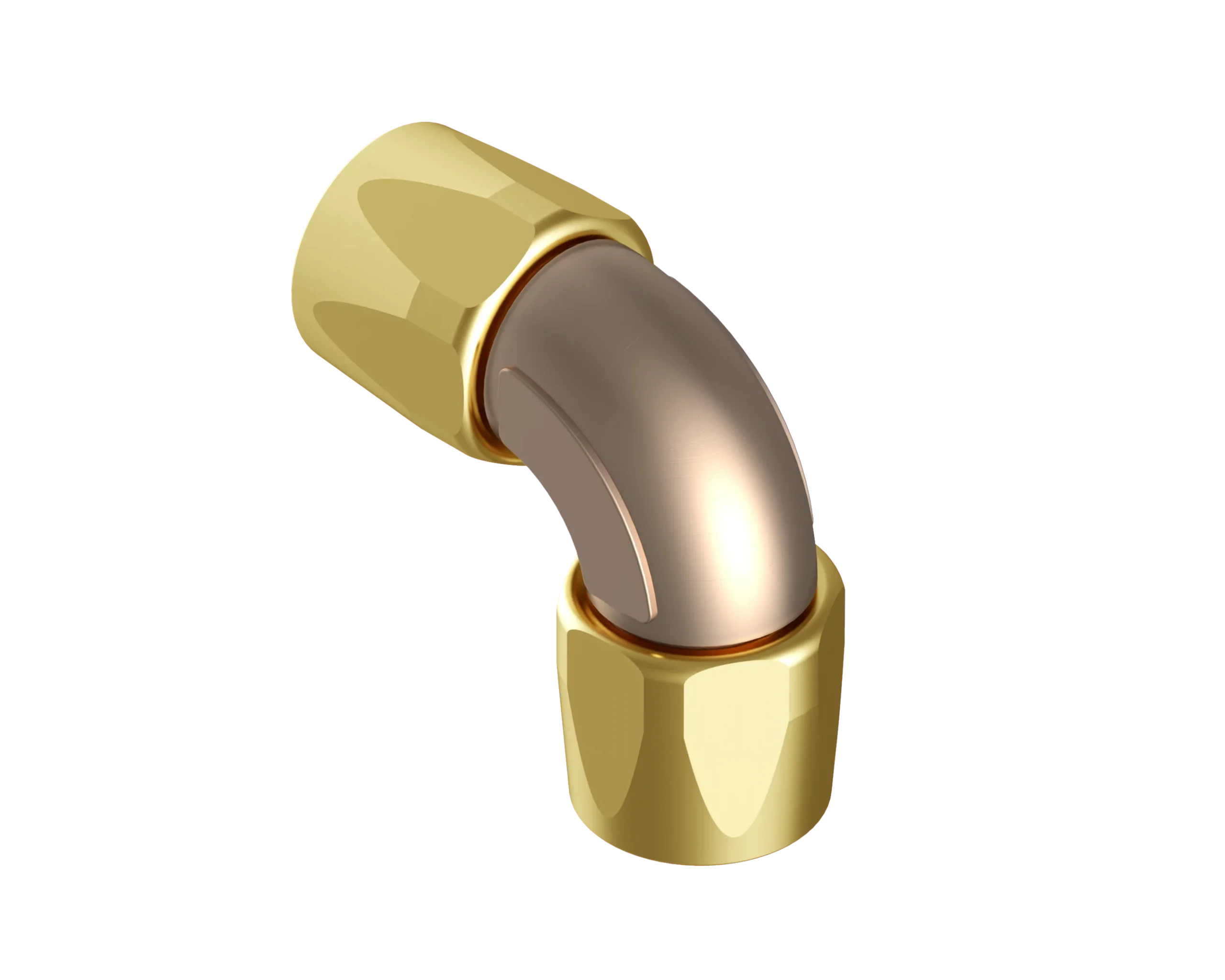

( Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N 66-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 66-190093-48
  • IPS Size: 3
  • A: 4.70
  • D: 2.80
  • E: 2.69
  • G: 3.88
  • R: 2.19
  • V: 3.50
  • X: 3.19
  • Est. Wt. (lbs.): 10.35

Specification Table

Part Number66-190093-48
IPS Size3
A4.70
D2.80
E2.69
G3.88
R2.19
V3.50
X3.19
Est. Wt. (lbs.)10.35

Specification Image

66-190093

Components Table

DescriptionReq’d per Ass’yBase No.-16-20-24-32-40-48Material
Elbow1188-185093-162024324048Aluminum. Bronze
Socket21212-16B20B24B32B40B48BBrass
