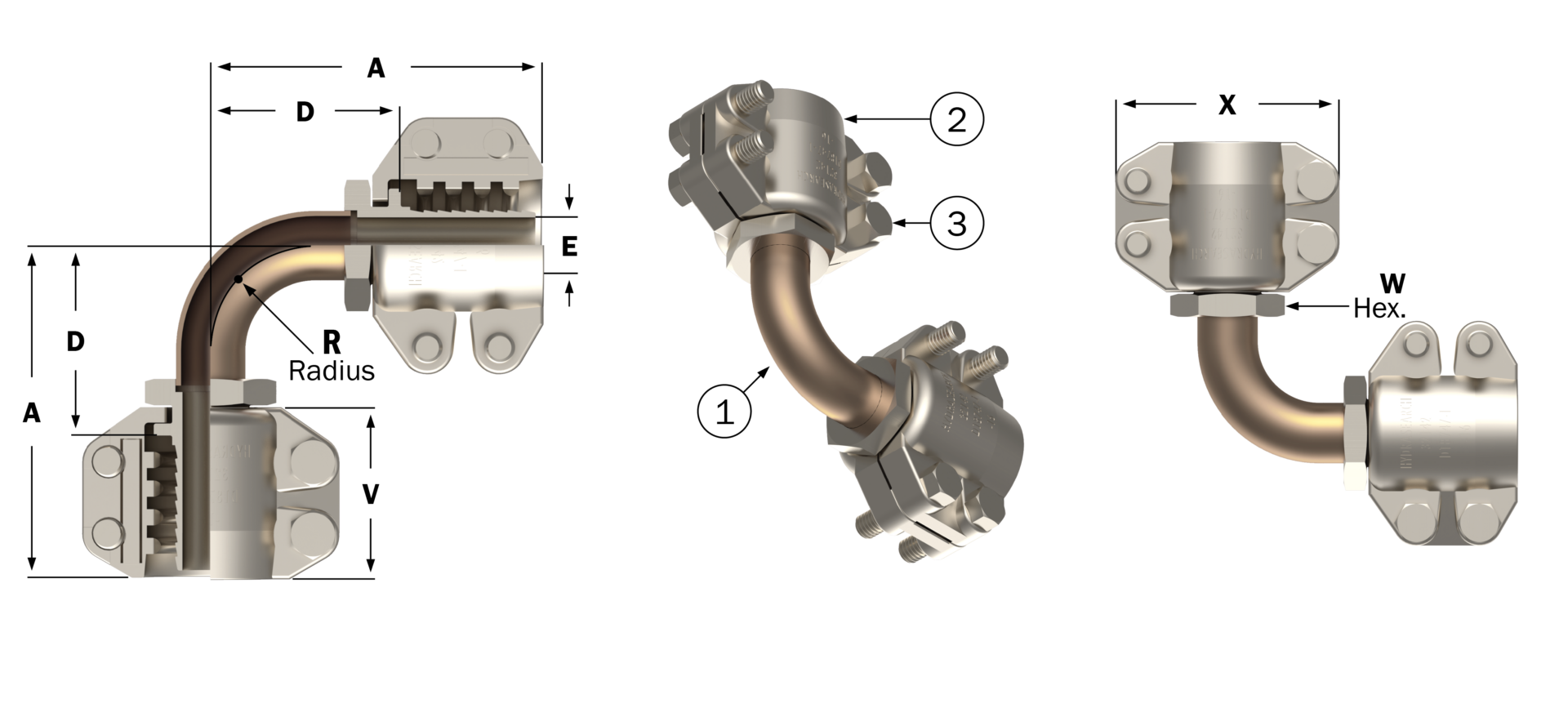

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: 90ELB-1489D-2020
  • Hydrasearch Drawing Number: C18921
  • IPS Size: 1.25
  • A: 5.45
  • D: 3.15
  • E: 1.05
  • R: 1.75
  • V: 2.81
  • W: 2.00
  • X: 4.00
  • Est. Wt. (lbs.): 9.30

Specification Table

Part Number90ELB-1489D-2020
Hydrasearch Drawing NumberC18921
IPS Size1.25
A5.45
D3.15
E1.05
R1.75
V2.81
W2.00
X4.00
Est. Wt. (lbs.)9.30

Components Table

DescriptionReq’d per Ass’y1616202024243232Mat’l
Elbow4C18863C18865C18867C18869Monel
Segment4D18747-1D18748-1D18750-1D18704-1Monel
Bolt8B18746B18746B18755B18718Monel
