90EF-1488B2-1624

90EF-1488B2-1624 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class III, 250 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group VIII, Class III, 250lb, End Fitting - 90° )

Description:

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-1488B2-1624
  • Hydrasearch Drawing Number: C19590
  • IPS Size: 1
  • No. of Bolt Holes: 4
  • A: 4.65
  • C: 1.94
  • D: 3.19
  • G: 2.12
  • H: 3.06
  • J: 4.25
  • L: 3.13
  • M: .56
  • N: .75
  • R: 2.00
  • Est. Wt. (lbs.): 3.50

Specification Table

Part Number90EF-1488B2-1624
Hydrasearch Drawing NumberC19590
IPS Size1
No. of Bolt Holes4
A4.65
C1.94
D3.19
G2.12
H3.06
J4.25
L3.13
M.56
N.75
R2.00
Est. Wt. (lbs.)3.50

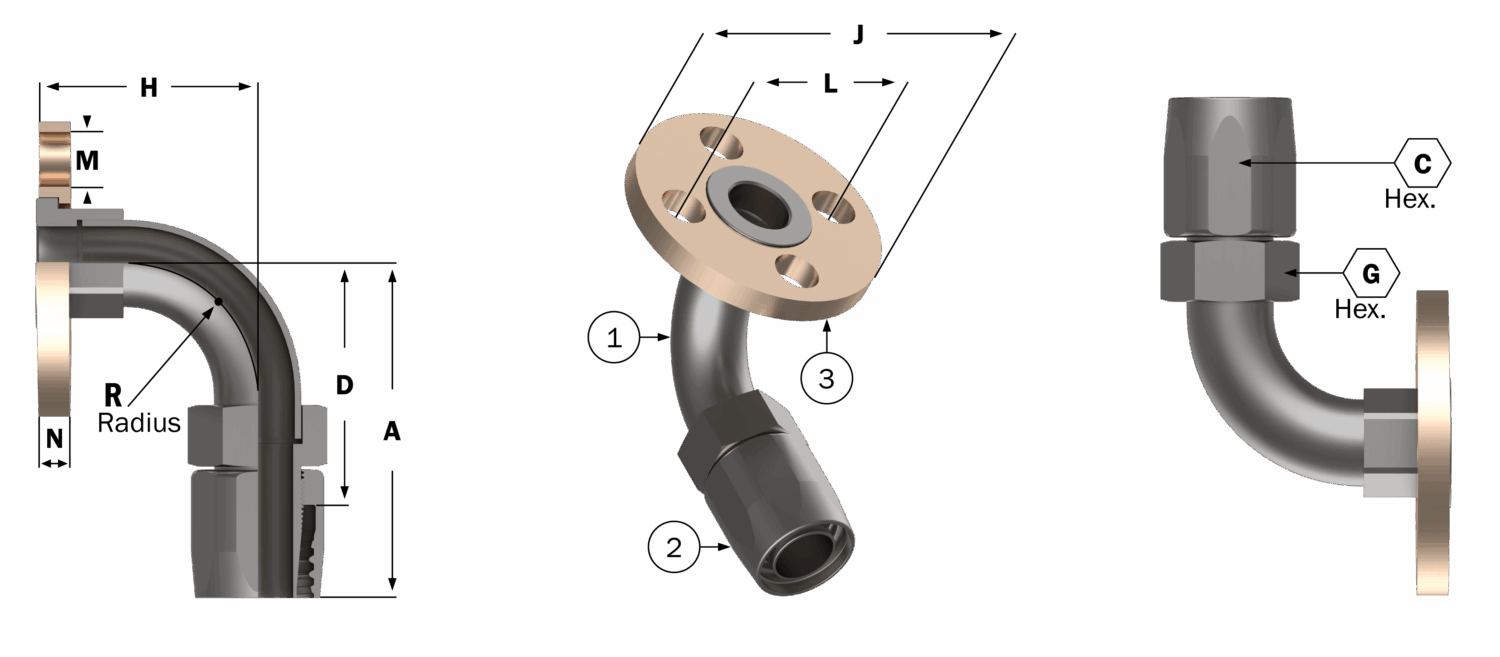

Specification Image

90EF-1488B2

Components Table

DescriptionReq’d per Ass’y08161216161612201624203224323232Material
Elbow1C19094C19095C19096C19097C19098C19099C19100C19101Monel/Cop- per-Nickel
Socket1C18667-2C18667-2C18667-2C18703-2C18990-2C18662C1862C18662Monel
Flange1C19522C19523C19524C19525C19526C19527C19528C19579Aluminum. Bronze
