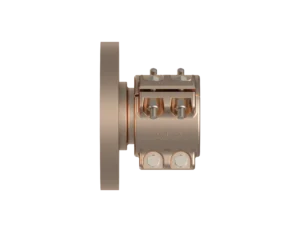

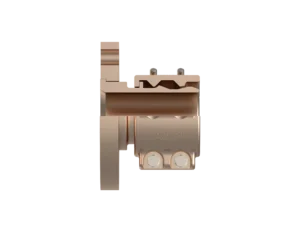

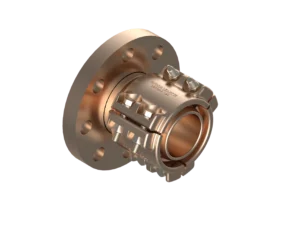

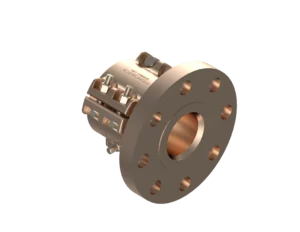

EF-449A4-3-48-SS

EF-449A4-3-48-SS

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 412-190767,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A4-3-48-SS
  • Hydrasearch Drawing Number: C18194
  • IPS Size: 3
  • No. of Bolt Holes: 4
  • M: .75
  • A: 5.17
  • D: 2.20
  • J: 7.50
  • K: 4.50
  • L: 6.00
  • N: .48
  • S: 3.31
  • T: 5.58
  • Est. Wt. (lbs.): 13

Specification Table

Part NumberEF-449A4-3-48-SS
Hydrasearch Drawing NumberC18194
IPS Size3
No. of Bolt Holes4
M.75
A5.17
D2.20
J7.50
K4.50
L6.00
N.48
S3.31
T5.58
Est. Wt. (lbs.)13

Components Table

DescriptionReq’d per Ass’y2.5-402.5-483-484-64Material
Swivel Flange1C18149C18150C18151C19632Stainless Steel
Nipple1C18152C18153C18154C19633Stainless Steel
Segment3D17299-1D17300-1D17300-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-1B17673-1B17987Monel
Lock Nut6B18176B18176B18176B17984Monel
Washer6B18175B18175B18175B17986Monel
