HS1488 - Medium Pressure Fittings
90EF-1488CL-2432
( MIL-DTL-24787/3, Type CL, Group VIII, End Fitting - 90° )
Description:
Equal to Aeroquip P/N 4-191301,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 90EF-1488CL-2432 |
|---|---|
| Hydrasearch Drawing Number | C19318 |
| IPS Size | 1.50 |
| T Thread CL-3A | 3-1/16”-12 |
| A | 5.68 |
| C | 3.12 |
| D | 3.84 |
| E | 1.75 |
| G | 2.44 |
| H | 4.05 |
| M | .88 |
| N | .86 |
| R | 2.50 |
| W | 2.38 |
| Est. Wt. (lbs.) | 5.40 |

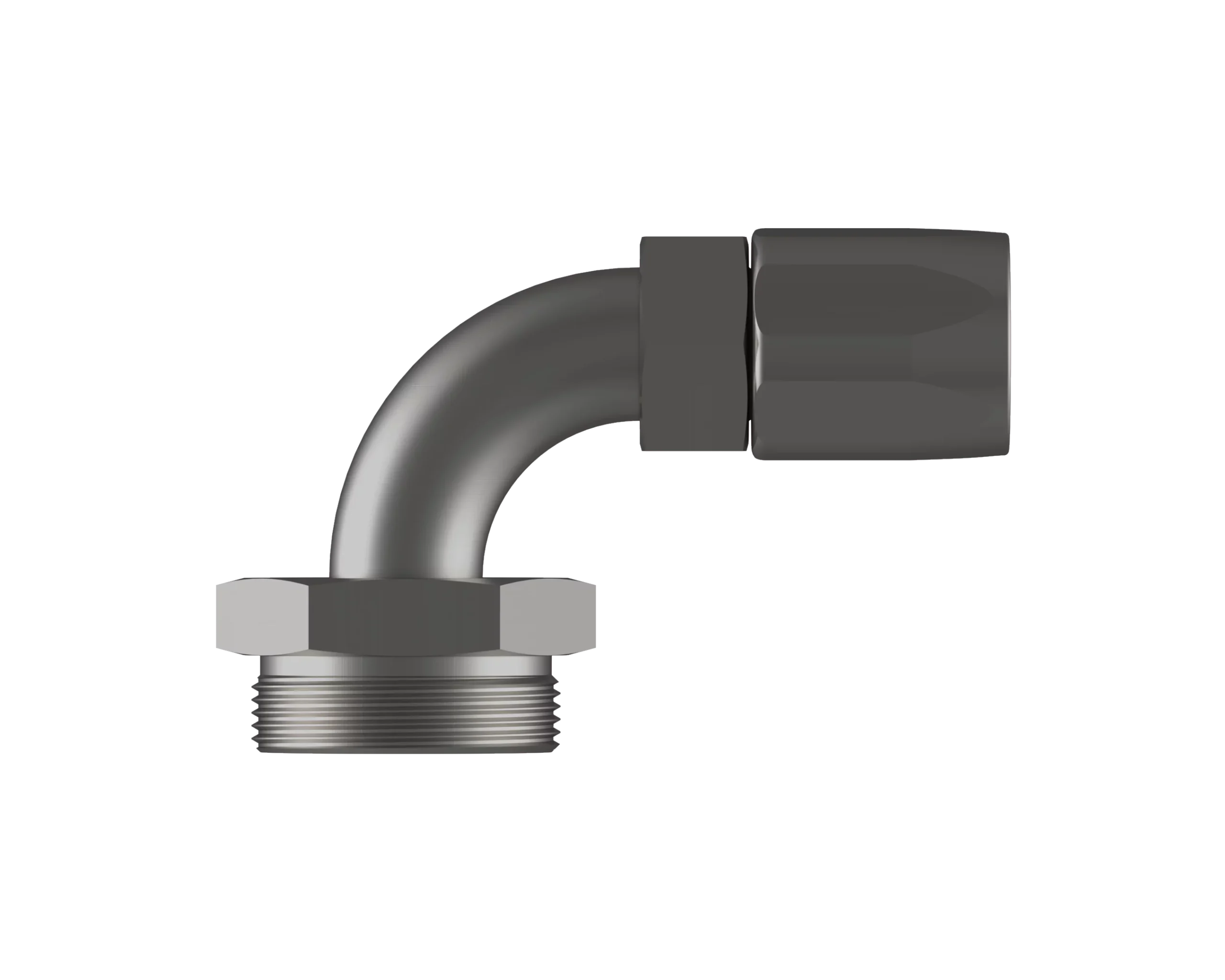

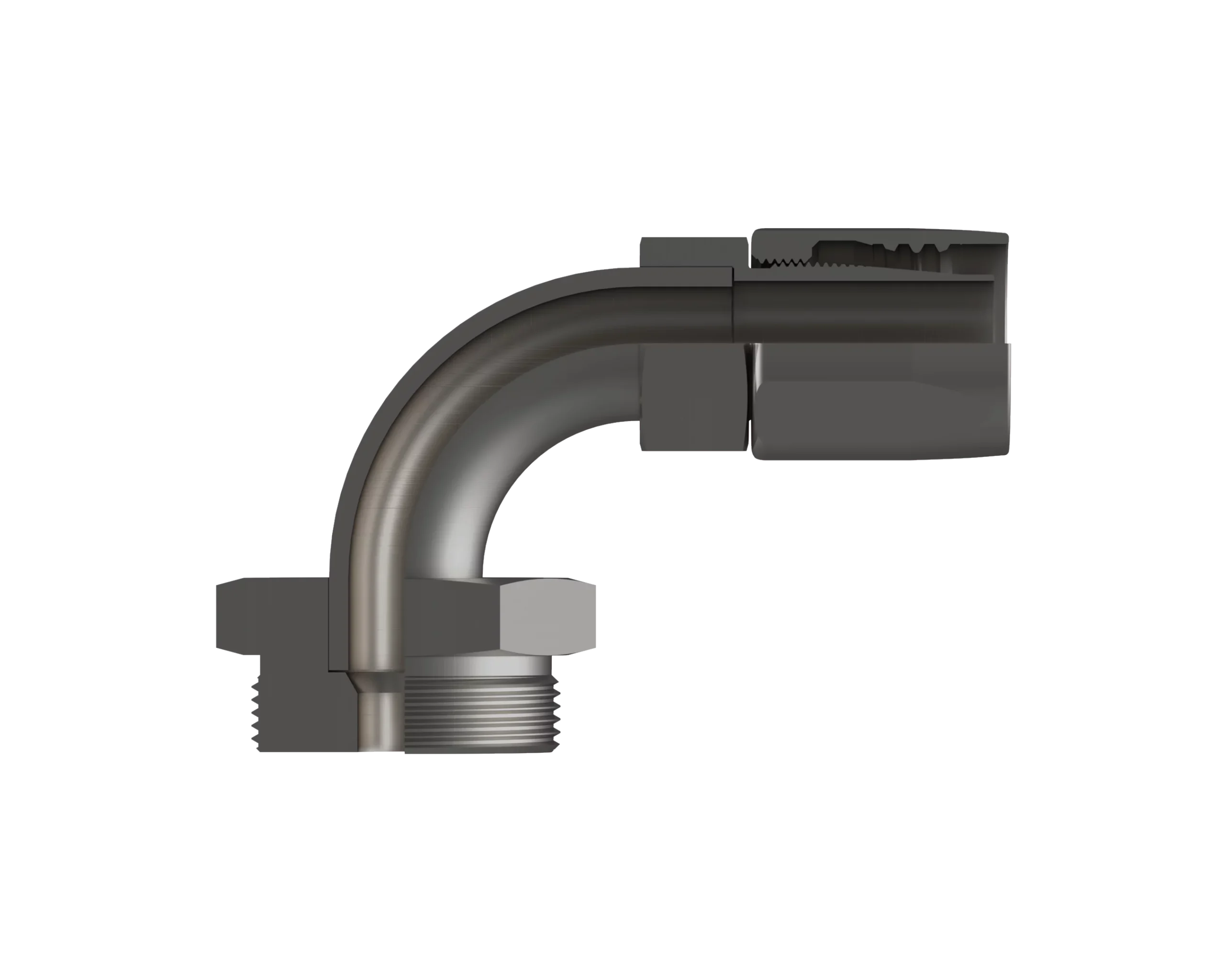

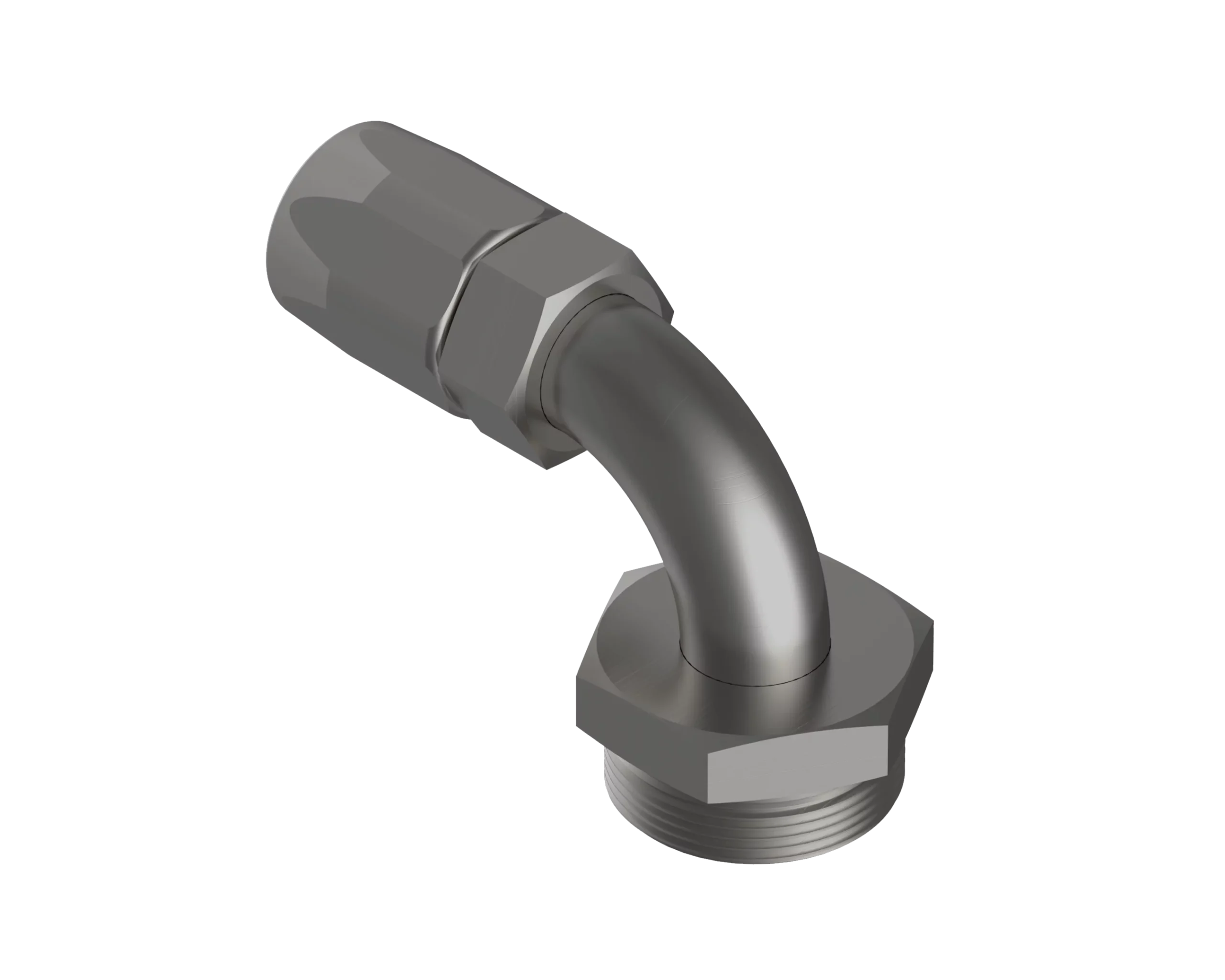

Specification Image
Components Table
| Description | Req’d per Ass’y | 1216 | 1620 | 2024 | 2432 | Material |
| Elbow | 1 | C19031 | C19032 | C19033 | C19034 | Copper Nickel & Monel |
| Socket | 1 | C18667-2 | C18703-2 | C18990-2 | C18662 | Monel |
