90EF-1489CL-1620

90EF-1489CL-1620

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: 90EF-1489CL-1620
  • Hydrasearch Drawing Number: C18902
  • IPS Size: 1
  • Thread CL-2B: 2-5/16”-12
  • A: 5.45
  • C: 2.38
  • D: 3.15
  • E: 1.05
  • H: 3.17
  • M: .75
  • R: 1.75
  • V: 2.81
  • W: 2.00
  • X: 4.00
  • Est. Wt. (lbs.): 6.50

Specification Table

Part Number90EF-1489CL-1620
Hydrasearch Drawing NumberC18902
IPS Size1
Thread CL-2B2-5/16”-12
A5.45
C2.38
D3.15
E1.05
H3.17
M.75
R1.75
V2.81
W2.00
X4.00
Est. Wt. (lbs.)6.50

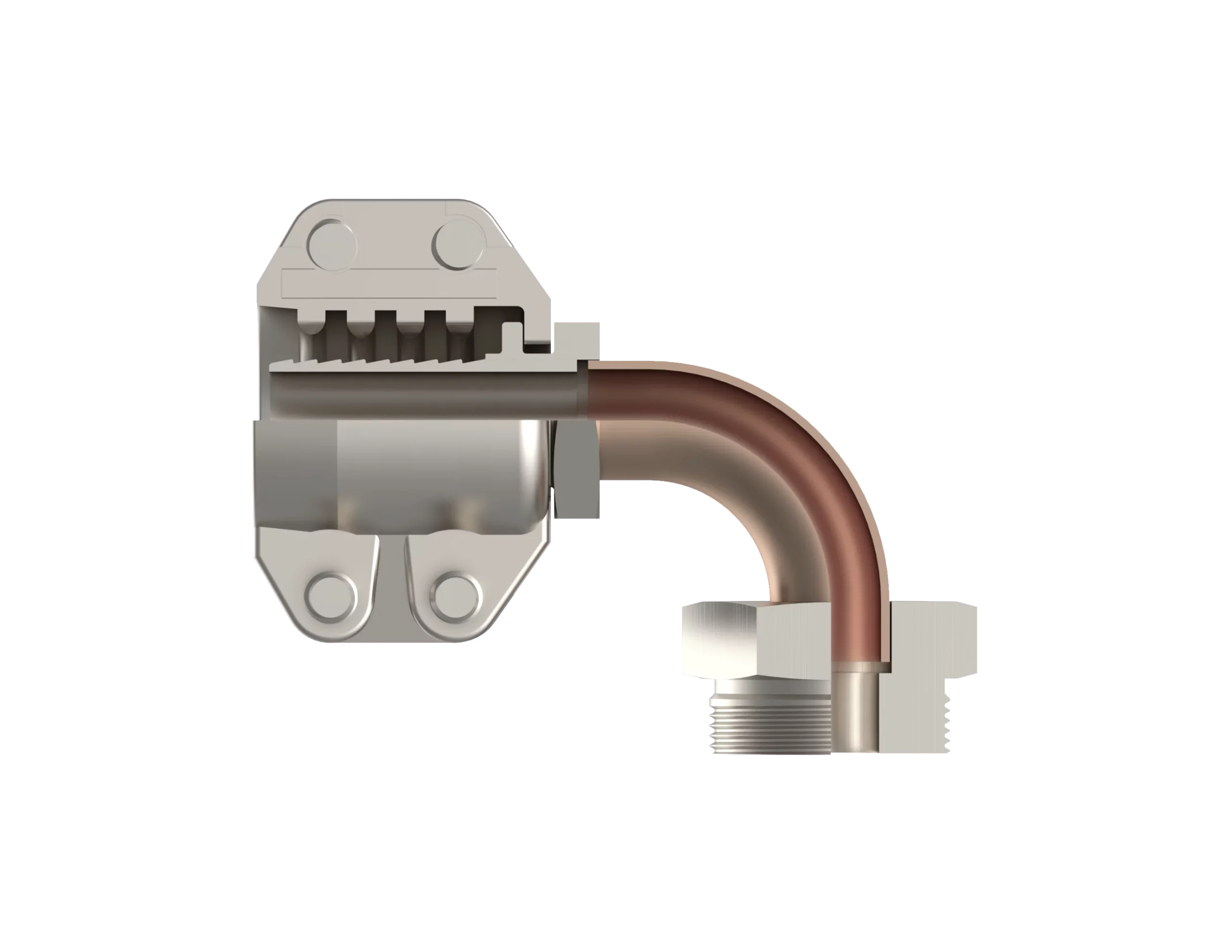

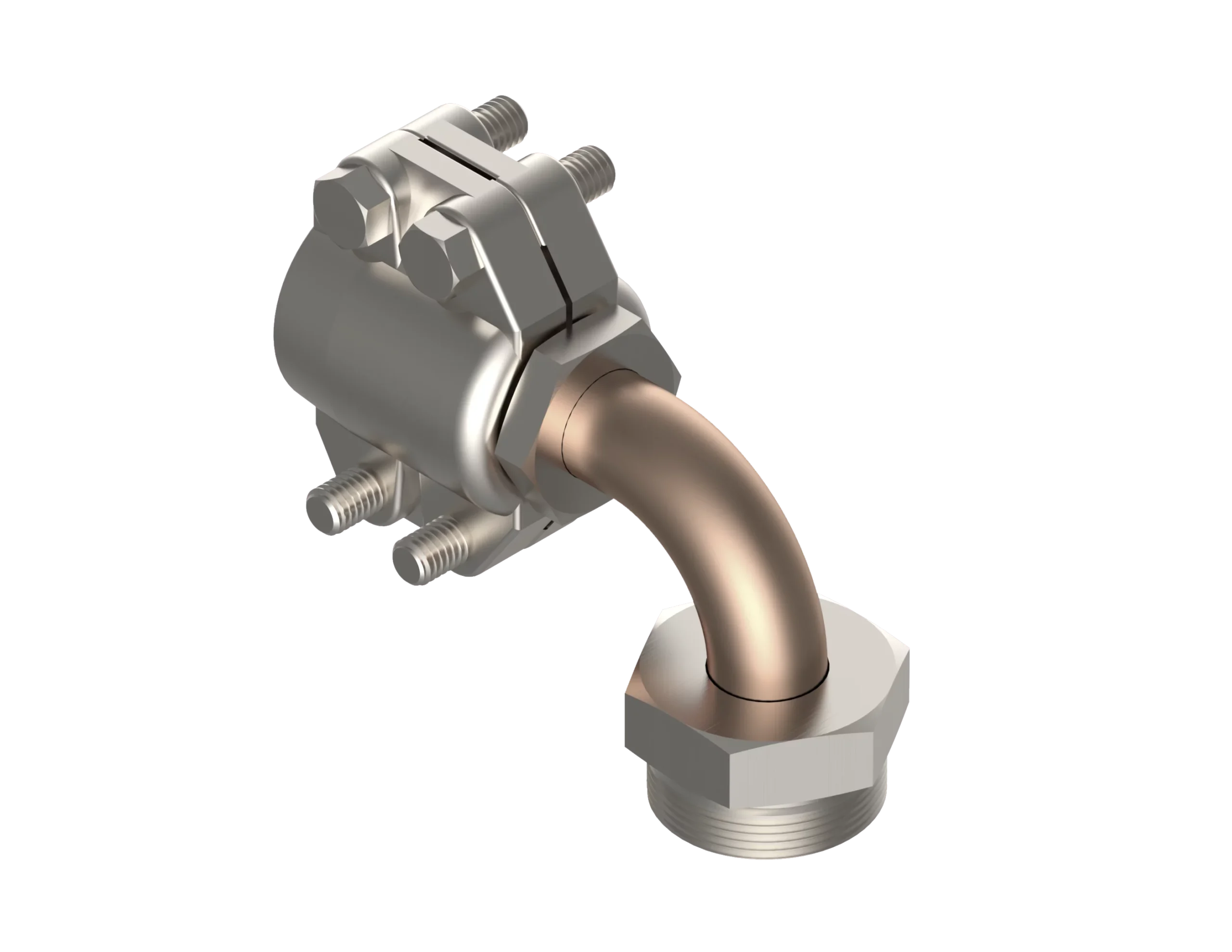

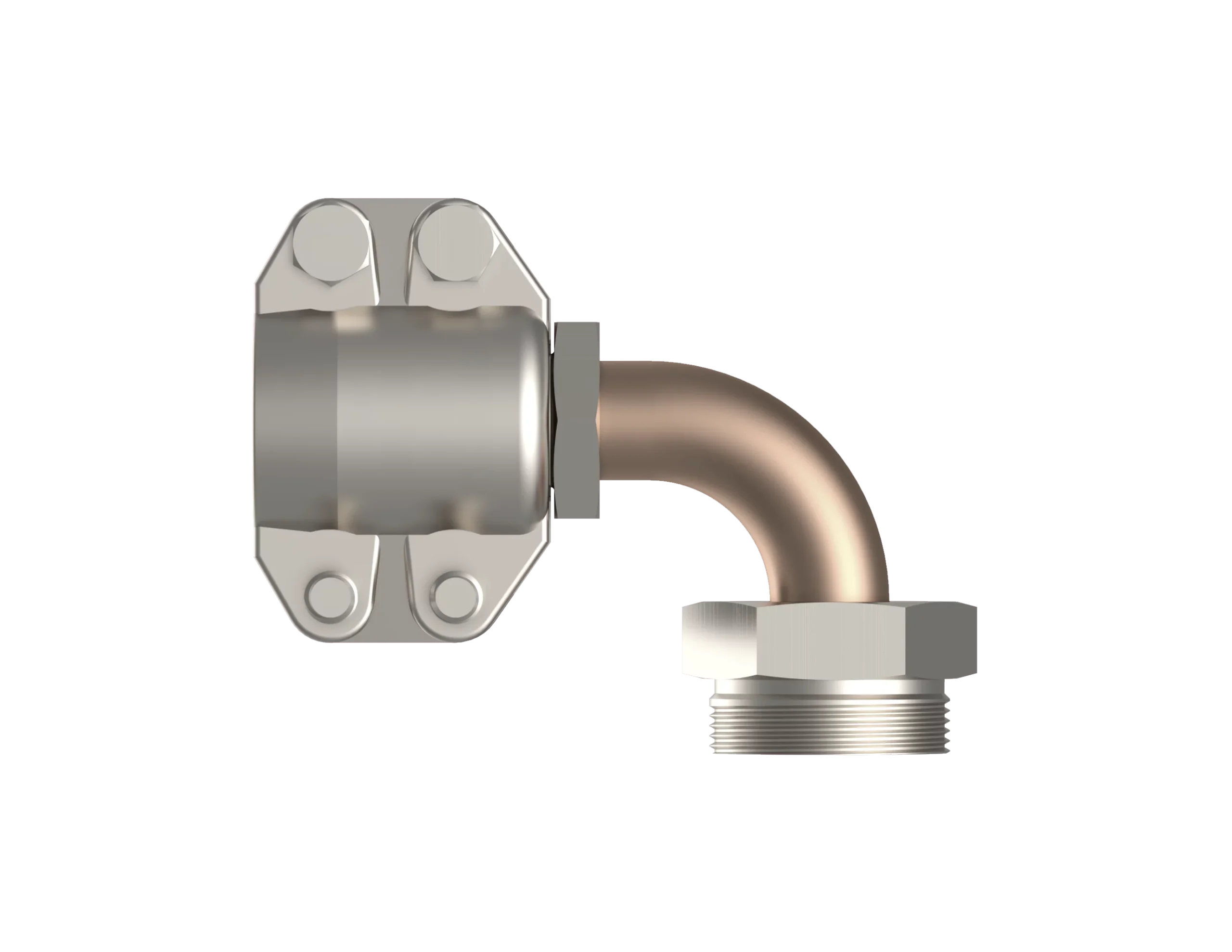

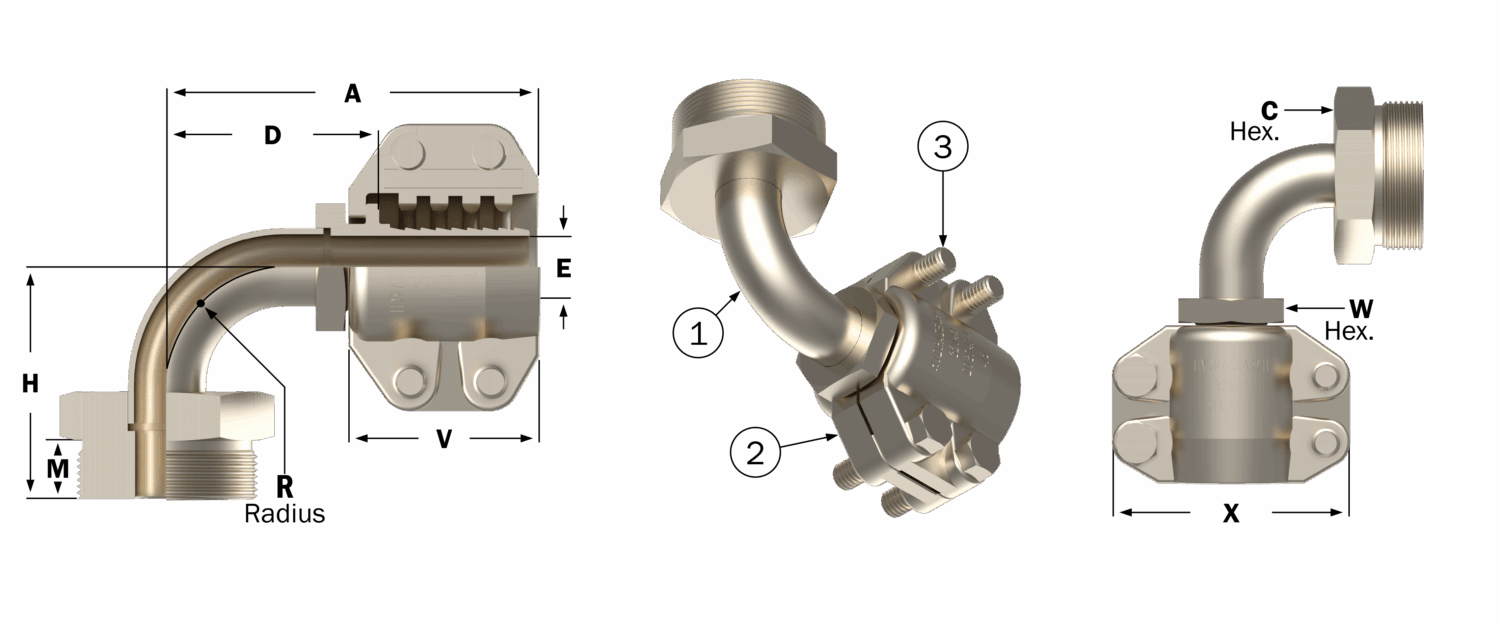

Specification Image

90EF-1489CL (LARGE)

Components Table

DescriptionReq’d per Ass’y12161616162020202024242424323232Mat’l
Elbow1C19447C19448C19449C19450C19458C19451C19452C19453Monel
Segment2D18747-1D18747-1D18748-1D18748-1D18750-1D18750-1D18750-1D18704-1D18704-1Monel
Bolt4B18746B18746B18746B18746B18755B18755B18718B18718Monel
