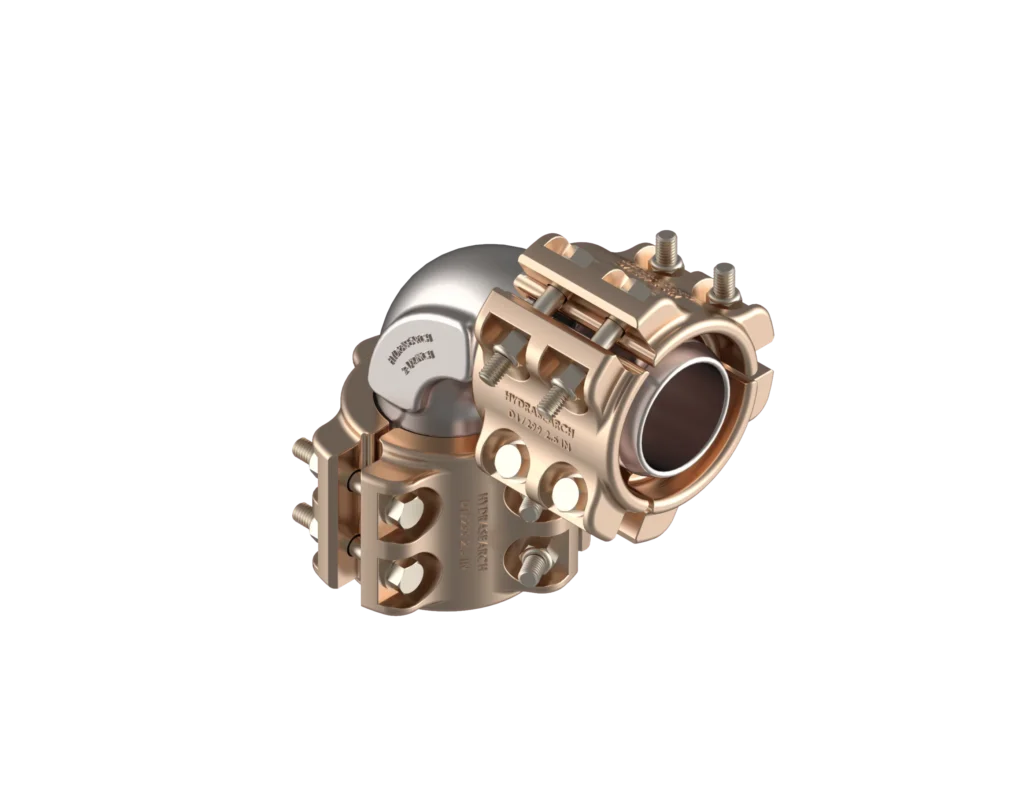

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 412-190717,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90ELB-449E-48-SS
  • Hydrasearch Drawing Number: D18475
  • IPS Size: 3
  • A: 5.96
  • D: 3.04
  • R: 2.09
  • T: 5.58
  • Est. Wt. (lbs.): 14.00

Specification Table

Part Number90ELB-449E-48-SS
Hydrasearch Drawing NumberD18475
IPS Size3
A5.96
D3.04
R2.09
T5.58
Est. Wt. (lbs.)14.00

Specification Image

90ELB-449E

Components Table

DescriptionReq’d per Ass’y404864Material
Elbow1D19512-1D19610-1 D20741-1Stainless Steel
Grip Segment6D17299-1D17300-1 D17301-1Aluminum. Bonze
Bolt6B17673-2B17673-1B17987Monel
Lock Nut6B18176B18176B17984Monel
Washer6B18175B18175B17986Monel
