EF-1489A-1008

EF-1489A-1008

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/2, Type A, Group XI, J.I.C. End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7100-4,
Use with the following hose: HS133

Specification

  • Part Number: EF-1489A-1008
  • Hydrasearch Drawing Number: C18933
  • IPS Size: 1/2
  • Thread CL-2B: 7/8”-14
  • A: 3.41
  • C: 1.00
  • D: 1.58
  • E: .39
  • M: .50
  • V: 2.08
  • W: 1.00
  • X: 2.40
  • Est. Wt. (lbs.): 1.20

Specification Table

Part NumberEF-1489A-1008
Hydrasearch Drawing NumberC18933
IPS Size1/2
Thread CL-2B7/8”-14
A3.41
C1.00
D1.58
E.39
M.50
V2.08
W1.00
X2.40
Est. Wt. (lbs.)1.20

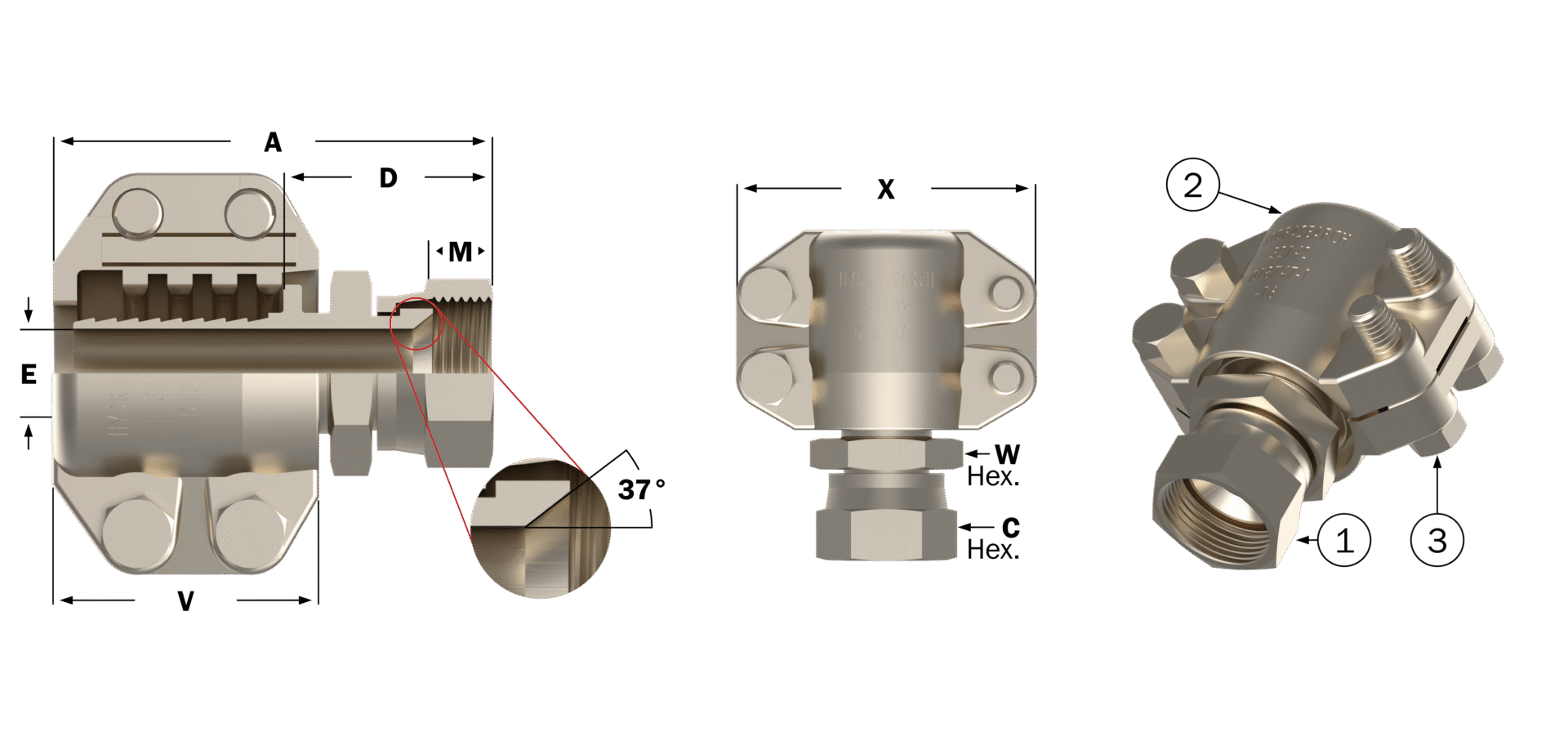

Specification Image

Components Table

DescriptionReq’d per Ass’y06060806080810081208121214121612Mat’l
Nipple Ass'y1C18882C18883C18884C18885C18886C18887C18888C18889Monel
Segment2D18758-1D18758-1C18640-1C18640-1C18640-1D18743-1D18743-1D18743-1Monel
Bolt2B18759B18759B18645B18645B18645B18745B18745B18745Monel
