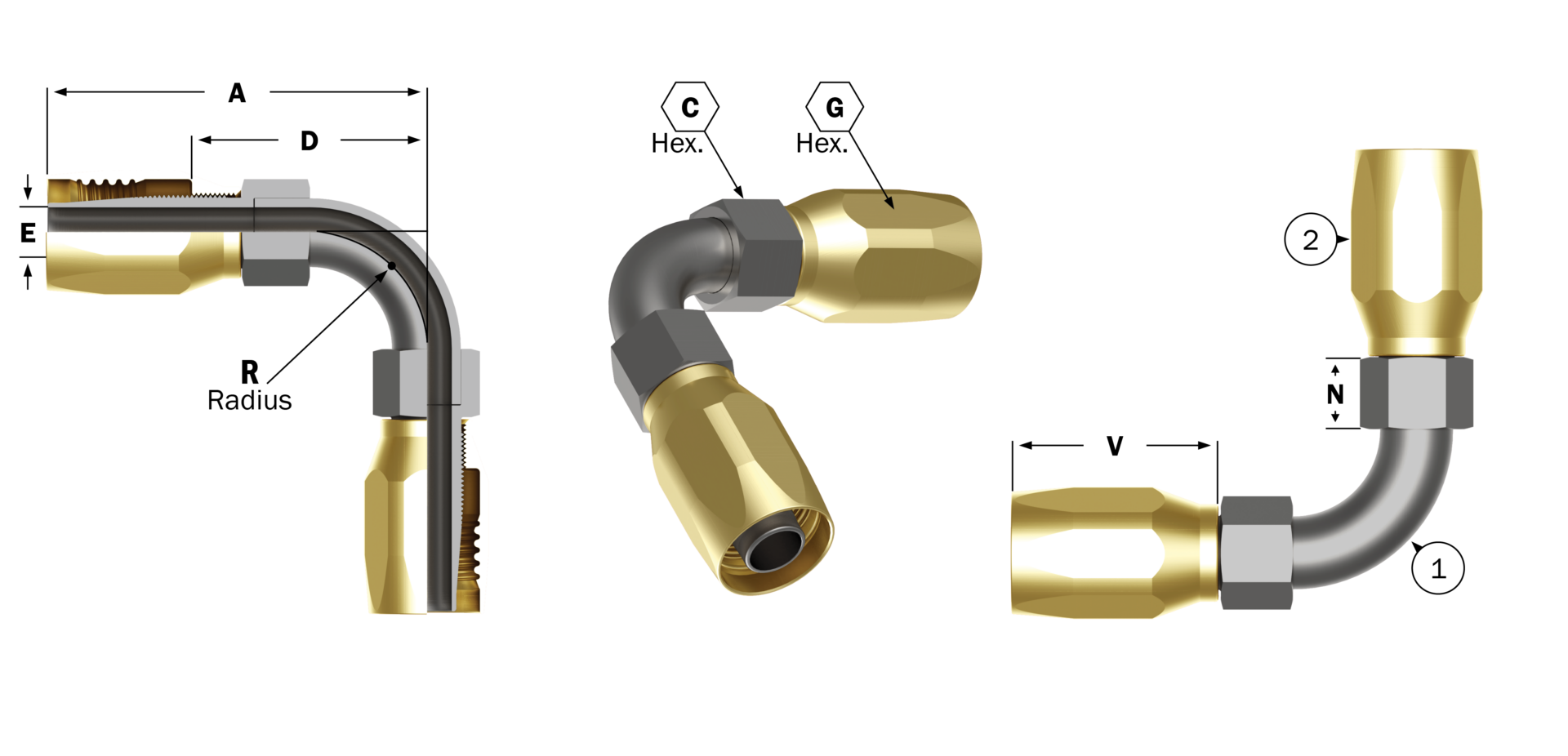

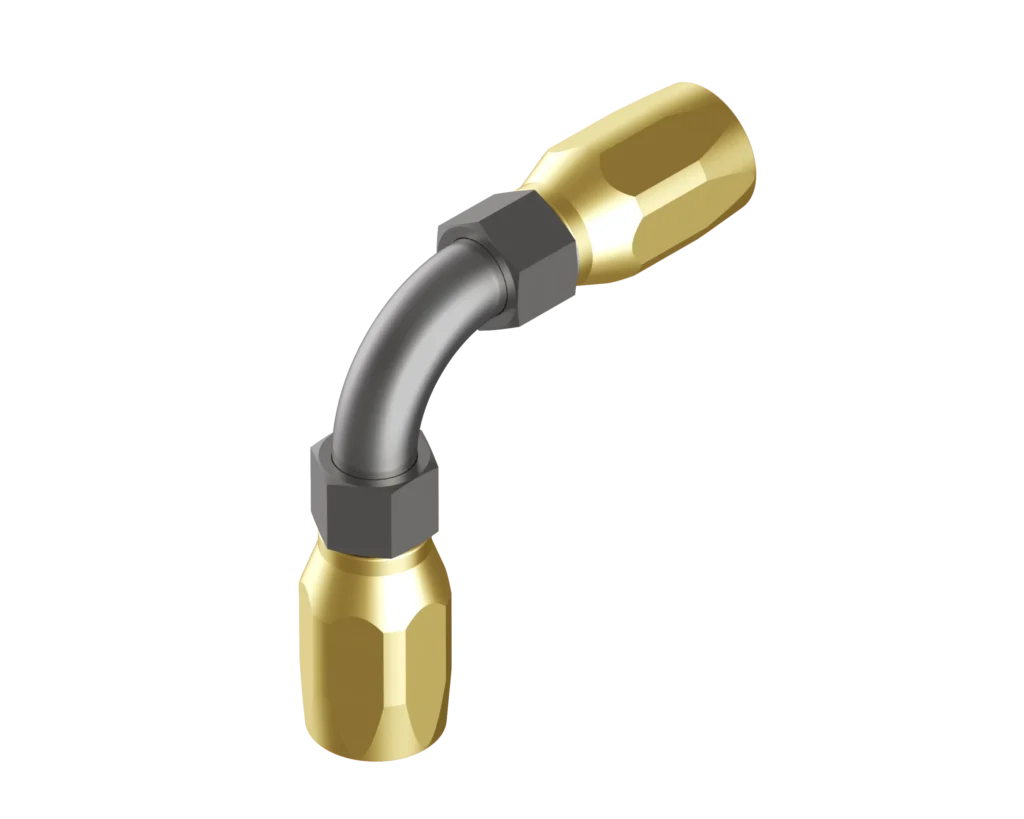

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 93-191302,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 93-191302-12
  • IPS Size: 3/4
  • A: 4.15
  • C: 1.00
  • D: 2.58
  • E: .55
  • G: 1.25
  • N: .74
  • R: 1.25
  • S: .75
  • V: 2.10
  • Est. Wt. (lbs.): .90

Specification Table

Part Number93-191302-12
IPS Size3/4
A4.15
C1.00
D2.58
E.55
G1.25
N.74
R1.25
S.75
V2.10
Est. Wt. (lbs.).90

Components Table

DescriptionReq’d per Ass’yBase No.0606080810101212Material
Elbow14-419037-681012Monel
Socket21220-6B8B10B12BMonel
