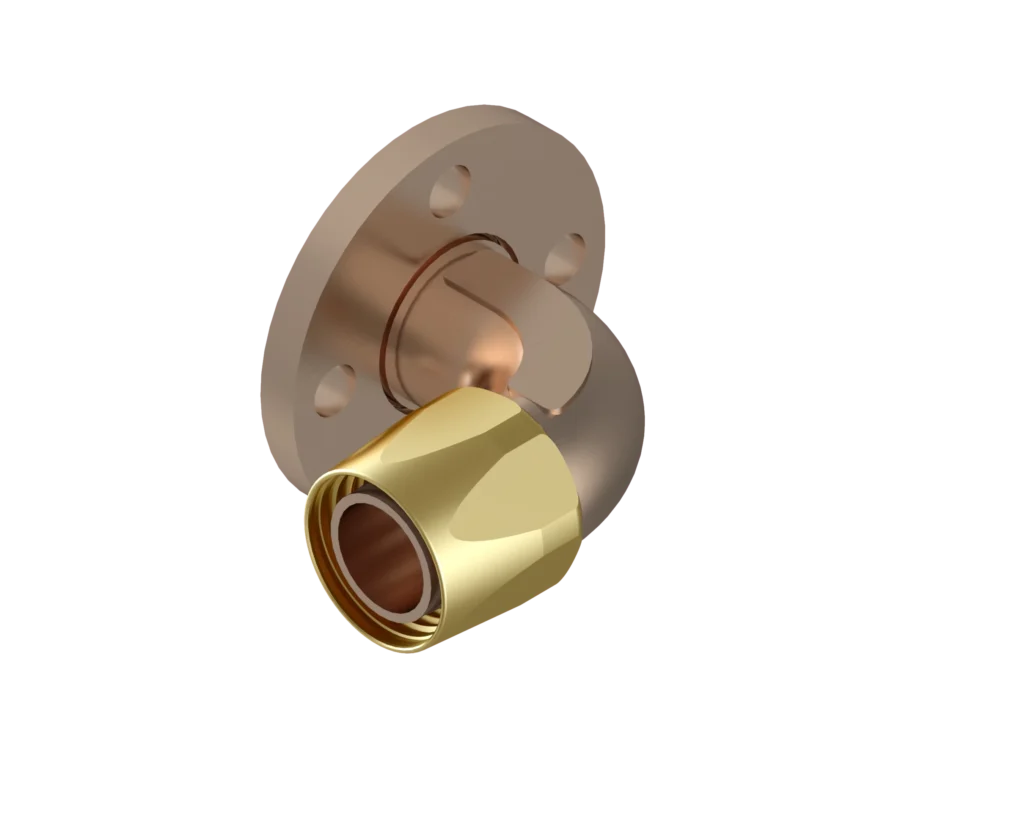

90EF-B1488FL4-1616 – End Fittings – 90º – Flange to Hose Bronze/Brass (150 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 66-190103,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-B1488FL4-1616
  • Hydrasearch Drawing Number: C19408
  • IPS Size: 1
  • No. of Bolt Holes: 4
  • A: 2.80
  • C: 1.44
  • D: 1.53
  • H: 2.38
  • J: 4.25
  • L: 3.13
  • M: .56
  • N: .44
  • R: 1.25
  • Est. Wt. (lbs.): 3.10

Specification Table

Part Number90EF-B1488FL4-1616
Hydrasearch Drawing NumberC19408
IPS Size1
No. of Bolt Holes4
A2.80
C1.44
D1.53
H2.38
J4.25
L3.13
M.56
N.44
R1.25
Est. Wt. (lbs.)3.10

Specification Image

90EF-B1488FL4

Components Table

DescriptionReq’d per Ass’y081612161220161616242032243232323240404040484848Material
Elbow1C19035C19035C19035C19037C19087C19102C19092C19092C19103C19103C19130C18114Aluminum. Bronze
Socket1C18667-1C18667-1C18667-1C18703-118990-1C18811C18811C18811C18822C18822C17901C17901Brass
Flange1C18817C18816C18815C18814C18813C18812C18810C18809C17929C17929C17931C17933Aluminum. Bronze
