EF-1489A-3232

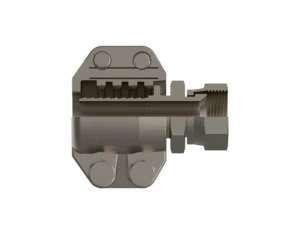

EF-1489A-3232 – End Fittings – Straight – S.A.E. 37º Flare Swivel (J.I.C.) to Hose 4 Bolt (MIL-DTL-24787/2, Type A, Group XI)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/2, Type A, Group XI, J.I.C. End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7100-4,
Use with the following hose: HS133

Specification

  • Part Number: EF-1489A-3232
  • Hydrasearch Drawing Number: C18943
  • IPS Size: 2
  • Thread CL-2B: 2-1/2”-12
  • A: 6.19
  • C: 3.00
  • D: 2.89
  • E: 1.75
  • M: .86
  • V: 3.81
  • W: 3.00
  • X: 5.04
  • Est. Wt. (lbs.): 6.30

Specification Table

Part NumberEF-1489A-3232
Hydrasearch Drawing NumberC18943
IPS Size2
Thread CL-2B2-1/2”-12
A6.19
C3.00
D2.89
E1.75
M.86
V3.81
W3.00
X5.04
Est. Wt. (lbs.)6.30

Components Table

DescriptionReq’d per Ass’y161620162020242024243232Mat’l
Nipple Ass'y1C18890C18891C18892C18893C18894C18895Monel
Segment2D18747-1D18747-1D18748-1D18748-1D18750-1D18704-1Monel
Bolt4B18746B18746B18746B18746B18755B18718Monel
