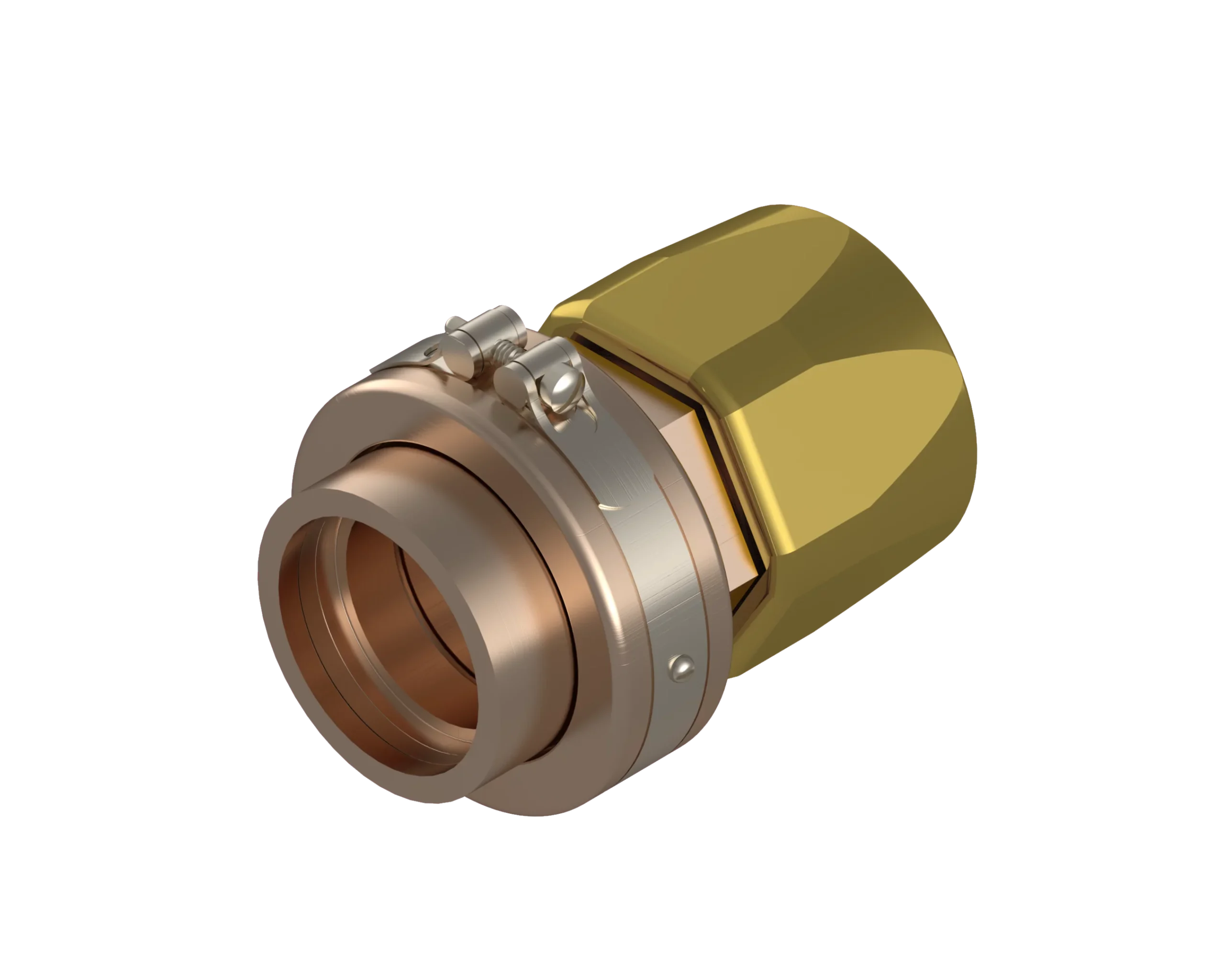

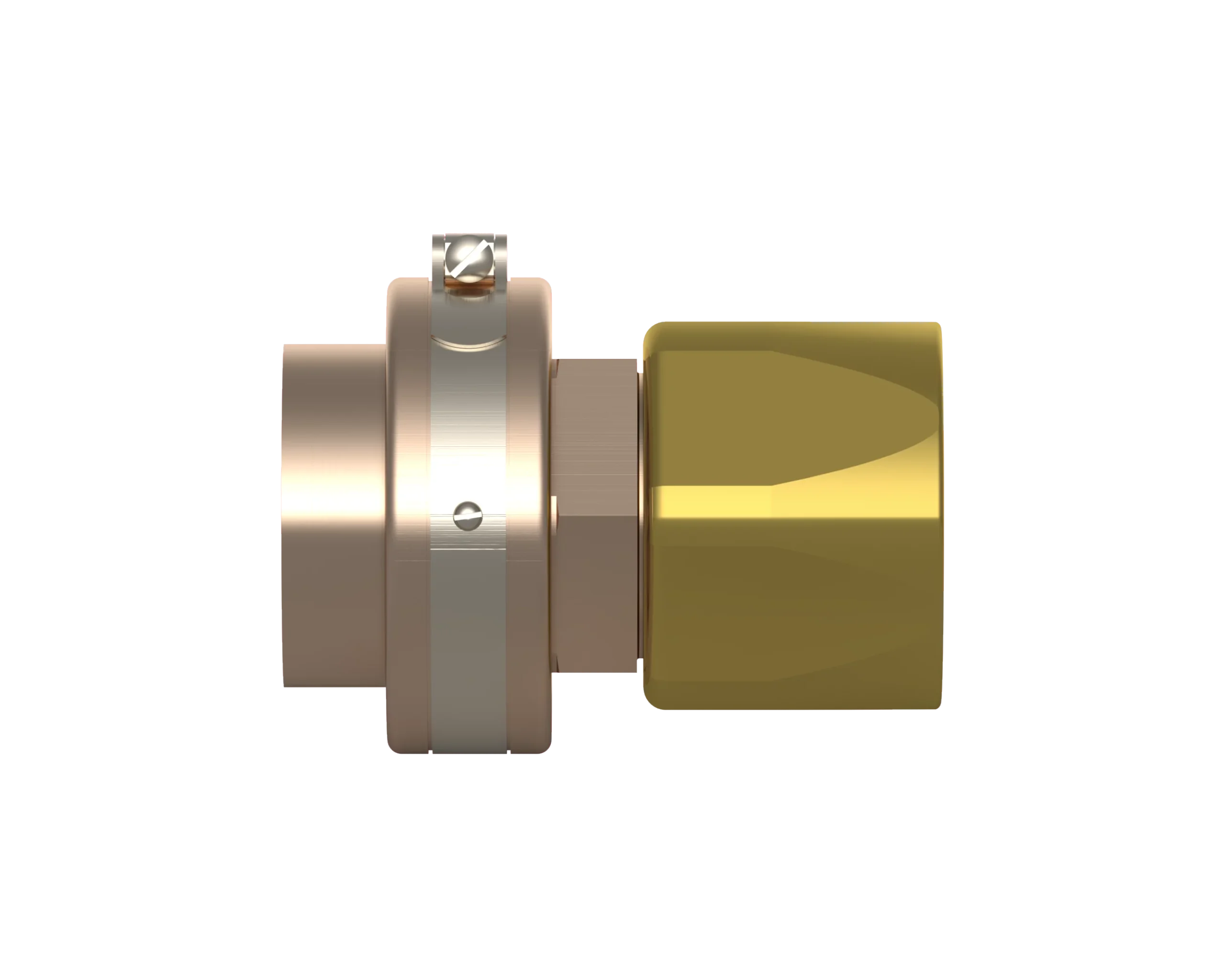

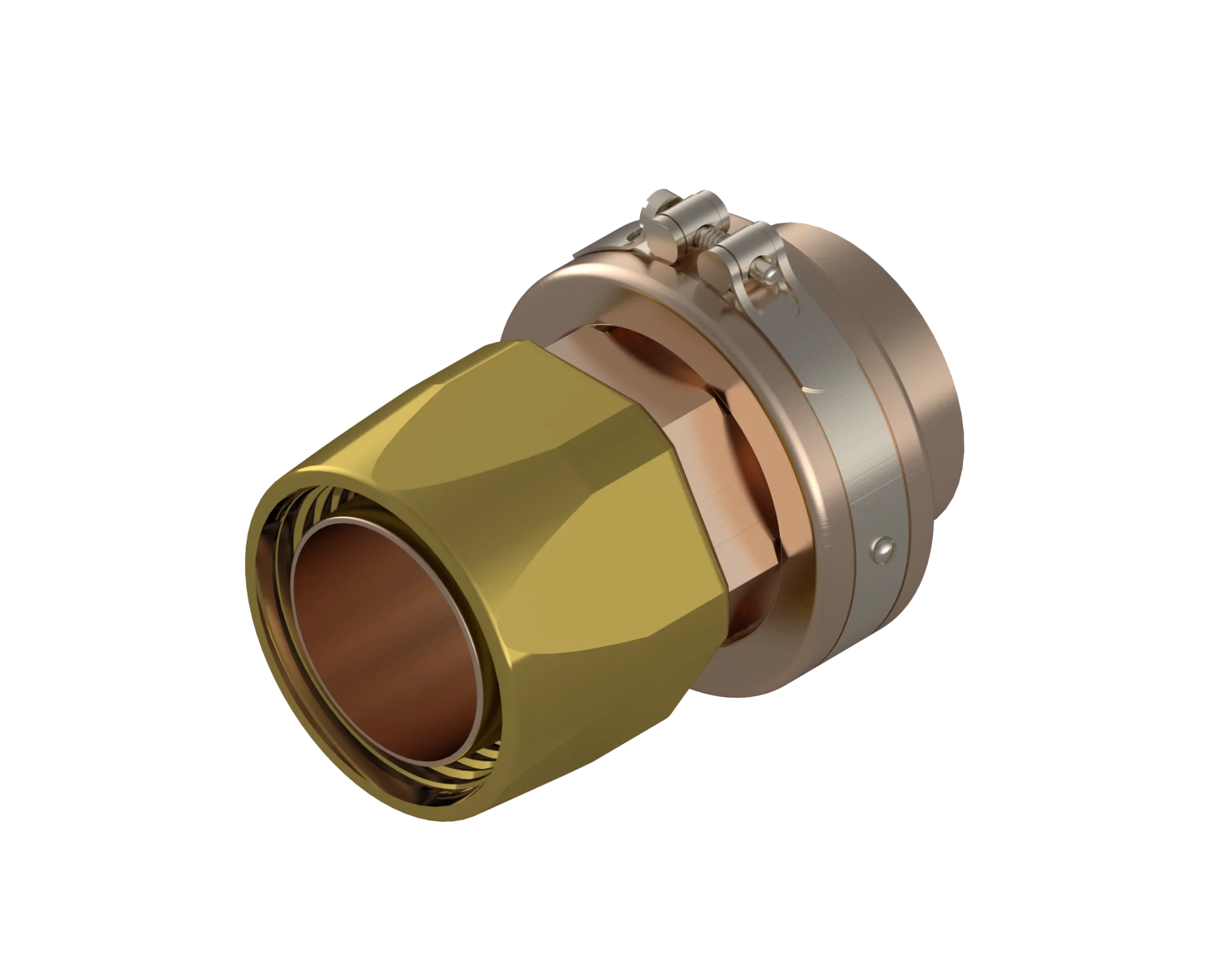

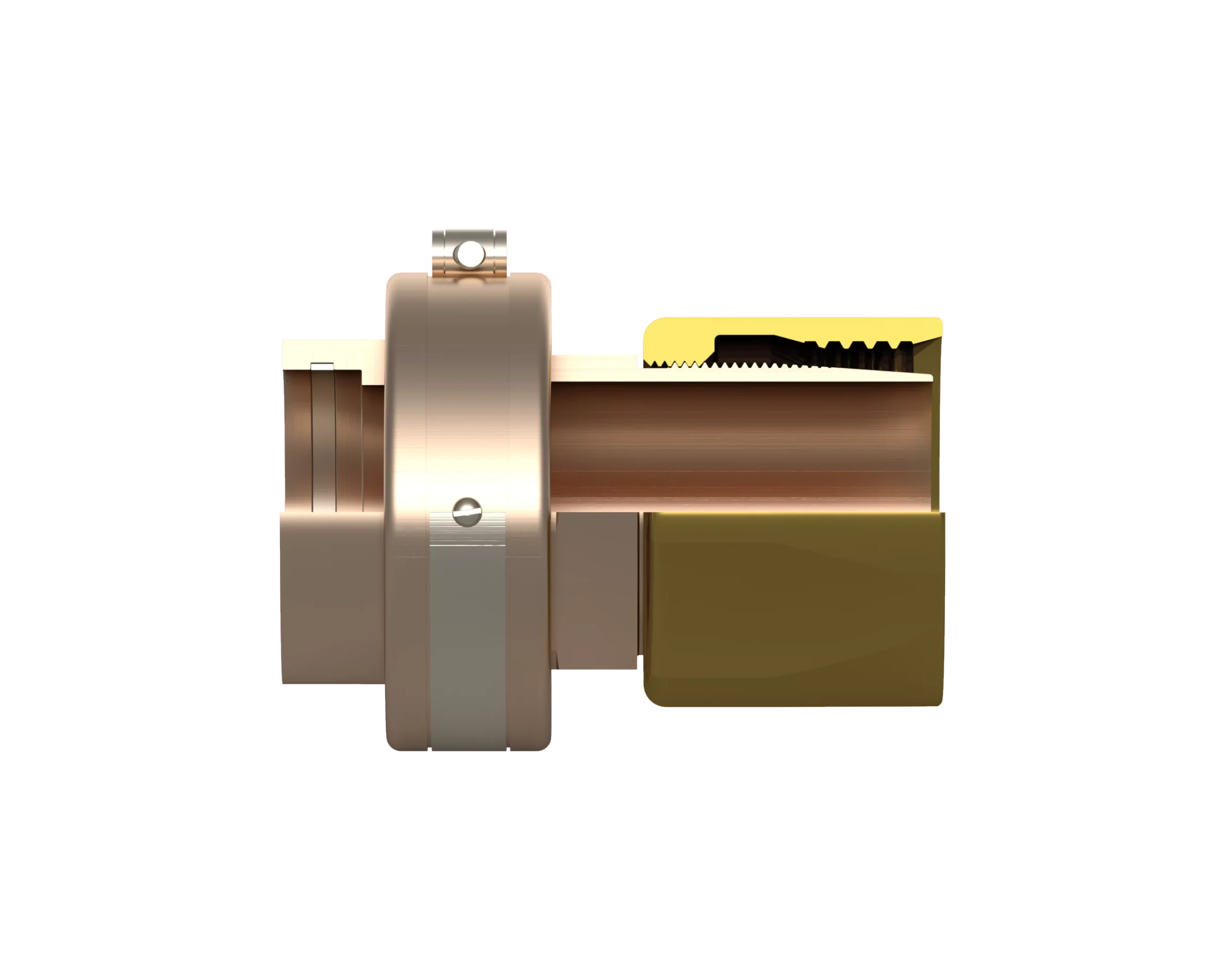

( End Fitting - Straight )

Description:

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: FC9424-2032-44
  • IPS Size: 1.25
  • A: 4.98
  • C: 2.12
  • D: 3.13
  • E: 1.53
  • F: 1.66
  • G: 1.44
  • M: .50
  • V: 2.25
  • Y: .39
  • Z: 3.00
  • Est. Wt. (lbs.): -

Specification Table

Part NumberFC9424-2032-44
IPS Size1.25
A4.98
C2.12
D3.13
E1.53
F1.66
G1.44
M.50
V2.25
Y.39
Z3.00
Est. Wt. (lbs.)-

Components Table

DescriptionReq’d per Ass’yBase No.2032Material
Nipple1188-185249-2032Aluminum. Bronze
Socket14-1212-32BBrass
Tailpiece1FF5001-18820Aluminum. Bronze
Split Clamp19007581.25Aluminum. Bronze
