EF-B1488A-1612
EF-B1488A-1612
Print
Download PDF

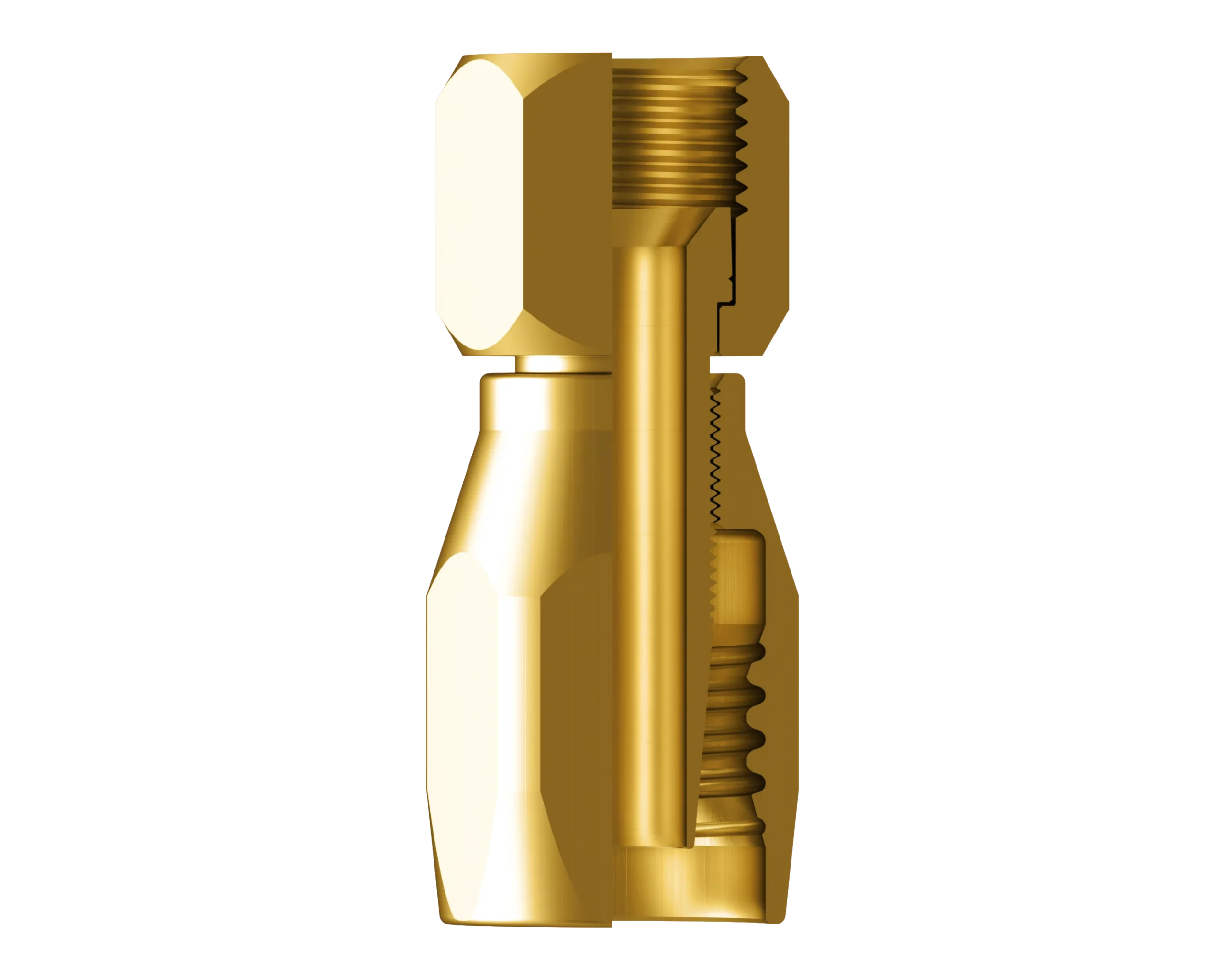

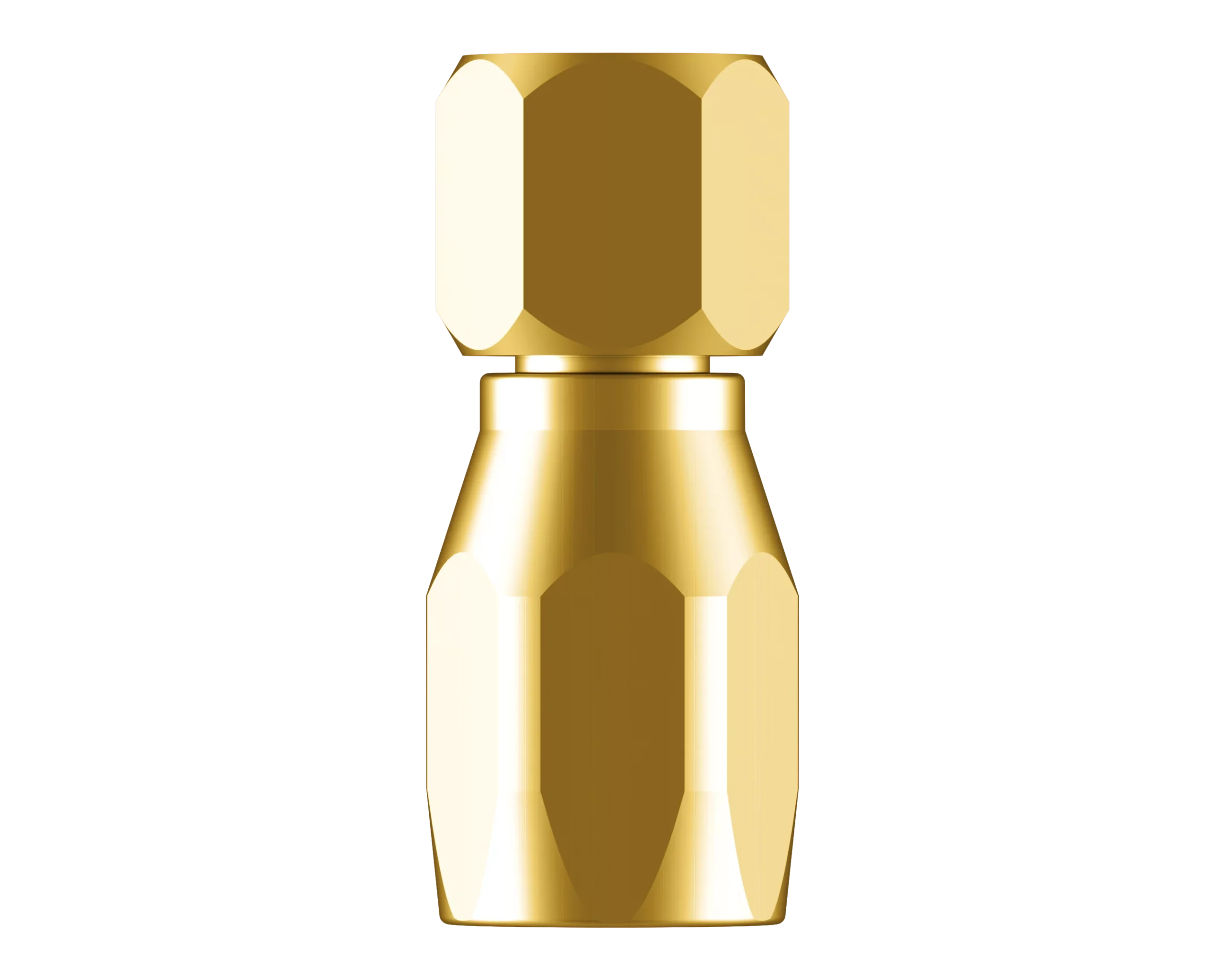

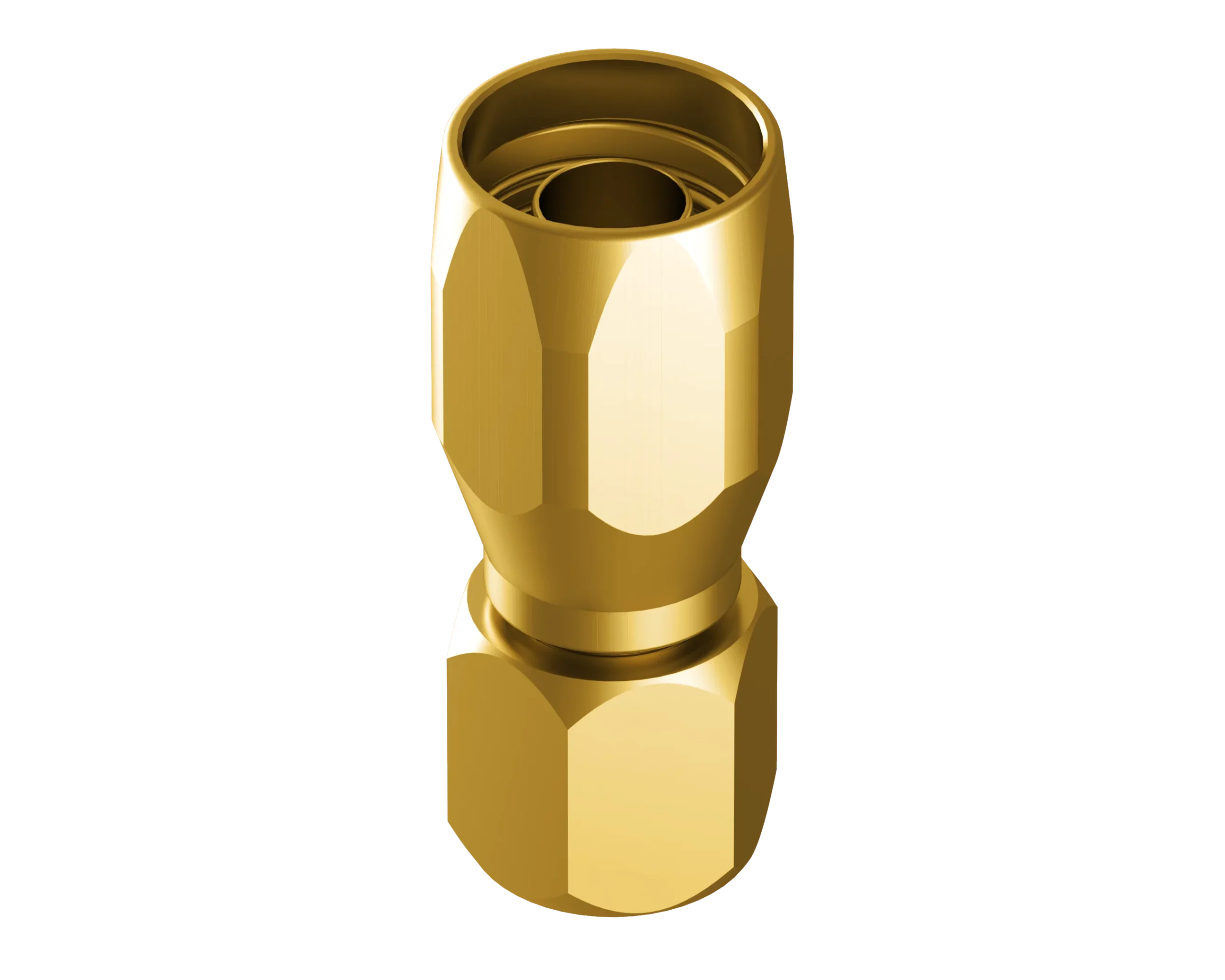

( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 411-B & 44-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-B1488A-1612 |
|---|---|
| Hydrasearch Drawing Number | C20673 |
| Hose Size | 3/4 |
| T Thread CL-2A | 1-5/16”-12 |
| A | 3.26 |
| B | 1.01 |
| C | 1.50 |
| D | 1.69 |
| E | .61 |
| G | 1.25 |
| M | .60 |
| V | 2.10 |
| Est. Wt. (lbs.) | .50 |

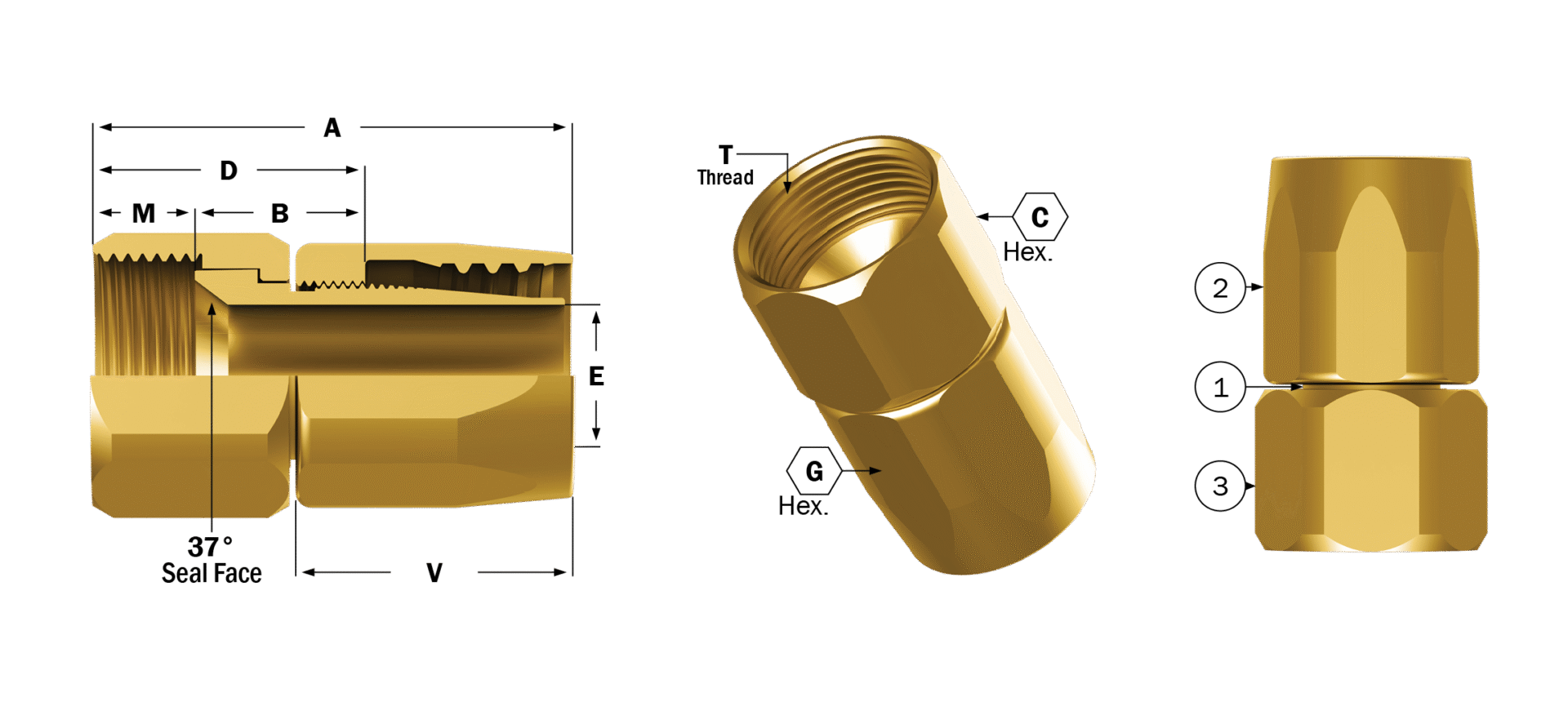

Specification Image
Components Table
| Desceiption | Req’d per Ass’y | 0404 | 0604 | 0505 | 0606 | 0808 | 1008 | 1010 | 1210 | 1212 | 1612 | Material |
| Nipple | 1 | B18978-1 | - | B18979-1 | B18980-1 | C18647-1 | - | B18981-1 | - | B18982-1 | - | Brass |
| Socket | 1 | C18984-1 | - | C18985-1 | C18986-1 | C18648-1 | - | C18987-1 | - | C18988-1 | - | Brass |
| Nut | 1 | B18972-1 | - | B18973-1 | B18974-1 | B18778-1 | - | B18975-1 | - | B18976-1 | - | Brass |
