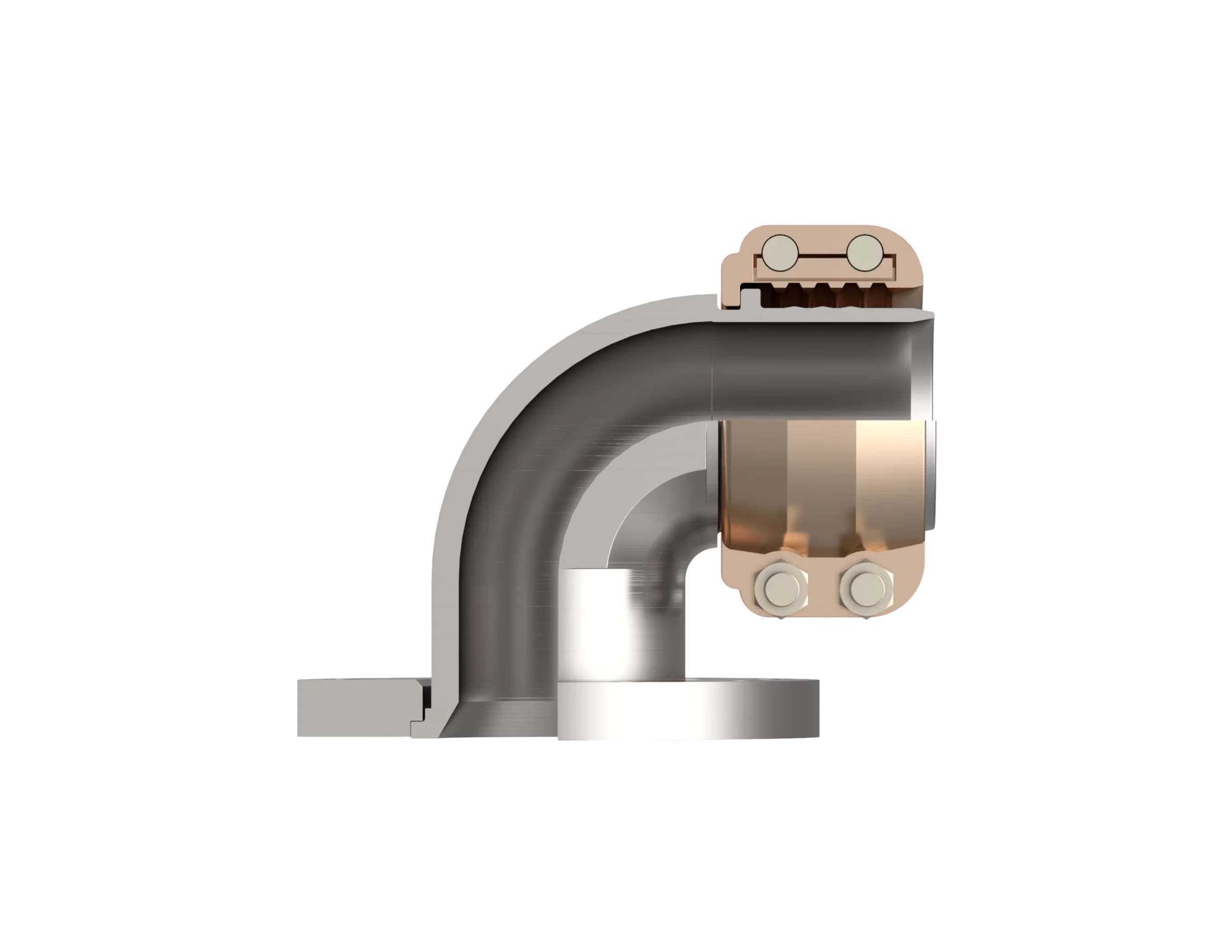

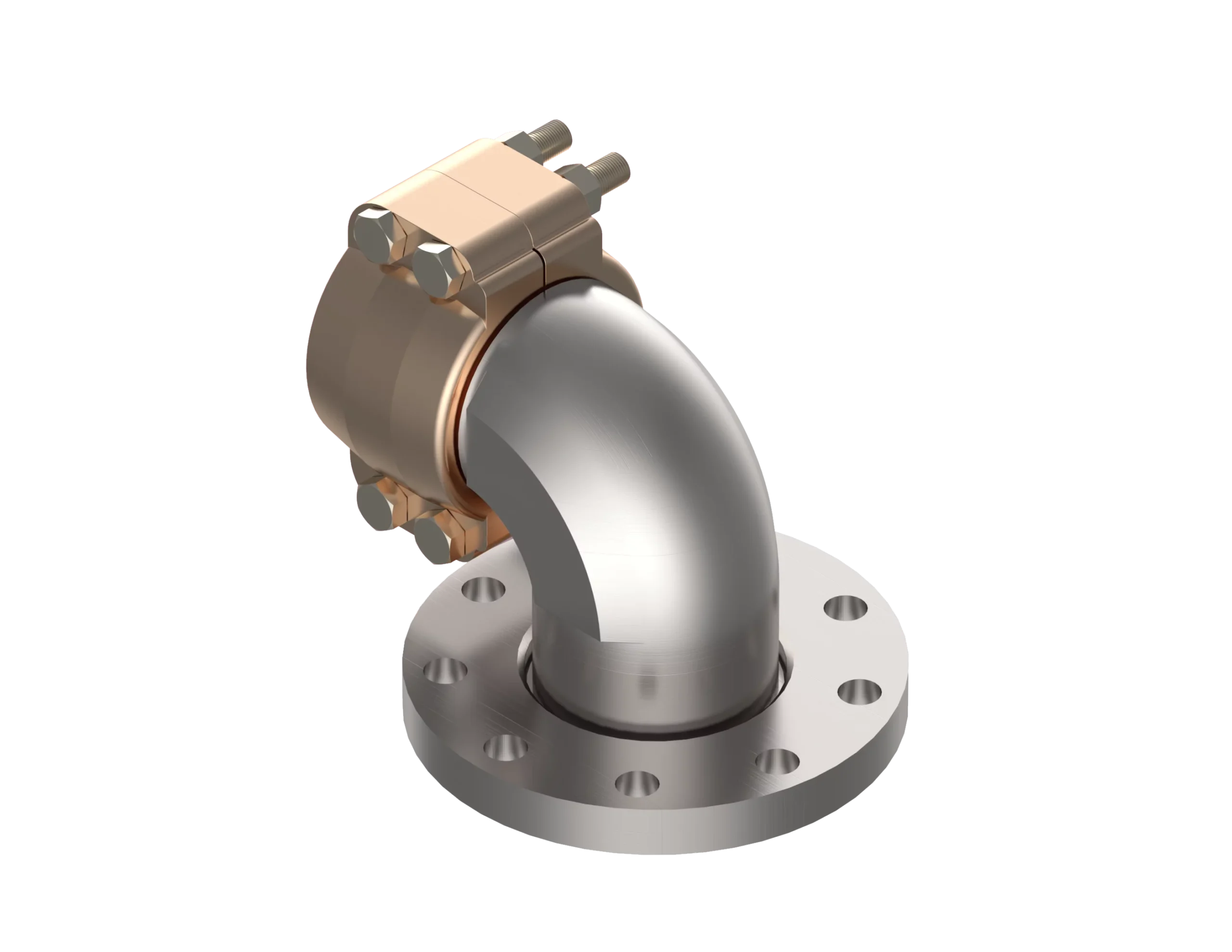

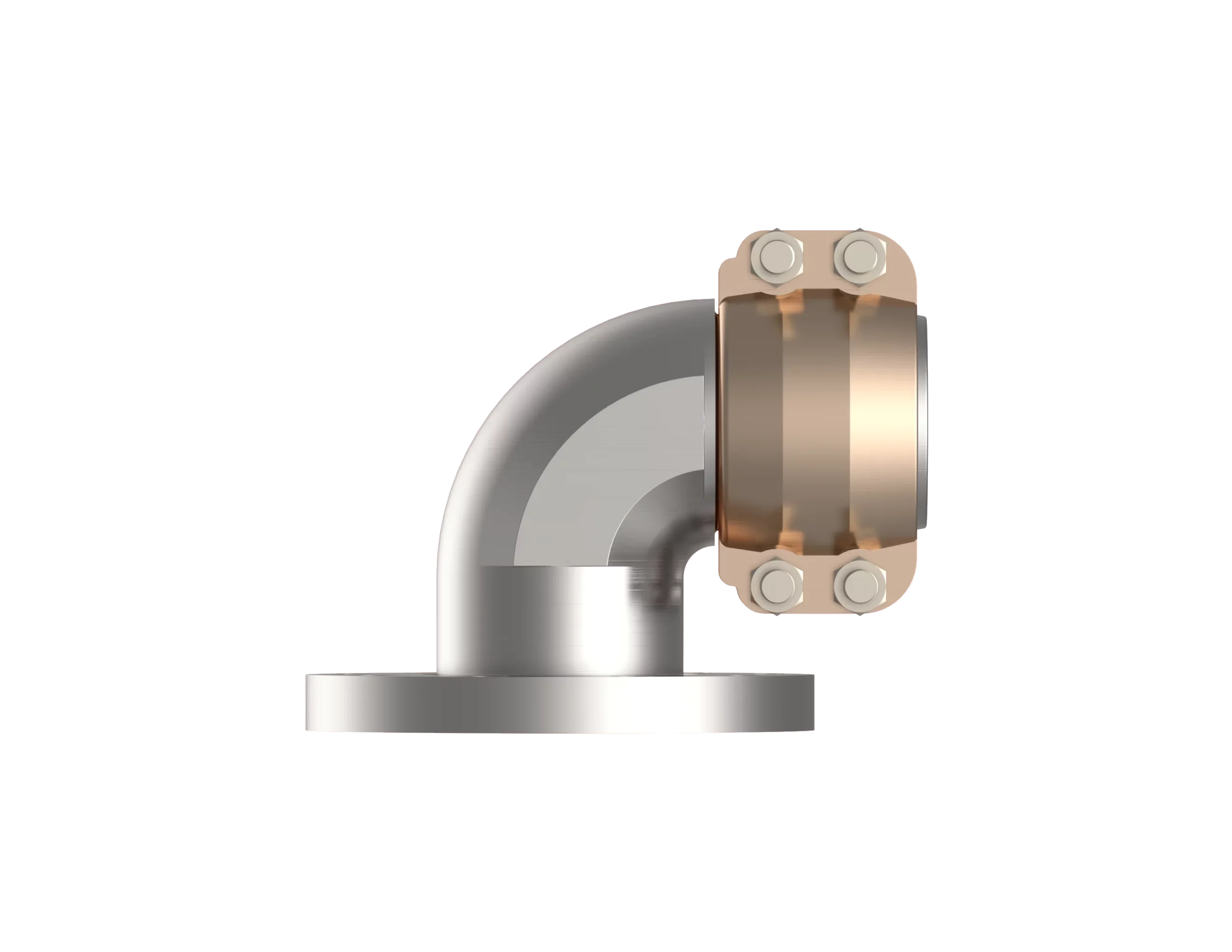

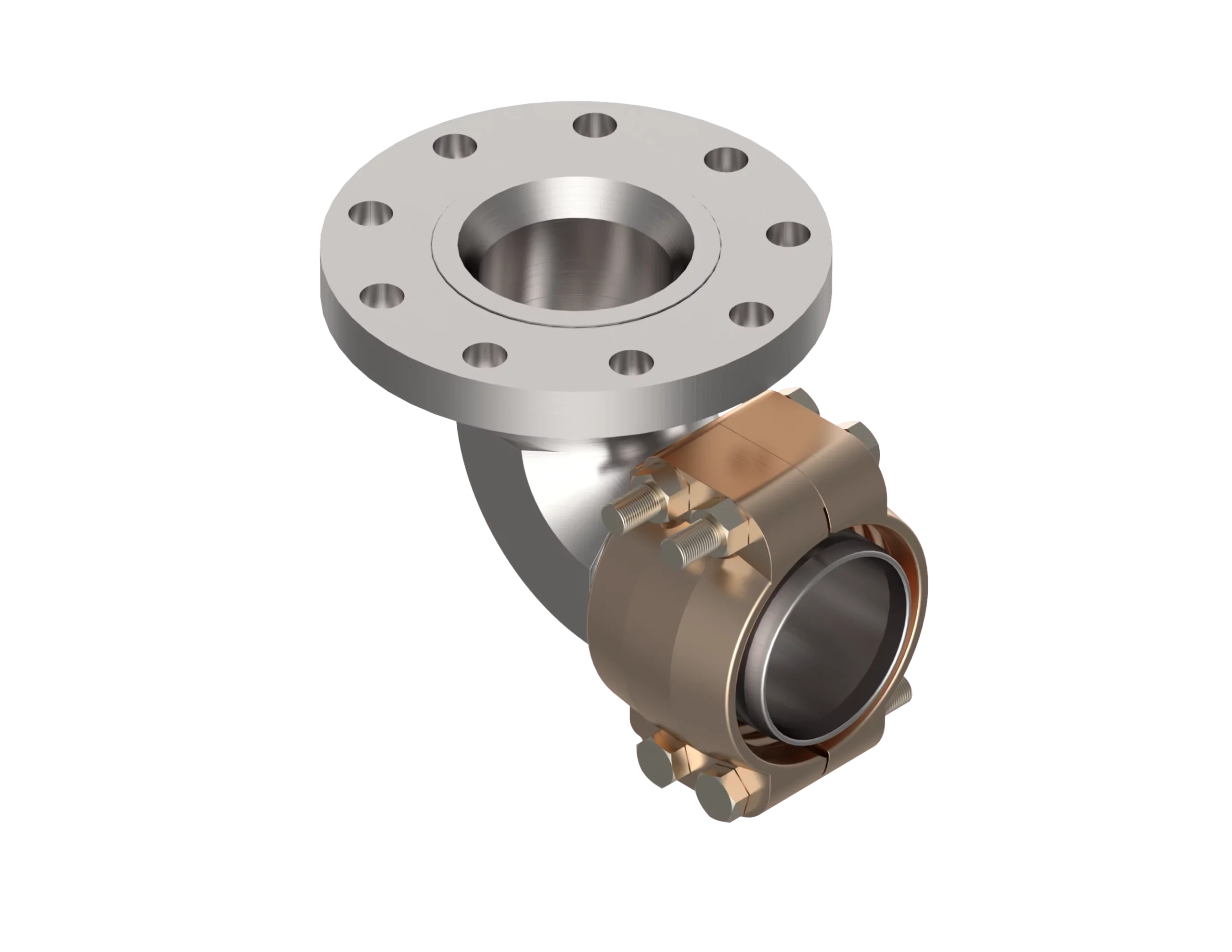

FC7554-4848-410

FC7554-4848-410

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7554-410,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC7554-4848-410
  • IPS Size: 3
  • No. of Bolt Holes: 4
  • A: 5.78
  • D: 2.89
  • H: 4.00
  • J: 7.50
  • K: 4.50
  • L: 6.00
  • M: .75
  • N: .48
  • R: 2.09
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 20.00

Specification Table

Part NumberFC7554-4848-410
IPS Size3
No. of Bolt Holes4
A5.78
D2.89
H4.00
J7.50
K4.50
L6.00
M.75
N.48
R2.09
S3.31
T7.65
Est. Wt. (lbs.)20.00

Components Table

DescriptionReq’d per Ass’yBase No.48486464Material
Swivel Flange1407-74021-48-4864-64Stainless Steel
Elbow1FC3558-4848-4076464-407Stainless Steel
Grip Segment2FC3476-48-18864-188Aluminum. Bronze
Bolt4FF9142-0964-41072-4Monel
Nut44-222048-910Monel
