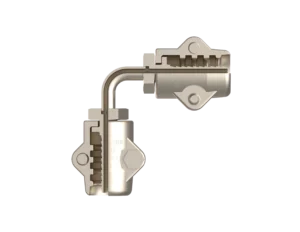

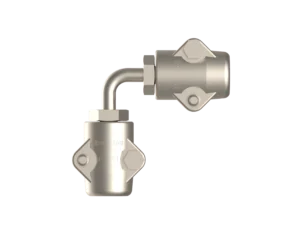

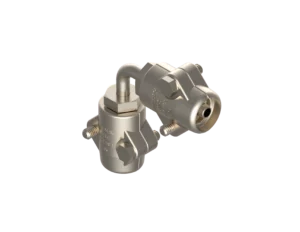

90ELB-1489D-0808

90ELB-1489D-0808

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: 90ELB-1489D-0808
  • Hydrasearch Drawing Number: C18918
  • IPS Size: 1/2
  • A: 3.47
  • D: 1.65
  • E: .39
  • R: .75
  • V: 2.08
  • W: 1.00
  • X: 2.40
  • Est. Wt. (lbs.): 2.40

Specification Table

Part Number90ELB-1489D-0808
Hydrasearch Drawing NumberC18918
IPS Size1/2
A3.47
D1.65
E.39
R.75
V2.08
W1.00
X2.40
Est. Wt. (lbs.)2.40

Specification Image

Components Table

DescriptionReq’d per Ass’y060608081212Mat’l
Elbow1C18857C18859C18861Monel
Segment4D18758-1C18640-1D18743-1Monel
Bolt4B18759B18640B18745Monel
