EF-SS1488A-2424
EF-SS1488A-2424
Print
Download PDF
( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 10-411 & 259-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-SS1488A-2424 |
|---|---|
| Hydrasearch Drawing Number | C19282 |
| Hose Size | 1.50 |
| T Thread CL-2A | 1-7/8”-12 |
| A | 3.42 |
| B | 1.23 |
| C | 2.25 |
| D | 1.97 |
| E | 1.28 |
| G | 2.00 |
| M | .74 |
| V | 1.85 |
| Est. Wt. (lbs.) | 1.60 |

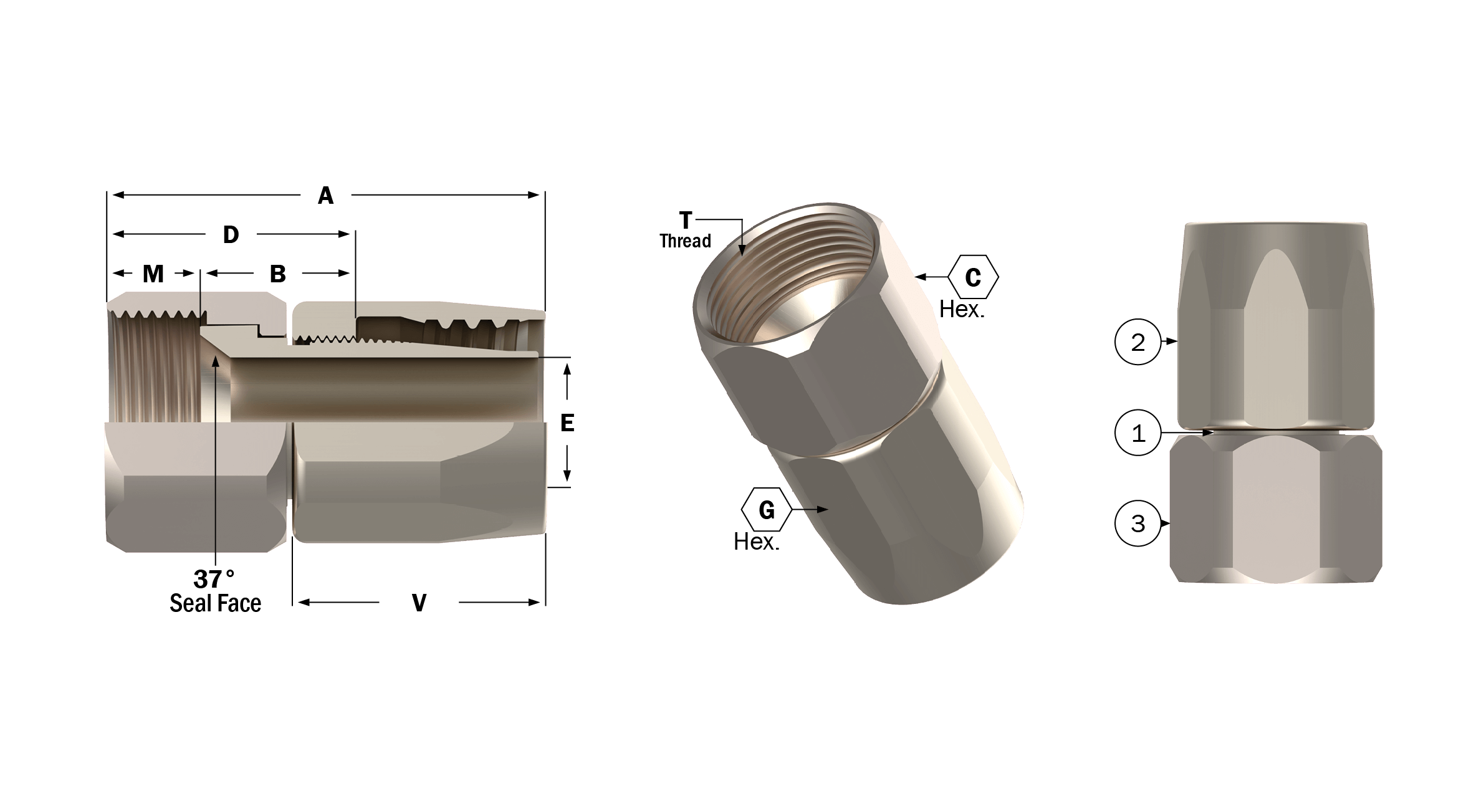

Specification Image
Components Table
| Description | Req’d per Ass’y | 1616 | 2020 | 2424 | 3232 | Material |
| Nipple | 1 | B18668-3 | B18675-3 | C18983-3 | C18654-3 | Stainless Steel |
| Socket | 1 | C18667-3 | C18703-3 | C18990-3 | C19132 | Stainless Steel |
| Nut | 1 | B18673-3 | C18677-3 | C18977-3 | C18650-3 | Stainless Steel |
