EF-449A7-2.5-40-SS

EF-449A7-2.5-40-SS

Print Icon Print Download Icon Download PDF

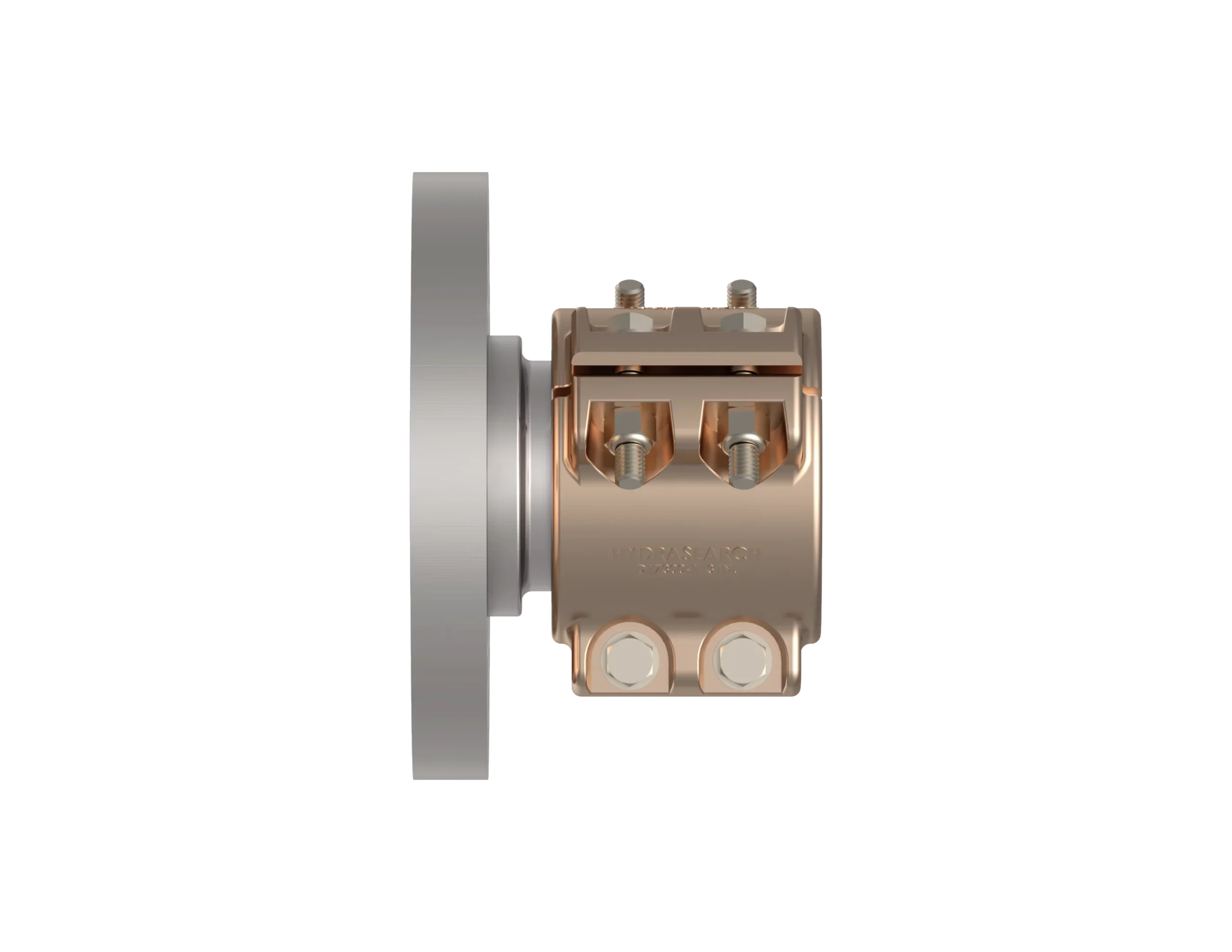

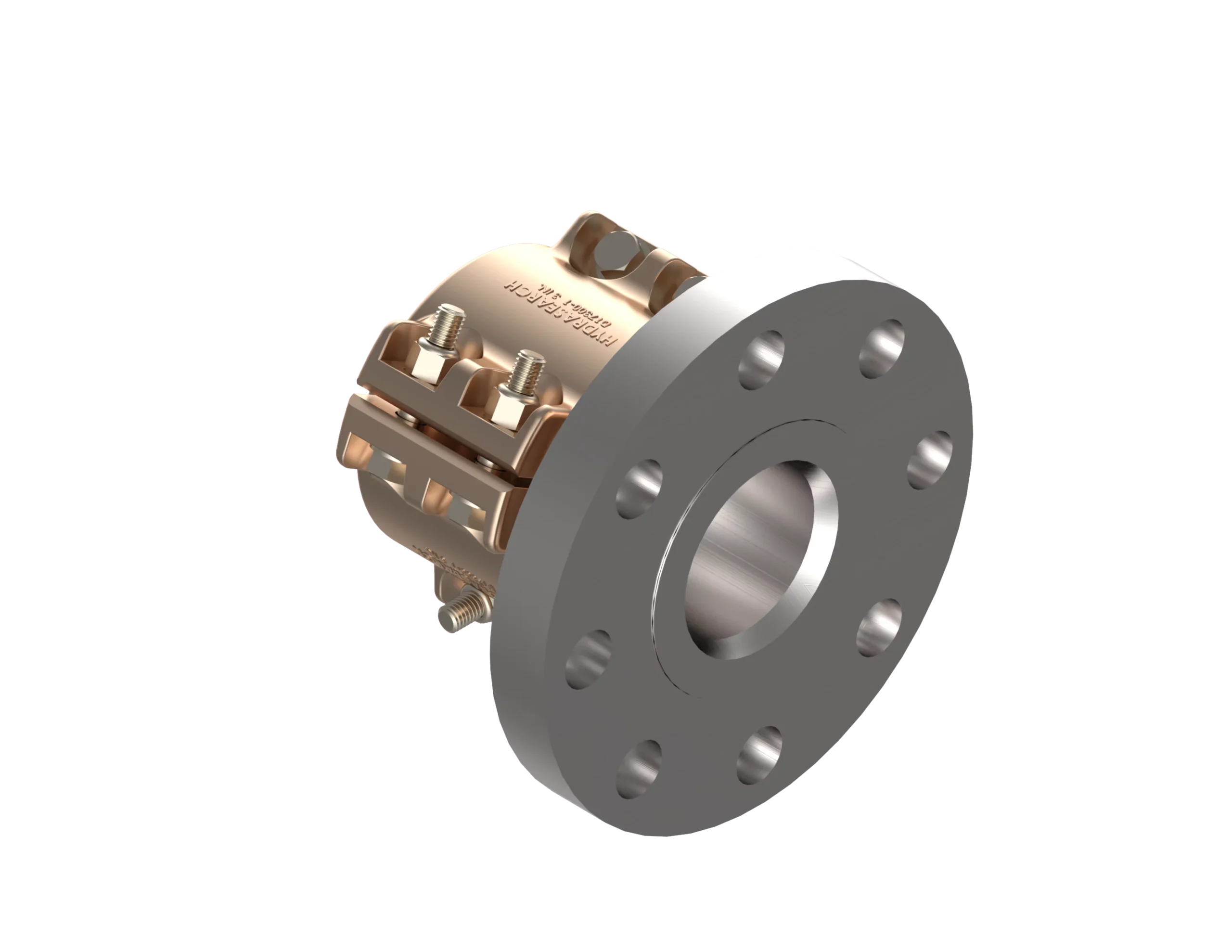

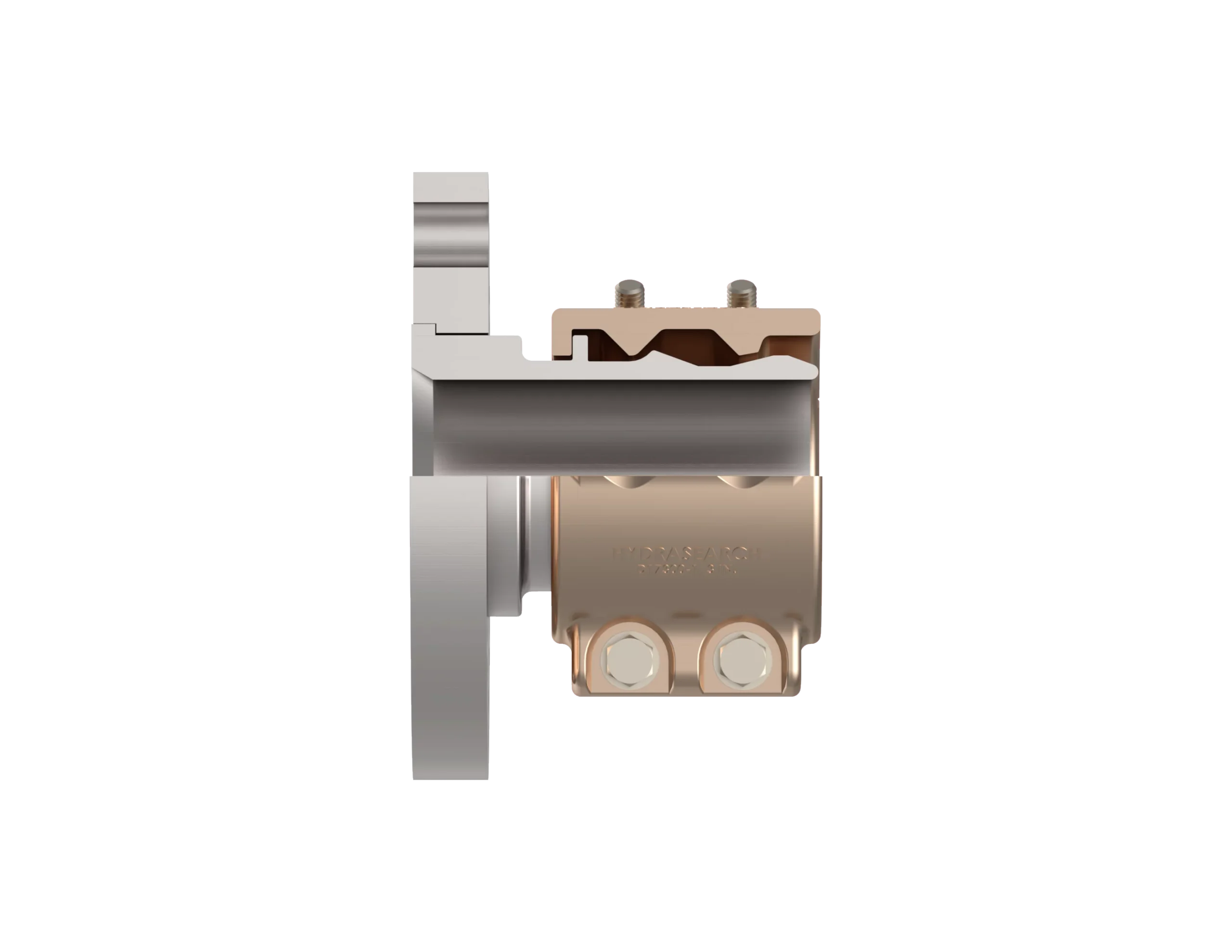

( 600lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 412-190814,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A7-2.5-40-SS
  • Hydrasearch Drawing Number: C21183
  • IPS Size: 2.5
  • No. of Bolt Holes: 8
  • M: .88
  • A: 5.2
  • D: 2.28
  • J: 7.5
  • K: 3.22
  • L: 5.34
  • N: 1.12
  • S: 2.24
  • T: 5.35
  • Est. Wt. (lbs.): 18.90

Specification Table

Part NumberEF-449A7-2.5-40-SS
Hydrasearch Drawing NumberC21183
IPS Size2.5
No. of Bolt Holes8
M.88
A5.2
D2.28
J7.5
K3.22
L5.34
N1.12
S2.24
T5.35
Est. Wt. (lbs.)18.90

Components Table

DescriptionReq’d per Ass’y2.5-40Material
Swivel Flange1C21181Stainless Steel
Nipple1C18152Stainless Steel
Segment3D17299-1Aluminum. Bronze
Bolt6B17673-2Monel
Lock Nut6B18176Monel
Washer6B18175Monel
