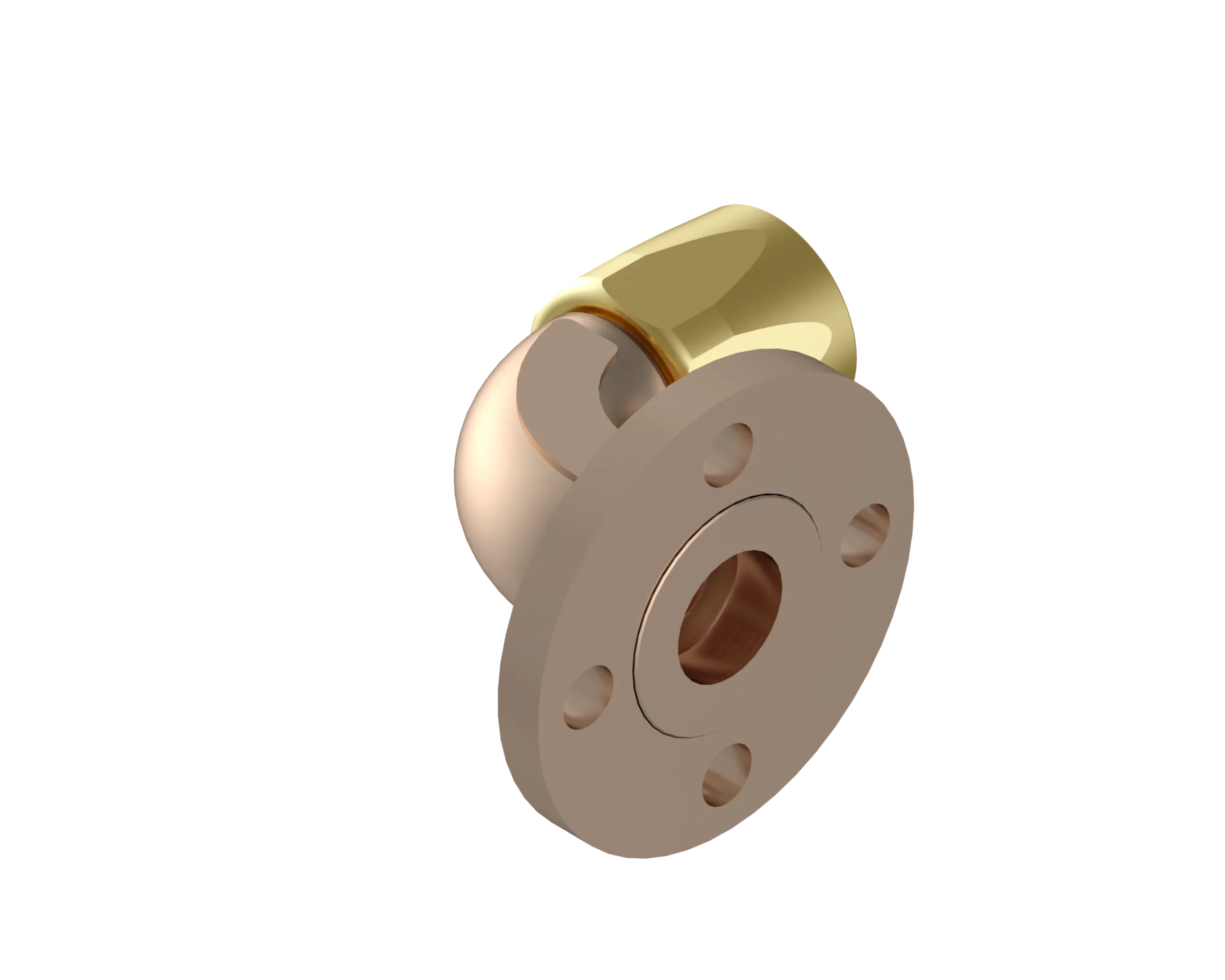

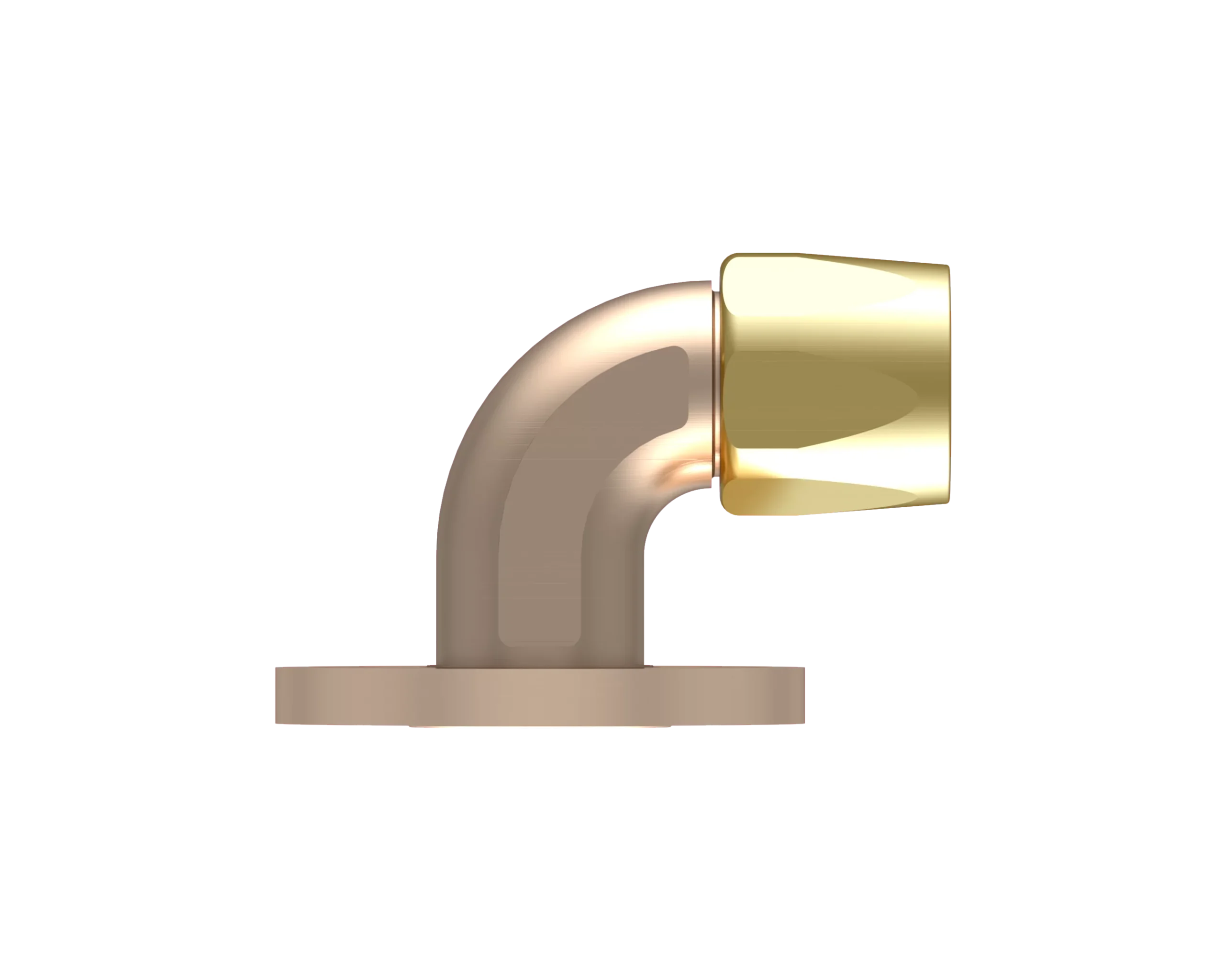

HS1488 - Medium Pressure Fittings
66-190124-48-48
( 150lb, End Fitting - 90° )
Description:
Equal to Hydrasearch P/N 90EF-B1488FL5-4848,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 66-190124-48-48 |
|---|---|
| IPS Size | 3 |
| No. of Bolt Holes | 4 |
| A | 4.61 |
| C | 3.88 |
| D | 2.70 |
| H | 4.00 |
| J | 7.50 |
| L | 6.00 |
| M | .75 |
| N | .48 |
| R | - |
| Est. Wt. (lbs.) | 13.50 |

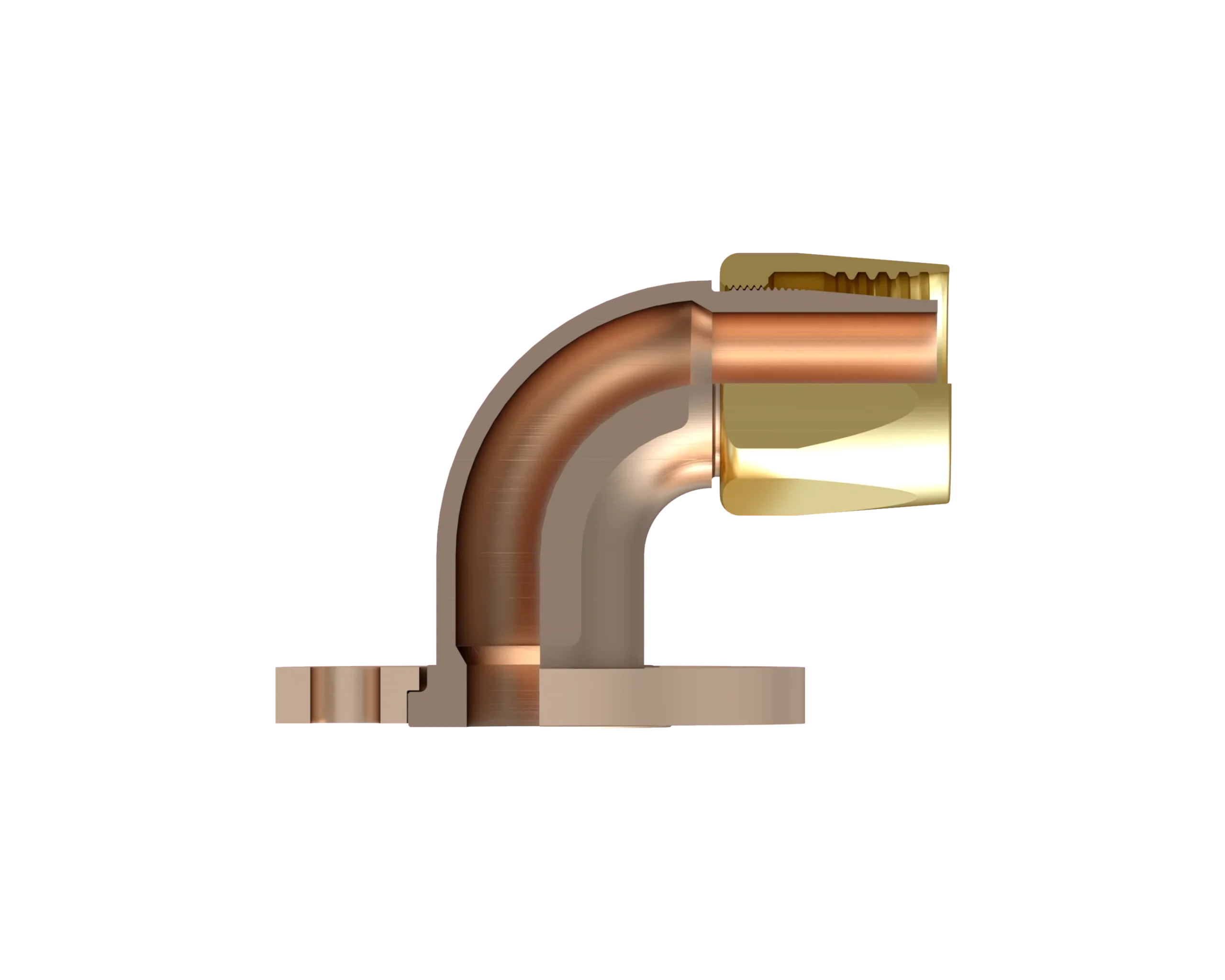

Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | 8-16 | 12-20 | 16-24 | 20-32 | 24-32 | 32-32 | 32-40 | 48-48 | Material |
| Elbow | 1 | 188-185029- | 8-16 | 12-20 | 16-24 | 20-32 | 24-32 | 32-32 | 32-40 | 48-48 | Aluminum. Bronze |
| Socket | 1 | 1212- | 16B | 20B | 24B | 32B | 32B | 32B | 40B | 48B | Brass |
| Flange | 1 | 188-74021- | 8-16 | 12-20 | 16-24 | 20-32 | 24-32 | 32-32 | 32-40 | 48-48 | Aluminum. Bronze |
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
