EF-MB1488C-0610
EF-MB1488C-0610
Print
Download PDF
( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 93-190911,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-MB1488C-0610 |
|---|---|
| Hydrasearch Drawing Number | C19233 |
| IPS Size | 3/8 |
| T Thread CL-3A | 1-3/8”-12 |
| A | 2.73 |
| C | 1.44 |
| D | 1.43 |
| G | 1.12 |
| M | .62 |
| Est. Wt. (lbs.) | .60 |

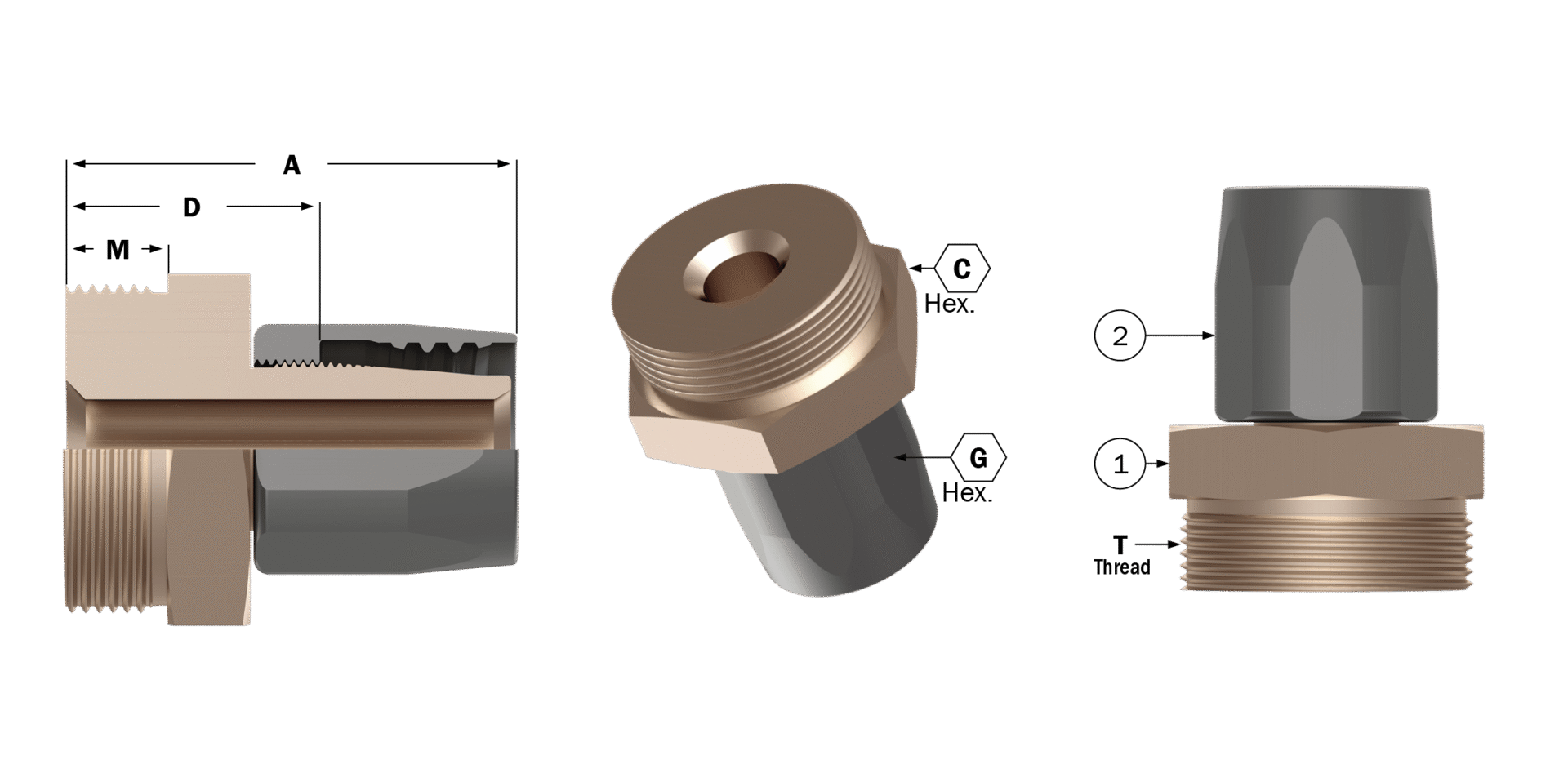

Specification Image
Components Table
| Description | Req’d per Ass’y | 0206 | 0408 | 0610 | 0812 | Material |
| Nipple | 1 | C19014 | C19015 | C19016-1 | C19017-1 | Monel |
| Socket | 1 | C18986-1 | C18648-1 | C18987-1 | C18988-1 | Brass |
