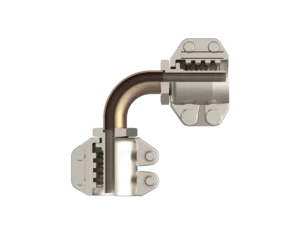

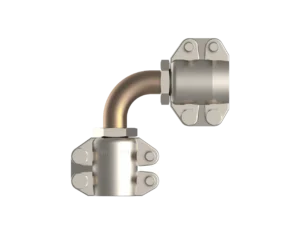

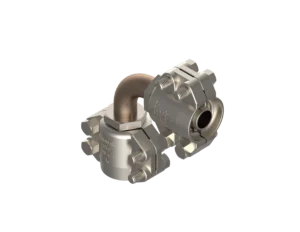

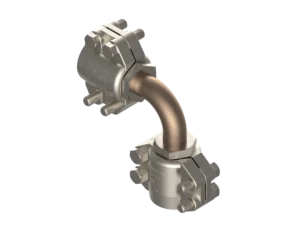

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: 90ELB-1489D-1616
  • Hydrasearch Drawing Number: C18920
  • IPS Size: 1
  • A: 4.67
  • D: 2.62
  • E: .81
  • R: 1.50
  • V: 2.44
  • W: 1.62
  • X: 3.75
  • Est. Wt. (lbs.): 6.00

Specification Table

Part Number90ELB-1489D-1616
Hydrasearch Drawing NumberC18920
IPS Size1
A4.67
D2.62
E.81
R1.50
V2.44
W1.62
X3.75
Est. Wt. (lbs.)6.00

Components Table

DescriptionReq’d per Ass’y1616202024243232Mat’l
Elbow4C18863C18865C18867C18869Monel
Segment4D18747-1D18748-1D18750-1D18704-1Monel
Bolt8B18746B18746B18755B18718Monel
