EF-12-150F-B16.5-SS

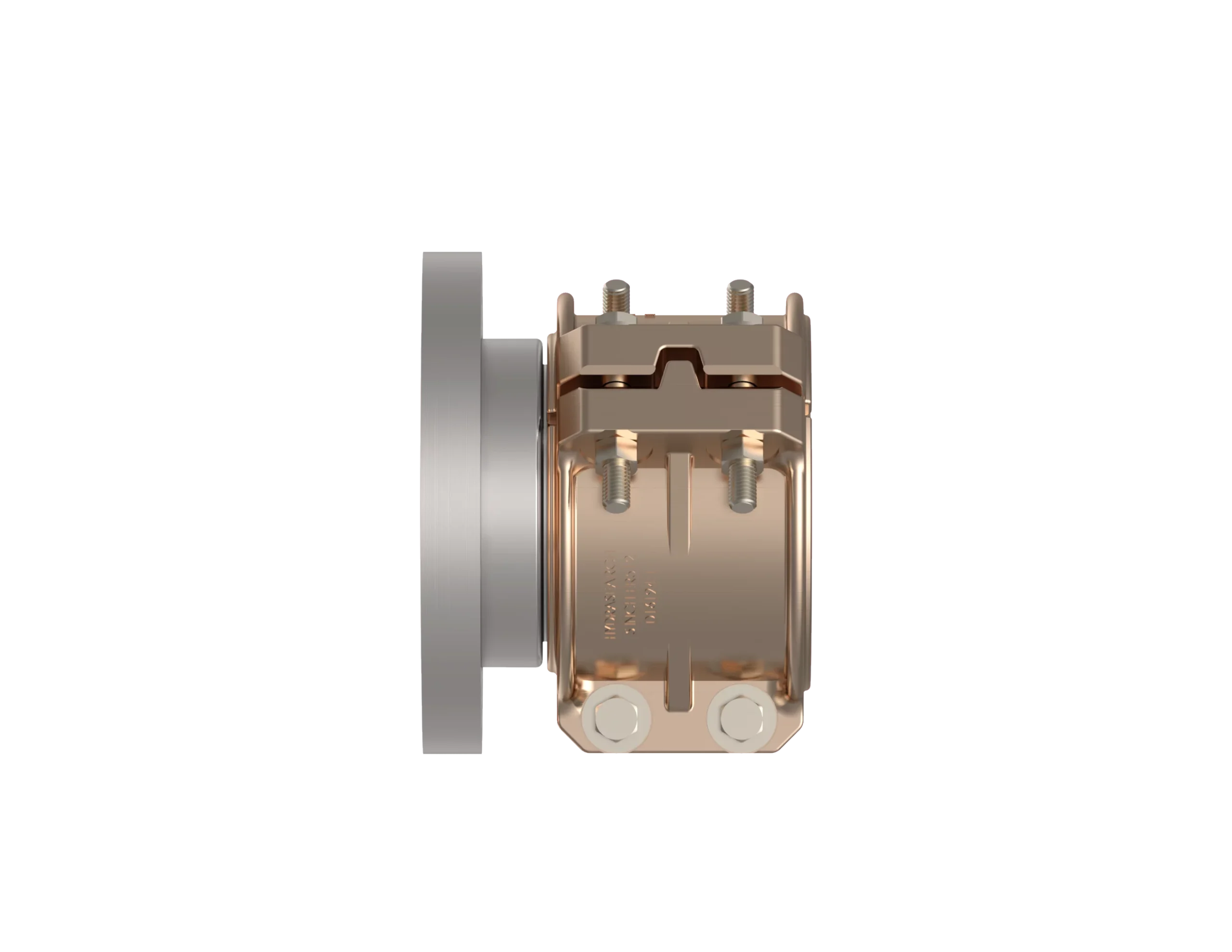

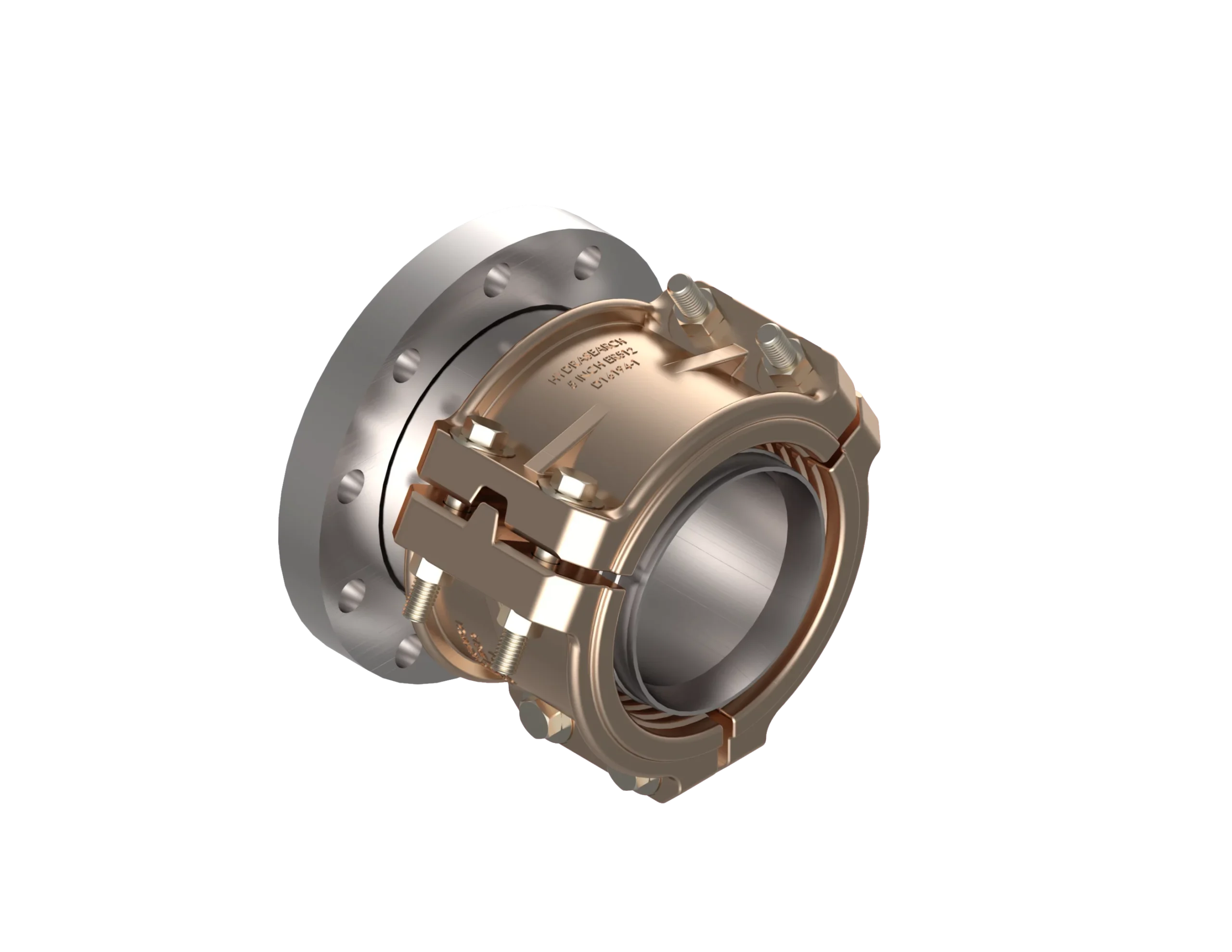

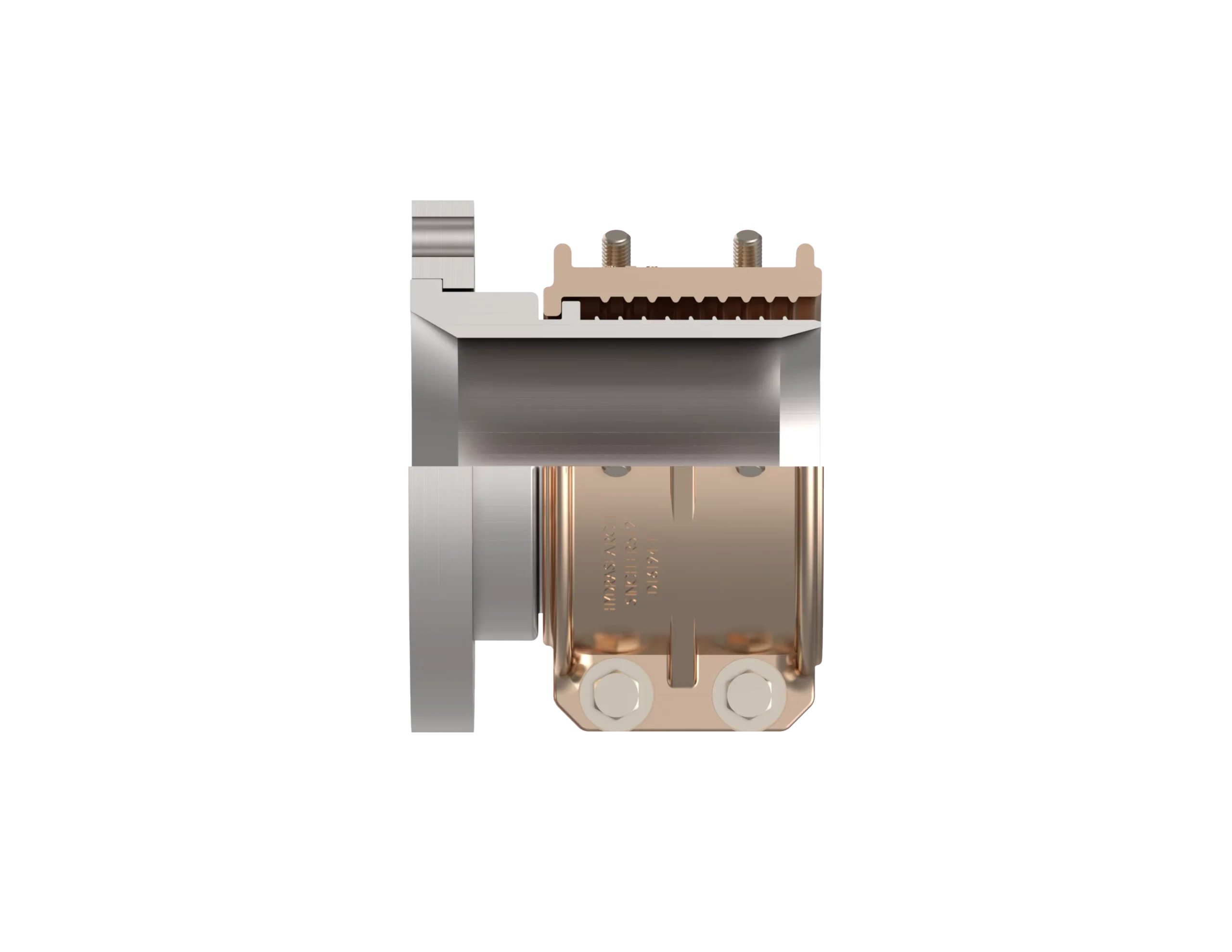

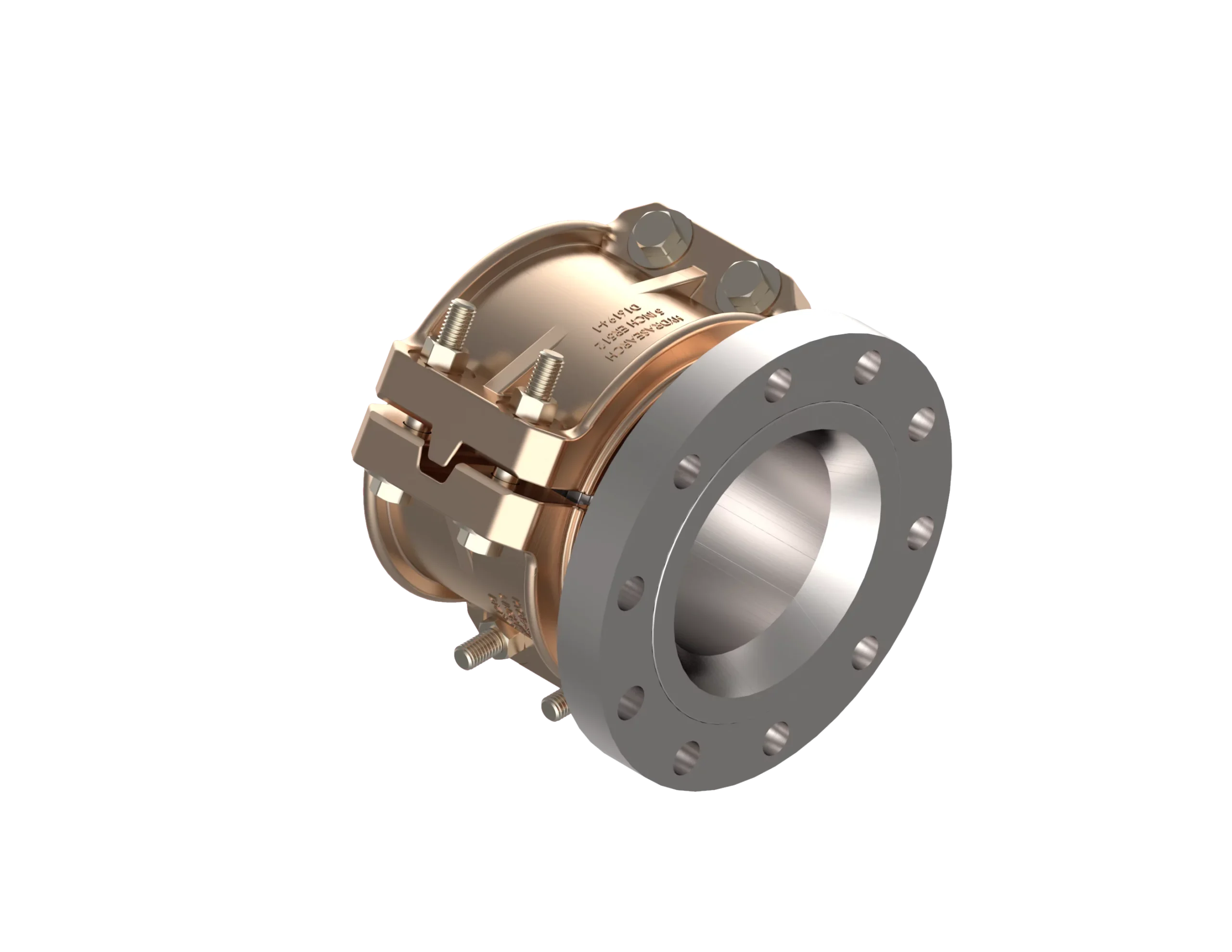

EF-12-150F-B16.5-SS – End Fittings – Straight – Flange to Hose (150 Lb. Flange per A.N.S.I. B16.5)(ER512 Series)

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7781-410,
Use with the following hose: ER512 & 2580

Specification

  • Part Number: EF-12-150F-B16.5-SS
  • Hydrasearch Drawing Number: -
  • IPS Size: 12
  • No. of Bolt Holes: 12
  • M: 1.00
  • A: 8.52
  • D: 3.24
  • J: 19.00
  • K: 14.48
  • L: 17.00
  • N: 1.48
  • S: 12.33
  • T: 17.10
  • Est. Wt. (lbs.): 47.00

Specification Table

Part NumberEF-12-150F-B16.5-SS
Hydrasearch Drawing Number-
IPS Size12
No. of Bolt Holes12
M1.00
A8.52
D3.24
J19.00
K14.48
L17.00
N1.48
S12.33
T17.10
Est. Wt. (lbs.)47.00

Components Table

DescriptionReq’d per Ass’y5"6"8"10"12"Material
Swivel Flange1C18361C17629-1C17639-2C18459-Stainless Steel
Nipple1D18363D17640D17744D18458-Stainless Steel
Grip Segment3D16194-1D16198-1C22160D18345-1D18282-1Aluminum. Bronze
Bolt6D16197-4D16197-4C22173-2B16551-1B18346Monel
Nut6D16197-6D16197-6B18347B16551-3B18347Monel
Washer6D16197-5D16197-5B18348B16551-2B18348Monel
