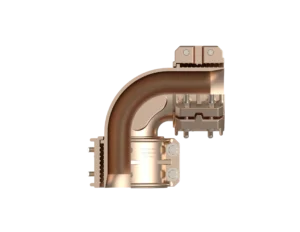

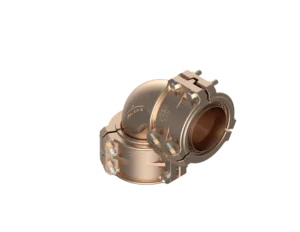

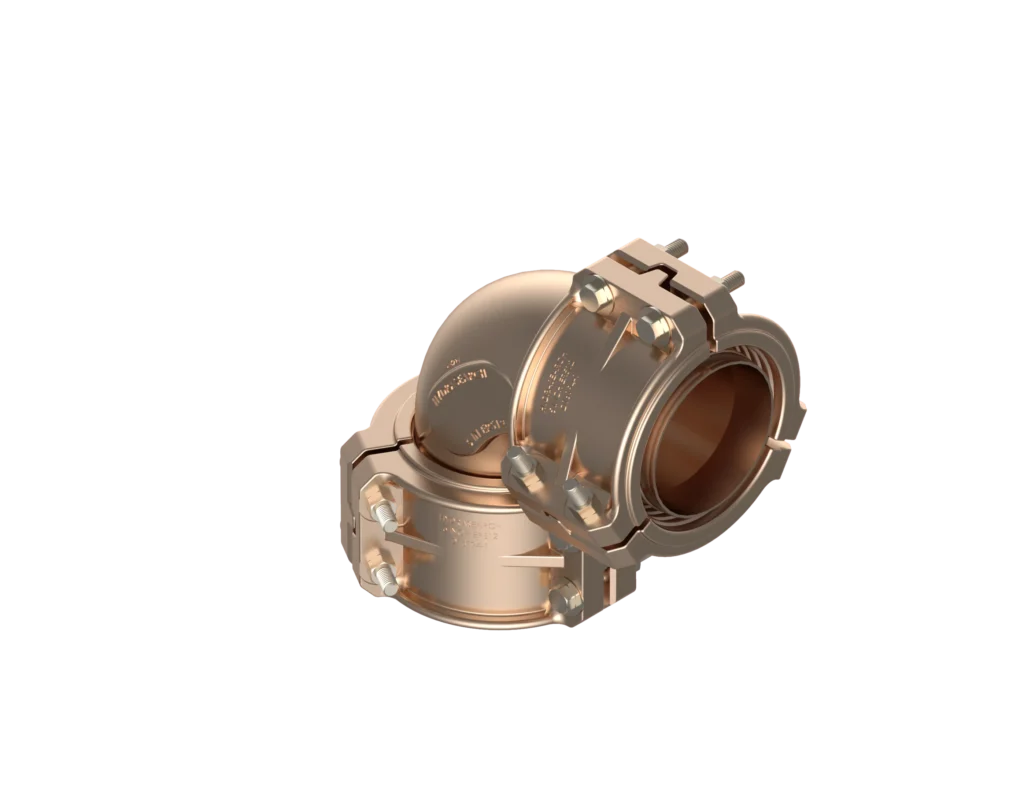

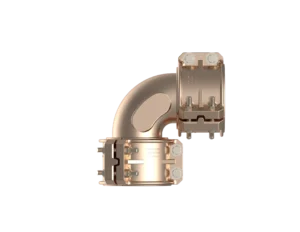

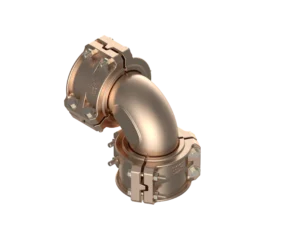

( MIL-DTL-24787/5, Type D, Group IX, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N FC7754-188,
Use with the following hose: ER512 & 2580

Specification

  • Part Number: FC7754-0808-188
  • IPS Size: 8
  • A: 10.34
  • D: 6.22
  • E: 7.40
  • R: 5.00
  • T: 13.89
  • Est. Wt. (lbs.): 122.00

Specification Table

Part NumberFC7754-0808-188
IPS Size8
A10.34
D6.22
E7.40
R5.00
T13.89
Est. Wt. (lbs.)122.00

Components Table

DescriptionReq’d per Ass’yBase No.80809696080810101212Material
Elbow1FC2467-8080-1889696-1880808-1881010-1881212-188Aluminum. Bronze
Grip Segment4FC2457-1-80-18896-18808-18810-18812-188Aluminum. Bronze
Bolt8FF9411-10-8810-8812-8812-10012-48Monel
Nut8FF9033-10-410-412-412-412-4Monel
Washer8FF9412-1001-41001-41201-41201-41201-4Monel
