90ELB-MSS1488D-3232

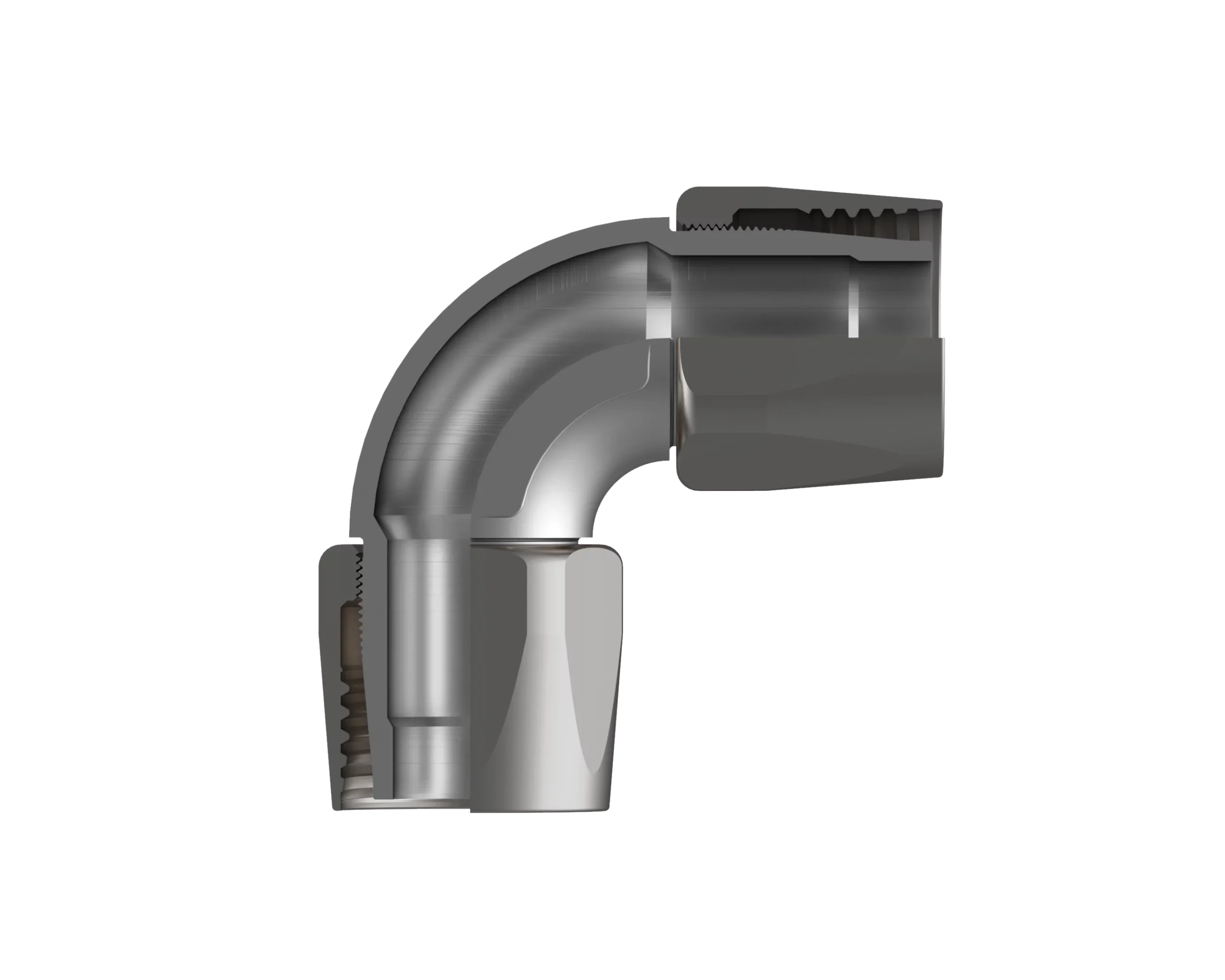

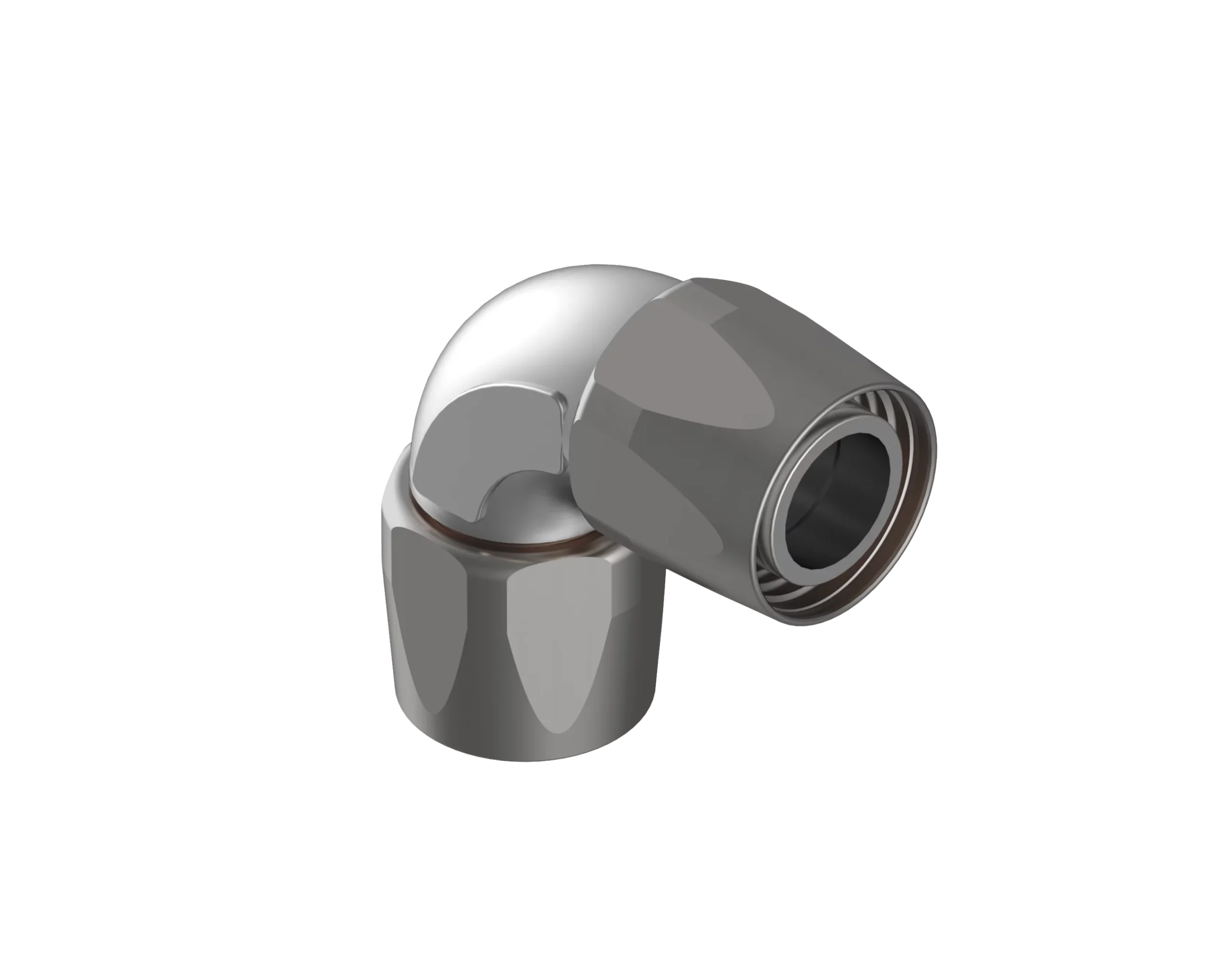

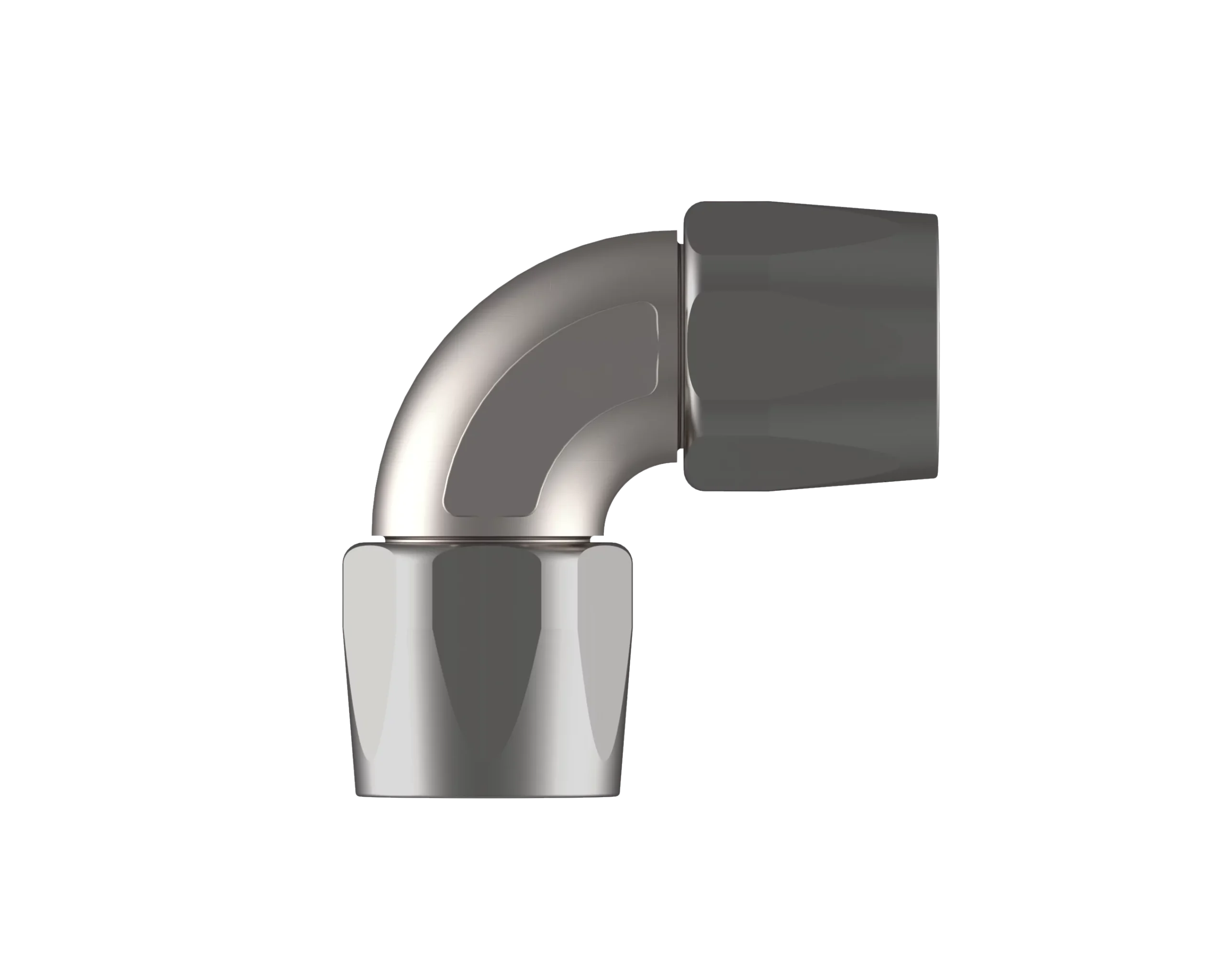

90ELB-MSS1488D-3232 – Elbows – 90º – Hose to Hose

Print Icon Print Download Icon Download PDF
( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 412-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90ELB-MSS1488D-3232
  • Hydrasearch Drawing Number: C19349
  • IPS Size: 2
  • A: 3.89
  • D: 2.05
  • E: 1.69
  • G: 2.44
  • R: 1.62
  • V: 2.25
  • X: 2.25
  • Est. Wt. (lbs.): 3.20

Specification Table

Part Number90ELB-MSS1488D-3232
Hydrasearch Drawing NumberC19349
IPS Size2
A3.89
D2.05
E1.69
G2.44
R1.62
V2.25
X2.25
Est. Wt. (lbs.)3.20

Specification Image

90ELB-MSS1488D

Components Table

DescriptionReq’d per Ass’y16162020242432324040Material
Elbow1C19249C19250C21628C19251C19252Stainless Steel
Socket2C18667-2C18703-2C18990-2C18662C18991Monel
