4-190909-3/4-16

4-190909-3/4-16

Print Icon Print Download Icon Download PDF

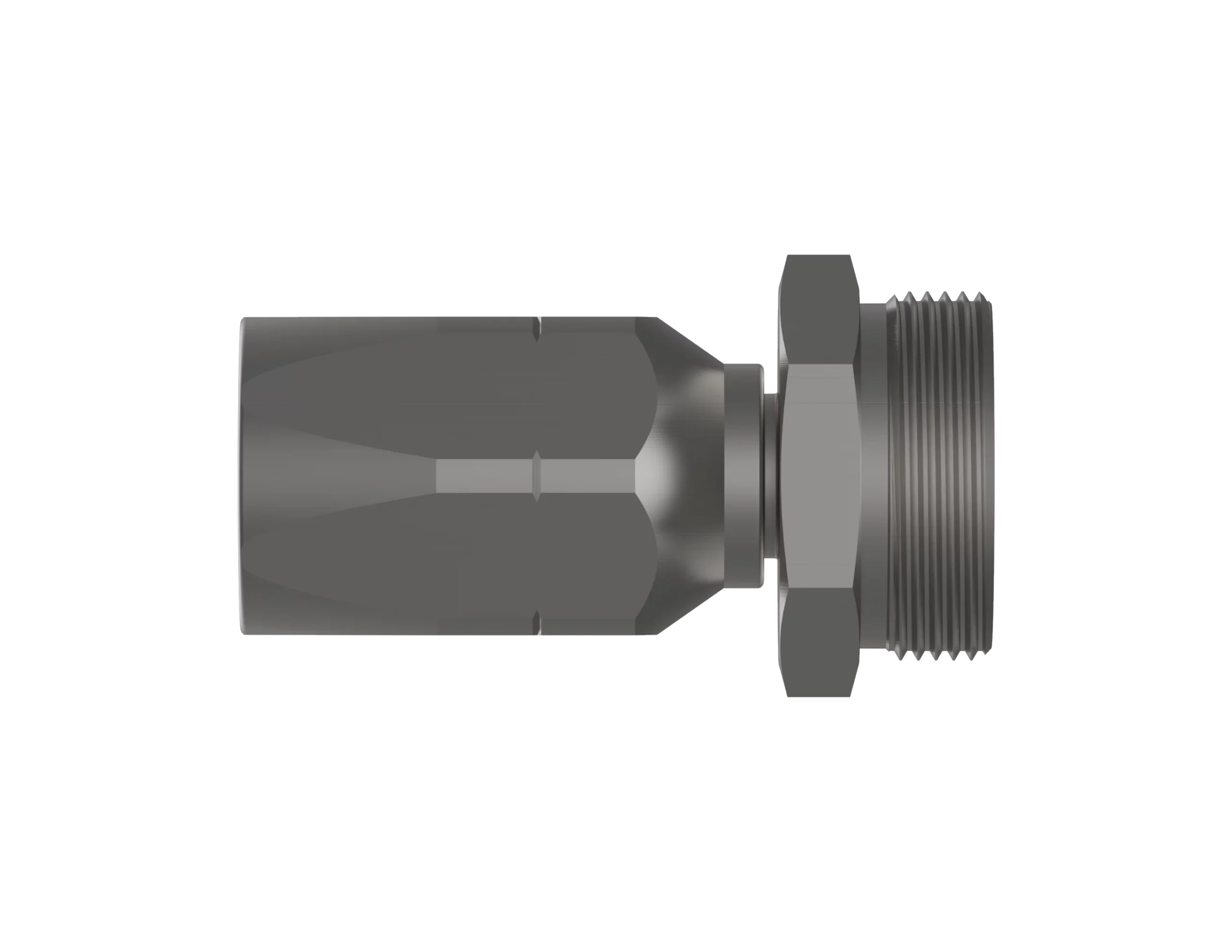

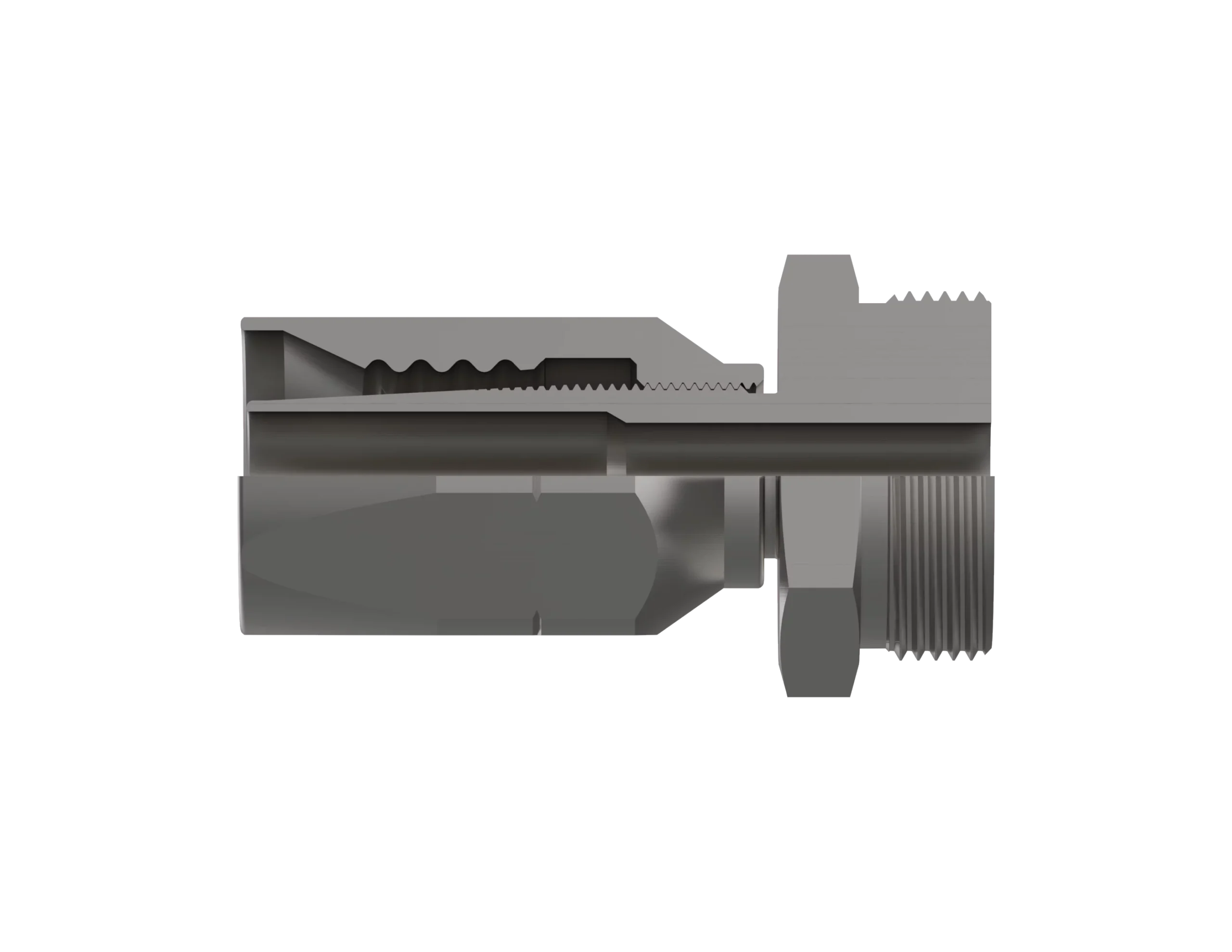

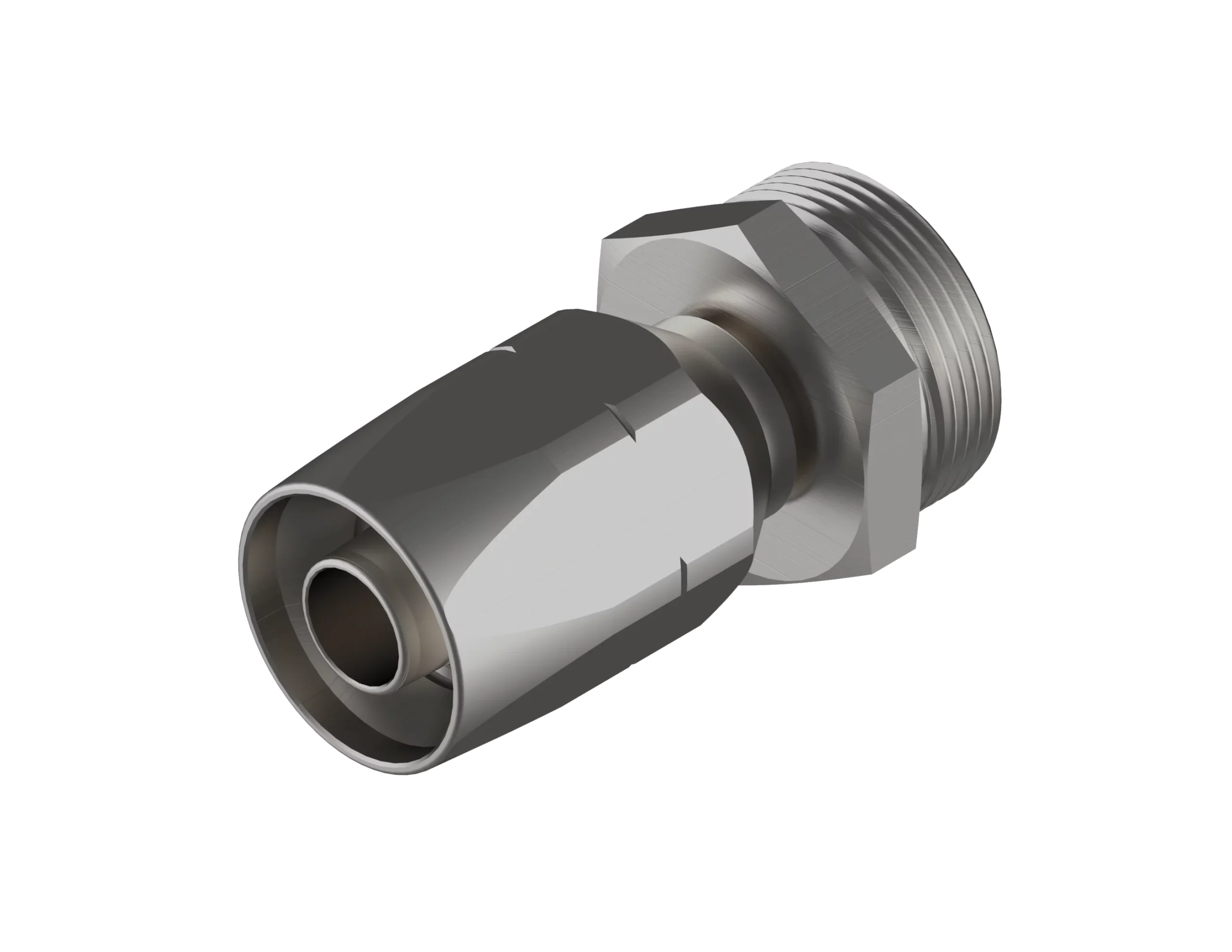

( MIL-DTL-24787/3, Type C, Group I, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N 4-190909,
Use with the following hose: Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Specification

  • Part Number: 4-190909-3/4-16
  • IPS Size: 3/4
  • T Thread CL-2B: 2”-12
  • A: 4.09
  • C: 2.12
  • D: 2.04
  • E: .62
  • G: 1.81
  • M: .62
  • N: .50
  • V: 2.95
  • Est. Wt. (lbs.): 2.34

Specification Table

Part Number4-190909-3/4-16
IPS Size3/4
T Thread CL-2B2”-12
A4.09
C2.12
D2.04
E.62
G1.81
M.62
N.50
V2.95
Est. Wt. (lbs.)2.34

Components Table

DescriptionReq’d per Ass’yBase No.1/8-41/4-63/8-81/2-123/4-161-161-201.25-321.5-322-32Mat’l
Nipple14-220643-1/8-41/4-63/8-81/2-123/4-161-161-201.25-321.5-322-32Monel
Socket14-4010-4-4013-4-6-8-12--16-1620-24-32-32-Monle
