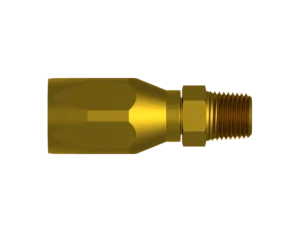

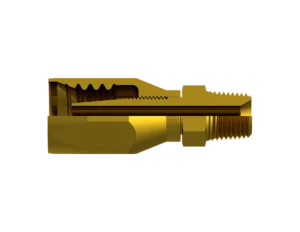

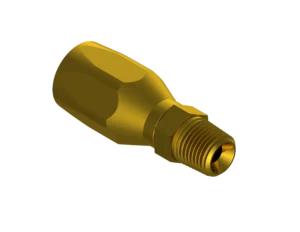

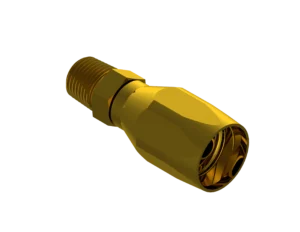

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 412B & 44-412,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488MP-0810
  • Hydrasearch Drawing Number: C19146
  • Hose Size: 5/8
  • T Thread CL-2A: 1/2”-14
  • A: 2.89
  • B: .84
  • C: .88
  • D: 1.59
  • E: .48
  • G: 1.12
  • M: .75
  • V: 1.80
  • Est. Wt. (lbs.): .39

Specification Table

Part NumberEF-B1488MP-0810
Hydrasearch Drawing NumberC19146
Hose Size5/8
T Thread CL-2A1/2”-14
A2.89
B.84
C.88
D1.59
E.48
G1.12
M.75
V1.80
Est. Wt. (lbs.).39

Specification Image

Components Table

DescriptionReq’d per Ass’y0204040404050406060808101212Material
Nipple1B19064B20759B19065B19066C19067C19068C19069Brass
Socket1C18984-1C18984-1C18985-1C18986-1C18648-1C18987-1C18988-1Brass
