EF-MB1488A-1616

EF-MB1488A-1616

Print Icon Print Download Icon Download PDF

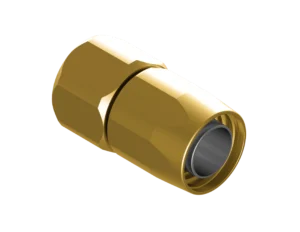

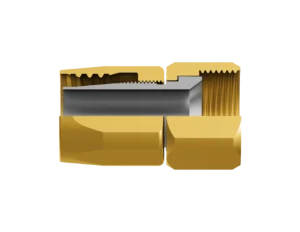

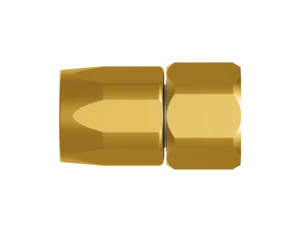

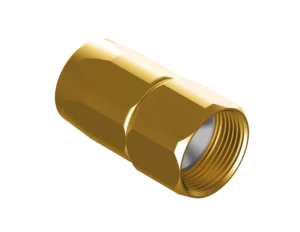

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 23-411,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-MB1488A-1616
  • Hydrasearch Drawing Number: C19290
  • Hose Size: 1
  • T Thread CL-2A: 1-5/16”-12
  • A: 2.73
  • B: 1.09
  • C: 1.50
  • D: 1.69
  • E: .82
  • G: 1.44
  • M: .60
  • V: 1.60
  • Est. Wt. (lbs.): .70

Specification Table

Part NumberEF-MB1488A-1616
Hydrasearch Drawing NumberC19290
Hose Size1
T Thread CL-2A1-5/16”-12
A2.73
B1.09
C1.50
D1.69
E.82
G1.44
M.60
V1.60
Est. Wt. (lbs.).70

Components Table

DescriptionReq’d per Ass’y12121616202024243232Material
Nipple1B18982-2B18668-2B18675-2C18983-2C18654-2Monel
Socket1C18988-1C18667-1C18703-1C18990-1C18811Brass
Nut1B18976-1B18673-1C18677-1C18977-1C18650-1Brass
