EF-MSS1488C-1620

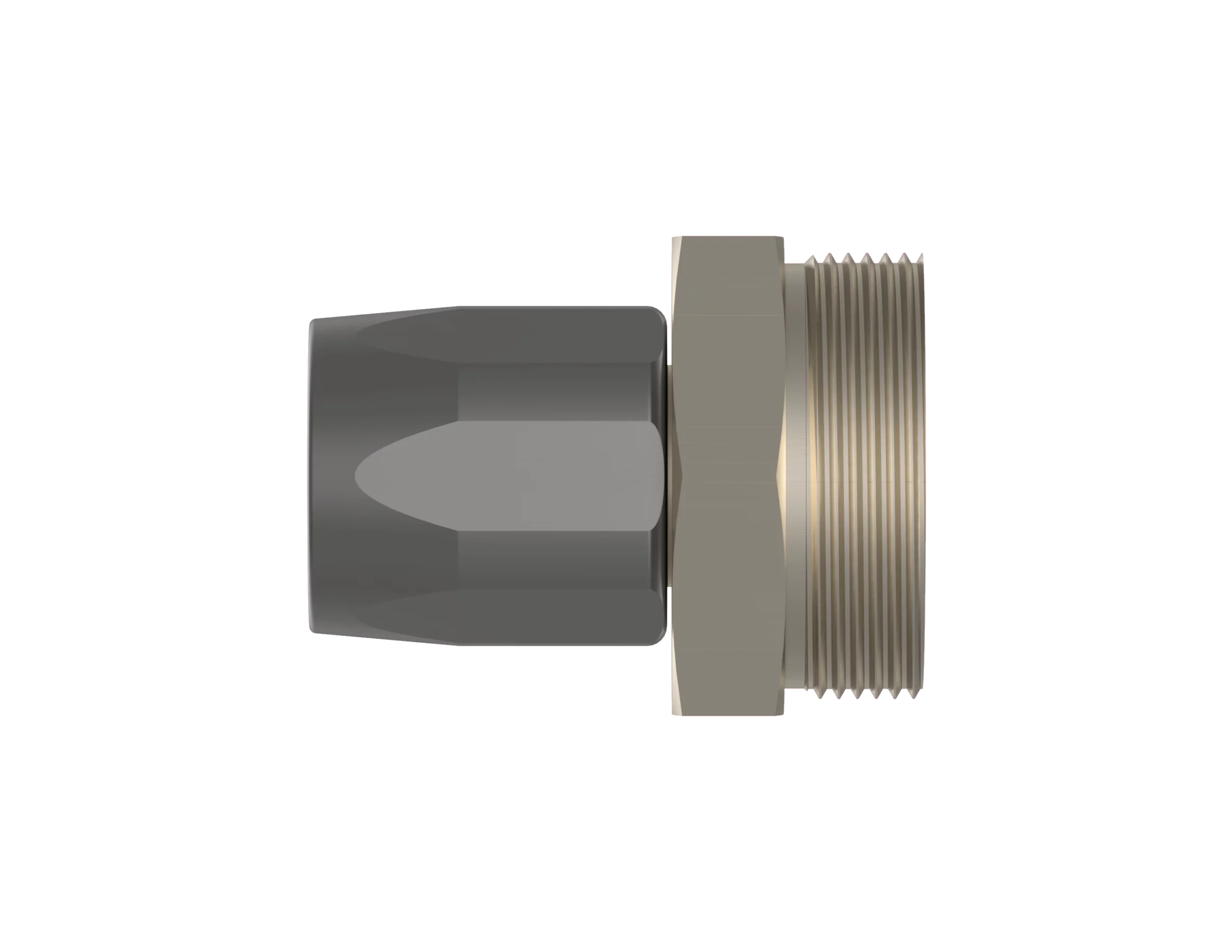

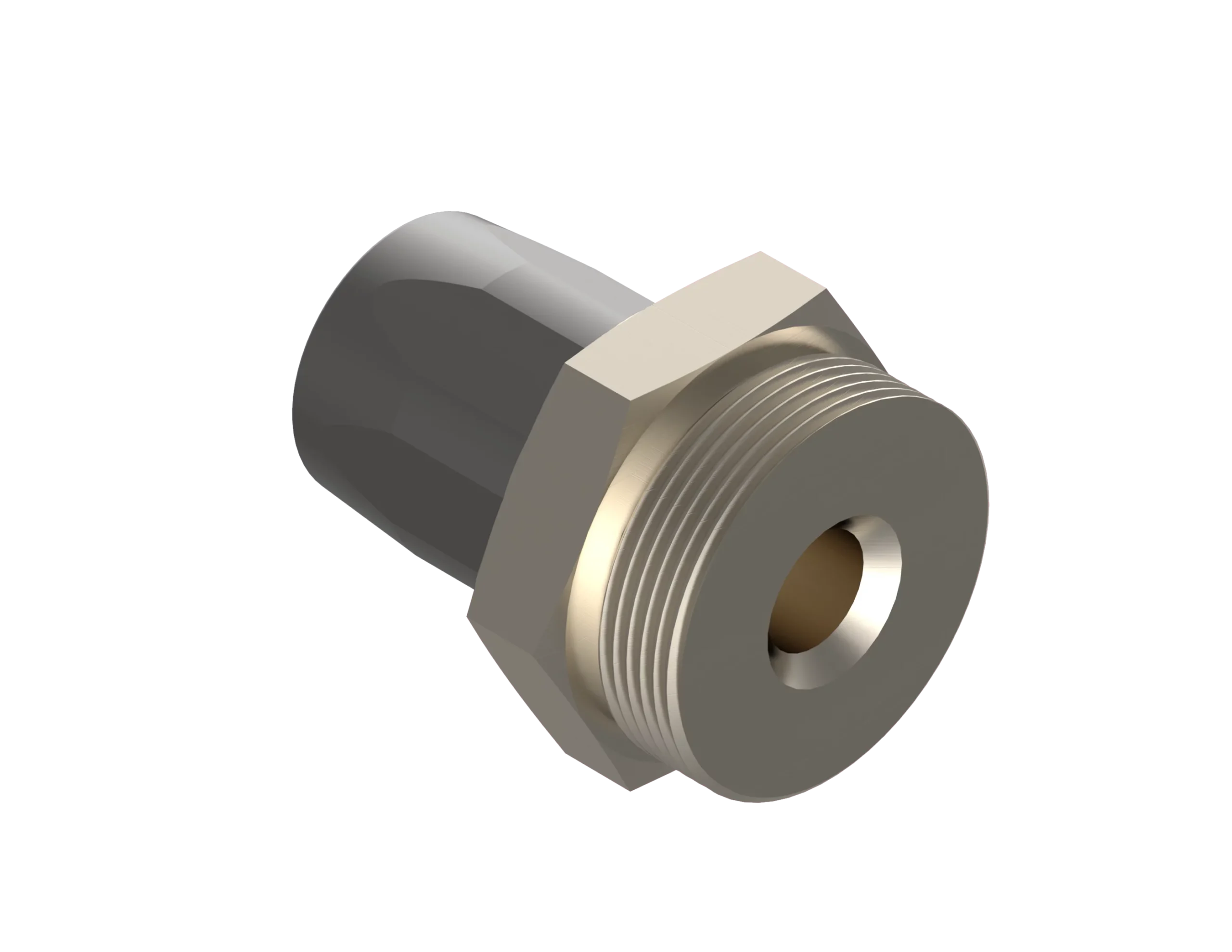

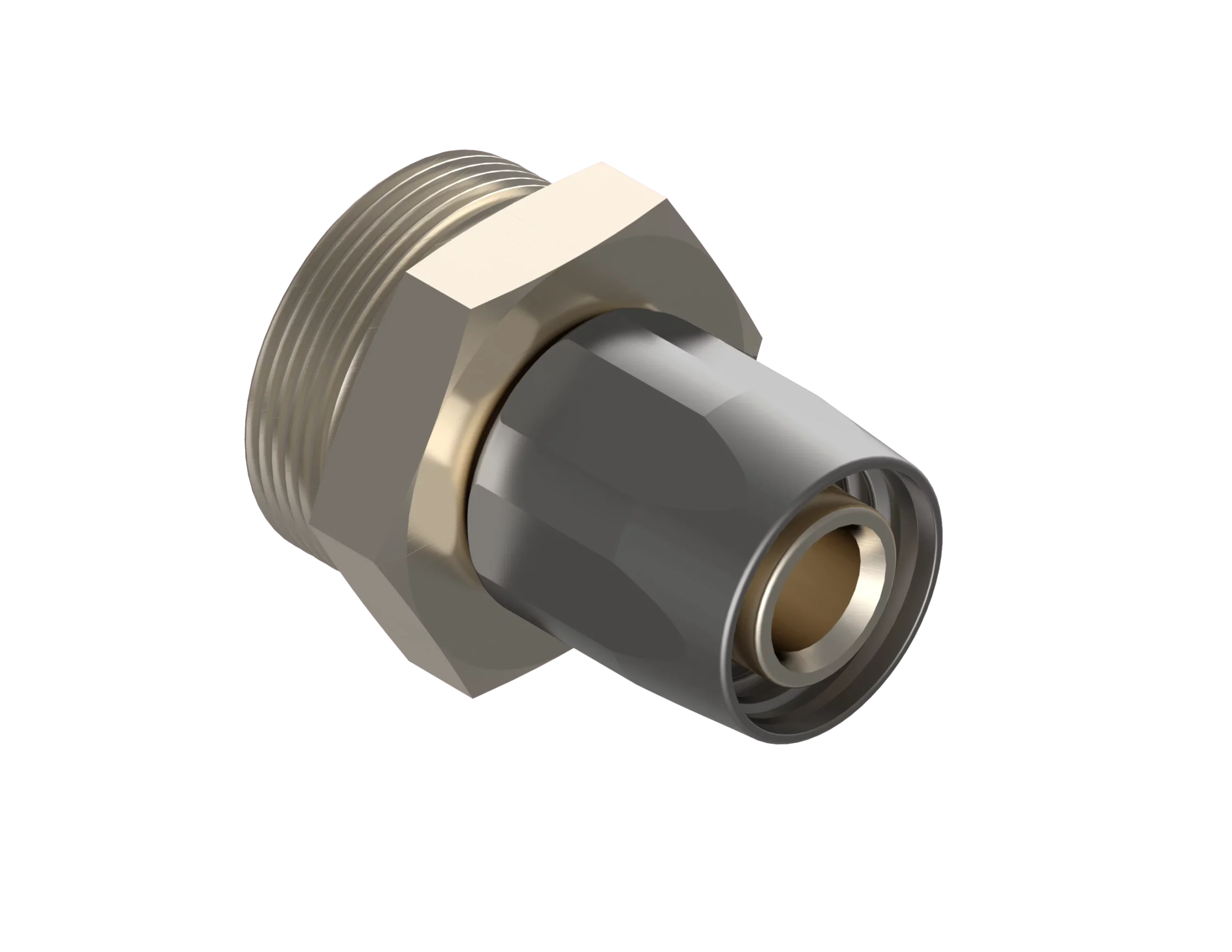

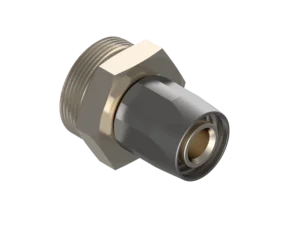

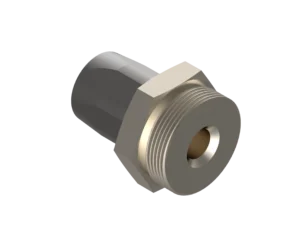

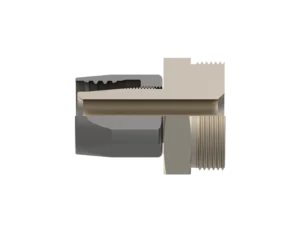

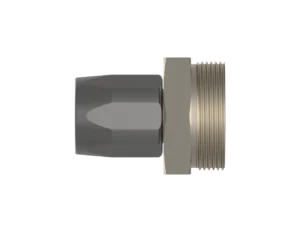

EF-MSS1488C-1620 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Stainless Steel/Monel)
( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 411-190911,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-MSS1488C-1620 |
|---|---|
| Hydrasearch Drawing Number | - |
| IPS Size | 1 |
| T Thread CL-2A | 1-5/16”-12 |
| A | 3.12 |
| C | 2.38 |
| D | 1.76 |
| G | 1.75 |
| M | .75 |
| Est. Wt. (lbs.) | 2.40 |
Components Table
| Description | Req’d per Ass’y | 1216 | 1620 | Material |
| Nipple | 1 | C19256-2 | C19019-2 | Stainless Steel |
| Socket | 1 | C18667-2 | C18703-2 | Monel |
