FC7182-1616-4

FC7182-1616-4

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

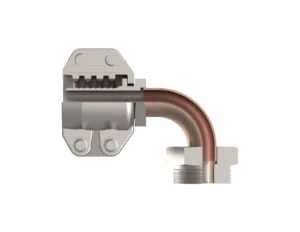

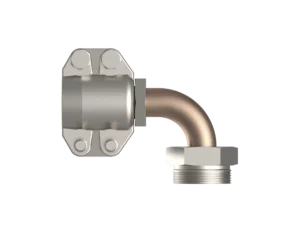

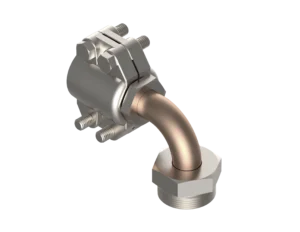

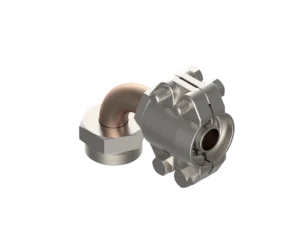

Description:

Equal to Hydrasearch P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7182-1616-4
  • IPS Size: 1
  • Thread CL-3A: 2-5/16”-12
  • A: 4.67
  • C: 2.38
  • D: 2.85
  • E: .75
  • H: 2.92
  • M: .75
  • R: 1.50
  • V: 2.42
  • W: 1.62
  • X: 4.02
  • Est. Wt. (lbs.): 5.00

Specification Table

Part NumberFC7182-1616-4
IPS Size1
Thread CL-3A2-5/16”-12
A4.67
C2.38
D2.85
E.75
H2.92
M.75
R1.50
V2.42
W1.62
X4.02
Est. Wt. (lbs.)5.00

Components Table

DescriptionReq’d per Ass’yBase No.161616202020242424323232Mat’l
Elbow1FC6182-1616-41620-42020-42424-42432-43232-4Monel
Segment2FC2057-1-16-41-20-41-20-41-24-41-32-41-32-4Monel
Bolt2FF9032-07-28-407-28-407-28-408-28-407-36-409-36-4Monel
