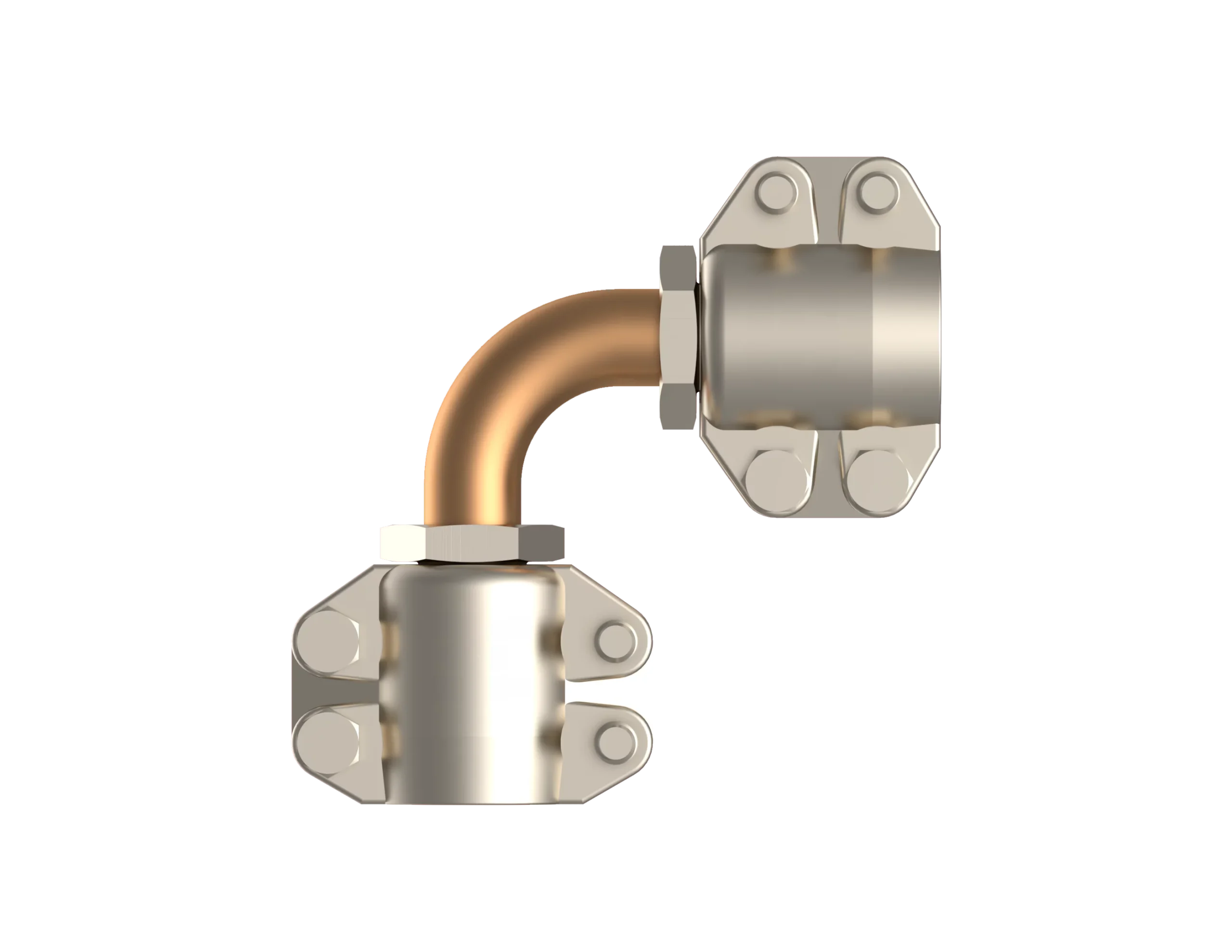

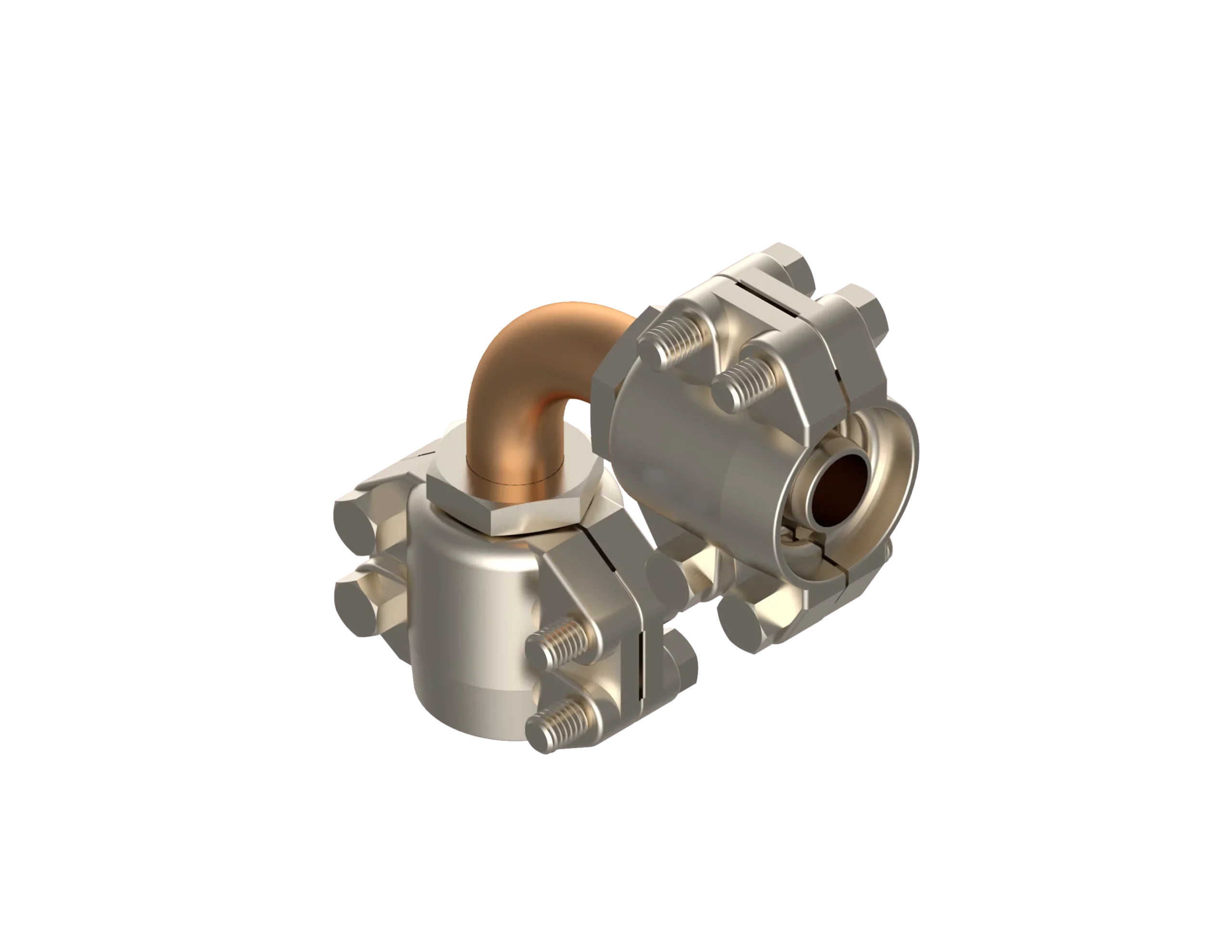

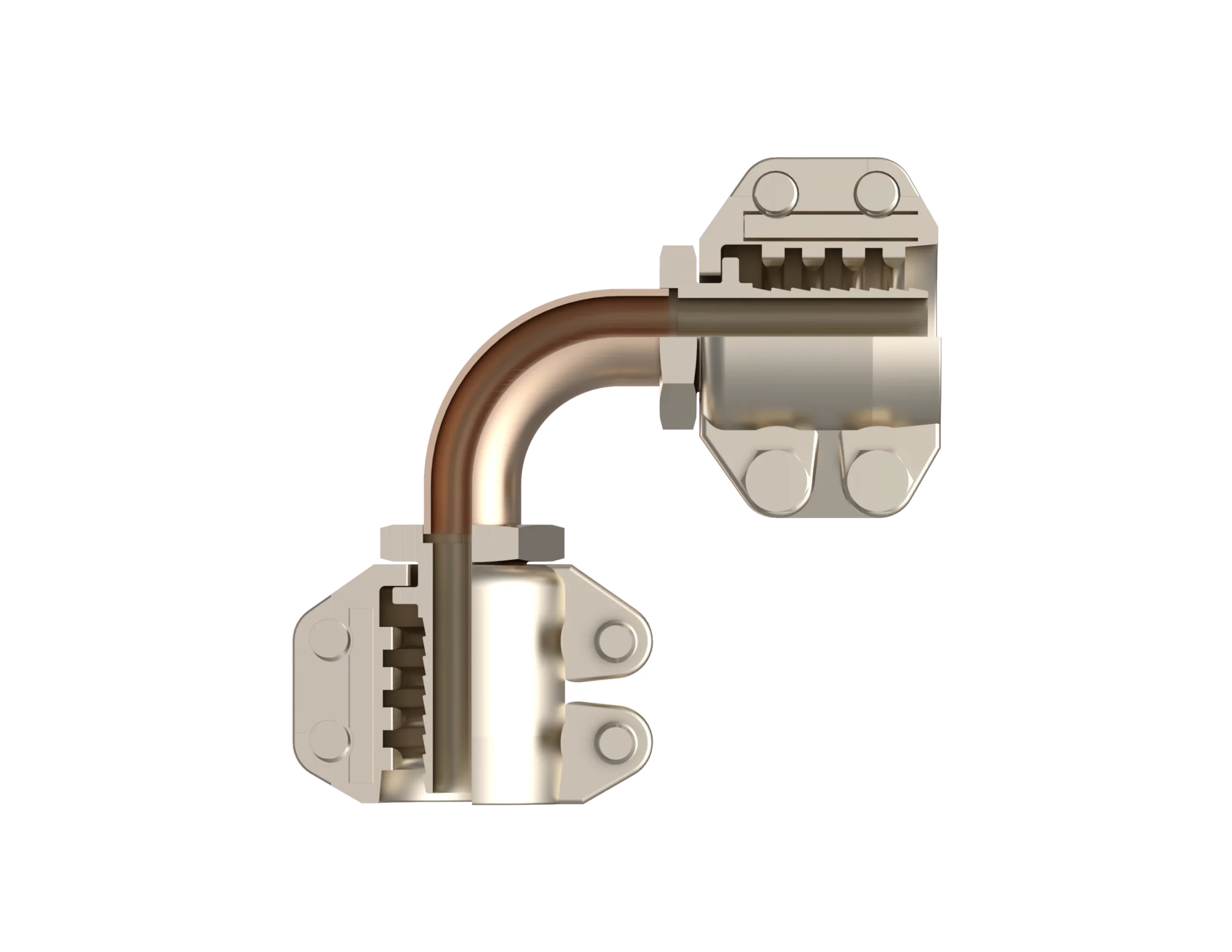

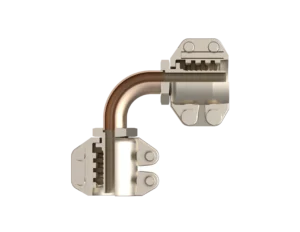

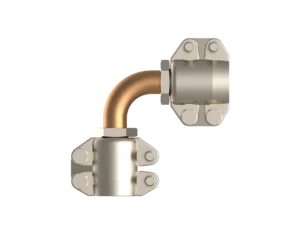

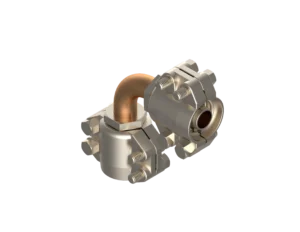

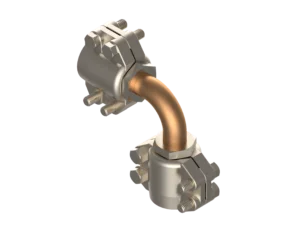

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7183-3232-4
  • IPS Size: 2
  • A: 7.60
  • D: 4.52
  • E: 1.75
  • R: 2.50
  • V: 3.88
  • W: 2.75
  • X: 5.65
  • Est. Wt. (lbs.): 20.00

Specification Table

Part NumberFC7183-3232-4
IPS Size2
A7.60
D4.52
E1.75
R2.50
V3.88
W2.75
X5.65
Est. Wt. (lbs.)20.00

Components Table

DescriptionReq’d per Ass’yBase No.161624243232Mat’l
Elbow1FC6183-1616-42424-43232-4Monel
Segment2FC2057-1-16-41-24-41-32-4Monel
Bolt2FF9032-07-28-408-28-409-36-4Monel
