( 150lb, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 412-190109,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 412-190109-3/4-20 |
|---|---|
| IPS Size | 3/4 |
| No. of Bolt Holes | 4 |
| A | 2.89 |
| D | 1.53 |
| J | 3.88 |
| K | 1.84 |
| L | 2.75 |
| M | .62 |
| N | .44 |
| S | .92 |
| Est. Wt. (lbs.) | 1.75 |

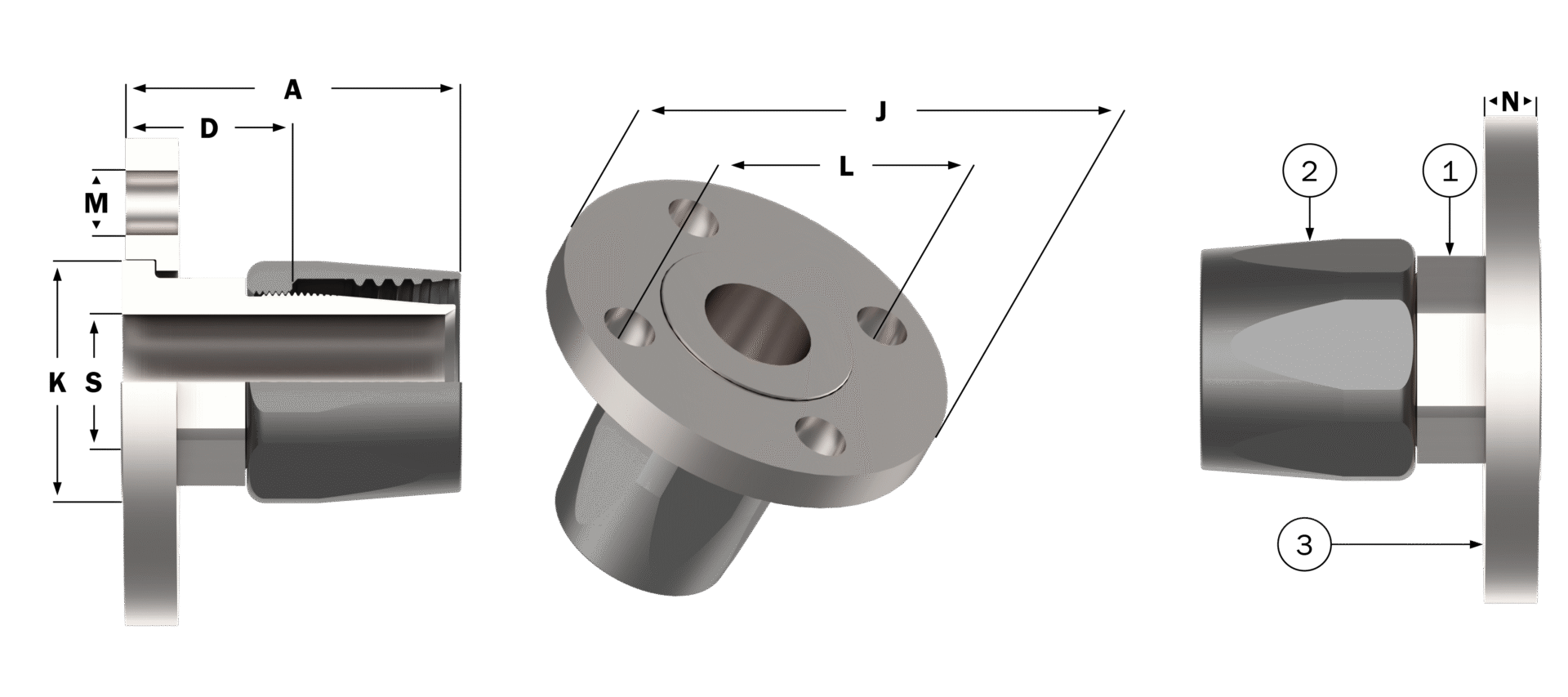

Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | 1/2-16 | 3/4-20 | 1.25-32 | 1.5-32 | 2-32 | 2-40 | Material |
| Nipple | 1 | 407-185109- | 1/2-16 | 3/4-20 | 1.25-32 | 1.5-32 | 2-32 | 2.40 | Stainless Steel |
| Socket | 1 | 4-1212- | 16 | 20 | 32 | 32 | 32 | 40 | Monel |
| Flange | 1 | 407-74021- | 1/2-16 | 3/4-20 | 1.25-32 | 1.5-32 | 2-32 | 2-40 | Stainless Steel |
