EF-10-400F

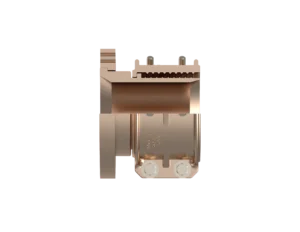

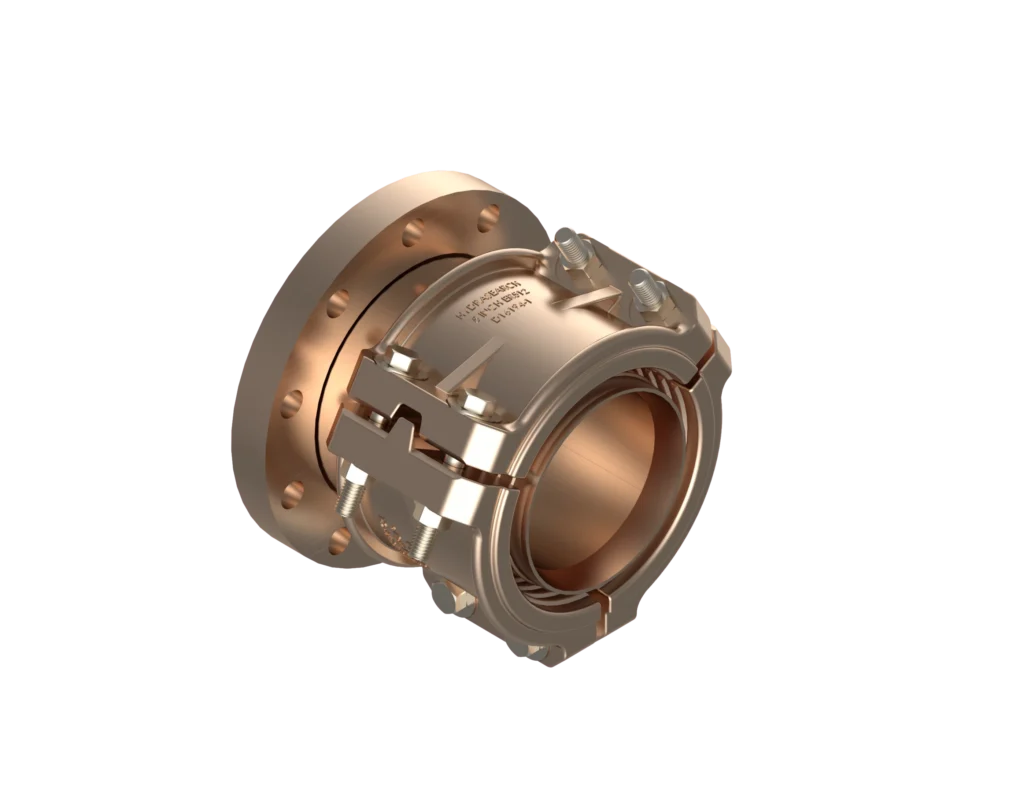

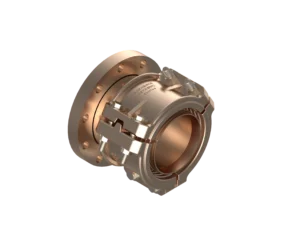

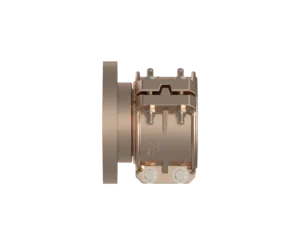

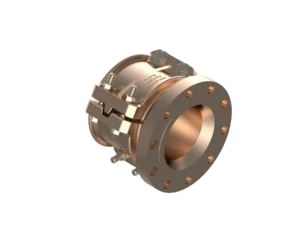

EF-10-400F – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type F, Group IX, Class I, 400lb, End Fitting - Straight )

Description:

Use with the following hose: ER512 & 2580

Specification

  • Part Number: EF-10-400F
  • Hydrasearch Drawing Number: D19735
  • IPS Size: 10
  • No. of Bolt Holes: 15
  • M: 1.06
  • A: 7.00
  • D: 2.65
  • J: 17.00
  • K: 12.04
  • L: 15.00
  • N: 1.06
  • S: 10.31
  • T: 14.50
  • Est. Wt. (lbs.): 105.00

Specification Table

Part NumberEF-10-400F
Hydrasearch Drawing NumberD19735
IPS Size10
No. of Bolt Holes15
M1.06
A7.00
D2.65
J17.00
K12.04
L15.00
N1.06
S10.31
T14.50
Est. Wt. (lbs.)105.00

Components Table

DescriptionReq’d per Ass’y5”6"8"10"Material
Swivel Flange1C16912-1C16912-2C16912-3-Aluminum. Bronze
Nipple 1D16195D16199D16185-Aluminum. Bronze
Grip Segment3D16194-1D16198-1D16080-1-Aluminum. Bronze
Bolt6D16197-4D16197-4B16551-1-Monel
Nut6D16197-6D16197-6B16551-3-Monel
Washer6D16197-5D16197-5B16551-2-Monel
