412-190124-32-32
412-190124

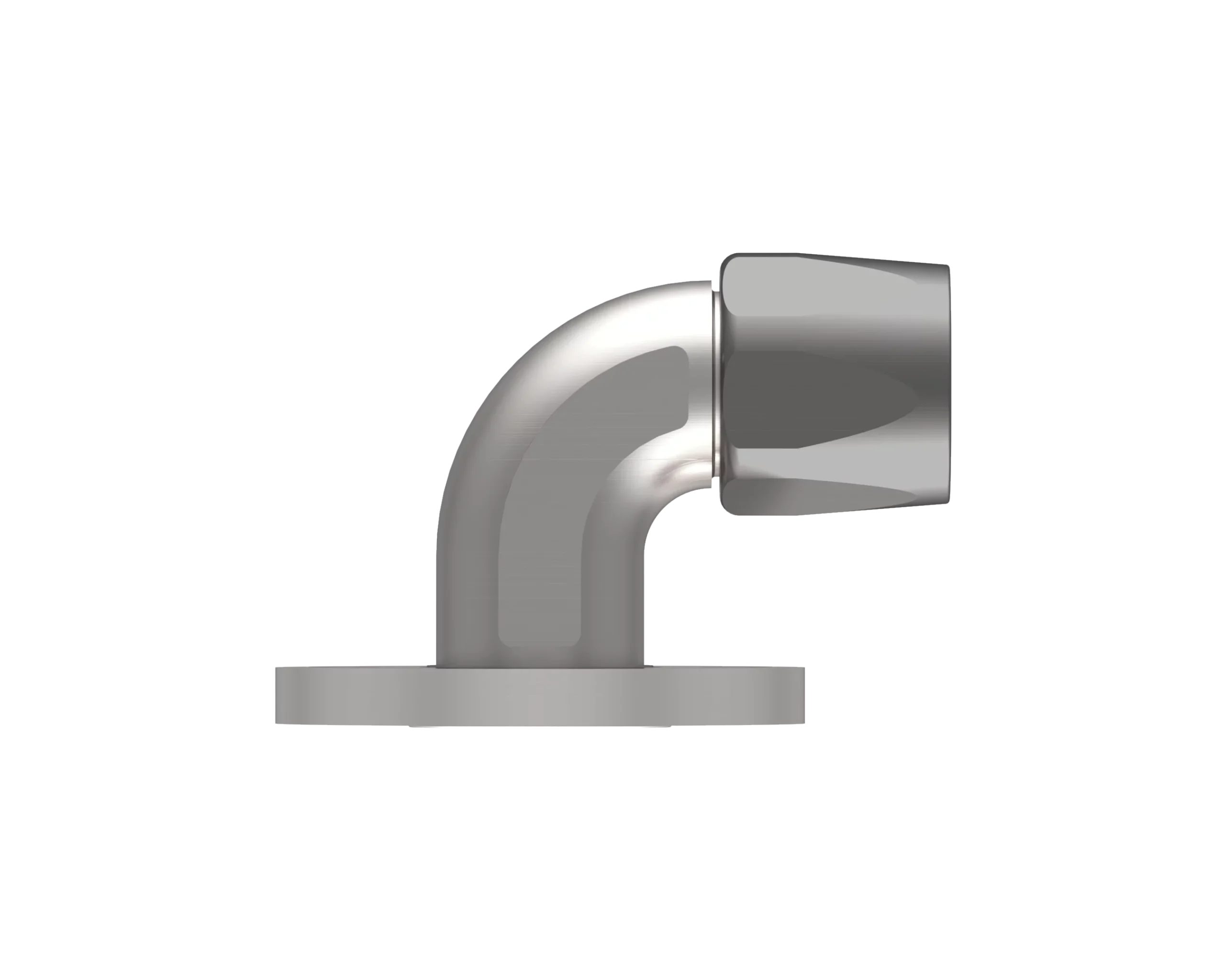

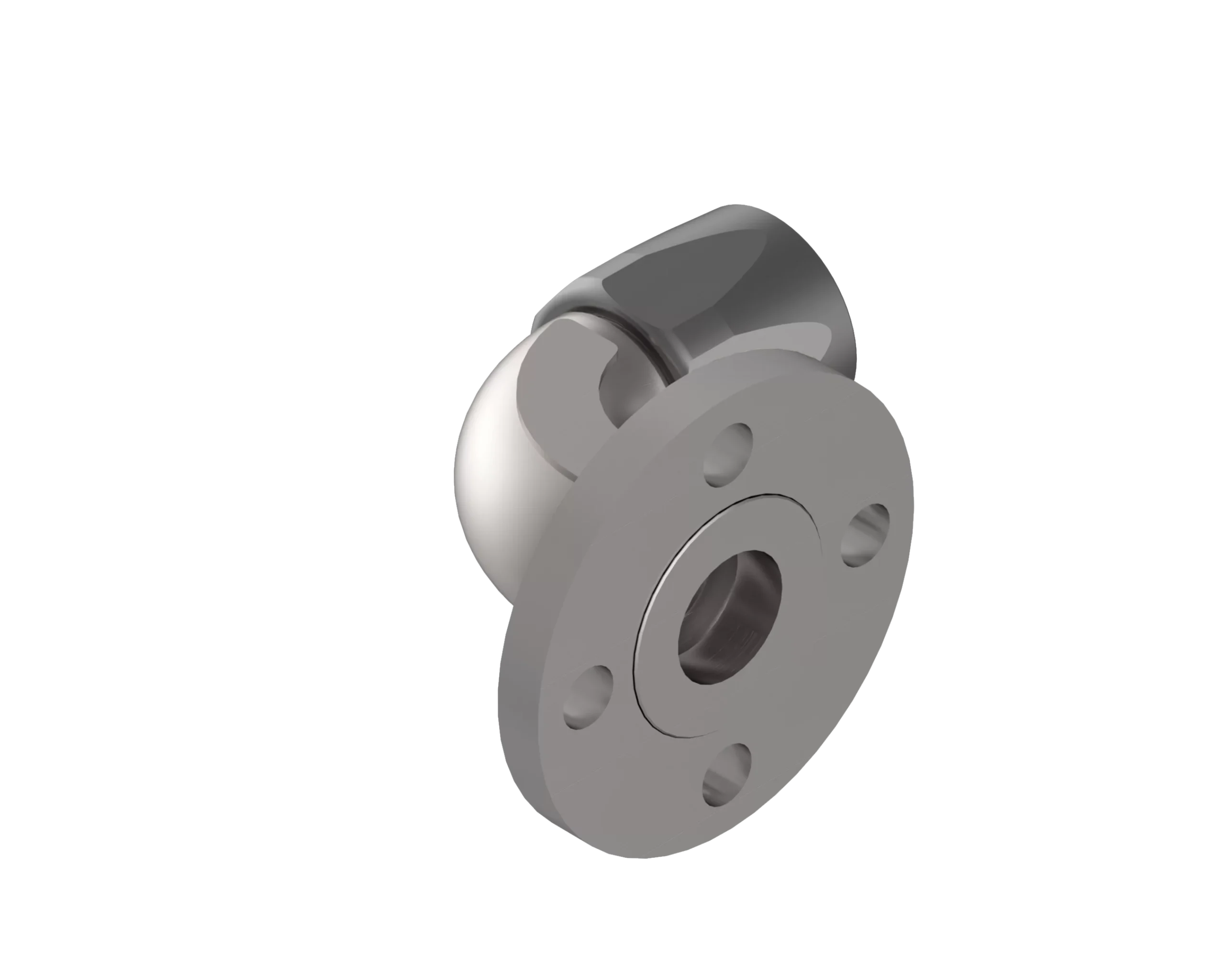

412-190124-32-32

( 150lb. Flange per A.N.S.I. B16.5, End Fitting - 90° )

Description:

Equivalent to HS1488
Equal to Hydrasearch P/N 90EF-MSS1488FL5-3232,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 412-190124-32-32
  • IPS Size: 2
  • No. of Bolt Holes: 4
  • A: 3.89
  • C: 2.44
  • D: 2.05
  • H: 3.06
  • J: 6.00
  • L: 4.75
  • M: .75
  • N: .44
  • R: 1.62
  • Est. Wt. (lbs.): -

Specification Table

Part Number412-190124-32-32
IPS Size2
No. of Bolt Holes4
A3.89
C2.44
D2.05
H3.06
J6.00
L4.75
M.75
N.44
R1.62
Est. Wt. (lbs.)-

Specification Image

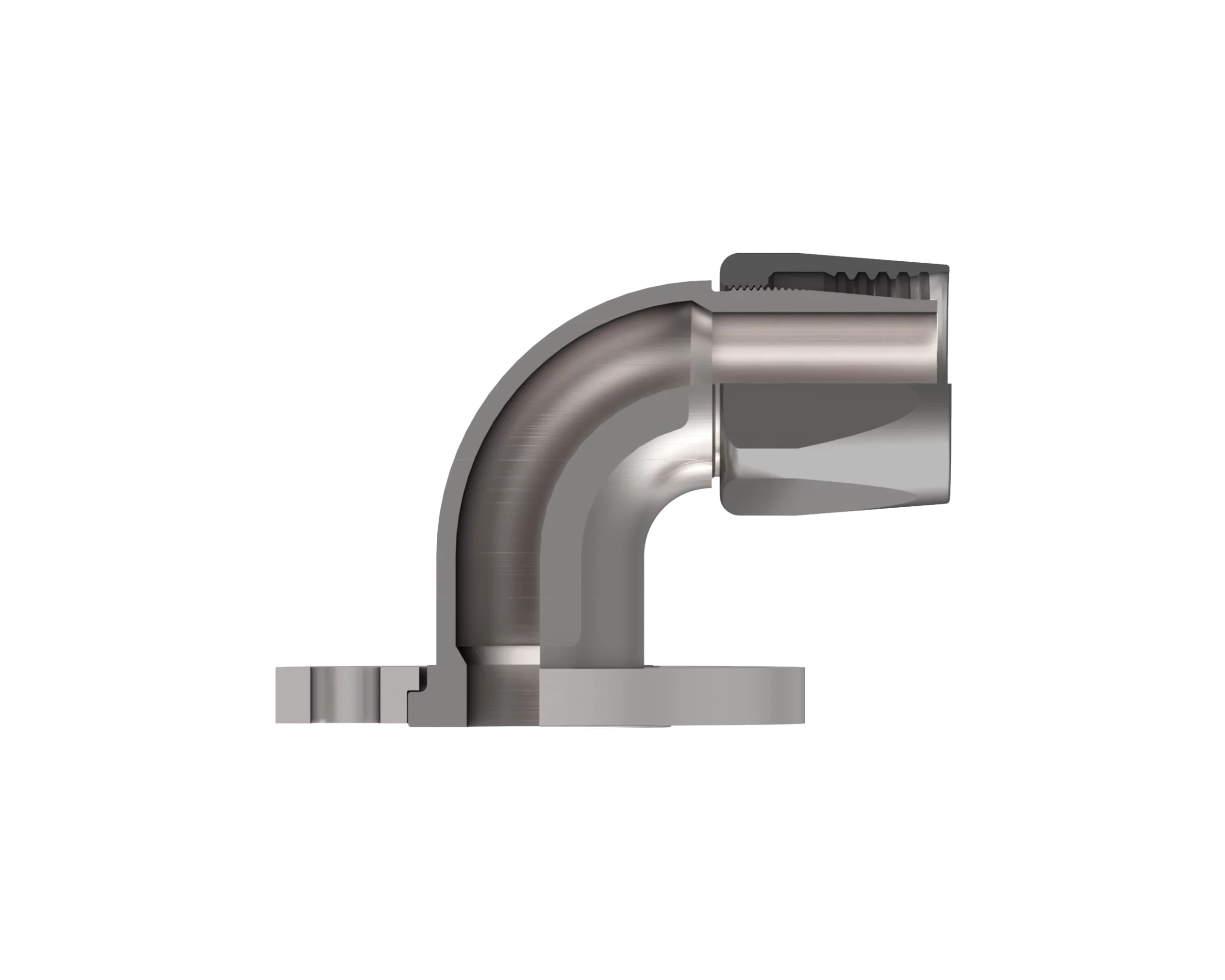

412-190124-32-32 specification drawing

Components Table

DescriptionReq’d per Ass’yBase No.16-2420-3224-3232-32Material
Elbow1407-185029-16-2420-3224-3232-32Stainless Steel
Socket14-1212-24323232Monel
Flange1407-74021-16-2420-3224-3232-32Stainless Steel
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
