90ELB-1546E-40

90ELB-1546E-40

Print Icon Print Download Icon Download PDF

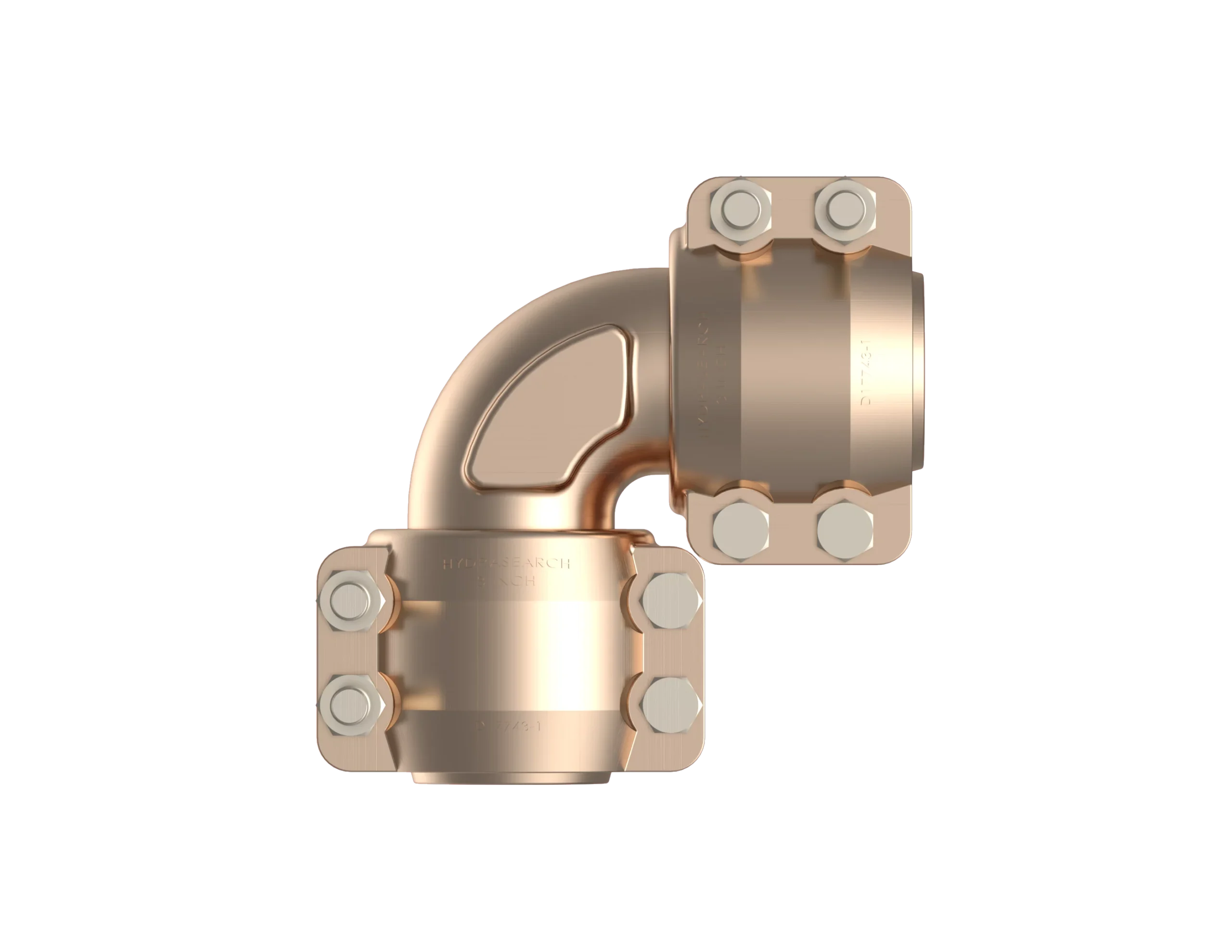

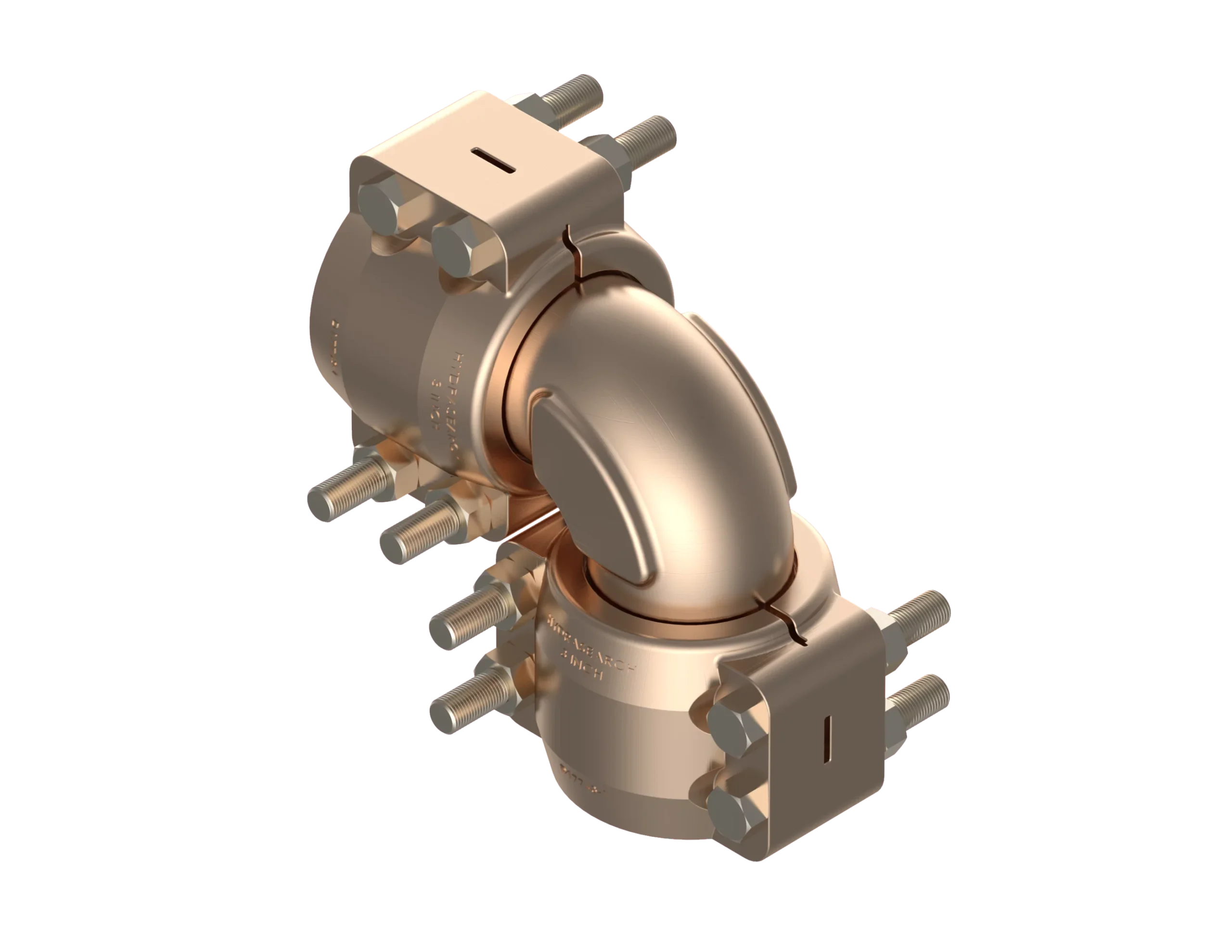

( MIL-DTL-24787/5, Type D, Group X, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N FC9528-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90ELB-1546E-40
  • Hydrasearch Drawing Number: D18354
  • IPS Size: 2.5
  • A: 3.25
  • B: 6.75
  • D: 2.83
  • R: 2.12
  • Est. Wt. (lbs.): 15.00

Specification Table

Part Number90ELB-1546E-40
Hydrasearch Drawing NumberD18354
IPS Size2.5
A3.25
B6.75
D2.83
R2.12
Est. Wt. (lbs.)15.00

Specification Image

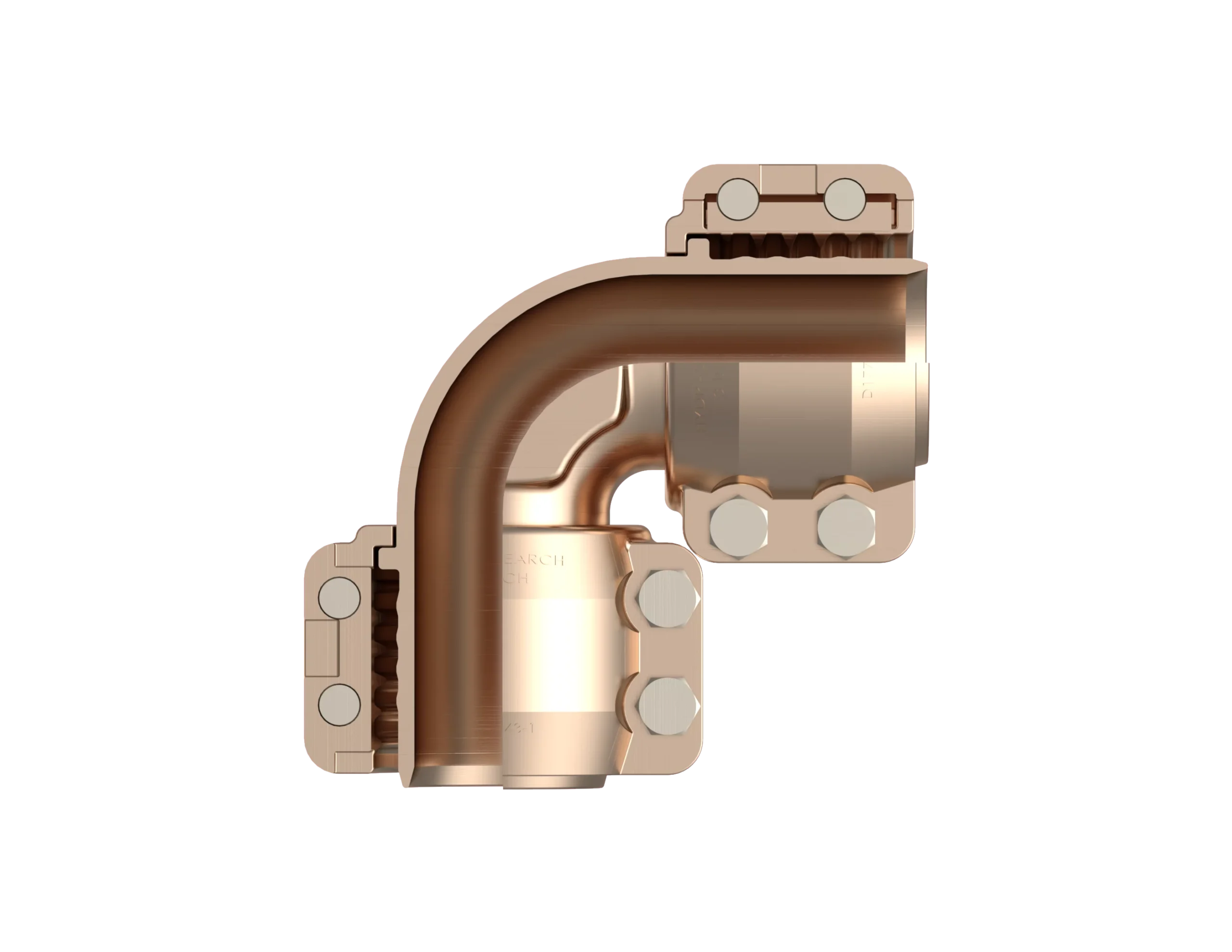

Components Table

DescriptionReq’d per Ass’y404864Material
Elbow1C18051C18309D18310Aluminum. Bronze
Grip Segment4D17739-1D17743-1D17726-1Aluminum. Bronze
Bolt8B17747-1B17748-1B17749-1Monel
Nut8B17747-2B17748-2B17749-2Monel
