FC5309-3240-188

FC5309-3240-188

Print Icon Print Download Icon Download PDF

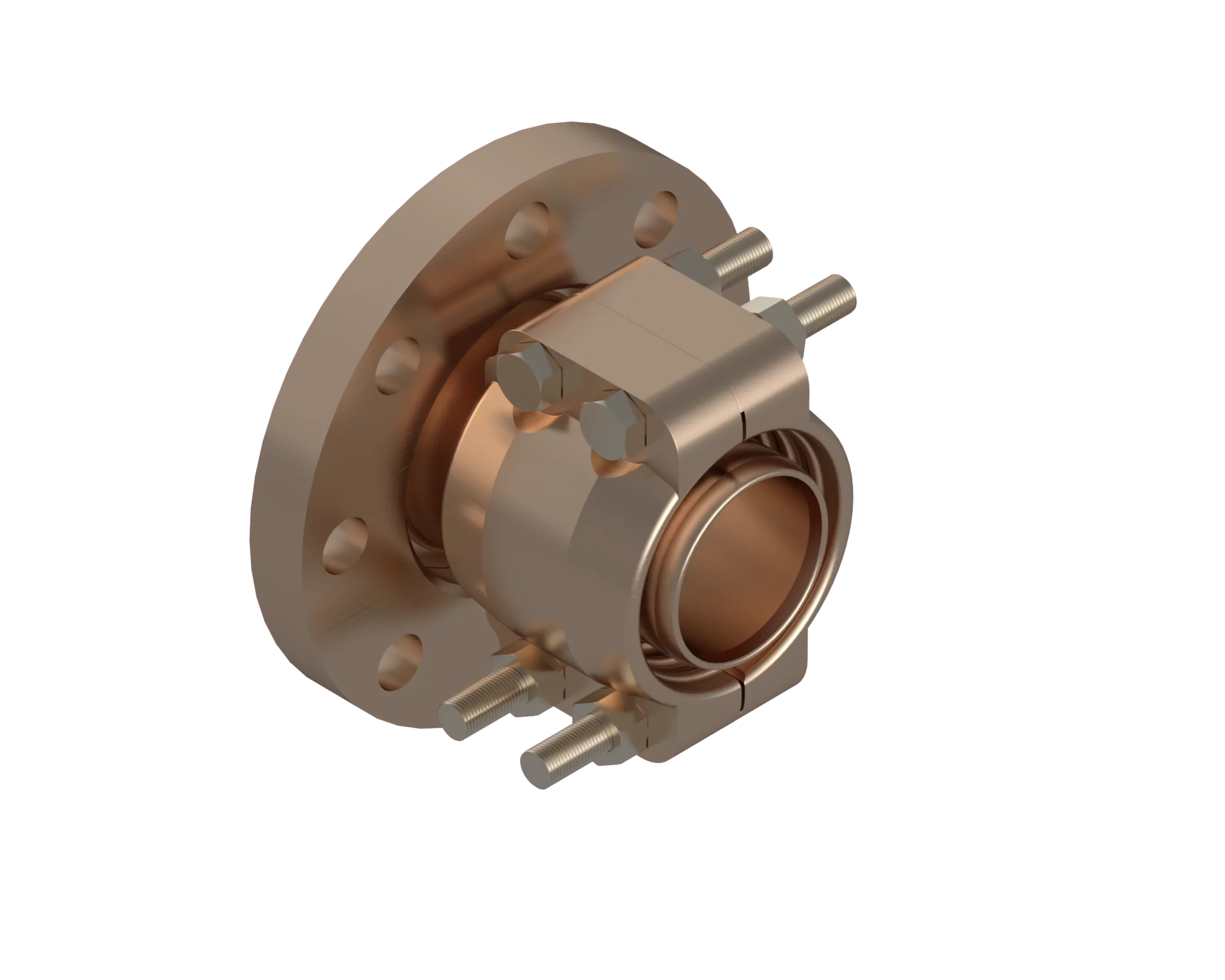

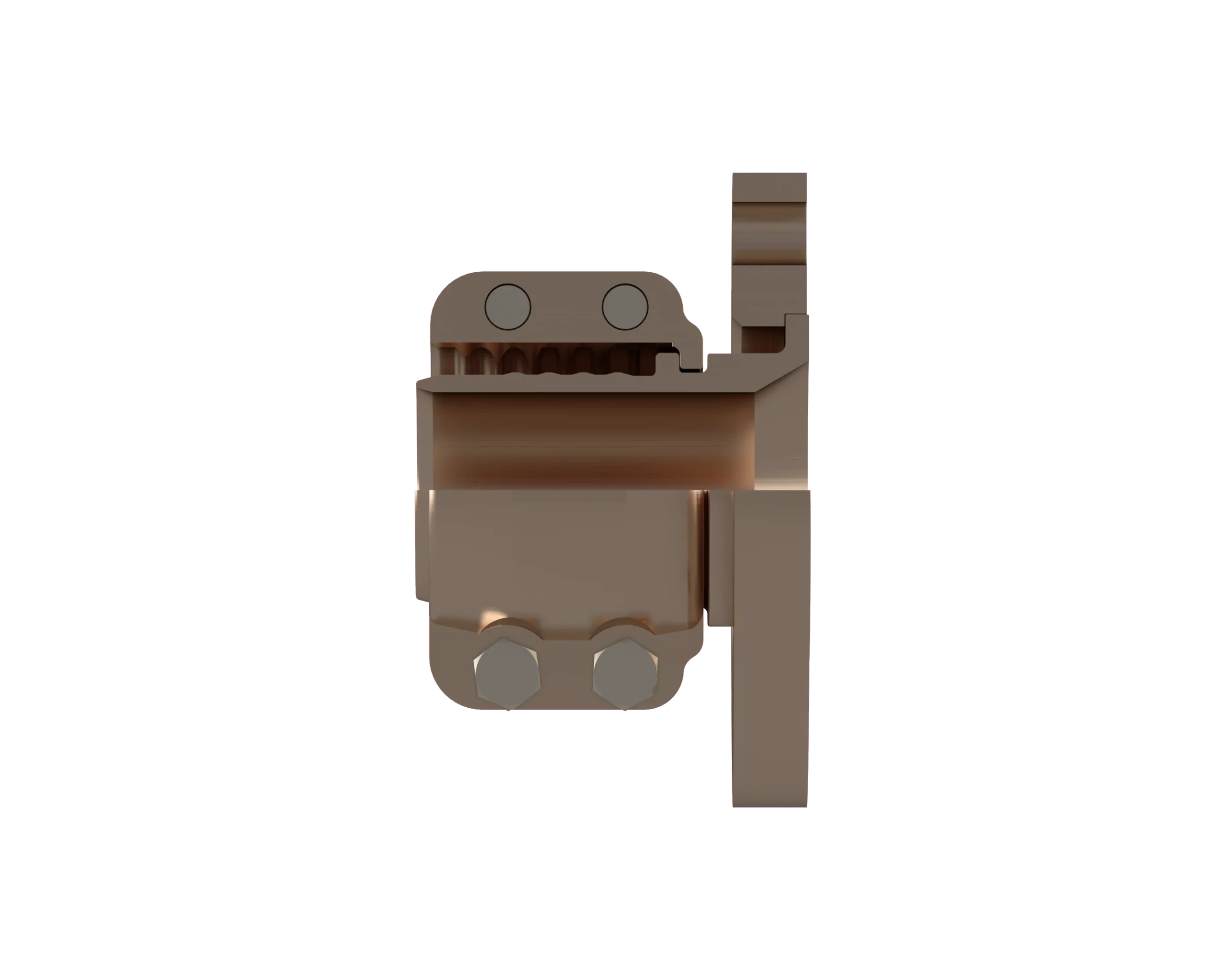

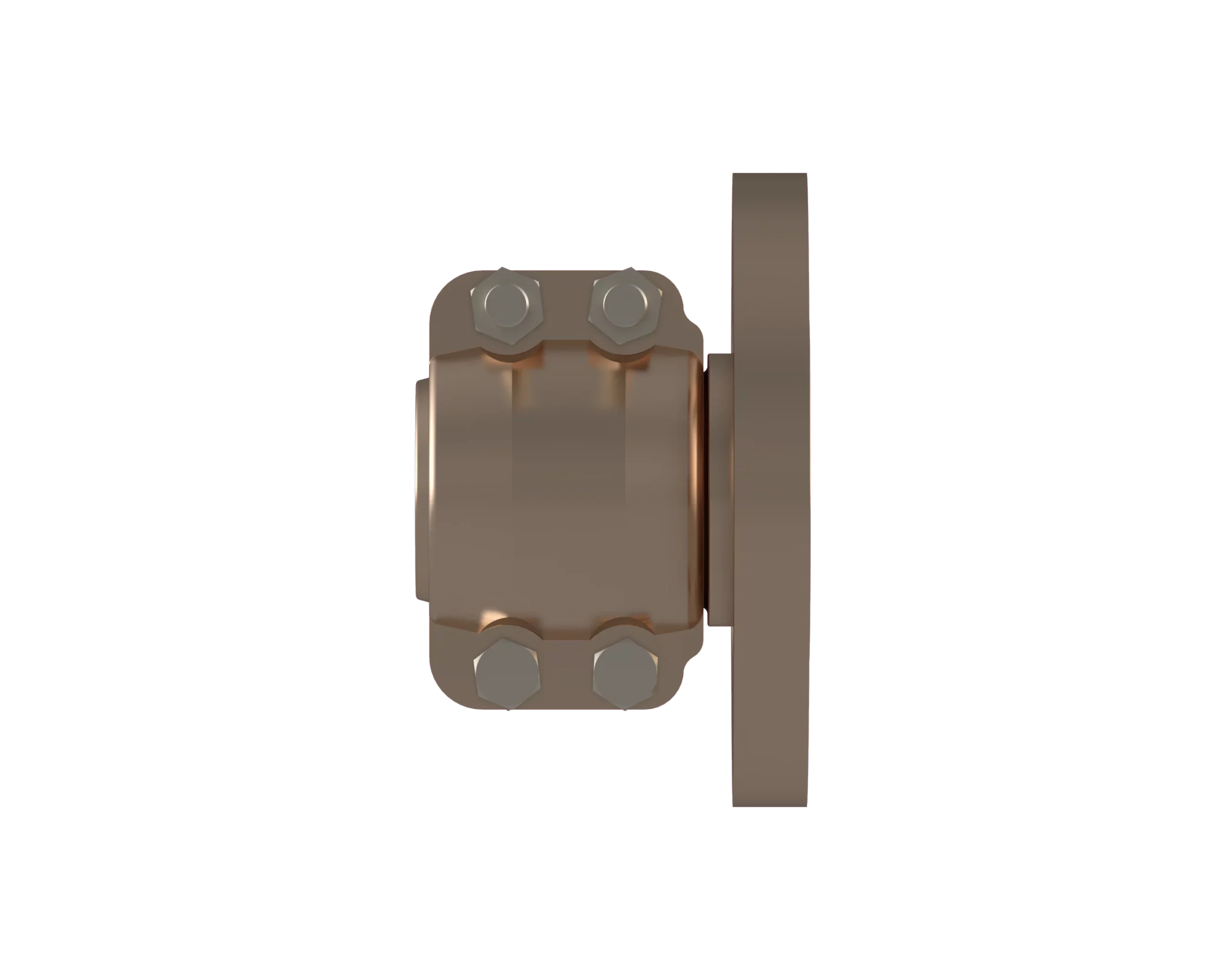

( MIL-DTL-24787/1, Type F, Group X, Class IV, 150lb, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC5309-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC5309-3240-188
  • IPS Size: 2
  • No. of Bolt Holes: 6
  • M: .56
  • A: 4.37
  • D: 1.96
  • J: 5.56
  • K: 3.28
  • L: 4.44
  • N: .44
  • S: 2.25
  • T: 6.70
  • Est. Wt. (lbs.): 12.00

Specification Table

Part NumberFC5309-3240-188
IPS Size2
No. of Bolt Holes6
M.56
A4.37
D1.96
J5.56
K3.28
L4.44
N.44
S2.25
T6.70
Est. Wt. (lbs.)12.00

Components Table

DescriptionReq’d per Ass’yBase No.32404048484856646464Material
Swivel Flange1-------Alum. Bronze
Nipple1------Alum. Bronze
Grip Segment2FC3476---48-188--Alum. Bronze
Bolt4FF9142---0964-4--Monel
Nut44-222048---9--Monel
