( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 412B & 44-412,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488MP-3232
  • Hydrasearch Drawing Number: C19151
  • Hose Size: 2
  • T Thread CL-2A: 2”-11-1/2
  • A: 4.03
  • B: 1.16
  • C: 2.50
  • D: 2.19
  • E: 1.75
  • G: 2.50
  • M: 1.03
  • V: 2.25
  • Est. Wt. (lbs.): 2.30

Specification Table

Part NumberEF-B1488MP-3232
Hydrasearch Drawing NumberC19151
Hose Size2
T Thread CL-2A2”-11-1/2
A4.03
B1.16
C2.50
D2.19
E1.75
G2.50
M1.03
V2.25
Est. Wt. (lbs.)2.30

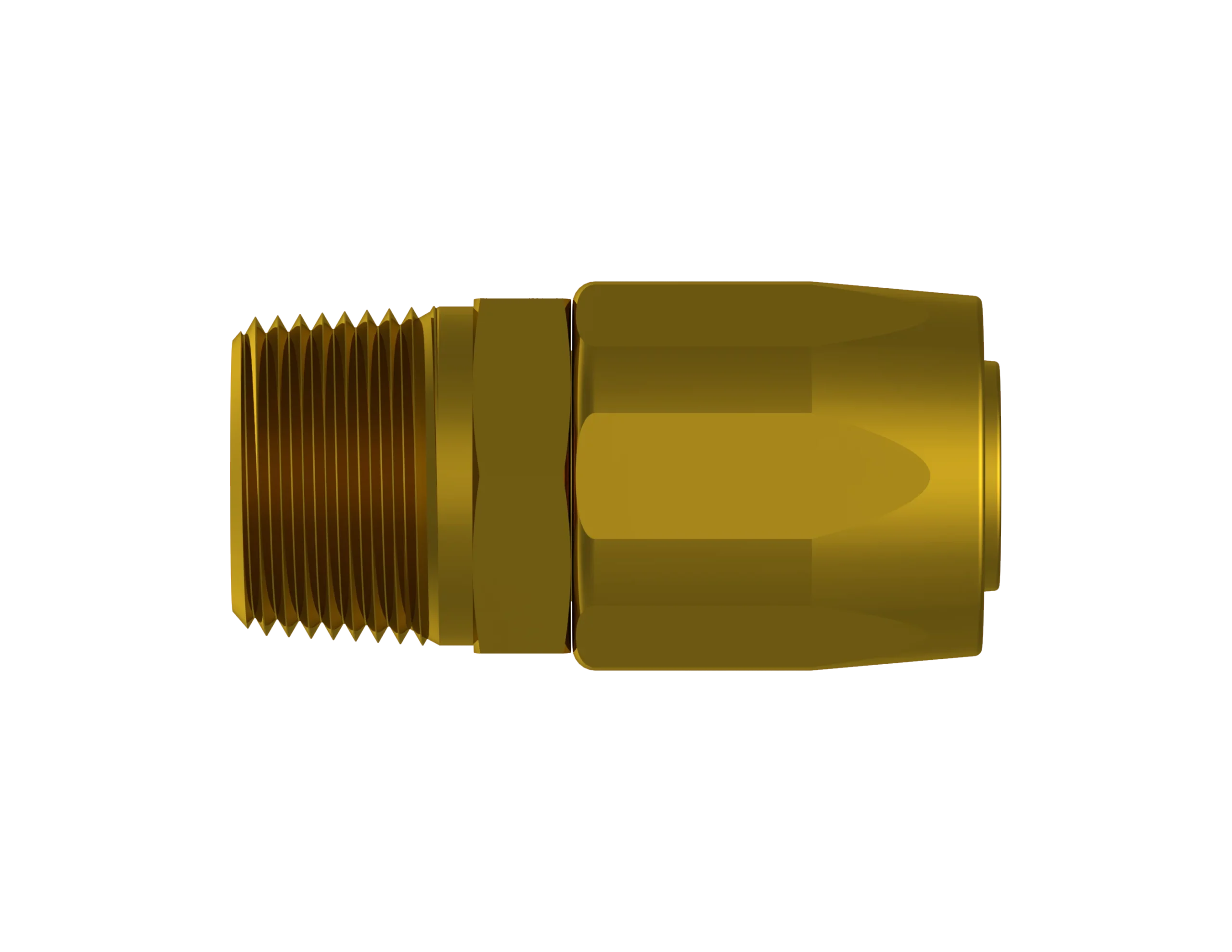

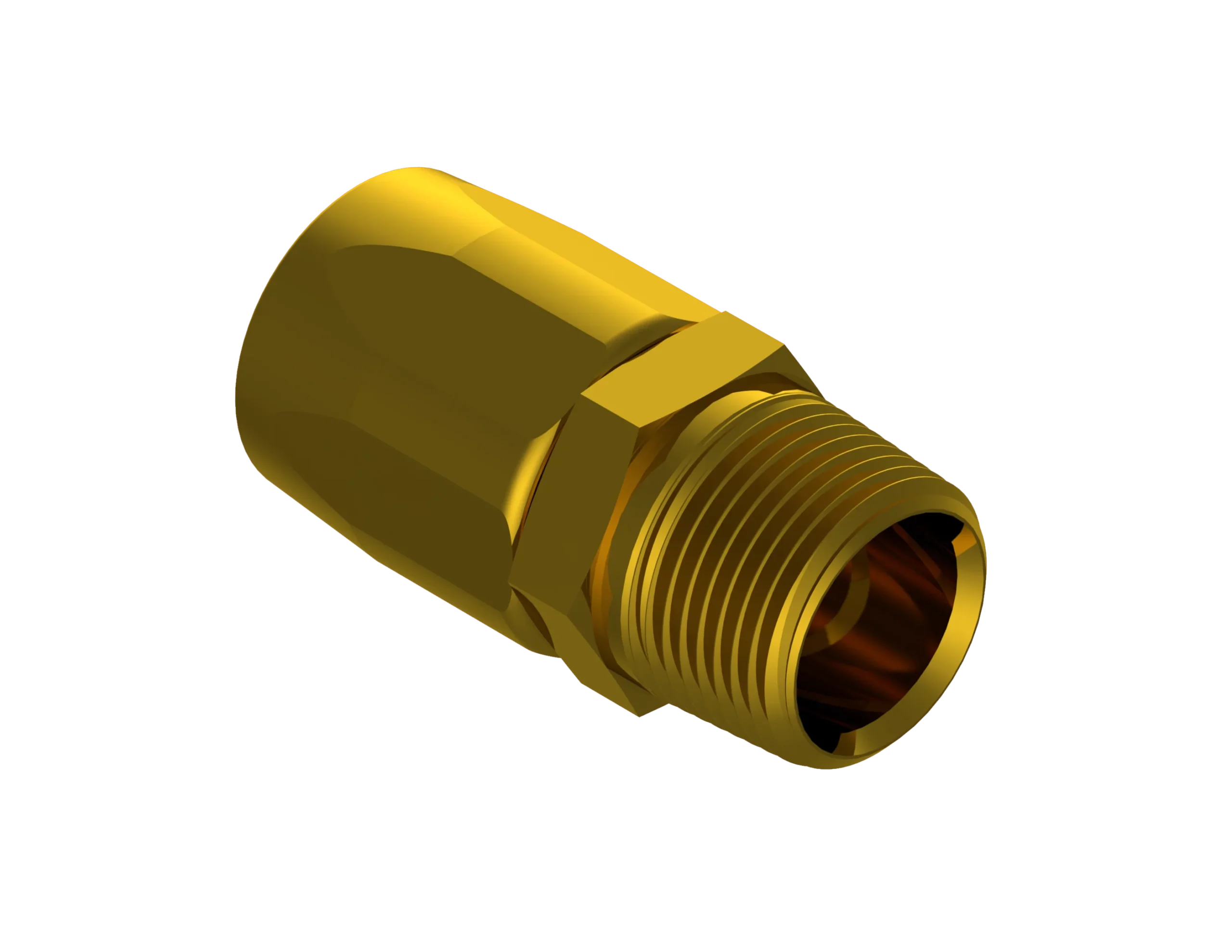

Specification Image

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Nipple1C19070C18028C18027C18026--Brass
Nipple1----C19156C19171Aluminum. Bronze
Socket1C18867-1C18703-1C18990-1C18811C18822C17901Brass
