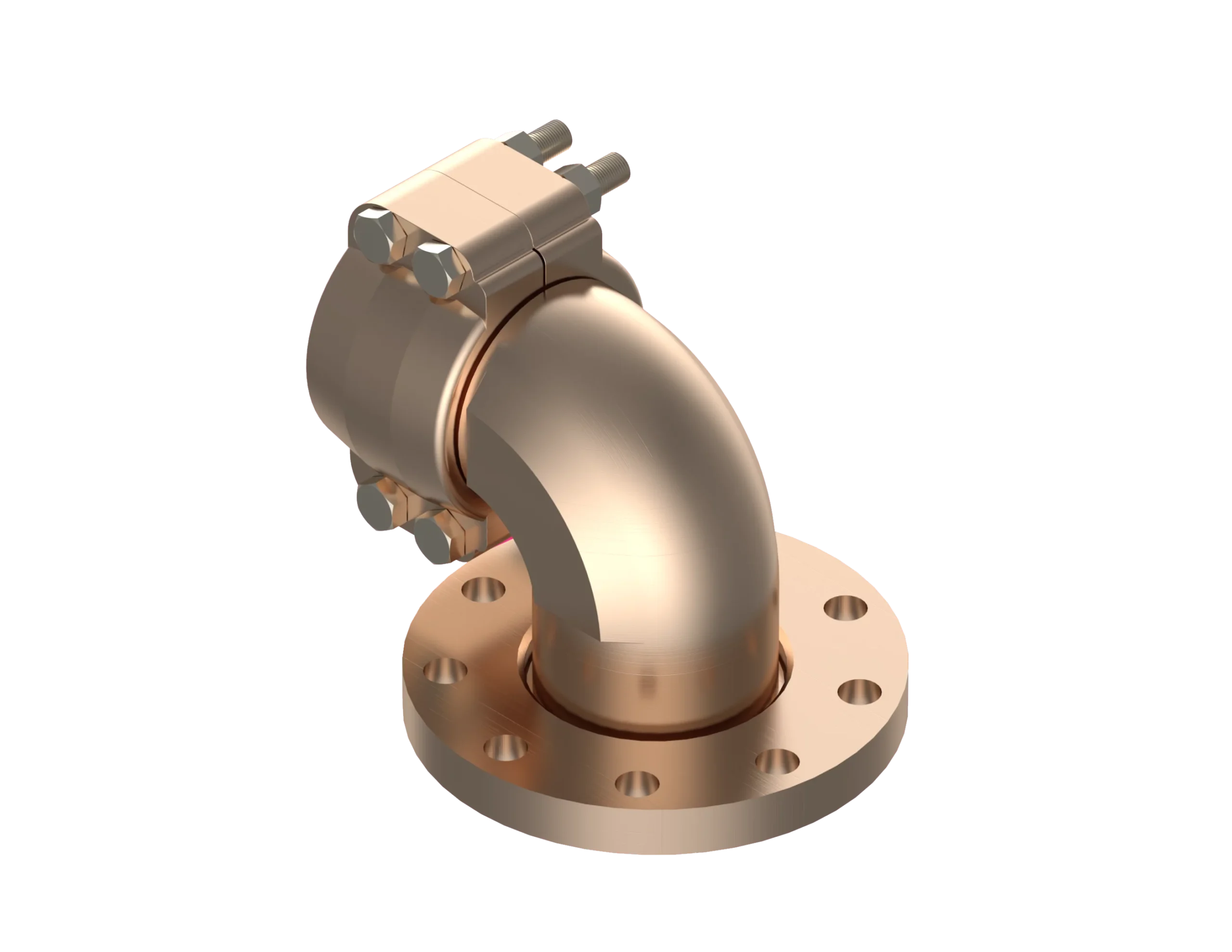

ISO 1 41 scaled

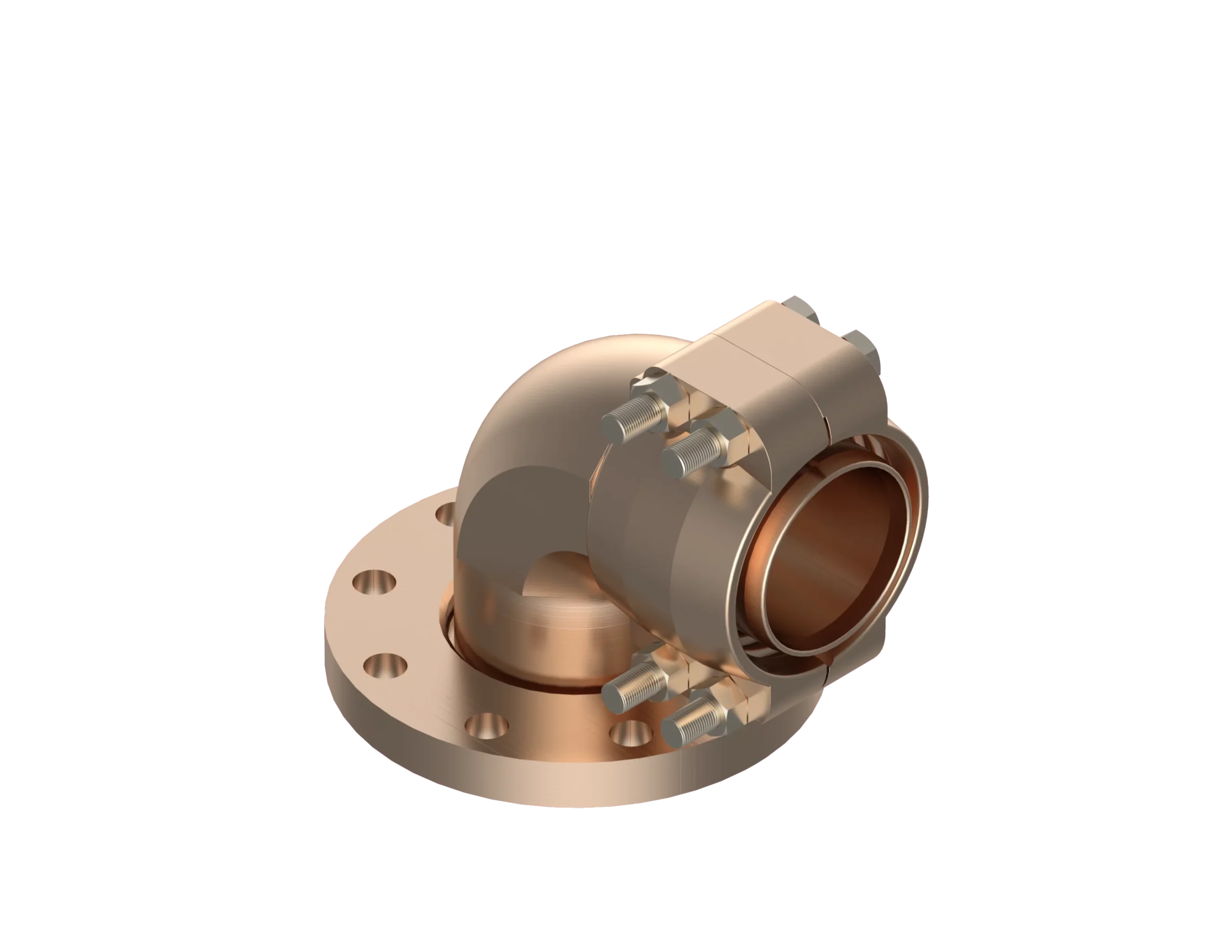

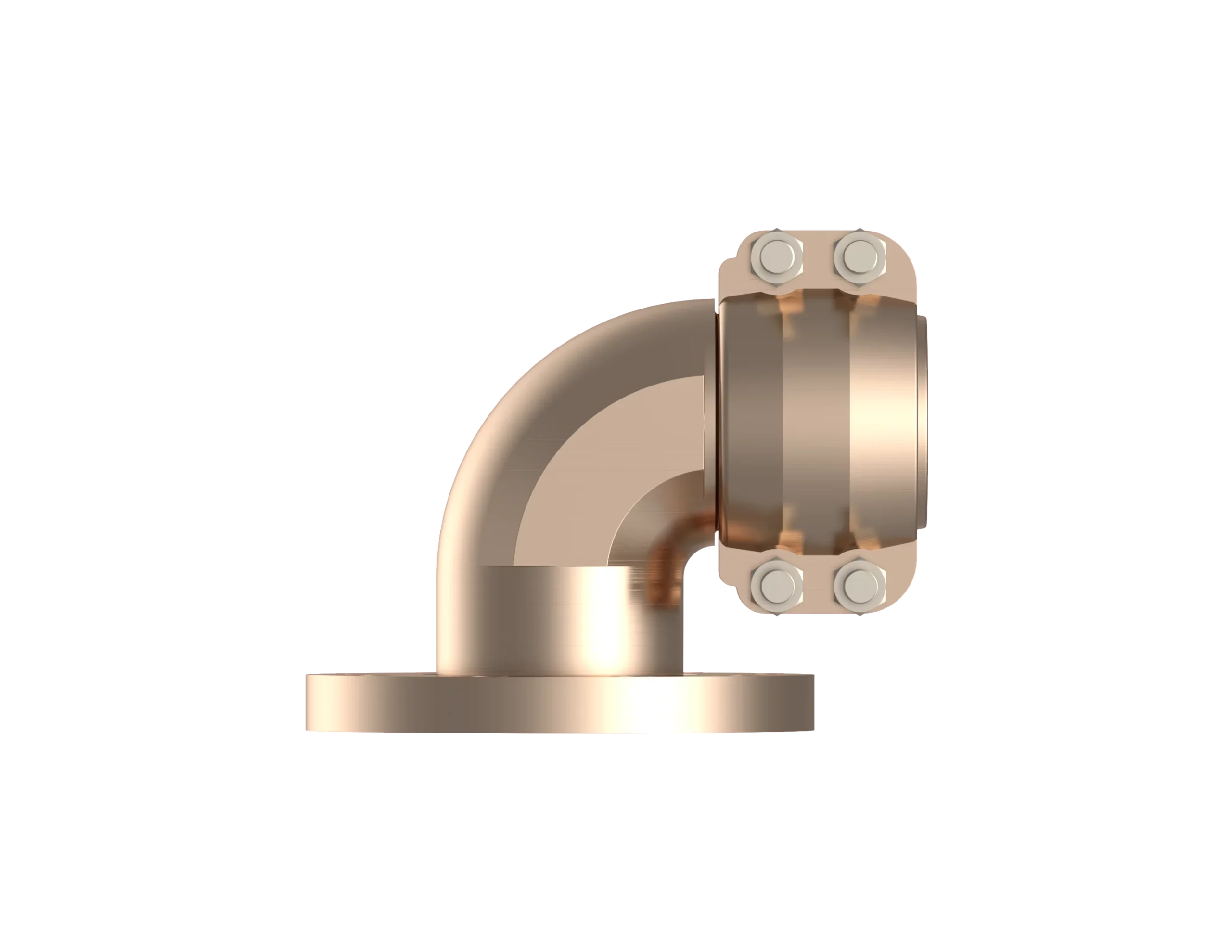

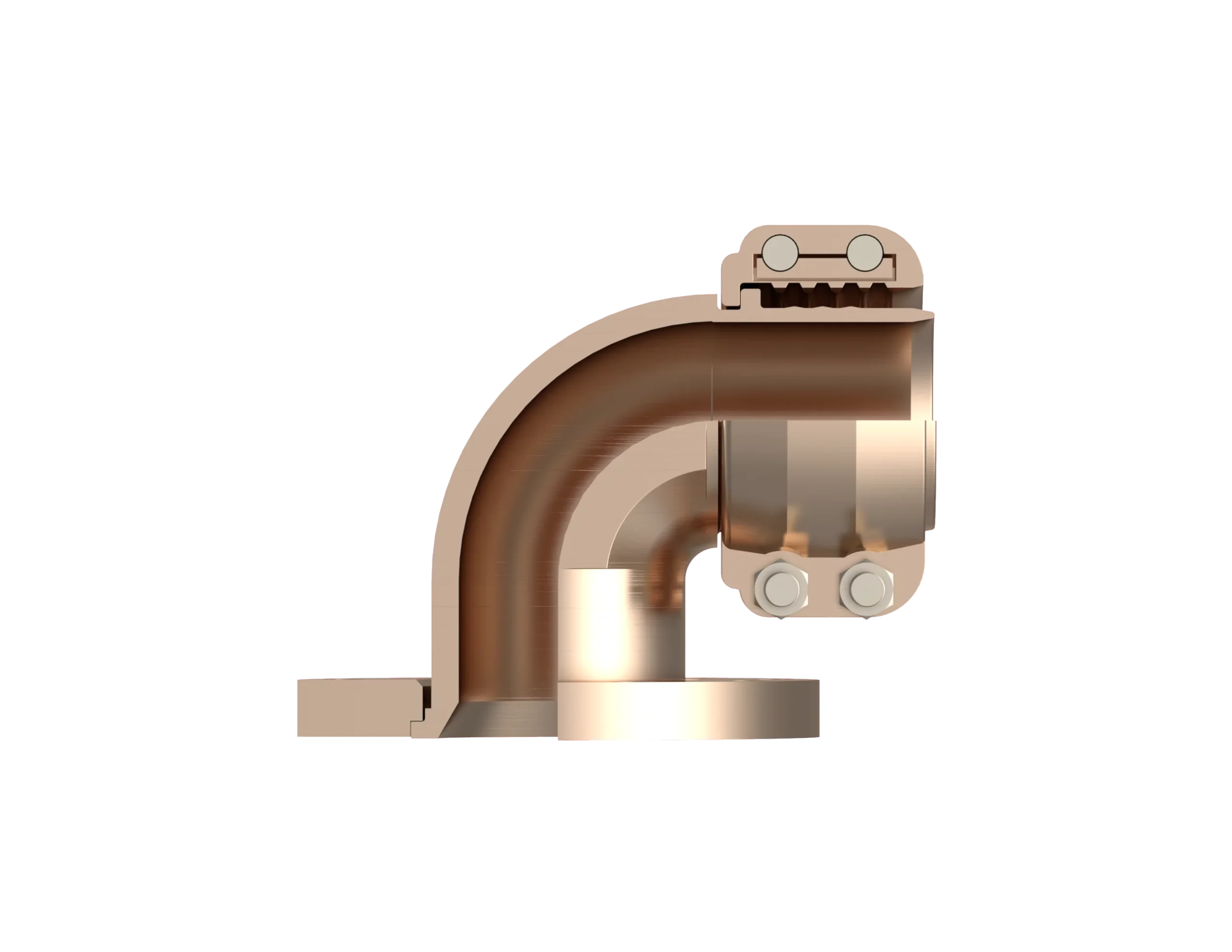

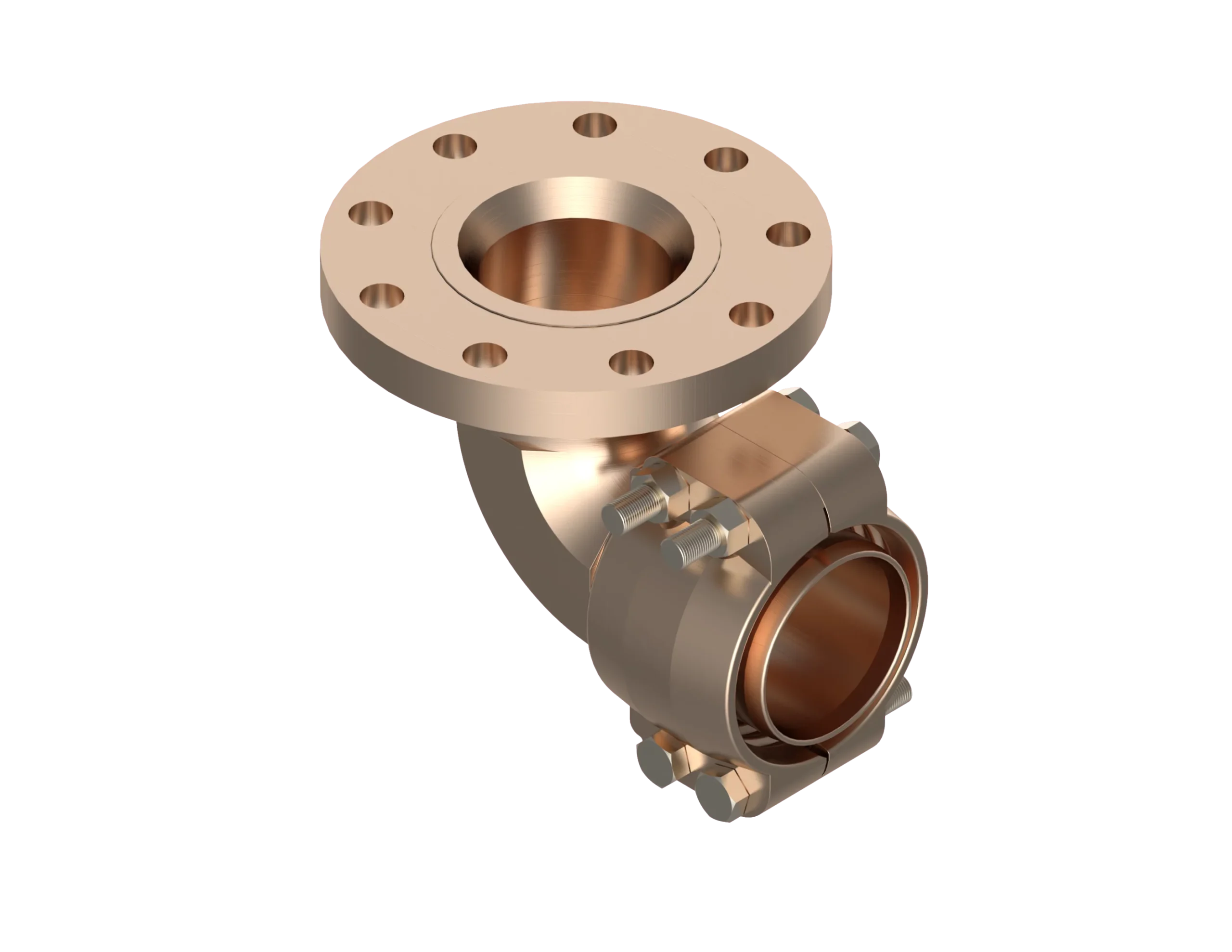

ISO 1 41 scalediso-1-42std-37q-cut-40iso-3-6iso-2-38
90EF-1546B1-3-48

90EF-1546B1-3-48 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class I, 400lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FC9638-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90EF-1546B1-3-48
  • Hydrasearch Drawing Number: C18419
  • IPS Size: 3
  • No. of Bolt Holes: 8
  • M: .81
  • A: 5.78
  • D: 2.89
  • H: 4.00
  • J: 8.13
  • K: 4.50
  • L: 6.56
  • N: .94
  • R: 2.09
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 25.00

Specification Table

Part Number90EF-1546B1-3-48
Hydrasearch Drawing NumberC18419
IPS Size3
No. of Bolt Holes8
M.81
A5.78
D2.89
H4.00
J8.13
K4.50
L6.56
N.94
R2.09
S3.31
T7.65
Est. Wt. (lbs.)25.00

Specification Image

90EF-1546B1

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17798C17799C17801C17802C17803C17804Aluminum. Bronze
Elbow1C18052C18052D18305D18306D18307D18308Aluminum. Bronze
Grip Segment2D17739-1D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17747-2B17748-2B17748-2B17749-2B17749-2Monel
