EF-449A1-2.5-40-SS

EF-449A1-2.5-40-SS

Print Icon Print Download Icon Download PDF

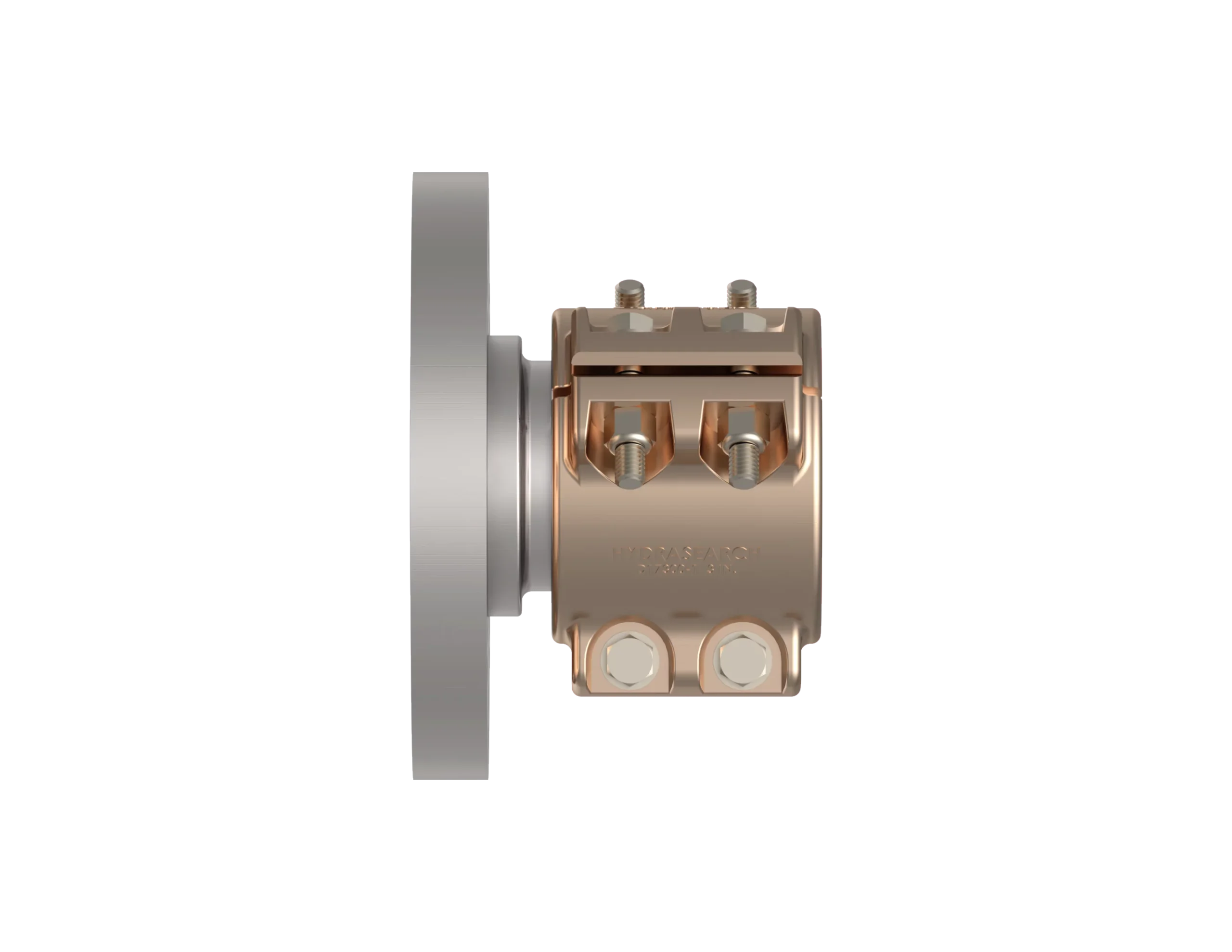

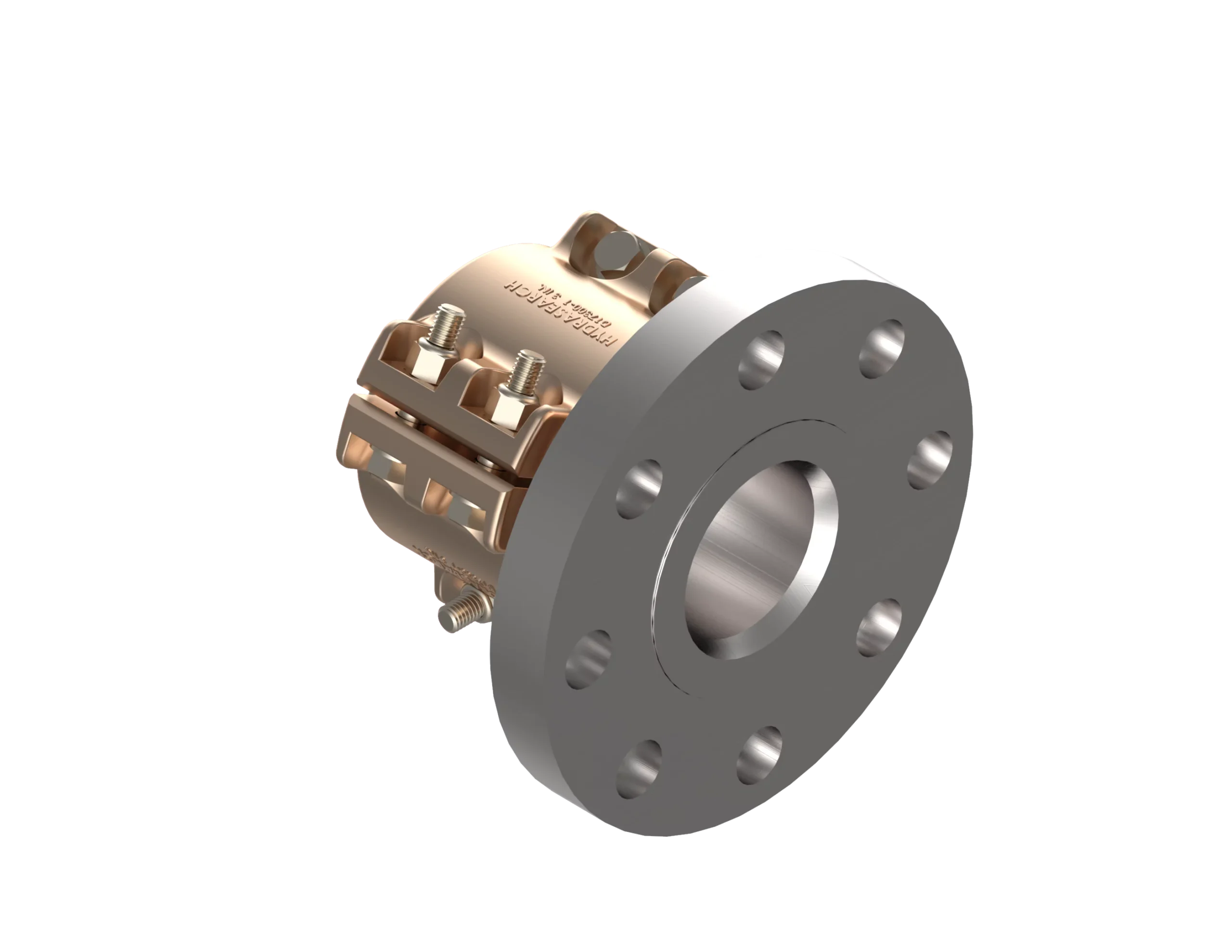

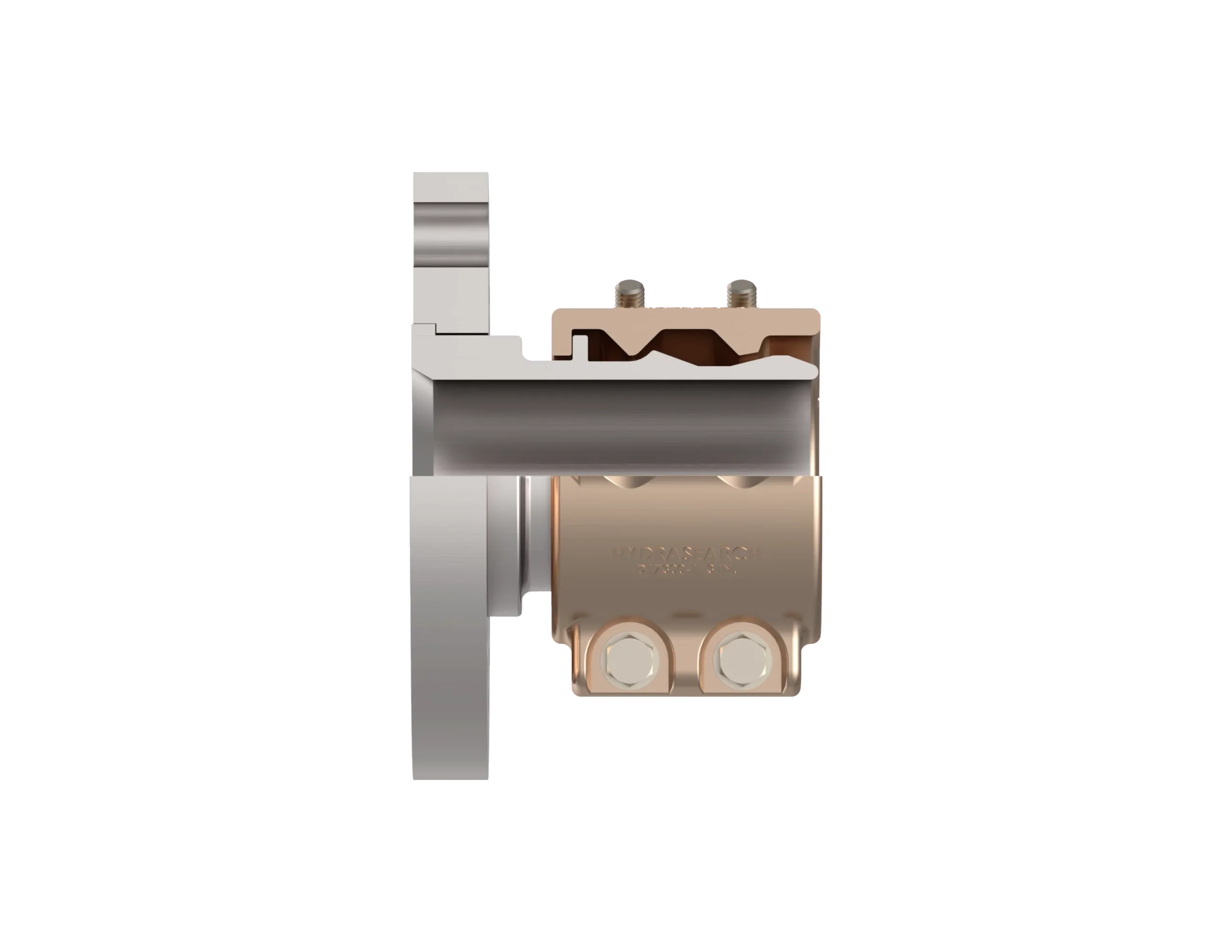

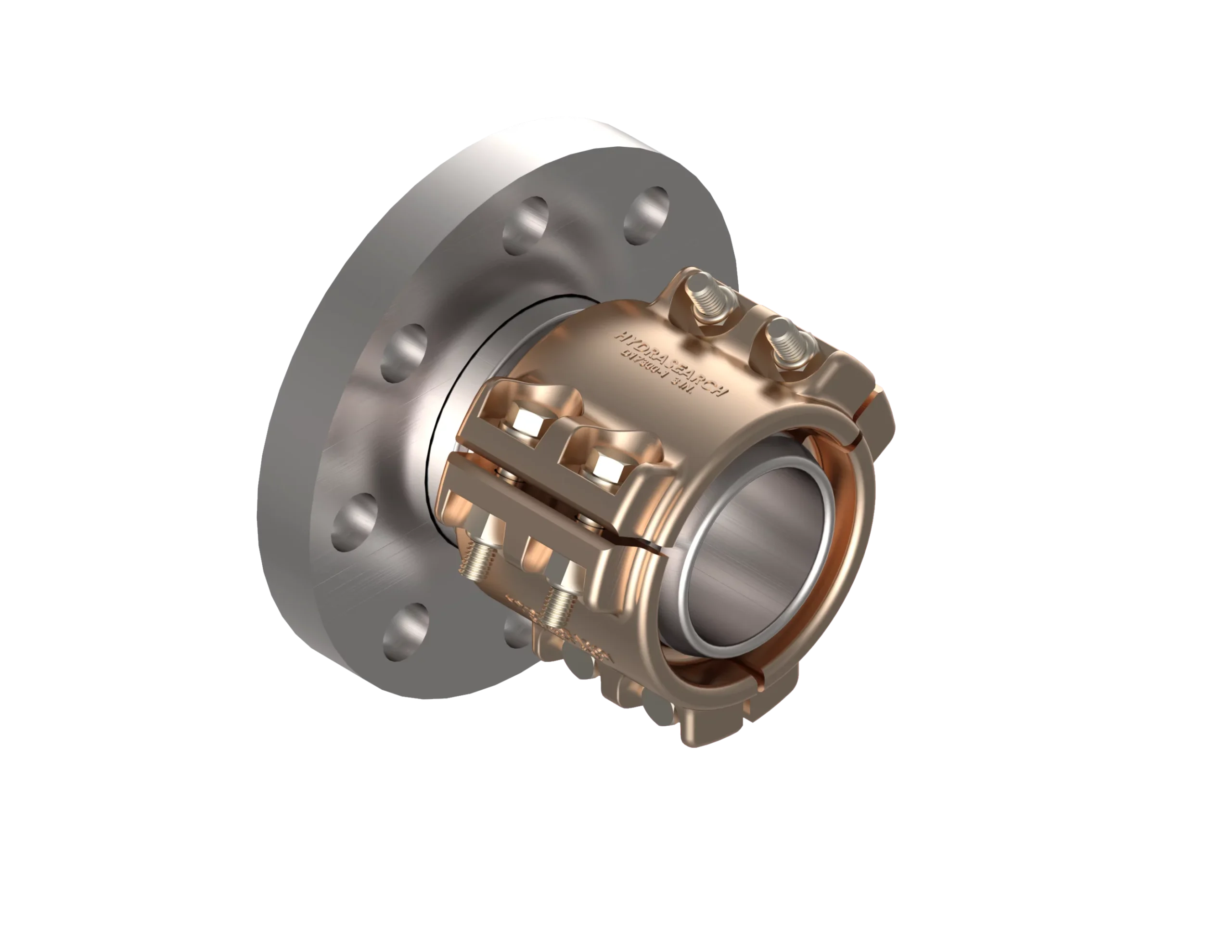

( MIL-DTL-24787/1, 400lb, End Fitting - Straight )

Description:

Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A1-2.5-40-SS
  • Hydrasearch Drawing Number: C18581
  • IPS Size: 2.5
  • No. of Bolt Holes: 8
  • M: .81
  • A: 5.11
  • D: 2.20
  • J: 7.56
  • K: 3.22
  • L: 6.00
  • N: .94
  • S: 2.24
  • T: 5.35
  • Est. Wt. (lbs.): 16.00

Specification Table

Part NumberEF-449A1-2.5-40-SS
Hydrasearch Drawing NumberC18581
IPS Size2.5
No. of Bolt Holes8
M.81
A5.11
D2.20
J7.56
K3.22
L6.00
N.94
S2.24
T5.35
Est. Wt. (lbs.)16.00

Components Table

DescriptionReq’d per Ass’y2.5-40Material
Swivel Flange1C18156Stainless Steel
Nipple1C18152Stainless Steel
Segment3D17299Aluminum. Bronze
Bolt6B17673-2Monel
Lock Nut6B18176Monel
Washer6B18175Monel
