( End Fitting - 90° )
Description:
Equal to Aeroquip P/N 93-191301,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 93-191301-1/2-12 |
|---|---|
| IPS Size | 1/2 |
| T Thread CL-3A | 1-3/4”-12 |
| A | 4.15 |
| C | 1.81 |
| D | 2.58 |
| E | .55 |
| G | 1.25 |
| H | 2.31 |
| M | .62 |
| N | .74 |
| R | 1.25 |
| W | 1.00 |
| Est. Wt. (lbs.) | 1.34 |

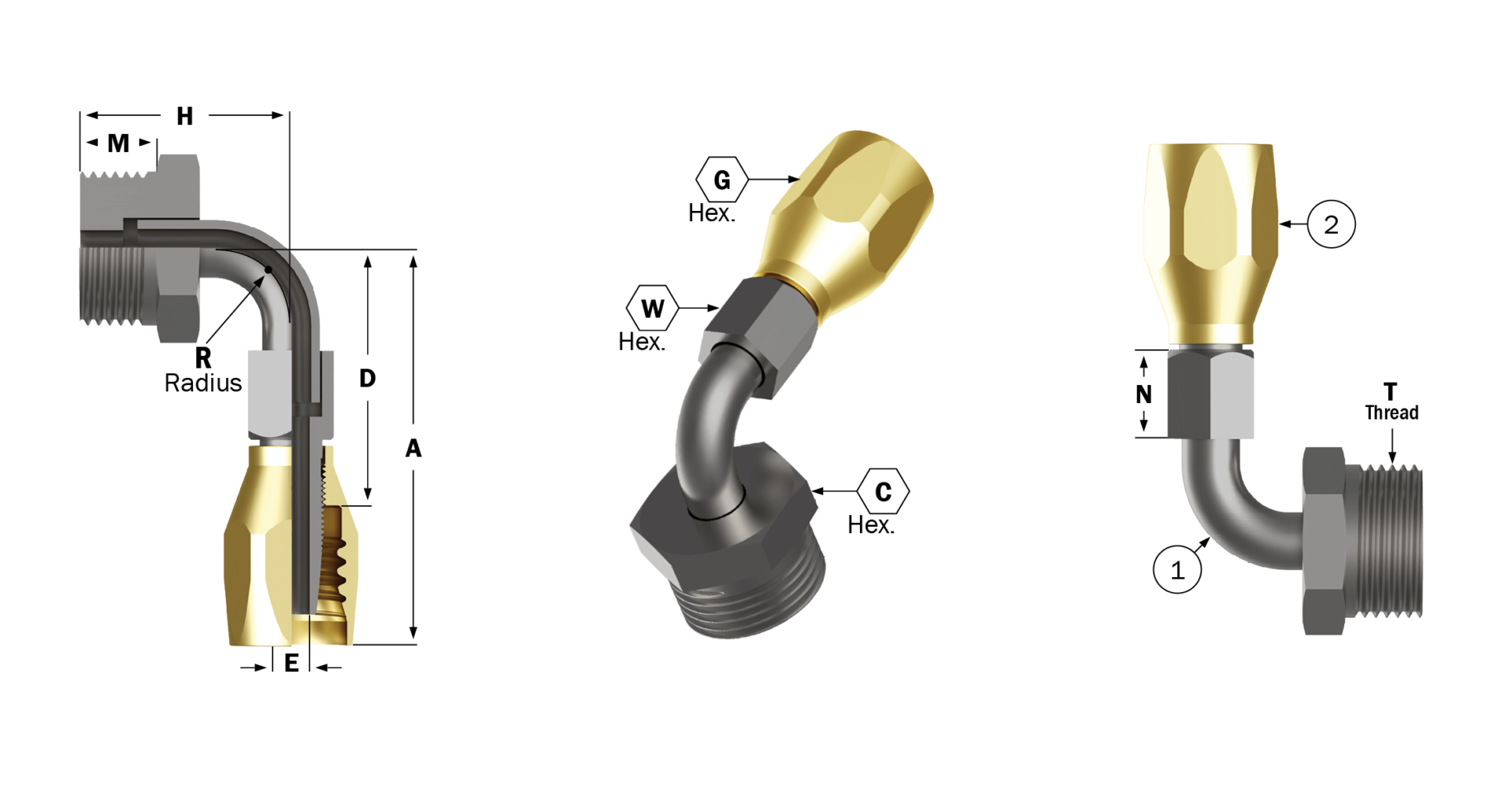

Specification Image
Components Table
| Description | Req’d per Ass’y | Base No. | 1/8-6 | 1/4-8 | 3/8-10 | 1/2-12 | Material |
| Elbow | 1 | 4-186301- | 1/8-6 | 1/4-8 | 3/8-10 | 1/2-12 | Monel |
| Socket | 1 | 1210- | 6B | 8B | 10B | 12B | Brass |
