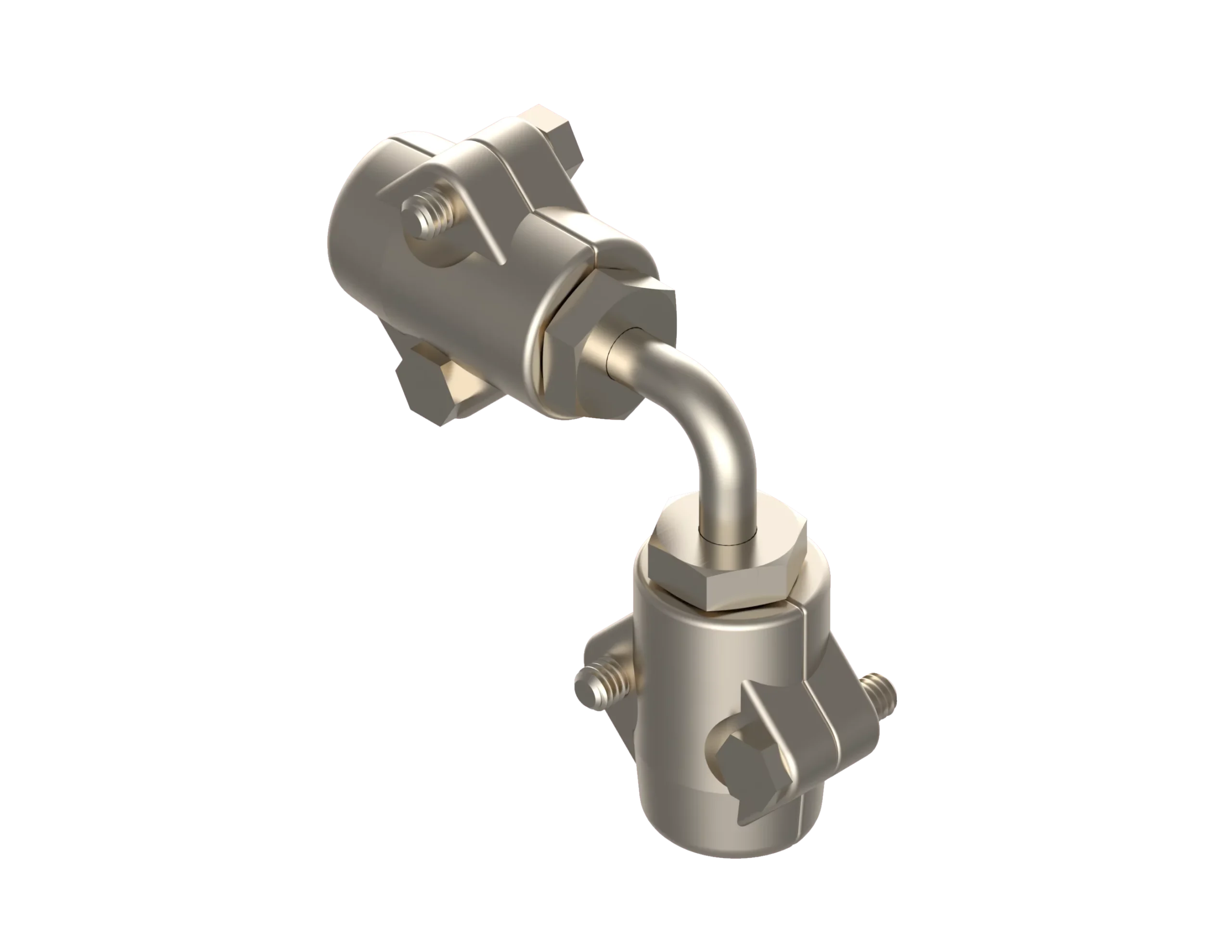

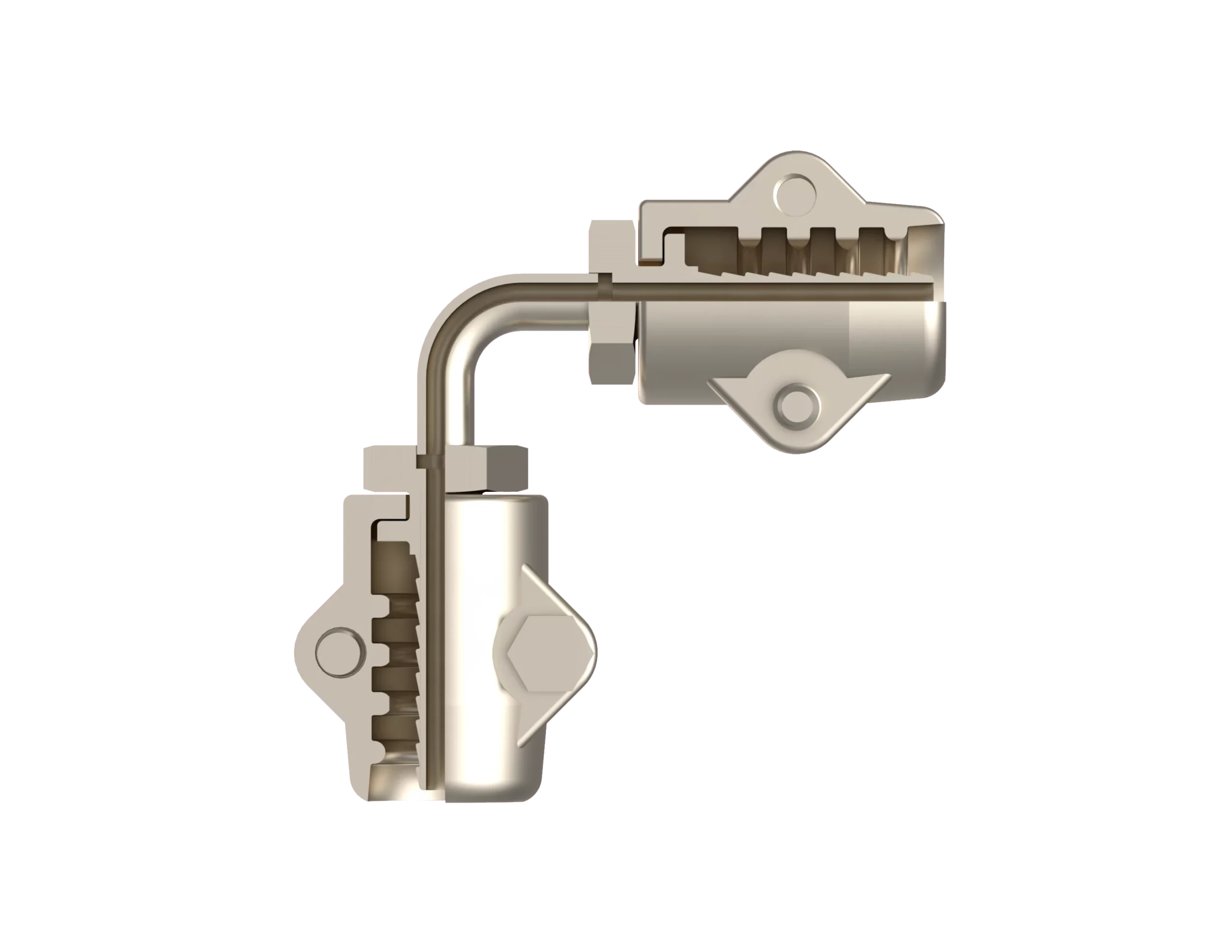

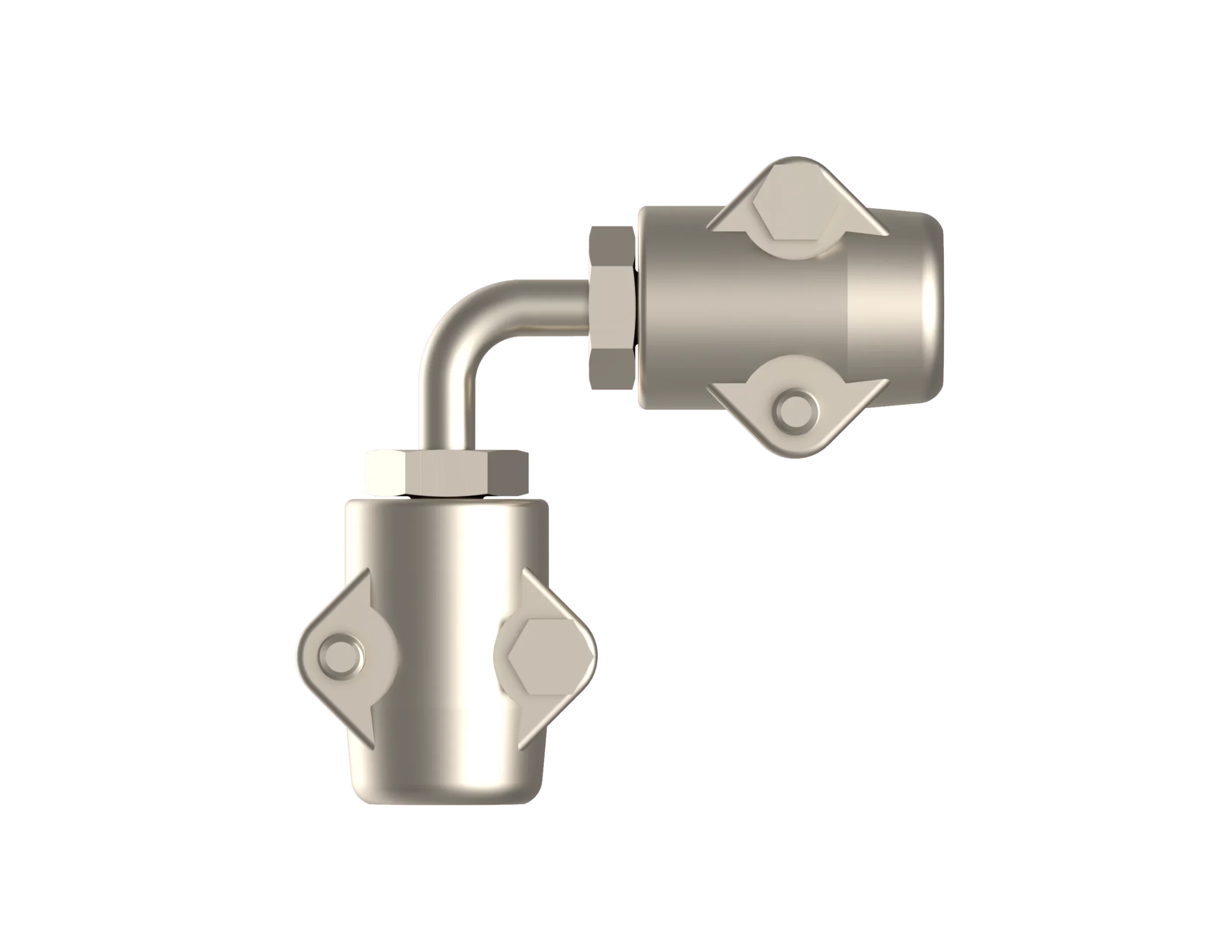

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7183-0606-4
  • IPS Size: 3/8
  • A: 3.20
  • D: 1.58
  • E: .24
  • R: .50
  • V: 2.00
  • W: .94
  • X: 2.34
  • Est. Wt. (lbs.): 1.20

Specification Table

Part NumberFC7183-0606-4
IPS Size3/8
A3.20
D1.58
E.24
R.50
V2.00
W.94
X2.34
Est. Wt. (lbs.)1.20

Components Table

DescriptionReq’d per Ass’yBase No.06061212Mat’l
Elbow1FC6183-0606-41212-4Monel
Segment2FC2057-1-06-41-12-4Monel
Bolt2FF9032-05-18-407-24-4Monel
