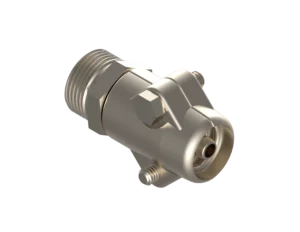

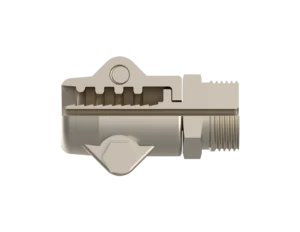

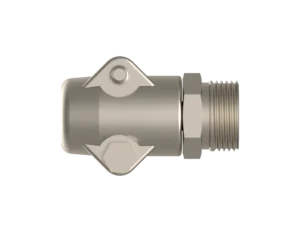

HS1489 - High Pressure
FC7180-0608-4
( MIL-DTL-24787/3, Type C, Group XI, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N EF-1489C-0608,
Use with the following hose:
HS133
Specification
Specification Table
| Part Number | FC7180-0608-4 |
|---|---|
| IPS Size | 3/8 |
| Thread CL-3A | 1-3/8”-12 |
| A | 3.08 |
| C | 1.44 |
| D | 1.36 |
| E | .39 |
| M | .62 |
| V | 2.10 |
| X | 2.66 |
| Est. Wt. (lbs.) | 1.40 |
Components Table
| Description | Req’d per Ass’y | Base No. | 0406 | 0408 | 0608 | 0808 | 0812 | Mat’l |
| Nipple | 1 | FC2074- | 0406-4 | 0408-4 | 0608-4 | 0808-4 | 0812-4 | Monel |
| Segment | 2 | FC2057- | 1-06-4 | 1-08-4 | 1-08-4 | 1-08-4 | 1-12-4 | Monel |
| Bolt | 2 | FF9032- | 05-18-4 | 06-20-4 | 06-20-4 | 06-20-4 | 07-24-4 | Monel |
