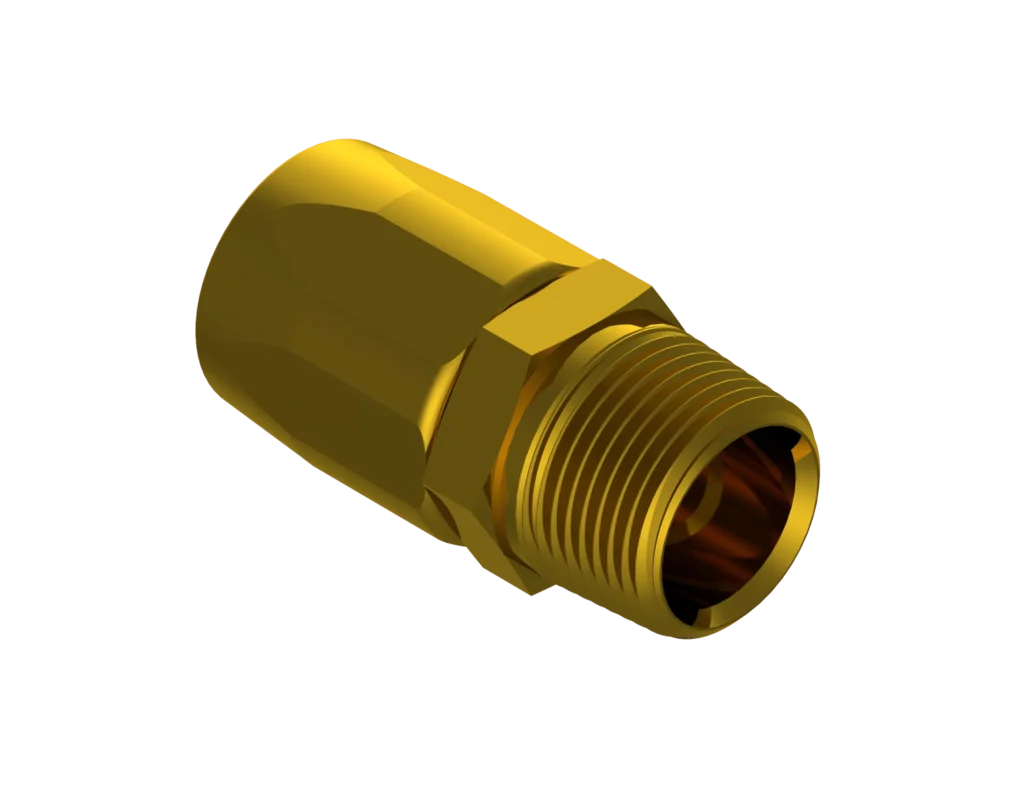

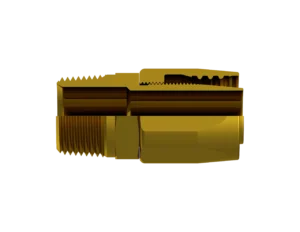

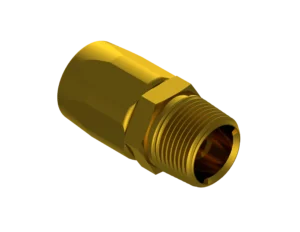

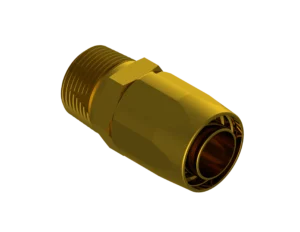

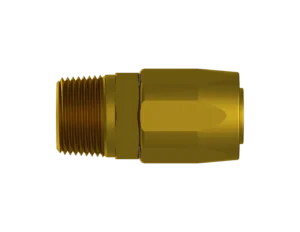

( End Fitting - Straight )
Description:
Equal to Hydrasearch P/N 412B & 44-412,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 44-412-40-40 |
|---|---|
| Hose Size | 2.5 |
| T Thread CL-2A | 2-1/2”-8 |
| A | 5.03 |
| B | 1.61 |
| C | 3.00 |
| D | 3.13 |
| E | 2.12 |
| G | 3.25 |
| M | 1.52 |
| V | 2.50 |
| Est. Wt. (lbs.) | - |
Components Table
| Description | Req’d per Ass’y | Base No. | -12-16 | -16-16 | -20-20 | -24-24 | -32-32 | Material |
| Nipple | 1 | 4-1252- | 12-16 | 16-16 | 20-20 | 24-24 | 32-32 | Brass |
| Socket | 1 | 4-1212- | 16 | 16 | 20 | 24 | 32 | Brass |
| Description | Req’d per Ass’y | Base No. | -40-40 | -48-48 | Material |
| Nipple | 1 | 3-1252- | -40-40 | -48-48 | Brass |
| Socket | 1 | 1212- | -40B | -48B | Brass |
