EF-B1488C-1216

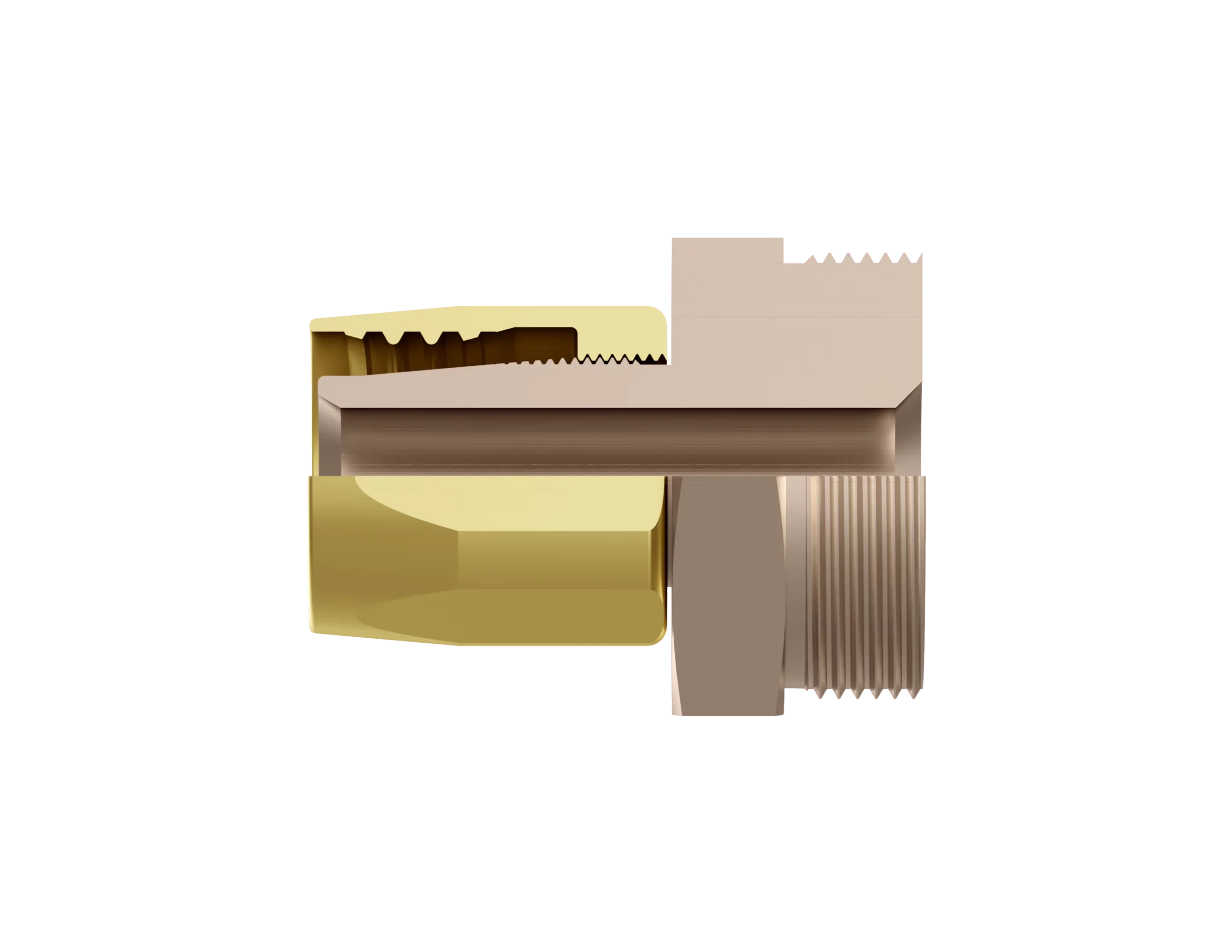

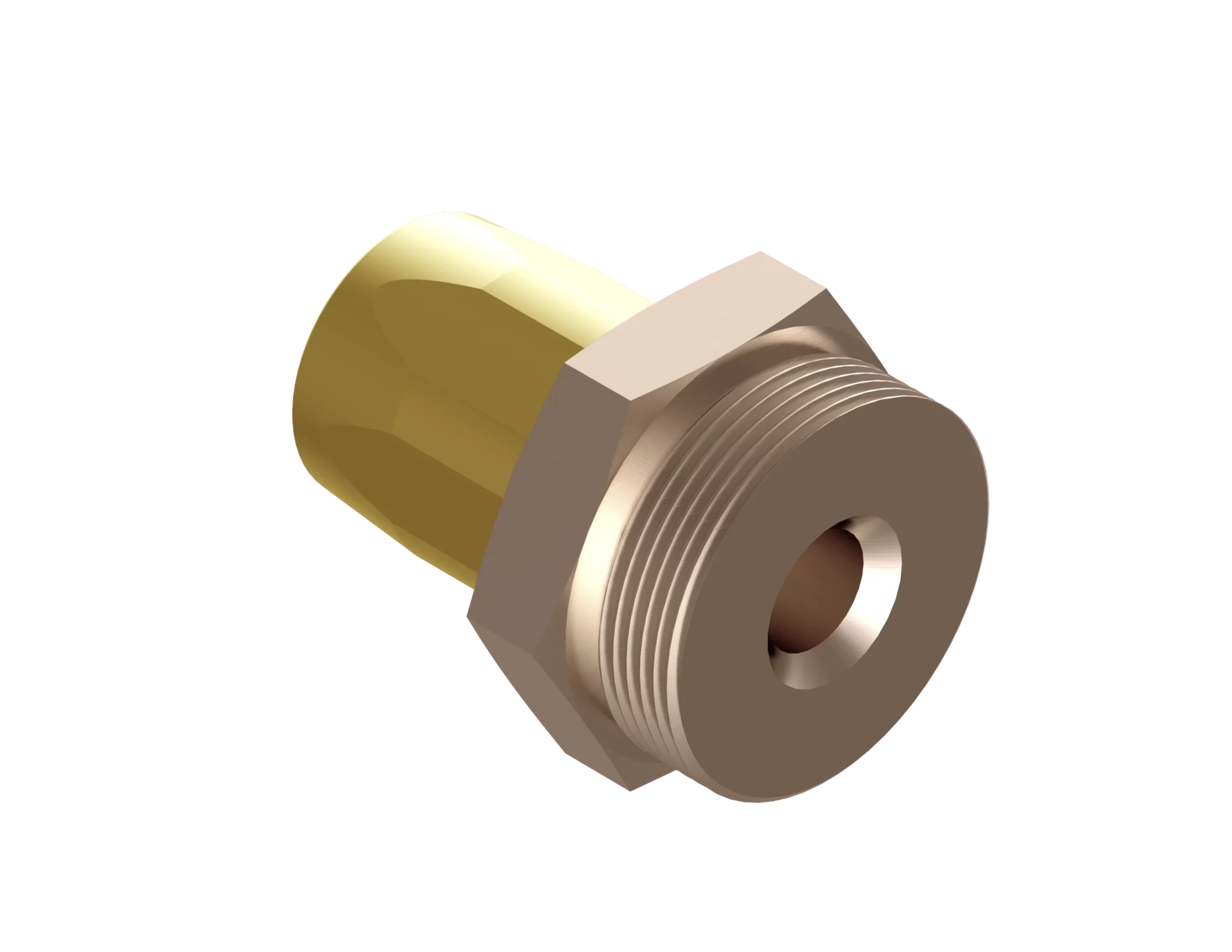

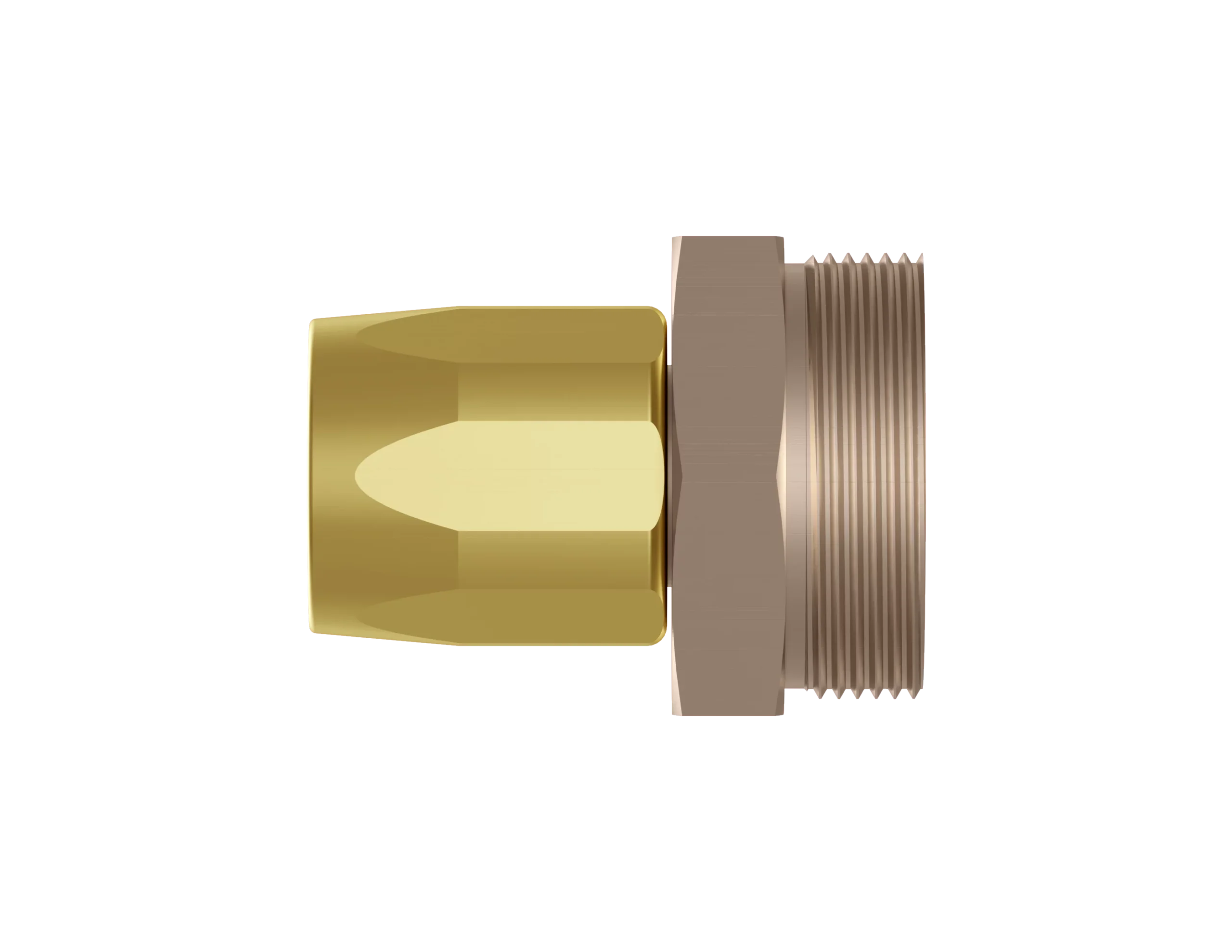

EF-B1488C-1216 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Bronze/Brass)

Print Icon Print Download Icon Download PDF
( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 66-190911,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488C-1216
  • Hydrasearch Drawing Number: C19307
  • IPS Size: 3/4
  • T Thread CL-3A: 2”-12
  • A: 2.72
  • C: 2.13
  • D: 1.52
  • G: 1.44
  • M: .62
  • Est. Wt. (lbs.): 1.60

Specification Table

Part NumberEF-B1488C-1216
Hydrasearch Drawing NumberC19307
IPS Size3/4
T Thread CL-3A2”-12
A2.72
C2.13
D1.52
G1.44
M.62
Est. Wt. (lbs.)1.60

Components Table

DescriptionReq’d per Ass’y1216162020242432Material
Nipple1C19256-1C19257C19258C19259Aluminum.Bronze
Socket1C18667-1C18703-1C18990-1C18811Brass
