90ELB-1488D-0606

90ELB-1488D-0606

Print Icon Print Download Icon Download PDF

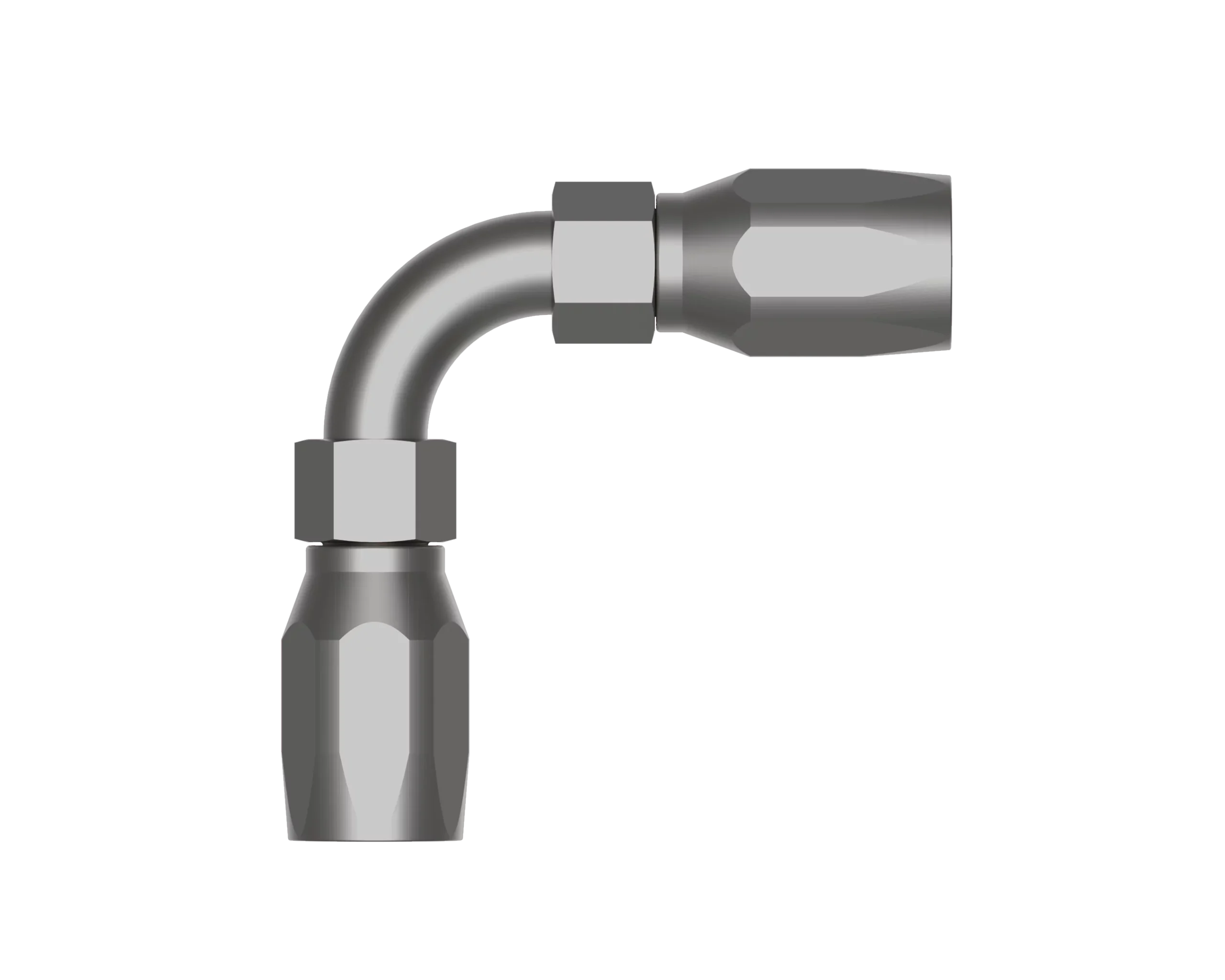

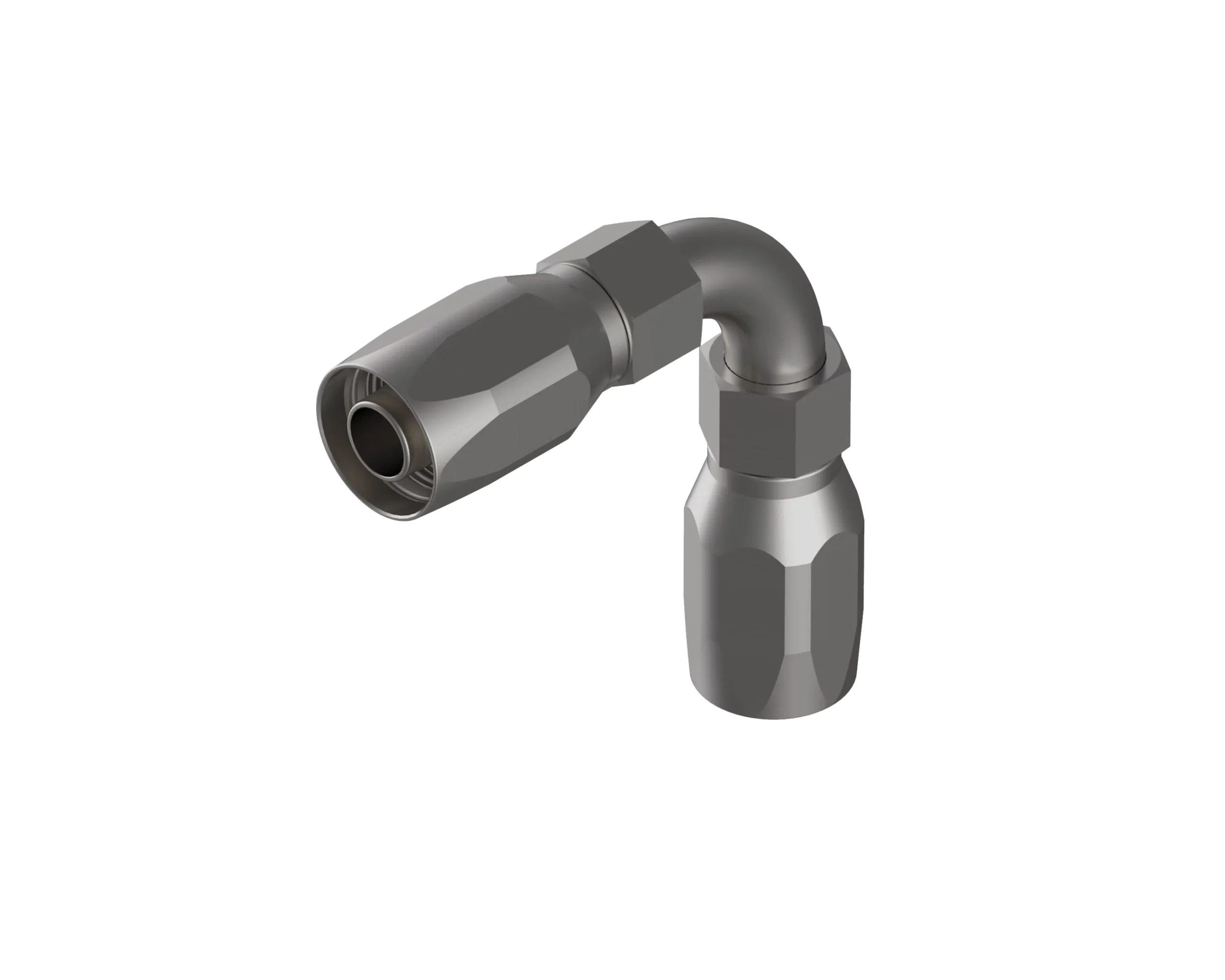

( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 4-191302,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

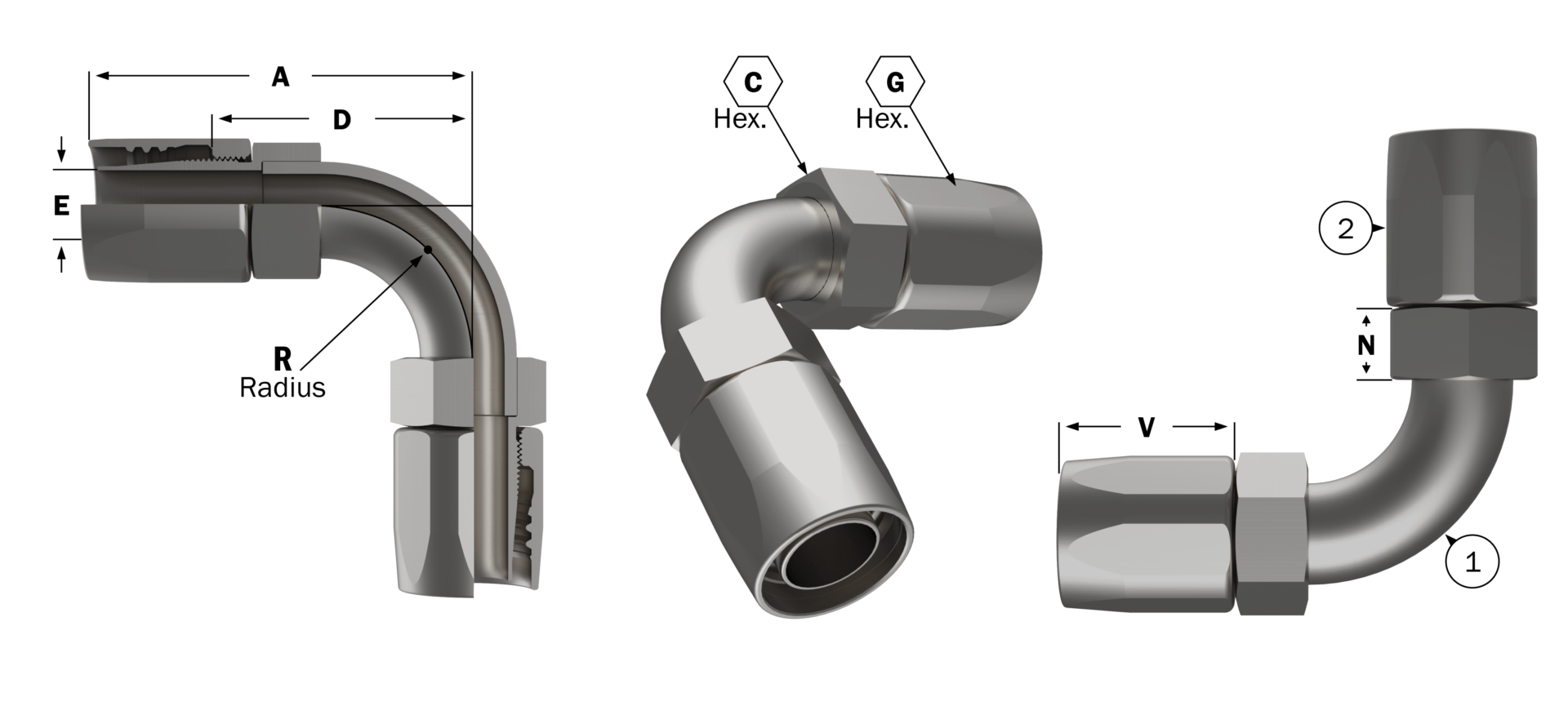

Specification

  • Part Number: 90ELB-1488D-0606
  • Hydrasearch Drawing Number: C19356
  • IPS Size: 3/8
  • A: 2.45
  • C: .56
  • D: 1.55
  • E: .24
  • G: .81
  • N: .58
  • R: .50
  • S: .38
  • V: 1.30
  • Est. Wt. (lbs.): .20

Specification Table

Part Number90ELB-1488D-0606
Hydrasearch Drawing NumberC19356
IPS Size3/8
A2.45
C.56
D1.55
E.24
G.81
N.58
R.50
S.38
V1.30
Est. Wt. (lbs.).20

Components Table

DescriptionReq’d per Ass’y0606080810101212Material
Elbow1C19104C19105C19106C19107Monel
Socket2C18986-2C18468-2C18987-2C18988-2Monel
