4-191302-16

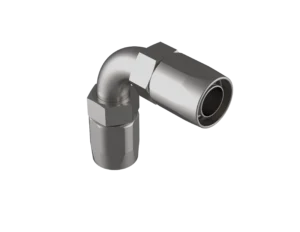

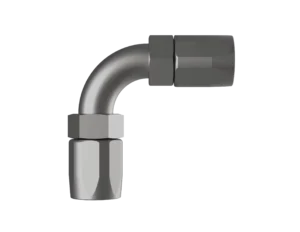

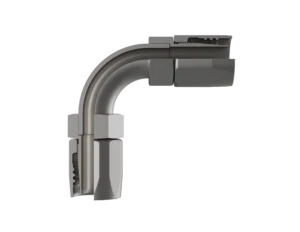

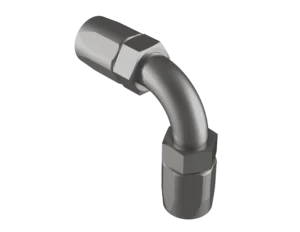

HS1488 - Medium Pressure Fittings

4-191302-16

Print Download PDF
( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N 90ELB-1488D-1616,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 4-191302-16
  • IPS Size: 1
  • A: 3.93
  • C: 1.38
  • D: 2.66
  • E: .82
  • G: 1.44
  • N: .70
  • R: 1.50
  • S: 1.00
  • V: 1.66
  • Est. Wt. (lbs.): 1.31

Specification Table

Part Number4-191302-16
IPS Size1
A3.93
C1.38
D2.66
E.82
G1.44
N.70
R1.50
S1.00
V1.66
Est. Wt. (lbs.)1.31

Specification Image

4-191302-16 specification drawing

Components Table

DescriptionReq’d per Ass’yBase No.16163232Material
Elbow115-419037-1632Monel
Socket24-1212-1632Monel
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
