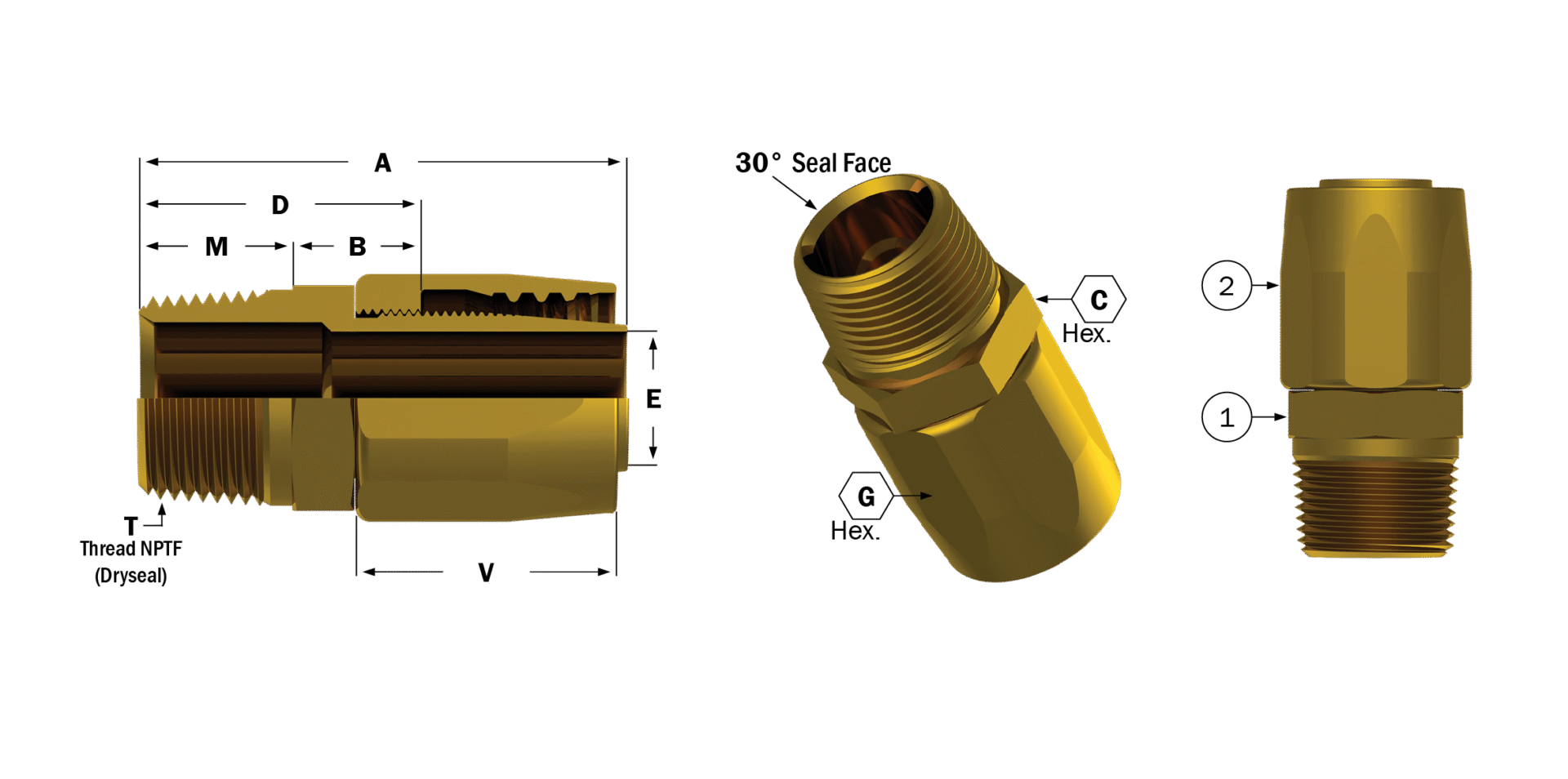

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 412B & 44-412,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488MP-4848
  • Hydrasearch Drawing Number: C19153
  • Hose Size: 3
  • T Thread CL-2A: 3”-8
  • A: 5.10
  • B: 1.58
  • C: 3.88
  • D: 3.16
  • E: 2.69
  • G: 3.88
  • M: 1.58
  • V: 2.47
  • Est. Wt. (lbs.): 7.30

Specification Table

Part NumberEF-B1488MP-4848
Hydrasearch Drawing NumberC19153
Hose Size3
T Thread CL-2A3”-8
A5.10
B1.58
C3.88
D3.16
E2.69
G3.88
M1.58
V2.47
Est. Wt. (lbs.)7.30

Specification Image

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Nipple1C19070C18028C18027C18026--Brass
Nipple1----C19156C19171Aluminum. Bronze
Socket1C18867-1C18703-1C18990-1C18811C18822C17901Brass
